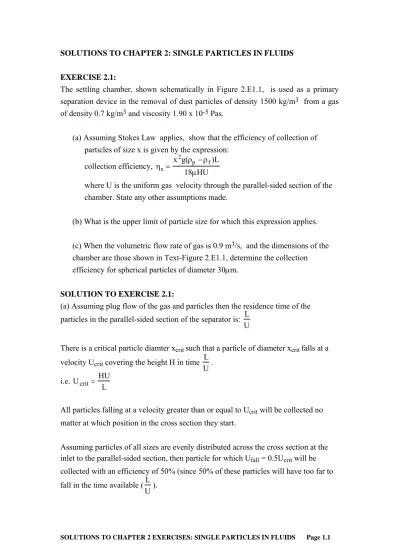

SOLUTIONS TO CHAPTER 2: SINGLE PARTICLES IN FLUIDS EXERCISE 2.1:

The settling chamber, shown schematically in Figure 2.E1.1, is used as a primary separation device in the removal of dust particles of density 1500 kg/m3 from a gas

of density 0.7 kg/m3 and viscosity 1.90 x 10-5 Pas.

(a) Assuming Stokes Law applies, show that the efficiency of collection of particles of size x is given by the expression:

collection efficiency, ηx= x 2g(ρ

p −ρf)L 18μHU

where U is the uniform gas velocity through the parallel-sided section of the chamber. State any other assumptions made.

(b) What is the upper limit of particle size for which this expression applies. (c) When the volumetric flow rate of gas is 0.9 m3/s, and the dimensions of the

chamber are those shown in Text-Figure 2.E1.1, determine the collection efficiency for spherical particles of diameter 30μm.

SOLUTION TO EXERCISE 2.1:

(a) Assuming plug flow of the gas and particles then the residence time of the particles in the parallel-sided section of the separator is: L

U

There is a critical particle diamter xcrit such that a particle of diameter xcrit falls at a velocity Ucrit covering the height H in time L

U. i.e. Ucrit = HU

L

All particles falling at a velocity greater than or equal to Ucrit will be collected no matter at which position in the cross section they start.

Assuming particles of all sizes are evenly distributed across the cross section at the inlet to the parallel-sided section, then particle for which Ufall = 0.5Ucrit will be collected with an efficiency of 50% (since 50% of these particles will have too far to fall in the time available (L

(2)

It follows that efficiency, η = Ufall

Ucrit

Assuming that all particles reach their terminal free fall velcocity in very short time and can be assumed to fall at this velocity, then

ηx= UT

Ucrit , where UT is the single particle terminal velocity.

Assuming Stokes Law applies, then UT = x

2g ρ p − ρf

(

)

18μ ηx= x 2g ρ p− ρf

(

)

18μ L

HU, where η is the efficiency of collection of particles of size x. (b) The upper limit of particle size for which this expression applies.

The expression is limited to those particles for which Stokes Law applies, i.e. for Rep < 0.3

At the limiting Reynolds number, UTρfx

μ = 0.3 (2.1.1) From Stokes Law, UT = x

2g ρ p − ρf

(

)

18μ (2.1.2)

Solving Equations 2.1.1 and 2.1.2 simultaneously, x = 57.4 μm (not 50 μm as give in the book, which is calculated for Rep = 0.2)

(c) Collection efficiency for spherical particles of diameter 30μm when volumetric flow rate of gas is 0.9 m3/s:

Superficial gas velocity in parallel-sided section, U= 0.9 WH =

0.9

2× 3= 0.15 m / s From the equation derived for efficiency,

η30 = 30×10 −6

(

)

2 × 9.81× 1500 − 0.7

(

)

18×1.9 ×10−5 10 3× 0.15 = 0.86 Collection efficiency for 30μm particles is 86%.

(3)

EXERCISE 2.2:

A particle of equivalent sphere volume diameter 0.2 mm, density 2500 kg/m3 and

sphericity 0.6 falls freely under gravity in a fluid of density 1.0 kg/m3 and viscosity 2

x10-5 Pas. Estimate the terminal velocity reached by the particle. (Answer: 0.6 m/s) SOLUTION TO EXERCISE 2.2:

In this case we know the particle size and are required to determine its terminal velocity without knowing which regime is appropriate. The first step is, therefore, to calculate the dimensionless group CDRe2p:

CDRe2p= 4 3 x3ρfp− ρf)g μ2 = 4 3 (0.2×10−3)3×1.0 × 2500 −1.0

(

)

× 9.81 2×10−5

(

)

2 ⎡ ⎣ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ = 653.7

This is the relationship between drag coefficient CD and single particle Reynolds number Rep for particles of size 0.2 mm and density 2500 kg/m3 falling in a fluid of

density 1.0 kg/m3 and viscosity 2 x 10-5 Pas. Since C is a constant, this

relationship will give a straight line of slope -2 when plotted on the log-log coordinates of the standard drag curve.

DRe2p

For plotting the relationship:

Rep CD

1 653.7 10 6.537

These values are plotted on the standard drag curves for particles of different sphericity (Text- Figure 2.3). The result is shown in Figure 2.2.1.

Where the plotted line intersects the standard drag curve for a sphericity of 0.6 (ψ = 0.6), Rep = 6.0.

The terminal velocity UT may be calculated from:

Rep = 6 =ρfxvUT μ

(4)

EXERCISE 2.3:

Spherical particles of density 2500 kg/m3 and in the size range 20 - 100 μm are fed

continuously into a stream of water (density, 1000 kg/m3 and viscosity, 0.001 Pas)

flowing upwards in a vertical, large diameter pipe. What maximum water velocity is required to ensure that no particles of diameter greater than 60 μm are carried upwards with the water?

SOLUTION TO EXERCISE 2.3:

Assume that the upward velocity of the water if effectively uniform across the cross section of the large pipe and that the pipe walls have no effect

[

U UD= 1.0

]

. Assume that the particle accelerate so quickly to their terminal velocity so that the relative velocity between the particles and the water is equal to the single particle terminal velocity, UT. Thus, if the upward water velocity is less that UT for the

particle, the particle will fall and if the upward water velocity if greater than UT, the

particle will rise. In the limiting case: water velocity = UT

Assuming Stokes Law applies for the 60μm particles, UT = x 2g ρ p − ρf

(

)

18μ hence, UT = 60×10 −6

(

)

2 × 9.81 × 2500 −1000

(

)

18× 0.001 = 2.943 ×10 −3 m / s

Check Reynolds number, Rep= ρfxvUT

μ =

2.943×10−3×1000 × 60 ×10−6

0.001 = 0.177

Rep is less than 0.3, and so the assumption of Stokes Law is valid. Hence, maximum water velocity = 2.94 mm/s

EXERCISE 2.4:

Spherical particles of density 2000 kg/m3 and in the size range 20 - 100 μm are fed

continuously into a stream of water (density, 1000 kg/m3 and viscosity, 0.001 Pas)

flowing upwards in a vertical, large diameter pipe. What maximum water velocity is required to ensure that no particles of diameter greater than 50 μm are carried upwards with the water?

(5)

Assume that the upward velocity of the water if effectively uniform across the cross section of the large pipe and that the pipe walls have no effect

[

U UD= 1.0

]

. Assume that the particle accelerate so quickly to their terminal velocity so that the relative velocity between the particles and the water is equal to the single particle terminal velocity, UT. Thus, if the upward water velocity is less that UT for the

particle, the particle will fall and if the upward water velocity if greater than UT, the

particle will rise. In the limiting case: water velocity = UT

Assuming Stokes Law applies for the 50μm particles, UT = x

2g ρ p − ρf

(

)

18μ hence, UT = 50×10 −6

(

)

2 × 9.81 × 2000 −1000

(

)

18× 0.001 = 1.36 ×10 −3 m / s

Check Reynolds number, Rep= ρfxvUT

μ =

1.36× 10−3×1000 × 50 ×10−6

0.001 = 0.068 Rep is less than 0.3, and so the assumption of Stokes law is valid.

Hence, maximum water velocity = 1.36 mm/s

EXERCISE 2.5:

A particle of equivalent volume diameter 0.3 mm, density 2000 kg/m3 and sphericity

0.6 falls freely under gravity in a fluid of density 1.2 kg/m3 and viscosity 2 x10-5 Pas.

Estimate the terminal velocity reached by the particle.

SOLUTION TO EXERCISE 2.5:

In this case we know the particle size and are required to determine its terminal velocity without knowing which regime is appropriate. The first step is, therefore, to calculate the dimensionless group CDRe2p:

CDRe2p= 4 3 x3ρfp− ρf)g μ2 = 4 3 (0.3×10−3)3×1.2 × 2000 −1.2

(

)

× 9.81 2×10−5

(

)

2 ⎡ ⎣ ⎢ ⎢ ⎤ ⎦ ⎥ ⎥ = 2117

(6)

This is the relationship between drag coefficient CD and single particle Reynolds number Rep for particles of size 0.3 mm and density 2000 kg/m3 falling in a fluid of

density 1.2 kg/m3 and viscosity 2 x 10-5 Pas. Since C is a constant, this

relationship will give a straight line of slope -2 when plotted on the log-log coordinates of the standard drag curve.

DRe2p

For plotting the relationship:

Rep CD

1 2117 10 21.17 100 0.2117

These values are plotted on the standard drag curves for particles of different sphericity (Text-Figure 2.3). The result is shown in Figure 2.5.1.

Where the plotted line intersects the standard drag curve for a sphericity of 0.6 (ψ = 0.6), Rep = 12.

The terminal velocity UT may be calculated from:

Rep= 12 = ρfxvUT

μ

Hence, terminal velocity, UT = 0.667 m/s EXERCISE 2.6: (Cambridge University)

Assuming that a car is equivalent to a flat plate 1.5 m square, moving normal to the air-stream, and with a drag coefficient, CD = 1.1, calculate the power required for

steady motion at 100 km/h on level ground. What is the Reynolds number? For air assume a density of 1.2 kg/m3 and a viscosity of 1.71 x 10-5 Pas.

SOLUTION TO EXERCISE 2.6:

Drag coefficient, CD = 1 R ′ 2ρfU

2, where R ′ is the fluid drag force per unit projected

area and U is the relative velocity of the "particle" and the fluid of density ρf. Relative velocity, U = 27.78 m/s.

(7)

= R AU′ = CD1 2ρfAU 3 = 1.1×1 2 × 1.5 ×1.5

(

)

× 1.2 × 27.78 3 = 31836 kW = 31.8 kW. eynolds number = R Uρfx μ = 27.78×1.5 × 1.2 1.71× 10−5 = 2.92 ×10 6

EXERCISE 2.7: (Cambridge University)

such that the drag coefficient is 0.4 he percentage change in velocity of the ball after 100 m horizontal flight ) higher Reynolds number and a new ball, the drag coefficient falls to

n both cases take the mass and diameter of the ball as 0.15 kg and 6.7 cm

2.7:

the ball after 100 m horizontal flight in air:

force, A cricket ball is thrown with a Reynolds number

(Re ≈ 105).

(a) Find t in air. (b With a

0.1. What is now the percentage change in velocity over 100 m horizontal flight?

(I

respectively and the density of air as 1.2 kg/m3.) Readers unfamiliar with the game of

cricket may substitute a baseball.

SOLUTION TO EXERCISE

(a) percentage change in velocity of

The kinetic energy of the cricket ball is dissipated by working against the drag F, which varies with relative velocity. Thus:

F× ds = −d 1 2mu 2 ⎡ ⎤ ⎣ ⎦ F= −m d ds u2 2 ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ 2F and so, m ds= −d(u 2) F= CD 1 2ρfu 2 πx2 4 ⎛ Now drag force,

⎝ ⎜ ⎞

⎟ , where x is the diameter of the ball. If CD = 0.4, then: F= 0.4 ×1 2 2 ×1.2 × u 2 π0.067 4 ⎛ ⎝ ⎜ ⎠ ⎟ = 8.461× 10−4 u2 Newton and with mass of ball, m = 0.15 kg,

0.01128 ds= −d(u2) u2

(8)

01128 s= −ln(u2)+ K integrating: 0.

ditions: when s = 0, u = u0 when s = 100, u = u100

nd K, boundary con ; hence: 0= −ln(u02)+ K a 1.128= − ln(u1002 )+ K Eliminating 1.128= −2 × ln u100 u0 ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ Therefore, u100 u0 = e −0.564 = 0.569

And so the percentage change in velocity, 1−u100 u0 ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ ×100 = 43.1%

(b) Percentage change in velocity over 100 m horizontal flight a new ball, with a drag oefficient of 0.1:

c

With CD = 0.1, using the same procedure, u100 = e−0.141= 0.868 u0

Percentage change in velocity of the new ball = 13.2%

he new cricket ball can therefore be delivered with greater pace to the batsman)

he resistance F of a sphere of diameter x, due to its motion with velocity u through a nolds number (Re = ρux/μ) as given

2.0 2.5 3.0 3.5 4.0 (T

EXERCISE 2.8: (Cambridge University)

T

fluid of density ρ and viscosity μ varies with Rey below: log10Re D 1 = F 2ρ 1.05 0.63 0.441 0.385 0.39 C u2 πx2 4 ⎛ ⎝ ⎜ ⎞ ⎠ ⎟

Find the mass of a sphere of 0.013 m diameter which falls with a steady velocity of .6 m/s in a large deep tank of water of density 1000 kg/m3 and viscosity 0.0015 Pas.

0

(9)

SOLUTION TO EXERCISE 2.8:

At steady terminal velocity the weight of the sphere is balanced by the sum of the buoyancy force and the fluid drag force:

weight of sphere Mg= drag force + buoyancy force

therefore, Mg= CD1 2ρfu 2 πx2 4 ⎛ ⎝ ⎜ ⎞ ⎠ ⎟ + π 6x 3ρ fg (2.8.1)

Under the conditions, Reynolds number, Re =ρfxU μ =

1000× 0.013 × 0.6

1.5×10−3 = 5200 From the data given, plot CD versus log10Re and interpolate to find

CD = 0.385 at Re = 5200.

From Equation 2.8.1, mass of sphere, M = 0.00209 kg.

EXERCISE 2.9

A particle of 2 mm in diameter and density of 2500 kg/m3 is settling in a stagnant fluid in the Stokes’ flow regime.

a) Calculate the viscosity of the fluid if the fluid density is 1000 kg/m3 and the particle falls at a terminal velocity of 4 mm/s.

b) What is the drag force on the particle at these conditions? c) What is the particle drag coefficient at these conditions? c) What is the particle acceleration at these conditions? d) What is the apparent weight of the particle?

SOLUTION TO EXERCISE 2.9

In the Stokes law region:

μ ρ − ρ = 18 g ) ( x U p f 2 T (EQ1.13)

Hence, with UT = 4 x 10-3 m/s, ρf = 1000 kg/m3, ρp = 2500 kg/m3 and x = 2 x 10-3 m:

(a) Viscosity,

(

)

0.8175 10 4 18 81 . 9 ) 1000 2500 ( 10 2 3 2 3 = × × × − × = μ − Pa.s

(b) Drag force, FD =3πμUx (EQ 1.3)

So

(

3

) (

3

)

5

D 3 0.8175 4 10 2 10 6.164 10

F = π× × × − × × − = × − N

(c) Drag coefficient CD = 24/Rep

So:

(

)

(

)

2452.5 10 2 1000 10 4 8175 . 0 24 x U 24 C 3 3 f D = × × × × × = ρ μ =

(10)

(e) Apparent weight: at terminal velocity apparent weight = drag force = 6.164 x 10-5 N As a check, we calculate the apparent weight =

(

)

5

f p 3 10 164 . 6 g 6 x × = ρ − ρ π N EXERCISE 2.10:

Starting with the force balance on a single particle at terminal velocity, show that: ⎥ ⎦ ⎤ ⎢ ⎣ ⎡ ρ ρ − ρ = f f p 2 T D U gx 3 4 C

where the symbols have their usual meaning.

SOLUTION TO EXERCISE 2.10: See text

EXERCISE 2.11:

Using the drag coefficient-Reynolds number data given below, calculate the density of a sphere of diameter 10 mm which falls at a steady velocity of 0.25 m/s in large tank of water of density 1000 kg/m3 and viscosity 0.001 Pas.

Log10Rep 2.0 2.5 3.0 3.5 4.0 CD 1.05 0.63 0.441 0.385 0.390 SOLUTION TO EXERCISE 2.11: At terminal velocity:

(

)

f f p 2 T D U gx 3 4 C ρ ρ − ρ =

Under the given conditions, 2500

001 . 0 10 10 1000 25 . 0 x U Re 3 f T p = × × × = μ ρ = −

Plotting the CD data given, we can interpolate to find CD at this value of Rep:

Gives: CD = 0.40 0 0.2 0.4 0.6 0.8 1 1.2 2 2.5 3 3.5 4 log10Rep CD Hence, from

(

)

f f p 2 T D U gx 3 4 C ρ ρ − ρ = , particle density, ρp = 1191 kg/m3

(11)

EXERCISE 2.12:

A spherical particle of density 1500 kg/m3 has a terminal velocity of 1 cm/s in a fluid of density 800 kg/m3 and viscosity 0.001 Pas. Estimate the diameter of the particle.

SOLUTION TO EXERCISE 2.12:

When UT is known and x unknown, we first calculate the dimensionless group:

2 f 3 T f p p D U ) ( g 3 4 Re C ρ ρ − ρ μ = (EQ1.16) So,

(

0.01

)

800 14.306 ) 800 1500 ( 001 . 0 81 . 9 3 4 Re C 2 3 p D = × − × × × =

Plotted on the drag curve (CD versus Rep) this gives a straight line of slope +1

(see Figure 2E12.1)

This line intersects the curve for spherical particles (ψ = 1.0) at a Rep value of 1.4.

Hence: 4 . 1 x U Re T f p μ = ρ = ,

giving particle size, x = 175 μm

EXERCISE 2.13:

Estimate the largest diameter of spherical particle of density 2000 kg/m3 which would be expected to obey Stokes's Law in air of density and viscosity, 1.2 kg/m3 and viscosity 18 x 10-6 Pas respectively.

SOLUTION TO EXERCISE 2.13:

The upper limit for Stokes Law is when Rep ≤0.3

Or: U fx ≤0.3 μ

ρ

The largest Reynolds number for given particle and fluid properties will be at U = UT

(since this is the maximum relative velocity achieved by the particle) So: UT fx ≤0.3

μ ρ

Now in Stokes Law region,

μ ρ − ρ = 18 g ) ( x U p f 2 T (EQ1.13) So: x 0.3 18 g ) ( x f f p 2 ≤ μ ρ ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ μ ρ − ρ

With ρp = 2000 kg/m3, ρf = 1.2 kg/m3 and μ = 18 x 10-6 Pa.s:

Particle size x≤42.05 μm

(12)
(13)
(14)
(15)
(16)

Rep = 1.4
