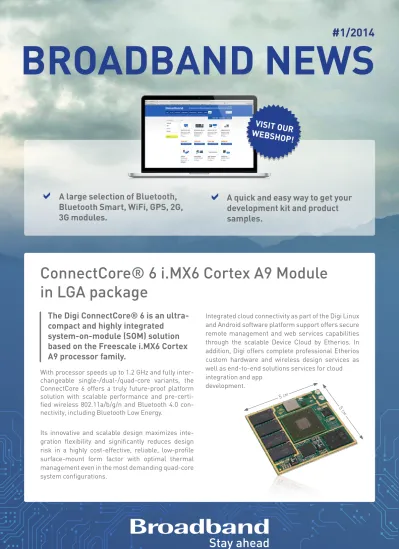

BROADBAND NEWS. ConnectCore 6 i.mx6 Cortex A9 Module in LGA package. a A large selection of Bluetooth, a A quick and easy way to get your #1/2014

(1)

With processor speeds up to 1.2 GHz and fully inter-changeable single-/dual-/quad-core variants, the ConnectCore 6 offers a truly future-proof platform solution with scalable performance and pre-certi-fied wireless 802.11a/b/g/n and Bluetooth 4.0 con-nectivity, including Bluetooth Low Energy.

Its innovative and scalable design maximizes inte-gration flexibility and significantly reduces design risk in a highly cost-effective, reliable, low-profile surface-mount form factor with optimal thermal management even in the most demanding quad-core system configurations.

Integrated cloud connectivity as part of the Digi Linux and Android software platform support offers secure remote management and web services capabilities through the scalable Device Cloud by Etherios. In addition, Digi offers complete professional Etherios custom hardware and wireless design services as well as end-to-end solutions services for cloud integration and app

development.

ConnectCore® 6 i.MX6 Cortex A9 Module

in LGA package

BROADBAND NEWS

a

A large selection of Bluetooth,

Bluetooth Smart, WiFi, GPS, 2G,

3G modules.

VISIT OUR

WEBSHOP!

The Digi ConnectCore® 6 is an

ultra-compact and highly integrated

system-on-module (SOM) solution

based on the Freescale i.MX6 Cortex

A9 processor family.

a

A quick and easy way to get your

development kit and product

samples.

(2)

Broadband AB, Sandhamnsgatan 63 A, 115 28 Stockholm, Sweden | www.broadband.se

CSR has launched a disruptive new Bluetooth® Smart solution designed to place the smartphone at the center of the Internet of Things. The CSRmesh protocol uses Bluetooth Smart to send messages to other Bluetooth Smart devices in the network, which in turn relay them onward. Messages can be addressed to individual devices or groups of devices. It is also possible for devices to belong to multiple groups. Control is enabled via any recent smartphone that supports the Bluetooth Smart standard, or via standard control devices such as light switches or control panels that have been Bluetooth Smart enabled. To start developing with the recently launched CSRmesh Bluetooth Smart protocol CSR have introduced the CSRmesh™ Development Kit.

The kit includes development boards, a USB programmer and access to the development platform (SDK) which includes example applications to accelerate the development of new low power connected Internet-of-Things (IoT) products. The SDK is initially offered with software supporting networked lighting applications, with updates for home automation and other IoT applications based on CSRmesh due later in the year.

The solution combines a configuration and control protocol with CSR’s proven Bluetooth Smart devices,

including the CSR101x™ family.

a

3x CSRmesh Bluetooth Smart

development boards

a

1x USB programmer

a

Batteries and Setup Guide

3x3mm current sensor from Allegro Microsystems

Allegro’s smallest current sensor linear IC, the

ACS711, is now housed in a 0.75 mm thick low profile QFN package measuring only 3 mm x 3 mm! This new micro sized device is possibly the smallest fully integrated linear current sensor IC in the world! With only a 0.6mOhm internal resistance, this package can really take the heat. The device can be used for applications with over 30 A continuous current while reducing power consumption by an order of magnitude over existing sense resistor op-amp solutions.

(3)

Broadband AB, Sandhamnsgatan 63 A, 115 28 Stockholm, Sweden | www.broadband.se

Ultra compact crystal from Pericom

for your Bluetooth project

The 4-pad FW Series seam seal devices incorporate a ultra-miniature AT-cut crystal resonator housed in a standard 2.0 x 1.6mm ceramic package. These compact crystals are ideal for surface mounting in densely populated or small form-factor PCB appli-cations.

Cinterion® EHS6 Terminal: 3G

High-speed M2M Gateway powered by Java

Gemalto’s new suite of Cinterion® 3G SMART Terminals takes M2M simplicity to a whole new level. Leveraging Gemalto’s next-generation Java® embedded technology, the plug-and play solutions powered by a five-band HSPA+ baseband enable high-speed, secure wireless TCP/IP con-nectivity. The terminals come in three versions providing universal industrial interfaces e.g. USB or Ethernet are encased in a compact, rugged housing with integrated SIM cardholder and unpre-cedented mounting

options.

Broadband Technology – A technical specialist

distributor and manufacturer representative located

in Stockholm, Sweden.

We provide our customers with qualified commercial and technical support, in many cases from idea, through design to volume production. Our logistic department supports our customers globally. Please visit www.broadband.se for more information about us and our product offering.

THIS IS

US!

a

Java ME 3.2

a

Secure TCP/IP

a

Integrated FOTA

a

Ultra-compact LGA

a

Five-Band 3G (HSPA)

(4)

Broadband AB, Sandhamnsgatan 63 A, 115 28 Stockholm, Sweden | www.broadband.se Broadband AB, Sandhamnsgatan 63 A, 115 28 Stockholm, Sweden | www.broadband.se

Dual mode Bluetooth Audio module

from BlueCreation

BC127 from BlueCreation is one of the most complete Certified Bluetooth 4.0 Audio module available in the market. BC127 offers a complete package with all profiles, high-end codecs such as AAC and aptX®, digital and analog audio out combined with the capability to connect to iOS® and Android® App-lications with a simple control and configuration interface.

New Bluetooth Audio Module from

BlueGiga

WT32i is an audio specific Bluetooth 3.0 module with excellent radio frequency performance and enhanced audio features.In addition to a certified Bluetooth radio and software stack, WT32i also contains a DSP, stereo audio codec, and battery charger making it ideal for fixed and portable audio applications. WT32i includes Bluegiga’s iWRAP6 Bluetooth stack software which implements A2DP, AVRCP v.1.5 profiles and supports

aptX and AAC audio codecs for stereo audio

applications.

The Gnix22 PCIe card is a low-cost development solution containing the Speedster22i HD1000 FPGA, based on Intel’s 22-nm process. The Gnix22 PCIe card conforms to the PCIe Add-in card form factor and is optimized for PCIe-based high-end applications with high bandwidth requirements. It has PCIe, Ethernet and DDR3 interfaces plus room for expansion via dual FPGA Mezzanine Card (FMC) connector for additional interfaces.

The PCIe Gen3 x8 interface on the Gnix22 PCIe card is supported by a hardened PCIe Gen3 controller in the HD1000 FPGA. It is designed to be plugged into a Gen3 capable PCI Express slot that supports x1, x4 and x8 configurations. The Gnix22 PCIe card has quad SFP+ optical ports that can provide support for up to four 10GbE, 8GFC, OC-192 or OTU2 interfaces. The SFP+ ports can leverage industry-standard hardened 10GbE MACs available in HD1000. The Gnix22 PCIe card enables evaluation, prototyping and deployment of

PCIe based solutions on the HD1000. You can exercise the full performance of the device either by configuring targeted reference designs provided by Achronix or by confi-guring the device with your own design.

a

The card also includes a license for the

Achronix CAD Environment (ACE) software

and a bitporter programming Kit.

(5)

Worlds smallest GPS module with

integrated antenna from OriginGPS

Measuring only 10x10x5.8mm and weighing 2.5 gr., the Micro Hornet is the world’s smallest fully integrated GPS antenna module. Despite its small size and weight, the Micro Hornet integrates a patch antenna element, LNA, SAW filter, TCXO, RTC crystal,

RF shield and Power Management Unit with SiRFStarIV™ GPS processor.

NFC Flex Stamp

Antenna from

Pulse Electronics

The W7001 is a small flexible Near Field

Communication (NFC) antenna ideal for embedded products such as tablets, laptops, and payment terminal devices. It is intended for both secure payment or security access applications.

CSR1012™ combines proven CSR µEnergy® silicon with

small form factor for compact wearable accessories

CSR have announced the launch of a new Bluetooth® Smart platform designed to meet the needs of developers looking to create low-power wearable accessories. The CSR1012™, which is part of the proven CSR µEnergy® range, provides a smaller form factor package making it ideal for wearable devices, such as smart watches and activity monitors. The platform provides a form factor small enough for wearable devices but critically still uses standard PCB technology, which allows developers to get a high-volume product to market quickly and cost effectively. It’s also the first solution to support direct connection to a lithium-ion battery without the need for an external regulator. This ensures long-battery life.

a

Ultra compact 4x4mm QFN package

a

Integrated Bluetooth 4.0 qualified stack

a

Up to 32 programmable IOs

a

Master and slave operation

Designed for high-volume products

The CSR1012 provides the ideal solution for high-volume production coupled with compact design. The 0.4 mm pitch QFN package can be handled easily on high-volume production lines. Space beneath the device enables I/O to be routed using standard drilled vias. This coupled with a 4x4 package area, offers a very small final PCB to ensure developers can produce compact wearable devices with consumer appeal. The CSR1012 is available in volume from today.

(6)

i.MX6 SBC and development system

for Digi ConnectCore6

Digi introduces a i.MX6 based Singel Board Computer (SBC), based on the ConnectCore6 module and Pico-ITX motherboard standard form factor (100 mm x 72 mm). It is designed for mass production off-the-shelf or for customization. The ConnectCore6 module has, with its unique 50mmx50mm LGA package, become a massive success in a very short time. The Connect-Core6 module and SBC supports the

full flora of i.MX6 interfaces.

Looking to increase your Bluetooth

streaming audio user experience?

The aptX audio codec from CSR is available for high quality stereo audio over Bluetooth. When incorporated in Bluetooth A2DP Stereo products, aptX audio coding delivers full ’wired’ audio quality. With the aptX audio codec source material is transparently delivered over the Bluetooth link, whether it is stored uncompressed or in an alter-native compression (MP3, AAC, FLAC) format.

AX8052F143, Ultra-low Power SoC RF-Microcontroller

for the 70-1050 MHz band

The AX8052F143 targets the highest performance narrow-band market with demands for many kilometers of communication range. A sensitivity of -126 dBm (-129 dBm with FEC) at 868 MHz and 1.2 kbps with a current consumption of only 12.5 mA (RF and MCU both running) make the AX8052F143 an outstan-ding device in its field. The microcontroller core executes the industry standard 8052 instruction set and with the system clock programmable freely from DC to 20 MHz the core can deliver 20 MIPS. A 64 kByte flash memory is provided, allowing to program applications in C. Axsem also offer a wide range of trancievers for the Sub Gigahertz bands.

a

64 kByte Flash and 8.25 kByte SRAM memory

a

6 µA wake-on-radio current

(7)

Simplify your M2M design with Cinterion

EHS6 and Java

The flagship Cinterion® EHS6 is the 5th generation of Gemalto’s Java embedded machine-to-machine (M2M) modules, which have simplified highly efficient, end-to-end industrial communication for the last decade. The tiny EHS6 module offers the latest Java ME 3.2 client runtime platform optimized for resource-constrained M2M applications.

It significantly reduces total cost of ownership (TCO) and time to market by sharing internal resources such as memory, a large existing code base and proven software building blocks.

BLDC Controller from Allegro Microsystems

The A4915 is designed for pulse width modulated (PWM) current control of 3-phase brushless DC motors. The A4915 is capable of high current gate drive for 6 all N-channel power MOSFETs. An internal charge pump ensures gate drive down to 7 V supply and provides limited gate drive down to 5 V. A bootstrap capacitor is used to generate a supply voltage greater than the source voltage of the high side MOSFET, required for N-channel MOSFETs. It is targeted for the industrial and consumer markets and is an excellent choice for power tool applications.

(8)

a Bluetooth, WiFi

a GPS/GNSS and location CPUs

a Printer and Camera ICs

a Audio DSPs and Amplifiers

a Bluetooth modules

a WiFi modules

a Processor modules

a Bluetooth Audio modules

a Bluetooth Smart modules

a Bluetooh SW stacks a LCD TFT Displays a OLED Displays a Antennas a Connectors a Power a Magnetics MicroSystems Europe Ltd. High-Performance Semiconductors a Halleffect sensors a Motor drivers a Regulators a Smoke detectors a Current sensors a VoIP processors

a High performance analog

a Broadcast video a 2G Modules a 3G Modules a LTE Modules a Terminals a Bridging CSSPs a OTP FPGA a Small GNSS/GPS modules a GNSS/GPS antennas

GE

Measurement & Control

a Pressure sensors a IR sensors a Processor modules a Zigbee modules a ISM modules a Ethernet a WiFi modules

a Connectivity: PCIe, USB, SATA

a Signal integrity

a Timing

a Sub 1GHz RF transceivers

a Ultra-low power flash MCU

a Ultra-low power RF SoCs

a High-end FPGAs

a 200 Gbps flow processor

a 216 processing cores

a 100 accelerators
