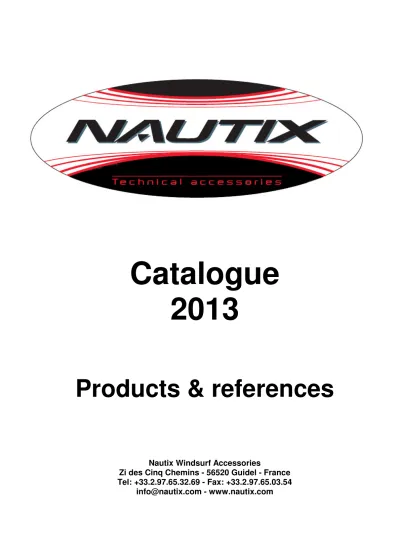

Catalogue
2013
Products & references
Nautix Windsurf Accessories
Zi des Cinq Chemins - 56520 Guidel - France
Tel: +33.2.97.65.32.69 - Fax: +33.2.97.65.03.54
RIGS
1- RIGS
DACRON X-MOVE Training rigs
070001 Training 1,50 m² Dacron (1 batten) - 2,20m alu mast - 1,20m boom 070023 Training 2,00 m² Dacron (1 batten) - 2,80m alu mast - 1,20m boom 070012 Training 2,50 m² Dacron (1 batten) - 3,15m alu mast - 1,25m boom
070013 Training 2,50 m² Dacron (1 batten) - 3,15m RDM epoxy mast - 1,25m boom 070011 Training 3,00 m² Dacron (2 battens) - 3,15m alu mast - 1,45m boom
070015 Training 3,00 m² Dacron (2 battens) - 3,15m RDM epoxy mast - 1,45m boom 070010 Training 3,50 m² Dacron (3 battens) - 3,85m alu mast - 1,45m boom
070009 Training 3,50 m² Dacron (3 battens) - 3,70m RDM epoxy mast - 1,45m boom 070017 Training 4,00 m² Dacron (3 battens) - 3,85m alu mast - 1,60m boom
070014 Training 4,00 m² Dacron (3 battens) - 4,00m epoxy mast - 1,60 boom 070022 Training 4,50 m² Dacron (4 battens) - 4,00m epoxy mast - 1,60 boom 070016 Training 5,00 m² Dacron (4 battens) - 4,00m epoxy mast - 1,85 boom 070024 Training 6,00 m² Dacron (4 battens) - 4,40m epoxy mast - 1,85 boom
*Nautix kid rigs are delivered with rope, top cap, uphaul. Mast adaptor (with axle or push pin mast base system) is not included.
MONOFILM FUN KID'S rigs
070002 Fun Kids 1,50 m² Monofilm (1 batten) - 2,20m alu mast - 1,20m boom 070003 Fun Kids 2,00 m² Monofilm (1 batten) - 2,80m alu mast - 1,20m boom 070005 Fun Kids 2,50 m² Monofilm (2 battens) - 3,15m alu mast - 1,25m boom
070004 Fun Kids 2,50 m² Monofilm (2 battens) - 3,15m RDM epoxy mast - 1,25m boom 070006 Fun Junior 3,50 m² Monofilm (3 battens) - 3,85m alu mast - 1,45m boom
070007 Fun Junior 3,50 m² Monofilm (3 battens) - 3,70m RDM epoxy mast-1,45m boom
*Nautix kid rigs are delivered with rope, top cap, uphaul. Mast adaptor (with axle or push pin mast base system) is not included.
Family pack New !!!
SPARE PARTS FOR RIGS
2- SPARE PARTS FOR RIGS
Aluminium masts
070685 2,20m alu mast - 2 parts - diameter 32-28 070690 2,80m alu mast - 2 parts - diameter 32-28 070700 3,15m alu mast - 2 parts - diameter 36-32 070600 3,80m alu mast - 3 parts - diameter 40-36-32
Epoxy masts
107000 3,15m RDM Junior epoxy mast - 2 parts 107001 3,70m RDM Junior epoxy mast - 2 parts 107028 4,00m epoxy mast - IMCS 17 - 2 parts 107002 4,40m epoxy mast - IMCS 21 - 2 parts 107003 4,60m epoxy mast - IMCS 23 - 2 parts
070100 Aluminium mast top cap for tube - diam 36mm
070101 Aluminium mast top cap for tube - diam 32 to 35mm
070400 Mast base sleeve 32mm for alu mast 2,20 & 2,80m 070401 Mast base sleeve 40mm for alu mast 3,85m + epoxy 070402 Mast base sleeve 36mm for alu mast 3,15m
Dacron sails
070703 1,5m² Dacron sail (1 batten) 070702 2,0m² Dacron sail (1 batten) 070701 2,5m² Dacron sail (1 batten) 070601 3,0m² Dacron sail (2 battens) 070602 3,5m² Dacron sail (3 battens) 070606 4,0m² Dacron sail (3 battens) 070610 4,5m² Dacron sail (4 battens) 070607 5,0m² Dacron sail (4 battens) 070608 6,0m² Dacron sail (4 battens)
Monofilm sails
070615 1,5m² Monofilm sail (1 batten) 070613 2,0m² Monofilm sail (1 batten) 070603 2,5m² Monofilm sail (2 battens) 070604 3,5m² Monofilm sail (3 battens)
BOOMS
3- BOOMS
CARBON BOOMS
CRB Black - Wave 520081 1,44-1,90 m 520082 1,54-2,00 m 520083 1,64-2,10 mCRB Black - Slalom (back end with 3 pulley block)
520072 1,84-2,30 m 520073 2,04-2,50 m 520074 2,24-2,70 m 520075 2,34-2,80 m
CRB Black - Race (wide back end - delivered with pro clam cleat system)
520077 2,34-2,80 m 520079 2,60-3,06 m
ALUMINIUM BOOMS
NX-BLACK - High performance Wave 519800 1,40-1,90 m 519801 1,55-2,05 m Slalom 519811 1,65-2,15 m 519812 1,85-2,35 m 519813 2,05-2,55 m
X-FLY monoblock - C boom design - no screw Wave
107004 1,40-1,90 m
107030 1,50-2,00 m New size
Slalom
107029 1,80-2,40 m New size
NX-ORIGINAL - All round Wave
520310 1,40-1,90 m
Slalom
520311 1,65-2,15 m 520312 1,85-2,35 m
BOOMS
JUMBO - The strongest 32mm !Wave
520100 1,55-1,95 m
Slalom (back end with 3 pulley block)
520152 1,85-2,35 m 520155 2,20-2,70 m
Formula (wide back end)
520156 2,20-2,70 m
BEGINNER BOOMS
WINNER Recreational sailing & schools Polyamid ends -diameter 30mm 521019 1,45-1,95 m 521020 1,55-2,05 m 521021 1,75-2,25 m Fixed booms 600600 1,20 m - diameter 25mm 600601 1,25 m - diameter 25mm 600608 1,45 m - diameter 28mm 600609 1,60 m - diameter 28mm 600612 1,85 m - diameter 30mm Other sizes on order only.
Adjustable booms
600605 1,20-1,55 m - diameter 28mm 600606 1,45-1,80 m - diameter 28mm
BOOM ACCESSORIES
4- BOOM ACCESSORIES
107006 Boom front end pad
107014 Uphaul - L= 1,05 m
Harness lines :
107018 Fixed 22cm 107019 Fixed 24cm 107020 Fixed 26cm 107021 Fixed 28cm 107038 Fixed 30cm New !!! 107039 Adjustable with clam cleat New !!! 107016 Adjustable with ropeHarness lines for schools :
107017 Adjustable with large velcro set
Out hauling systems :
020103 Pro Clam Out hauling set (2 clam cleats on rings
000000 + 2 pulleys + 3 ropes diam 4mm + 1 sandow)
020104 Harken Pro Clam Out hauling set (2 clam cleats on rings
+ 2 Harken pulleys + 3 ropes diam 4mm + 1 sandow) New !!!
020105 Double pulley clew kit
697007 Polyamid "V" cleat on ring (pair)
020100 Clam Cleat on ring (pair)
020101 Pulley for out hauling set (pair)
020102 Harken pulley diameter 16 mm (1 pc)
SPARE PARTS FOR BOOMS
5- SPARE PARTS FOR BOOMS
SERVICES ON CARBON BOOMS
000005 Replacement of the grip - non constant diameter 000006 Replacement of the grip - constant diameter
000023 Replacement of the carbon back end on Formula carbon boom 000025 Replacement of the carbon back end on Slalom carbon boom 000026 Replacement of the carbon back end on Wave carbon boom 000027 Replacement of the full push lock ring (per unit)
000028 Replacement of the pin lever of the push lock ring (per unit) 000024 Replacement of aluminium front end
000029 Replacement of carbon front end
BOOM FRONT END
Aluminium (delivered with self drilled screws)
020501 For Jumbo diam 32mm
020500 For Nx Black - Nx Original diam 30mm 107008 For XFLY - lever
107007 For XFLY - closing hook
107009 For XFLY - small diameter mast adaptor
Polyamid compact
501006 For Winner - Flyer and booms diam 30 mm
Beginners
501008 For kid boom (tube diam. 25mm) 501010 For junior boom (tube diam. 28mm)
BACK END AND SPARE PARTS
500013 Back end for Jumbo
500003 Back end for Winner
500002 Back end for Junior boom 28mm
020502 Nx Original back end pulley block for 30mm tubes
SPARE PARTS FOR BOOMS
BOOM TUBES AND EXTENSIONS
Tube for Jumbo boom (32x1,5mm) - 1 piece
000161 L = 1,45 m 000163 L = 1,75 m
Tube for Nx Black - Nx Original (30x1.5mm) - 1 piece
000150 L = 1,45 m 000151 L = 1,55 m 000152 L = 1,75 m 000153 L = 1,95 m
Extension for push lock system - 1 piece
500029 for tube diam. 30mm 500027 for tube diam. 32mm
GRIP FOR BOOM
020301 Kit for re-covering boom tubes : 3 black EVA strips
000000 + sand paper + instructions
020304 Kit for re-covering boom tubes : 3 grey EVA strips
000000 + sand paper + instructions
020300 Fungrip lay L=1,27m - w=110mm - thickness 2mm 106003 Fungrip sheet - grey - 1m x 1,80m - thickness 2mm 106004 Fungrip sheet - black - 1m x 1,80m - thickness 2mm
502006 Ring for grip extremity - diam. 28mm 502007 Ring for grip extremity - diam. 30mm
502012 Plug for boom tube diam. 30mm
000000 Contact Nautix for ref diametre 25-28-32mm
BOOM PUSH LOCK RINGS
502000 For tube diam. 28mm (1 pc)-Junior
502004 For tube diam. 30mm (1 pc)-Nx Black/Original 502003 For tube diam. 31mm (1 pc)-Carbon
502002 For tube diam. 32mm (1 pc)-Jumbo 107022 For tube XFLY (1 pc)
MAST BASES
6- MAST BASES
Fixed tendon mast bases
023433 Fixed tendon mast base - axle New Design !!!
023434 Fixed tendon mast base - push pin
Fixed power-joint mast bases
023425 Fixed power joint mast base - axle
023426 Fixed power joint mast base - push pin
Fixed mechanical-joint mast bases
023415 Fixed mechanical joint mast base - axle
023416 Fixed mechanical joint mast base - push pin
Removable mast bases "windsurf centers"
023428 Removable plate with mechanical mast base - axle
023438 Removable Jumbo plate with stainless insert
Mast base protection
SPARE PARTS FOR MAST BASES
7- SPARE PARTS FOR MAST BASES
Tendon connection
022022 Urethane tendon diameter 20mm
Power joints
022002 FF Universal power joint - insert M8 x 15mm
022000 MM Universal power joint - screw M8 x 17&27mm
022016 FF Jumbo power joint - insert M8 x 15mm
022007 MF Mechanical power joint
000000 Screw M8 x 19mm screw + 10mm insert
022008 MM Mechanical power joint- screw M8 x 19&25mm
Studs for power joints
020014 M8 x 35 (10 pcs) hexagonal socket screw 020019 M8 x 30 (10 pcs) hexagonal socket screw 020021 M8 Nylock nut (10 pcs)
Spare parts for mast bases
103507 Push pins diam. 9,5mm for mast extension
020016 Reinforced flat washer L22x8,5x2,5 (10pcs)
MAST EXTENSIONS
8- MAST EXTENSIONS
Aluminium mast extensions
Extension for axle - adjustable with O ring
022200 Fixed adapter 022205 160mm adjustment 022208 320mm adjustment
022209 480mm adjustment - super strong
022213 480mm adjustment - super strong with aluminium
000000 pulley block
022204 RDM 350mm adjustment
Extension for push pin - adjustable with O ring
022300 Fixed adapter 022308 320mm adjustment
022309 480mm adjustment - super strong
Aluminium drop on tube
022210 Drop on alu tube (adj from 100mm to 450mm)
Carbon mast extensions
021002 Fixed carbon drop on extension 60cm
000000 for 520 mast
021000 Top mast extension 40 cm - diam 25 mm
000000 for 5,20m mast
021001 Top mast extension 30 cm - diam 22 mm
000000 for 4,90m - 4,60m - 4,00m mast
Rope
020201 diam 4mm - L = 100m- 300kg 020202 DYNEMIX diam 4mm - L = 100m - 450kg 020204 DYNEWHITE diam 4mm - L = 100m - 800kg 020206 diam 10mm - L = 200m - 850kgExtension accessories
020400 Easy winch : sail downhauling with universal axle 020401 Easy Winch : sail downhauling with push pin 107013 Windsurfing cleat - large clam
SOON : NEW MODELS !!!
SPARE PARTS FOR MAST EXTENSIONS
9- SPARE PARTS FOR MAST EXTENSIONS
022010 Universal push pin cup
103500 Inner plug for push pin cup
020020 Universal axle (female) + rotation washer
103504 Rotation washer for universal axle
103501 Metallic ring for mast extension
107010 Plastic ring + axle for RDM mast extension
022105 Open ring for mast extension adjustment
103508 Stainless steel spring ring for mast extension adj
MASTS
10- MASTS
Carbon
: Prepreg fiber technology - delivered with bag Pro Evolution : Aramid finish for protectionSlalom 071052 4,30m 071053 4,60m 071056 4,90m 071058 5,20m SOON : NEW MAST RANGE !!!
Silver Wave : Platinium finish - SDM diameter mast
Wave 071021 3,80m 071022 4,00m 071024 4,30m 071027 4,60m SOON : NEW MAST RANGE !!!
Aluminium
070685 2,20m alu mast - 2 parts - diameter 32-28 070690 2,80m alu mast - 2 parts - diameter 32-28 070700 3,15m alu mast - 2 parts - diameter 36-32 070600 3,80m alu mast - 3 parts - diameter 40-36-32
Epoxy
107000 3,15m RDM Junior epoxy mast - 2 parts 107001 3,70m RDM Junior epoxy mast - 2 parts 107028 4,00m epoxy mast - IMCS 17 - 2 parts 107002 4,40m epoxy mast - IMCS 21 - 2 parts 107003 4,60m epoxy mast - IMCS 23 - 2 parts
THE SHAPER SHOP
11- OTHER ACCESSORIES
Pads
020302 Fungrip sheet for pads - Black - 700 x 400 x 5mm 020302 Fungrip sheet for pads - white - 700 x 400 x 5mm 106003 Fungrip sheet - Grey - 1,10m x 1,80m - thickness 2mm 106004 Fungrip sheet - Black - 1,10m x 1,80m - thickness 2mm
NEW !!!
Footstrap
107011 Footstrap (1 pc)
Footstrap screws & inserts
021501 Multi purpose insert - 4 holes (1 pc)
020022 Grip washer + anti-rotation plate (50 pcs)
020015 Stainless steel flat washer : 12x5,25x1mm (10 pcs)
Mast base nuts
020018 Nut M8 14x14 (10 pcs)
020017 Nut Jumbo M8 (10 pcs)
Fin bolts and nuts
020013 4x20mm bolt + nut for fin (10 sets)
Plugs
030501 Plug 34 x 23mm
021500 Screw plug black diam 42mm 030503 Screw plug black diam 45mm
PAINTS
12- PAINTS
Paints
000000 Nautix L2 : 2-pot polyurethane enamel 0,75 L
000000 14 shades available - ask for details
152011 Nautix Va2 : 2-pot polyurethane varnish 0,75 L
000000 high gloss
Nautix Watertight Epoxy filler
100% Watertight, mixing ratio 1/1, fast drying, 100% solvent free 151850 Nautix Watertight : 250 ml kit (tube)
151852 Nautix Watertight : 250 ml kit (can) 151853 Nautix Watertight : 1 L kit (can)
151866 Nautix polish Boat Rubbing (1 kg)
Thinners
151710 DA Thinner : removes tar (075 L)
151730 DP Thinner: thinner for L2, Va2, Nautix Grip
000000 (spray gun application) - 075 L
Nautix grip
2-pot colourless non slip deck paint
154000 Nautix Grip - 0,5 kg kit (for 2 boards) 154002 Nautix Grip - 3 kg kit
204003 Specific foam roller+tray for Nautix Grip application 154015 Spare curing agent for 3 kg Nautix Grip kit
154090 Non skid compounds (0,2 kg) for 075 L enamels 154091 Non skid compounds (1 kg) for enamels
BAGS - STRAPS
13-BAGS, ROOF RACK, PROTECTION, STRAPS
Adjustable board bags
107026 Small adjustable board bag
000000 L=230cm to 270cm / w: 65cm (68cm max) 107027 Large adjustable board bag
000000 L=250cm to 290cm / w: 85cm (90cm max)
Fixed board bags
5mm foam - Plastic zip - fabric side & PVC side - central handle 107031 Boardbag 235/60 107032 Boardbag 235/65 107033 Boardbag 240/70 107034 Boardbag 245/75 107035 Boardbag 245/80 107036 Boardbag 245/85 107037 Boardbag 255/85 NEW BOARDBAGS !!!
For masts
107024 Adjustable bag for 3,80m-4,30m mast (1 tube) 107025 Adjustable bag for 4,60m-5,20m mast (1 tube)
020025 Roof rack protection (pair)
Straps
020023 Standard roof rack strap L=4m - l=25mm (pair) 020024 Large roof rack strap L=5m - l=35mm (1 pc)
Promotion
101508 Nautix document bag : 40x30x12cm 101507 Nautix backpack computer bag 101500 Nautix red flag
101504 Sticker for sail 101502 Catalogue FR/UK
100000 Display for brochures
