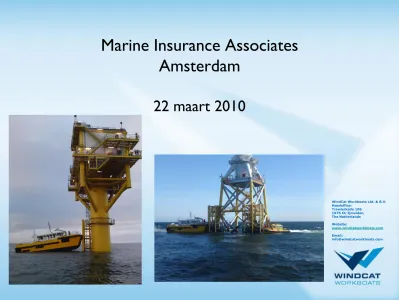

Marine Insurance Associates
Amsterdam
22 maart 2010
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
History
•
2000
•
Neil M. Clarkson
•
Robbert M. van Rijk
•
Renewable energy
•
Intermediar Consultant Fisheries
Offshore access systems
•
Existing offshore access systems in the oil/gas industry
•
EU: Heli, Supply vessel, crewbasket, Frog.
•
US/Gulf: same, plus crewboats.
•
New challenges due to the development of offshore windfarms
•
No design criteria for vessel, stable platform, high speed.
•
Purpose: Transporting maintenance engineers and components, safe and efficiently
•
HSE requirement, wave heights.
•
How many vessels a) construction period b) maintenance period
•
How many turbines per vessel
•
How many technicians per vessel
•
€ / day
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
How it all started
Started in 2000 development of vessels – trial and error
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
WindCat Unique points
•
Safe transfer in excess 2 meter swell
•
Proven safe transfer method over 130.000 in the last 3 years
•
Comfortable relaxing accommodation for technicians
•
Highly experienced skipper / crew and shore side backup
•
Efficient speedy transfers
•
Economical operation of vessel
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
Proven stable platform
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
WindCat Workboats
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
Present fleet
WindCat Mk 1
WindCat Mk 2
WindCat Mk 3
WindCat 1 - 4
WindCat 5 - 8
WindCat 9 - 16 operating
Windcat 17 – 25 being build
WindCat 2
Arklow Windfarm
Ireland
Windcat 15
Beatrice field
United Kingdom
WindCat 3 & 4
Robin Rigg
United Kingdom
WindCat 5
Burbo Bank
United Kingdom
WindCat 7, 14 , 16 , 17 & 18
Horns Rev2, Denmark
WindCat 1
Q7, The Netherlands
WindCat 11
Thorton Bank, Belgium
WndCat 12
OWEZ The Netherlands
WindCat 9 & WindCat 10
Lynn Inner Dowsing
United Kingdom
WindSpeed 3
Gunfleet Sands
United Kingdom
WindCat 8 & 7
Greater Gabbard
United Kingdom
WindCat 20
Greater Gabbard
United Kingdom
Safety of operations
•
Safety = first and highest priority
•
QHSE manual
•
Clean safety record over full fleet after 130.000 of transfers
•
Proven step over system
•
Highly experienced crews
•
Training program for new crews
•
Regular drills including clients technicians when possible
•
ISO 9001 in progress
•
External QHSE auditor
Experience gained
•
Up to today over more than 130.000 safe transfers without
incidents
•
Accessibility is key for any satisfactory offshore operation
•
Position of boatlanding in current/tide direction
•
Height of boatlanding
•
Type of boatlanding / ladder / stairs
•
Strength of boatlanding
•
Future ladders / inclined ladders / Labour Law
•
Mooring berths, for fuelling up safe 24hrs access in port
•
Vessel and people tracking
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
Presently under construction
•
WindCat 21 and 23, MK 3, short wheelhouse, MTU main engines, Hamilton
WaterJet
•
WIndCat 24,25,26, MK 3, long wheelhouse, MTU main engines, Servogear VP
•
WindCat 101, MK 4, fully classed DNV, 50 pax, 4 x MTU, Servogear VP
Presently under design
•
WindCat MK 3,5 fully classed DNV, 24 pax, MTU main engines, Servogear VP,
German waters
•
WIndCat MK 3,5, MCA classed < 24 mtrs, MTU main engines, Servogear VP.
Typical bad weather vessel UK
•
WindPower, small catamaran scatter vessel, one point hoisting point.
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
WindCat 23
Presently under construction
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
Other offshore systems
Ampelman
Ampelman
•
Self stabilizing platform
• Based on proven technology of flight simulator
• Movement input from vessel
• Modular, stand alone, plug and play system
Other offshore systems
O-as
Other offshore systems
Swath
Future Offshore Access Solutions
•
Near shore
-
Far offshore
•
Round ½
-
Round 3
•
Upto 25 mile
-
25 to 100 miles
•
Fast crew vessel
-
platform crew accommodation
Future Offshore Solutions
Accommodation platforms
EON substation.
Dong Energy substation.
KS Energy, Titan 2
New design WindCat MK 4
Round 3 demonstrator vessel
•
DNV Classed
• Pax notation
• 40 – 50 passengers
• 30 knots cruising 32 knots max speed
• 8 ton cargo capacity
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
New design WindCat MK 4
Round 3 demonstrator vessel
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
New design WindCat MK 4
Round 3 demonstrator vessel
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
Complementary to existing offshore systems
•
Increase in swh expected 2 mtr + guaranteed
•
Complementary to helicopters
•
Complimentary to Suppliers
•
Quick emergency response
•
Quick oil response
•
Quick oil recovery
•
Survey and dive support vessel
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]New design WindCat MK 3,5
•
Increase comfort at sea with seastates over swH 2 mtr
•
Increase and guarantee access over swH 2 mtr
•
Classed version 24 pax
•
MCA version 12 pax
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
New design WindCat MK 3,5
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
New design WindCat MK 3,5
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
New design WindCat MK 3,5
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
Type of preferred boatlanding
Jacket spiral access staircase
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
Vessel mooring recommendations
•
Safe berthing in all weather conditions, no lost of time due to tide
•
Multi point for fast bunkering
•
Pontoon with 16 amp shore supply
•
Refuse collection point and waste water
WindCat Workboats Ltd. & B.V. Headoffice: Trawlerkade 106 1976 CC Ijmuiden, The Netherlands Website: www.windcatworkboats.com Email: [email protected]
Thank you for your interest in WindCat Workboats
