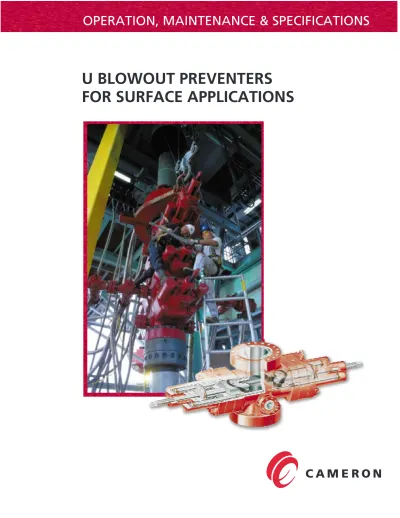

OPERATION, MAINTENANCE & SPECIFICATIONS

U BLOWOUT PREVENTERS

FOR SURFACE APPLICATIONS

All the information contained in this manual is the exclusive property of

Cooper Cameron Corporation, Cameron Division. Any reproduction or use

of the calculations, drawings, photographs, procedures or instructions,

either expressed or implied, is forbidden without the written permission of

Cameron or its authorized agent.

Initial Release A

1

March 1999

Copyright © 1999 all rights reserved

By

Cooper Cameron Corporation

Cameron Division

PREFACE

The procedures included in this book are to be performed in conjunction with

the requirements and recommendations outlined in API Specifications. Any

re-pairs to the equipment covered by this book should be done by an authorized

Cameron service representative. Cameron will not be responsible for loss or

ex-pense resulting from any failure of equipment or any damage to any property or

injury or death to any person resulting in whole or in part from repairs

per-formed by other than authorized Cameron personnel. Such unauthorized

re-pairs shall also serve to terminate any contractual or other warranty, if any, on

the equipment and may also result in equipment no longer meeting applicable

requirements.

File copies of this manual are maintained. Revisions and/or additions will be

made as deemed necessary by Cameron. The drawings in this book are not

drawn to scale, but the dimensions shown are accurate.

This book covers Cameron U Blowout Preventers, which are products of Cooper

Cameron Corporation.

Cooper Cameron Corporation

Cameron Division

P.O. Box 1212

Houston, Texas 77251-1212

713-939-2211

Contents

Single Open-Face Flange or Clamp Hub Dimensions . . . 6

Double Open-Face Flange or Clamp Hub Dimensions. . . 8

Part Numbers . . . 10

Hydraulic Control System . . . 16

Specifications and Accessories . . . 18

Large Bore Shear Bonnets . . . 19

Tandem Boosters . . . 20

Ram Hang-Off Weights and Shear Requirements . . . 21

Pipe Rams . . . 22

Shearing Blind Rams . . . 26

DSI and DVS Shear Rams . . . 30

Variable Bore Rams . . . 32

Flexpackers . . . 33

CAMRAM™ 350 Packers and Top Seals . . . 34

Rams for Multiple Completions . . . 35

Bonnet Rebuild Softgoods Kits . . . 36

Bonnet Seals and Connecting Rod Seals . . . 38

Bonnet Seal Carriers. . . 39

U BOP Operation and Maintenance . . . 40

I. Physical Data . . . 40

II. Applicable Operating Characteristics . . . 42

III. Disassembly Procedure . . . 43

IV. Assembly Procedure . . . 45

V. Operation and Installation Procedures . . . 48

VI. Maintenance Procedures . . . 49

VII. Testing. . . 50

VIII. Storage . . . 52

A

D

C

F

G

B

E

SD-017499

Single U BOP

The capital letters in the following designations refer to the U BOP dimensional views below and dimensional charts shown on the following page.

A-1 Length - bonnets closed, locking screws locked

D Centerline of preventer to outlet flange or hub face. This distance is variable

A-2 Length - bonnets opened, locking screws unlocked

and must be determined per individual specifications.

A-3 Length - bonnets closed, with wedgelocks

E-1 Centerline of side outlet to bottom flange face

A-4 Length - bonnets opened, with wedgelocks

E-2 Centerline of side outlet to bottom hub face

B-1 Height - flanged

F-1 Top of ram to top flange face

B-2 Height - clamp hubs

F-2 Top of ram to top hub face

Single Open-Face Flange or Clamp Hub U BOP Dimensions*

(in.) (in.)A-2 (in.)A-3 (in.)A-4 (in.)B-1 (in.)B-2 (in.)C (in.)E-1 (in.)E-2 (in.)F-1 (in.)F-2 (in.)G

Approx. Weight (lb) 7-1/16** 3000 7-1/16 74.000 109.500 - - 24.062 - 20.250 8.750 - 7.844 - 5.50 2600 7-1/16** 5000 7-1/16 74.000 109.500 - - 27.500 25.188 20.250 10.406 9.250 9.625 8.469 5.50 2800 7-1/16 10,000 7-1/16 74.000 109.500 - - 30.562 27.188 20.625 11.062 9.375 12.031 10.344 5.50 3550 7-1/16 15,000 7-1/16 74.000 109.500 - - 31.812 - 20.625 11.688 - 12.656 - 5.50 3800 11** 3000 11 96.250 146.875 - - 29.062 - 25.125 9.812 - 10.531 - 6.75 5300 11** 5000 11 96.250 146.875 110.125 150.188 34.312 29.312 25.125 12.438 9.938 13.156 10.656 6.75 5600 11** 10,000 11 96.250 146.875 110.125 150.188 35.688 32.188 25.750 13.125 11.375 13.844 12.094 6.75 6400 11 Model 79 15,000 11 124.000 175.312 124.500 167.125 44.812 33.875 32.000 16.688 11.219 17.781 12.312 9.25 10,300 13-5/8 3000 13-5/8 112.125 171.500 122.688 166.062 31.312 - 29.250 10.312 - 11.531 - 7.50 7200 13-5/8 5000 13-5/8 112.125 171.500 122.688 166.062 33.812 31.938 29.250 11.562 10.625 12.781 11.844 7.50 7700 13-5/8 10,000 13-5/8 114.125 172.750 124.688 167.312 41.688 32.812 30.250 15.125 10.688 17.094 12.656 7.50 10,300 13-5/8 Model B** 15,000 13-5/8 139.000 214.375 152.250 205.500 53.688 42.000 39.500 21.375 15.500 22.844 17.000 8.00 23,700 16-3/4” Model B 3000 16-3/4 127.250 204.562 147.250 199.375 40.062 31.750 35.750 13.312 9.156 15.406 11.250 9.25 13,700 16-3/4 Model B 5000 16-3/4 129.250 202.125 149.250 202.250 43.062 34.938 35.750 14.812 10.750 16.906 12.844 9.25 13,750 16-3/4** 10,000 16-3/4 139.000 218.375 155.500 212.000 49.688 41.938 39.500 19.375 15.500 20.219 16.344 9.25 23,300 18-3/4 10,000 18-3/4 156.375 242.125 166.500 226.625 56.000 43.234 42.500 20.500 13.875 22.000 15.344 12.00 28,900 20-3/4 3000 20-3/4 143.688 226.812 163.938 223.875 40.562 33.312 39.516 14.312 10.688 16.281 12.656 8.00 13,650 21-1/4 2000 21-1/4 143.688 226.812 163.938 223.875 37.188 33.312 39.516 12.625 10.688 14.594 12.656 8.00 13,250 21-1/4 5000 21-1/4 164.250 247.250 180.938 239.250 50.938 46.125 42.500 17.969 17.188 18.719 14.688 13.50 30,000 21-1/4** 10,000 21-1/4 163.375 250.375 181.125 239.500 66.000 53.000 47.250 24.531 18.031 26.250 19.750 13.50 34,650 26-3/4 3000 26-3/4 169.625 275.375 - - 48.312 - 46.250 17.438 - 19.906 - 8.00 24,000 Size (in.) Pressure Rating (psi) Vertical Bore (cm) A-1

(cm) (cm)A-2 (cm)A-3 (cm)A-4 (cm)B-1 (cm)B-2 (cm)C (cm)E-1 (cm)E-2 (cm)F-1 (cm)F-2 (cm)G Approx. Weight (kg) 7-1/16** 3000 17.9 188 278 - - 61 - 51 22 - 20 - 14 1179 7-1/16** 5000 17.9 188 278 - - 70 64 51 26 23 24 22 14 21270 7-1/16 10,000 17.9 188 278 - - 78 69 52 28 24 31 26 14 1610 7-1/16 15,000 17.9 188 278 - - 81 - 52 30 - 32 - 14 1724 11** 3000 27.9 244 373 - - 74 - 64 25 - 27 - 17 2404 11** 5000 27.9 244 373 280 381 87 74 64 32 25 33 27 17 2540 11** 10,000 27.9 244 373 280 381 91 82 65 33 29 35 31 17 2903 11 Model 79 15,000 27.9 315 445 316 424 114 86 81 42 28 45 31 23 4672 13-5/8 3000 34.6 285 436 312 422 80 - 74 26 - 29 - 19 3266 13-5/8 5000 34.6 285 436 312 422 86 81 74 29 27 32 30 19 3493 13-5/8 10,000 34.6 290 438 317 425 106 83 77 38 27 43 32 19 4672 13-5/8 Model B** 15,000 34.6 353 545 387 522 136 107 100 54 39 58 43 20 10,750 16-3/4” Model B 3000 42.5 323 520 374 506 102 81 91 34 23 39 29 23 6214 16-3/4 Model B 5000 42.5 328 513 379 514 109 89 91 38 27 43 33 23 6237 16-3/4** 10,000 42.5 353 555 395 538 126 107 100 49 39 51 42 23 10,569 18-3/4 10,000 47.6 397 615 423 576 142 110 108 52 35 56 39 30 13,109 20-3/4 3000 52.7 365 576 416 569 103 85 100 36 27 41 32 20 6192 21-1/4 2000 54.0 365 576 416 569 94 85 100 32 27 37 32 20 6010 21-1/4 5000 54.0 417 628 460 608 129 117 108 46 44 48 37 34 13,608 21-1/4** 10,000 54.0 415 636 460 608 168 135 120 62 46 67 50 34 15,717 26-3/4 3000 67.9 431 699 - - 123 - 117 44 - 51 - 20 10,886

*See previous page for detailed explanation of dimensional designations. **Available with stud x flange connections.

G

G

J

F

H

E

A

C

D

B

SD-017498

Double U BOP

The capital letters in the following designations refer to the U BOP dimensional views below and dimensional charts shown on the following page.

A-1 Length - bonnets closed, locking screws locked

E-1 C enterline of side outlet below rams to bottom flange face

A-2 Length - bonnets opened, locking screws unlocked

E-2 Centerline of side outlet below rams to bottom hub face

A-3 Length - bonnets closed, with wedgelocks

F-1 Top of upper ram to top flange face

A-4 Length - bonnets opened, with wedgelocks

F-2 Top of upper ram to top hub face

B-1 Height - flanged

G Height of ram

B-2 Height - clamp hubs

H-1 Centerline of side outlet between rams to bottom flange face

C Width - no side outlets

H-2 Centerline of side outlet between rams to bottom hub face

D Centerline of preventer to outlet flange or hub face. This distance

J

Top of lower ram to bottom of upper ram

is variable and must be determined per individual specifications.

Double Open-Face Flange or Clamp Hub U BOP Dimensions*

(in.) (in.)A-2 (in.)A-3 (in.)A-4 (in.)B-1 (in.)B-2 B***(in.) (in.)C (in.)E-1 (in.)E-2 (in.)F-1 (in.)F-2 (in.)G (in.)H-1 (in.)H-2 (in.)J Approx. Weight (lb) 7-1/16** 3000 7-1/16 74.000 109.500 - - 41.00 - 18.562 20.250 8.750 - 7.844 - 5.50 25.688 - 11.438 5000 7-1/16** 5000 7-1/16 74.000 109.500 - - 44.188 41.875 18.812 20.250 10.406 9.250 9.625 8.469 5.50 27.094 25.938 11.188 5200 7-1/16 10,000 7-1/16 74.000 109.500 - - 48.625 45.250 17.438 20.625 11.062 9.375 12.031 10.344 5.50 29.125 27.438 12.562 6400 7-1/16 15,000 7-1/16 74.000 109.500 - - 49.875 - 17.438 20.625 11.688 - 12.656 - 5.50 29.750 - 12.562 6750 11** 3000 11 96.250 146.875 - - 49.250 - 16.562 25.125 9.812 - 10.531 - 6.75 30.000 - 13.438 9900 11** 5000 11 96.250 146.875 110.125 150.188 54.500 49.500 16.562 25.125 12.438 9.938 13.156 10.656 6.75 32.625 30.125 13.438 10,200 11** 10,000 11 96.250 146.875 110.125 150.188 55.875 52.375 16.562 25.750 13.125 11.375 13.844 12.094 6.75 33.312 31.562 13.438 11,300 11 Model 79 15,000 11 124.000 175.312 124.500 167.125 69.750 58.812 14.312 32.000 16.688 11.219 17.781 12.312 9.25 41.625 36.156 15.688 18,400 13-5/8 3000 13-5/8 112.125 171.500 122.688 166.062 53.375 - 15.438 29.250 10.312 - 11.531 - 7.50 32.375 - 14.562 14,300 13-5/8 5000 13-5/8 112.125 171.500 122.688 166.062 55.875 54.000 15.438 29.250 11.562 10.625 12.781 11.844 7.50 33.625 32.688 14.562 14,800 13-5/8 10,000 13-5/8 114.125 172.750 124.688 167.312 66.625 57.750 12.562 30.250 15.125 10.688 17.094 12.656 7.50 40.062 35.625 17.438 18,400 13-5/8 Mod B** 15,000 13-5/8 139.000 214.375 152.250 205.500 81.750 70.125 9.938 39.500 21.375 15.500 22.844 17.000 8.00 49.438 43.562 20.062 43,250 16-3/4” Mod B 3000 16-3/4 127.250 204.562 147.250 199.375 65.875 57.562 13.438 35.750 13.312 9.156 15.406 11.250 9.25 39.125 34.969 16.562 26,650 16-3/4 Mod B 5000 16-3/4 129.250 202.125 149.250 202.250 68.875 60.750 13.438 35.750 14.812 10.750 16.906 12.844 9.25 40.625 36.562 16.562 26,940 16-3/4** 10,000 16-3/4 139.000 218.375 155.500 212.000 77.750 70.000 11.188 39.500 19.375 15.500 20.219 16.344 9.25 47.438 43.562 18.812 43,500 18-3/4 10,000 18-3/4 156.375 242.125 166.500 226.625 87.125 74.000 10.875 42.500 20.500 13.875 22.000 15.344 12.00 51.500 44.875 19.125 56,950 20-3/4 3000 20-3/4 143.688 226.812 163.938 223.875 66.125 58.875 12.438 39.516 14.312 10.688 16.281 12.656 8.00 39.875 36.250 17.562 25,550 21-1/4 2000 21-1/4 143.688 226.812 163.938 223.875 62.750 58.875 12.438 39.516 12.625 10.688 14.594 12.656 8.00 38.188 36.250 17.562 25,150 21-1/4 5000 21-1/4 164.250 247.250 180.938 239.250 82.375 74.000 12.375 42.500 17.969 17.188 18.719 14.688 13.50 49.031 45.000 17.625 58,000 21-1/4** 10,000 21-1/4 163.375 250.375 181.125 239.500 100.062 87.062 9.438 47.250 24.531 18.031 26.250 19.750 13.50 58.594 52.094 20.562 65,500 26-3/4 3000 26-3/4 169.625 275.375 - - 78.875 - 7.438 46.250 17.438 - 19.906 - 8.00 48.000 - 22.562 44,200 Size (in.) Press. Rating (psi) Vert. Bore (cm) A-1

(cm) (cm)A-2 (cm)A-3 (cm)A-4 (cm)B-1 (cm)B-2 B***(cm) (cm)C (cm)E-1 (cm)E-2 (cm)F-1 (cm)F-2 (cm)G (cm)H-1 (cm)H-2 (cm)J Approx. Weight (kg) 7-1/16** 3000 17.9 188 278 - - 104 - 47 51 22 - 20 - 14 65 - 29 2268 7-1/16** 5000 17.9 188 278 - - 112 106 48 51 26 23 24 22 14 69 66 28 2359 7-1/16 10,000 17.9 188 278 - - 124 115 44 52 28 24 31 26 14 74 70 32 2903 7-1/16 15,000 17.9 188 278 - - 127 - 44 52 30 - 32 - 14 76 - 32 3062 11** 3000 27.9 244 373 - - 125 - 42 64 25 - 27 - 17 76 - 34 4491 11** 5000 27.9 244 373 280 381 138 126 42 64 32 25 33 27 17 83 77 34 4627 11** 10,000 27.9 244 373 280 381 142 133 42 65 33 29 35 31 17 85 80 34 5126 11 Model 79 15,000 27.9 315 445 316 424 177 149 36 81 42 28 45 31 23 106 92 40 8346 13-5/8 3000 34.6 285 436 312 422 136 - 39 74 26 - 29 - 19 82 - 37 6486 13-5/8 5000 34.6 285 436 312 422 142 137 39 74 29 27 32 30 19 85 83 37 6713 13-5/8 10,000 34.6 290 438 317 425 169 147 32 77 38 27 43 32 19 102 90 44 8346 13-5/8 Mod B** 15,000 34.6 353 545 387 522 208 178 25 100 54 39 58 43 20 126 111 51 19,618 16-3/4” Mod B 3000 42.5 323 520 374 506 167 146 34 91 34 23 39 29 23 99 89 42 12,088 16-3/4 Mod B 5000 42.5 328 513 379 514 175 154 34 91 38 27 43 33 23 103 93 42 12,220 16-3/4** 10,000 42.5 353 555 395 538 197 178 28 100 49 39 51 42 23 120 111 48 19,731 18-3/4 10,000 47.6 397 615 423 576 221 188 28 108 52 35 56 39 30 131 114 49 25,832 20-3/4 3000 52.7 365 576 416 569 168 150 32 100 36 27 41 32 20 101 92 45 11,589 21-1/4 2000 54.0 365 576 416 569 159 150 32 100 32 27 37 32 20 97 92 45 11,408 21-1/4 5000 54.0 417 628 460 608 209 188 31 108 46 44 48 37 34 125 114 45 26,308 21-1/4** 10,000 54.0 415 636 460 608 254 221 24 120 62 46 67 50 34 149 132 52 29,710 26-3/4 3000 67.9 431 699 - - 200 - 19 117 44 - 51 - 20 122 - 52 20,049

*See previous page for detailed explanation of dimensional designations. **Available with stud x flange connections.

SD-017500 Double U BOP 14 7 8 13 3 12 34 37 36 38 10 29 11 28 27 33 9 5 26 24 32 31 30 15 16 17 35 25 23 20 40 41 18 19 21 22 42 6 24 1 2

7-1/16” 3000 - 11” 10,000 psi WP U BOP Part Numbers

Item

No. Description QtySgl QtyDbl

7-1/16” 3000 psi Model II 7-1/16” 5000 psi Model II 7-1/16” 10,000 psi Model II 7-1/16” 15,000 psi Model II 11” 3000 psi Model II 11” 5000 psi Model II 11” 10,000 psi Model II 1 Body 1 1 - - - -2 Intermediate Flange 2 4 30266-03 30266-03 30266-01 30266-01 30267-03 30267-03 30267-03 2A Intermediate Flange/Shear - - 41499-03** 41499-03** 41499-01** 41499-01** 41457-03** 41457-03** 41457-03** 3 Bonnet 2 4 30278-04 30278-03 30278-02 30278-01 30268-01 30268-02 30268-03 4 Ram Assembly 2 4 644216-( ) 644216-( ) 644216-( ) 644216-( ) 644219-( ) 644219-( ) 644219-( ) 5 Piston, Operating 2 4 236501-15-11-08 236501-15-11-08 236501-15-11-08 236501-15-11-08 673178 163192-01 163192-01 5A Piston, Operating/Shear - - 49116-01** 49116-01** 49116-01** 49116-01** 698914** 698914** 698914** 6 Cylinder, Operating 2 4 30274-02 30274-02 30274-02 30274-02 30274-03 30274-03 30274-03 6A Cylinder, Operating/Shear - - 41365-02 41365-02 41365-02 41365-02 41365-03** 41365-03** 41365-03**

7 Housing, Locking Screw 2 4 30308-01 30308-01 30308-01 30308-01 30308-02 30308-02 30308-02 8 Locking Screw 2 4 30326 30326 30326 30326 30365 30365 30365 8A Locking Screw/Shear - - 49258-01 49258-01 49258-01 49258-01 46628-01 46628-01 46628-01

9 Piston, Ram Change/Open 2 4 30324 30324 30324 30324 30362 30362 30362 10 Piston, Ram Change/Close 2 4 30325 30325 30325 30325 30363 30363 30363 11 Cylinder, Ram Change 4 8 30273-02 30273-02 30273-02 30273-02 30273-03 30273-03 30273-03 12 Bolt, Bonnet 8 16 30312-06 30312-02 30312-07 30312-01 30312-04 30312-03 30312-05 12A Bolt, Bonnet/Shear - - 41366-06 41366-02 41366-07 41366-22 41366-04 41366-03 41366-05

13 Stud, Locking Screw Housing 16 32 219065-10-04-41 219065-10-04-41 219065-10-04-41 5913-26-10 5915-25-10 219065-12-05-01 219065-12-05-01 13A Stud, Locking Screw Housing/Shear - - 38732-57-00-54 38732-57-00-54 38732-57-00-54 38732-57-00-54 38732-59-00-65 38732-59-00-65 38732-59-00-65

14 Nut, Locking Screw Housing 16 32 2709000-10-01 2709000-10-01 2709000-10-01 2709000-10-01 2709000-12-01 2709000-12-01 2709000-12-01 15 Check Valve, Plastic Packing 2 4 M517988 M517988 M517988 M517988 M517988 M517988 M517988 16 Screw, Plastic Packing 2 4 5940-09 5940-09 5940-09 5940-09 5940-09 5940-09 5940-09 17 Pipe Plug, Plastic Packing 2 4 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 18 Ring, Plastic Packing 2 4 12469-36 12469-36 12469-36 12469-36 12469-38 12469-38 12469-38 19 Ring, Plastic Energizing 2 4 18586-12 18586-12 18586-12 18586-12 18586-13 18586-13 18586-13 20 Seal Ring, Connecting Rod 2 4 212741-37-00-01 212741-37-00-01 212741-37-00-01 212741-37-00-01 212741-38-00-01 212741-38-00-01 212741-38-00-01 21 Ring Back-Up 4 8 - - 21792-21 21792-21 21792-22 21792-22 21792-22 22 Seal, Bonnet 2 4 644197-01-00-01 644197-01-00-01 644197-01-00-01 644197-01-00-01 644197-02-00-01 644197-02-00-01 644197-02-00-01 23 Pin, Ram Guide 4 8 30313-02 30313-02 30313-02 30313-02 30313-03 30313-03 30313-03 24 O-Ring, Operating Cylinder 4 8 702640-44-61 702640-44-61 702640-44-61 702640-44-61 702640-45-11 702640-45-11 702640-45-11 25 O-Ring, Operating Piston Rod to Int Flg 2 4 18492-92 18492-92 18492-92 18492-92 18492-91 18492-91 18492-91 26 Lip Seal, Operating Piston 2 4 710541 710541 710541 710541 710539 710539 710539 27 Seal Ring, Tail Rod 2 4 212741-32 212741-32 11741-32 11741-32 212741-33-00-01 212741-33-00-01 212741-33-00-01 28 O-Ring, Wiping 2 4 702640-33-11 702640-33-11 702640-33-11 702640-33-11 702640-33-51 702640-33-51 702640-33-51 29 O-Ring, Ram Change Piston to Body 4 8 702640-32-41 702640-32-41 702640-32-41 702640-32-41 702640-32-61 702640-32-61 702640-32-61 30 O-Ring, Ram Change Piston Rod to Int Flg 4 8 702640-32-91 702640-32-91 702640-32-91 702640-32-91 702640-33-11 702640-33-11 702640-33-11 31 O-Ring, Ram Change Cylinder to Int Flg 4 8 702640-33-81 702640-33-81 702640-33-81 702640-33-81 31423-25-13-85 31423-25-13-85 31423-25-13-85 32 O-Ring, Ram Change Cylinder to Bonnet 4 8 702640-34-21 702640-34-21 702640-34-21 702640-34-21 2010180-02 31423-26-13-85 31423-26-13-85 33 O-Ring, Ram Change Piston 4 8 702640-33-21 702640-33-21 702640-33-21 702640-33-21 702640-33-51 702640-33-51 702640-33-51 34 O-Ring, Bonnet Bolt Retainer 8 16 702640-22-51 702640-22-51 702640-22-91 702640-23-21 702640-22-71 702640-22-91 702640-23-41 35 Cap Screw, Int Flange to Bonnet 16*** 32*** 702585-22-00-50 702585-22-00-50 702585-22-00-50 702585-22-00-50 702585-22-00-50 702585-22-00-50 702585-22-00-50 36 Gland, Bleeder 2 4 17454-08 17454-08 17454-08 17454-08 17454-08 17454-08 17454-08 37 Plug, Bleeder 2 4 17454-09 17454-09 17454-09 17454-09 17454-09 17454-09 17454-09 38 Lifting Eye 2 2 11849 11849 11849 11849 11849 11849 11849 39 Packing, Plastic 10 20 7650-25 7650-25 7650-08 7650-08 7650-08 7650-25 7650-25 40 Washer 2 4 689523-04 689523-04 689523-04 689523-04 689523-05 689523-02 689523-02 41 Ring, Retainer 2 4 18572-83 18572-83 18572-83 18572-83 18572-84 18572-84 18572-84 42 Wear Ring, Operating Piston 2 4 49223-03 49223-03 49223-03 49223-03 49223-02 49223-02 49223-02 43 Spacer, Shear**** - - 687117-01 687117-01 687117-01 687117-01 687117-02 687117-02 687117-02

****A large bore shear bonnet is available for these sizes. For part numbers, see page 19.

****Part numbers shown are for old style shear bonnets. For current model large bore shear bonnet part numbers, see page 19.

****13-5/8” through 16-3/4” and 20-3/4” through 26-3/4” require 24 for single and 48 for double. The 18-3/4” requires 32 for single and 64 double. ****Required on all 11” 15,000 psi and 16-3/4” 10,000 psi BOPs with manual locking screws.

SD-017500 Double U BOP 14 7 8 13 3 12 34 37 36 38 10 29 11 28 27 33 9 5 26 24 32 31 30 15 16 17 35 25 23 20 40 41 18 19 21 22 42 6 24 1 2

11” 15,000 - 16-3/4” 5000 psi WP U BOP Part Numbers

Item

No. Description QtySgl QtyDbl

11” 15,000 psi Model 79 13-5/8” 3000 psi Model II 13-5/8” 5000 psi Model II 13-5/8” 10,000 psi Model II 13-5/8” 15,000 psi Model B 16-3/4” 3000 psi Model B 16-3/4” 5000 psi Model B 1 Body 1 1 - - - -2 Intermediate Flange 2 4 49391-01 30270-01 30270-01 31216 698899 38944 38844 2A Intermediate Flange/Shear - - * 686242** 686242** 686767** * - 41408 3 Bonnet 2 4 31241 30284-02 30284-01 31241 691849 38843-02 38843-01 4 Ram Assembly 2 4 644222-( ) 644225-( ) 644225-( ) 644225-( ) 644228-( ) 644231-( ) 644231-( ) 5 Piston, Operating 2 4 698481 236501-33-11-08 236501-33-11-08 678512-00-00-02 698996 614374-01 689562 5A Piston, Operating/Shear - - * 687542** 687542** 690791** * - 694085** 6 Cylinder, Operating 2 4 30274-01 30274-01 30274-01 30274-01 30274-06 30274-06 30274-06 6A Cylinder, Operating/Shear - - - 41365-01** 41365-01** 41365-01** - - 41365-06**

7 Housing, Locking Screw 2 4 30308-03 30308-03 30308-03 30308-03 30308-06 30308-06 30308-06 8 Locking Screw 2 4 30846 30307 30307 30307 695234 38901 38901 8A Locking Screw/Shear - - - 30846 30846 30846 - - 695234 9 Piston, Ram Change/Open 2 4 31239 30310 30310 31239 38847 38946 38847 10 Piston, Ram Change/Close 2 4 31238 30309 30309 31238 038848-01 38947 038848-01 11 Cylinder, Ram Change 4 8 30273-01 30273-01 30273-01 30273-01 30273-06 30273-07 30273-06 12 Bolt, Bonnet 8 16 30312-12 30312-09 30312-01 30312-12 30312-25 30312-17 30312-16 12A Bolt, Bonnet/Shear - - - 41366-09 41366-01 41366-12 - - 41366-16 13 Stud, Locking Screw Housing 16 32 38732-61-00-75 219065-14-06-01 219065-14-06-01 219065-14-06-01 5918-34-10 5918-78-10 5918-78-10 13A Stud, Locking Screw Housing/Shear - - - 38732-61-00-75 38732-61-00-75 38732-61-00-75 - - 5918-34-10 14 Nut, Locking Screw Housing 16 32 2709000-14-01 2709000-14-01 2709000-14-01 2709000-14-01 2709000-14-01 2709000-14-01 2709000-14-01 15 Check Valve, Plastic Packing 2 4 M517988 M517988 M517988 M517988 M517988 M517988 M517988 16 Screw, Plastic Packing 2 4 5940-09 5940-09 5940-09 5940-09 5940-09 5940-09 5940-09 17 Pipe Plug, Plastic Packing 2 4 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 18 Ring, Plastic Packing 2 4 12469-38 12469-24 12469-24 12469-24 12469-24 12469-52 12469-52 19 Ring, Plastic Energizing 2 4 18586-13 18586-01 18586-01 18586-01 18586-01 18586-14 18586-14 20 Seal Ring, Connecting Rod 2 4 011741-38-00-01 212741-36-00-01 212741-36-00-01 212741-36-00-01 212741-36-00-01 212741-44 212741-44 21 Ring Back-Up 4+ 8+ 21792-22 - - 21792-26 21792-26 - -22 Seal, Bonnet 2 4 49272-03 644197-03-00-01 644197-03-00-01 644197-03-00-01 644196-01 046613-03 644197-04 23 Pin, Ram Guide 4 8 30313-01 30313-01 30313-01 30313-01 30313-08 30313-06 30313-06 24 O-Ring, Operating Cylinder 4 8 702640-45-51 702640-45-51 702640-45-51 702640-45-51 702645-46-11 702645-46-11 702640-46-11 25 O-Ring, Operating Piston Rod to Int Flg 2 4 18492-91 18492-90 18492-90 18492-90 18492-90 2708811-01 2708811-01 26 Lip Seal, Operating Piston 2 4 710538 710538 710538 710538 710542 710542 710542 27 Seal Ring, Tail Rod 2 4 212741-34-00-01 212741-34-00-01 212741-34-00-01 212741-34-00-01 212741-45 212741-45 212741-45 28 O-Ring, Wiping 2 4 702640-33-71 702640-33-71 702640-33-71 702640-33-71 702640-34-21 702640-34-21 702645-34-21 29 O-Ring, Ram Change Piston to Body 4 8 702640-32-81 702640-32-81 702640-32-81 702640-32-81 702640-33-21 702640-33-21 702640-33-21 30 O-Ring, Ram Change Piston Rod to Int Flg 4 8 702640-33-31 702640-33-31 702640-33-31 702640-33-31 31423-21-13-85 31423-21-13-85 31423-21-13-85 31 O-Ring, Ram Change Cylinder to Int Flg 4 8 702640-34-61 702640-34-61 702640-34-61 702640-34-61 702640-35-41 702640-35-41 702640-35-41 32 O-Ring, Ram Change Cylinder to Bonnet 4 8 702640-42-51 702640-42-51 702640-42-51 702640-42-51 702640-43-41 702640-43-41 702640-43-41 33 O-Ring, Ram Change Piston 4 8 702640-33-81 702640-33-81 702640-33-81 702640-33-81 702640-34-41 702640-34-41 702640-34-41 34 O-Ring, Bonnet Bolt Retainer 8 16 702640-23-91 702640-23-11 702640-23-21 702640-23-91 702640-24-51 702640-23-21 702640-23-71 35 Cap Screw, Int Flange to Bonnet 16*** 32*** 702585-25-00-54 702585-25-00-44 702585-25-00-44 702585-25-00-54 702585-31-00-54 702585-31-00-44 702585-31-00-54 36 Gland, Bleeder 2 4 17454-08 17454-08 17454-08 17454-08 17454-08 17454-08 17454-08 37 Plug, Bleeder 2 4 17454-09 17454-09 17454-09 17454-09 17454-09 17454-09 17454-09 38 Lifting Eye 2 2 11849 11849 11849 11849 11849 11849 11849 39 Packing, Plastic 10 20 7650-08 7650-25 7650-25 7650-25 7650-08 7650-08 7650-25 40 Washer 2 4 689523-05 689523-01 689523-01 689523-01 689523-01 689523-02 689523-02 41 Ring, Retainer 2 4 18572-84 18572-85 18572-85 18572-85 18572-85 33186-85 33186-85 42 Wear Ring, Operating Piston 2 4 49223-01 49223-01 49223-01 49223-01 49223-04 49223-04 49223-04 43 Spacer, Shear**** - - 687117-03 687117-03 687117-03 687117-03 687117-05 - 687117-05

****A large bore shear bonnet is available for these sizes. For part numbers, see page 19. + 11” 15,000 psi requires 8 for single, 16 for double.

****Part numbers shown are for old style shear bonnets. For current model large bore shear bonnet part numbers, see page 19.

****13-5/8” through 16-3/4” and 20-3/4” through 26-3/4” require 24 for single and 48 for double. The 18-3/4” requires 32 for single and 64 double. ****Required on all 11” 15,000 psi and 16-3/4” 10,000 psi BOPs with manual locking screws.

SD-017500 Double U BOP 14 7 8 13 3 12 34 37 36 38 10 29 11 28 27 33 9 5 26 24 32 31 30 15 16 17 35 25 23 20 40 41 18 19 21 22 42 6 24 1 2

16-3/4” 10,000 - 26-3/4” 3000 psi WP U BOP Part Numbers

Item

No. Description QtySgl QtyDbl

16-3/4” 10,000 psi Model II 18-3/4” 10,000 psi Model II 20-3/4” 3000 psi Model II 21-1/4” 2000 psi Model II 21-1/4” 5000 psi Model II 21-1/4” 10,000 psi Model II 26-3/4” 3000 psi Model II 1 Body 1 1 - - - -2 Intermediate Flange 2 4 691848 41458 30911-01 30911-01 - 615369-01 -2A Intermediate Flange/Shear - - * - 41496-01** 41496-01** 49955-01 615418-01 38327 3 Bonnet 2 4 691849 41459 30835-01 30835-02 49963-01 41357 38326 4 Ram Assembly 2 4 644231-( ) 644234-( ) 44256-( ) 44256-( ) 644240-( ) 644240-( ) 44260-( ) 5 Piston, Operating 2 4 692828 41460 690058-03 690058 49954-01 41356 614376-01 5A Piston, Operating/Shear - - * - 693405** 693405** - 41374** -6 Cylinder, Operating 2 4 41365-06 30274-13 30274-04 30274-04 30274-11 30274-11 30274-05 6A Cylinder, Operating/Shear - - - - 41365-04** 41365-04** - 41365-11**

-7 Housing, Locking Screw 2 4 30308-06 30308-09 30308-04 30308-04 30308-08 30308-08 30308-05 8 Locking Screw 2 4 695234 41085 30846 30846 41085 41085 34233 8A Locking Screw/Shear - - - - 34233 34233 - -

-9 Piston, Ram Change/Open 2 4 692756 40961 30848 30848 41064 41064 38174 10 Piston, Ram Change/Close 2 4 692759 40960 30849 30849 41065 41065 38324 11 Cylinder, Ram Change 4 8 30273-13 30273-09 30273-04 30273-04 30273-11 30273-11 30273-05 12 Bolt, Bonnet 8 16 30312-24 30312-23 30312-10 30312-11 30312-26 30312-21 30312-13 12A Bolt, Bonnet/Shear - - - - 41366-10 41366-11 - 41366-21

-13 Stud, Locking Screw Housing 16 32 5918-34-10 5919-38-10 219065-14-06-01 5918-76-10 5919-38-10 5919-38-10 5918-76-10 13A Stud, Locking Screw Housing/Shear - - - - 38732-61-00-75 38732-61-00-75 - -

-14 Nut, Locking Screw Housing 16 32 2709000-11-01 270900-18-01 2709000-14-01 270900-14-01 2709000-18-01 2709000-18-01 2709111-14-01 15 Check Valve, Plastic Packing 2 4 M517988 M517988 M517988 M517988 M517988 M517988 M517988 16 Screw, Plastic Packing 2 4 5940-09 5940-09 5940-09 5940-09 5940-09 5940-09 5940-09 17 Pipe Plug, Plastic Packing 2 4 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 005930-05-10 18 Ring, Plastic Packing 2 4 12469-52 12469-72 12469-24 12469-24 12469-70 12469-70 12469-24 19 Ring, Plastic Energizing 2 4 18586-14 18586-19 18586-01 18586-01 18586-18 18586-18 18586-01 20 Seal Ring, Connecting Rod 2 4 212741-44 212741-60 212741-36-00-01 212741-36-00-01 11741-58 11741-58 212741-36-00-01 21 Ring Back-Up 4 8 21792-34 21793-40† - - 21793-39 21793-39 -22 Seal, Bonnet 2 4 046613-04 644197-05-00-01 046613-16 046613-16 46613-09 46613-09 46613-08 23 Pin, Ram Guide 4 8 30313-06 30313-07 30313-04 30313-04 30313-07 30313-07 30313-05 24 O-Ring, Operating Cylinder 4 8 702645-46-11 2708812-01 702640-45-51 702640-45-51 702640-47-01 702640-47-01 702640-45-51 25 O-Ring, Operating Piston Rod to Int Flg 2 4 2708811-01 41602-04-13-85 18492-90 18492-90 30101-88-13-85 30101-88-13-85 18492-90 26 Lip Seal, Operating Piston 2 4 710542 710543 710538 710538 710544 710544 710538 27 Seal Ring, Tail Rod 2 4 212741-45 212741-36-00-01 212741-34-00-01 212741-34-00-01 212741-36-00-01 212741-36-00-01 212741-34-00-01 28 O-Ring, Wiping 2 4 702640-34-21 702640-34-51 702640-33-71 702640-33-71 702640-34-51 702640-34-51 702640-33-71 29 O-Ring, Ram Change Piston to Body 4 8 702640-33-21 702640-34-01 702640-33-61 702640-33-61 702640-34-31 702640-34-31 702640-34-41 30 O-Ring, Ram Change Piston Rod to Int Flg 4 8 31423-21-13-85 2010180-02 702640-34-11 702640-34-11 31423-52-13-85 31423-52-13-85 702640-34-91 31 O-Ring, Ram Change Cylinder to Int Flg 4 8 702640-35-41 702640-43-51 702640-43-71 702640-43-71 702640-44-01 702640-44-01 702640-43-91 32 O-Ring, Ram Change Cylinder to Bonnet 4 8 702640-43-41 702640-43-81 702640-43-91 702640-43-91 702640-44-21 702640-44-21 702640-44-11 33 O-Ring, Ram Change Piston 4 8 702640-34-41 30101-83-13-85 702640-42-51 702640-42-51 702640-43-11 702640-43-11 702645-42-91 34 O-Ring, Bonnet Bolt Retainer 8 16 702640-24-51 702640-24-71 702640-22-91 702640-22-71 702640-24-71 702640-24-81 702640-23-91 35 Cap Screw, Int Flange to Bonnet 16*** 32*** 702585-31-00-72 702585-36-00-76 702585-28-00-50 702585-28-00-50 702585-36-00-93 702585-36-00-93 702585-31-00-70 36 Gland, Bleeder 2 4 17454-08 17454-08 17454-08 17454-08 17454-08 17454-08 17454-08 37 Plug, Bleeder 2 4 17454-09 17454-09 17454-09 17454-09 17454-09 17454-09 17454-09 38 Lifting Eye 2 2 11849 11849 11849 11849 11849 11849 11849 39 Packing, Plastic 10 20 7650-08 7650-08 7650-25 7650-08 7650-08 7650-08 7650-08 40 Washer 2 4 689523-02 689523-03 689523-01 689523-01 2353-46 2353-46 689523-01 41 Ring, Retainer 2 4 33186-35 33186-01-04 18572-85 18572-85 33186-92 33186-92 18572-85 42 Wear Ring, Operating Piston 2 4 49223-04 49223-07 49223-10 49223-10 49223-11 49223-08 49223-10 43 Spacer, Shear**** - - 687117-05 - 687117-03 687117-03 - -

-****A large bore shear bonnet is available for these sizes. For part numbers, see page 19. †Requires 2 for single and 4 for double.

****Part numbers shown are for old style shear bonnets. For current model large bore shear bonnet part numbers, see page 19.

****13-5/8” through 16-3/4” and 20-3/4” through 26-3/4” require 24 for single and 48 for double. The 18-3/4” requires 32 for single and 64 double. ****Required on all 11” 15,000 psi and 16-3/4” 10,000 psi BOPs with manual locking screws.

U BOP Hydraulic Control System

The U blowout preventer is designed so that hydraulic pressure opens and closes the rams

and provides the means for quick ram change-out.

Ram closing pressure closes the rams. When the bonnet bolts are removed, closing

pressure opens the bonnet. After the bonnet has moved to the fully extended position,

the ram is clear of the body. An eyebolt can be installed in the top of each ram to lift it

out of the preventer.

Ram opening pressure opens the rams. Following ram change-out, this pressure closes

the bonnets. The rams are pulled outward, near the bonnets before the bonnets begin

moving toward the preventer body. This assures that the rams never obstruct the bore or

interfere with the pipe in the hole. Hydraulic pressure draws the bonnets tightly against

the preventer body and the bonnet bolts are reinstalled to hold the bonnets closed.

SD-017501

U Blowout Preventer Hydraulic Control System

U BOP Operating data and Fluid Requirements

Large Bore Shear Bonnet Operating Data and Fluid Requirements

Working Pressure Gals to Open Pipe Rams (1 Set) Gals to Close Pipe Rams (1 Set) Locking Screw Turns (Each End) Closing

Ratio OpeningRatio

Bore Size and Working Pressure Gals to Open Pipe Rams (1 Set) Gals to Close Pipe Rams (1 Set) Locking Screw Turns (Each End) Closing

Ratio OpeningRatio

7-1/16” All WP 1.3 1.3 18 6.9:1 2.2:1 7-1/16” All WP - - - - -11” Except 15,000 psi 3.4 3.5 27 7.3:1 2.5:1 11” Except 15,000 psi 6.8 6.9 27 12.0:1 4.8:1 11” 15,000 psi 5.7 5.8 32 9.8:1 2.2:1 11” 15,000 psi 8.9 9.0 32 15.2:1 3.7:1 13-5/8” Except 15,000 psi 5.5 5.8 32 7.0:1 2.3:1 13-5/8” Except 15,000 psi 10.5 10.9 32 10.8:1 4.5:1 13-5/8” 15,000 psi Model B 10.4 10.6 45 10.6:1 3.6:1 13-5/8” 15,000 psi Model B 16.0 16.2 45 16.2:1 6.0:1 16-3/4” 3000 psi Model B 9.8 10.6 38 6.8:1 2.3:1 16-3/4” 3000 psi Model B 18.2 19.0 38 10.4:1 4.4:1 16-3/4” 5000 psi Model B 9.8 10.6 38 6.8:1 2.3:1 16-3/4” 5000 psi Model B 18.2 19.0 38 10.4:1 4.4:1 16-3/4” 10,000 psi 11.6 12.5 45 6.8:1 2.3:1 16-3/4” 10,000 psi 18.2 19.1 45 10.4:1 4.4:1 18-3/4” 10,000 psi 21.3 23.1 54 7.4:1 3.7:1 18-3/4” 10,000 psi - - - - -20-3/4” 3000 psi 8.1 8.7 46 7.0:1 1.3:1 20-3/4” 3000 ps 14.3 14.9 46 10.8:1 1.7:1 21-1/4” 2000 psi 9.0 8.7 46 7.0:1 1.3:1 21-1/4” 2000 psi 14.3 14.9 46 10.8:1 1.7:1 21-1/4” 5000 psi 27.3 30.0 54 7.2:1 4.0:1 21-1/4” 5000 psi - - - - -21-1/4” 10,000 psi 24.5 26.9 51 7.2:1 4.0:1 21-1/4” 10,000 psi - - - - -26-3/4” 3000 psi 10.1 10.8 58 7.0:1 1.0:1 26-3/4” 3000 ps - - - -

-U BOP Operating data and Fluid Requirements

Large Bore Shear Bonnet Operating Data and Fluid Requirements

Working Pressure Litres to Open Pipe Rams (1 Set) Litres to Close Pipe Rams (1 Set) Locking Screw Turns (Each End) Closing

Ratio OpeningRatio

Bore Size and Working Pressure Litres to Open Pipe Rams (1 Set) Litres to Close Pipe Rams (1 Set) Locking Screw Turns (Each End) Closing

Ratio OpeningRatio

7-1/16” All WP 4.9 4.9 18 6.9:1 2.2:1 7-1/16” All WP - - - - -11” Except 15,000 psi 12.9 13.2 27 7.3:1 2.5:1 11” Except 15,000 psi 25.7 26.1 27 12.0:1 4.8:1 11” 15,000 psi 21.6 22.0 32 9.8:1 2.2:1 11” 15,000 psi 33.7 34.1 32 15.2:1 3.7:1 13-5/8” Except 15,000 psi 20.8 22.0 32 7.0:1 2.3:1 13-5/8” Except 15,000 psi 39.7 41.3 32 10.8:1 4.5:1 13-5/8” 15,000 psi Model B 39.4 40.1 45 10.6:1 3.6:1 13-5/8” 15,000 psi Model B 60.6 61.3 45 16.2:1 6.0:1 16-3/4” 3000 psi Model B 37.1 40.1 38 6.8:1 2.3:1 16-3/4” 3000 psi Model B 68.9 71.9 38 10.4:1 4.4:1 16-3/4” 5000 psi Model B 37.1 40.1 38 6.8:1 2.3:1 16-3/4” 5000 psi Model B 68.9 71.9 38 10.4:1 4.4:1 16-3/4” 10,000 psi 43.9 47.3 45 6.8:1 2.3:1 16-3/4” 10,000 psi 68.9 72.3 45 10.4:1 4.4:1 18-3/4” 10,000 psi 80.6 87.4 54 7.4:1 3.7:1 18-3/4” 10,000 psi - - - - -20-3/4” 3000 psi 30.7 32.9 46 7.0:1 1.3:1 20-3/4” 3000 ps 54.1 56.4 46 10.8:1 1.7:1 21-1/4” 2000 psi 34.1 32.9 46 7.0:1 1.3:1 21-1/4” 2000 psi 54.1 56.4 46 10.8:1 1.7:1 21-1/4” 5000 psi 103.3 113.6 54 7.2:1 4.0:1 21-1/4” 5000 psi - - - - -21-1/4” 10,000 psi 92.7 101.8 51 7.2:1 4.0:1 21-1/4” 10,000 psi - - - - -26-3/4” 3000 psi 38.2 40.9 58 7.0:1 1.0:1 26-3/4” 3000 ps - - - -

-U BOP Specifications and Accessories

The following specifications apply to typical Cameron U type BOPs. Your Cameron

repre-sentative can provide information on non-standard BOP assemblies.

• Side outlets to 4-1/16” (7-1/16” on 26-3/4” BOPs) can be provided beneath each set

of rams on either or both sides of U BOPs. Side outlets can be studded, open-face

flange or clamp hub with the same pressure rating as the vertical run connections.

• Flanges conform to API standard 6A and/or 16A. Hubs conform to API 16A or

applicable standards. Type 6BX flanges are standard for 10,000 and 15,000 psi

working pressures and for 5000 psi for 13-5/8” and larger bore BOPs.

• Hydraulic control connections for operation of rams and bonnets are 1” NPT. There

are two connections for each set of rams. Wedgelock connections are ½” NPT.

U BOP Standard Accessories

Size and Working Pressure Ram Lube* Cameron Box Wrench* Allen Wrench* Packing_Screw Handwheel** Universal Joint** Extension Wrench*

7-1/16” 3000 psi 713878 713114-08 8721-01 5457 6018-01 5652 7-1/16” 5000 psi 713878 7957-06 8721-01 5457 6018-01 5652 7-1/16” 10,000 and 15,000 psi 713878 713114-10 8721-01 5457 6018-01 5652 11” 3000, 5000 and 10,000 psi 713878 713114-10 8721-01 5298 6018-03 5526 11” 15,000 psi 713878 713114-13 8721-01 5298 6018-03 5526 13-5/8” 3000 and 5000 psi 713878 7959-08 8721-01 5298 6018-03 5526 13-5/8” 10,000 psi 713878 713114-10 8721-01 5298 6018-03 5526 13-5/8” 15,000 psi 713878 *** 8721-01 5298 6018-03 5526 16-3/4” 3000 and 5000 psi 713878 713114-13 8721-01 5298 6018-03 5526 16-3/4” 10,000 psi 713878 *** 8721-01 5298 6018-03 5526 18-3/4” 10,000 psi 713878 *** 8721-01 5298 6018-03 5526 20-3/4” 3000 psi 713878 713114-08 8721-01 5298 6018-03 5526 21-1/4” 2000 psi 713878 713114-10 8721-01 5298 6018-03 5526 21-1/4” 5000 psi 713878 *** 8721-01 5298 6018-03 5526 21-1/4” 10,000 psi 713878 *** 8721-01 5298 6018-03 5526 26-3/4” 10,000 psi 713878 713114-13 8721-01 5298 6018-03 5526

Large Bore Shear Bonnets

Large Bore Shear Bonnet Part Numbers

Item

No. (2 Required per Cavity)Description

11” 3000 psi Model II 11” 5000 psi Model II 11” 10,000 psi Model II 11” 15,000 psi Model 79 13-5/8” 3000 psi Model 11 13-5/8” 5000 psi Model II 13-5/8” 10,000 psi Model II 13-5/8” 15,000 psi Model B 16-3/4” 5000 psi Model B 16-3/4” 10,000 psi Model II 20-3/4” 3000 psi Model II 21-1/4” 2000 psi Model II

* Bonnet Assembly (Right) 615195-01 615194-01 614596-01 615419-01 615196-01 615191-01 614498-01 615540-01 615530-01 615537-01 615526-01 615525-01 * Bonnet Assembly (Left) 615195-02 615194-02 614596-02 615419-02 615196-02 615191-01 614498-02 615540-02 615530-02 615537-02 615526-02 615525-02 2A Intermediate Flange/Shear 615188-01 615188-01 615188-01 615459-01 615192-01 615192-01 614766-01 615538-01 615528-01 615535-01 615523-01 615523-01 3A Bonnet/Shear 615189-03 615189-02 615189-01 615640-01 615143-02 615143-01 614772-01 615448-01 615527-01 615534-01 615522-01 615522-02 5A Operating Piston/Shear 645249-01 645249-01 645249-01 615457-01 615209-01 615209-01 614760-01 615539-01 615529-01 615536-01 615524-01 615524-01 24A O-Ring, Int Flg to Bonnet Lip 702640-45-₅₁ 702640-45-₅₁ 702640-45-₅₁ 702640-45-₈₁ 702640-45-₈₁ 702640-45-₈₁ 702640-45-₈₁ 702645-46-₅₁ 702645-46-₅₁ 702645-46-₅₁ 702640-45-₈₁ 702640-45-₈₁ 26A Lip Seal, Operating Piston/Shear 710586 710586 710586 710542 710542 710542 710542 710588 710588 710588 710542 710542 42A Wear Ring, Operating Piston/Shear 49223-15 49223-15 49223-15 49223-04 49223-04 49223-04 49223-04 49223-17 49223-17 49223-17 49223-14 49223-14

**Two shear bonnet assemblies, one right and one left, are required per cavity. The shear bonnet assembly consists of all items shown on the illustration. **See pages 11, 13 and 15 for bonnet bolt part numbers.

2A

3A

12A**

Large Bore Shear Ram

24A

26A

5A

42A

SD-017503

Bonnet Assembly

Tandem Boosters for U BOPs

A BOP equipped with tandem boosters can deliver increased shearing force while not

in-creasing the wear and tear on the packers. Tandem boosters approximately double the

force available to shear pipe. Since the tailrod of the tandem booster has the same stroke

as the BOP’s operating piston, the standard shear locking mechanism can be installed on

the outside end of the booster. For information on lock screws and the required spacers,

see pages 11, 13, and 15.

For information concerning applications where a tandem booster is required, consult

your Cameron representative.

Item

No. Description

7-1/16” 3000, 5000, 10,000 and

15,000 psi* 11’ 3000, 5000, and 10,000 psi 13-5/8” 3000, 5000 and 10,000 psi11’ 15,000 psi 20-3/4” 3000 psi and21-1/4” 2000 psi Qty Part Number Qty Part Number Qty Part Number Qty Part Number

1 Cylinder 1 644959-01 2 645113-01 2 645113-03 2 645113-04 2 Cylinder Head 1 644960-01 2 645171-01 2 645171-03 2 645171-03 3 Piston 1 644961-01 2 2032370-02 2 645172-03 2 645172-03 4 Tailrod 1 644962-01 2 645173-01 2 645173-03 2 645173-04 5 Adapter Plate 1 644963-01 2 645115-01 2 645115-03 2 645115-03 6 Screw, SDC HD Cap 8 18541-34 16 18542-13 16 18542-14 16 18542-14 7 O-Ring 1 702640-24-91 2 702640-36-11 2 702645-37-11 2 702645-37-11 8 Seal Ring 1 710541 2 712352 2 710538 2 710538 9 Wear Ring, Operating Piston 1 49223-03 2 49223-21 2 49223-01 2 49223-01 10 Filter, Muffler 1 710621 2 710621 2 710417 2 710417 11 Seal, Lip 1 11741-32 2 212741-33-00-01 2 212741-34-00-01 2 212741-34-00-01 12 Seal Ring 1 710620 2 712351 2 710419 2 710419 13 Wear Ring, Cylinder 1 644443-02 2 644443-03 2 645215-01 2 645215-01 14 Seal Ring 1 705955 2 712445 2 710418 2 710418 15 O-Ring 1 702640-33-11 2 702640-33-51 2 702640-33-71 2 702640-33-71 16 Alignment Ring 1 645116-02 2 645116-01 2 645116-03 2 645116-03 17 Pipe Plug 1 - 2 201018 2 005930-05-10 2 005930-05-10 18 Connector, Tubing 1 19624-01 2 - 4 204887-10-06-57 4 204887-10-06-57 19 Cross 1 6347-08 1 675029-52 1 675029-23 2 675029-23 20 Nipple, Pipe Regular 2 - 1 685902-07-00-30 1 685902-07-00-30 1 685902-07-00-30 21 Hose Assembly 2 711010 2 2708021 2 711374 2 711374 22 Connector, Tubing 1 204888-08-05-56 2 204887-10-05-56 - - - -23 Stud, Double End - - 16 2010189-03 - - - -26 Connector, Tubing 1 501133-71-22 2 204887-10-06-56 - - - -27 Adapter, Pipe - - 2 675029-01 - - - -8 6 1 4 3 14 15 23 2 12 11 13 9 17 7 5 16 10 SD-017504 Tandem Booster Assembly

U BOP Ram Hang-Off Weights and

Shear Requirements

Hang-Off Weights

Hang-off weights are estimated capacities with

hardened top corners of the hang-off rams. This

enables the rams to dig into the tool joint and

provide superior hang-off capacity while still

meeting NACE requirements.

For variable bore rams (VBRs) and

FLEXPACKER rams, hang-off weights up to 300,000 lb (136,078 kg) on hang-off rams for

the lower pipe size in the range, 600,000 lb (272,155 kg) for the larger pipe size in the

range.

Drill Pipe Shearing Requirements

The minimum shearing configurations needed for each size U BOP to meet the

require-ments of the second edition of API 16A are listed in the following chart. Each shearing

configuration is capable of shearing the corresponding pipe at a closing pressure equal to

or less than 2800 psi. For further information on shearing requirements for different pipe

sizes and grades, contact your Cameron representative.

Minimum Shearing Configurations for the U BOP

API Designated Size Ram Type Pressure Rating (psi) Pipe OD (In.) Pipe lb/ft Pipe Grade Shearing Configuration

7-1/16” SBR All 3-1/2 13.3 S Shear Bonnets with Tandem Boosters 11” SBR 10,000 and Lower 5 19.5 E Shear Bonnets with Tandem Boosters 11” DS 10,000 and Lower 5 19.5 E Large Bore Shear Bonnets 11” SBR 15,000 and Higher 5 19.5 G Large Bore Shear Bonnets 13-5/8” SBR 10,000 and Lower 5 19.5 G Shear Bonnets with Tandem Boosters 13-5/8” DS 10,000 and Lower 5 19.5 G Large Bore Shear Bonnets 13-5/8” SBR 15,000 and Higher 5 19.5 S Large Bore Shear Bonnets 16-3/4” SBR All 5 19.5 S Large Bore Shear Bonnets 18-3/4” SBR All 5 19.5 S Standard Bonnets

20-3/4” SBR 3000 and Lower 5 19.5 G Shear Bonnets with Tandem Boosters 21-1/4” SBR 3000 and Lower 5 19.5 G Shear Bonnets with Tandem Boosters 21-1/4” SBR 5000 and Higher 5 19.5 S Standard Bonnets

Note: See pages 19 and 20 for a complete list of part numbers for the large bore shear bonnets and tandem boosters.

Pipe Size Pipe Rams

3-1/2” 300,000 lb (136,078 kg) 4-1/2” 300,000 lb (136,078 kg) 5” 600,000 lb (272,155 kg) 6-5/8” 600,000 lb (272,155 kg)

U BOP Pipe Rams

Pipe rams are available for use in Cameron U BOPs to fit all commonly used sizes of

tub-ing, drill pipe, drill collar or casing within the ranges in the charts on pages 23, 24, and 25.

Cameron pipe rams include the following features:

• Cameron pipe rams are self-feeding and incorporate a large reservoir of packer

rubber to ensure a long-lasting seal under all conditions.

• Ram packers lock into place and are not dislodged by well flow.

• All Cameron pipe rams are suitable for H

2

S service per NACE MR-01-75.

• CAMRAM™ top seals are standard for all U BOP pipe rams from 7-1/16” through

18-3/4” sizes. Packer part numbers beginning with 644xxx indicate the CAMRAM

lipped-plate design. All other packers use standard elastomer material and

reinforcement plates.

• CAMRAM 350™ packers and top seals are available for high temperature service and

for service in which concentrations of H

2

S are expected.

SD-017508

U BOP Pipe Ram

Packer

Top Seal

U BOP Pipe Ram Part Numbers

Blind 644504-01 644500-01 644215-01-00-01 644219-01 44118-01 644218-01-00-01 644222-01 44121-01 644221-01 644225-01 44147-01 644224-01-00-01 1.050 644504-02 644501-01 644215-02-00-01 - - - -1.250 - - 644215-17-00-01 - - - -1.315 644504-03 644501-02 644215-03-00-01 44233-25 44118-07 644218-02 - - - 644225-02 44148-06 644224-02 1.500 - - 644215-18-00-01 - - - -1.660 644504-04 644501-03 644215-04-00-01 44233-02 44118-02 644218-03 644222-02 44121-02 644221-02 644225-03 44148-05 644224-03 1.750 - - 644215-19-00-01 - - - -1.900 644504-05 644501-04 644215-05-00-01 44233-03 44118-03 644218-04 644222-03 44121-03 644221-03 644225-04 44148-07 644224-04 2.062 644504-06 644501-05 644215-06-00-01 44233-04 44118-04 644218-05-00-01 644222-04 44121-04 644221-04 644225-05 44148-03 644224-05 2.250 - - 644215-16-00-01 - - - -2.375 644504-07 644501-06 644215-07-00-01 644219-06 44118-05 644218-06-00-01 644222-05 44121-05 2010454-05 644225-06 44148-01 644224-06-00-01 2.625 - - 644215-21-00-01 - - - -2.875 644504-08 644501-07 644215-08-00-01 644219-07 44118-06 644218-07-00-01 644222-06 44121-06 2010454-06 644225-07 44148-02 644224-07-00-01 3.500 644504-09 644502-01 644215-09-00-01 644219-08 644835-01 644218-08-00-01 644222-07 644753-01 2010454-07 644225-08 644738-01 644224-08-00-01 3.650 - - 644215-20 - - - -4.000 644216-11 644503-02 644215-11-00-01 644219-10 44119-02 644218-10 44234-10 44122-04 644221-08 644225-10 44149-02 644224-10-00-01 4.500 644216-12 644503-03 644215-12-00-01 644219-11 644835-02 644218-11-00-01 644222-09 644753-02 644221-09 644225-11 644738-02 644224-11-00-01 4.750 - - - 44233-12 44119-04 644218-13 - - - 644225-13 44150-01 644224-13-00-01 5.000 644216-14 644503-05 644215-14-00-01 644219-14 644835-03 644218-14-00-01 644222-10 644753-03 2010454-10 644225-14 644738-03 644224-14-00-01 5.500 644216-15 644503-06 644215-15-00-01 644219-16 44120-01 644218-16 44234-13 44123-01 2010454-11 644225-16 44150-03 644224-16-00-01 5.750 - - - 44233-23 44120-10 644218-17 - - - -6.000 - - - 44233-16 44120-02 644218-18 44234-14 44123-02 644221-12 44244-13 44150-04 644224-17 6.625 - - - 44233-17 644835-04 644218-19 44234-15 44123-03 2010454-13 644225-18 644738-04-00-02 644224-18-00-01 7.000 - - - 44233-18 44120-04 644218-20-00-01 44234-+16 44124-01 2010454-14 644225-19 44151-01 644224-19-00-01 7.625 - - - 44233-19 44120-05 644210-21-00-01 44234-17 44124-02 644221-15 44244-15 44151-02 644224-20-00-01 7.750 - - - 44233-22 44120-09 644218-22 - - - 44244-25 44151-06 644224-21 8.625 - - - 44233-20 44120-06 644218-23 - - - 44244-16 44151-03 644224-22 9.000 - - - 44244-24 44151-04 644224-23 9.625 - - - 644225-24 44151-05 644224-24-00-01 10.750 - - - 44244-18 44152-01 644224-25-00-01 11.750 - - - 44244-26 614208-01 644224-26 3.500 Aluminum 644216-10 644503-01 644215-10 44233-08 44119-06 644218-09 - - - 44244-20 44149-04 31215-16 4.500 Aluminum 644216-13 644503-04 644215-13 44233-11 44119-07 644218-12 - - - 44244-10 44149-05 31215-17 5.000 Aluminum - - - 44233-24 44119-08 644218-15 - - - 44244-32 44150-08 31215-27 SD-017508 U BOP Pipe Ram

Packer Top Seal

Pipe Size (in.) 13-5/8” U BOP 15,000 psi Top Seal 644226-01-00-01 16-3/4” U BOP 3000, 5000, and 10,000 psi Top Seal 644229-01-00-01 18-3/4” U BOP 10,000 psi Top Seal 644232-01-00-01 21-1/4” U BOP 5000 and 10,000 psi Top Seal 2010939-01 Assembly Ram Packer Assembly Ram Packer Assembly Ram Packer Assembly Ram Packer

Blind 644228-01 44143-01 644227-01 644231-01 44179-01 644230-01 644234-01 44184-01 644233-01 44262-01 44214-01 2010851-19 1.050 - - - -1.315 - - - -1.660 - - - -1.900 - - - 644231-02 44180-03 644230-02 - - - -2.062 44243-02 44144-03 644227-02 - - - -2.375 644228-03 44144-01 644227-03 644231-03 44180-01 644260-03 44254-02 44185-01 644233-02 44262-02 44215-01 40962-01 2.875 644228-04 44144-02 644227-04 644231-04 44180-02 644230-04 44254-03 44185-02 644233-03 44262-03 44215-02 40962-02 3.500 644228-05 644739-01 644227-05 644231-05 644740-01 644230-05-00-01 644234-04 644741-01 44233-04 44262-04 644743-01 40962-03 4.000 644228-07 44144-06 6442274-07 644231-06 44181-02 644230-06 44254-06 44185-05 41856-04 44262-06 44215-05 40962-04 4.500 644228-08 644739-02 6442274-08 644231-07 644740-02 644230-07 44254-07 644741-02 41856-05 44262-07 644743-02 40962-05 4.750 44243-11 44144-09 644227-09 644231-08 44181-04 644230-08 44254-09 44185-08 41856-06 44262-09 44215-08 40962-06 5.000 644228-11 644739-03 644227-11-00-01 644231-09 644740-03 644230-09-00-01 644234-10 644741-03 644233-10 44262-10 644743-03 2010851-07 5.500 44243-12 44145-03 644227-12 644231-10 44181-06 644230-10 44254-11 44185-10 41856-08 44262-11 44215-10 40962-08 5.750 - - - -6.000 44243-14 44145-04 644227-13 644231-11 49291-01 644230-11 44254-13 44185-12 41856-09 44262-13 44215-12 40962-09 6.625 44243-15 644739-04 644227-14 644231-12 49291-02 644230-12 44254-14 044185-13 41856-10 44262-14 044215-13 2010851-10 7.000 44243-16 44146-01 644227-15 644231-13 49291-03 644230-13 44254-15 44185-14 41856-11 44262-15 44215-14 40962-11 7.625 44243-17 44146-02 644227-16 644231-14 49291-04 644230-14 44254-16 44185-15 41856-12 44262-16 44215-15 40962-12 7.750 44243-22 44146-07 644227-17 - - - -8.625 44243-18 44146-03 644227-18-00-01 644231-15 49291-06 644230-15 44254-17 44185-16 41856-13 44262-17 44215-16 40962-13 9.000 44243-19 44146-04 644227-19-00-01 644231-16 49291-04 644230-16 44254-18 44185-17 41856-14 44262-18 44215-17 40962-14 9.625 44243-20 44146-05 644227-20 644231-17 49292-01 644230-17 44254-19 44185-18 41856-15 44626-19 44215-18 40962-15 9.875 - - 644227-22-00-01 - - - -10.750 44243-21 44146-06 644227-21 644231-18 49292-02 644230-18 44254-21 44185-21 41856-20 44262-20 44216-01 40962-20 11.750 - - - 644231-19 49292-03 644230-19 - - - 44262-21 44216-02 40962-21 11.875 644230-22 13.375 - - - 644231-20 49292-04 644230-20 44254-22 44185-20 41856-22 44262-22 44216-03 2010851-22 13.625 - - - 644230-21 - - - 44262-24 044216-05 40962-24 13.750 - - - -16.000 - - - 44262-23 44216-04 40962-23 3.500 Aluminum 44243-06 44144-05 40910-16 - - - 44254-05 44185-04 41856-16 44262-05 44215-04 40962-16 4.500 Aluminum 44243-08 44144-08 40910-05 - - - 44254-08 44185-07 41856-17 44262-08 44215-07 40962-17 5.000 Aluminum - - -

-SD-017508

U BOP Pipe Ram

Packer

Top Seal

Pipe Size (in.) 21-1/4” Bore 2000 psi 20-3/4” Bore 3000 psi Top Seal 19514-00-00-01 26-3/4” Bore 2000 and 3000 psi Top Seal 34200

Assembly Ram Packer Assembly Ram Packer

Blind 44256-01 44149-01 2010583-03 44260-01 044209-01 34201-20 1.050 - - - -1.315 - - - -1.660 - - - -1.900 - - - -2.062 - - - -2.375 - - - 44260-02 614017-01 34201-01 2.875 - - - 44260-03 614017-02 34201-02 3.500 44256-02 645328-01 2010583-22 44260-04 614018-01 34201-03 4.000 44256-03 44192-02 2010583-04-01 44260-05 614018-02 34201-04 4.500 44256-04 645328-02 2010583-05 44260-06 614018-03 34201-05 4.750 44256-05 44192-04 31228-06 - - -5.000 44256-06 645328-03 2010583-07 44260-07 614018-04 34201-06 5.500 44256-07 44193-02 2010583-08-01 44260-08 614018-05 34201-07 5.750 - - - -6.000 44256-08 44193-03 31228-09 44260-09 614019-01 34201-08 6.625 44256-09 645328-04 2010583-10-01 44260-10 614019-02 34201-09 7.000 44256-10 44193-05 2010583-11 44260-11 614019-03 34201-10 7.625 44256-11 44193-06 2010583-12 44260-12 614019-04 34201-11 7.750 - - - -8.000 - - 31228-13 - - -8.625 44256-13 44193-08 31228-14 - - -9.000 44256-14 44193-09 31228-15 44260-14 614019-06 34201-13 9.625 44256-15 44193-10 2010583-16 44260-15 614020-01 34201-14 10.750 044256-16 44194-01 2010583-17 44260-16 614020-02 34201-15 11.750 44256-17 44194-02 31228-18 44260-17 614020-03 34201-16 12.750 - - 31228-27 13.375 44256-18 44194-03 2010583-04-01 44260-18 614020-04 34201-17 13.625 44256-21 44194-05 2010583-24 - - -13.750 44256-19 44194-04 2010583-19 - - -14.750 - - 31228-20 - - -16.000 44256-20 44195-01 2010583-21 44260-19 614021-01 34201-18 16.625 - - 31228-23 - - -16.750 - - 31228-22 - - -18.625 44256-22 614459-01 31228-25 - - -20.000 - - - 44260-20 614021-02 34201-19

SD-017508

U BOP Pipe Ram

Packer

Top Seal

U BOP Shearing Blind Rams

Cameron shearing blind rams shear the pipe in the hole, then bend the lower section of

sheared pipe to allow the rams to close and seal. Shearing blind rams can be used as blind

rams during normal drilling operations.

The DS shearing blind ram can cut larger diameter tubulars or multiple tubing strings

regardless of their orientation to the centerline of the ram. A blade seal between the

up-per and lower faces eliminates the need for moving pipe after shearing.

Features of shearing blind rams and DS rams include:

• Large frontal area on the blade face seal reduces pressure on the rubber and

increases service life.

• Cameron SBRs can cut pipe numerous times without damage to the cutting edge.

• The single-piece body incorporates an integrated cutting edge.

• CAMRAM™ top seals are standard for all U BOP shearing blind rams through

18-3/4”. Part numbers beginning with 644xxx indicate CAMRAM. All other top seals

are standard elastomer material.

• H

2

S SBRs are available for critical service applications and include a blade material of

hardened high alloy suitable for H

2

S service.

• The Cameron shearing blind ram has a single-piece body with an integrated cutting

edge.

U BOP H

2

S Shearing Blind Ram Part Numbers

BOP Bore Size and Working Pressure (psi)

1 Upper Ram Subassembly

2

Ram Blade Packer3 Packer4 Packer5 Top Seal6 Blade Insert7

13-5/8” 5000 and 10,000 644781-01 644780-01 644435-01-00-01 46751-01-00-01 46752-01-00-01 644223-01-00-01 644581-01-00-01 18-3/4” 10,000 2010186-01 2010187-01 2010192-01 2010191-01 2010190-01 2010193-01 2010182-01

BOP Bore Size and

Working Pressure (psi) Set Screw8

9 Lower Ram Subassembly

10

Ram Packer11 Packer12 Top Seal13 Blade Insert14

13-5/8” 5000 and 10,000 644582-01 644781-02 644780-02 46751-01-00-01 46752-01-00-01 644233-01-00-01 644581-02-00-01 18-3/4” 10,000 644524-01 2010186-02 2010188-01 2010191-01 2010190-01 2010193-01 2010183-01

Part number 15 for both sizes is 200231.

2 4 3 1 14 9 11 13 10 12 15 5 7 8 2 6 SD-017509 U BOP H S Shearing Blind Ram

U BOP DS Shearing Blind Ram**

BOP Bore Size and Working Pressure

Description and Item Number 1

Upper Ram Subassembly

2

Ram Blade Seal3 Packer4 Packer5 Top Seal6 7 Lower Ram Subassembly

8

Ram* Packer*9 Packer*10

11” 5000 and 10,000 psi 645078-01 645079-01 645031-02 645080-02 645080-01 644217-02 645078-02 645079-02 645080-01 6545080-02 13-5/8” 5000 and 10,000 psi 645026-01 645027-01-00-04 645031-01 645494-01 645494-02 645033-01 645026-02 645027-02-00-04 645494-01 645494-02

**Part of lower ram subassembly, item 7.

**Part numbers listed are the primary base numbers. Call your Cameron representative for part numbers that apply to API 16A specifications.

3

4

4

6

1

5

7

SD-017512

DS Shearing Blind Ram

U BOP Shearing Blind Ram Part Numbers

Description and Item Number 1

Upper Ram Subassembly

2

Ram Blade Packer3 Packer4 Packer5 Top Seal6

7 Lower Ram Subassembly

8

Ram* Packer*9 Packer*10

7-1/16” 5000, 10,000 and 15,000 46792-01-00-03 46210-01-00-04 - 49358-01 49358-02-00-01 644214-01-00-01 46792-02 46212-01-00-04 49347-01-00-01 -11” 5000 and 10,000 49392-01-00-02 49009-01-00-02 2010462-04 46751-04 46752-04 644217-01-00-01 049392-02-00-02 049010-01-00-02 46751-04 46752-04 11” 15,000 614297-01 614275-01 2010462-04 2010460-07 2010461-07 2010453-01 614297-02 614274-01 2010460-07 2010460-07 13-5/8” 5000 and 10,000 46748-01 46749-01 644435-01-00-01 046751-01-00-01 046752-01-00-01 644223-01-00-01 46748-02 46750-01 046751-01-00-01 046752-01-00-01 13-5/8” 15,000 614004-01 614002-01 644435-01-00-01 46751-05 46752-05 644226-01 614004-02 614003-01 46751-05 46752-05 16-3/4” 5000 46766-01 49006-01 46910-03 46751-03-00-01 46752-03-00-01 644229-01-00-01 46766-02 49007-01 46751-03-00-01 46751-03-00-01 16-3/4” 10,000 46773-01 46774-01 46910-03 46751-03-00-01 46752-03-00-01 644229-01-00-01 46773-02 46775-01 046751-03-00-01 46751-03-00-01 18-3/4” 10,000 46776-01 46777-01 46910-02 46751-02 46752-02 644232-02 46776-02 46778-01 46751-02 46752-02 20-3/4” 3000 46783-01 46784-01 - 615235-01-00-01 - 19514-00-00-01 46783-02 46785-01 615247-01-00-01 615247-02-00-01 21-1/4” 2000 46783-01 46784-01 - 615235-01-00-01 - 19514-00-00-01 46783-02 46785-01 615247-01-00-01 615247-02-00-01 21-1/4” 5000 49983-01 49981-01 46910-05 46751-06 46752-06 645478-01 49983-02 49982-01 46751-06 46752-06 21-1/4” 7500 and 10,000 46788-01 49012-01 46910-05 46751-06 46752-06 645478-01 46788-02 49011-01 46751-06 46752-06

*Part of lower ram subassembly; item 7.

3

2

4

5

6

1

7

SD-017513

U BOP Shearing Blind Ram

U BOP DSI and DVS Shear Rams

Dual string interlocking (DSI) shear rams and double V shear (DVS) rams are also available

for the U BOP. The interlocking feature of these rams provides the capability of shearing

wireline and braided cable with zero tension in the line, while still maintaining a seal. The

blades are interlocked by using pockets in the lower ram and arms on the upper ram to

prevent any gap between blade surfaces.

DSI rams are similar to standard DS shear rams except for the interlock feature. DSI

shear rams are capable of shearing tubing, small pipe, braided cable, slickline and solid

sinker bar.

DVS rams are similar in design to the standard shearing blind rams except that both

blades are V shaped and interlocked. The DVS rams are capable of shearing tubing, small

pipe, braided cable and slickline.

Blade Packer

Top Seal

Upper Ram Body

Lower Ram Body

Side Packer

Double V Shear (DVS) Shear Rams

Side Packer

Lower Shear Ram

Blade Seal

Upper Shear Ram

Top Seal

Upper Ram Body

Side Packer

Upper Shear Ram

Lower Ram Body

SD-017525

Dual String Interlocking (DSI) Shear Rams

U BOP Variable Bore Rams

One set of Cameron variable bore rams seals on several sizes of pipe or hexagonal kelly.

Variable bore rams are available in the size ranges listed in the chart below. All rams listed

are suitable for H

2

S service per NACE MR-01-75.

CAMRAM top seals are standard for all U BOP variable bore rams. CAMRAM packers

are available in most sizes. Packer part numbers beginning with 644xxx indicate

CAMRAM. All other packers are standard elastomer material.

The variable bore ram packer contains steel reinforcing inserts similar to those in the

Cameron annular BOP packer. The inserts rotate inward when the rams are closed so the

steel provides support for the rubber which seals against the pipe.

BOP Size and Working Pressure (psi) Pipe Size Range Ram Subassembly Ram Body Packer Top Seal

7-1/16” 3000, 5000, 10,000 and 15,000 3-1/2” to2-3/8” 615066-01 615065-01 614616-02 644214-02-00-01 7-1/16” 3000, 5000, 10,000 and 15,000 4” to 2-7/8” 644901-01 614605-01 614616-02 644214-02-00-01 11” 3000, 5000 5” to 2-7/8” 645360-01 644836-01 644926-01-00-01 644217-01-00-01 11” 3000, 5000, and 10,000 5” to 3-1/2” 645360-01 644836-01 644926-01-00-01 644217-01-00-01 11” 15,000 5” to 2-7/8” 614456-01 644754-01 644931-01 2010453-02 13-5/8” 3000, 5000, and 10,000 7” to 4-1/2” 46675-01 46671-01 644921-01-00-02 644223-02-00-01 13-5/8” 3000, 5000, and 10,000 5” to 2-7/8” 645166-01 644744-01 645089-01 644223-02-00-01 13-5/8” 15,000 7” to 5” 614104-01 614146-01 644924-02 644226-02 13-5/8” 15,000 5” to 3-1/2” 614129-01 644745-01 644921-01 644226-02 16-3/4” 5000 and 10,000 7” to 3-1/2” 46676-01 46672-01 644920-01-00-01 644229-01-00-01 16-3/4” 10,000 (only) 5” to 2-7/8” 49410-01 644746-01 645128-01-00-01 644229-01-00-01 18-3/4” 10,000 7-5/8” to 3-1/2” 46677-01 46673-01 644927-01 644232-03-00-01

SD-5129

Flexpackers for U BOPs

The Cameron FLEXPACKER ram is designed to close and seal around several diameters of

tubing and pipe. These packers can be used in existing Cameron BOPs. Features include:

• Stacks of metal inserts bonded into the elastomer move radially in the elastomer as

the BOP rams are closed.

• As rams are energized, the proper set of metal inserts is forced against the pipe. The

top plate of the packer fits the largest diameter of pipe.

FLEXPACKER Sizes and Part Numbers

BOP Size and Description Pipe Size Diameters Packer Part Number Top Seal Part Number

11” 3000, 5000 and 10,000 psi 2-3/8” to 3-1/2” 2010123-01 644217-01-00-01 11” 3000, 5000 and 10,000 psi 2-3/8” to 3-1/2” 2011740-01 11” 3000, 5000 and10,000 psi 3-1/2” to 5” 2163445-01 13-5/8” 3000, 5000 and 10,000 psi 2-3/8” to 3-1/2” 2010113-01 644223-01-00-01 13-5/8” 3000, 5000 and 10,000 psi 2-3/8” to 3-1/2” 2011716-01 13-5/8” 3000, 5000 and 10,000 psi 3-1/2” to 5” 2011673-01 13-5/8” 3000, 5000 and 10,000 psi 5” to 6-5/8” 2011688-01 18-3/4” 10,000 psi 2-7/8” to 5” 645346-01 644232-04 18-3/4” 10,000 psi 3-1/2” - 5” 2011701-01 18-3/4” 10,000 psi 5” to 6-5/8” 2011907-01 20-3/4” 3000 psi 5” to 7” 645353-01 19514-00-00-01 21-1/4” 2000 psi 5” to 7” 645353-01 19514-00-00-01

SD-10315

CAMRAM 350 Packers and Top Seals for U BOPs

CAMRAM 350 U BOP pipe ram packers and top seals are available for applications which

require high temperature capabilities and greater H

2

S resistance than standard CAMRAM

packers and top seals.

CAMRAM 350 is available in all U BOP sizes in which standard CAMRAM packers and

top seals are offered. At present, only pipe sizes (up to 5-1/2”) are manufactured.

Pipe Size (in.) 7-1/16” 3000 - 15,000 psi Top Seal 644701-01 11” 3000 - 10,000 psi Top Seal 644703-01 11” 15,000 psi Top Seal 644705-01 13-5/8” 3000 - 10,000 psi Top Seal 644707-01 13-5/8” 15,000 psi Top Seal 644709-01 16-3/4” 3000 - 10,000 psi Top Seal 644711-01 18-3/4” 10,000 psi Top Seal 644713-01

Packer Packer Packer Packer Packer Packer Packer

Blind 644700-01 644702-01 644704-01 644706-01 644708-01 644710-01 644712-01 2.375 644700-07 644702-06 644704-05 644706-06 644708-03 - -2.875 644700-08 644702-07 644704-06 644706-07 644708-04 644710-04 -3.500 644700-09 644702-08 - 644706-08 644708-05 644710-05 644712-04 4.000 - 644702-10 - 644706-10 644708-07 644710-06 -4.500 - 644702-11 644704-09 644706-11 - 644710-07 -5.000 - 644702-14 644704-10 644706-14 644708-11 644710-09 644712-10 5.500 - 644702-16 - 644706-16 - -

-Packer

Camram 350

Camram 350

Top Seal

SD-017514

U BOP Camram 350 Packer and Top Seal

U BOP Rams for Multiple Completions

Non-sealing centralizing rams and companion subsea dual rams and packers for use with

two strings of the same diameter are available for the U BOP. Also available are offset

bore rams for 7-1/16” and 11” BOPs. Contact a Cameron representative for more

informa-tion.

U Blowout Preventer Offset Bore Ram Part Numbers

Preventer Size

(in.) Tubing Size(in.)

Actual Centerline Offset

(in.)

Offset Range

(in.) Ram Assembly Right-Hand Ram(1 Reqd) Left-Hand Ram(1 Reqd) Right-Hand Packer(1 Reqd) Left-Hand Packer(1 Reqd) Top Seal(2 Reqd)

7-1/16 1.315 1-3/4 1-3/8 to 1-7/8 44229-01 44108-05 44109-05 21153-07 21154-07 644214-01-00-01 7-1/16 1.660 1-3/4 1-3/8 to 1-7/8 44229-02 44108-03 44109-03 21153-04 21154-04 644214-01-00-01 7-1/16 1.900 1-3/4 1-3/8 to 1-7/8 44229-03 44108-01 44109-01 21153-01 21154-01 644214-01-00-01 7-1/16 2-1/16 1-3/4 1-3/8 to 1-7/8 44229-04 44108-01 44109-01 21153-02 21154-02 644214-01-00-01 7-1/16 2-3/8 1-3/4 1-3/8 to 1-7/8 44229-05 44108-02 44109-02 21153-03 21154-03 644214-01-00-01 7-1/16 2-7/8 1-3/4 1-3/8 to 1-7/8 44229-06 44108-04 44109-04 21153-05 21154-05 644214-01-00-01 11 1.660 2 1-25/32 to 2-7/16 44238-01 44128-04 44129-04 21157-05 21158-05 644217-01-00-01 11 1.900 2-33/64 1-25/32 to 2-7/16 44238-02 44128-08 44129-08 21157-11 21158-11 644217-01-00-01 11 2-1/16 2 1-25/32 to 2-7/16 44238-04 44128-01 44129-01 21157-02 21158-02 644217-01-00-01 11 2-3/8 2-1/8 1-25/32 to 2-7/16 44238-05 44128-02 44129-02 21157-03 21158-03 644217-01-00-01 11 2-7/8 2 1-25/32 to 2-7/16 44238-07 44128-03 44129-03 21157-04 21158-04 644217-01-00-01 11 3-1/2 2 1-25/32 to 2-7/16 44238-08 44128-05 44129-05 21157-06 21158-06 644217-01-00-01

Bonnet Rebuild Softgoods Kits

For popular size U BOPs, a bonnet rebuild softgoods kit is available to provide all parts

re-quired to reseal the operating system.

Kit parts are shrink-film packed to prevent loss and assure long shelf life. The kits are

less expensive than individual parts. All parts in each kit are identified with part numbers

and parts list index numbers.

27

28

20

19

25

30

31

32

24

26

33

21

18

24

42

34

SD-017515

U BOP Bonnet Softgoods Components

Kit Part Numbers

BOP Size (in.) Pressure Rating/Bonnet Type Kit Part Number*

7-1/16 3000, 5000, 10,000 and 15,000 psi All 644909-01

11 3000, 5000, and 10,000 psi Pipe 644909-02

11 15,000 psi All 644831-08

13-5/8 3000, 5000, and 10,000 psi Pipe 644909-03

13-5/8 15,000 psi All 644831-12 16-3/4 5000 psi Pipe 644831-14 16-3/4 10,000 psi All 644831-15 18-3/4 10,000 psi All 644909-04 20-3/4 3000 psi Pipe 644831-17 21-1/4 2000 psi Pipe 644831-18 21-1/4 5000 psi All 644831-19 21-1/4 10,000 psi Pipe 644831-21 26-3/4 3000 psi All 644831-22

U BOP Bonnet Rebuild Softgoods Kit Components

Item Number* Description

18 Ring, Plastic Packing

19 Ring, Plastic Energizing

20 Seal Ring, Connecting Rod

21 Ring, Backup

24 O-ring, Operating Cylinder

25 O-Ring, Operating Piston Rod to Intermediate Flange

26 Lip Seal, Operating Piston

27 Seal Ring, Tail Rod

28 O-Ring, Wiping

29 O-Ring, Ram Change Piston to Body

30 O-Ring, Ram Change Piston Rod to Intermediate Flange 31 O-Ring, Ram Change Cylinder to Intermediate Flange

32 O-Ring, Ram Change Piston to Bonnet

33 O-Ring, Ram Change Piston

34 O-Ring, Bonnet Bolt Retainer

39 Packing, Plastic**
