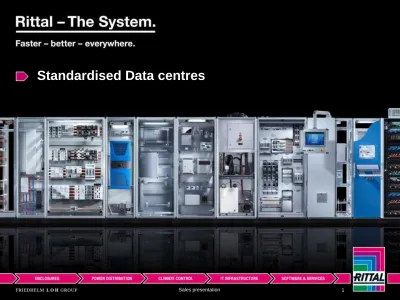

Standardised Data centres. Sales presentation

(1)

1

Standardised Data centres

(2)

Sales presentation

Motivation



Change of paradigm



Rittal‘s Data centre concept

ll

lll

l

Standardised Data Centres



Benefits

lV



Summary

(3)

Sales presentation

Does every data centre really have to be unique?

3

Standardised Data Centre

(4)

Sales presentation

Data Centre EC1020 Humboldt University 1965©

Data Centre Google© Douglas County

Data Centre TR440 University Würzburg 1979©

Data Centre 1&1©

Lenexa/Kansas (40.000 Server)

4

Standardised Data Centre

Motivation

(5)

Sales presentation

5

Standardised Data Centre

Motivation

(6)

Sales presentation

Motivation



Change of paradigm



Rittal‘s Data centre concept

ll

lll

l

Standardised Data Centre



Benefits

lV



Summary

(7)

Sales presentation

Data centre construction

Component-based Data Center module-based

 „Customised Data Centre“

 Tailored Data Center solutions  „Standardised Data Centre“ _{ Pre-defined Data Centre modules}

Individual Data centre

construction

Standardized Data centre

construction

9

Standardised Data Centre

(8)

Sales presentation

Motivation



Change of paradigm



Rittal‘s Data centre concept

ll

lll

l

Standardised Data Centre



Benefits

lV



Summary

(9)

Sales presentation

Sales presentation 11

RiMatrix S

Paradigmenwechsel

The new RiMatrix S.

The revolutionary alternative to customised Data Centre construction.  Standardised products available off the shelf.

11 Sales presentation

Standardised Data Centre

(10)

Sales presentation

 Individual products: LCP, UPS …  Tailored data centre planning

Every Data Center is unique

 Pay as you grow

 Client-specific solutions  Custom configurations  Product-specific service

 Latest technology

 Pre-defined Data Centre modules  Standardised Data Centre

planning

All Data centres have the same structure

 ROI can be calculated  Simplified administration  Simplified service

 Short delivery and launchtime

 The Data Centre is a standardised product

12

Standardised Data Centre

Rittal‘s Data centre concept

(11)

13

RiMatrix S – Technology

Mechanics – What does this involve: using the “Single6” as an

example?

Dimensions: L x W x H 7,000 x 2,750 x 2,710 mm = 19.25 m² Electrical performance: 60 kW redundant

Three shells:

Standard room

Standard security room Standard container

Usable U: 294

Cooling output: 60 kW redundant

Separate climate areas:

IT area Technical area Ready-for-connection Integrated partitions Pre-configured 19" rack system Climate control technology Power

technology/UPS Power distribution

Monitoring

Fire detection/fire extinguishing

Cold aisle

containment _{Base system} _{Cable duct} system

PM-IT / RiMatrix S Expert Training - Technology / 06-2014

(12)

Double versions

Single versions

14

RiMatrix S – Technology

Mechanics – Base configuration and most important variants

Single 6, 60 kW n+1 Double 9, 180 kW n+1 Single 9, 90 kW n+1 Double 6, 120 kW n+1 Internal dimensions L x W x H 7,000 x 2,750 x 2,710 mm Internal dimensions L x W x H 7,000 x 4,776 x 2,710 mm

(13)

Sales presentation

RiMatrix S (Module Single 6)

 Space-saving climatization in the raised-floor

 Two separate microclimate zones for IT and technology

 Consistent separation of cold air intake and warmer exhaust air  Cable routes at the top

 6 server racks, 1 network rack  UPS, battery rack and distribution

enclosure

 At double 6, the second module is a mirror image

15

Standardised Data Centre

(14)

Sales presentation

RiMatrix S (Module Single 9)

 When using a central UPS  One microclimate zone for the

server area

 Aisle containment  Raised floor

 Climate control in the raised floor  Cable routes at the top

 8 server racks, 1 server-/ network rack

 Distribution enclosure

 At Double 9, the second module is a mirror image

16

Standardised Data Centre

(15)

Sales presentation

 Consistent arrangement of all cooling components in the Zero-U-Space of the Data centre – the raised floor

 Optimum air routing with minimum deflections

 All components are arranged uncompromisingly according to physical principles at the optimum position in the cooling circuit of the data centre around the „heart“ the server

17

Standardised Data Centre

Rittal‘s Data centre concept

(16)

18

RiMatrix S – Technology

Mechanics

Standard raised floor system

Base system

 Height: 510 mm

 Modular dimensions: 600 x 600 mm  Supporting load: 6 kN

 ZUCS in raised floor  Half rack assembly

 Same raised floor in Standard Room, Standard Security Room and Container

Raised floor layout Side view

(17)

19

RiMatrix S – Technology

Mechanics

Raised floor

Base system

“Normal” raised floor plates Grating cold aisle with fan Warm aisle grating

Ventilation duct for air/water heat

exchanger (ZUCS)

(18)

ZUCS in RiMatrix S

Pipework

20

RiMatrix S – Technology

Climate control – Internal/external principle

Cold water supply

Exterior: cooling container or provided on site (existing or supplied) Climate control technology

(19)

21 Air-cooled chiller 70 kW Free cooler 70kW Hydraulic station

RiMatrix S – Technology

Climate control – Cooling container (70 kW, 100 kW)

Climate control technology

(20)

Integrated switchgear / pump station Switchgear and control RiMatrix S service commitment 22

RiMatrix S – Technology

Climate control – Cooling container (70 kW, 100 kW)

(21)

Main components

Prototype pictures

 Free cooler  Chiller  Switchgear  Pump station 23

RiMatrix S – Technology

Climate control – Cooling container (70 kW, 100 kW)

(22)

24

Network enclosure, 1 x PDU phase A + 1 x PDU phase B Server enclosures, each 1 x PDU

phase A + 1 x PDU phase B

UPS + battery enclosure

Power distribution enclosure

Main power supply – provided by the customer

RiMatrix S – Technology

Power distribution principle

Power distribution

(23)

PDU 7955.132: 24x C13 + 6x C19, 3-phased, 16 A

25

RiMatrix S – Technology

Power distribution principle

Power distribution

(24)

Additional monitoring and measurement option

26

RiMatrix S – Technology

Option: Efficiency package

Monitoring

 The efficiency package extends the monitoring and management functions of the RiMatrix S

 More components with measuring functions:

 Metered PDU

 Universal power measurement system

 DCIM Software “RiZone”

 The connection of third-party components is carried out via RiZone

 The characteristics for automation are defined:

 Workflow-editor, alarm management, reports

 Connection to IT or building service management / industrial management systems

(25)

Measurement points

27

RiMatrix S – Technology

Option: Efficiency package

Monitoring

Server out temperatures [°C] Infrastructure load [kW] Total load [kW] IT load [kW] Server in temperatures [°C] Fan speed [%] Flow rate [l/min] Water in temperature [°C]

(26)

RiMatrix S – Technology

Security – Shells

28

Protection

classes Standard room

Standard security

room Standard container

Fire protection - EI 90 / F90 EI 30

Shock test - 3.000 Nm energy after

30 minutes inflame - Water and

dust-tightness - IP 56 IP 55

Acrid gas-tightness - Yes, based on EN

1634-3 -

Vandalism /

resistance class - WK II RC II

EMC - Basic EMC protection Basic EMC protection

(27)

Sales presentation

RiMatrix S

 The Data Centre modules have a complete, measured and TUV-confirmed data sheet

 Guaranteed partial PUE when using the Rittal cooling and control  Partial PUE 1.09.. 1.2 achieved with aid of:

Water inlet: 20 ˚C Server intake air: 26 ˚C Fan speed: < 61 % Delta T (air side): <18 K

29

Standardised Data Centre

(28)

Additional monitoring and measurement option

30

RiMatrix S – Technology

Option: Efficiency package

Monitoring

 The efficiency package extends the monitoring and management functions of the RiMatrix S

 More components with measuring functions:

 Metered PDU

 Universal power measurement system

 DCIM Software “RiZone”

 The connection of third-party components is carried out via RiZone

 The characteristics for automation are defined:

 Workflow-editor, alarm management, reports

 Connection to IT or building service management / industrial management systems

(29)

Measurement points

31

RiMatrix S – Technology

Option: Efficiency package

Monitoring

Server out temperatures [°C] Infrastructure load [kW] Total load [kW] IT load [kW] Server in temperatures [°C] Fan speed [%] Flow rate [l/min] Water in temperature [°C]

(30)

Sales presentation

RiMatrix S

 All RiMatrix S modules may be scaled to almost any output between 20 and 450 kW

 The Container solution is limited to scaling with the Single 6 and Single 9 modules, due to the spacial

conditions inside the containers.

32

Standardised Data Centre

(31)

Sales presentation

RiMatrix S

 One solution for existing property, security room and container

33

Standardised Data Centre

(32)

Sales presentation

 One item number for RiMatrix S in existing properties.  Single 6  Double 6  Single 9  Double 9 34

Standardised Data Centre

Rittal‘s Data centre concept

(33)

Sales presentation

RiMatrix S

 One item number for

RiMatrix S in security rooms and containers.  Single 6  Double 6  Single 9  Double 9 35

Standardised Data Centre

(34)

Sales presentation

RiMatrix S

 Flexibility with optional packages

 A few intelligent optional packages ensure the flexibilty at customer projects:  Efficiency package  RiZone (Data Centre Infrastructure Management

Software), PDU (Power Distribution Unit), UMG (universal measuring device) in ISV (distribution enclosure)

 Redundant infeed for extend to TIER III for TÜV-certification  VESDA extinguishing system

 Humidification and dehumidification for container-based version using in critical climate zones

36

Standardised Data Centre

(35)

Sales presentation

Motivation



Change of paradigm



Rittal‘s Data centre concept

ll

lll

l

Standardised Data Center



Benefits

lV



Summary

(36)

Sales presentation

 What are the buying factors?

Costs

Time

Quality

Service

Client

38

Standardised Data Center

(37)

Sales presentation

Cost benefits

 Significantly simplified, shortened planning phase

 Lower planning and implementation phase investments  Lower operating costs

 Lower personnel costs

 Simplified service- and administration processes

39

Standardised Data Center

(38)

Sales presentation

Time benefits

 Shortened planning time  Very short delivery time  Quick to „go-live“

 Hotline

 Service response time

40

Standardised Data Center

(39)

Sales presentation

Quality benefits

 Solution based on proven standard products  Fully documented

 Certificates and approvals  Testing and acceptance tests  System tests

41

Standardised Data Center

(40)

Sales presentation

Service benefits

 Professional advice in quotation phase

 Support during configuration, design and integration

 Project manager/build manger during installation/going live

 Service/fast response times/quick build times/availability of replacement parts

42

Standardised Data Center

(41)

Sales presentation

RiMatrix S service commitment

Product

Process

With a turnkey solution, the client also expects turnkey processes throughout the project!

43

Standardised Data Center

(42)

Sales presentation

Motivation



Change of paradigm



Rittal‘s Data centre concept

ll

lll

l

Standardised Data Center



Benefits

lV



Summary

(43)

Sales presentation

The facts at a glance

 Data centres can be built from standardised modules

 This applies for container and security rooms, but also for existing property (buildings)

 The Data centre is a product with one item number

 The Data centre has a data sheet, The PUE and power consumption are predictable

 Complete ROI calculation can be made in the planning

 All processes are simplified, so that the data centre is delivered and commissioned in next to no time

45

Standardised Data Center

(44)

Sales presentation

IT goes IE

RiMatrix S reference

RiMatrix S –

Wollschläger Group buys „off-the-peg“ data centre

The Wollschläger Group, one of

Germany's leading commercial enterprises in the precision tools business.

Customer-Feedback :

“To avoid long planning phases, we rely on the new concept for the standardised Rittal data centre construction”, says Stefan Wörder, Head of IT and Project Management at Wollschläger. “We were impressed by the functions of RiMatrix S and found that it was exactly the right solution for Wollschläger. It completely fulfilled our requirements for both energy efficiency and high availability, as well as for our future expansion opportunities.”

(45)
