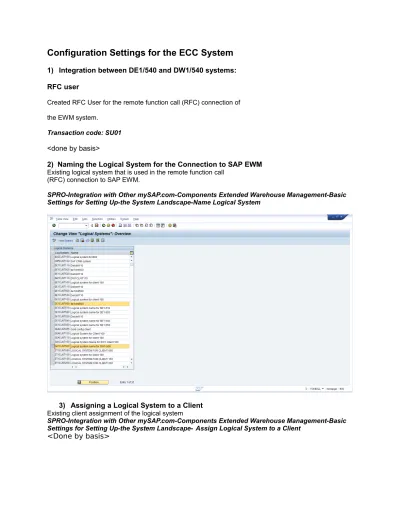

Configuration Settings for the ECC System
1) Integration between DE1/540 and DW1/540 systems: RFC userCreated RFC User for the remote function call (RFC) connection of the EWM system.
Transaction code: SU01 <done by basis>
2) Naming the Logical System for the Connection to SAP EWM Existing logical system that is used in the remote function call
(RFC) connection to SAP EWM.
SPRO-Integration with Other mySAP.com-Components Extended Warehouse Management-Basic Settings for Setting Up-the System Landscape-Name Logical System
3) Assigning a Logical System to a Client Existing client assignment of the logical system
SPRO-Integration with Other mySAP.com-Components Extended Warehouse Management-Basic Settings for Setting Up-the System Landscape- Assign Logical System to a Client
4) Specify the SAP APO Release
Specified system type and release number of the target system that is connected to.
SPRO-Integration with Other mySAP.com-Components Extended Warehouse Management-Basic Settings for Setting Up-the System Landscape-Specify SAP APO Release
5) RFC Destinations
Defined RFC destination system that is used for the connection to the target EWM system
SPRO-Integration with Other mySAP.com-Components Extended Warehouse Management-Basic Settings for Setting Up-the System Landscape-Set Up RFC Destination
6) Determining RFC Destinations for Method Calls Maintained RFC destinations for method calls.
SPRO-SAP NetWeaver-Application Server-IDoc Interface/Application Link Enabling (ALE)-Communication-Determine RFC Destinations for Method Calls
Setting the Target System and Queue Type SW1CLINT500
7) Setting the Target System and Queue Type Defined target system and queue type for the transfer of data.
SPRO-Integration with Other mySAP.com-Components Extended Warehouse Management-Basic Settings for Setting Up-the System Landscape- Set Target System and Queue Type
8) qRFC Monitor (QIN Scheduler) Maintained inbound queues in the qRFC monitor
- Setup with: Register without activation Transaction code: SMQR
9) qRFC Monitor (QOUT Scheduler) Maintained outbound queues in the qRFC monitor
- Setup with: Register without activation Transaction code: SMQS
10) Registering Display Programs for Application Log Maintained register display programs for application log
Transaction code: SMQE <done by basis>
11) Setting User Parameters for Data Transfer
Defined user parameters that are needed for data transfer using the APO core interface (CIF).
SPRO-Integration with mySAP.com Components-Extended Warehouse Management-Basic Settings for Data Transfer-Set User Parameter
<Need to check with basis>
SPRO-Integration with Other mySAP.com Components- Extended Warehouse Management-Basic Settings for EWM Linkage-Maintain Extended WM-Specific Parameters
12) Defining the Queue for EWM Inbound queue type enabled for EWM
SPRO-Integration with Other mySAP.com Components- Extended Warehouse Management-Basic Settings for EWM Linkage- Define Queue for Transfer to Extended WM
13) Generating the Distribution Model for ECC to EWM Generated distribution model for the ECC to EWM
SPRO-Integration with Other mySAP.com Components- Extended Warehouse Management-Basic Settings for EWM Linkage- Generate Distribution Model ERP => EWM
14) Creating Maximum Model
Extended Warehouse Management - Initial Data Transfer - Schedule Regular Jobs - Generate Runtime Version for Active Integration Models - Define Variant
Configuration Settings for the EWM System
1-Naming the Logical System for the Connection to SAP EWM Existing logical system that is used in the remote function call(RFC) connection to SAP ECC
SPRO-SCM Basis- Integration-Basic Settings for Creating the System Landscape- Name Logical Systems
2-Assigning a Logical System to a Client Existing client assignment of the logical system
SPRO- Integration with SAP Components- Integration via APO Core Interface (CIF)- Basic Settings for Creating the System Landscape -Assign Logical Systems to a Client
<Done by basis, check if client is assigned correctly>
3- RFC Destinations
Defined RFC destination system that is used for the connection to the target ECC system <Done by basis>
4) Maintaining Business System Group Maintained business system group
SPRO- Integration with SAP Components- Integration via APO Core Interface (CIF)- Basic Settings for Creating the System Landscape- Maintain Business System Group
5- Assigning Logical System and Queue Type Assigned logical system and queue types to the business system group
SPRO- Integration with SAP Components- Integration via APO Core Interface (CIF)- Basic Settings for Creating the System Landscape- Assign Logical System and Queue Type
6- Determining RFC Destinations for Method Calls Maintained RFC destination for method calls.
SPRO-SAP NetWeaver-Application Server-IDoc Interface/Application Link Enabling (ALE)-Communication-Determine RFC Destinations for Method Calls
7- qRFC Monitor (QIN Scheduler)
Maintained inbound queues in the qRFC monitor
8- qRFC Monitor (QOUT Scheduler)
Maintained outbound queues in the qRFC monitor Transaction code: SMQR
9- Registering Display Programs for Application Log Maintained register display programs for application log Transaction code: SMQE
<Done by basis>
10- Defining a Separate Business System
Created business system of the ECC that has been installed on EWM
SPROExtended Warehouse Management- Interfaces- ERP Integration- General Settings- Define Own Business System
11- Defining the Business System
Created business systems that are part of the system landscape.
SPROExtended Warehouse Management- Interfaces- ERP Integration- General Settings- Define Business System
12- Mapping Warehouse Number
Mapped ECC warehouse no with EWM warehouse no
SPROExtended Warehouse Management- Interfaces- ERP Integration- General Settings- Map Warehouse Numbers from ERP System to EWM
13- Defining Communication Defined inbound queue
SPROExtended Warehouse Management- Interfaces- ERP Integration- General Settings- Control for RFC Queue
Transport: SW1K900031
14- Setting Control Parameters for the ERP Version Control Set control parameters for the ECC version control.
SPROExtended Warehouse Management- Interfaces- ERP Integration- General Settings- Set Control Parameters for ERP Version Control
Transport: SW1K900031
Created APO model and planning version for CIF (Core interface) Transaction code: SE38/SA38
- Done
17- CIF Integration model Created integration model Transaction code:CFM1
- Done
18- Map Storage Locations Mapped ECC storage location to EWM
SPROExtended Warehouse Management- Interfaces- ERP Integration- Goods Movements-Map Storage Locations from ERP System to EWM
