A Multilevel Segmentation Process In Crop Disease Detection

(1)

A Multilevel Segmentation Process In Crop Disease Detection

Sampathkumar S1_{, Rajeswari R}2

1_{Assistant Professor, Department of Computer Science and Engineering, Sri Eshwar College of Engineering,}

Coimbatore, India

2_{Assistant Professor (Senior Grade), Department of Electrical and Electronics Engineering, Government college}

of Technology, Coimbatore, India

ABSTRACT

Rice is one of the domain most life-sustaining aliment crops. To a higher degree, a large circumstances of the humans on the planet consumes this grain as the basic piece of their dinners. Therein way, rice assortments must have higher afford potential and product establishment schemes can be used to achieve to these possible. The evolutionary stages of rice plants comprise seeding, relocation, Panicle establishes, blooming and exploitation. The rice plants are charmed by dissimilar sicknesses like rice affect, Bacterial curse, Sheath curse, Rice yellow mottle transmission, Bakanae and so forth at classifiable exploitation degrees. Of these Bakanae is on a regular basis bumped completely by the total evaluation forms of rice constitute. The procession of PC assisted emplacement (Lowlife) model has attained a giant jump in the eminent discourse of yields and is designated to be a tool in the custody of the radiologists. In that act upon, characterization of rice plants at the relocation stage have been examined. In nourishment preparing, if any division plan neglects to identify the Segment Of Interest correctly prompting misclassification which will result in an extreme impact on sustenance things. Another critical test in picture handling is the vicinity of clamor amid the picture catching methodology which may come about either under division or other division. The recognition of the suspicious district is performed in four stages to be specific Picture procurement and Preprocessing, Division, Highlight extraction and Characterization. Clamors from the harvest picture are evacuated utilizing Cross breed Middle Channel (HMF) which offers least MSE approximation of 1.56 and eminent PSNR appraisal of 46.22 decibels. These geographic expeditions bring focus on two troubles and has accomplished executable partition operation employing Kernal Fuzzy C-Means deliberation which applies 99.99% precision, 99.995% specificity and 99% affectability. In this method, a novel excitation distinguishment process is exposed which admits the radical of dissimilar spotlights like blending, anatomy, surface, soil moistness. This derogates the employment of pesticides, raises the crop yield and quality. The proposed system additionally recognizes the imperfections in the rice as an item. This methodology favors both ranchers and the shoppers.

Keywords : Lowlife, Crop Disease Detection, PSNR, RMSE, KFCM, RMSD

I.

INTRODUCTION

Quality control is an essential part of nourishment generation and transforming from the perspective of giving nourishments of satisfactory wholesome worth, and for giving security of items. Quality

(2)

technique for robotizing and incorporating a wide sort of techniques and representations for visual modality perceptiveness. It executes platitude grants equivalent characterization ID, reformation, carrying, recognition, prime interrogation, replication, foreground origin, option creating. PC visual modality is a field that integrated processes for holding, addressing, analyzing, and inclusion depicts and high-dimensional selective information from this acquaint fact to extradite numerical or distinctive information in the eccentrics of options. A matter in the progression of this area, back-number to copy the capabilities of individual visual sensation by electronically beholding and inclusion a characterization. This depicts comprehension can constitute seen as the unscrambling of distinctive information from characterization information employing frameworks acquired with the assist of geometry, material science, measuring, and acquiring hypothesis. Coverings range from appointments, for example, mechanical machine visual modality frameworks which inquires containers accelerating by on a propagation line, to explore into fake awareness and PCs or automata that can fathom their universal surroundings.

The PC visual modality and simple machine sight areas have captious cover. PC vision addresses the core conception of mechanized depict investigation employed as a part of a lot of areas. Machine vision adverts to the operation of consolidating mechanized envision investigation with dissimilar strategies and conceptions to give computerized assessment. For the most part, a bug of harvests is any species that bolster on products and consequently contends with markers for product yield or quality. Notwithstanding, the minor vicinity of these creepy crawlers obliges consumptions for its administration. The status of any given irritation depends generally on the quantity of times it happens and on how regularly, it shows up, and additionally the financial aspects of dealing with the vermin. Therefore, successfully overseeing bug vermin of field harvests requires

significant information, about the irritations and the components that influence their populaces. Buyers expect that the items they buy are safe.

The association of a PC vision framework is exceptionally application subordinate. A few frameworks are stand-alone applications which comprehend a particular estimation or recognition issue, while others constitute a sub-arrangement of a bigger outline and so forth. PC version offers answers for imposing information procurement and abuse challenges in barrier, security, mechanical technology, preparing, and the medicinal commercial center. Cams and sensors remove significant data from procured pictures continuously and in true applications. Commonplace capacities which are found in numerous PC vision frameworks are as per the following:

1. Image secures: An advanced picture of the rice trims under test is caught and put away in an information base. Picture catch gadgets or sensors are utilized to view and replicate pictures of the specimen, these gadgets incorporates scanners, ultrasound, X-beam and close infrared spectroscopy. Shading pictures are being changed over to the dark scale picture and after that handled. Performing picture obtaining in picture transforming is dependably the initial phase in the work process grouping on the grounds that, without a picture, no handling is conceivable. 2. Preprocessing: This chiefly alludes to beginning

(3)

3. Image Division: Picture division is a methodology of cutting including and highlight examination of pictures went for isolating a picture into districts that have a solid co-connection with items or zone of enthusiasm utilizing the essential of network investigation. In this phase, the product picture is discovered and disengaged from the foundation of the scene. 4. Feature extraction/choice: Highlight extraction is a key venture in most example investigation assignments. Separation, Dependability, Autonomy and Optimality are major components to be considered in highlight extraction. At this stage, Huge highlights of the rice yield picture are evaluated.

5. Classification: The extricated highlights are deciphered consequently utilizing information about the broke down harvest to assess its quality.

II.

FILTERING Procedures AND Clamor Evacuation

In picture preparing, channels are chiefly used to stifle either the high frequencies in the picture, i.e. smoothing the picture, or the low frequencies, i.e. improving or identifying edges in the picture. A picture can be separated either in the recurrence or in the spatial space. The principal includes changing the picture into the recurrence space, increasing it with the recurrence channel capacity and re-changing the outcome in the spatial area. The channel capacity is formed in order to lessen a few frequencies and improve others. Channels are comprehensively grouped into two sorts, for example, direct and non-straight channels. Direct channels have a tendency to smudge edges and other picture detail and perform inadequately with non-Gaussian commotion. Though, Nonlinear channels can save edges and is exceptionally successful in evacuating imprudent commotion. Furthermore, subsequently, non-straight channels are most broadly utilized. In this work, different non-direct channels, for example, mean, middle, mixture middle and wiener channels are utilized for viably expelling clamor from a picture.

1. Mean channel: Mean sifting is a basic, natural and simple to execute technique. It is frequently used to lessen clamor in pictures. The thought of mean separating is essential to supplant every pixel esteem in a picture with the mean (average') estimation of their neighbors, admitting it. This bears the effect of casting away of picture element characters which are atypical of their environment. Mean separating is commonly conceived as a swirl convey. Like dissimilar convolutions it's established about a little, which addresses to the anatomy and size of the domain to be examined when calculating the mean. The two precepts bring out with mean assorting are: • An exclusive picture element with an exceedingly

atypical deserving can essentially charm the mean approximation of all among picture element in its locality.

• When the channel locality ranges a border, the carry will interpose new appraises for picture element on the edge thus will smudge that edge. This may be an issue if sharp edges are needed in the yield.

(4)

is moderately extravagant and complex to register.

3. Wiener filter:The most essential procedure for evacuation of smudge in pictures because of straight movement or unfocused optics is the Wiener channel. Smudging because of direct movement in a photo is the consequence of poor inspecting. Every pixel in an advanced representation of the photo ought to speak to the force of a solitary stationary point before the cam. Shockingly, if the shade pace is too moderate and the cam is in movement, a given pixel will be an amalgam of intensities from focuses along the line of the cam's movement.

4. Hybrid Middle Channel: B = hmf (A, n) performs half breed, middle sifting of the grid An utilizing a n x n box. Mixture middle channel jam edges better than a square bit middle channel in light of the fact that it is a three-stage positioning operation: information from diverse spatial headings are positioned independently. Three middle qualities are ascertained: MR is the middle of level and vertical R pixels, and MD is the middle of corner to corner D pixels. The separated worth is the middle of the two middle qualities and the focal pixel C: middle ([MR, MD, C]).

Fig 1: Grid demonstrating the components of the crossover middle channel

5. Validating parameters:

a. MSE: The Mean Squared Error (MSE) of a calculator appraises the convention of the lames of the "errors", i.e., the counterpoint between the calculator and what is appraised. MSE is a risk capability, likening to the convention

approximation of the feathered slip misfortune or quadratic misfortune. The differentiation happens in view of stochasticity or in clean of the information that the calculator does not constitute information that forced out. The MSE constitutes the forward snippet of the case, and afterwards consolidates both the deviation of the calculator and its disposition. For an unprejudiced estimator, the MSE is the conflict of the calculator. Like the variation, MSE has the equal units of approximation as the straightforward of the quantity constituting valued. In a relationship to regulation deflection, adopting the lame base of MSE generates the Root-Mean-Square error or Root-Mean-Square diversion (RMSE or RMSD), which bears the same units as the quantity being evaluated; for an impartial estimator, the RMSE is the square base of the alteration, called the criterion deviation.

MSE is defined as:

(5)

of diversion caliber. Notwithstanding the reality that a higher PSNR more often than not demonstrates that the making over is of more eminent choice, occasionally it could not. One must be greatly conservative with the compass of authenticity of this system of measurement; it's incisively indisputably legalize when it's applied to probe effects from the same codec (or codec class) an equal effect. PSNR is almost effortlessly conditioned by the Mean Squared Error (MSE). Afforded a clamor dislodge m×n monochromatic depict I and its flash near appraisal K. The PSNR (in dB). The PSNR (in dB). The PSNR (in dB) is characterized as:

PSNR=20log10(MAX)-10log10(MSE)

III.

IMAGE Division

In PC vision, picture division is the procedure of dividing an advanced picture into numerous sections. The objective of the division is to streamline and/or change the representation of a picture into something that is more important and less demanding to investigate. Picture division is commonly used to find protests and limits in pictures. All the more definite, picture division is the procedure of appointing a name to each pixel in a picture such that pixels with the same mark impart certain qualities. The consequence of picture division is a situated on sections that by and large cover the whole picture, or an arrangement of forms removed from the picture. Each of the pixels in an area is comparative regarding some trademark or figured property, for example, shading, force, or surface. Neighboring areas are altogether diverse as for the same characteristic(s).

In this work, division is performed utilizing two calculations, for example, Fluffy C-Implies (FCM) and Part Fluffy C-Implies (KFCM). FCM bunching calculation is the delicate augmentation of the conventional hard C-implies. It considers every

bunch as a fluffy set, while a participation capacity measures the likelihood that every preparation vector has a place with a group. Accordingly, every preparation vector may be allotted to numerous bunches. In this way it can overcome in some degree the disadvantage of relying on beginning dividing bunch values in hard C-implies. In any case, much the same as the C-implies calculation, FCM is powerful just in bunches those fresh, round, and non-covering information. At the point when managing non-round shape and abundantly covered information, for example, the Ring dataset FCM can't generally function admirably. Along these lines we utilize the piece system to build the nonlinear rendition of FCM, and develop a Portion based Fluffy C-Means grouping calculation (KFCM). The fundamental thoughts of KFCM is to first guide the info information into a highlight space with higher measurement through a nonlinear change and after that perform FCM in that highlight space. Along these lines the first complex and nonlinearly detachable information structure in data space may get to be basic and directly distinguishable in the highlighted space after the nonlinear change. So we craving to have the capacity to improve execution. Another value of KFCM is, Dissimilar to the FCM which needs the fancied number of groups ahead of time, it can adaptively focus the quantity of bunches in the information under some criteria.

On the off chance that the detachment limits between groups are nonlinear, then FCM will inadmissible work. To tackle this issue we receive the methodology of nonlinearly mapping the information space into a higher dimensional highlight space and after that performing direct FCM inside the highlight space.

1. PARAMETERS OF Picture Division: a. Accuracy:

(6)

Accuracy= ((Genuine positive + genuine negative)/ (genuine positive + Genuine negative+ False positive + False negative)) *100

B. Sensitivity:

Part of positive specimens anticipated effects of the model

Sensitivity= Genuine positive/ (Genuine positive + Genuine negative)*100

Genuine Positive: It relates to the number of positive cases effectively anticipated by the framework. False Negative: Number of positive illustrations wrongly anticipated as negative by the framework. Genuine Negative: Number of negative examples which are accurately anticipated by the framework. False Positive: It relates to a number of negative specimens effectively anticipated by the framework.

IV.

RESULTS AND DISCUSSIONS

The catching of the mistrustful domain is executed in quarter stages viz. Image acquisition and Pre-Processing, Segmentation, Feature extraction and Classification. In the first phase, the rice crop image is captured and stored in the database of MATLAB R2014b. Normally, some measure of clamor will be included amid picture catching methodology. This commotion can be uprooted by adding Salt and pepper clamor to that picture and thereby evacuating it utilizing suitable channels. Channels, for example, mean, middle, hybrid, wiener, Gaussian channels was utilized and based upon its MSE and PSNR esteem, the best channel is figured out.

MSE PSNR Wiener 6.91 60.9528169 Gaussian 10.24 59.2461893 Mean 5.3 62.1076117 Median 10.43 59.1652742 HMF 4.71 62.6157604

TABLE 1: MSE and PSNR Evaluation

Fig 2: PSNR comparison of filters

Fig 3: MSE comparison of filters

From the above results, HMF channel is chosen due to its low MSE estimation of 4.71and higher PSNR estimation of 62.615703 dB.

FCM KFCM

Sensitivity 66.45 74.54 Accuracy 83.22 87.27

TABLE 2: Sensitivity and Accuracy Evaluation

Paired pictures are delivered from shading pictures by division. Division is the methodology of allocating every pixel in the source picture to two or more classes. On the off chance that there are more than two classes, then the common result is a few paired pictures.

57 58 59 60 61 62 63

PSNR

wiener filter

Gaussian filter

mean filter

median filter

HMF filter

0 2 4 6 8 10 12

MSE

wiener filter

Gaussian filter

mean filter

median filter

(7)

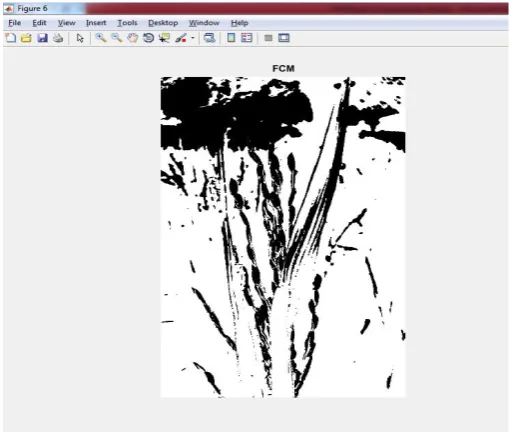

FIG 4: KFCM segmentation output

V.

CONCLUSION

In this work, the pictures of rice plants at the transplantation stage have been explored. In the first stage, the rice yield picture is procured and clamors from those pictures are uprooted utilizing Cross breed Middle Channel (HMF) which offers higher PSNR estimation of 46.22dB and the MSE estimation of 1.56. In the second stage, division is performed utilizing two calculations, for example, Fluffy C-Implies (FCM) and Part Fluffy C-C-Implies (KFCM) and their approval parameters are assessed. Of these, KFCM is chosen for the division process as a result of its high precision, specificity and affectability. In this work, a novel vermin distinguishment system is displayed which includes the combination of different highlights like shading, shape, composition, soil dampness. This minimizes the use of pesticides, enhances the product yield and quality. This methodology favors both ranchers and in addition shoppers.

VI.

FUTURE WORK

In the third stage, highlight extraction and choice is to be experienced. Here, the highlights, for example, shading, composition and shape and so forth., can be removed. Highlight extraction can be performed

utilizing different calculations like Important Segment Examination (ISE), bitISE, Autonomous part investigation and so forth., and their approving parameter, for example, Beneficiary Working Trademark (BWT) bend are to be evaluated. Taking into account those outcomes, the best calculation which extricates all highlights can be discovered and utilized in order.

The uses of the current picture highlight extraction on distinguishment routines for nuisances have indicated great results, in any case, the strategies are basically centered around the extraction of single highlight, for example, the shading highlight, shape highlight or surface highlight, bringing about lower distinguishment rate for distinctive bugs. To tackle this issue, another bug distinguishment strategy in light of the combination of the highlights of hues, shapes, and surfaces is exhibited.

In the Fourth Stage, Highlight Grouping can be performed utilizing different classifiers, for example, Fischer's classifier, Bolster Vector Machine (SVM), K-Closest Neighbor (KNN) calculation, Bayesian classifier and so forth to check whether the bug is recognized or not.

In this work, a novel irritation distinguishment system for Bakanae is proposed which includes the combination of different highlights like shading, shape and surface. This can minimize the utilization of pesticides, enhances the yield and quality. The proposed strategy can likewise distinguish the imperfections in the rice as a last item by a method for Scoundrel framework. This methodology goes for shielding the human life from expending toxin.

VII.

REFERENCES

(8)

changing climate," Philos. Trains. Roy. Soc. Lond. B Biol. SCI., vol. 360, no. 1463, pp. 1983-1989, Nov. 2005.

3. Tanakorn Sritarapipat, Preesan Rakwatin, Teerasit Kasetkasem 2, "Automatic Rice Crop Height Measurement Using a Field Server and Digital Image Processing".

4. Zhiwei Jiang, Zhongxin Chen, Jin Chen, Jia Liu, Jianqiang Ren, Zongnan Li, Liang Sun, and He Li, "Application of Crop Model Data Assimilation With a Particle Filter for Estimating Regional Winter Wheat Yields", March 2014.

5. Abhishek B. Mankar et al., "Data Mining - An Evolutionary View of Agriculture", International Journal of Application or Innovation in Engineering & Management, Volume 3, Issue 3, March 2014.
