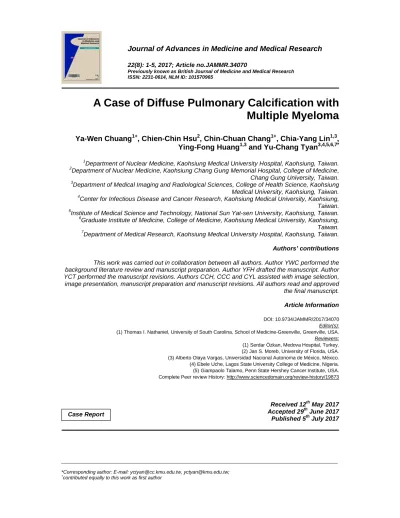

A Case of Diffuse Pulmonary Calcification with Multiple Myeloma

_____________________________________________________________________________________________________

*Corresponding author: E-mail: [email protected], [email protected]; ISSN: 2231-0614, NLM ID: 101570965

A Case of Diffuse Pulmonary Calcification with

Multiple Myeloma

Ya-Wen Chuang

, Chien-Chin Hsu

, Chin-Chuan Chang

, Chia-Yang Lin

,

Ying-Fong Huang

and Yu-Chang Tyan

1

Department of Nuclear Medicine, Kaohsiung Medical University Hospital, Kaohsiung, Taiwan.

2

Department of Nuclear Medicine, Kaohsiung Chang Gung Memorial Hospital, College of Medicine, Chang Gung University, Taiwan.

3

Department of Medical Imaging and Radiological Sciences, College of Health Science, Kaohsiung Medical University, Kaohsiung, Taiwan.

4

Center for Infectious Disease and Cancer Research, Kaohsiung Medical University, Kaohsiung, Taiwan.

5

Institute of Medical Science and Technology, National Sun Yat-sen University, Kaohsiung, Taiwan.

6

Graduate Institute of Medicine, College of Medicine, Kaohsiung Medical University, Kaohsiung, Taiwan.

7

Department of Medical Research, Kaohsiung Medical University Hospital, Kaohsiung, Taiwan.

Authors’ contributions

This work was carried out in collaboration between all authors. Author YWC performed the background literature review and manuscript preparation. Author YFH drafted the manuscript. Author YCT performed the manuscript revisions. Authors CCH, CCC and CYL assisted with image selection, image presentation, manuscript preparation and manuscript revisions. All authors read and approved the final manuscript.

Article Information

DOI: 10.9734/JAMMR/2017/34070 Editor(s): (1)Thomas I. Nathaniel, University of South Carolina, School of Medicine-Greenville, Greenville, USA.

Reviewers: (1)Serdar Özkan, Medova Hospital, Turkey. (2)Jan S. Moreb, University of Florida, USA. (3)Alberto Olaya Vargas, Universidad Nacional Autonoma de México, México. (4)Ebele Uche, Lagos State University College of Medicine, Nigeria. (5)Giampaolo Talamo, Penn State Hershey Cancer Institute, USA. Complete Peer review History:http://www.sciencedomain.org/review-history/19873

ABSTRACT

A 40 year old male with a 4-year history of multiple myeloma (MM) had recurrent episodes of extensive bone involvement. A 99mTc-MDP bone scan revealed unusual radiotracer accumulations within bilateral pulmonary fields. There was no radiographic evidence of calcification in the lungs. It may represent metastatic pulmonary calcification and can be clinically correlated with hypercalcemia in MM.

Keywords: Bone scan; hypercalcemia; calcification; multiple myeloma.

1. INTRODUCTION

Multiple myeloma (MM) is the most common primary bone tumors in adults. Currently, the leading method to evaluate bone involvement in MM is plain film radiography [1,2]. Occasionally bone scintigraphy is helpful in patients with MM in regions having difficulties to be evaluated with routine radiography such as ribs and sterna [3]. A bone scan should also be considered when patients have bone pain and negative results of radiographs. Hypercalcemia is a common complication of MM. In addition, a relatively high prevalence of metastatic pulmonary calcification was found in patients with MM. However, only a few cases have been clinically and radiologically detected [4,5]. We described the accidental pulmonary uptake in this case who developed hypercalcemia and performed a whole-body bone scan to evaluate bone involvement.

2. CASE PRESENTATION

A 40 year old male was diagnosed with MM, IgG-lambda type, ISS stage III, Durine-Salmon stage IIIB. The initial presentation was L2, L5 collapse after falling down and MM with IgG λ monoclonal gammopathy. The lumbar spine involvement was diagnosed from another hospital 4 years ago. The L5 corpectomy with bone cement was executed at that time; chemotherapy, radiotherapy and thalidomide clinical trial for recurrent tumor with paraspinal extension were performed during these years. He recently complained of dizziness, right leg pain and weakness. He had hypercalcemia and his serum ionized calcium level was 7.8 mg/dL (normal range: 4.64 - 5.28). The measurements of patient’s blood urea nitrogen (BUN) and creatinine (CRE) were 42.2 and 2.9 mg/dL, respectively. In comparison with the test results obtained 6 months earlier, which were 41 mg/dL for BUN, 2.6 mg/dL for CRE, and 4.9 mg/dL for serum ionized calcium, it is more likely to be MM-induced hypercalcemia rather than the induction from hyperparathyroidism in renal failure. In addition, other laboratory findings included serum

IgG of 2360 (normal range: 917.2-1891.2 mg/dL), IgA of 74.7 (normal range: 188-322.3 mg/dL), IgM of 20.9 (normal range: 102.6-200.2 mg/dL),

βMG of 139.0 (normal range: 70-340 mg/dL). For the evaluation of a possible progressive bone involvement, the whole body bone scan was performed for 3 hours after the injection of 740 MBq (20 mCi) 99mTc MDP.

3. RESULTS

The bone scan revealed diffusely increased radioactivity long bones of the 4 limbs, and diffuse extraosseous uptake in both pulmonary fields (Figs. 1 and 2). These hot spots in Fig. 2 are seen in only one projection (anterior or posterior view). They seemed to involve most likely in the ribs, not in the lungs. This appearance, which was not noted on the previous test 1 year ago (Fig. 3), suggested metastatic pulmonary calcification associated with MM-induced hypercalcemia. The chest X-ray showed no obvious calcification in bilateral pulmonary fields (Fig. 4).

4. DISCUSSION

Fig. 1. The whole body bone scan showed hot spots in bilateral rib cages. Cold spots, line surrounded with heterogeneously increased radioactivity over L4-5 and upper portion of

sacrum, which may be due to previous surgical manipulation and orthopedic hardware insertion or osteonecrosis. However, diffusely increased uptake was noted throughout the

skull, 4 limbs and bilateral pulmonary fields

Fig. 2. Diffuse extraosseous radiotracer accumulation in bilateral pulmonary fields (especially upper portion), which may indicate metastatic calcification or soft tissue deposition of Tc-99m

Fig. 3. The previous bone scan performed 1 year ago only showed hot spots in anterior aspect of left rib cage. The same cold spots, line surrounded with heterogeneously increased radioactivity over L4-5 and upper portion of sacrum due to previous surgical manipulation and

orthopedic hardware insertion

patient denied any recent trauma history. In addition, dyspnea or obvious chest discomfortable symptoms were not present in this case, and his chest x-ray showed unremarkable pulmonary fields. Chest CT was not performed at that time. Metastatic pulmonary calcification may remain undiagnosed and untreated without this uncommon lung uptake on bone scintigraphy.

Fig. 4. The chest X-ray showed internal fixation internal rods and screws fixations for

L4 and L5. Pulmonary fields was unremarkable

5. CONCLUSION

Early metastatic pulmonary calcification is an asymptomatic condition, and generally not detectable by chest X-ray films due to the size of the deposits. It may remain undiagnosed and untreated, progressing to irreversible lung damage and respiratory failure. The bone scintigraphy is useful in early detection for prompt treatment of this condition. The routine radionuclide bone scan of this case showed abnormally increased uptake in ribs not illustrated by radiographs. However, diffuse lung uptake was the most significant finding. In addition, the concentration of serum calcium was 7.8 mg/dl, compatible with previously suspicious hypercalcemia.

CONSENT

All authors declare that written informed consent was obtained from the patient for publication of this case report and any accompanying images.

ETHICAL APPROVAL

ACKNOWLEDGEMENTS

This work was supported by Research Grants MOST 103-2320-B-037-025 from the Ministry of Science and Technology, KMU-TP105E12,

KMU-TP105PR06, KMU-M106029,

105KMUOR02 and KMU-O104003 from Kaohsiung Medical University, and NSYSUKMU106-P011 from NSYSU-KMU Research Project, Taiwan.

COMPETING INTERESTS

Authors have declared that no competing interests exist.

REFERENCES

1. Ludwig H, Kumpan W, Sinzinger H. Radiography and bone scintigraphy in multiple myeloma: a comparative analysis. Br J Radiol. 1982;55:173-181.

2. Nilsson-Ehle H, Holmdahl V, Suukiula M, et al. Bone scintigraphy in the diagnosis of skeletal involvement and metastatic calcification in multiple myeloma. ACTA Med Scand. 1982;211:427-432.

3. Hung GU, Tsai CC, Tsai SC, Lin WY. Comparison of Tc-99 m Sestamibi and F-18 FDG-PET in the assessment of multiple myeloma. Anticancer Research. 2005;25: 4737-4742.

4. Salim R. Surani, et al. Metastatic pulmonary calcification in multiple myeloma in a 45-Year-Old man. Case Reports in Pulmonology. 2013; Article ID 341872:3.

5. Coolens JL, Devos P, De Roo M. Diffuse pulmonary uptake of 99 mTc bone-imaging agents: Case report and survey. Eur J Nucl Med. 1985;11:36-42.

6. McAfee JG. Radionucline imaging in metabolic and systemic skeletal disease. Semin Nucl Med. 1987;17:334-349. 7. Zuckier LS, Freeman LM. Nonosseous,

Nonurologic Uptake on Bone Scintigraphy: Atlas and Analysis. Semin Nucl Med. 2010; 40:242-256

8. Palaniswamy SS, Padma S, Harish V, Rai JK. Hypercalcemia with extraosseous MDP uptake in a bone scan as initial presentation in a case of cutaneous Tcell lymphoma. J Can Res Ther. 2011;7:72-74.
