License Manager Installation and Setup

1 of 13

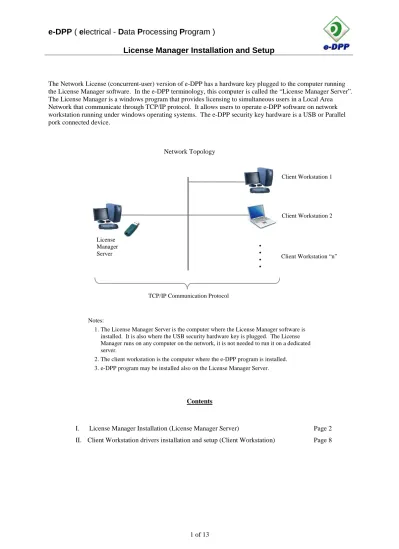

The Network License (concurrent-user) version of e-DPP has a hardware key plugged to the computer running the License Manager software. In the e-DPP terminology, this computer is called the “License Manager Server”. The License Manager is a windows program that provides licensing to simultaneous users in a Local Area Network that communicate through TCP/IP protocol. It allows users to operate e-DPP software on network workstation running under windows operating systems. The e-DPP security key hardware is a USB or Parallel pork connected device.

Contents

I. License Manager Installation (License Manager Server) Page 2 II. Client Workstation drivers installation and setup (Client Workstation) Page 8

License Manager Server Client Workstation 1 Client Workstation 2 • • • • Client Workstation “n” Notes:

1. The License Manager Server is the computer where the License Manager software is installed. It is also where the USB security hardware key is plugged. The License Manager runs on any computer on the network, it is not needed to run it on a dedicated server.

2. The client workstation is the computer where the e-DPP program is installed. 3. e-DPP program may be installed also on the License Manager Server.

TCP/IP Communication Protocol Network Topology

2 of 13

System Requirements

Operating Systems : Windows XP Professional (SP2 or higher) Windows Vista (Business or Ultimate) Windows 7(Professional or Ultimate) Windows Server 2003 (SP1 or higher) Computer Peripheral : USB or Parallel Port, CD ROM User Account : With Administrator privilege

Local Area Network : TCP/IP based communication protocol

I. License Manager Installation (License Manager Server)

Installation & Setup

The installation process comprises of the following general steps: A) License Manager Software Installation

B) Running the License Manager service C) Server Monitor Operation

Notes:

a) Not applicable for the Demo version of e-DPP.

b) For Windows Vista and Windows 7 operating systems, the “User Account Control” must be turned off prior to the installation by doing the following:

For Windows Vista:

i. Select “Start → Control Panel” from the windows taskbar. ii. On the “Control Panel” applet, click “User Accounts” icon.

iii. On the “Make changes to your user account” view, click “Turn User Account Control on or off” option.

iv. On the “Turn on User Account Control (UAC) top make your computer more secure” view, uncheck “Use User Account Control (UAC) to help protect your computer” option and click “OK” button.

For Windows 7:

i. Select “Start → Control Panel” from the windows taskbar.

ii. On the Control Panel applet, click “User Accounts” icon.

iii. On the “Make changes to your user account” view, click “Change User Account Control Settings” option. iv. On the “User Account Control Settings”

view, adjust the slider to “Never notify” and click “OK” button.

3 of 13

A) License Manager Software Installation

1) Insert the “e-DPP 4.0.2 Installation CD” into the CD Drive of the Server PC. The installer program will auto-start.

If the installer program does not auto-start, browse the CD, locate and double click eDPPInstaller.exe” 2) On the “e-DPP Install Menu” main dialog box, click “Install License Manager” button.

4 of 13 4) Do the following on the subsequent dialog box:

a. Check additional language as necessary. b. Click the “Next” button.

5) Click “Next” to continue.

6) Click “Yes” on the succeeding dialog to confirm creation of the folder.

7) On the succeeding dialog box, do the following: (See image on the next page)

a. Check the following options:

 32 bit WkNet/WkLAN Network Server  Install as NT service with autostart  WkLAN/WkNet Network Monitor [32 bit] b. Click “Next” to continue.

b

a

5 of 13 8) Click “Next” to install the components.

9) Click “Next” to proceed.

a

6 of 13 10) Click “Finish”

11) Click “OK” to confirm successful installation.

12) Insert the e-DPP USB key. Generally, Windows will automatically detect USB key upon insertion to the USB hub.

B) Running the License Manager Service

1) Select [Start]  [All Programs]  [WIBU-KEY]  [Network Server].

2) Network Server icon will be displayed on the Taskbar Notification Area. Right-click on it and select “Start as Service”

Notes:

i. Each computer running e-DPP (users) requests authorization from the License Manager Server. If the License Manager is not running, e-DPP will not run.

ii. If the USB key is disconnected and re-connected from the License Manager Server, the License Manager Service should be re-started.

7 of 13

C) Server Monitor Program Operation

Server Monitor is the main tool to administer USB key network license in a network environment. From the Server Monitor, the number of users currently accessing a License Manager server, the login times and access times can be checked. Users can be canceled and network server status information can be retrieved.

1. To run the Server Monitor Program:

a. Select “StartAll ProgramWIBU-KEYServer Monitor”.

2. To View the List of Users:

a. From the main dialog box of Server Monitor Program, select [View] menu  [User View]. b. Select [View] menu  [Browse Network] or click icon.

Notes:

i. Users may be viewed only once they are running e-DPP at the client workstation.

ii. To automatically browse the network at startup of the System Monitor program, from the main menu select

“OptionsGeneral Settings…” and check “Browse network at startup” option.

8 of 13 3. To Cancel a User :

a. View the list of users according to step “2”.

b. On the left pane (WIBU-KEY User List:), select the user’s computer name.

Note: On the right pane (WIBU-KEY Client Information) shows the relevant user’s information.

c. On the main menu select [User]  [Cancel User] or click icon on the toolbar.

d. Click “Yes” to confirm cancellation of user. e. Click “OK” button.

b

9 of 13

II. Driver Installation & Setup (Client Workstation)

Installation & Setup

The installation process comprises of the following general steps: A) Drivers Installation for the USB License Key Hardware B) Client Workstation License Configuration

A) Drivers Installation for the USB License Key Hardware

1) Insert “e-DPP 4.0.2 Installation CD” into the CD Drive of the Client workstation. The installer program will auto-start.

If the installer program does not auto-start, browse the CD, locate and double click “eDPPInstaller.exe” 2) On the “e-DPP Install Menu” main dialog box, click “Install License Manager” button.

10 of 13 4) The following dialog box will be displayed.

a. Check the additional language as necessary.

b. Click the “Next” button.

5) Click “Next” to continue.

6) Click “Yes” on the succeeding dialog to confirm creation of the folder.

7) On the succeeding dialog box, do the following: a. Uncheck all the options

b. Click “Next” to continue.

a

b b

a

11 of 13 8) Click “Next” to install the components.

9) Click “Next” to proceed.

10) Click “Finish”

12 of 13

B) Client Workstation License Configuration

1) Select “StartControl Panel” and double click the “WIBU-KEY” icon.

2) On WIBU-KEY Control Panel Applet, perform the following: a. Select “Network” tab

b. Select “User Specific” on the pull down menu.

c. On WIBU-KEY Subsystems frame, check “WkLAN” option.

d. Click “Apply” button to save selected options.

e. Click “Browse” button to search for a server. a b c e d

13 of 13

3) The “Search for WkLAN server” dialog will be displayed. Do the following: a. Select the computer name of the License Manager

server.

b. Click “Select” button.

Note: If the computer name of License Manager Server does not appear, re-start the license manager service on the license manager server (refer to step 2 under “Running the License Manager Service” on page 5).

4) Selected server will be displayed on the control panel applet. Click “Apply” button again to save modified items and click “OK” button to close control panel applet.

5) e-DPP software can now be run provided the License Manager Server is already running. a
