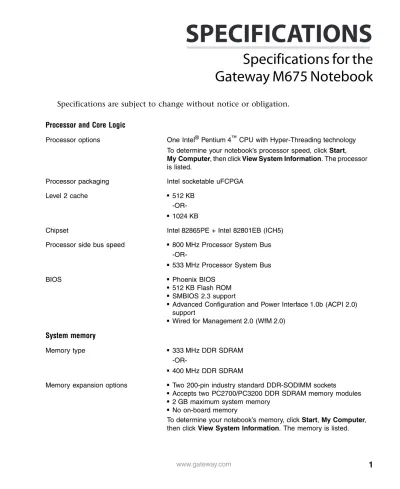

SPECIFICATIONS

Specifications for the

Gateway M675 Notebook

Specifications are subject to change without notice or obligation. Processor and Core Logic

Processor options One Intel® Pentium 4™ CPU with Hyper-Threading technology To determine your notebook’s processor speed, click Start,

My Computer, then click View System Information. The processor is listed.

Processor packaging Intel socketable uFCPGA Level 2 cache ■ _{512 KB}

-OR-■ _{1024 KB}

Chipset Intel82865PE + Intel 82801EB (ICH5) Processor side bus speed ■ _{800 MHz Processor System Bus}

-OR-■ _{533 MHz Processor System Bus}

BIOS ■ _{Phoenix BIOS} ■ _{512 KB Flash ROM} ■ _{SMBIOS 2.3 support}

■ _{Advanced Configuration and Power Interface 1.0b (ACPI 2.0)}

support

■ Wired for Management 2.0 (WfM 2.0)

System memory

Memory type ■ _{333 MHz DDR SDRAM}

-OR-■ 400 MHz DDR SDRAM

Memory expansion options ■ _{Two 200-pin industry standard DDR-SODIMM sockets} ■ Accepts two PC2700/PC3200 DDR SDRAM memory modules

■ _{2 GB maximum system memory} ■ _{No on-board memory}

(2)

Video

Graphics controller ■ _{ATI M11-P graphics processor} ■ _{2D hardware acceleration} ■ _{3D rendering acceleration}

Video memory ■ _{128 MB DDR-SDRAM}

-OR-■ _{64 MB DDR-SDRAM}

LCD display panel 15.4-inch active matrix (TFT) LCD color display

Maximum panel resolution: 1280

×

800 (WXGA) Maximum color depth: 32-bit (16.7 million colors)

17.1-inch active matrix (TFT) LCD color display

×

900 (WXGA) Maximum color depth: 32-bit (16.7 million colors)

17.1-inch active matrix (TFT) LCD color display

×

1050 (WSXGA+) Maximum color depth: 32-bit (16.7 million colors) LCD supported video modes ■ _WXGA

■ _WSXGA+

LCD maximum refresh rate 60 Hz

Controls ■ _{Brightness level selectable through}_F_N_{keys (up, down)} ■ _{Auto dim on battery}

■ _{Auto bright on AC power}

External video ■ _{Supports dual display and extended desktop} ■ _{Integrated TV encoder}

External CRT resolutions Supports standard IBM VGA compatible modes Maximum resolution: 2048

×

1536

Maximum color depth: 32-bit (16.7 million colors) External CRT maximum refresh rate 75 Hz

TV out (S-Video) jack Supports NTSC/PAL connection to standard TV monitors with S-Video jack on notebook and port replicator

IEEE 1394 ■ _{One 4-pin connector} ■ _{100/200/400 mbps}

■ _{Supports video and audio capture}

(3)

Audio

Audio chipset Sigmatel® Soft Audio 6-channel AC97 rev 2.3 codec (STAC9758) Sound support ■ _{PCI interface audio}

■ _{Multi-stream Direct Sound and Direct Sound 3D acceleration} ■ _{SoundBlaster Pro, MIDI, Windows Sound System compatible,}

MP3, WMA

■ _{S/PDIF output for PCM or AC-3 content through mini-DIN on}

notebook or through Toslink jack on port replicator

■ _{PCI Power Management Interface (PPMI) 1.1 compliant}

NOTE: This notebook does not have an internal microphone. Digital DVD audio Provides full 5.1 channel Dolby Digital output (AC-3) from DVD

decoder through mini-DIN on notebook or through Toslink jack on port replicator.

Volume controls ■ _{Volume control buttons on front of notebook} ■ _{Volume control keys on keyboard}

■ _{Software control provided through Windows}

Internal speakers ■ _{Stereo speakers built into front of notebook} ■ _{1.5 W maximum output}

Audio jacks ■ _{Stereo headphone output} ■ _{Stereo line input}

■ _{Monophonic microphone input}

Communications

Modem features ■ _{Integrated Ambit AC 97 Soft V.92/56K data/fax modem} ■ _{Uses the RJ-11 jack on the back of the notebook} ■ _{Supports Wake on Ring from S3 power mode}

10/100/1000 Mbps Ethernet interface features

■ _{Integrated Intel 82547EI IEEE 802.3 (10/100/1000 BASE-TX)}

Ethernet interface

■ _{Uses the RJ-45 jack on the back of the notebook} ■ _{Supports Wake on LAN from S3 power mode}

(4)

Wireless Ethernet interface features (Factory installed option)

■ _{Broadcom BCM94306 IEEE802.11g/b network card embedded in}

the notebook

-OR-■ _{Broadcom BCM94300 IEEE802.11a/b/g network card embedded}

in the notebook

Antenna: Uses factory-installed internal antenna assembly

Operating channels: 11 selectable channels

Security: 128 and 64 bit WEP encryption

Operating Frequency

■ _{2.4 GHz Direct Sequence Spread Spectrum (IEEE 802.11b and}

IEEE 802.11g)

■ _{5.0 GHz (IEEE 802.11a)}

Maximum Data Rate

■ _{54 Mbps (IEEE802.11g and IEEE 802.11a)} ■ _{11 Mbps (IEEE802.11b)}

Input/Output (I/O)

Keyboard ■ _{U.S. English keyboard} ■ _{Full-sized 83-key keyboard} ■ _{Full-sized 21-key keypad} ■ _{19 mm × 19 mm key pitch} ■ _{3.0 mm keystroke}

Pointing device ■ _{Gateway EZ-Pad}™_touchpad ■ _{2-buttons plus scroll wheel}

Multifunction buttons Five “hot keys” that turn on and off wireless Ethernet emitter, and launch e-mail, Web browser, help application, and My Computer Status indicators ■ _{Battery status}

■ _{Power/Suspend} ■ _{Hard drive access} ■ _{Left modular bay access} ■ _{Right modular bay access} ■ _{Caps lock}

■ _{Scroll lock} ■ _{PAD lock}

(5)

Input/Output (I/O) ports ■ _{Four USB 2.0 (4-pin)}

■ _{Parallel (bi-directional, EPP, ECP)} ■ _{IEEE 1394 (4-pin)}

■ _{V.92, 56K Modem (RJ-11)} ■ _{10/100/1000 Ethernet (RJ-45)} ■ _{External monitor (VGA)}

■ _{Three universal audio jacks supporting microphone, headphone,}

stereo in, stereo out, S/PDIF in, and S/PDIF out

■ _{S-Video TV out}

■ _{PC Card socket (one Type II)} ■ _{Docking port}

■ _{DC input}

PCMCIA ■ _{Accepts one Type II device} ■ _{TI 4510 controller}

NOTE: This notebook does not support Zoomed Video.

Docking Solution

Type Port replicator Docking supported ■ _{Hot dock}

■ _{Warm dock} ■ _{Cold dock}

Input/Output (I/O ports) ■ _{Two PS/2}

■ _{Three USB 2.0 (4-pin)} ■ _{S-Video TV out} ■ _{External monitor (VGA)} ■ _Parallel

■ _{High-speed serial} ■ _{Modem (RJ-11)} ■ _{Ethernet (RJ-45)} ■ _{S/PDIF digital audio out}

■ _{Five universal audio jacks supporting microphone, headphone,}

stereo in, and stereo out (including surround sound)

■ _{Docking port} ■ _{DC input}

Storage

Hard drive controller Supports up to Ultra DMA 100 and up to PIO mode 4 Hard drive ■ _{User removable}

■ _{2.5-inch diameter} ■ _{9.5 mm height}

To find the hard drive capacity, click Start, then click My Computer. Right-click the drive letter, then click Properties. The drive’s capacity

(6)

Super I/O controller ■ _{NS PC87391 LPC super I/O controller} ■ _{Diskette drive controller}

■ _{IEEE 1284 compliant parallel port}

Modular bays Two modular bays are available on the notebook. Supports hot swapping of both bay devices:

■ _{From taskbar}

■ _{Through an electrical switch}

Optical Drive (right modular bay only)

To determine the type of optical drive in a bay, examine the drive tray’s plastic cover. A CD Compact Disc logo indicates a CD drive, a DVD logo indicates a DVD drive, a CD-R/RW logo indicates a recordable/rewritable CD drive, a DVD logo in combination with a CD-R/RW logo indicates a DVD drive that also is a

recordable/rewritable CD drive, and a DVD-ROM/R/RW logo in combination with a CD-R/RW logo indicates a recordable/rewritable DVD drive that also is a recordable/rewritable CD drive.

Available drives include:

■ _CD ■ _DVD ■ _CD-RW

■ _{Combination DVD/CD-RW} ■ _DVD-RW/CD-RW

■ _{DVD±R/±RW/CD-RW}

Second Hard Drive (left or right modular bay)

■ _{2.5-inch diameter} ■ _{9.5 mm high}

Diskette Drive (left modular bay only)

■ _{12.7 mm high} ■ _{3.5-inch diskettes}

■ _{720k/1.2MB/1.44MB support}

Memory card reader (left modular bay only)

Supports the following card types:

■ _CompactFlash® ■ _{IBM Microdrive}

™

■ _{Memory Stick}® ■ _{MultiMediaCard}

™

■ _{Secure Digital}

™

■ _SmartMedia

™

(7)

Power

Intelligent charger Supports dynamic charge current to achieve the best charge performance

AC adapter ■ _{19 VDC, 7.9A, 150 W output}

■ _{Automatically adjusts for 100 to 240 VAC, 50 to 60 Hz power}

sources

■ _{Three-wire design}

Battery type ■ _{Removable Lithium Ion battery pack}

■ _{Embedded controller inside to support smart battery}

Battery capacity 12-cell Li-Ion

■ _{6.6 Ah}

■ _{14.8 V nominal} ■ _{97 Wh}

Battery life varies depending on configuration, programs, power management settings, and features used. Recharge time varies, depending on usage.

Power management ■ _{Advanced Configuration and Power Interface 1.0b or later}

(ACPI 2.0 or later) support

■ _{SMBIOS 2.3} ■ _{PC 2001 compliant}

Controls ■ _{Keyboard-activated pop-up display gives battery charge as a}

percentage remaining

■ _{Icon on taskbar shows battery charge as a percentage remaining}

Power switch Power On/Off, Suspend/Resume, or Hibernate

Reset hole Resets whole system if notebook cannot recover by power switch Lid switch LCD On/Off, Suspend/Resume, or Hibernate

Security

Passwords ■ _{Power-on password (2-level password support)} ■ _{Hard drive password}

Physical ■ _{System memory compartment screws} ■ _{Hard drive kit screw}

(8)

System software

Operating system ■ _Microsoft®_Windows®_{XP Professional} ■ _Microsoft®_Windows®_{XP Home Edition}

System management ■ _{SMBIOS 2.3 BIOS support}

■ _{Advanced Configuration and Power Interface 1.0b (ACPI 2.0)}

support

■ _{Support for Wake on LAN from S3 power mode} ■ _{Support for Intel}®_LANDesk®_{Client manager 6.0} ■ _{Wired for Management 2.0 (WfM 2.0) enabled}

System compatibility ■ _{PC2001 specification}

■ _{Advanced Configuration and Power Interface 2.0 (ACPI 2.0) or}

later

■ _{SMBIOS 2.3}

■ _{Windows Hardware Quality Labs (WHQL) certified}

Quick boot Supported

Physical specifications

Dimensions ~1.5×15.7×10.6 in. (H×W×D) ~38.5×400×270 mm (H×W×D) System weight ~8.8 lbs.

~4.0 kg

Includes Diskette drive, DVD drive, and 12-cell battery AC adapter weight ~1.5 to 2.25 lbs

~0.7 to1.0 kg Includes cord

Environment

Operating temperature 41

°

F to 95

°

F (5

°

C to 35

°

C) Storage temperature -4

°

F to 140

°

F (-20

°

C to 60

°

C)

Operating humidity 20% to 80% relative humidity; no condensation Storage humidity 10% to 90% relative humidity; no condensation Operating altitude, maximum 8,000 feet at 59

°

F (2,438 meters at 15

°

C) Storage altitude, maximum 12,000 feet (3,658 m)
