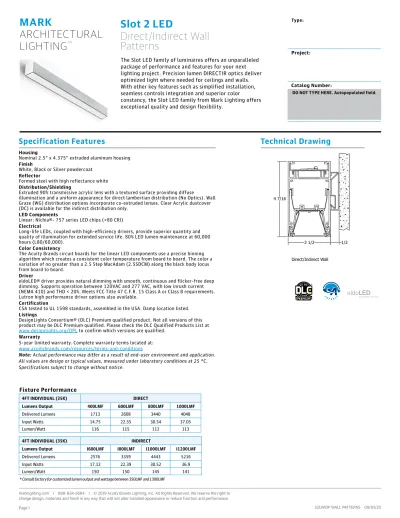

marklighting.com | 888-834-5684 | © 2019 Acuity Brands Lighting, Inc. All Rights Reserved. We reserve the right to

package of performance and features for your next

lighting project. Precision lumen DIRECTIR optics deliver

optimized light where needed for ceilings and walls.

With other key features such as simplified installation,

seamless controls integration and superior color

constancy, the Slot LED family from Mark Lighting offers

exceptional quality and design flexibility.

Technical Drawing

Catalog Number:

DO NOT TYPE HERE. Autopopulated field.

Housing

Nominal 2.5” x 4.375” extruded aluminum housing

Finish

White, Black or Silver powdercoat

Reflector

Formed steel with high reflectance white

Distribution/Shielding

Extruded 90% transmissive acrylic lens with a textured surface providing diffuse

illumination and a uniform appearance for direct lambertian distribution (No Optics). Wall

Graze (WG) distribution options incorporate co-extruded lenses. Clear Acrylic dustcover

(DC) is available for the indirect distribution only.

LED Components

Linear: Nichia®- 757 series LED chips (>80 CRI)

Electrical

Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and

quality of illumination for extended service life. 80% LED lumen maintenance at 60,000

hours (L80/60,000).

Color Consistency

The Acuity Brands circuit boards for the linear LED components use a precise binning

algorithm which creates a consistent color temperature from board to board. The color a

variation of no greater than a 2.5 Step MacAdam (2.5SDCM) along the black body locus

from board to board.

Driver

eldoLED® driver provides natural dimming with smooth, continuous and flicker-free deep

dimming. Supports operation between 120VAC and 277 VAC, with low inrush current

(NEMA 410) and THD < 20%. Meets FCC Title 47 C.F.R. 15 Class A or Class B requirements.

Lutron high performance driver options also available.

Certification

CSA tested to UL 1598 standards, assembled in the USA. Damp location listed.

Listings

DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this

product may be DLC Premium qualified. Please check the DLC Qualified Products List at

www.designlights.org/QPL

to confirm which versions are qualified.

Warranty

5-year limited warranty. Complete warranty terms located at:

www.acuitybrands.com/resources/terms-and-conditions

Note:

Actual performance may differ as a result of end-user environment and application.

All values are design or typical values, measured under laboratory conditions at 25 °C.

Specifications subject to change without notice.

Specification Features

Direct/Indirect Wall 2 1/2 4 7/16 1/2 4FT INDIVIDUAL (35K) DIRECT Lumens Output 400LMF 600LMF 800LMF 1000LMF Delivered Lumens 1713 2608 3440 4048 Input Watts 14.75 22.55 30.54 37.05 Lumen/Watt 116 115 112 113

Fixture Performance

4FT INDIVIDUAL (35K) INDIRECT

Lumens Output I600LMF I800LMF I1000LMF I1200LMF

Delivered Lumens 2576 3359 4443 5216 Input Watts 17.12 22.39 30.52 36.9 Lumen/Watt 150 150 145 141 * Consult factory for customized lumen output and wattage between 350LMF and 1300LMF

(2)

A+ Capable Luminaire

This item is an A+ capable luminaire, which has been designed and tested

to provide consistent color appearance and out-of-the-box control

compatibility with simple commissioning.

• All configurations of this luminaire meet the Acuity Brands’

specification for chromatic consistency

• This luminaire is part of an A+ Certified solution for nLight® control

networks when ordered with drivers marked by a shaded background*

• This luminaire is part of an A+ Certified solution for nLight control

networks, providing advanced control functionality at the luminaire

level, when selection includes driver and control options marked by a

shaded background*

To learn more about A+,

visit www.acuitybrands.com/aplus

.

LIGHTING

TM

Direct/Indirect Wall

Patterns

A+ Capable options indicated

by this color background.

Ordering

Example: S2LWIDP OPP 24FT 190IC 80CRI 35K 600LMF I80CRI I35K I600LMF MIN1 SCT 277 WHT ZT

Notes:

1. Fixture length may effect available options, consult factory with validation issues.

2. Configurations do not contain emergency options or sensors, those options are controlled from the straight fixtures. 3. Not available with ECOD, ECOD2, or ECOD5 control options.

4. Not available with EGLD option. 5. Not available with Control inputs.

6. Not available with NLTAIR2, or on 2ft or 3ft fixtures. 7. Not available with NLTAIR2.

8. Not available with sensor options.

9. Not available on 2ft or 3ft fixtures (or 4ft with DCT), or with DMX option. 10. One E10WLCP pack per fixture section.

11. Powers entire direct fixture section (power direct and indirect fixture sections on 2ft fixtures). Not available with ZT/ NLTAIR2 sensors in the same fixture.

12. Must select 120V or 277V, Remote mounted.

13. NLIGHT option on 2FT fixture will require remote mounted NIO.

14. Must select MIN1 or DARK Dim Level. Not available with 347, WW, 2’ or 3’ units. If ordered with E10WLCP, only available in 7’ & 8’ units. One NLTAIR2 device per zone or sensor, for multiple zones consult factory. For antenna location, see page 10. 15. Must select DARK option.

16. Must select MIN1 option, not available on 2ft or 3ft fixtures or 5ft fixtures. 17. Only available with 120 option.

Series Plan Total Run Length Configuration2 Direct Light Source Color Rendering Color TempDirect LED Direct LEDLight Output S2LWIDP Slot 2 Wall

Patterns- Indirect / Direct

SPP Square Pattern Plan RPP Rectangular Pattern Plan OPP Open Pattern Plan CPP Closed Pattern Plan

__FT1 Specify continuous run length (in whole feet 2’ minimum)

_90IC # Inside corners _90OC # Outside corners

80CRI 80 CRI 90CRI 90 CRI 27K 2700K 30K 3000K 35K 3500K 40K 4000K 50K 5000K 400LMF 400 Lumens per FT 600LMF 600 Lumens per FT 800LMF 800 Lumens per FT 1000LMF 1000 Lumens per FT

_LMF3 ## Lumens per FT (Limited to 400LMF to 1000LMF in 50LMF increments)

Direct Distribution

(Optics) Indirect Light Source Color Rendering Indirect LED Color Temp Indirect LEDLight Output Indirect Distribution (Optics) Minimum Dimming Level Switching (blank) Standard Lambertian Distribution WG4 Wall Graze Distribution I80CRI 80CRI I90CRI 90CRI I27K 2700K I30K 3000K I35K 3500K I40K 4000K I50K 5000K

I600LMF 600 Lumens per FT I800LMF 800 Lumens per FT I1000LMF 1000 Lumens per FT I1200LMF 1200 Lumens per FT I_LMF3 ## Lumens per FT (Limited

to 600LMF to 1200LMF in 50LMF increments)

(blank) No indirect distribution / Standard lambertian AS Asymmetric

Distribution

NODIM5 Non - dimming MIN1 Constant current,

dimming to 1% DARK Constant current,

dimming to 0.1%

SCT Single Circuit DCT6 Dual Circuit

Optional Shielding7,8 Voltage Finish Emergency Options Control Input

(blank) Standard Shielding only EGLD Edge View Direct Lens

MVOLT Multi-volt, 120-277 120 120V 277 277V WHT White (gloss) BLK Black (gloss) SLV Silver (gloss) WHTT White (textured) BLKT Black (textured) SLVT Silver (textured) RALTBD RAL paint finishes.

See RAL Brochure for available options and ordering information

E10WLCP9 4ft emergency section w/ battery pack 1250 lumens _E10WLCP9,10 # 4ft emergency sections w/

battery pack 1250 lumens _EC11 # of Emergency Circuits BGTD11,12 Generator Transfer Device

(blank) Non-dimming, line voltage ZT 0-10V Control NLIGHT13 nLight enabled NLTAIR214 nLight AIR (wireless) enabled DALI15 DALI compatible ECOD16 Lutron Hi-Lume Digital driver ECOD216,17 Lutron Hi-Lume 2-wire (1% Dimming) ECOD516 Lutron 5-series digital driver (5% Dimming) For additional ordering assistance consult ‘Intelligent Luminaire Technology Guide’.

Sensor4 Secondary Sensor Tertiary Sensor Environmental Listing Options

(blank) select if single zone/no zone without sensor NS select if multi-zone fixture with no sensor

in main zone

PDT_18 Occupancy Sensor- Dual Technology (Passive Infrared & Microphonics)

ADC_18 Photocell- Daylight Dimming Sensor API_19 PIR Occupancy Sensor & Photocell APD_19 PDT Occupancy Sensor & Photocell For additional ordering assistance consult ‘Intelligent Luminaire Technology Guide’.

(blank) No additional zones/sensors SNS select if multi-zone fixture with no

sensor in secondary zone SPDT_18 Occupancy Sensor- Dual Technology

(Passive Infrared & Microphonics) SADC_18 Photocell- Daylight Dimming Sensor SAPI_19 PIR Occupancy Sensor & Photocell SAPD_19 PDT Occupancy Sensor & Photocell

(blank) No additional zones TNS select if multi-zone

fixture with no sensor in tertiary zone

DPL Damp Location

(3)

marklighting.com | 888-834-5684 | © 2019 Acuity Brands Lighting, Inc. All Rights Reserved. We reserve the right to

PHOTOMETRICS

Test Report: ISF 37569-37490 IES LM 79-08

S2LWID 4FT 80CRI 30K 400LMF I600LMF Lumens: 3971

Wattage: 31.6 Efficacy: 125.6

Test Report: ISF 37569-37789 IES LM 79-08

S2LWID 4FT 80CRI 30K 400LMF I600LMF AS Lumens: 2902

Wattage: 31.7 Efficacy: 91.54

Zonal Lumen Summary Zone Lumens % Luminaire

0-30 532.4 13.40% 0-40 835.3 21% 0-60 1341.8 33.80% 60-90 264.1 6.60% 70-100 122.2 3.10% 90-120 420.2 10.60% 0-90 1605.8 40.40% 90-180 2365.3 59.60% 0-180 3971.1 100%

Zonal Lumen Summary Zone Lumens % Luminaire

0-30 532.4 18.30% 0-40 835.3 28.80% 0-60 1341.8 46.20% 60-90 264 9.10% 70-100 154.1 5.30% 90-120 460.5 15.90% 0-90 1605.8 55.30% 90-180 1296.2 44.70% 0-180 2902 100% Angle Candlepower Distribution Plane 0 22.5 45 67.5 90 112.5 135 157.5 180 0 719 719 719 719 719 719 719 719 719 5 717 714 713 715 714 720 716 717 714 10 696 697 700 703 704 707 704 701 700 15 669 669 672 680 683 689 681 675 671 20 624 627 639 652 655 656 650 636 628 25 568 577 594 610 617 619 603 583 575 30 504 517 541 567 576 571 552 522 513 35 439 452 486 516 526 520 490 460 442 40 376 387 421 458 471 463 426 390 378 45 315 326 361 398 411 404 364 330 317 50 261 273 303 340 353 344 305 274 261 55 214 224 250 281 294 285 249 223 214 60 169 178 199 227 237 231 199 179 171 65 132 139 156 177 186 179 157 140 135 70 98 103 116 129 136 131 115 105 99 75 67 70 77 87 91 89 79 71 69 80 41 42 46 50 52 51 47 44 43 85 19 19 19 19 19 20 20 20 19 90 1 1 0 0 0 0 0 0 0 95 12 12 12 7 24 7 6 5 5 100 16 15 12 86 78 48 11 13 14 105 16 15 57 155 152 153 14 15 15 110 29 187 243 235 226 229 234 17 17 115 325 324 314 312 304 311 314 317 315 120 400 393 392 386 381 386 384 390 389 125 463 463 461 452 448 454 451 460 455 130 532 533 528 518 513 521 518 520 521 135 590 589 581 579 571 579 578 579 577 140 636 640 631 636 626 635 632 630 633 145 679 681 680 686 677 684 679 678 678 150 719 718 721 727 715 722 722 715 716 155 750 755 756 759 746 754 754 744 753 160 778 779 784 786 776 780 774 774 775 165 797 802 800 805 796 802 796 794 798 170 807 812 815 818 811 818 807 808 810 175 815 819 822 824 818 827 815 815 819 180 820 820 820 820 820 820 820 820 820 Angle Candlepower Distribution Plane 0 22.5 45 67.5 90 112.5 135 157.5 180 0 719 719 719 719 719 719 719 719 719 5 717 714 713 715 714 720 716 717 714 10 696 697 700 703 704 707 704 701 700 15 669 669 672 680 683 689 681 675 671 20 624 627 639 652 655 656 650 636 628 25 568 577 594 610 617 619 603 583 575 30 504 517 541 567 576 571 552 522 513 35 439 452 486 516 526 520 490 460 442 40 376 387 421 458 471 463 426 390 378 45 315 326 361 398 411 404 364 330 317 50 261 273 303 340 353 344 305 274 261 55 214 224 250 281 294 285 249 223 214 60 169 178 199 227 237 231 199 179 171 65 132 139 156 177 186 179 157 140 135 70 98 103 116 129 136 131 115 105 99 75 67 70 77 87 91 89 79 71 69 80 41 42 46 50 52 51 47 44 43 85 19 19 19 19 19 20 20 20 19 90 0 0 0 0 0 0 0 0 0 95 43 62 130 81 6 15 24 31 26 100 403 402 317 221 19 29 42 44 52 105 537 506 472 266 36 41 56 62 63 110 616 694 840 338 56 55 74 89 77 115 1159 1153 1073 393 76 63 78 101 115 120 1421 1396 1099 411 96 67 86 108 116 125 1501 1418 1050 407 117 72 95 108 116 130 1423 1322 956 400 141 80 96 116 120 135 1255 1158 832 384 164 94 94 118 124 140 1088 990 710 368 190 112 96 112 119 145 920 843 614 360 217 130 105 109 113 150 776 709 536 360 241 148 122 116 117 155 667 620 496 365 261 168 142 132 130 160 582 546 470 369 284 192 161 149 146 165 518 496 440 368 303 219 186 170 167 170 457 439 403 365 319 256 218 202 198 175 389 380 364 355 330 298 267 248 244 180 331 331 331 331 331 331 331 331 331

(4)

LIGHTING

TM

Direct/Indirect Wall

Patterns

Shielding

Co-Extruded WG

Co-Extruded WG

(Standard)

Co-Extruded WG

(Standard)

Edge View Lens

(Optional)

Edge Glow Lens (Standard)

(5)

marklighting.com | 888-834-5684 | © 2019 Acuity Brands Lighting, Inc. All Rights Reserved. We reserve the right to

Pattern Plan

Slot 2 LED patterns be configured in 1’ increments with illuminated 90° inside or outside corners, with standard 2’ corner junction lengths. For custom angles, corner or

junction lengths, consult factory.

FOR WALL

INSIDE CORNER

OUTSIDE CORNER

24" 24" 24" 24" 24" 24" 24" 90° Corner

Tips

4 corners per SPP and RPP plans

Maximum of 6 corners per OPP and CPP plans

Total Run Length = all sides of the pattern

Submittals are required for patterns, please use the grid on the next page for your payout with

all relevant dimensions and types of intersections.

Power Feed

Total run length = 24'

190C = 1 90° corner

S2LDP OPP 24FT 190C 80CRI 30K 600LMF MIN1 EGLD 120 WHT ZT F1/72A RDCY WHTCY CCRD MCS

Example:

10'

14'

*not to scale

(6)

LIGHTING

TM

Direct/Indirect Wall

Patterns

Layout Sketch

Please draw and configure your pattern plan below.

4’

4’

Key

9CS

5CC

(7)

marklighting.com | 888-834-5684 | © 2019 Acuity Brands Lighting, Inc. All Rights Reserved. We reserve the right to

Mountings

Joiners

AEL Precision Row-Mount 3-step fixture-to-fixture connection method

Step 1: Align

Step 2: Engage

Step 3: Lock

Continuous Runs

Slot 2 LED features the AEL precision joiner to create a hairline seam between

luminaires, providing a monolithic visual aesthetic. For custom run lengths less

than a 1’ increment, consult factory.

(8)

LIGHTING

TM

Direct/Indirect Wall

Patterns

INTEGRATED SENSOR LAYOUT

32FT

8FT 8FT 8FT 8FT

32FT MSL8 RUN WITH 2 SENSORS WITH PRIMARY ZONE 24FT AND SECONDARY ZONE 8FT -- PDT24 SADC8

PRIMARY ZONE:

PDT24 (DUAL TECH SENSOR, 24FT ZONE)

32FT

8FT 8FT 8FT 8FT

32FT MSL8 RUN WITH 1 SENSOR ALL ONE ZONE -- ADC

PRIMARY ZONE:

ADC (DAYLIGHT SENSOR). SINCE THERE IS NO NUMBER AFTER THE ADC SENSOR NOMENCLATURE, THE SENSOR WILL CONTROL THE ENTIRE RUN.

32FT

8FT 8FT 8FT 8FT

32FT MSL8 RUN WITH 1 SENSOR ALL ONE ZONE -- PDT16

DOES NOT WORK BECAUSE THE LENGTH OF THE ZONE SPECIFIED (16FT), DOES NOT MATCH THE ENTIRE RUN (32FT)

32FT

8FT 8FT 8FT 8FT

32FT MSL8 RUN WITH 2 SENSORS WITH PRIMARY ZONE 20FT AND SECONDARY ZONE 12FT -- PDT20 SADC12

INCORRECT:

NOTE: IF THERE IS ONLY ONE ZONE, LEAVE THE NUMBERS AFTER THE SENSOR NOMENCLATURE BLANK. EXAMPLE: NO PDT16, USE PDT

DOES NOT WORK BECAUSE THE LENGTH OF THE ZONES SPECIFIED (20FT AND 12FT), DOES NOT WORK FOR 8FT FIXTURE SECTIONS, ZONES CANNOT SPLIT A FIXTURE SECTION

PRIMARY ZONE: 20FT

SECONDARY ZONE: 12FT

Notes:

Only one sensor per zone

At the most, the entire run can only have 2 sensors (thus 2 sensors zones at the most)

Sensor zone can not split fixture sections

No overlapping zones

CORRECT:

SECONDARY ZONE: SADC (DAYLIGHT SENSOR, 8FT ZONE)

At the 7.5 ft (2.9 m) hanging height of a typical pendant mount

fixture the sensor provides 10 ft (3.05 m) radial detection of small

motion. At a 9 ft (2.74 m) hanging height the radius is 12 ft (3.66 m)

for small motion.

Adequate for walking motion detection from mounting heights

between 7.5 ft (2.29 m) and 20 ft (6.10 m).

Initial detection will occur earlier when walking across sensor’s field

of view than when walking directly at sensor.

Initial detection of walking motion into long coverage segment will

occur at distances of 2x the mounting height up to 15 ft (4.57 m)

and 1.75x up to 20 ft (6.10 m). Lens assembly rotates 15° to enable

adjustment in order to line up long segments.

Lens rotates 15° to

enable adjustment

15 12.5 10 7 5 2.5 0 ft 2.5 5 7 10 12.5 15 4.5 3.8 3 2.5 1.5 0.75 0 m 0.75 1.5 2.5 3 3.8 4.5

OCCUPANCY DETECTION COVERAGE

Integrated Controls

Optional nLight® integrated

controls make Slot LED luminaires

addressable- allowing them to

digitally communicate with other

nLight enabled controls such as

dimmers, switches, occupancy

sensors and photocontrols. Simply

connect all the nLight enabled

control devices using standard

CAT5 Cabling.

Sensors are lcated on straight

(9)

marklighting.com | 888-834-5684 | © 2019 Acuity Brands Lighting, Inc. All Rights Reserved. We reserve the right to

Choose nomenclature

from these columns

Driv

er Configur

ations

Minimum

Dimming Level Control Input Driver Dimming Range Notes

NODIM + (blank) = 0-10V Generic Driver - Includes no 0-10V leads from the driver.

MIN10 + ZT = 0-10V Generic Driver 100 to 10% Linear dimming

MIN1 + ZT = 0-10V eldoLED ECOdrive 100 to 1% Formerly (EZ1) nomenclature. Linear dimming

MIN1 + NLIGHT = 0-10V eldoLED ECOdrive 100 to 1% Logarithmic dimming

MIN1 + ECOD2 = Lutron forward phase control 100 to 1% LUTRON Hi-lume 1% 2-wire (model LTEA4U1U)

MIN1 + ECOD5 = Lutron Ecosystem 100 to 5% LUTRON 5-Seires EcoSystem LED Driver (model LDE5)

MIN1 ECOD Lutron Ecosystem 100 to 1% LUTRON Hi-lume 1% EcoSystem LED Driver with Soft-on, Fade-to-Black (model LDE1) DARK ZT 0-10V eldoLED SOLOdrive 100 to 0.1% Formerly (EZB) nomenclature. Linear dimming

DARK NLIGHT 0-10V eldoLED SOLOdrive 100 to 0.1% Logarithmic dimming

DARK DALI eldoLED SOLOdriveDALI compatible 100 to 0.1% "Compatible with DALI. Formerly (EDB & EDAB) nomenclature." Logarithmic dimming

Intelligent Luminaire Technology Guide

Choose nomenclature

from these columns

Control / Sensor Configur

ations

Control Input Sensor Sensor Notes

ZT + API = MSD 7 ADCX Individual fixture control only. PIR integral occupancy sensor with automatic dimming control photocell. (Old nomenclature: ZT + PIR + ADC)

ZT + APD = MSD PDT 7 ADCX Individual fixture control only. PDT integral occupancy sensor with automatic dimming control photocell. (Old nomenclature: ZT + PDT + ADC)

NLIGHT + (blank) = nIO EZ PH nLight enabled only. No onboard sensor.

NLIGHT EMG = nIO EZ PH ER Emergency nLight enabled only. No onboard sensor.

NLIGHT + API = nIO EZ PH + nES 7 ADCX nLight nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell. (Old nomenclature: NLIGHT + PIR + ADC) NLIGHT + PDT = nIO EZ PH + nES PDT 7 nLight nES PDT 7 dual technology integral occupancy sensor. (Old nomenclature: NLIGHT + PDT) NLIGHT + APD = nIO EZ PH + nES PDT 7 ADCX nLight nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell.

(Old nomenclature: NLIGHT + PDT + ADC)

NLTAIR2 (blank) RIO EZDL 90D G2 https://www.acuitybrands.com/products/detail/778845/nLight/rIO/Fixture-embedded-nLight-AIR-network-interface NLTAIR2 API RES7 G2 https://www.acuitybrands.com/products/detail/593899/nLight/RES7-Sensor/nLight-AIR-Fixture-Integrated-Wireless-Sensor NLTAIR2 APD RES7 PDT G2 https://www.acuitybrands.com/products/detail/593899/nLight/RES7-Sensor/nLight-AIR-Fixture-Integrated-Wireless-Sensor

(10)

LIGHTING

TM

Direct/Indirect Wall

Patterns

Remote BGTD Mounting Option

Recessed in sheetrock ceiling; rod mounted to structure. Consult

factory for other ceiling types or canopy options.

6 foot flexible conduit included, BGTD option should be mounted

within 6 feet of junction box above fixture.

Accessible Ceiling

nLight Air Wireless Antenna Location

Note: Antenna will be shipped separately and will need to be

attached to the coax connector.

References

Related documents

FCJS/DIM1 Lutron Vive PowPak wireless fi xture control with 1% dimming driver ELDO SOLOB EldoLED Solodrive, 0.1% dimming driver for 0-10V controls ELDO SOLOB DALI EldoLED

In scenario 3 nLight provides an additional 26 percent savings by increasing the normal utilization of router interfaces while leveraging router QoS to protect

There are five types of dimming control interfaces described in this document: 2-Wire Forward Phase, 2-Wire Reverse Phase, 3-Wire (Lutron), 4-Wire (0–10V), and Digital Signal

He agreed that the forces from the accident caused the herniation in the neck but that the forces were too low to have caused damage to the well protected lumbar region of a

Crestron DIN-DALI-2 computer programmable, network connected DALI-compliant lighting controllers send on-off and dimming instructions to addressable DALI-compliant lighting

The answer will be YES if the control gear has not received a RESET or one of the following arc power control commands since the last power-on: DIRECT ARC POWER CONTROL, OFF,

Low Voltage Independent Occupancy/Vacancy Sensor with Power Pack and DALI Dimming Control. DALI Occupancy/Vacancy Sensor with DALI to

Federal law requires that most group health plans give employees and their families the opportunity to continue their health care cover- age when there is a “qualifying event”
