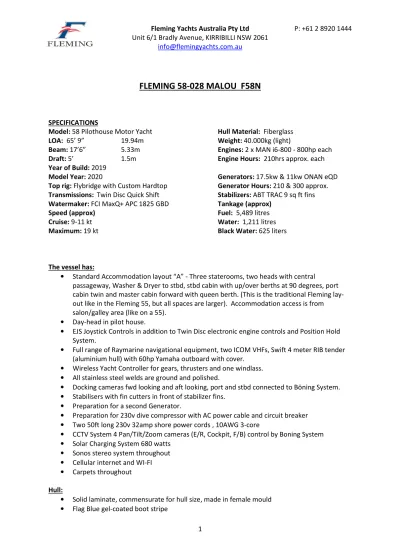

FLEMING 58-028 MALOU F58N
SPECIFICATIONS
Model: 58 Pilothouse Motor Yacht Hull Material: Fiberglass
LOA: 65’ 9” 19.94m Weight: 40.000kg (light)
Beam: 17’6” 5.33m Engines: 2 x MAN i6-800 - 800hp each
Draft: 5’ 1.5m Engine Hours: 210hrs approx. each
Year of Build: 2019
Model Year: 2020 Generators: 17.5kw & 11kw ONAN eQD
Top rig: Flybridge with Custom Hardtop Generator Hours: 210 & 300 approx. Transmissions: Twin Disc Quick Shift Stabilizers: ABT TRAC 9 sq ft fins Watermaker: FCI MaxQ+ APC 1825 GBD Tankage (approx)
Speed (approx) Fuel: 5,489 litres
Cruise: 9-11 kt Water: 1,211 litres
Maximum: 19 kt Black Water: 625 liters
The vessel has:
• Standard Accommodation layout “A” - Three staterooms, two heads with central
passageway, Washer & Dryer to stbd, stbd cabin with up/over berths at 90 degrees, port cabin twin and master cabin forward with queen berth. (This is the traditional Fleming lay-out like in the Fleming 55, but all spaces are larger). Accommodation access is from salon/galley area (like on a 55).
• Day-head in pilot house.
• EJS Joystick Controls in addition to Twin Disc electronic engine controls and Position Hold System.
• Full range of Raymarine navigational equipment, two ICOM VHFs, Swift 4 meter RIB tender (aluminium hull) with 60hp Yamaha outboard with cover.
• Wireless Yacht Controller for gears, thrusters and one windlass. • All stainless steel welds are ground and polished.
• Docking cameras fwd looking and aft looking, port and stbd connected to Böning System. • Stabilisers with fin cutters in front of stabilizer fins.
• Preparation for a second Generator.
• Preparation for 230v dive compressor with AC power cable and circuit breaker • Two 50ft long 230v 32amp shore power cords , 10AWG 3-core
• CCTV System 4 Pan/Tilt/Zoom cameras (E/R, Cockpit, F/B) control by Boning System • Solar Charging System 680 watts
• Sonos stereo system throughout • Cellular internet and WI-FI • Carpets throughout
Hull:
2 • Vinylester resin used for outer laminations
• Full-strength stringers and athwart-ships frames laminated over foam • Simulated planking grooves
• Gel-coated finish above waterline
• Five coats of epoxy barrier coat below waterline • Two coats of black Pettit 1088 GA antifouling paint
• Pettit Metal Etch Primer 6455/044 and Pettit Epoxy Primer 4700 and Pettit 1088GL Trinidad Antifoul used on underwater metals
• Integrally moulded guard with stainless steel rub strip • Keel extends below running gear
• Keel space filled and sealed across top
• FRP rudders with Aqualloy 22 Hi-strength stocks • CE approved stainless steel portlights
• Stainless steel keel shoe - 8 ft long (2.4m) • Shallow Shaft Tunnels (draft 5’/1.52m)
• Hull extends under swim step (provides longer LWL) • ZF-Faster Shaft Struts
Deck and Superstructure Construction: • All parts made from moulds • Corecell cored construction • Cook gel coat “Fleming White”
• All stainless steel welds ground and highly polished • Vinylester resin used for outer laminations
Exterior, general:
• Stainless steel trim around roofs, on forward teak cap rail and guard • Italian made exterior locks Hella
• LED navigation and anchor lights in accordance with relevant regulations • Fixed transom wedge trim tab
• Stainless steel Fleming & “F” Logo on port & stbd forward roof supports • Quickutter line cutters on propeller shaft
• Exterior seating with EZ-Dri foam, Sunbrella “Taupe” upholstery, and mesh backs for drainage
Aft Deck Area:
• Cockpit with teak decking
• Flush Powered lazarette hatch with hinge, gaskets, locks & gutters with drains and ladder into lazarette
• Integral FRP swim step moulded as part of hull, teak decking & stainless steel rub rail and with two ss removable rails at aft end
• Storage locker in Step on Swim Step • Fold up stainless steel cleats on swimstep
• Stainless steel telescopic swim ladder in swimstep. Can be deployed by swimmer • Wide Burrwood coaming (cap rail) around cockpit (FRP imitation teak)
• FRP skirt inboard of teak cap rail
• Engine room air intakes behind skirt and inside bulwarks
3
• Sliding doors to salon. Aluminium with FRP skin, glass windows & Stainless steel weather strips
• Seadog style latches for doors
• Cockpit console stbd side with sink, refrigerator and engine & thrusters & Joystick controls & start/stop buttons, fire safety shut-offs, open/close buttons for lazarette hatch
• Two Fusion speakers under side coaming on separate zone controlled via boat’s Sonos system
• Hot & cold shower fittings in custom compartment in transom, with quick release shower head and flexi hose
• Integrally moulded deck seats port and starboard on aft deck, port with opening lid and fresh and salt water 316 stainless steel faucets
• Smartplug shorepower inlet in transom for 230v, 50Hz, 32 amp with Glendinning cord spool electrically operated
• Overhead LED lighting with dimmer control • LED rope lighting under coaming skirt
• 3 Chocks (fairleads) at hull sides and transom (two on side decks and one on aft deck each side) plus one each side in transom, 8 in total
• Six 14" heavy duty stainless steel cleats secured to plates inside bulwarks each side • Deck scuppers piped out through transom at boot stripe
• 316 grade stainless steel handrail across transom • Courtesy LED “F” logo lights at step up to salon
• Direct access to engine room through hatch in step to salon with safety rail which stows flush with underside of hatch
• Roof extension with oval s/s supports port and stbd • Fixed table with Burrwood top and s/s pedestal • Four Italian Smeralda deck chairs
Side Decks:
• Teak decking
• 316 grade stainless steel handrails along house side • Burrwood imitation teak cap rails on bulwarks
• Bulwark doors opening inboard with Seadog style latches and barrel bolts • Non skid on top side of guard at boarding gates
• LED overhead lights. Two per side
• Courtesy LED "F" logo lights at steps up to Portuguese bridge • Stainless steel handrails at side deck steps
• Steps to Portuguese bridge deck with teak treads
• House side windows fixed with tinted, tempered glass and FRP frames • Galley window sliding with tinted, tempered glass and FRP frames • Two sets of spring-line chocks (fairleads) per side
• Five 14" heavy duty Stainless Steel cleats per side, recessed into bulwarks with heavy duty steel backing plates
• Fuel fills in house sides port and stbd. Can fill both tanks from port or stbd side fuel fills. • 1/2" thick acrylic side-deck wing doors with stainless steel frames & hardware & etched "F"
logo
4 Pilothouse Deck Level
• Portuguese bridge
• Burrwood fibre glass imitation teak cap rail
• Locker doors in aft face of Portuguese bridge, access to large vented storage with Dri-Deck flooring
• 316 grade stainless steel handrail around forward side of pilothouse • 316 grade stainless steel handrails at port & stbd sides of pilothouse
• Sliding aluminium pilothouse doors port & stbd with stainless steel weather seals • Clear tempered 8mm thick glass in forward facing windshields
• Pilothouse windows are fixed and have FRP frames
• Mesh covers to all doors and windows with custom Sunbrella frames • Teak decking
• Black water tank stainless steel suction deck fittings port & stbd sides of Portuguese bridge • Hinged doors Port & Stbd through Portuguese bridge to foredeck with stainless steel gas
spring retainers
• Individual screen wash and heavy duty self-parking wipers on windshield • Inward opening gate-doors on Portuguese bridge side decks port & stbd • Stainless steel Fleming & “F” logo on port & stbd forward roof supports • Two stainless steel fender tie fittings on port and stbd sides
• Two stainless steel CE approved skylights with Sunbrella cover • Galley cooktop and microwave vent
• Illuminated name boards with boat name in stainless steel letters (name not to follow boat) • Two loud hailer horns under pilothouse eyebrow
Forepeak:
• FRP Chain and rope lockers with removable Stainless Steel access plates and Stainless Steel chain pipes
• Watertight collision bulkhead • Forepeak drains directly overboard • Bitter end fittings
• Hatch scuppers
• High gloss white poly paint finish • Overhead light
• Dri-Deck flooring
Forward Deck: • Teak deck
• Cabin trunk with white non-skid finish and one large CE approved Stainless Steel skylight • Vented deck lockers in cabin trunk
• Stainless Steel handrail on cabin trunk
• Burrwood FRP imitation teak rail cap on bulwarks/coamings increasing in width going fwd • Stainless steel stanchions to support stainless steel handrail port and stbd
• Oval shaped stainless steel handrail with stainless steel mid-rail
• Deep deck lockers forward either side of anchor platform with teak decking • FRP anchor platform with integrally moulded non-skid and two sets of rollers • Anchor platform stainless steel dirty water catchment fence with drainage • FRP anchor platform with molded white non-skid finish and two sets of rollers
5
• Second anchor Ultra 45kg stainless steel with Ultra stainless steel swivel • Stainless steel 12mm anchor chains – 300’ (93m) to each windlass • Bridle with snubber and Ultra chain hook
• Two Maxwell RC12 windlasses, port is electric (24V), starboard is hydraulic, with pendant control, wireless remote, and control panels at both stations (P/H & F/B), Yacht Controller runs primary windlass
• Four stainless steel fairleads, two each side • Eight 14" stainless steel cleats, four each side • 316 grade stainless steel pulpit rail
• Foredeck LED "F" logo lights at steps through gates thru Portuguese bridge • Hatch to forepeak
• Smart-plug Shore inlet for 230v, 50 Hz, 32 amp
• Salt water 316 stainless steel faucet inside port foredeck locker • Fresh water 316 stainless steel faucet inside port foredeck locker • Socket for windlass control pendant
• Deck drains plumbed to boot stripe to prevent black streaks • Teak burgee pole
• FRP fore peak vent
Flybridge:
• Hard top with LED lighting and 2 x Victron 340 watt Mono solar panels • Low level courtesy lighting under f/b seating
• Teak deck in settee area
• BBQ, electric SS with lid (Australian Cook-Out Classic) located aft of port settee in custom made cabinet with Isotherm refer
• Seaview mast with sat dome for Raymarine satellite TV, Raymarine radar scanner with windex on top with bow and anchor lights and aft facing floodlight
• Aerials for 2 x VHF, 2 x AM/FM radio, cellular and AIS • Lexan venturi with stainless steel rail
• Steering console with engine controls on level surface incl Joystick control and Twin Disc Panel
• Raised Stidd double Helm seat with "Taupe" upholstery, folding armrests, back recline adjustment, and twin folding footrests
• 15” colour touchscreen central monitoring system including MAN engine instrumentation • Black formica panel on flybridge console
• Ritchie compass with light & dimmer
• HYPRO Powered Electro-hydraulic steering with destroyer-type wheel • Auto-Anchor control unit with chain counter in pilothouse and on flybridge • Rudder angle indicator in Böning screen
• Fire system repeater alarm
• Flybridge cushions on settees using EZ-dri foam with Sunbrella “Taupe” upholstery and mesh backs for drainage
• Matching Sunbrella cushion forward of starboard settee • Prefix snaps for attaching cushions
• Two settees - straight to port and U shaped to stbd
• High gloss varnished teak table top with Sunbrella cover. SS telescopic pedestal. Tabletop can slide port/stbd.
6 • Buell air horn with twin trumpets.
• Two Mastervolt 24V to 12v DC-DC converters with 12V battery backup system • Stainless steel railings with mid safety rail
• Stainless Steel safety gate between flybridge and boat deck • CCTV pan/tilt/zoom camera
• Dri-Deck flooring in storage areas and under seating
• ABT TRAC-LINK colour touchscreen control panel for stabilizers • Sunbrella covers to helm seat, settees and instrument console • 230v AC outlet RCD protected under port settee
• Stainless steel safety rail by sliding hatch to pilot house
• Twin Disc Electronic engine controls with synchronizer, EJS Joy Stick with Twin Disc panel for Position Hold function, start/stop engine buttons, Controls for ABT bow & stern thrusters & horns
• Two Fusion speakers in flybridge settees controlled via Sonos system with own zone • Raymarine Instrumentation:
19” Axiom XL MFD touchscreen
RMK-10 remote keypad for Axiom XL displays MFD 2 x i70 colour multi function instrument
P70Rs colour auto pilot instruments
ICOM command mic for one pilothouse VHF
Boat Deck:
• FRP boat deck extension with stainless steel supports • Integrally moulded beige non-skid on deck
• Integrated deck drains with gutter system • 316 grade stainless steel handrails
• 1,000lb capacity hydraulic Steelhead ES1000 davit with powered telescopic boom, luffing, hoisting and rotation with wireless remote, Sunbrella cover to davit
• Hinged hatch to cockpit ladder with Sunbrella cover • 230V AC outlet RCD protected
• Fresh water faucet 316 stainless steel
• Stainless steel saddles and cradles for tender storage • Aluminium plate inside deck for tender bow tie down eye
• Swift 4m Swift RIB tender with Yamaha 60hp 4 stroke outboard motor s/n: 6C5 L 1086951 (approx. 2 hours) with tie downs, lifting sling & Sunbrella overall cover with Raymarine Dragonfly 7 pro
Hin No.: AUSWAA3455G919 Registration: TTF58N
• Roof extension with two aft facing Hella LED flood lights and oval ss supports
• Aft boat deck console with Twin Disc Joy Stick (EJS System) with Sunbrella cover located on roof extension. F/B handrails extend to aft end of roof extension
• Stainless steel flag pole holder on aft boat deck extension
• Teak varnished flag pole with internal stainless steel reinforcement and 2 yard sewn Australian Red Ensign
• 6 person Ocean Safety ISO 9650-1 liferaft packed with <24 hour emergency pack on stainless steel cradle & fixings with hydro release, EPIRB and Sunbrella cover
7 Lazarette:
• Steering gear, Hypro Marine hydraulic power pack with primary, back-up, and autopilot pumps, on anti-vibration mounts with FRP drip tray
• Deck and hatch scuppers
• Hull finished with gloss white polyurethane paint • LED overhead lights
• 320 USG (1,211 litres) fresh water in four polyethylene tanks with sight gages • Aft shorepower inlet circuit breaker
• Dual Gianneschi Fresh water pumps, pressure regulator, and flow sensor • Fresh water system (debris) filter
• Fresh water tanks drain valve, with protective cover • Fresh water tanks isolation valves
• Submersible bilge pump • High bilge alarm
• Star-board platforms and sole boards with Stainless Steel lifters • Arctic Steel SS raw water strainers for aircon seawater inlets • FCI MaxQ+ APC, 1825 GPD modular watermaker
• Smoke detector
Engine Room:
• Victron inverter/charger 5000watts • Stainless Steel overhead handrails
• Bow thruster Main Switch panel and fuse
• Seatorque M4 BOSS (Bolt on shaft system) - an enclosed, oil lubricated, self-contained shaft and thrust bearing assembly. Eliminates the need for shaft seal, and cutless bearings. Thrust is transmitted directly into the hull and not via the gear/engine resulting in a smooth vibration free and quiet operation
• Hinged covers over Seatorque cardan shaft and universal joints • Fire retardant FRP fuel tanks (2).
• Solenoid operated sight gages on fuel tanks • Equipment platforms
• Anti-vibration soft mounts for double mounted genset
• 230v, 17.5Kw, 50 Hz Onan eQD genset with sound shield and combined muffler/water separator for exhaust
• Second 230v, 11Kw, 50 Hz Onan eQD genset with sound shield and combined muffler/water separator for exhaust
• NIM module for genset – allows genset data to be displayed on Böning System
• Arctic Steel SS raw water strainers for engines, gensets, aircon, and all seawater intakes • Main engine exhaust system with exhaust chambers and by-pass on transom
• Engine room heat extraction blowers (2)
• Heavy duty sound insulation covered with perforated aluminium • Engine access hatches locked down on gaskets
• Fire suppression system with automatic engines/genset/blowers shutdown • Automatically closing fire dampers on air inlets and discharge vents • Heat detectors (3)
• Smoke Detector
8 • Fresh water coiled hose
• Submersible bilge pump • Sump pump
• High bilge level alarm
• Start/stop buttons for both engines
• Lube oil pumps (2) for engines, transmissions and generator DC LED lighting • Electrical outlets 230v AC, outlet RCD protected
• 800 A/H house battery bank - 8 pcs Lifeline GPL- 6CT AGM (6 volt) batteries • 255 A/H port engine/genset starting battery bank – 2 pcs Lifeline GBL-8DL • 255 A/H stbd engine/genset starting battery bank - 2 pcs Lifeline GBL-8DL • Drip pans underneath main engines
• Lead foam sound insulation
• Starboard platforms and sole boards
• Airtight FRP door with dog down latch and viewing port • Air-conditioning compressors
• Gianneschi 24v DC high capacity sea water pump
• Balmar alternator regulator & battery bank temp sensor
• Two 24v Mastervolt MASS 24/15-2 battery chargers, one for each engine/genset battery bank.
• Engine room aircon 16000BTU on port side aft end. • Buell horn compressor
• SnapOn toolbox with various tools
Interior, general:
• Accommodation with three staterooms lay-out “A” • Hanging lockers lined with teak
• All cabins doors with arched tops
• Insect screens for all opening windows, portlights and skylights • Mobella interior door locks
• Bull nose treads with anti-slip double routings on all interior stair sets.
• Cruisair reverse cycle air conditioning with remote compressors and Qht controls • LED mood rope lighting behind valances, stairs and settees
• LED warm white interior lighting throughout (24v DC)
• Teak joinery with satin varnish hand-rubbed finish throughout
• Teak and holly sole throughout – hand-laid solid timber (not plywood) • Light fixtures shiny stainless steel finish
• Clipsal light switches and AC outlets with Satin Horizon Black face plates • Interior locker door handles brushed stainless steel finish
• Interior bulkheads feature sandwich construction with lead foam insulation • Headroom 6' 6.1/2" (2.0m) minimum throughout
• All drawers constructed with dovetail joints • Cabin and head doors with gaskets
• Imitation leather headliner
9 Salon:
• Fixed windows in house sides
• Opening windows in galley with removable insect screen • Sliding doors at aft end
• Medium grey tinted, tempered glass
• Powered OceanAir blinds port, stbd and aft windows, remote controlled Cirus Custard V01-V001
• Teak valance over windows with LED rope lighting • Teak joinery with satin varnish hand-rubbed finish • Overhead LED light fixtures on dimmers
• Access hatches to allow for engine removal • Imitation Leather headliner
• CO2 detector
• Cruisair reverse cycle air-conditioning with Qht control panel • FRP sandwich with honeycomb composite sole
• TOVO stainless steel up-down wall lights
• Two settees – L shapped on port with straight on stbd side upholstered blue fabric with hi/low teak table with foldout leaves to port (table electrically operated) Port L-settee with 90 degrees corner
• Ample storage under both settees
• L-shaped Bar in port aft corner with U-Line icemaker • Vintec V20SGEBK wine refer aft of galley fridge
• 43" Samsung TV, Bennett hydraulic TV lift in stbd corner, Yamaha amplifier with five sound speakers in ceiling, Blu-Ray/DVD player. Sub woofer in port seating with teak grill for sound. • Teak overhead handrail
• Four 230v AC outlets RCD protected with Clipsal with Horizon Black faceplates
• Port side above bar, forward facing glasses cabinets with bevelled glass doors and shelf, glasses dividers with Fleming plastic glasses
• Clipsal UBS charging outlets Port and Stbd • Overhead teak handrail
• Pantom retractable fly screen on double aft doors
Galley/Pantry:
• Silestone Blanco Maple on countertop • Silestone Splash back behind sink and cooktop • Stainless steel double sink with bin underneath • Insinkerator waste disposal unit
• Slide out waste bin below sink • Miele convection microwave oven • Miele wall oven
• Miele 3 burner induction cooktop
• Removable Stainless Steel potholders for cooktop • Cooktop exhaust fan with speed control rheostat • Miele dishwasher
• Smeg SR600 side by side refrigerator/freezer
• Swivel faucet (Grohe Minta 31378000) with removable spray head • Overhead LED light fixtures
10
• One slide out drawer behind hinged door above cooktop • Lockers above counter top
• Drawers with guides and stops • Cabinets in teak
• Slide-out pot/appliance storage lockers (2) in aft cabinet • Reverse cycle air conditioning with Qht control instrument • 230v AC outlet RCD protected
• Instahot – instant hot & cold filtered water dispenser
• AC outlet on sink side of aircon. divider on individual different circuit • Storage cabinet under sink with automatic LED lighting
• Imitation leather headliner • AC outlets RCD protected
Pilothouse:
• Two Stidd 500XL low back helm seat with chrome package and Ultraleather "Navy Blue" upholstery with French seems
• Boning remote control unit mounted in stbd arm of stbd Stidd seat and Raymarine remotes in left armrest of stbd chair and in right armrest of port chair
• Privacy door to salon with Arcadia teak panel and arched top • Chart table with double guide drawers and stops
• Chart light on flexible arm • Dismountable control console
• Fleming central monitoring system with Boning 15” colour display screen on lower console – See systems for detailed description
• ABT TRAC-LINK colour touchscreen control panel for stabilizers • Horn control push button
• Air reservoir for Buell horn
• Rudder angle indicator on Böning screen • Back lit engine start & stop/ignition buttons • Engine power on/off keys
• Anchor chain was system, with on-off switches in p/h and f/b
• Electronic engine controls – Twin Disc with Synchronizer and trolling modes, ABT Bow and Stern thrusters control levers, Twin Disc EJS Joy-Stick control with Twin Disc screen for Position Hold facility
• Controls for ABT bow & stern thrusters
• Back-up electronic gear and throttle control system
• Auto-Anchor control unit with chain counter in pilothouse and on flybridge • Hypro electronic, powered hydraulic steering with Destroyer type steering wheel • Back-up Steering control panel with back-up rudder angle indicator
• Ritchie compass with light & dimmer • Overhead electronics console
• Two ICOM M605 VHF radio with DSC and GPS on overhead console • Wiring routes to facilitate equipment installation
• Overhead LED lighting with dimmer
• LED red and white dimmable bridge lights in upper console • Stairs down to salon, up to flybridge
11 • Alarm and advisory panels with doors
• Perspex doors on electrical and advisory panels
• L-shaped settee on raised area upholstered in blue fabric with 90degrees corner
• Teak table with inlaid compass rose with glass protective top on ss telescopic pedestal an swivel top
• Drawer under table
• Oceanair manual blinds on all six windows including three forward facing windows, Cirrus Custard V01-V001
• File drawer
• Self-parking, heavy duty wipers with multi-speed/intermittent controls & individual fresh water wash on forward facing windows
• Windshield glass clear, tempered, 8 mm thick • Imitation leather headliner
• Demister blower on forward facing windows
• Hinged soffit access to underside of flybridge console • Teak handrail around day head
• Cruisair reverse cycle air-conditioning with Qht control panel which can be run on inverters whilst main engines are running
• Generator digital remote panel with start/stop control • Windlass up/down switch & control circuit breaker • Fire system remote panel
• Bilge and sump pump control on advisory panel • Main engine sea water flow alarms
• Tovo up/down beam, brushed stainless steel LED wall light • Charcoal” Ultrasuede fabric on upper forward surface of consoles • Flare bottle and flares to Category 4
• Robustel cellular internet system with marine antenna & repeater • Instruments for Victron inverter control & FCI MaxQ+ APC Watermaker • Reverse cycle air conditioning with Qht control instrument
• Fusion entertainment sound instrument with two speakers in overhead console • Raymarine Instrumentation:
24” Axiom XL MFD touchscreen 24” Axiom XL MFD touchscreen 16” Axiom XL MFD touchscreen 16” Axiom XL MFD touchscreen
RMK-10 remote keypad for Axiom XL displays MFD RMK-10 remote keypad for Axiom XL displays MFD RMK-10 remote keypad for Axiom XL displays MFD i70 colour multi function instrument
i70 colour multi function instrument i70 colour multi function instrument P70Rs colour auto pilot instrument
Pilothouse Day-Head
• Porcelain wash basin in Silestone counter top • Locker and medicine cabinet with mirror • Planus toilet
12 • Imitation leather headliner
• Air-conditioning outlet • Holding Tank Full indicator
Passageway:
• Lower part of bulkhead finished with teak, upper part finished with imitation leather • Teak chair rail at join
• Access doors to staterooms and head
• Rope lighting at stairs to salon and forward cabin • Overhead LED lighting
• Miele washing machine and vented Miele dryer in cabinet behind sliding door
Forward/Master Stateroom:
• Two stainless steel CE-approved portlights with removable insect screens
• CE-approved stainless steel skylight with sliding insect and black out screens (powered) • Teak on all surfaces except imitation leather surrounding top of bed
• Tapered queen sized bed with hydraulic lift and manual slide mechanism • Upholstered headboard finished in RL Sheridan Weave Fawn Fabric • Foam mattress
• LED rope lighting under bed and steps
• Two hanging lockers, teak faced with louvered doors, automatic interior lights • Teak cupboards either side of bed
• Samsung 32" LED LCD TV with Apple TV
• Two speakers controlled via Sonos system with own zone • Drawers with centre guides and stops
• Bevel edge mirrors • Door stops and holders
• Doors teak frame with flat teak panels and curved tops • LED overhead lighting, berth reading lights
• CO detector • Smoke detector
• Drapes are Chivasso “My Best Friend” CH2907/074 • Emergency escape hatch
• Emergency Escape telescopic ladder stored in port hanging locker • Two duplex 230v AC outlet RCD protected
• Reverse cycle air conditioning with Qht control instrument
Port Head (En-suite):
• CE-approved Portlight (2) with removable insect screen • FRP shower stall with granite sole & seat and lockers • Stainless steel framed glass custom shower doors • Shower mixer, pressure and temperature compensated • Stainless steel toiletries rack inside shower locker • Silestone countertop with porcelain basin
• Hans-Grohe Faucets • Bevelled-edge mirrors • LED overhead lighting
13 • Planus toilet, white colour.
• Ventilator fan
• Stainless steel towel heated rails • Drapes
• Air-Conditioning inlet from cabin • Lifting mirror above basin • Trident Premium Sanitation Hose • Holding Tank Full indicator
Starboard Guest Cabin:
• Stainless steel CE-approved portlights (2) with removable insect screens • Two up & over berths
• Large Hanging locker with auto-light. • Nightstand with drawers
• 230v AC outlets • Foam mattresses
• LED overhead lighting berth • LED reading lights
• LED Rope lighting and drape tracks at portlight openings. • Full height bevelled-edge mirror
• CO detector
Port Stateroom:
• Stainless steel CE-approved portlights (2) with removable insect screens • Twin berths, with upper 3rd berth which slides outboard when not in use • LED rope lights under berths
• Full height bevelled-edge mirror
• Hanging locker with auto light and louvered door • Valance over portlights
• Foam mattresses • 230v AC outlets
• Upholstered Headboards • LED overhead lighting • Bookshelves CO detector • Smoke Detector
• Drapes
• Berth LED reading lights
• LED Rope lighting and drape tracks at portlight openings. • 32” TV with Apple TV
• Two speakers controlled via Sonos with own zone • Air-conditioning – Cruisair with Qht control panel
Guest Head:
• Stainless steel CE approved portlights (2) with removable insect screens, one above sink, one in shower stall
• FRP shower stall with Silestone sole, auto sump pump, • Stainless steel and glass custom shower doors
14 • Lockers
• Grohe shower mixer with pressure and temperature compensation • Silestone vanity top with porcelain basin
• Grohe basin faucet • Bevelled edge mirrors • LED overhead lighting
• 230v AC outlet RCD protected • Stainless steel heated towel rails • Planus toilet white
• Ventilator fan • Drapes
• Air-con inlet from cabin
• Trident Premium Sanitation hose • Holding Tank Full indicator
SYSTEMS Steering:
• Hypro Marine ECS Electronic Steering with electronic helm units at Pilothouse and Flybridge • Hydraulic Power-pack with on-demand variable speed primary pump, 24v DC reversing
back-up pump, and pre-plumbed 24v DC reversing Autopilot Pump in lazarette • Shielded power supply cables
• Rudder angle indicators at pilothouse and flybridge station Böning Screens
• Back-up steering control panel with dedicated rudder angle indicator in pilothouse. • Separate power supply and control for backup steering
• Destroyer wheel at flybridge and in pilothouse • Pilothouse steering wheel has teak grips • FRP rudders with Aqualoy 22 stocks • Rudder tubes extend above waterline
Engine Controls:
• Twin Disc electronic engine controls at pilothouse and flybridge, plus Twin Disc EJS Joystick control at Pilot House, Fly Bridge, Boat Deck and Aft Deck/Cockpit with synchronizer, trolling valve control and with Twin Disc Display at each station. Position Hold can be activated from any station.
Machinery:
• Twin MAN i6-800 common rail diesel engines with
• Twin Disc Quick Shift transmissions for EJS System (Express Joy Stick System)
• Stabilisers - ABT TRAC 7.5sq ft fins with winglets and 250 model actuators, hydraulically operated locking pins and colour touchscreen control panels P/H and F/B.
• Coolant recovery tanks on main engines
• Twin Disc hydraulic bow and stern thrusters - 47HP (881 lbs thrust) each, with proportional controls at pilothouse and flybridge stations
• Two 4 blade nickel aluminium bronze propellers finished with Propspeed • Shaft struts – recessed “I” Brackets
15
• Fleming central monitoring system with Böning 15” colour touch-screens in Pilothouse and Flybridge – see below under Böning for full description
• Engine room aircon 16000BTU on port side aft end.
Fuel System:
• Fuel filter Racor75/1000MAX duplex with vacuum gauges and water in fuel sensors for main engines
• Racor 500MA fuel filter for generator
• Two FRP fuel tanks made of vinylester and fire retardant resins with fire proof exterior coating
• Total fuel capacity 1,450 USG (5,489 ltrs)
• Sight glasses on both fuel tanks with solenoid operation via push button • Fuel tank sumps and drains with shut off valves on all tanks
• Custom Fleming fuel management panel for engine/genset supply return selection • Remote emergency fuel shut off device for all tanks
• Pressure type fuel level sensors connected to central monitoring system
Sanitry Plumbing:
• Planus toilets, white colour
• Toilets flush to FRP holding tank with level indicator • Toilet flushing for both sea water or fresh water • Anti-odour filters on holding tank vents port & stbd • 165 USG (625 litres) black water holding tank • Plastic lined pressure accumulator tank
• Black water tank stainless steel suction deck fittings port and stbd sides Portuguese bridge • Black water tank sea water flushing system with self-closing safety valve
• Gianneschi heavy duty 24v black water discharge pump • Sealand T24 backup black water discharge pump
• Head basins and showers drain into two Johnson grey water sump/pump collector boxes and automatically discharge overboard
Fresh Water Plumbing:
• 320 USG (1,211 litres) total in four polyethylene tanks with drain and isolation valves • Sight glasses on water tanks
• Dual 24v DC Gianneschi Fresh water pumps
• 20 USG (75 litres) Torrid water heater with 220V AC heating element and heat exchanger coil, drain and pressure release valves
• Heat exchanger system with circulation pump and header tank for supplementary heating Torrid water heater from port main engine
• Fresh water 316 stainless steel faucet on foredeck • Fresh water 316 stainless steel faucet on flybridge • Fresh water 316 stainless steel faucet in cockpit • Whale brand plumbing
• Hans-Grohe interior faucets • Whale gulper shower sump pumps
• Fresh water coil hose & nozzle in engine room
• Pressure type level sensor connected to central monitoring system to indicate total fresh water level
16
HMI touch screen interface, 1825 GPD with HMI 7” remote station providing full Watermaker control in the pilothouse
Grey Water:
• Galley sink and dish washer drain overboard, head basins and showers drain in to two Johnson grey water sump/pump collector boxes and automatically drain overboard
Salt Water (Sea Water) Plumbing & Black Water System: • 24v DC Gianneschi seawater pump and strainer • Salt water 316 stainless steel faucet on foredeck • Salt water 316 stainless steel faucet in cockpit
• Seawater flush line connected to black water tank with self-closing safety valve • Whale brand plumbing
• Artic Steel Stainless steel intake strainers for main engines, generator, air conditioning and seawater DC-pump system
Bilge System:
• 3 pcs Rule electric bilge pumps with auto/manual control • Manual bilge pump for engine room bilge compartment
• Hi level bilge alarm switches in lazarette, engine room and forward bilge connected to Fleming central monitoring display
• 2 pcs Whale gulper sump pumps
Electrical – AC:
• 230v, 17.5Kw, 50 Hz Cummins Onan eQD generator, single phase, in sound shield mounted on anti-vibration soft mounts
• Second 230v, 11Kw, 50 Hz Onan eQD genset with sound shield and combined muffler/water separator for exhaust
• Remote distribution panel
• Dedicated inverter compliant AC panel
• Digital meters (volts, amps, watts and frequency) and circuit breakers as required • Two 230v, 50 Hz, 32 amp shore inlets fore and aft connected so that both can be used
simultaneously
• Aft shore power inlet operated via the Glenndinning Cablemaster • Two 32Amp shore power leads with two 32Amp to 15Amp adaptors
• AC outlets throughout boat. GFCI type in heads, galley, engine room and exterior • Clipsal light switches and AC outlets in Saturn Horizon Black faceplates
• Victron Ouattro 5,000 watt inverter/charger
• Victron colour control GX display panel mounted in pilothouse • Victron BMV battery monitor
• Two Victron isolation transformers in lazarette • Inverter bypass system
• Approved marine grade tinned copper wire used throughout • Preparation for second generator
• AC panels hinged for serviceability
Electrical – DC:
• Main ships system is 24v DC
17
• 800 A/H house battery bank - 8 pcs Lifeline GPL-16T (6 volt) batteries producing 24volt • 255 A/H port engine/genset starting battery bank - 2 pcs Lifeline GPL-8DL producing 24v • 255 A/H stbd engine/genset staring battery bank - 2 pcs Lifeline GPL-8DL producing 24v • 105 Ah 12v Backup battery – Lifeline GPL-31T
• 12v DC supplied via two 24v-12v DC-DC 20amp converters & back up battery system under flybridge helm seat producing 12v for 12 volt navaids and VHF radios
• Remote controlled Battery master switches operable from Pilothouse, also allows paralleling of battery banks
• Two Mastervolt MASS 25/15-2 battery chargers, one for each engine/genset battery banks. • Engine/genset battery banks also charged by MAN engines original alternators
• DC load distribution panels with remote circuit breakers, sub panels as required
• Victron BMV battery monitor shows voltage, state of charge and current flow in & out of house battery bank – info displayed on Victron GX display in pilothouse and via central monitoring system
• Two Delstar 200 amp, 24v heavy duty, brushless, auxiliary alternators with Balmar external regulator, and battery temperature sensor
• Approved marine grade tinned copper wire used throughout • LED overhead lighting throughout
• Solar Charging System 680 watts with two solar panels on hard-top (Victron) • Clipsal light switches throughout
• BCM LED lighting and dimmers.
Electrical Bonding:
• Copper strap or cable connecting all thru-hulls, underwater fittings, pulpit and flybridge rails - (equipotential bonding system)
• Zincs on transom (2) • Zincs on bow thruster (2) • Zincs on stern thruster (2) • Zincs for hydraulic cooler (2) • Zincs on generator (1)
• Copper strapping system in engine room, flybridge and pilothouse for SSB radio counterpoise
Raymarine Navigation Equipment: • Axiom XL 24 -24” MFD (2) • Axiom XL 16 – 15.6” MFD (2) • Axiom XL 19 – 18.5” MFD • RMK-10 Remote Keypad (5) • Remote SD Card Readers (2) • i70 Colour Instrument (5)
• P70R Colour Auto-pilot Head: Power (2) • ACU-400 Rudder Position Sensor • Evolution EV1 Sensor Core
• 12kW 4ft HD/SHD Digital Open Array Radar • 60 STV Gen2 Satellite Television System • Short Arm Wind Transducer
• AIS 700 – Class B with splitter • RS 150 GPS Receiver (2)
18 • iTC-5 Analogue Transducer to NMEA Converter
• CPT-120 Bronze Thru-hull Converter with High Speed Fairing • CP100 Sonar Module
• CP370 Clearpulse Sonar Module
• B744V Bronze Through Hull with Fairing • ICOM M605 VHF radio (2)
BÖNING/FLEMING CENTRAL MONITORING SYSTEM • 15” colour touchscreen located in Pilothouse • 15” colour touchscreen located on Flybridge • Home page with “Ready for Sea checklist”
• Digital switching of AC & DC loads, with feedback and status monitoring • SMS remote alarm system sends text messages. (requires SIM card) • Remote control panel located in Stidd seat arm rest
• iPad for remote access
System monitors/displays the following parameters:
• All MAN engine data and alarms - analogue, digital and graphic view • Navigation lights (monitoring and control) with back-up control panel • Bilge pumps & counter
• Sump pumps
• High bilge level alarms
• Fire system – Cylinder pressure • Heat detectors
• Smoke detectors
• Black water tank level and control of discharge pump • Fuel Tank levels using pressure type sensors
• Water tanks level using pressure type sensor • Port and Stbd engine room air intake shutters • Port and Stbd Seatorque shaft oil temperature
• Engine room, sea water & exterior ambient air temperature • Fresh water system pressure
• Fresh water system flow • Seawater system pressure • Seawater system flow • Engine room blowers • Engine room door • Lazarette hatch • Cablemaster (in/out) • Engine room lights • Steering pump
• Back-up steering pump • Engine controls
• Water maker
19 • Wind speed & direction
• GPS (SOG, COG & Position) • Range
• DC Voltage (24v and 12 v battery banks)
• Fwd and aft Shore power voltage, frequency and current draw • Inverter voltage, frequency and current draw
• Genset voltage, frequency and current draw
Miscellaneous Outfit:
• eFIT - (Electronic Fleming Information Tablet) all technical documentation is supplied on an Apple iPad including a comprehensive Owner's Manual with system descriptions,
schematics, wiring diagrams, product manuals and equipment list
• Cruisaire reverse cycle air conditioning throughout using REU model quiet blowers and Qht controls
• Ball type seacocks on all through hulls at or below waterline • Sika-Flex deck caulking
• 5/8" thick teak decks
• Pre-wiring with coax, CAT 5 and speaker cables throughout – two of each cable run from every cabin to TV cabinet and from P/H to TV Cabinet, and from F/B to TV cabinet (4 coax) • Fleming supplied spare parts inventory, special tools and touch up finishing materials • Service parts inventory for Onan
• All supplied manuals and information sheets for machinery, equipment and instruments • Vessel built to Australian Standard 1799.1-2009
• Custom Fitted bedding and quilts to all bunks
• Sunbrella covers for all flybridge settees, console, tender, davit, aft docking station, hatches and all pilothouse windows
Cruising Equipment: • 6x Life jackets
• 6 person Ocean Safety ISO 9650-1 life raft packed with <24 hour emergency pack on stainless steel cradle & fixings with hydro release, EPIRB and Sunbrella cover
• Floatfree EBIRP with Hydrostatic release • 8 x US Polyform fenders with fender covers
• 6 x Custom cap rail leather and stainless steel fender holders • 6 x US made 25mm black berthing lines
• Boat Hook
• Set of Coastal Flares (2 Red & 2 Orange) in Flare container
• 5 x Fire extinguishers (pilothouse, galley, stbd cabin, master cabin & laz) • 2 x Fire blankets (galley & engine room)
