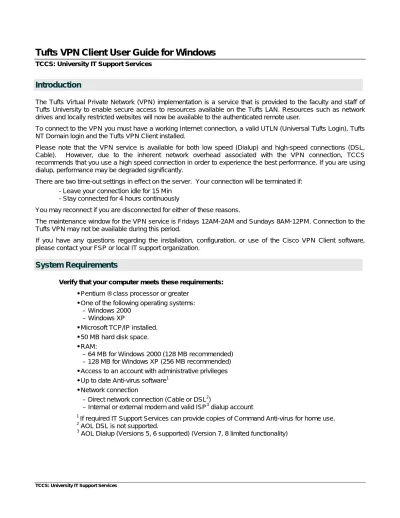

Introduction
The Tufts Virtual Private Network (VPN) implementation is a service that is provided to the faculty and staff of Tufts University to enable secure access to resources available on the Tufts LAN. Resources such as network drives and locally restricted websites will now be available to the authenticated remote user.
To connect to the VPN you must have a working Internet connection, a valid UTLN (Universal Tufts Login), Tufts NT Domain login and the Tufts VPN Client installed.
Please note that the VPN service is available for both low speed (Dialup) and high-speed connections (DSL, Cable). However, due to the inherent network overhead associated with the VPN connection, TCCS recommends that you use a high speed connection in order to experience the best performance. If you are using dialup, performance may be degraded significantly.
There are two time-out settings in effect on the server. Your connection will be terminated if:
- Leave your connection idle for 15 Min - Stay connected for 4 hours continuously
You may reconnect if you are disconnected for either of these reasons.
The maintenance window for the VPN service is Fridays 12AM-2AM and Sundays 8AM-12PM. Connection to the Tufts VPN may not be available during this period.
If you have any questions regarding the installation, configuration, or use of the Cisco VPN Client software, please contact your FSP or local IT support organization.
System Requirements
Verify that your computer meets these requirements:
• Pentium ® class processor or greater
• One of the following operating systems:
– Windows 2000 – Windows XP
• Microsoft TCP/IP installed.
• 50 MB hard disk space.
• RAM:
– 64 MB for Windows 2000 (128 MB recommended) – 128 MB for Windows XP (256 MB recommended)
• Access to an account with administrative privileges
• Up to date Anti-virus software1
• Network connection
– Direct network connection (Cable or DSL2)
– Internal or external modem and valid ISP3 dialup account
1 If required IT Support Services can provide copies of Command Anti-virus for home use.
2 AOL DSL is not supported.
3 AOL Dialup (Versions 5, 6 supported) (Version 7, 8 limited functionality)
2 TCCS: University IT Support Services
Configure Your system
Windows 2000
Modify Network Properties to allow your system to access the Tufts network shares.
Step 1 Right click on network neighborhood icon on your desktop and choose Properties.
Step 2 Right click on the network connection you want to modify (your active connection to the Internet) and choose Properties.
Verify that Client for Microsoft Networks and TCP/IP are installed and selected. Click OK.
Windows XP
Modify Network Properties to allow your system to access the Tufts network shares.
Step 1 Open Control Panels | Network and Internet connections | Network Connections
Step 2 Right click on the network connection you want to modify (your active connection to the Internet) and choose Properties.
Step 3 Verify that Client for Microsoft Networks and TCP/IP are installed and selected. Double click on TCP/IP. Then click on Advanced.
Step 4 In the WINS tab uncheck Enable LMHOSTS lookup and Select Enable NetBIOS over TCP/IP.
Click OK, then OK again to save changes.
Installing the VPN Client
To install the VPN Client on your system, follow these steps. Accept the defaults when prompted. Please note that the screen shots were taken from Windows XP if you are installing the client on Windows 2000 it may appear different.
Note: Having more than one VPN client on your system is not advisable. If you have a previous version of the Cisco VPN client installed, uninstall it before continuing.
Step 1 Log onto system with an account that has administrator privileges. Exit all Windows programs, and disable any antivirus software.
Step 2 Insert the Tufts VPN Client 4.6 CD into your system’s CD-ROM drive.
Step 3 The setup program will run automatically and begin the installation. If the setup program does not start, go to My Computer and double click on your CD-ROM drive to begin setup.
Step 4 At the Welcome screen, read the information and then click Next.
4 TCCS: University IT Support Services
Step 5 At the License Agreement screen read and accept the terms, then click Next.
Note: If the InstallShield Wizard identifies an existing version of the Cisco VPN Client, the Cisco 5000 Client, or Nortel Networks Extranet Access Client, the installer will automatically launch the appropriate wizard to uninstall a previous version of the Cisco VPN Client, the Extranet Access Client, or the Cisco 5000 Client. Follow the instructions on the uninstall wizard dialog boxes to automatically uninstall the program and reboot.
Step 6 Setup installs the VPN Client to the default directory on your PC. After you have installed the VPN Client, the following screen will be displayed. Remove the CD from CD-ROM drive, then click Finish to restart your computer.
Note: You must restart your system before you can use the Cisco VPN Client software.
Connecting to the Tufts Network
Using the Cisco VPN Client
Step 1 Connect to the Internet, if necessary.
Note: Systems with a direct network connection (DSL or Cable modem) are usually connected to the Internet continuously. Systems with an internal or external modem must connect to the Internet via Dial-Up Networking before attempting to connect with the VPN Client.
Step 2 Start the VPN Client application, choose Start > Programs > Cisco Systems VPN Client > VPN Client
Step 3 The VPN Client main window shows the default profile used to connect to the Tufts network (TUFTS_VPN_0605) click Connect.
The VPN Client starts tunnel negotiation.
6 TCCS: University IT Support Services
Step 4 User Authentication. Enter your Tufts NT Domain username and password. Click OK.
The logon process will take a few seconds to complete
Step 5 Click Continue to complete the logon process.
Step 6 If connection was successful, you will see the padlock icon in your system tray next to the time.
^
Secure access to resources available on the Tufts LAN is now available.
Accessing Network Drives
Your network drives must be mapped manually, before they can be accessed in My Computer.
The following steps must be done while logged into a system on the Tufts LAN.
To obtain the drive letter and path of your network drives:
Step 1 log on to a PC that is on the Tufts NT Domain.
Step 2 Go to Start, Run type in “cmd” and click OK.
Step 3 At the command prompt, type “net use” then enter. This will display a list of mapped network drives. Note the drive letters and paths (listed under “Remote”). You will need this information to connect to your network shares.
To map your network drives you must follow these steps:
Step 1 Connect to the Tufts Network. Right click on My Computer and select Map Network Drive…
Note: On Windows XP systems, My Computer may be located in the Start Menu.
Step 2 Select drive letter and enter the path to your network drive.
Click OK or Finish.
Example: Select Q: for drive letter and enter \\tftmtccs1\tccs for the path.
Note: This may take several seconds to complete. Longer if using a Dialup connection.
8 TCCS: University IT Support Services
Step 3 When prompted, enter tufts
\
<your_UTLN> and your password. Click OK.Note: This may take several seconds to complete. Longer if using a Dialup connection.
Windows 2000
Windows XP
The drive is now mapped and available in My Computer.
Repeat this process to map any additional network drives.
Disconnecting the VPN Session
To disconnect the VPN connection, right click on the padlock icon in your system tray and select Disconnect from the pop-up menu.
This document contains content reproduced from the following source: VPN Client User Guide for Windows Release 4.6 Cisco Systems. V062805TL
