An Intelligent Control Technique for Dynamic
Optimization of Temperature during Fruit Storage Process
Tetsuo Morimoto, Md Parvez Islam, Kenji Hatou Department of Biomechanical Systems, Ehime University, Matsuyama, Japan
Email: [email protected]
Received October 31, 2012; revised November 30, 2012; accepted December 15,2012
ABSTRACT
Agricultural control systems are characterized by complexity and uncertainly. A skilled grower can deal well with crops based on his own intuition and experience. In this study, an intelligent optimization technique mimicking the simple thinking process of a skilled grower is proposed and then applied to dynamic optimization of temperature that mini- mizes the water loss in fruit during storage. It is supposed that the simple thinking process of a skilled grower consists of two steps: 1) “learning and modeling” through experience and 2) “selection and decision of an optimal value” th- rough simulation of a mental model built in his brain by the learning. An intelligent control technique proposed here consists of a decision system and a feedback control system. In the decision system, the dynamic change in the rate of water loss as affected by temperature was first identified and modeled using neural networks (“learning and modeling”), and then the optimal value (l-step set points) of temperature that minimized the rate of water loss was searched for through simulation of the identified neural-network model using genetic algorithms (“selection and decision”). The control process for 8 days was divided into 8steps. Two types of optimal values, a single heat stress application, such as 40˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C and 15˚C, and a double heat stress application, such as 40˚C, 15˚C, 40˚C, 15˚C, 15˚C, 15˚C, 15˚C and 15˚C, were obtained under the range of 15˚C T 40˚C. These results suggest that appli- cation of heat stress to fruit is effective in maintaining freshness of fruit during storage.
Keywords: Dynamic Optimization; Fruit-Storage Temperature; Water Loss; Neural Networks; Genetic Algorithms
1. Introduction
Storage temperature for fruits is usually maintained con- stant at low level. This is because the low temperature effectively reduces microbial spoilage and water loss of the fruit. In recent years, however, there has been much interest in heat treatments that reduce the quality loss of fruit during storage [1,2]. It has been reported that heat treatment is effective for inhibiting ethylene production and delaying the ripening [3-7], for controlling insect pests and for reducing chilling injury [4,8] of fruit. It has been also reported that heat treatment can improve fruit quality [9-11].
It is known that the exposure of living organisms to heat stress produces several types of heat shock proteins (HSPs) in their cells, which acquire transient thermal tol- erance [12,13]. Recently, the relationships between the heat treatment and HSPs have been investigated to elu- cidate the effects of heat treatment [14]. Acquiring ther- mo tolerance may lead to the reduction of water loss for fruits during storage [15]. It is, therefore, important to know how to apply the heat stress to the fruit in order to minimize loss of quality. A dynamic optimization tech- nique will give us the solution.
It is, however, very difficult to treat and realize opti- mization control of water loss of fruits during storage when we take the response of thermo tolerance caused by heat stress into consideration. This is because the phy- siological behaviors between the temperature and the water loss of the fruit, including the effect of thermo tol- erance, are quite complex and uncertain. They are char- acterized by strong non-linearity and time-variation.
A skilled grower can deal well with complex systems such as many types of crops during cultivation and fruits during storage using his own intuition and experience. In order to realize the optimization control of complex sys- tems such as agricultural production processes, therefore, it seems very useful to imitate the thinking process of a skilled grower 16,17.
an optimal value in parallel with a multi-point search procedure, based on crossover and mutation in genetics
19,20. An intelligent control technique combining neu- ral networks with genetic algorithms has been developed for realizing the optimization of cultivation and storage processes 16,17,21. It is also thought that the problem of time-variation of the physiological status of the fruit is possible to solve by repeating identification (learning) and modeling of the input and output system.
In this study, an intelligent optimization technique mi- micking a skilled grower’s simple thinking process is proposed and then applied to find the variable tempera- ture profile (l-step set points of temperature) of the stor- age chamber to minimize water losses of tomatoes. With this technique, neural networks and genetic algorithms are successfully employed for mimicking the “learning and modeling” and “selection and decision” of a skilled grower.
2. Speaking Fruit Approach (SFA) for
Dynamic Optimization Control
Storage temperature for fruit is usually maintained con- stant at a low level, already determined as an optimal value, without any consideration of the physiological status of the fruit. In order to achieve the qualitative im- provement of the fruit, however, it is essential to control the environment flexibly and optimally, taking the physiological status of the fruit into consideration. Measurement of the fruit responses and control based on the fruit’s physiological information are major tasks for realizing the optimization of the storage process. The storage environment should be controlled optimally based on fruit responses. This approach is called a “speaking fruit” approach (SFA) 22. Figure 1 shows a schematic diagram of a computer control system for fruit and vegetables during storage under the SFA concept. The control system consists of several sensors to measure
Sensors Fruit
Control units for environment
Controlled output
F
Speaking Fruit ruit responses
Environmental factors
Figure 1. The concept of a “speaking fruit approach (SFA)”.
the physiological responses of the fruit, a computer to determine the optimal set points of the environment, and control devices to control the environment based on the optimal set points. Non-destructive measurements of fruit responses are essential for realizing dynamic optimiza- tion control. Thus, in this study, the dynamic optimiza- tion control is carried out based on the fruit responses, aiming at the qualitative improvement of the fruit during storage.
3. Optimization Problem
Tomatoes (Solanum lycopersicum L. Momotaro) were used for the experiment. Freshness is one of the most important evaluation factors that consumers use to select tomatoes at market. In order to maintain the freshness of tomatoes during storage, the storage temperature is usu- ally maintained constant at a lower level. In recent years, however, it has been reported that a heat stress applica- tion is also effective for maintaining the quality of to- mato 9-11. This is probably due to thermo tolerance of the fruit acquired by heat stress. The aim for optimization in this study is to minimize the rate of water loss of to- mato during storage by optimal control of the tempera- ture.
Let WT(k) (k = 1, 2, ···, N) be a time series of the rate of water loss, as affected by temperature T(k) at time k. An objective function, F(T), is given by the average value of the rate of water loss during the last period
NL k N
of the control process.
T
L 1
F T
W k NN (1)where NL and N are the first and last time points, respec- tively, in the evaluation period.
Note that the rate of water loss was evaluated at the last period
NL k N
in the control process. This is because the influence of heat stress is thought to appear at the latter half stage if heat stress was applied to the fruit during the first period of the control process.For realizing optimization, the control process was di- vided into 8 steps, because the length of the control process was 8 days. Therefore, the optimization problem here is to determine the 8-step set points of the tempera- ture, which minimize the objective function F(T). That is, an optimal value is given by the optimal combination of the 8-step set points for temperature (Top1, ···, Top8). As
40 CT k
minimize
subject to 5 C,15 C
F T
(2)
4. Measuring Systems
Mature green tomatoes of uniform size (about 8 cm in diameter) were stored in a storage chamber (Tabai-espec, LHU-112M), where the temperature and relative humid-ity are strictly controlled by a personal computer with an accuracy of 0.1˚C and 2% RH, respectively. Three tomatoes were used for each experiment. The rate of wa- ter loss of the tomato was estimated from the weight loss. The weight loss of the tomato was continuously meas- ured by hanging a cage containing three tomatoes using an electronic balance (Sartorius, LP-620S). In this case, the electronic balance was set outside of the chamber in order to remove the effect of the temperature change. The relative humidity was maintained constant at 60% 2% RH while only the temperature was flexibly changed based on a system control manner. The sampling time was 10 min.
5. Design of a Control System
5.1. A Skilled Grower’s Thinking Process
A skilled grower can deal well with crops based on his own intuition and experience. Figure 2 shows the con- ceptual diagram of a simple thinking process for his cul- tivation strategy. It mainly consists of two steps. The first step is a “learning and modeling” process. A grower first cultivates a crop by trial and error over several years and learns the growth behaviors of the crop from experience. This is the process of making a mental model of crop growth in his brain through learning. The second step is a “simulation (or prediction) and decision” process for selecting the best cultivation method. A grower predicts and simulates the crop growth using the mental model built in his brain and selects the best strategy for the next cultivation from among many results obtained by simula- tion. After a decision, a grower takes an action for the best strategy.
Modeling Simulation
[image:3.595.310.537.569.695.2]Decision Learning
Figure 2. Conceptual diagram of a decision procedure of a skilled grower on the basis of his simple thinking process.
5.2. An Intelligent Control System for Dynamic Optimization
The procedure shown in Figure 2 can be realized by in- troducing neural networks and genetic algorithms. Fi- gure 3 shows the block diagram of an intelligent control system mimicking a simple thinking process of a skilled grower, which is applied for realizing the optimization control of the rate of water loss 16,17,21. It consists of a decision system and a feedback control system. The decision system, consisting of neural networks and ge- netic algorithms, determines the optimal set point trajec- tory of the temperature. In the decision system, the rate of water loss, as affected by temperature, is first identi- fied using the neural network, and then the optimal com- bination of the l-step set points of the temperature that minimize the objective function is searched for through simulation of the identified neural-network model using the genetic algorithm. The diagrammatical view of this simulation method is shown in Figure 5.
It is found that this control technique including neural networks and genetic algorithms well reflects a human thinking process. The first action, identification and mod- eling, using neural networks, are similar to the manner in which a skilled grower makes a mental model in his brain through learning or experience (learning). In the second step, the way to obtain an optimal value corre- sponds to the procedure by which a skilled grower selects a better (or best) strategy from his own experience and prediction (decision).
It will be found that if these two procedures, identifi- cation and the search for an optimal value, are repeated periodically during the storage process to adapt to the time variation of the physiological status of the fruit, then both optimization and adaptation can be satisfied.
5.3. Neural Network Application for Identification
Neural networks are used for identifying the dynamic
New Set point
+
-e
Simulation & decision Learning & modeling Decision system
Feedback control system
Measurement
Output Input
Search for optimal value
Genetic algorithm
Identification
Neural network
Con-troller
Environ- ment Set
[image:3.595.59.284.592.709.2]point Fruit
response of the rate of water loss as affected by the tem- perature and for creating a black-box model for simula- tion. Figure 4 shows a time-delay neural network used for dynamic identification. It consists of three layers and has arbitrary feedback loops that produce time histories of the data for dynamic identification 23. The input variable is the temperature, T(k), and the output variable is the rate of water loss, WT(k). The well-known time- delay neural-network model is given as 24:
, 1 ,
, , 1 ,
T
W k f T k T k
T k n W k
T ,WT
kn
(3)
where n is the system order (system parameter number). The unknown function f() can be approximated by the neural network.
For the learning of the neural network, the (n+1)th his- torical input data
,,T k
n
,W k n
T k and the nth his-
torical output data T are ap-
plied to the input layer, and the current output,
WT k 1 ,
T W k
T k
,,T kn
,W k n
, ,WT k n
z1,z2,,zn
, is applied to the output layer as a training signal
data number). The learning (train- ing) method is error back-propagation 25. It tunes wei- ghts and biases of the neural network so that the squared error between the network output and the training signal is minimized. Through these procedures, a dynamic mod- el is obtained.
0,
k 1,,Nn N, :
1 2
1 ,
2 , , .
T T T
n
T T T
z W k W k z W k
W k z W k W k n
, , ,
T T T For prediction, the current output, W , is esti-
mated from both the (n + 1)th past historical input data and the nth past historical output
T k
data T like an ARMA model
procedure 23,26. The time series of
WT k 1 ,
WT k W, T k 1 are obtained by applying backward shift operators to the variable WT(k) through the fol- lowing procedures:
T(k)
T(k-n)
WT(k-1)
WT(k-n)
. . . . . . . . . . . . . . . . . . . . Past time series of output
WT(k)
Output
Time series of input
Time delay
[image:4.595.76.275.546.708.2]Input
Figure 4. Structure of a three-layer neural network with time-delay operator.
The data for identification are divided into two data sets, a training data set and a testing data set. The former is used for training the neural network, and the latter is used for evaluating the accuracy of the identified model. The testing data sets have to be independent of the train- ing data sets.
The most important task for determining the model’s structure is the choice of the system parameter number. Here, the system parameter number and the hidden neu- ron number of the neural-network were determined based on the cross-validation 27.
5.4. Genetic Algorithm Application for Searching for an Optimal Value
Here, genetic algorithms are used for searching for the optimal 8-step set points of the temperature that mini- mize the objective function through model simulation.
Figure 5 shows a diagrammatical view of this simulation method. The total combination number of the input (8- step stet points of temperature) under the constraint of 15˚C to 40˚C was 268 sets because we took the increment of 1˚C between 15˚C and 40˚C in each step. Therefore, numerous output responses of the rate of water loss are obtained through simulation.
In order to use genetic algorithms, an “individual” for evolution should be defined as the first step. Each indi- vidual represents a candidate for an optimal value. Since an optimal value to be obtained here is the 8-step set points of temperature, an individual can be given by the 8-step set points of temperature
1 2 8
. They were all coded as 6-bit binary strings, which gives nu- merical values between 0 (000000) and 63 (111111).
1 2 8
Individual , , ,
101010,111000, , 010011
i i i i T T T
Combination number = 268
Ra te of w at e r loss Minimize Days 8 step set points of
temperature Response of the rate
of water loss Model Input Output Te m p erat ur e ( C ) 15 40 1 2 8 . . . Days
[image:4.595.316.534.556.696.2]A set of individuals is called a “population”. They evolve toward better solutions. Genetic algorithms work with a population involving many individuals.
Fitness is an indicator for measuring an individual’s survival quality. All individuals are evaluated by their fitness values. During the evolution process, therefore, individuals having higher fitness reproduce, and indi- viduals with lower fitness die in each generation. An in- dividual having the maximum fitness is regarded as an optimal solution. Fitness is similar to the objective func- tion. So, fitness can be represented by Equation (1).
ness
Fit F T (4)
[image:5.595.319.529.86.336.2]The crossover operation is a single crossover. Two in- dividuals (e.g., 000011 and 101111) are first mated at random. These binary strings are cut at the 3-bit position along the strings and then two new individuals (000111 and 101011) are obtained by swapping all binary charac- ters from the 1-bit to the 3-bit position. The mutation inverts one or more components of the binary strings, selected at random from the population, from 0 to 1 or vice versa. Here, a two point mutation was used. One individual (e.g., 101111) is first selected at random, and then a new individual (001011) is created by inverting two characters, selected at random, from 0 to 1 or 1 to 0. The mutation operation increases the variability of the population and helps to avoid the possibility of falling into local optima 28. The selection of individuals was carried out based on the elitist strategy by which an indi- vidual with maximum fitness is compulsorily remained for next generation. However, the operation’s searching performance can easily fall into a local optimum because only the superior individuals with higher fitness are picked in each generation. In this study, therefore, dif- ferent individuals in another population were added into the original population in order to maintain the diversity.
Figure 6 shows the flow chart of the genetic algorithm. The procedure is as follows. (Step 1): The initial popula- tion consisting of Ni (=6) types of individuals is gener- ated at random. (Step 2): No (=100) types of individuals are added to the original population from another popula- tion in order to maintain the diversity of the original population. (Step 3): Genetic operations, crossover and mutation, are applied to those individuals. Through the crossover, Nc sorts of individuals are newly created ac- cording to the crossover rate c , and Nm sorts of
individuals are then newly generated according to the mutation rate . From these operations, c m types of individuals are ob- tained. (Step 4): The fitness (values of the objective function) of all individuals are calculated using the neu- ral-network model, and their performances are evaluated. (Step 5): Superior individuals, r individuals with higher fitness, are selected and retained for the next
0.8
P
300
N
0.6m P
N N
i oN N N
Selection Original population
Individual i= Ti1, Ti2, …, Ti8
Crossove
Mutatio
Another population
Yes
Optimal value
No
Compute the fitness of all individuals using the NN
T(k) W
Iteration number?
(k-1) W( ) k

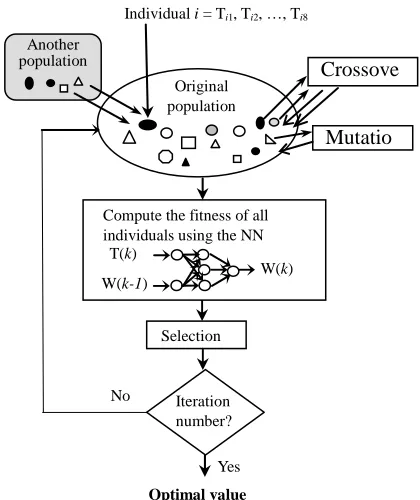

Figure 6. Flow chart of the genetic algorithm used for se- arching for an optimal value.
generation based on elitist strategy selection. (Step 6): Steps 2 to 5 are repeated until the fitness continues to keep the same minimum value with increasing generation number. An optimal value is given by an individual with minimum fitness.
6. Dynamic Responses of the Rate of Water
Loss to Temperature
Figure 7 shows a typical dynamic response of the rate of water loss as affected by the up and down of temperature. The temperature was first increased from 25˚C to 35˚C to 40˚C and then decreased from 40˚C to 35˚C to 25˚C. The rate of water loss of the fruit increased in proportion with temperature. However, comparing to the two values of the rate of water loss at the same temperature, before increasing and after dropping the temperature, it is found that the values after dropping the temperature are lower than those before increasing the temperature at both the 25˚C and 35˚C conditions. These results suggest that a temperature operation that first rises to the high level (35˚C to 40˚C) and then drops to the prior level has a tendency to reduce the rate of water loss, as compared to when the temperature was maintained constant through- out the control process. This is probably due to the effect of thermo tolerance of the fruit caused by high tempera- ture stress. It is, therefore, difficult to identify and model the water loss of the fruit as affected by temperature us- ing a conventional mathematical equation.
Figure 7. A dynamic response of the rate of the water loss, as affected by the temperature.
Figure 8. Typical dynamic changes in the rate of the water loss, as affected by temperature (8 patterns).
shows typical eight types of dynamic changes in the rate of water loss as affected by temperature for about 192 h. Here, 13 types of date sets on the controlled input and output were obtained. Among them, twelve data sets were used for training and one data set was used for va- lidation of the neural network. The temperature was
flexibly changed between 5˚C and 40˚C to identify clearly the dynamics of the rate of water loss as affected by temperature. Short-term heat stresses of 40˚C for about 24 h were included in several temperature opera- tions. From the figure, it is found that, in all cases, the rate of water loss dynamically changes with the tem- perature.
7. Identification Result of the Rate of Water
Loss to Temperature
[image:6.595.62.285.338.622.2]The system parameter number and the hidden neuron number of the neural network were determined based on the cross-validation. Figure 9 shows the relationship between the system parameter number n and the esti- mated error in the identification. It is found that the esti- mated errors for the 15th system parameter number gave a minimum error. Through these considerations, the sys- tem parameter number n and the hidden neurons nh were determined to be 15 and 20, respectively.
Figure 10 shows the comparison of the estimated re- sponse, calculated from the neural network model, and the observed response for the rate of water loss. A testing data set, which is quite different from the training data sets, was used for this comparison. It was found that the estimated response was very closely related to the ob- served response. Significant decreases in the rate of wa- ter loss after dropping the temperature from higher levels to lower levels, which are thought to be caused by ther- mo tolerance, observed in the model response of 60 to 120 h. That is, the values of the rate of water loss after dropping the temperature from 40 35 at 96 h and 35˚C
27˚C at 108 h are lower than those before increasing the temperature from 35 40 at 84 h and 27˚C 35˚C at 72 h, respectively. These results mean that the neural- network model could acquire such complex response as a thermo tolerance, and we succeeded in making a suitable model for searching for an optimal value.
0 0.05 0.1 0.15 0.2 0.25
0 5 10 15 20 25 30
System parameter number
Estim
ated error (g/kg FW/h)
[image:6.595.326.519.547.707.2]Figure 10. Comparison of the estimated and observed re- sponses of the rate of the water loss.
Figure 11 shows the estimated relationship between the temperature and the rate of water loss of a tomato, calculated from the simulation of the identified neural- network model. Open squares represent real observed data. It is found that the estimated values are closely re- lated to the observed values. The rate of water loss in- creases with temperature. In the range over 35˚C, it has a tendency to decrease with temperature. This means that the water loss was significantly suppressed by high tem- perature. It is also found that the relationship between temperature and the rate of water loss is non-linear.
8. The Search for an Optimal Value
Through Model Simulation
Next, the optimal combination of the 8-step set points for temperature was searched for through simulation of the identified neural-network model using the genetic algo- rithm. Figure 12 shows the evolution curves in searching for an optimal under the different crossover and mutation rates. The horizontal axis is the generation number for evolution and the vertical axis is the fitness of the best in- dividual in each generation. The fitness dramatically de- creased with generation number, and then lowered down to the minimum value. The search was stopped when the fitness continued to keep the same minimum value, and that individual was considered to give the minimum fit- ness as an optimal value.
[image:7.595.322.525.285.440.2]It was found that the convergence speed was larger for the higher crossover and mutation rates (Pc = 0.8 and Pm = 0.6) than for the lower crossover and mutation rates (Pc = 0.1 and Pm = 0.01). The fitness could not decrease to the minimum value and fell into a local optimum when
Figure 11. The static relationship between the temperature and the rate of the water loss, obtained from simulation of the identified model.
Figure 12. An evolution curve in searching for an optimal value when the evaluation length is the latter half stage of the control process (96 to 192 h).
the crossover and mutation rates decreased to lower val- ues. The searching performance usually depends on the diversity of the population 16. A global optimal value could be obtained if the diversity in the population was maintained at a high level in each generation. Higher crossover and mutation rates were shown to be effective in keeping a higher diversity in the population, but ex- cessively high crossover and mutation rates are time consuming. The values of Pc = 0.8 and Pm = 0.6, which were determined through a trial and error, were enough high to avoid a local optimum.
was confirmed with a different initial population and different methods of crossover and mutation.
Through these investigations, several types of optimal values were obtained under different constraints of the temperature. When the constraint was 5˚C Tl 40˚C, two optimal values, a combination of only the lowest temperature Tl = {5˚C, 5˚C, 5˚C, 5˚C, 5˚C, 5˚C, 5˚C, 5˚C} and a combination of heat stress and the lowest tempera- ture Tl = {40˚C, 5˚C, 5˚C, 5˚C, 5˚C, 5˚C, 5˚C, 5˚C}, were selected. There was no significant difference in the rate of water loss between the two operations after the heat stress. This is because, under a low temperature, these two responses were very small; consequently, it was dif- ficult to compare their values.
Next, therefore, we increased the minimum tempera- ture level and defined the constraint as 15˚C Tl 40˚C in order to extract the effect of the heat stress. In this constraint, we had two optimal values under the different evaluation lengths of the control process. For example, when the evaluation length was the latter half stage (96 – 216 h) of the control process, a single heat stress applica-tion of 40˚C during the first 24 h, Tl = {40˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C} was found to be an opti- mal value. The length of each step is 24 h. A double heat stress application, Ti = {40˚C, 15˚C, 40˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C}, was also found to be an optimal value when the evaluation length was restricted to only the last two steps (168 – 216 h) of the control process. Two op- timal values (single and double heat stresses) were char- acterized by the combination of the highest temperature (40˚C) and the lowest temperature (15˚C).
9. Optimal Control Performances
[image:8.595.310.537.325.673.2]Finally, the optimal values for single and double heat stresses obtained were applied to a real storage system.
Figure 13 shows an optimal control performance of the rate of water loss when a single heat stress (Tl =40˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C) was applied to the fruit. Here, the responses of the water loss obtained by integrating the rate of water loss are also shown in the figure in order to compare their total amount of water loss. The bold line shows the case of optimal control, and the fine line shows the case of a constant-temperature TL= {15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C}. The initial temperature was kept at 15˚C for 24 h, and then the optimal control started. The 8-day control process from 24 to 216 h was divided into eight steps. In this case, the evaluation length is the latter half step of the control process (96 – 216 h = 5 days), and the constraint of the temperature is 15˚C T 40˚C. It is found that, after the single heat stress application, the rate of water loss be- came lower in the optimal control than in the constant- value control.
Figure 14 shows an optimal control performance of the rate of water loss when double heat stresses (Tl = 40˚C, 15˚C, 40˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C) was applied to the fruit. The bold line shows the case of the optimal control, and the fine line shows the case of a constant-temperature (Tl = {15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C}). The evaluation length was only the last two steps of the control process (168 – 216 h = 2 days), and the constraint was 15˚C T 40˚C. The initial temperature was kept at 15˚C for 24 h, and then the optimal control started.
From the optimal control performance, the rate of wa- ter loss after the second heat stress (double heat stress) is lower than that after the first heat stress (single heat stress). Thus, the rate of water loss had a tendency to de- crease after each application of the heat stress. After the double heat stresses, therefore, the value becomes much lower than that in the constant-value control. However, the degree of the reduction caused by the heat stress

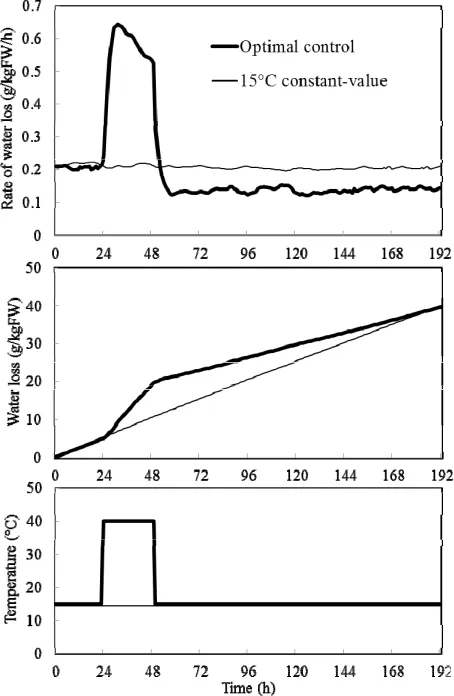

Figure 13. An optimal control performance of the rate of the water loss as affected by the single heat stress when the evaluation length is the latter half stage of the control proc ess (96 to 192 h) under the temperature range (15˚C T(k)

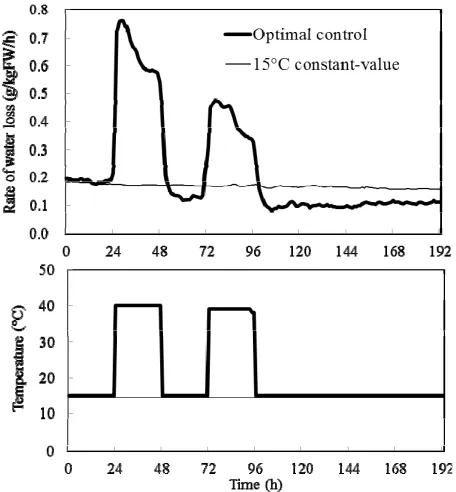

Figure 14. An optimal control performance of the rate of the water loss as affected by the double heat stress when the evaluation length is only last two steps of the control proc- ess (144 to 192 h) under the temperature range (15˚C T(k)
40˚C).
decreases with the application number of the heat stress. In addition, the values of the rate of water loss during the second heat stress application were much lower than that during the first heat stress application. This is because the first heat stress significantly suppressed the water loss of the fruit. It was confirmed that this significant reduction after the second heat stress application contin- ues for at least 3 or 4 more days from other experiments.
In this study, we focused on the rate of water loss, not the total amount of water loss, in order to apply a dy- namic control for optimization. This is because the rate of water loss, against the temperature, is more sensible and controllable than the amount of the water loss. It is also clear that since the total amount of water loss is ob- tained by integrating the rate of water loss, the response speed is always slow.
The reduction of the water stress caused by the heat stress suggests that the heat-stress fruits acquired a tran- sient thermo tolerance. Controlling temperature so that it first rises to the highest level and then drops to the lowest level seems to be especially effective at reducing the wa- ter loss of the fruit during storage, as compared with 15˚C-constant control. This means that the optimal ap- plications of the heat stress to a low temperature opera- tion is more effective than only a low temperature opera- tion in order to reduce the water loss of fruit during stor- age. It is also suggested that the physiological responses of the fruit can be improved by applying heat stress op-
timally to the fruit. This is a marked characteristic of a living thing. In any cases, a control method that changes flexibly and optimally on the basis of fruit responses is useful to improve fruit quality during storage.
10. Conclusions
In this study, the optimal 8-step set points of the tem- perature that minimize the rate of water loss of the fruit during storage was determined using neural networks and genetic algorithms. The length of each step is 24 h. Un- der the range of 15˚C T 40˚C, two types of optimal operations, a single heat stress operation {40˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C} and a double heat stress operation {40˚C, 15˚C, 40˚C, 15˚C, 15˚C, 15˚C, 15˚C, 15˚C}, were obtained for different evaluation leng- ths of the control process. These are characterized by the combinations of the highest temperature (40˚C) and the lowest temperature (15˚C). It is especially emphasized that the sudden drop of the temperature from the highest level (40˚C) to the lowest level (15˚C) had a tendency to decrease the water loss of the fruit compared to when the temperature was maintained at the lowest level. The re- duction of the water stress caused by the heat stress sug- gests that the heat-stress fruits acquired a transient ther- mo tolerance. These results suggest that a control method that applies the 40˚C - 50˚C heat stress to the fruit opti- mally on the basis of fruit responses is a better way to maintain fruit quality during storage than a conventional control manner that simply maintains the temperature at the lowest level.
