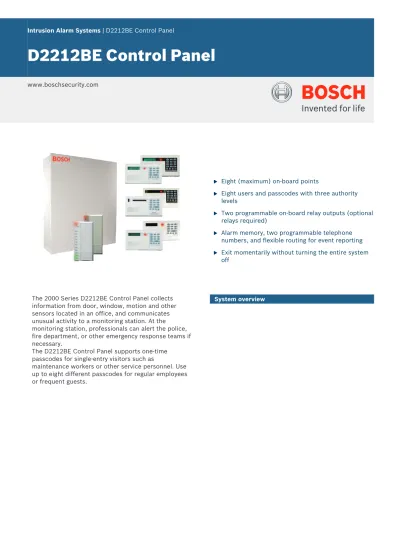

D2212BE Control Panel

(1)

D2212BE Control Panel

www.boschsecurity.com

u Eight (maximum) on-board points

u Eight users and passcodes with three authority levels

u Two programmable on-board relay outputs (optional relays required)

u Alarm memory, two programmable telephone numbers, and flexible routing for event reporting u Exit momentarily without turning the entire system

off

The 2000 Series D2212BE Control Panel collects information from door, window, motion and other sensors located in an office, and communicates unusual activity to a monitoring station. At the monitoring station, professionals can alert the police, fire department, or other emergency response teams if necessary.

The D2212BE Control Panel supports one-time passcodes for single-entry visitors such as

maintenance workers or other service personnel. Use up to eight different passcodes for regular employees or frequent guests.

(2)

On No Delay 1 2 3 4 5 6 7 8 A l l P a rt OK 1 2 3 4 5 6 7 8 9 0 CLEAR 3 2 1 5 6 4 8 9 7 CLEAR A B C 0 * ALL PART OK 12345678ON NO DELAY 5 8 Co m 7 6 Co m 5 4 Co m 3 2 Co m 1-1+ Ex t2 Ex t1 6 4 2 3 1 3 2 1 5 6 4 8 9 7 CLEAR A B C 0 * 3 2 1 5 6 4 8 9 7 CLEAR A B C 0 * 3 2 1 5 6 4 8 9 7 CLEAR A B C 0 *

1. D2212BE Control Panel

2. D202A Series LED Keypad

3. D220A Series LED Keypad

4. D222A Series LCD Keypad

5. 200 Series Keypad

Use the D222A, D222AW, D223A, or D223AW LCD Keypads for local programming.

6. D223A Series LCD Keypad

Functions

Points

The D2212BE Control Panel has eight (maximum) on-board points.

Step Outside

Press the Clear button to temporarily disarm a door when you need open it to receive a delivery or step outside for a moment. Close the door and press the Clear button again to arm it.

Local or Remote Programming

Use keypads for local programming and use RPS for remote programming. Use a portable programmer device to locally download programs. An installer's keypad feature allows quick access to the

programming menu. RPS is an account management and control panel-programming utility for the

Microsoft® _Windows®_{operating system. It is designed} to remotely or locally set up and program specific control panels.

Report Routing Destinations

The 2212BE Control Panel communicates over two telephone numbers for reporting events. The

telephone numbers can have up to 19 digits. You can organize the events into 11 report groups and designate a telephone number as the primary or secondary destination to send reports for different types of events to different locations.

Communications Format

The Modem IIIa2_{communications format adds} reporting capabilities such as actual point number, actual user number, bypassed points, and opening or closing reports by up to eight users.

Multiple Users and Passcodes

The D2212BE Control Panel supports up to eight users and passcodes. The passcode can range between three to six digits. Assign passcodes one of three authority levels to control the amount of access each user has to system functions.

Outputs

Two programmable on-board relay outputs allow up to eight preprogrammed output functions.

Certifications and approvals

Region Certification

USA UL D2212BE: AMCX: Central Station Alarm

Units (UL1610, UL1635), AOTX: Local Alarm Units (UL464, UL609), APAW: Police Station Alarm Units (UL365, UL464), APOU: Proprietary Alarm Units (UL1076), NBSX: Household Burglar Alarm System Units (UL1023), UTOU: Control Units and Accessories - House-hold System Type (UL985)

UL D2212BELC: AMCX: Central Station

Alarm Units (UL1610, UL1635), AOTX: Local Alarm Units (UL464, UL609), APAW: Police Station Alarm Units (UL365, UL464), APOU: Proprietary Alarm Units (UL1076), NBSX: House-hold Burglar Alarm System Units (UL1023), UTOU: Control Units and Ac-cessories - Household System Type (UL985)

UL D2212BELT: AMCX: Central Station

Alarm Units (UL1610, UL1635), AOTX: Local Alarm Units (UL464, UL609), APAW: Police Station Alarm Units (UL365, UL464), APOU: Proprietary Alarm Units (UL1076), NBSX: House-hold Burglar Alarm System Units (UL1023)

CSFM California State Fire Marshal (see our

(3)

Installation/configuration notes

Wiring Considerations

• Use a minimum of 1.5 m of 0.8 mm wire (5 ft of 22 AWG) when connecting devices (including keypads) mounted outside the enclosure.

• The maximum combined wire length for all devices connected to the Data and +Aux terminals is 152 m of 0.8 mm wire (500 ft of 22 AWG).

Fire and Fire/Burglary Requirements

Fire installations require a D132A Polarity Reversing Module.The alarm output for Fire or combined Fire/ Burglary installations must be supervised. This can be accomplished using a D132A Polarity Reversing Module and compatible smoke detectors.

Compatible Products

Keypads D202A Series Keypads (D202A and

D202AW)

D220A Series Keypads (D220A and D220AW)

D279A Independent Zone Control

Detectors OD850 Series Outdoor TriTech Detectors

Bosch conventional detectors include Blue Line, seismic, PIR, TriTech PIR Microwave, photoelectric, request-to-exit, and heat, and smoke.

Magnetic Contacts All Bosch magnetic contacts, including

recessed, terminal connection, miniature, overhead door, and surface mount.

Modules C900V2 Dialer Capture Module

D127 Reversing Relay

D132A Polarity Reversing Module D133 Single Relay Module D134 Dual Relay Module D135A Low Battery Cutoff Module D168A Remote Telephone Arming Module D169 Two-way Voice Verification Module

Peripheral Hardware rvm4c Remote Video Module

Programming D5200 Programmer

SAFECOM Radio

Communicators SC2104 Series Slave Communicators

SC3100 Series Data Transfer Radio Communicators

SC4000 Series Full Data Transfer Radio Communicator

Parts included

D2212BE Components Quantity

D2212BE Board 1

D2803 Enclosure 1

D1625 Transformer 1

Technical specifications

Communications

Telephone Interface: RJ31X or RJ38X with D164 phone

cord

Environmental Considerations

Relative Humidity: 5% to 85% at +30°C (+86°F)

non-condensing

Temperature (Operating): 0°C to +50°C (+32°F to +122°F)

Number of…

Keypads: 8

Points: • 8 (maximum) on-board

• 2 unsupervised

Power Outputs

Alarm Power: 1.35 A maximum at 10.2 VDC to 13.9

VDC output. Output may be steady or pulsed depending on programming.

Auxiliary Power: 500 mA maximum at 10.2 VDC to

13.9 VDC for devices powered at the

Aux+_{terminal (140 mA for Fire and}

combined Fire/Burglary systems).

Continuous Power: To comply with UL985 and UL864 for

fire alarm applications, continuous power output is limited to 140 mA.

Total Power: To comply with UL985 and UL864 for

(4)

Power Requirements

Operating Voltage: • Minimum: 10.2 VDC

• Maximum: 13.9 VDC

Primary Voltage Input: 16.5 VAC, 25 VA provided by a Class

2, plug-in transformer (D1625)

Secondary Voltage Input: 12 VDC, 7 Ah sealed lead-acid

rechargeable battery

Trademarks

Trademark names are used throughout this document. In most cases, these designations are claimed as trademarks or registered trademarks in one or more countries by their respective owners. Rather than placing a trademark symbol in every occurrence of a trademark name, Bosch Security Systems, Inc. uses the names only in an editorial fashion and to the benefit of the trademark owner with no intention of infringing the trademark.

Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.

D2212BE Kit Ordering Information

Kits

Components D2212BELC D2212BELT D2212BEM D2212BEC202A D2212BEC202AW

D2212BE Board 1 1 1 1 1 Universal Enclosure 1 1 1 D2402 Mounting Skirt 1 D1625 Transformer 1 1 D202A Keypad 1 D202AW Keypad 1 Kits

Components D2212BEC220A D2212BEC220AW D2212BEC223A D2212BEC223AW

D2212BE Board 1 1 1 1 Universal Enclosure 1 1 1 1 D1625 Transformer 1 1 1 1 D220A Keypad 1 D220AW Keypad 1 D223A Keypad 1 D223AW Keypad 1 Ordering information

D2212BE Control Panel

Includes one printed circuit board (PCB), one transformer, assorted literature, and assorted hardware.

Order number D2212BE

D2212BE Kit without Enclosure

Includes one PCB and assorted hardware. Requires an enclosure.

Order number D2212BELC

D2212BE Kit without Transformer

Includes on PCB, one universal enclosure, and assorted hardware. Requires a transformer.

Order number D2212BELT

D2212BE Kit with Mounting Skirt

Includes one PCB, one mounting skirt, assorted literature, and assorted hardware.

Order number D2212BEM

D2212BE Kit with Vertical LED Keypad

Includes one PCB, one enclosure, one transformer, and one vertical D202A LED Keypad.

(5)

D2212BE Kit with Vertical LED Keypad

Includes one PCB, one enclosure, one transformer, and one vertical D202AW LED Keypad.

Order number D2212BEC202AW

D2212BE Kit with LED Keypad

Includes one PCB, one enclosure, one transformer, and one LED D220A Keypad.

Order number D2212BEC220A

Includes one PCB, one enclosure, one transformer, and one D220AW LED Keypad.

D2212BE Kit with LCD Keypad

Includes one PCB, one enclosure, one transformer, and one D223A LCD Keypad.

Order number D2212BEC223A

Includes one PCB, one enclosure, one transformer, and one D223AW LCD Keypad.

Accessories

ICP‑EZTS Dual Tamper Switch

Combination tamper switch with a wire loop for additional tamper outputs.

Order number ICP-EZTS

D101 Lock and Key Set

Short-body lock set with one key supplied. Uses the D102 (#1358) replacement key.

Order number D101

D160 Telephone Cord

A 2 m (7 ft) telephone cord with standard plug on one end.

D166 Telephone Jack

Standard Telco RJ31X Telephone Jack measuring approximately 5 cm (2 in.) square by 2.5 cm (1 in.) high.

D1625 Transformer

A 16 VAC, 25 VA transformer required to power the D2212B and D2212BE Control Panels.

D2402 Mounting Plate

Required for mounting control panels in D8103, D8108A, or D8109 enclosures.

D2803 Enclosure

Grey steel enclosure measuring 25.4 cm x 22.8 cm x 7 cm (10 in. x 9 in. x 2.8 in.)

D8103 Enclosure

Grey steel enclosure measuring 41 cm x 41 cm x 9 cm (16 in. x 16 in. x 3.5 in.).

D8108A Attack Resistant Enclosure

Grey steel enclosure measuring 41 cm x 41 cm x 9 cm (16 in. x 16 in. x 3.5 in.). UL Listed. Includes a lock and key set.

Order number D8108A

D8109 Fire Enclosure

Red steel enclosure measuring 40.6 cm x 40.6 cm x 8.9 cm (16 in. x 16 in. x 3.5 in). UL Listed. Includes a lock and key set.

Software Options RPS Kit (LPT)

Account management and control panel-programming software with LPT connection.

Order number D5500C-LPT

RPS Kit (DVD-ROM and USB Security Block)

Account management and control panel programming software with USB security key (dongle).

(6)
