Symantec Mail Security for Microsoft Exchange

(1)

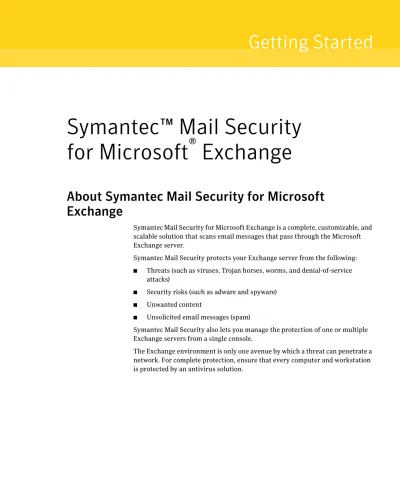

Getting Started

Symantec™ Mail Security

for Microsoft

®

Exchange

About Symantec Mail Security for Microsoft

Exchange

Symantec

Mail Security for Microsoft Exchange is a complete, customizable, and

scalable solution that scans email messages that pass through the Microsoft

Exchange server.

Symantec Mail Security protects your Exchange server from the following:

■

Threats (such as viruses, Trojan horses, worms, and denial-of-service

attacks)

■

Security risks (such as adware and spyware)

■

Unwanted content

■

Unsolicited email messages (spam)

Symantec Mail Security also lets you manage the protection of one or multiple

Exchange servers from a single console.

(2)

2 Symantec™ Mail Security for Microsoft® Exchange What’s new in Symantec Mail Security

What’s new in Symantec Mail Security

Table 1-1

lists the new and enhanced features in Symantec Mail Security 5.0.3

for Microsoft Exchange.

Table 1-1

New and enhanced features

Feature

Description

Protection from mail-based security risks

Symantec Mail Security protects your mail environment from security risks, such as spyware and adware.

Redesigned console

You can manage a single mail server or a group of servers from the same console. The new console lets you view summary

information about the activities on an individual mail server or a group of servers.

Improved support for cluster environments

Symantec Mail Security is Microsoft cluster-aware. In a clustering environment, multiple nodes on the network operate like a single system to ensure high availability.

Symantec Mail Security is installed as a cluster resource on an active/passive cluster. It is designed to interact with and detect the nodes that are within the cluster environment.

Automatic server discovery

Symantec Mail Security can automatically detect the Exchange servers that are within your organization using Active Directory. User-based and

group-based policies

You can select the users or groups for which a content filtering policy applies.

You can configure the rule to apply to all Active Directory groups or to only the users or Active Directory groups that you select. You can also specify users or groups who are exceptions to the rule. File attachment

content scanning

You can scan for content violations within file attachments. Symantec Mail Security supports over 300 file attachment types and common file types, such as Microsoft Office documents, Adobe Acrobat PDF files, text files, RTF files, and database files. Multimedia and

executable file detection based on true file type

Symantec Mail Security can detect multimedia and executable files based on an analysis of their true file type instead of relying on their file extensions.

Summary and Detailed reports

(3)

3 Symantec™ Mail Security for Microsoft® Exchange

Components of Symantec Mail Security

Table 1-2

lists the components of Symantec Mail Security.

Automatically save

messages to a folder

You can save messages that are identified as spam or suspected spam, or messages that trigger content filtering violations, to a specified folder. This lets you use an archiving program to automatically archive messages in the folder.

Table 1-1

New and enhanced features (Continued)

Feature

Description

Table 1-2

Product components

Component

Description

Location on the

product CD

Symantec Mail

Security for Microsoft Exchange

This is the software that you install to protect your Exchange servers. It protects your servers from threats (such as viruses and denial-of-service attacks), security risks (such as adware and spyware). It also detects spam email messages and unwanted content.

\SMSMSE\Install\

LiveUpdate™ Administration Utility

This is the utility that lets you configure one or more intranet FTP, HTTP, or LAN servers to act as internal LiveUpdate servers. LiveUpdate lets Symantec products download program and definition file updates directly from Symantec or from a LiveUpdate server.

For more information, see the LiveUpdate Administrator’s Guide on the Symantec Mail Security product CD in the following location:

\DOCS\LUA\Luadmin.pdf

(4)

4 Symantec™ Mail Security for Microsoft® Exchange Components of Symantec Mail Security

Symantec Spam Folder Agent for Exchange

This is the program that lets you install a spam foldering agent. The foldering agent works with the Symantec Premium AntiSpam service. It lets you automatically route spam and suspected spam messages to a spam folder in each user’s inbox.

The Symantec Spam Folder Agent is recommended for Exchange 2000 servers only.

\ADMTOOLS\SPA \BSFA\

Outlook Plug-in This is the software that lets you submit missed spam and false positives to Symantec. It also lets users administer allowed senders and blocked senders lists and block email messages based on language identification.

The Outlook Plug-in is used with the Symantec Premium AntiSpam service. The Outlook Plug-in can be used on Exchange 2000 and Exchange 2003 servers.

\ADMTOOLS\SPA \BMOP\ Symantec Enterprise Security Administration (SESA) Integration Package (SIP)

This is the software configuration package that you must install on each computer that runs a SESA Manager. The SIP extends SESA functionality to include Symantec Mail Security event data.

\ADMTOOLS\SIPI\

Adobe® Acrobat® Reader® 6.0

This is the software that makes it possible to read electronic documentation in Portable Document Format (PDF).

\DOCS \ar60enu.exe

Symantec Central Quarantine

Symantec Mail Security can forward infected messages and messages that contain violations from the local quarantine to the Central Quarantine, which acts as a central repository.

For more information, see the Symantec Central Quarantine Administrator’s Guide on the Symantec Mail Security product CD in the following location:

\DOCS\DIS\CentQuar.pdf

\ADMTOOLS\DIS

Table 1-2

Product components (Continued)

Component

Description

Location on the

(5)

Before you install

Before you install Symantec Mail Security, ensure that all pre-installation and

system requirements are met. You also should ensure that you have an

installation plan that best matches your organization’s needs.

See

“System requirements”

on page 6.

Symantec Mail Security supports upgrades from Symantec Mail Security 4.x. If

you are upgrading from a prior version, you should review the migration

information.

See

“Migrating to version 5.0.3”

on page 8.

Before you install the product, you should do the following:

■

If you are running Symantec Brightmail™ AntiSpam on the same server on

which you want to install Symantec Mail Security, you must uninstall

Symantec Brightmail AntiSpam before you install Symantec Mail Security.

■

The email tools feature of Symantec AntiVirus Corporate Edition is not

compatible with Microsoft Exchange or Symantec Mail Security for

Microsoft Exchange. You must uninstall the feature before you install

Symantec Mail Security.

■

You must disable any antivirus software that is on the server in which you

want to install Symantec Mail Security. After installation, you should

re-enable the antivirus protection.

■

To install Symantec Mail Security components correctly, log on as a

Windows domain administrator.

■

For optimal visibility, modify your screen resolution to 1024 x 768.

For information about the default locations in which Symantec Mail Security

installs software components, see the Symantec Mail Security for Microsoft

Exchange Implementation Guide.

About security and access permissions

Users must have System Administrator privileges to configure or modify

Symantec Mail Security settings.

(6)

6 Symantec™ Mail Security for Microsoft® Exchange System requirements

The SMSMSE viewers group is domain-wide for Active Directory. You can use

the Active Directory Users and Computers Microsoft Management Console

(MMC) snap-in to change membership in this group.

During the security set-up process, security is also set for the Symantec Mail

Security registry key and file folders. You must have administrator access to the

local servers and domain administrator rights for the security set-up to proceed.

System requirements

Ensure that you meet the appropriate system requirements for the type of

installation that you are performing.

Server system requirements

You must have domain administrator-level privileges to install Symantec Mail

Security.

The server system requirements are as follows:

Operating system ■ Windows 2000 Server/Advanced Server /Data Center SP4

■ Windows Server 2003 Standard/Enterprise /Data Center SP1

Exchange platform ■ Exchange 2000 Server SP3/Enterprise Server

■ Exchange Server 2003/Enterprise Server Minimum system requirements ■ Intel® Server class 32-bit processor

■ 1 GB RAM

■ 775 MB available disk space

Required available disk space for Symantec Mail Security and required third-party components. This does not include the space required for items such as quarantined messages and attachments, reports, and log data.

■ .NET Framework version 1.1 SP1 (is automatically installed if not detected)

■ MDAC 2.6 or higher (is automatically installed if not detected)

(7)

7 Symantec™ Mail Security for Microsoft® Exchange Installing Symantec Mail Security for Microsoft Exchange

If you install Symantec Mail Security on a Windows 2000 Server Domain

Controller that does not allow impersonation, you might have difficulty

changing settings in a group view or from a remote console. You should run

Microsoft Exchange on a computer that is not a Domain Controller. If this is not

feasible, set the computer to allow impersonation by configuring the

“Impersonate a client after authentication” policy for the IWAM account.

Console only system requirements

You can install the Symantec Mail Security console only. The console only

system requirements are as follows:

Installing Symantec Mail Security for Microsoft

Exchange

You can choose from the following types of installation:

Operating system ■ Windows 2000 Server SP4

■ Windows Server 2003 SP1

■ Windows XP SP1

Minimum system requirements ■ Intel Server class 32-bit processor

■ 512 MBRAM

■ 162 MB available disk space

This does not include the space required for items such as quarantined messages and attachments, reports, and log data.

■ .NET Framework version 1.1 SP1 (is automatically installed if not detected)

Local server installation

You can install or upgrade Symantec Mail Security on a local computer that is running Microsoft Exchange Server.

Remote server installation

If you have multiple servers on which you want to install or upgrade Symantec Mail Security, after you install Symantec Mail Security to a local server, you can use the Asset Management tool in the console to install the product to remote servers.

Console only installation

(8)

8 Symantec™ Mail Security for Microsoft® Exchange Migrating to version 5.0.3

See

“Migrating to version 5.0.3”

on page 8.

For information about installation procedures, see the Symantec Mail Security

for Microsoft Exchange Implementation Guide.

Migrating to version 5.0.3

Symantec Mail Security supports upgrades from Symantec Mail Security 4.x. If

you are upgrading from a previous version, the policy settings that you

configured on the previous installation are incorporated into the applicable

policy on the new installation. If you are upgrading from version 5.0x, all user

settings are retained.

Symantec Mail Security 5.x for Exchange does not contain a separate

multiserver console. Single and multiple servers are administered from the

same console. Multiserver console settings do not migrate to the new version.

You must add any existing servers to be upgraded to an asset group (for

example, Global). You can use the Install/Upgrade servers feature to upgrade

the selected server. Once all of the servers are upgraded, you can uninstall the

console from the prior version using the Add/Remove Programs feature in the

Control Panel.

Custom policies, content filtering rules, and report templates do not migrate to

the new version.

Table 1-3

lists the data and settings that migrate from version 4.x to the new

version.

Microsoft Clustering service installation

If you are installing Symantec Mail Security with the Microsoft Clustering service, follow the instructions for clustering service installation.

Table 1-3

Version 4.x migration settings

Migration status

Auto-protect Migrates to the new version as the standard policy Auto-protect statistics Migrates as is

Mass-Mailer Rule Only the enable/disable setting migrates Basic Virus Rule Migrates as is

(9)

Post-installation tasks

After you install Symantec Mail Security, you can perform the following

post-installation tasks:

■

If you are using Windows 2000, set up the appropriate impersonation

privileges on the IWAM account.

■

Restart Internet Information Service (IIS).

■

Implement SSL communications.

■

Install the license file if it was not installed during setup.

■

Update definitions if a LiveUpdate was not performed during setup.

■

Configure other antivirus products that are on the same computer as

Symantec Mail Security.

For more information about performing the post-installation tasks, see the

Symantec Mail Security for Microsoft Exchange Implementation Guide.

Filtering subpolicy Migrates to the new version as the standard policy Enable/disable setting migrates

Exception subpolicy All existing exceptions rules and settings migrate Certificate, license files, and

registry keys

Migrate as is

Quarantine files Migrate as is Quarantine settings Migrate as is Spam settings Migrate as is “Clear” outbreak settings Migrate as is Alerting/Notification

settings

All settings migrate except the AMS and Messenger settings

LiveUpdate/Rapid Release settings

All settings migrate

Match lists Migrate as is Spam XML file Migrates as is

Table 1-3

Version 4.x migration settings (Continued)

(10)

Where to get more information about Symantec Mail Security

Where to get more information about Symantec

Mail Security

The Symantec Mail Security for Microsoft Exchange Implementation Guide

provides information about using this product and is found on the product CD in

the following location:

\DOCS\SMSMSE\SymantecMailSecurity.pdf

You can visit the Symantec Web site for more information about your product.

The following online resources are available:

Provides access to the technical support Knowledge Base, newsgroups, contact information, downloads, and mailing list subscriptions

www.symantec.com/ techsupp/ent/ enterprise.html

Provides information about registration, frequently asked questions, how to respond to error messages, and how to contact Symantec License Administration

www.symantec.com /licensing/els/help/en/ help.html

Provides product news and updates www.enterprisesecurity. symantec.com

Provides access to the Virus Encyclopedia, which contains information about all known threats; information about hoaxes; and access to white papers about threats

www.securityresponse. symantec.com

Printed in the U.S.A. 03/06 PN:10536314
