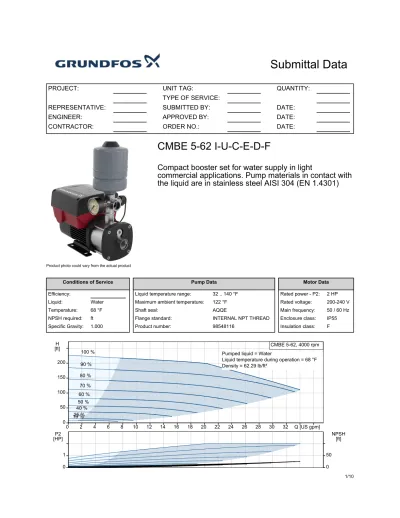

Submittal Data

PROJECT: REPRESENTATIVE: ENGINEER: CONTRACTOR: UNIT TAG: TYPE OF SERVICE: SUBMITTED BY: APPROVED BY: ORDER NO.: QUANTITY: DATE: DATE: DATE:

Product photo could vary from the actual product

CMBE 5-62 I-U-C-E-D-F

Compact booster set for water supply in light

commercial applications. Pump materials in contact with

the liquid are in stainless steel AISI 304 (EN 1.4301)

Conditions of Service Efficiency: Liquid: Water Temperature: 68 °F NPSH required: ft Specific Gravity: 1.000 Pump Data

Liquid temperature range: 32 .. 140 °F

Maximum ambient temperature: 122 °F

Shaft seal: AQQE

Flange standard: INTERNAL NPT THREAD

Product number: 98548116

Motor Data

Rated power - P2: 2 HP

Rated voltage: 200-240 V

Main frequency: 50 / 60 Hz

Enclosure class: IP55

Insulation class: F H [ft] 0 50 100 150 200 Q [US gpm] 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 CMBE 5-62, 4000 rpm 100 % 90 % 80 % 70 % 60 % 50 % 40 % 25 % 19 %

Pumped liquid = Water

Liquid temperature during operation = 68 °F Density = 62.29 lb/ft³ P2 [HP] 0 1 NPSH [ft] 0 50 1/10

(2)

8.46"

3.54"

8.54"

17.90"

NPT 1

NPT 1 1/4

13.80"

Materials:

Pump housing:

Stainless steel

Pump housing:

DIN W.-Nr. 1.4301

Pump housing:

AISI 304

Impeller:

Stainless steel

Impeller:

DIN W.-Nr. 1.4301

Impeller:

AISI 304

(3)

Company name:

Created by:

Phone:

Date:

3/4/2021

Printed from Grundfos Product Center [2021.02.029]

Count Description

1 CMBE 5-62 I-U-C-E-D-F

Product No.: 98548116

The Grundfos CME Booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal to the speed controller to change the motor speed to adapt performance to the new state.

The CME Booster is very easy to install. When the pipework has been installed, it is all a matter of plugging the

unit into a socket, and the system is operational. The CME Booster consists of:

• CME pump with integrated frequency converter • 5-way valve

• expansion tank • pressure gauge • manometer

Features

• Constant pressure, integrated speed control • compact

• robust, stainless steel • easy installation • dry run protection

Thermal protection

CME Booster pumps require no external motor protection. The MGE motor incorporates thermal protection

against slow overloading and blocking (IEC 34.11: TP 211).

Liquid:

Pumped liquid: Water Liquid temperature range: 32 .. 140 °F Selected liquid temperature: 68 °F Density: 62.29 lb/ft³

(4)

Date:

3/4/2021

Count Description

Technical:

Pump speed on which pump data is based: 3868 rpm Rated flow: 26.4 US gpm

Rated head: 156.8 ft Primary shaft seal: AQQE Approvals and markings: CE,CULUS Curve tolerance: ISO9906:2012 3B Return valve: YES

Start pressure: Integrated Frequency converter

Materials:

Pump housing: Stainless steel DIN W.-Nr. 1.4301 AISI 304

Impeller: Stainless steel DIN W.-Nr. 1.4301 AISI 304

Rubber: EPDM

Installation:

Flange standard: INTERNAL NPT THREAD Pump inlet: NPT 1 1/4 Pump outlet: NPT 1 Electrical data: Rated power - P2: 2 HP Main frequency: 50 / 60 Hz Rated voltage: 1 x 200-240 V Maximum current consumption: 9.10-7.60 A Rated speed: 360-4000 rpm Enclosure class (IEC 34-5): IP55

Insulation class (IEC 85): F Type of cable plug: NONE Mains cable: NO CABLE m

Tank:

Tank volume: 0.528 gal

Others:

Net weight: 43 lb Gross weight: 65 lb Country of origin: US

(5)

Company name:

Created by:

Phone:

Date:

3/4/2021

98548116 CMBE 5-62 I-U-C-E-D-F

H [ft] 0 20 40 60 80 100 120 140 160 180 200 220 240 Q [US gpm] 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 CMBE 5-62, 4000 rpm 100 % 90 % 80 % 70 % 60 % 50 % 40 % 25 % 19 %

Liquid temperature during operation = 68 °F Density = 62.29 lb/ft³ P2 [HP] 0.0 0.5 1.0 1.5 2.0 2.5 NPSH [ft] 0 20 40 60 80 100 5/10

(6)

Date:

3/4/2021

H [ft] 0 20 40 60 80 100 120 140 160 180 200 220 240 Q [US gpm] 0 5 10 15 20 25 CMBE 5-62, 4000 rpm 100 % 90 % 80 % 70 % 60 % 50 % 40 % 25 % 19 %

Liquid temperature during operation = 68 °F Density = 62.29 lb/ft³ P2 [HP] 0 1 2 NPSH [ft] 0 50 100 8.46" 3.54" 8.54" 17.90" NPT 1 NPT 1 1/4 13.80" NO PLUG, 1,5 m Argentinian plug, IRAM 2073, 1,5 m UK plug: IEC type G, BS1363, 1,5 m US plug: IEC type B, NEMA 5-15P, 1,5 m Schuko plug: IEC Type E&F, CEE7/7, 1,5 m Australian plug: IEC type I, AS/NZS3112, 1,5 m 3 15 8 26 23 25 24 7 10 4 2 5 6 A Y B +5V + + +24V/5V* +24V +24V AI2 GDS RX GDS TX GND +5V +24V +24V GND + + +24V/5V* +24V +24V +24V OC GNDDI Genibus B Genibus Y Genibus A GND +5V DI1 AI1 DI3/OC1 PE N N PE L ELCB L PRESSURE SENSOR Pin 2 (-) Pin 1 (+) NC C2 NO NC NO C1 READY RELAY RUNNING RELAY Description Value General information:

Product name: CMBE 5-62 I-U-C-E-D-F

Product No.: 98548116

EAN: 5711496977534

Price: $ 4874

Technical:

Pump speed on which pump data is

based: 3868 rpm

Rated flow: 26.4 US gpm

Rated head: 156.8 ft

Impellers: 4

Primary shaft seal: AQQE

Approvals and markings: CE,CULUS

Curve tolerance: ISO9906:2012 3B

Model: A

Return valve: YES

Start pressure: Integrated Frequency

converter

Materials:

Pump housing: Stainless steel

Pump housing: DIN W.-Nr. 1.4301

Pump housing: AISI 304

Impeller: Stainless steel

Impeller: DIN W.-Nr. 1.4301

Impeller: AISI 304

Rubber: EPDM

Installation:

Flange standard: INTERNAL NPT THREAD

Pump inlet: NPT 1 1/4

Pump outlet: NPT 1

Liquid:

Pumped liquid: Water

Liquid temperature range: 32 .. 140 °F

Selected liquid temperature: 68 °F

Density: 62.29 lb/ft³

Electrical data:

Rated power - P2: 2 HP

Main frequency: 50 / 60 Hz

Rated voltage: 1 x 200-240 V

Maximum current consumption: 9.10-7.60 A

p max system: 145.04 psi

Rated speed: 360-4000 rpm

Enclosure class (IEC 34-5): IP55

Insulation class (IEC 85): F

Type of cable plug: NONE

Mains cable: NO CABLE m

Tank:

8.46"3.54"8.54"

17.90"

NPT 1NPT 1 1/4

(7)

Company name:

Created by:

Phone:

Date:

3/4/2021

Description Value

Tank volume: 0.528 gal

Others:

Net weight: 43 lb

Gross weight: 65 lb

Config. file no: 98499013

Country of origin: US

Custom tariff no.: 8413.70.2040

(8)

Date:

3/4/2021

98548116 CMBE 5-62 I-U-C-E-D-F
