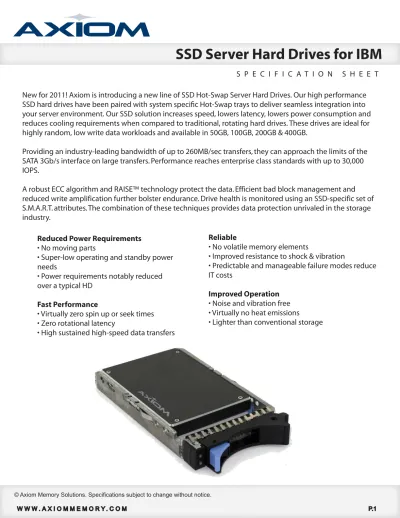

New for 2011! Axiom is introducing a new line of SSD Hot-Swap Server Hard Drives. Our high performance SSD hard drives have been paired with system specific Hot-Swap trays to deliver seamless integration into your server environment. Our SSD solution increases speed, lowers latency, lowers power consumption and reduces cooling requirements when compared to traditional, rotating hard drives. These drives are ideal for highly random, low write data workloads and available in 50GB, 100GB, 200GB & 400GB.
Providing an industry-leading bandwidth of up to 260MB/sec transfers, they can approach the limits of the SATA 3Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 30,000 IOPS.
A robust ECC algorithm and RAISE™ technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.
S P E C I F I C A T I O N S H E E T
Reduced Power Requirements
s s needs s over a typical HD Fast Performance s s s Reliable s s s IT costs Improved Operation s s s
Features
DuraWrite™ optimizes SSD life
Ultra-efficient Block Management & Wear Leveling Advanced Read Disturb Management
Intelligent “Recycling” for advanced free space management RAISE™ (Redundant Array of Independent Silicon Elements) TRIM.Support
28% Over Provisioning for added durability
Capacity
50GB to 400GB
Host Interface
SATA 2.6 Compliant, 3Gb/s support and 1.5Gb/s support Native Command Queuing: 32
SMART attribute List: Extended
Performance
270 MB/s Read - Sequential Transfer MB/s @ 128K blocks 260 MB/s Write - Sequential Transfer MB/s @ 128K blocks Random Read IOPS @ 4K blocks: up to 30K
Random Write IOPS @ 4K blocks: up to 30K
Flash Memory Support
Supports MLC type Number of Flash Buses: 16
Power Consumption
Typical: 550mW Sleep/Slumber: 50mW
Reliability
MTTF (PoH): 2M
Up to 24 9-bit Symbols Correction per 512 9-bit Symbol Non-recoverable Read Errors: (Less than 1 sector per bits read) 10^16
Environmental
Operating Temperature 0°C to 70°C
Security
128-bit AES compliant Data Encryption User Selectable Password prior to boot User Selectable Password runtime Secure Erase (Factory Reset - ATA)
S P E C I F I C A T I O N S H E E T
Physical Specification (SSD Only)
2.5 inch industry standard form factor Dimensions (H x W x D) – 9.5 × 70 x 100mm Weight < 85g
4-M3x0.5-6H Mounting Holes MIN Full Thread 3mm
61.72 mm 76.6 mm 100 mm 14 mm 4-M3x0.5-6H Mounting Holes MIN Full Thread 3mm
14 mm 76.6 mm
3 mm 9.5 mm
AXI-SSD25S0xxxA Hot-Swap Tray Illustration Front
Side
S P E C I F I C A T I O N S H E E T
Ordering Information
Part Number Capacity Type Form Factor UPC
AXI-SSD25S050A 50GB MLC SFF 845282065695 AXI-SSD25S0100A 100GB MLC SFF 845282063226 AXI-SSD25S0200A 200GB MLC SFF 845282063233 AXI-SSD25S0400A 400GB MLC SFF 845282063240
Compatibility
IBM
- x3200 M3 (7327, 7328)
- x3250 M3 (4251, 4252)
- x3400 M2 (7836,4193)
- x3400 M3 (7378/7379)
- x3500 M2 (7839)
- x3500 M3 (7380)
- x3550 M2 (7946)
- x3550 M3 (7944)
- x3650 M2 (7947)
- x3650 M3 (7945)
- x3690 X5
- x3850 X5
- x3950 X5
- Blade Center HS12 (1916, 8014, 8028)
- Blade Center HS22 (7870, 1936)
AXI-SSD25S0xxxB Hot-Swap Tray Illustration Front
Side
S P E C I F I C A T I O N S H E E T
Ordering Information
Part Number Capacity Type Form Factor UPC
AXI-SSD25S050B 50GB MLC SFF 845282063257 AXI-SSD25S0100B 100GB MLC SFF 845282063264 AXI-SSD25S0200B 200GB MLC SFF 845282063271 AXI-SSD25S0400B 400GB MLC SFF 845282063288
