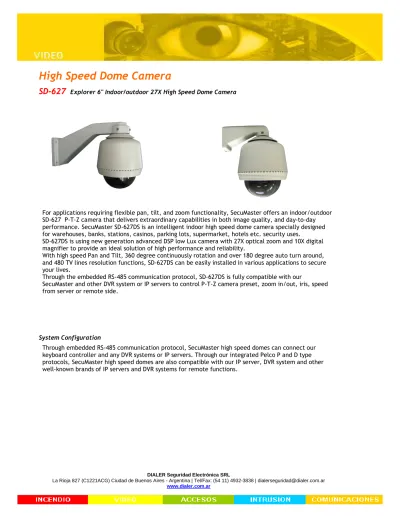

High Speed Dome Camera

(1)

High Speed Dome Camera

SD-627

Explorer 6" Indoor/outdoor 27X High Speed Dome Camera

For applications requiring flexible pan, tilt, and zoom functionality, SecuMaster offers an indoor/outdoor SD-627 P-T-Z camera that delivers extraordinary capabilities in both image quality, and day-to-day performance. SecuMaster SD-627DS is an intelligent indoor high speed dome camera specially designed for warehouses, banks, stations, casinos, parking lots, supermarket, hotels etc. security uses.

SD-627DS is using new generation advanced DSP low Lux camera with 27X optical zoom and 10X digital magnifier to provide an ideal solution of high performance and reliability.

With high speed Pan and Tilt, 360 degree continuously rotation and over 180 degree auto turn around, and 480 TV lines resolution functions, SD-627DS can be easily installed in various applications to secure your lives.

Through the embedded RS-485 communication protocol, SD-627DS is fully compatible with our

SecuMaster and other DVR system or IP servers to control P-T-Z camera preset, zoom in/out, iris, speed from server or remote side.

System Configuration

Through embedded RS-485 communication protocol, SecuMaster high speed domes can connect our keyboard controller and any DVR systems or IP servers. Through our integrated Pelco P and D type protocols, SecuMaster high speed domes are also compatible with our IP server, DVR system and other well-known brands of IP servers and DVR systems for remote functions.

(2)

Product Highlights

Combination electronic and optical zoom

For an extended magnification range, the P-T-Z camera combine both optical lens-based zoom 27X and electronic image zooms that can provide magnifications of 270X zoom.

27X Zoom In/Out 1X~270X Zoom

In/Out

Gears and Belt Slip Ring

(3)

With a double & liner housing, SecuMaster P-T-Z cameras are with better inner constant temperature and pass the severest winter or summer from temperature –45ºC to 50ºC. For outdoor P-T-Z cameras, there are heaters (Auto ON, Auto OFF) and fans (Auto ON, Auto OFF) to adjust the inner temperature to have best performance. SecuMaster P-T-Z cameras are with IP-66 water-resistance standard housing and brackets.

High Speed Rotation

SecuMaster P-T-Z cameras provide high speed Pan and Tilt from 0.3 degree to 240 degrees per second, 360 degree continuously rotation , over 180 degree auto turn around, and 480 TV lines resolution functions.

Full Compatibilities with Various DVR systems & IP Servers

Through our embedded RS485 port and integrated Pelco P and D type protocols, SecuMaster high speed domes are fully compatible with our IP server, DVR system and other well-known brands of IP servers and DVR systems for remote functions.

Features:

• Build-in 27X optical zoom color block camera.

• 1/4" type CCD with sensitivity level of 0.01 lux.

• 27X Optical Zoom / 10X Digital Zoom

• Continuous 360 degrees Pan Rotation and auto turn around over 180 degrees.

• Continuous auto focus on the target accurately.

• 64 presets available.

• Turning Speed: 0.3 degree/second ~ 240 degrees/second

• 6" tiny housing, low temperature and easy installation.

• RS-485 Communication Protocol and fully compatible with all DVR systems and IP servers.

• On Screen Display for camera control.

• Auto protection function when power is failed.

• Outdoor Wall or suspending mount support

• Support Auto Cruise and Cruise between two presets.

• Auto Flip dome rotation.

• Focusing System: Auto-Sensing, manually, Infinity, interval AF, Zoom trigger AF.

• Auto white balance, backlight compensation, auto iris control, electronic shutte

Specifications:

(4)

Turn Speed: 0.3~240 degrees per second Horizontal Scan Scale: 360 degrees continuously Manual Vertical Scan Scale: Less than 90 degrees Preset: 64 presets

Preset Found Time: Less than 3 seconds Zoom Found Time: Less than 1.65 seconds Scan Precision: 0.225 degree +- 0.003 degree Voltage: DC24V+-20%, 50hz+-10%

Power: Less than 10W Camera Format: PAL/NTSC

Picture Elements: 752(H) x 583(V) for PAL / 768(H) x 494(V) for NTSC S/N Ratio: >48dB

Horizontal Resolution: 480 Lines

Temperature: -45 degree C ~ 50 degree C Baud Rate: 2400, 4800, 9600

Dimension:

Build-in 27X optical zoom Color Block Camera:

Features:

1/4" type Super HAD CCD sensor

Max. 27 times power optical and 10 times digital zoom camera Day & night function (0.01 Lux with electronic sensitive up) DSS (digital slow shutter) available

Application Possibilities:

(5)

Stations

Parking lots

Libraries

Schools

Bank

Supermarkets

Casinos

Residences

Offices

Highways

Buying Guide:

Model Indoor/

Outdoor

Compact

Size

Zoom

_Sensor^Image ^Resolution ^{Angle of}_View(H) _Illum.^Min. _System^Video

SD-627DS

Indoor/

Outdoo 6 inch

27X optical 10X digital

1/4" Sony Super HAD

CCD

480 TV lines

47º wide end to 3.0º tele end

1 Lux Day/night (0.01 Lux)

PAL / NTSC

SD-627DL
