A Fast Timing-Accurate MPSoC HW/SW
Co-Simulation Platform based on a Novel
Synchronization Scheme
Mingyan Yu, Junjie Song, Fangfa Fu, Siyue Sun, and Bo Liu
Abstract—Fast and accurate full-system simulation is needed for MPSoC design space exploration to achieve tight time-to-market design goals. In the field of full-system simula-tion, transaction level modeling with SystemC and traditional instruction set simulators (e.g. M5) based on C/C++ have their own advantages, separately. In this paper, a novel method for synchronizing M5 and SystemC modules is proposed to achieve fast and timing-accurate co-simulation. This method adopts event-driven scheduling and object-oriented programming technology. With this method, an MPSoC full-system co-simulation platform, which allows modeling the architecture at multiple levels of abstraction, is presented. The fast abstract model of M5 and timing-accurate model of SystemC has been used for hardware framework. On the other hand, a lightweight MPI library is implemented for communication of software applications. The simulation result shows that the novel scheme can obtain a fast simulation speed with no expense on simula-tion precision. Addisimula-tionally a parallel MUSIC algorithm is designed which evaluates the validation of the MPSoC plat-form.
Index Terms—Co-simulation; MPSoC; Synchronization; Timing-Accurate.
I. INTRODUCTION
It has been widely accepted that Multiprocessor Sys-tem-on-Chip (MPSoC) is the most promising way to keep on exploiting the high level of integration provided by the semiconductor technology and matching the constraints imposed by the embedded system market in terms of per-formance and power consumption [1]. However, as more processors and hardware components are integrated, de-signing and programming these complex multiprocessor architectures has become a major challenge [2]. In this con-text, fast and accurate full-system simulation is necessary to efficiently explore different implementations and design parameters in order to achieve a cost-efficient MPSoC im-plementation [3].
Nowadays, many research institutes have presented their MPSoC full-system simulators written in SystemC [6]–[8]. But for each simulator the details of components are quite
different, and most of them are not open source. In this con-dition, new scheduling schemes or communication protocols for MPSoC will not be convictive, if they only experiment with their own simulator. Moreover, it is a waste of time to implement a simulation platform from scratch for a new institute to launch. Hence a wide-accepted open-source MPSoC platform is needed for design exploration.
Manuscript received November 25, 2009, revised January 28, 2010. M. Yu is with the Micro-Electronics Center, Harbin Institute of Tech-nology, Harbin, China. He is the director of Micro-Electronics Center. His current research interests are in computer architecture, System-on-chips and IP design (e-mail: [email protected])
J. Song, F. Fu, S. Sun, and B. Liu are with the Micro-Electronics Center, Harbin Institute of Technology, Harbin, China (e-mail: [email protected], [email protected], [email protected], [email protected]).
Fortunately, several full-system simulators for computer system architecture research (e.g. M5 [4], [5]) are open source, and most of them have excellent infrastructure for function extension. Thus the platform for MPSoC design exploration will be implemented with great efficiency and speed, if these full-system simulators are utilized wisely. But considering institutes who have been engaged on SystemC simulator for several years, lots of modules written in Sys-temC have been made at different abstraction levels, which can be inserted into the simulator mentioned above to achieve a cost-efficient implementation. However, most of these open-source simulators are written in C++, so a synchroni-zation scheme is necessary for fast and accurate co-simulation.
In this paper, a novel scheme for synchronizing M5 and SystemC module is proposed, which uses the local time of M5 and SystemC time to achieve timing-accurate co-simulation. This scheme can guarantee a fast simulation speed with no expense on simulation precision. With this scheme, an MPSoC full-system simulation platform is pre-sented which unites the advantage of M5 and SystemC. Any module of our platform can be implemented at system level with M5 or transaction level with SystemC. With the support to full-system simulation, our platform can fully analyze a parallel application to find out the performance bottleneck at the early stage of design flow. Additionally, for inter-process communication, we implement a lightweight MPI library [10] which contains a minimal working subset.
II. RELATED WORK
Instruction Set Simulator (ISS) and Transaction Level Modeling (TLM) with SystemC are both commonly adopted technologies for modeling of MPSoC simulation platform. Several researchers have proposed methodologies for co-simulation between ISS and SystemC. An overview of these related work shows that existing methodologies can be grouped in three broad categories: cycle-accurate co-simulation [9], timing-accurate co-simulation [12] and untimed co-simulation [11].
Boukhechem et al. [9] proposes an MPSoC platform cy-cle-accurate co-simulation methodology based on an open source ISS OR1Ksim within SystemC as simulation envi-ronment. In this platform, the ISSs are wrapped under Sys-temC. So a SystemC wrapper interface is added to the ISS C model. At every positive clock edge, the SystemC wrapper interface calls the corresponding C function inside the ISS via IPC. Cycle-accurate computation simulation slows down the overall simulation significantly, which is the main dis-advantage of this simulator.
Cordibella et al. [12] presents a HW/SW co-simulation framework consisting of a timing-accurate interaction of a SystemC simulator with an array of ISSs. The synchroniza-tion mechanism of this platform follows an asymmetric scheme, where one of the two simulators (the master) ex-plicitly controls the execution of the other (the slave). To achieve this, they modify the SystemC kernel, which com-pares ISS time and SystemC time in the simulation loop. A weakness of this mechanism regards the case in which Sys-temC simulator is ahead of time with respect to the ISS simulator; in this case the result of a read operation or the behavior of SystemC after a write operation may depend on the delay of ISS with respect to SystemC.
Benini et al. [11] implements two alternative schemes to allow a transparent integration of ISSs within the SystemC simulation framework. The former embeds the ISS within the SystemC simulator, which is just like [9]. The latter uses a wrapper called gdbAgent whose main function is executing the gdb and controlling its execution. The main disadvantage of this scheme is that synchronization between the SystemC time and the ISS simulated time can not be implemented completely.
To cope with the problems mentioned above, a novel timing-accurate co-simulation scheme is presented which implements synchronization between the SystemC time and the ISS simulated time, and keeps a fast simulation speed simultaneously.
III. TECHNOLOGY OF CO-SIMULATION
M5 provides a full-system simulation platform and an excellent object-oriented infrastructure, while SystemC permits different abstraction levels and combination of dif-ferent levels in one model. Therefore building a co-simulation platform will unite the advantages. But as mentioned above, synchronization and simulation speed are the most two important problems we should figure out.
M5 is an event-driven simulation which uses a global event queue to simulate execution of each instruction and
move forward the simulation time. During the execution of current event, new events will be notified, and it calls the method ‘insert’ of class EventQueue which will insert the events into the global event queue at a proper position ac-cording to their execution time. When the current event fin-ishes, the scheduler will take out the first event in the event queue to execute, whose execution time is the earliest, and then the scheduler assigns the simulation time with the exe-cution of this event.
Similarly, SystemC is event-driven. After sc_start routine is called in main function, all SystemC processes are placed into a ready pool. Then, the scheduler takes out processes from ready pool one by one. During execution, a process may invoke immediate or delayed event notification (i.e. sc_event.notify()) and possibly cause one or more waiting processes to be placed in the ready state.
In order to achieve synchronization, these two schedulers must be unified. The principle of co-simulation is synchro-nizing the local time of M5 and SystemC time. As mentioned in [12], an intuitive method is that one of the two simulators (the master) explicitly controls the execution of the other (the slave). The simulation time of the master goes forward by itself. The master is told when to schedule the slave. During the execution of the slave process, the slave updates its local time to achieve synchronization, and it tells the master when to schedule it again according to the local time. Not like [12], we only modify the M5 scheduler, and do not touch the SystemC kernel, which will improve the portability of the co-simulation platform.
As shown in Fig. 1, SystemC is chosen as the master, and M5 scheduler is regarded as a SystemC process. When a SystemC event related with M5 happens, SystemC kernel will wake up M5 scheduler. Then M5 scheduler takes out the first event in EventQueue to execute. During the execution, new M5 events may be notified. When an M5 event is in-serted into EventQueue, the method ‘insert’ will also notify a SystemC event. Then the SystemC event will wake up the M5 process at the expected time once again.
[image:2.595.316.538.58.163.2]It should be noticed that more than one SystemC event may be notified at a time, so class sc_event does not satisfy this condition. For sc_event, only the nearest time notifica-tion can be executed, so only one M5 event can trigger a SystemC event. Class sc_event_queue is chosen to solve this problem, which is added in SystemC version 2.1. An sc_event_queue object can be scheduled multiple times even for the same time. With this method, we achieve synchroni-zation between the SystemC time and the ISS simulated time, and ensure that all of the M5 events and SystemC processes are executed one by one according to their execution time.
Fig. 2 shows some essential segments for synchronizing between M5 and SystemC. The M5 scheduler is wrapped in a SystemC thread called ‘simulate’ which is sensitive to a sc_event_queue called ‘scEventQueue’. The numbers shown in Fig. 2 just correspond to those in Fig. 1.
M5 has excellent simulation speed which benefits from its high abstraction level. When TLM methodology is used for SystemC modules, the co-simulation speed is approaching to M5 with the low cost of schedule of SystemC kernel. By modeling only the necessary details, we can realize huge gains in modeling accuracy as well as simulation speed.
IV. MPSOCCO-SIMULATION PLATFORM
With the method mentioned above, an MPSoC full-system simulation platform is presented. The platform unites M5 and SystemC, and it is convenient for any M5 module in the platform to be replaced by timing-accurate SystemC model and vice versa. The platform supports full-system simulation, so a parallel application can be fully analyzed through simulation to find out the performance bottleneck at the early stage of design flow.

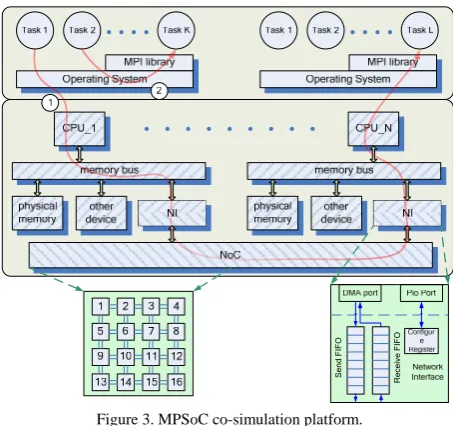

As shown in Fig. 3, the whole platform can be divided into two parts: HW which is composed of two major components (i.e. PEs and NoC), and SW which includes OS, MPI library and parallel applications.
Each PE includes CPU, local memory and some periph-erals. A PE is connected to NoC through network interface (NI). All of the modules of PEs derive from M5, and the peripherals of M5 are all connected to memory bus. NI communicates with CPU via DMA, which can free up processor cycles. NoC module which is composed of routers is part of a NoC simulator written in SystemC. The topology and routing algorithm of this module can be configured during elaboration. Each router in the NoC module connects to a NI module respectively.
NI can be considered as a transactor between M5 and SystemC. It is a type of channel specialized to translate be-tween modules with different interfaces. In M5 all of the device modules inherit from class MemObject, and in Sys-temC all of modules inherit from class sc_module. Therefore NI must inherit from both of them. The physical-level communication between M5 and SystemC can be imple-mented by the Send FIFO and Receive FIFO in NI module. NI reads data from local memory via DMA, and pushes the data into Send FIFO. Then a SystemC thread in NI module sends the data to routers. On the other hand, another SystemC thread in NI module receives data from routers, and pushes
the data into Receive FIFO. Then an M5 event in NI writes the data to local memory.
For data transfer and synchronization between processes of the parallel application, the platform must provide a set of communication primitives. The primitives must support two kinds of inter-process communication: inter-processor communication (path 1 in Fig. 3) which calls device driver of NI to transmit data and intra-processor communication (path 2 in Fig. 3) which uses shared memory to communicate with each other. A lightweight MPI library is implemented to satisfy the request. The library contains six MPI functions, and other communication protocols can be developed based on these functions.
Se
n
d F
IFO
Re
ce
iv
e
FI
[image:3.595.312.539.51.264.2]FO
[image:3.595.54.285.57.192.2]Figure 3. MPSoC co-simulation platform. Figure 2. Segments of the SystemC-master scheme for synchronization.
z MPI_Init(): initializes the MPI execution environment. z MPI_Finalize(): terminates MPI execution
environ-ment.
z MPI_Comm_size(): determines the size of the group associated with a communicator.
z MPI_Comm_rank(): determines the rank of the calling process in the communicator.
[image:3.595.323.531.545.778.2]z MPI_Send(): blocking send. z MPI_Receive(): blocking receive.
The implementation of path 1 and path 2 in MPI library is shown in Fig. 4. When a process wants to send data to other process, it calls MPI_Send routine. Because only one process can enter MPI_Send routine at a time, the process will be suspended until it gets the mutex. Then, the routine checks whether the destination process is in the same PE. If so, the routine inserts data to a global list from which receiving routine can obtain expected data (path 2). If not, the routine will configure DMA register, and then start a DMA transfer (path 1). On the other hand, when a process calls MPI_Receive routine, it will be blocked until the expected data is inserted in the global list by interrupt service routine or by MPI_Send routine in the same PE.
V. PERFORMANCE ANALYSIS
In order to evaluate the performance of the co-simulation scheme presented above, another intuitive scheme is imple-mented, which can also ensure synchronization between SystemC and M5. In this scheme, M5 is chosen as master, and SystemC processes are executed every time at the end of scheduling loop. During each iteration of the loop, SystemC simulator will keep running until the execution time of next M5 event comes. The simulation time of calling sc_start routine each time is not more than a constant which ensures that the start time of all M5 events notified by SystemC is later than the finish time of the simulation. If not, a new event may be inserted at the head of the event queue of M5, which will break down the synchronization between SystemC and M5. The implementation of this scheme is shown in Fig. 5.
[image:4.595.320.522.51.303.2]These two schemes are compared in our co-simulation platform, and the same application is executed in the platform. The simulation environment is shown in Table II, and a par-allel MUSIC algorithm is run on a four-core platform. The result is shown in Table I, which indicates SystemC-master algorithm is 7.6 times faster than the other.
TABLE I. COMPARISON OF SIMULATION TIME
SystemC-master scheme M5-master scheme
Simulation
time (sec.) 332.07 2520.45
Figure 6. Parallelization of MUSIC algorithm. SimLoopExitEvent * simulate(Tick num_cycles){
…
while(1){
…
mainEventQueue.serviceOne();
…
while(mainEventQueue.nextTick()>curTick){ if(mainEventQueue.nextTick() - curTick>CYCLE){ sc_time sc_t(CYCLE, SC_PS);
sc_start(sc_t); curTick+=CYCLE; }
else{
Tick t = mainEventQueue.nextTick() - curTick; sc_time sc_t(t, SC_PS);
sc_start(sc_t); curTick+=t; }
}
[image:4.595.68.272.55.268.2]}//end while(1) }//end simulate
Figure 5. Segments of the M5-master scheme.
VI. CASE STUDY
In order to validate the MPSoC platform, and evaluate the performance of the parallel programming models we im-plement, a parallel MUSIC algorithm is designed with the lightweight MPI library.
MUSIC, which is an acronym for MUltiple SIgnal Classi-fication, is a classic spatial spectrum estimation technique. It is based on partitioning the estimated multi-channel covari-ance matrix from a linear or planar array into a noise and signal subspace and finding a direction vector which is or-thogonal to the noise subspace. The algorithm can be divided into three stages: pre-processing, EVD and peak-search, which is shown in Fig. 6. In the parallel MUSIC algorithm, EVD and peak-search are parallelized. MPI routines are used for communication among processes.

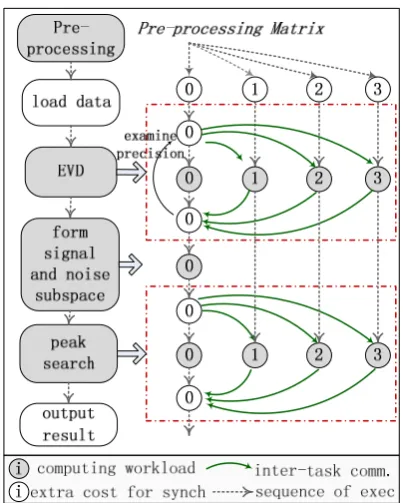

According to the flow graph in Fig. 6, the MPSoC co-simulation platform can be configured as shown in Table II.
TABLE II. PARAMETER OF MPSOC PLATFORM
network topol-ogy
Size of net-work
class of
ser-vice route algorithm
2D-mesh 2x2 best effort XY-routing
[image:4.595.47.294.738.785.2]VII. CONCLUSION
In this paper, a novel method for synchronizing M5 and SystemC module is proposed, and an MPSoC full-system simulation platform is presented which unites the advantage of M5 and SystemC. The simulation result shows that our scheme is 7.6 times faster than M5-master scheme. A parallel MUSIC algorithm is used to validate the MPSoC platform, and the speedup is 2.6. In the near future, we will extend our MPI library to support more complicated applications. Moreover, we will develop an interface for co-simulation between our MPSoC platform and Verilog modules.
