Whether it’s cloud computing, the centralization of ICT services,
data-center consolidation or unified communications and
colla-boration – today’s IT trends present new security and bandwidth
challenges when it comes to site-to-site connections. Until now,
reliable network connections were the key focus. But now,
busi-nesses increasingly also require access to cloud services.
In addition to managed VPN services, which include a range of
access technologies, T-Systems delivers Direct Network Links to
meet these challenges. This portfolio includes synchronous digital
hierarchy (SDH)- and Etherbased leased lines for customer
net-works in Germany and beyond. We offer a host of possibilities to
address your needs including fixed-link point-to-point and point-
to-multipoint connections ranging from 2 Mbits / s to several
giga-bytes. What’s more, we can support customer-specific
require-ments, from data-center connections to connectivity based on
microwave radio technology.

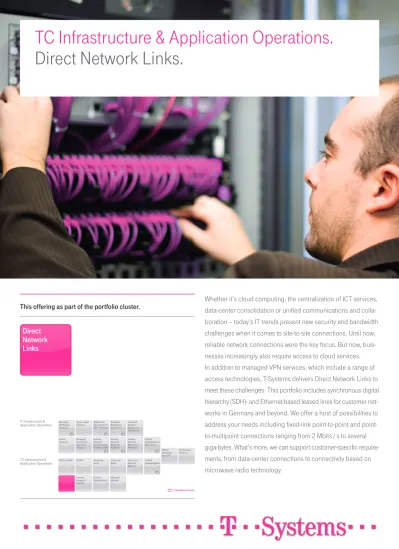

TC Infrastructure & Application Operations.
Direct Network Links.
This offering as part of the portfolio cluster.
Advanced Network Services Mobile Enterprise Services Unified Communications Direct Network Links Internet Access & Bundles Inhouse
Infrastructure ManagedInhouse
Ethernet VPN IP-VPN Corporate
Voice CorporateVideo
Onsite
Services ManagedArchiving &
Document Services Hosting Services Industrialized Platforms (X86) Hosting Services Midrange Platforms Hosting Services Mainframe Platforms Unified Collaboration & Messaging Managed Workplace Services Service Desk
Services Application Operations for
SAP® Solutions Standard Application Operations Customer-Specific Application Operations ICT Security Services TC Infrastructure & Application Operations = Cloud-Based Service IT Infrastructure & Application Operations
Direct
Network
Links
Our direct data connections are based on the Ethernet standard or SDH protocol. We deploy both copper and fiber optic infrastructures, delivering conti-nuous and reliable bandwidths between 2 Mbit / s and 10 Gbit / s. In both cases, the network topology can comprise point-to-point or point-to-multipoint connections. Microwave radio solutions round out the offering.
Direct Network Links – Elements of the offering.
1. Standard dedicated digital line.
A standard dedicated digital line gives you permanent, full-duplex connec-tivity with digital interfaces between two defined end points. These are terminated with an internationally standardized interface which complies with ITU-T recommendations.
Bandwidths / transfer speeds.
2 Mbit / s, 34 Mbit / s and 155 Mbit / s
The benefits to you.
Rapid data transfer for delay-critical applications
Choice of comprehensive SLAs for all purposes including very high availability
Reliable solution that complies with international standards
Pricing models. Monthly fees based on distance and bandwidth plus a one-time charge. The minimum term is 12, 36 or 60 months.
Service models. 24 / 7 service hotline. Time to resolution: 8 or 24 hours Availability. Germany
2. Direct data lines.
Managed direct data lines are available around the clock and always on. T-Systems manages the existing network termination devices at both ends. This enables proactive monitoring of the entire transmission path (fault management).
Bandwidths / transfer speeds.
(Access 2Mbit / s): 512 Kbit / s, 1024 Kbit / s, 1920 Kbit / s and 1984 Kbit / s
The benefits to you.
Scalable solution
Highest level of security and availability for reliable transfer of large volumes of data (managed service)
No dial-up time required
Pricing models.Monthly fees based on distance and bandwidth plus a one-time charge. The minimum term is 12, 36 or 60 months.
Service models. 24 / 7 service hotline. Time to resolution: 8 or 24 hours Availability. Germany
3. City networks
(CityConnect / CityInterConnect).
City networks connect customer sites located within or between metropolitan regions in Germany, based on high-speed fiber optic ring networks. The architecture is designed for very high-speed data transmission. T-Systems offers two models:
CityConnect. Connections between company sites within a single city network location
CityInterConnect. Connections between company sites in different city network locations
Bandwidths / transfer speeds.
2 Mbit / s, 34 Mbit / s, 45 Mbit / s, 155 Mbit / s or 622Mbit / s (SDH)
The benefits to you.
Extremely high transmission rates Redundant paths
Value for money
Pricing models. Monthly distance- and bandwidth-based fees, plus a one-off charge. The minimum term is 12, 36 or 60 months.
Service models. 24 / 7 service hotline. Time to resolution: 8 or 24 hours
4. InterBusinessLink – international
leased line.
InterBusinessLink is an always-on, end-to-end international line provided via Deutsche Telekom’s Global Network (TGN), or via the infrastructure of our partner networks. A network termination device installed at your site enables end-to-end service monitoring via the International Network Management Center (INMC) in Frankfurt – for almost all bandwidths and traffic directions.
Bandwidths / transfer speeds.
Depending on the country: 2 Mbit / s, 34 / 45 Mbit / s, 155Mbit / s and 622 Mbit / s (SDH)
Ethernet-based interfaces: 2 Mbit / s to 1Gbit / s
The benefits to you.
Secure international transmission path with end-to-end service monitoring
Certified according to MEF (Metro Ethernet Forum), class 9 for Ethernet service functionality und class 14 for Ethernet service performance Leased lines (international private leased circuits): These are international point-to-point data connections that are delivered as half-circuit solutions from Germany by T-Systems and our partner carriers in up to 150 countries.
Bandwidths / transfer speeds.
From 56 / 64 kbit / s to 155 Mbits / s
The benefits to you.
Global coverage
Pricing models. Monthly fees based on distance and bandwidth plus a one-time charge. The minimum term is 12, 24, 38, 48 or 60 months. Service models. Average country-specific availability ranging from 97.5 percent to 99.7 percent per month.
Availability. International.
5. Domestic Business Link.
These are data fixed links with digital interfaces (full circuit) linking two customer sites in the same country. The Domestic Business Link service is based on SDH or Ethernet protocol and delivered in line with the functionality available in the country and the technical capabilities of local carriers. The scope of services, i.e. transmission rate, interfaces, etc. can vary according to provider.
Bandwidths / transfer speeds.
64Kbit / s bis 155Mbit / s (SDH) and 2Mbit / s to 1Gbit / s (Ethernet) in the key countries
The benefits to you.
Sites can be connected in countries / regions where other technologies are not available
Combination of Domestic Business Links and IP-VPN connections, for example, for global networks delivered from a single source
Pricing models. Monthly fees based on distance and bandwidth plus a one-time charge. The minimum term is 12, 36 or 60 months.
Service models. Depend on local providers and carriers. Trouble ticketing to the T-Systems service desk in TDN.
Availability. International.
6. EthernetConnect.
This technology directly connects LANS at multiple locations using scalable Ethernet interfaces. Point-to-multipoint (P2MP) architectures are also available for star topologies. Multiple EthernetConnect 10M or 100M lines are concentrated at the star’s hub and connected via a gigabyte Ethernet interface to your LAN.
The “High Performance Solution” option minimizes the risk of connection outages on both the access and backbone level by the use of redundant connectivity paths.
Bandwidths / transfer speeds.
From 2,5 Mbit / s to 10 Gbit / s
The benefits to you.
One-stop simple, cost-effective, direct LAN to LAN solution
Certified according to MEF (Metro Ethernet Forum), class 9 for Ethernet service functionality and class 14 for Ethernet service performance Pricing models. Monthly fees based on distance and bandwidth plus a one-time charge. The minimum term is 12, 36 or 60 months.
Service models. 24/7 service hotline. Time to resolution: 8 or 24 hours. Availability. Germany.
7. GigaLink.
This model connects sites using point-to-point microwave radio relay tech-nology. Depending on the local conditions, coverage can be extended via relays.
Bandwidths / transfer speeds.
From 2 Mbit / s to 622 Mbit / s
The benefits to you.
Point-to-point connections that can be provisioned quickly in areas where no terrestrial infrastructure exists
No underground construction work necessary Scalable bandwidths in upper gigabyte range
Increased reliability and availability through the deployment of multiple communications media (e.g.: microwave radio in addition to landline connectivity)
Pricing models. Purchase.
Service models. Monthly fee for service and maintenance. Availability. Germany.
8. Access Solution.
Access Solution connects a number of sites with one or multiple star hubs. T-Systems delivers carrier-class access technologies directly to your site. To this end, we deploy access modules that connect your data center or large administrative sites directly to the backbone of your network provider in Germany or abroad.
Bandwidths / transfer speeds.
From 2 Mbit / s to 622 Mbit / s, 2.5 Gbit / s available on request
The benefits to you.
A wide range of services (e.g. standard dedicated digital lines, direct data lines) can be delivered directly to the customer site with no need for major planning or construction work
Guaranteed availability thanks to proactive management
Access consolidation at a central company site or data center thanks to a single high-bandwidth link instead of many individual leased lines Saves space and resources
Pricing models. Monthly fees based on distance and bandwidth plus a one-time charge. The minimum term is 36 or 60 months.
Service models. 24 / 7 service hotline. Time to resolution: 8 or 24 hours. Availability. Germany and international.
9. LeasedLink Multichannel.
Extremely high-quality lines with digital interfaces that are especially suited for companies with multiple headquarters and connected to branch networks. The user leases a network with multiple central and peripheral ports.
Bandwidths / transfer speeds.
Branch offices 2 Mbit/s, to headquarters 34 Mbit/s (E3) or 155 Mbit/s (STM1)
The benefits to you.
High quality data transfer thanks to extremely low bit error rates Access consolidation at a central point (see Access Solution above) Higher availability of the central port through managed data network
termination device
Pricing models. Monthly fees based on distance and bandwidth plus a one-off charge. The minimum term is 36 or 60 months.
Service models. 24 / 7 service hotline. Time to resolution: 8 or 24 hours. Availability. Germany.
10. Individual high-bandwidth
networks / data center
connec-tions / custom networks.
Individual high-bandwidth networks are based on direct fiber optic connec-tions and offer direct, dedicated data links between two company sites that are max. 50 km apart. Each project is a unique custom implementation.
The benefits to you.
Direct, high-performance data lines, with an optional interface to proprietary systems.
Pricing models. Customer-specific delivery and monthly charges. Service models. 24 / 7 reporting of incidents. Time to resolution: 8 or 24 hours within service-desk hours.
Availability. Germany.
Data center connection. This is a highly secure, managed end-to-end solution which comprises a fiber optic connection with active equipment at both ends. The distance between the two sites must not exceed 30 to 50 kilometers. The interfaces (ESCON, Fiber-Channel, Ficon Coupling-Link, LAN Fast/Gigabit Ethernet; FDDI SDH E1; E3; 1; 4; STM-16; STM-64) and bandwidths can be configured individually.
The benefits to you.
Minimized data loss and connection outages thanks to ultra-high availability infrastructure
Compliance with regulatory requirements and security standards – optional encryption of data traffic between two data centers Pricing models. Customer-specific delivery and monthly charges. Service models. 24 / 7 service hotline. Time to recovery: 8 hours. Availability. Germany.
Custom networks fulfill specific requirements that standard technologies cannot meet.
The benefits to you.
Maximum scope for customization.
Pricing models. Customer specific based on one-time and monthly charges for a minimum contract term.
Service models. Individually agreed.
Direct Network Links from T-Systems.
T-Systems Direct Network Links include a variety of services, from standard to specialized access and connectivity solutions. The portfolio ranges from cost-effective point-to-point connections to high-end solutions, for example, data center connections and high-speed-bandwidth connectivity. Technologies, pricing and service models and availability can be combined in a variety of ways.
Direct Network Links compared to VPN services.
We offer three solutions to meet diverse customer requirements.
Site-to-site
connections
Data line (layer1)
Layer-2-VPN
IP-VPN (layer3)
Internet-VPN (layer3)
DNL
VPN
Internet VPN
(native) ATM / FrameRelay Ethernet VPN
“IntraSelect”
xDSL (+ IP-Sec) classic data line
Shared via the Internet
Shared via a fixed carrier network Dedicated end-to-end Non-IP
Internet
Carrier networkCarrier
Implementation logic
MEF – Metro Ethernet Forum.
Founded in 2001, the Metro Ethernet Forum (MEF) aims to accelerate the worldwide implementation of carrier-class Ethernet networks and services. MEF defines specifications for WAN services that already exist in the LAN space. These Ethernet services include point-to-point and multipoint-to-multipoint configurations, LAN services over VLANs, local networks over MPLS and LAN over IP. MEF has defined Layer 2 services for VPNs: E-Line to support point-to-point VPNs, E-Tree for point-to-multipoint connections and E-LAN for multipoint-to-multipoint VPNs. T-Systems Ethernet VPN solution portfolio complies with MEF standards.
Why T-Systems?
Expert monitoring and troubleshooting by multiple international network management centers
Professional, expert approach to design and operations Extensive experience as a network operator and integrator
Technology skills and strong partnerships with manufacturers of network infrastructures
International availability combined with excellent Germany-wide coverage
Reliable service – an extensive service network guarantees high availability
Site-to-site connections possible outside the existing telecommunica-tions infrastructure
Deployment of proven processes and methodologies to support the plan, build, run approach
Customer references.
Rlp network.
The state government of Rhineland-Palatinate decided to give its net-work a makeover to enable quick and easy communications between authorities and citizens and local companies. The network is also at the heart of the state’s e-government activities.
Solution.
1 Gbit / s ring backbone with 24 nodes
Connection of 330 public entities (e.g. judiciary, police, administration) via Ethernet Connect
Direct connection via switches Benefits.
Five-fold increase in network capacity Comprehensive site-to-site connections Highly scalable bandwidths
99.5 percent guaranteed availability for the backbone with continuous monitoring K.-Nr . 641 261 960| S tatus 08 / 2011 | Er ror s and omissions e xcep ted; subject t o c hang e wit hout no tice | P rint ed on c hlor ine -fr ee paper | typix
