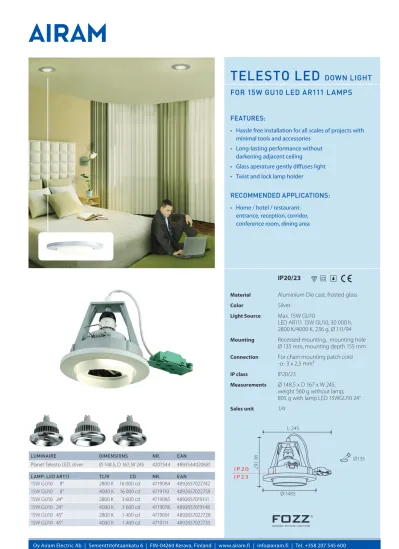

TELESTO LED DOWN LIGHT

(1)

IP20/23

Ø135 L: 245 W : 167 Ø:148.5 I P 2 0 I P 2 3

Material Aluminium Die cast, frosted glass

Color Silver

Light Source Max. 15W GU10

LED AR111 15W GU10, 30 000 h, 2800 K/4000 K, 236 g, Ø 111/94

Mounting Recessed mounting, mounting hole Ø 135 mm, mounting depth 155 mm

Connection For chain mounting patch cord -o- 3 x 2,5 mm²

IP class IP20/23

Measurements Ø 148,5 x D 167 x W 245, weight 560 g without lamp, 805 g with lamp LED 15WGU10 24°

Sales unit 1/4

TELESTO LED

DOWN LIGHT

FOR 15W GU10 LED AR111 LAMPS

FEATURES:

• Hassle free installation for all scales of projects with minimal tools and accessories

• Long-lasting performance without darkening adjacent ceiling

• Glass aperature gently diffuses light • Twist and lock lamp holder

RECOMMENDED APPLICATIONS:

• Home / hotel / restaurant: entrance, reception, corridor, conference room, dining area

LUMINAIRE DIMENSIONS NR. EAN

Planet Telesto LED, silver Ø 148.5, D 167, W 245 4207544 4893544020681

LAMP: LED AR111 TC/K CD NR. EAN

15W GU10 8° 2800 K 16 000 cd 4719084 4892657022742 15W GU10 8° 4000 K 16 000 cd 4719110 4892657022759 15W GU10 24° 2800 K 3 600 cd 4719085 4892657019131 15W GU10 24° 4000 K 3 600 cd 4719078 4892657019148

(2)

Ø135 W : 173 L: 265 Ø:180

IP20/23

EUROPA

DOWN LIGHT

FOR 15W GU10 AR111 LED LAMP

FEATURES:

• Hassle free installation for all scales of projects with minimal tools and accessories

• Long-lasting performance without darkening adjacent ceiling

• Decorative glass ring adds unique style element

RECOMMENDED APPLICATIONS:

Planet Europa, silver/frosted glass Ø 180 x D 173 x W 265 4207543 4893544020605

15W GU10 8° 2800 K 16 000 cd 4719084 4892657022742 15W GU10 8° 4000 K 16 000 cd 4719110 4892657022759 15W GU10 24° 2800 K 3 600 cd 4719085 4892657019131 15W GU10 24° 4000 K 3 600 cd 4719078 4892657019148 15W GU10 45° 2800 K 1 400 cd 4719091 4892657022728 15W GU10 45° 4000 K 1 400 cd 4719111 4892657022735

Color Silver

LED AR111 15W GU10, 30 000 h, 2800 K/4000 K, 236 g, Ø 111/94

Measurements Ø 180 x S 173 x L 265, weight 630 g without lamp, 920 g with lamp LED 15WGU10 24°

(3)

Ø135 L: 245 W : 153 Ø:148.5 I P 2 0 I P 6 4

IP20/64

Color Powered mat white/silver

LED AR111 15W GU10, 30 000 h, 2800 K/4000 K, 236 g, Ø 111/94

Measurements Ø 148.5 x D 153 x W 245, weight 417 g without lamp, with lamp 653 g

Sales unit 1/4

HYDRA LED

DOWN LIGHT

FOR 15W GU10 LED AR111 LAMP

FEATURES:

• Decorative glass lens

• Attractive, high peformance reflector maintains high luminous efficacy

• Ip64 rated

• Patented connecting box allows easy looping and installation

RECOMMENDED APPLICATIONS:

Planet Hydra LED, white Ø 148.5, D 153, W 245 4207546 4893544020704 Planet Hydra LED, silver Ø 148.5, D 153, W 245 4207567 4893544020728

15W GU10 8° 2800 K 16 000 cd 4719084 4892657022742 15W GU10 8° 4000 K 16 000 cd 4719110 4892657022759 15W GU10 24° 2800 K 3 600 cd 4719085 4892657019131 15W GU10 24° 4000 K 3 600 cd 4719078 4892657019148

(4)

asennussyvyys 132 mm Ø 164 mm 137 mm maks. 23 mm 22° 360° Ø 145 mm

IP23/20

CONXENTO

DOWN LIGHT

FOR 15W GU10 LED AR111 LAMP

FEATURES:

• Works perfectly with LED AR111 reflector with built-in electronic ballast to deliver 30,000 hours lifetime and replace halogen downlights

• Compact recessed downlights for vertical installation • Offers visual comfort without glare

• Flexible directional lighting with adjustable 360° rotating and 22° tilting angle

RECOMMENDED APPLICATIONS:

• Department Stores • Boutiques • Supermarkets • Galleries • Museums

Material Aluminium body

Color White, silver

LED AR111 15W GU10, 30 000 h, 2800 K/4000 K, 236 g, Ø 111/94

Measurements Ø 164 H 137 mm, weigth 720 g with lamp

Sales unit 1/12

Conxento 22° LED, valkea Ø 164 x S 137 4207565 4892657020472 Conxento 22° LED, hopea Ø 164 x S 137 4207535 4892657020496

15W GU10 8° 2800 K 16 000 cd 4719084 4892657022742 15W GU10 8° 4000 K 16 000 cd 4719110 4892657022759 15W GU10 24° 2800 K 3 600 cd 4719085 4892657019131 15W GU10 24° 4000 K 3 600 cd 4719078 4892657019148 15W GU10 45° 2800 K 1 400 cd 4719091 4892657022728 15W GU10 45° 4000 K 1 400 cd 4719111 4892657022735

(5)

IP20/23

Ø 142 177

Ø 95

CONXENTO

DOWN LIGHT

FOR 8W E27 LED PAR20 LAMP

FEATURES:

• Works perfectly with LED PAR20 reflector

with built-in electronic ballast to deliver 25,000 hours lifetime and replace halogen downlights

• Compact recessed downlights for vertical installation • Offers visual comfort without glare

RECOMMENDED APPLICATIONS:

• Shopping Malls • Restaurants • Hotels • Offices • Kitchens • Bathrooms • Corridors

Material Aluminium body

Color White, silver

Light Source max. 8W E27

LED PAR20 8W E27, 25 000 h, 2800 K, 136 g, Ø 65/95

Measurements Ø 142, H 177 mm, weigth max. 366 g with lamp

Sales unit 1/24

Conxento / F12501RC, white Ø 142, S 177 mm 4207526 4892657020557 Conxento / F12501RC, silver Ø 142, S 177 mm 4207550 4892657020571

mounting depth175 mm

(6)

92 84 85 Ø 80 mm 204 84 85 175 x 75 mm 296 84 85 265 x 75 mm

FOCO 1

FOCO 2

FOCO 3

IP20/23

Material Aluminium body + polycarbonate

Color Silver

LED PAR16 7W GU10, 25 000 h, 600 cd, beam angle 35°, 2800 K/4000 K, 83 g

Mounting Recessed mounting: depth 84 mm Foco 1: mounting hole ø 75 - 80 mm Foco 2: mounting hole 75 x 175 mm Foco 3: mounting hole 75 x 265 mm

Sales unit Foco 1 and Foco 2: 1/24, Foco-3: 1/12

FOCO

DOWN LIGHT

FOR 5/7W GU10 LED PAR16 LAMP

FEATURES:

• Works perfectly with GU10 CFL or LED PAR16 reflector with built-in electronic ballast to offer

up to 25,000 hours lifetime and replace halogen downlights

• Adjustable tilting angle of 30° • Stylish aluminium fixture body • Offers visual comfort without glare

RECOMMENDED APPLICATIONS:

• Shops • Offices • Hotels • Elevators • Corrirdors • Light Troughs

Adjustable tilting angle of 30°

Foco 1 92 x 92 x 85 4207444 4892657994575

Foco 2 204 x 92 x 85 4207445 4892657022612

Foco 3 296 x 92 x 85 4207446 4892657022636

LAMP, LAMP HOLDER GU10 TC/K CD NR. EAN

5W LED PAR16 40° / 20 000 h 2800 K 320 cd 4719079 4892657022254 7W LED PAR16 15° / 20 000 h 2800 K 1600 cd 4719089 4892657022278 7W LED PAR16 35° / 25 000 h 2800 K 600 cd 4719080 4892657019216 7W LED PAR16 35° / 25 000 h 4000 K 600 cd 4719081 4892657019223 11 W Reflector R50 - 90°

(7)

IP20 IP23

IP20/23

ENVY

DOWN LIGHT

FOR 7W GU10 LED PAR16 LAMP

FEATURES:

• Works perfectly with GU10 CFL or LED PAR16 reflector with built-in electronic ballast to offer up to 25,000 hours lifetime and replace MR16 type halogen downlights

• Offers visual comfort without glare

• Ultra-compact size for fitting into most ceiling settings

• With IP44/IP65 protection (Options of IP44/IP65 rating for F05717RC only)

RECOMMENDED APPLICATIONS:

• Conference Rooms • Corridors • Elevators • Restaurants • Lounges

Material Body polycarbonate, symmetric Aluminium Reflector with Aluminium Vacuum Coating

Color Body black/white, ring mat silver/white

Light Source Max. 14 W GU10

Recommended: LED 7W GU10, 25 000 h, 2800 K/4000 K, 83 g, Ø 50/74

Mounting Easy recessed mounting, mounting hole Ø 95 mm, mounting depth 100 mm

Measurements L152 x Ø92 x W92 x H105, 140 g luminaire only, with lamp max. 225 g

Sales unit 1/12

Envy white Ø 92 x D 105 x L152 4207496 4892657992281 Envy silver Ø 92 x D 105 x L 152 4207499 4892657992267 LAMP, LAMP HOLDER GU10 TC/K CD NR. EAN

5W LED PAR16 40° / 20 000 h 2800 K 320 cd 4719079 4892657022254 7W LED PAR16 15° / 20 000 h 2800 K 1600 cd 4719089 4892657022278 7W LED PAR16 35° / 25 000 h 2800 K 600 cd 4719080 4892657019216

(8)

Ø70 L: 197 W : 153 W:104

IP21

Material Aluminium Die cast, glass

Color Clear glass

Light Source Max 14 W GU10

Reocmmended: LED 7W GU10, 25 000 h, 2800 K/4000 K, 83 g, Ø 50/74

IP class IP21

Measurements Ø 104 x S 153 x W 197, weight 376 g luminaire only, 459 g with 7W LED-lamp

Sales unit 1/12

IGLOO

DOWN LIGHT

FOR 5/7W GU10 LED LAMP

FEATURES:

• Die cast downlight with silicon Decorative ring • Energy saving options: CFL or LED

• Standard bracket that fits entire range of downlight decorative ring

• Patented connecting box allows easy looping and installation

RECOMMENDED APPLICATIONS:

• Home: entrance, corridor, living room, kitchen, bedroom, bathroom

• Hotel / restaurant: reception, corridor, cloakroom, guestroom, bathroom

Igloo Down light Ø 104 x D 153 x W 197 4207542 4893544021480 LAMP, LAMP HOLDER GU10 TC/K CD NR. EAN

5W LED PAR16 40° / 20 000 h 2800 K 320 cd 4719079 4892657022254 7W LED PAR16 15° / 20 000 h 2800 K 1600 cd 4719089 4892657022278 7W LED PAR16 35° / 25 000 h 2800 K 600 cd 4719080 4892657019216 7W LED PAR16 35° / 25 000 h 4000 K 600 cd 4719081 4892657019223 11 W ESL Reflector R50 - 90°

(9)

95

83

ø 79 mm

ø 65 mm

IP20/65

Miro silver Ø 79 x S 95 mm 4207422 4892657996906

LAMP: LED GU10 PAR16 TC/K CD NR. EAN

5 W LED PAR16 40° / 20 000 h 2800 K 320 cd 4719079 4892657022254 7 W LED PAR16 15° / 20 000 h 2800 K 1600 cd 4719089 4892657022278 7 W LED PAR16 35° / 25 000 h 2800 K 600 cd 4719080 4892657019216 7 W LED PAR16 35° / 25 000 h 4000 K 600 cd 4719081 4892657019223

MIRO

DOWN LIGHT

FOR 5/7W GU10 LED PAR16 LAMP

FEATURES:

• Works perfectly with GU10 CFL or LED PAR16 reflector with built-in electronic ballast to deliver up to 25,000 hours lifetime and replace halogen downlights

• Stylish aluminium fixture body

• Diffuser glass cover for enhanced visual comfort • With IP65 protection

RECOMMENDED APPLICATIONS:

• Shops • Offices • Hotels • Elevators • Corrirdors • Light Troughs

Material Aluminium body + Polycarbonate, frosted tempered glass

Color matta hopea

Light Source Max.14W GU10

LED PAR16 7W GU10, 25 000 h, 2800 K/4000 K, 83 g, Ø 50/74.

Measurements Ø 79, H95 mm, weigth 219 g luminaire only, max. 255 g with lamp

Sales unit 1/24
