LPUF-400 Data Sheet Huawei NE5000E 400Gbps Flexible Line Processing Unit

Huawei NE5000E 400Gbps Flexible Line Processing Unit

Overview

The Huawei NetEngine5000E router (NE5000E) is a high-end IP core network router. It is targeted for Internet backbone networks, IP dedicated backbone networks, or IP metropolitan core networks covering large cities and regions. It can also function as an egress router on the Internet data center (IDC). It is intended for network operators, enterprises, and public institutions.

As the network traffic volume increases, boards of core nodes cannot meet customer demands for higher throughput of network elements. Therefore, Huawei has developed 400G Flexible Card Line Processing Unit (LPUF-400, 2 sub-slots) and 10 GE, 40 GE, and 100 GE flexible cards (CP400) for the LPUF-400. The large capacity meets the bandwidth requirements of operators and intranets, and helps customers conduct cost-effective and personalized capacity expansion.

The LPUF-400 is designed to improve the slot capacity, and provides 400 Gbps line-rate forwarding capacity, and provides two full-height half-width sub-slots. Each sub-slot of LPUF-400 holds one CP400 flexible card. Figure 1-1 shows the appearance of the LPUF-400.

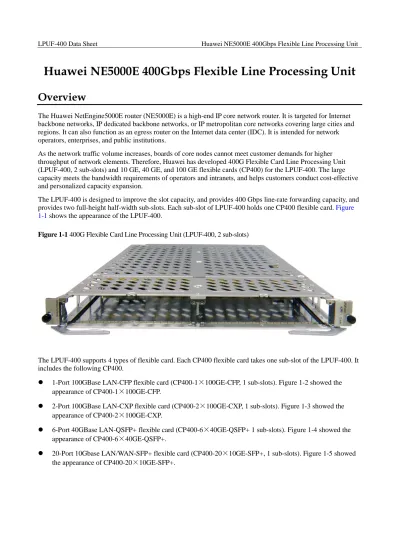

Figure 1-1 400G Flexible Card Line Processing Unit (LPUF-400, 2 sub-slots)

The LPUF-400 supports 4 types of flexible card. Each CP400 flexible card takes one sub-slot of the LPUF-400. It includes the following CP400.

 1-Port 100GBase LAN-CFP flexible card (CP400-1×100GE-CFP, 1 sub-slots). Figure 1-2 showed the appearance of CP400-1×100GE-CFP.

 2-Port 100GBase LAN-CXP flexible card (CP400-2×100GE-CXP, 1 sub-slots). Figure 1-3 showed the appearance of CP400-2×100GE-CXP.

 6-Port 40GBase LAN-QSFP+ flexible card (CP400-6×40GE-QSFP+ 1 sub-slots). Figure 1-4 showed the appearance of CP400-6×40GE-QSFP+.

 20-Port 10Gbase LAN/WAN-SFP+ flexible card (CP400-20×10GE-SFP+, 1 sub-slots). Figure 1-5 showed the appearance of CP400-20×10GE-SFP+.

(2)

LPUF-400 Data Sheet Specifications Figure 1-2 1-Port 100GBase LAN-CFP flexible card (CP400-1×100GE-CFP, 1 sub-slots)

Figure 1-3 2-Port 100GBase LAN-CXP flexible card (CP400-2×100GE-CXP, 1 sub-slots)

Figure 1-4 6-Port 40GBase LAN-QSFP+ flexible card (CP400-6×40GE-QSFP+ 1 sub-slots)

Figure 1-5 20-Port 10Gbase LAN/WAN-SFP+ flexible card (CP400-20×10GE-SFP+, 1 sub-slot)

Specifications

Table 1-1 lists the specifications of the LPUF-400.

Table 1-1 LPUF-400 Specifications

Item LPUF-400

Name NE5000E LPUF-400 Flexible Card Line Processing Unit Software Version V800R005

Slot Two full-height half-width sub-slots

(3)

LPUF-400 Data Sheet Specifications

Item LPUF-400

Power consumption 426 W

Heat dissipation 1382 BTU/hour Weight 9.5 kg (20.95 lb)

Storage temperature -40°C to +70°C (-40°F to 158°F)

Operating temperature Long-term: 0°C to 40°C (32°F to 104°F); Short-term: -5°C to 50°C (23°F to 122°F)

Relative humidity Long-term: 5% to 85%; Short-term: 0% to 95% (working environment) MIBs ENTITY-MIB.mib (RFC 2737)

HUAWEI ENTITY MIB (HUAWEI-ENTITY-EXTENT-MIB.mib)

HUAWEI DEVICE MIB (HUAWEI-DEVICE-MIB /HUAWEI-DEVICE-EXT-MIB) HUAWEI-BASE-TRAP-MIB.mib

HUAWEI-PORT-MIB.mib

Table 1-2 lists the specifications of the CP400.

Table 1-2 CP400 Specifications

Item CP400 (Sub-card of LPUF-400, 1 sub-slot)

1×100GE-CFP 2×100GE-CXP 6×40GE-QSFP+ 20×10GE-SFP+

Power consumption 35 W 42.5 W 58.8 W 49 W

Heat dissipation 113.7 BTU/hour 138.1 BTU/hour 191.1 BTU/hour 159.3 BTU/hour Weight 1.3 kg (2.86 lb) 0.95 kg (2.09 lb) 0.95 kg (2.09 lb) 0.85 kg (1.87 lb) Software Version V800R005

Dimensions (W×D×H) 178.2 mm × 225.8 mm × 37.2 mm (7.02 in. × 8.89 in. × 1.46 in.) (W×D×H) Storage temperature -40°C to +70°C (-40°F to 158°F)

Operating temperature Long-term: 0°C to 40°C (32°F to 104°F); Short-term: -5°C to 50°C (23°F to 122°F) Relative humidity Long-term: 5% to 85%; Short-term: 0% to 95% (Working environment)

MIBs ENTITY-MIB.mib (RFC 2737)

HUAWEI ENTITY MIB (HUAWEI-ENTITY-EXTENT-MIB.mib)

HUAWEI DEVICE MIB (HUAWEI-DEVICE-MIB /HUAWEI-DEVICE-EXT-MIB) HUAWEI-BASE-TRAP-MIB.mib

(4)

LPUF-400 Data Sheet Standards Compliance

Standards Compliance

Table 1-3 lists the standards that the LPUF-400 and sub-cards comply.

Table 1-3 Standards compliance

Item Standard Safety IEC 60950-1 EN 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 AS/NZS 60950.1 BS EN 60950-1 EMC/EMI ETSI EN 300 386 VCCI V-3/2002.4 Class A IECS-003 Class A

AS/NZS CISPR 22 Class A CNS 13438 Class A IEC/EN-61000-3-2 IEC/EN-61000-3-3 EN 55022 ITU-T K20 GR-1089 (NEBS) FCC Part 15 Class A EN 55024 CISPR 22 CISPR 24 GB 9254

Immunity IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8-kV Contact, 15-kV Air) IEC/EN-61000-4-3: Radiated Immunity (10 V/m)

IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2-kV Power, 1-kV Signal) IEC/EN-61000-4-5: Surge AC Port (4-kV CM, 2-kV DM)

IEC/EN-61000-4-5: Signal Ports (1 kV) IEC/EN-61000-4-5: Surge DC Port (1 kV)

IEC/EN-61000-4-6: Immunity to Conducted Disturbances (3 Vrms) IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30 A/m) IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations

(5)

LPUF-400 Data Sheet Ordering Information Item Standard Environment ETS 300 019-1 ETS 300 019-2 IEC 60721 IEC 60068-2 GB 2423 GB 4798 GB/T 13543 ISTA GR-63 (NEBS) Environmental protection RoHS

Ordering Information

The initial version of LPUF-400 and its sub-cards is V800R005. Table 1-4 lists the ordering information for the LPUF-400.

Table 1-4 Ordering information for the LPUF-400 and sub-cards Product Model Description

CR5DLPUFK061 Flexible Card Line Processing Unit (NE5000E LPUF-400, 2 sub-slots) CR5D00E1NC61 1-Port 100Gbase-CFP flexible card (CP400-1×100GE-CFP, 1 sub-slot)

CR5D00E2NC61 2-Port 100Gbase LAN-CXP flexible card (CP400-2×100GE-CXP, 1 sub-slot)

CR5D00E6MF61 6-Port 40Gbase LAN-QSFP+ flexible card (CP400-6×40GE-QSFP+, 1 sub-slot)

CR5D00LEXF61 20-Port 10Gbase LAN/WAN-SFP+ flexible card (CP400-20×10GE-SFP+, 1 sub-slot)

Table 1-5 lists the optical modules supported by the LPUF-400.

Table 1-5 Optical modules supported by the LPUF-400 and sub-cards

Module Transmission Distance Working Mode Wavelength (nm)

CFP 10 (km) Single-mode 1310 (nm) CXP 0.1 (km) Multi-mode 850 (nm) QSFP+ 10 (km) Single-mode 1310 (nm) SFP+ 80 (km) Single-mode 1550 (nm) 40 (km) Single-mode 1550 (nm) 10 (km) Single-mode 1300 (nm) 0.3 (km) Multi-mode 850 (nm)

(6)

LPUF-400 Data Sheet Service and Support

Service and Support

For more information, please visit http://support.huawei.com/support/.
