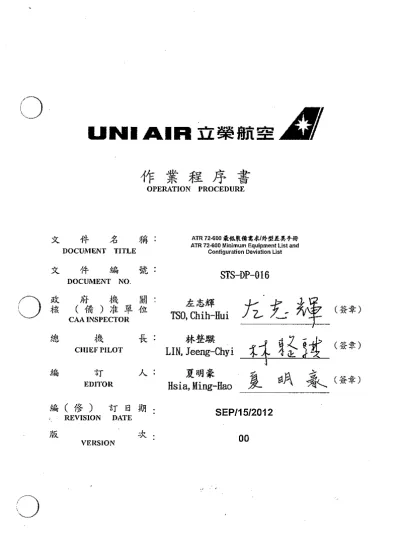

ATR 72-600 MEL REV0.0

(1)

(2)

ATR 72-600 MEL

DATE: SEP 15,2012 REVISION :00

PAGE: 00-1

REGULATORY STANDARDS

1. The MEL is under the regulation of CAA part 07-02A for B-registered

aircraft.

(3)

ATR 72-600 MEL

DATE:SEP 15,2012 REVISION : 00

PAGE :00-2

RECORD OF REVISIONS

Rev. No. Date of Revision Date Revised Revised By

(4)

ATR 72-600 CDL

CHAPTER 1 MEL/ALERT CROSS REFERENCE

TABLE OF CONTENTS………1-00-1

LIST OF EFFECTIVE PAGES………...1-00-2

(5)

(6)

ATR 72-600 MEL

CHAPTER 2 MINIMUM EQUIPMENT LIST

TABLE OF CONTENTS………2-00-1

LIST OF EFFECTIVE AGES………2-00-2

FORMAT………..2-01-3

DEFINITION………2-01-5

PREAMBLE……….2-01-6

ATA 21 AIR CONDITIONING………2-21-1

ATE 22 AUTOMATIC FLIGHT CONTROL SYSTEM………2-22-1

ATA 23 COMMUNICATIONS………2-23-1

ATA 24 ELECTRICAL POWER………2-24-1

ATA 25 EQUIPMENT……….2-25-1

ATA 26 FIRE PROTECTION………2-26-1

ATA 27 FLIGHT CONTROL………..2-27-1

ATA 28 FUEL………..2-28-1

ATA 29 HYDRAULIC SYSTEM………2-29-1

ATA 30 ICE AND RAIN PROTECTION………...2-30-1

ATA 31 INSTRUMENTS………2-31-1

ATA 32 LANDING GEAR………...2-32-1

ATA 33 LIGHTS………..………2-33-1

ATA 34 NAVIGATION……….2-34-1

ATA 35 OXYGEN………2-35-1

ATA 36 PNEUMATIC SYSTEM………2-36-1

ATA 42 INTEGRATED MODULAR AVIONICS………..2-42-1

ATA 52 DOORS………..2-52-1

ATA 56 WINDOWS……….2-56-1

ATA 61 PROPELLERS………..2-61-1

ATA 73 ENGINE FUEL AND CONTROL………2-73-1

ATA 74 IGNITION………...2-74-1

ATA 75 AIR………..2-75-1

ATA 77 ENGINE INDICATING……….2-77-1

ATA 79 OIL………..2-73-1

(7)

(8)

(9)

(10)

(11)

ATR 72-600 MEL

DATE : SEP 15, 2012 REVISION:0.0 PAGE: 2-01-1

1. FORMATS:

(REMARKS OR EXCEPTION)

Column 1 : System and sequence numbers - Item

Identifies the system by ATA classification and the item. It indicates the equipment, systems, components

for which dispatch conditions apply. An “_{if installed}” annotation indicates that the listed item is not

applicable to all models or configurations. It does not imply that the aircraft may be operated, in

accordance with the MMEL, with the item removed, unless clearly indicated in the associated REMARKS or CONDITIONS column (5) of the MMEL.

Column 2 : Rectification interval

For each applicable item, the rectification interval column indicates the rectification interval category. Each category is defined according to the following JAR-MMEL/MEL definitions:

Category A

No standard time interval is specified, however, items in this category shall be repaired in accordance with the conditions stated in REMARKS OR CONDITIONS (5) of the MMEL. (i) Where a time period is specified in calendar days it shall start at 00:01 on the calendar day following the day of discovery.

(ii) Where a time period is specified in number of flight or flight hours, it shall start at the beginning of the next flight that follows the discovery.

- Category B

Items in this category shall be repaired within three (3) consecutive calendar days, excluding the

day of discovery. For example, if it was recorded at 10 a.m. on January 26th, the three-day interval

begins at midnight on January 26th, and ends at midnight the January 29th.

- Category C

Items in this category shall be repaired within ten (10) consecutive calendar days (240 hours), excluding the day of discovery.

- Category D

Items in this category shall be repaired within one hundred and twenty (120) consecutive calendar days, excluding the day of discovery.

- Dash symbol “-”

A dash symbol may appear in Column 2, associated with the annotation “As required by National Authorities” in Column 5, to indicate that the rectification interval category is not known, because it depends on national regulations.

ATR72-600

MINIMUM EQUIPMENT LIST

6

7

8 9

ATA 21 – AIR CONDITIONING

ATA CHAPTER 1

ITEM

2 - REPAIR INTERVAL CATEGORY 3 - NUMBER INSTALLED

4 - NUMBER REQUIRED FOR DISPATCH 5 - REMARKS OR CONDITIONS

ATR72-600

MINIMUM EQUIPMENT LIST

MEL 21

Rev. 00

2-21-1 2 0 1 2 SE P 1

ATA CHAPTER 1

ITEM

(12)

ATR 72-600 MEL

“Repair Interval Extension” If, in an exceptional case, a repair category B or C item can not be

accomplished within the given repair interval, UNI AIRWAYS is authorized to give one time extension

under the accepted procedure in GMM 4.14 by CAA. Otherwise shall get the permission of the extension

from CAA. The permission of extension has to be documented in the Aircraft Technical Log Book with the

permission form. UNI AIRWAYS is not authorized to extend A and D items in the MEL. Misuse of the MEL

extension authority may result in UNI AIRWAYS OpSpecs being amended by removing the authority for

UNI AIRWAYS to use the MEL extension authority and/or use an MEL.

Column 3 : Number installed

Shows the number of installed components, it matches with the type-certificated configuration of the aircraft.

- Dash “-” indicates a variable quantity installed on the aircraft.

Column 4 : Number required for dispatch

Shows the minimum quantity of components which must be operative for a MMEL dispatch, under the conditions listed in Column 5 (if any).

- Dash “-” indicates a variable quantity, minimal required for the dispatchability of the aircraft.

Column 5 : Remarks or exceptions

Gives remarks or conditions linked to a MMEL dispatch. It indicates the suitable conditions and limitations in the form of placard, maintenance procedures, operational procedures and dispatch conditions as necessary to ensure that an acceptable level of safety is maintained.

- Asterisk “*” in column 5 requires inoperative components to be clearly placarded in the cockpit. - Operational and Maintenance Procedures:

An inoperative equipment may refer to an operational (o) and/or maintenance procedure (m) in the

Dispatch Deviation Guide (DDG), to ensure an acceptable level of safety.

It is the operator’s responsibility to ensure that all the (o) and/or (m) refer to an appropriate operational and/or maintenance procedure, or to a procedure established by the operator and accepted by the National Authority. Then the operator must ensure that these procedures are appropriately applied.

Both (o) and (m) identifiers used singularly or in conjunction with each other, require that appropriate procedures be established, published and complied with if flight is accomplished with the item inoperative.

Task mark (o) in column 5 identifies an operational procedure when operating with the associated

inoperative item. Operational procedures may require crew actions, limitations, performance penalties or crew awareness information to be taken into account.

These procedures are normally carried out by qualified flight or cabin crew, but may be accomplished by other qualified, approved personnel. However the flight crew must always be informed of the applicable operational procedure prior to each flight under associated MMEL item.

When flight situation occurs the operational procedures must always be applied under the associated item (unless its periodicity of application is clearly specified in Column 5)

Maintenance Procedures

Task mark (m) in column 5 identifies a maintenance procedure.These procedures are normally carried

out by maintenance personnel, but some elementary maintenance tasks may be accomplished by crew members or other qualified, approved personnel. Flight crew can accomplish some of these elementary (m) procedures but it remains the responsibility of the operator and under its national authority approval.

However it is recommended that maintenance personnel accomplish procedures that require specialized knowledge, skills, or the use of tools and test equipment. The maintenance procedures must always be performed one time before the flight under the associated item and, if applicable, must be repeated at the interval specified in the Column5

- Different exceptions may be required for dispatch. They will be separated by “- OR -“ and identified by (1), (2), (3) in column 1.

(13)

ATR 72-600 MEL

DATE : SEP 15, 2012 REVISION:0.0 PAGE: 2-01-3 - Different conditions may be required for dispatch. They will be identified by (a), (b), (c), … and separated by an “and”.

Column 6 : MMEL ATA Chapter Column 7 : Reversion

Column 8 : Page Column 9 : Issue Date

References

- Another source of information must be reviewed and associated restrictions, and/or procedures must be applied (e.g. “Refer to AFM…”).

- Another ATA chapter of the MMEL must be reviewed, in order to determine the applicable item. The repair interval category the most restrictive must be applied.

- References are introduced to assist the Operator in complying with MMEL requirements. However, as

indicated in the PREAMBLE, the Operator is still responsible for determining the applicable

interrelationships and associated requirements. 2. DEFINITIONS

- Inoperative: any time a system and/or component malfunctions to the extent that it does not accomplish its intended purpose and/or is not consistently functioning within its designed operating limit(s) or tolerance(s).

- Considered Inoperative: must be treated as “inoperative”. Therefore the “considered inoperative” MMEL item must also be recorded in the Technical log and the associated dispatch exceptions must be applied, in addition to any applicable (o) and (m) procedure. The shorter rectification interval, between the initial inoperative item and the “considered inoperative” item, should be applied. - Day of discovery: The calendar day that the failure has been recorded in the aircraft maintenance record/logbook.

- As required by regulation: The listed item must comply with applicable operational regulation. Operators may refer to the ATC regulation, and/or some local (airport) regulation.

- ETOPS: refers to operation according to ”Extended Range operations of twin engine airplanes” requirements.

Refer to the appropriate customised AFM.

- Extended overwater flight: Refer to Annex 3 of the European Council Regulation n°3922/91, §1.830 - Flight: is defined as the period of time that begins the moment at which an aircraft begins to move by its own means in preparation for take off, continues during take off and the applicable flight phases, and ends when the aircraft lands and comes to a complete stop in its parking area.

- Ferry Flight: non-revenue flight with necessary flight crewmember to conduct a ferry flight. - Calendar days: Some MMEL items are assigned a time interval in “days” in REMARKS OR CONDITIONS column 5. “Days” must be considered as “calendar days”, not including the calendar day that the failure was recorded.

- VMC flight conditions: atmospheric environment allows the flight to proceed under the Visual Meteorological Conditions applicable to the flight.

- Icing conditions: Visible moisture in any form is present, and OAT on ground and for take off is at or below 5° or when TAT in flight is at or below 7° . Refer to the AFM 2-06.

- Cargo configuration: refers to cargo operations when aircraft is operated with an ATR cargo installation. In case of STC (Supplemental Type Certificate) installation, operator shall adapt its MEL with STC supplement.

(14)

ATR 72-600 MEL

DATE : SEP 15, 2012 REVISION:0.0 PAGE: 2-01-4 - Inflammable or Combustible material: material that can catch fire and burn. Where loading of

inflammable or combustible material is prohibited, no material may be loaded except the following: cargo handling equipment, flyaway kits (excluding e.g. cans of hydraulic fluid, cleaning solvents, batteries, chemical generators, etc) and in-flight service material (return catering-only closed catering trolleys/boxes, no newspaper, no alcohol or duty free goods).

CAT 2 Automatic approach: The required equipment are listed in the AFM 7-01.03

-Airplane Flight Manual (AFM) is the document required for type certification and approved by the responsible EASA Aircraft Certification Office. The EASA approved AFM for the specific aircraft is listed on the applicable Type Certificate Data Sheet.

-Deleted in the remarks column after a sequence item indicates that the item was previously listed but is now

required to be operative if installed in the aircraft.

-Flight Day means a 24 hour period (from midnight to midnight) either Universal Coordinated Time (UCT) or

local time, as established by the operator, during which at least one flight is initiated for the affected aircraft.

-Icing Conditions means an atmospheric environment that may cause ice to form on the aircraft or in the

engine(s).

-NOTE provides the useful information for crewmember / dispatcher / maintenance consideration.

Notes are used to identify applicable material which is intended to assist with compliance, but do not

relieve the operator of the responsibility for compliance with all applicable requirements. Notes are not

a part of the provisos.

"OPERATIONS NOTE" provides additional reminder for the crew/dispatcher.

"MAINTENANCE NOTE" provides additional reminder for the maintenance.

-Inoperative components of an inoperative system: Inoperative items which are components of a

system which is inoperative are usually considered components directly associated with and having no

other function than to support that system. (Warning/ caution systems associated with the inoperative

system must be operative unless relief is specifically authorized per the MMEL).

-Deactivated and "Secured" means that the specified component must be put into an acceptable

condition for safe flight. An acceptable method of securing or deactivating will be established by the

operator.

-Considered inoperative means that the item of equipment must be treated as inoperative. For example,

MEL 36-11-03B states that Both Air Conditioning System is considered inoperative and therefore MEL

21-51-01B must be applied. Therefore, the Considered inoperative item must also be entered and the

associated dispatch conditions must be applied, including the respective O and M procedures if any. The

shorter rectification interval between the initial inoperative item and the “considered inoperative”

should be applied.

-Is not used in the provisos, remarks or exceptions for an MEL item may specify that another item

relieved in the MEL “is not used.” In such cases, crewmembers should not activate, actuate, or otherwise

utilize that component or system under normal operations. It is not necessary for the operators to

accomplish the (M) procedures associated with the item. However, operational requirements must be

(15)

ATR 72-600 MEL

complied with, and an additional placard must be affixed, to the extent practical, adjacent to the control

or indicator for the item that is not used to inform crewmembers that a component or system is not to

be used under normal operations.

-Inoperative means a system and/or component malfunction to the extent that it does not accomplish its

intended purpose and/or is not consistently functioning normally within its approved operating limit(s) or

tolerance(s).

-Visual Flight Rules (VFR) is as defined in FAR Part 91. This precludes a pilot from filing an Instrument

Flight Rules (IFR) flight plan.

-Visual Meteorological Conditions (VMC) means the atmospheric environment is such that would allow a

flight to proceed under the visual flight rules applicable to the flight. This does not preclude operating

under Instrument Flight Rules.

-Visible Moisture means an atmospheric environment containing water in any form that can be seen in

natural or artificial light; for example, clouds, fog, rain, sleet, hail, or snow.

-Day of Discovery is the calendar day an equipment/instrument malfunction was recorded in the aircraft

maintenance log and or record. This day is excluded from the calendar days or flight days specified by the

MMEL for the repair of an inoperative item of equipment. This provision is applicable to all MMEL items,

i.e., categories "A, B, C, and D".

-"" Single pointer index symbol in the column 1 indicates when MEL is initiating, FCD must be

informed by maintenance as early as possible but no later than dispatch.

-"" Double pointer index symbol in the column 1 indicates

1. When MEL is initiating, FCD must be informed by maintenance as early as possible

but no later than dispatch

2. Whatever MEL is initiating or existing, station manager or relative station department

must be informed by station maintenance as early as possible but no later than

dispatch.

-Each MEL item may provide more than one set of proviso. If more than one proviso is presented, only

one set of proviso can be chosen to configure the airplane for dispatch.

(16)

ATR 72-600 MEL

3. PREAMBLE

The following is applicable for authorized certificate holders operating under Federal Aviation

Regulations (FAR) Parts 121, 125, 129, 135: The FAR require that all equipment installed on an aircraft in

compliance with the Airworthiness Standard and the Operating Rules must be operative. However, the

Rulers also permit the publication of a Minimum Equipment List (MEL) where compliance with certain

equipment requirements is not necessary in the interests of safety under all operating conditions.

Experience has shown that with the various levels of redundancy designed into aircraft, operation of

every system or installed component may not be necessary when the remaining operative equipment

can provide an acceptable level of safety. A Master Minimum Equipment List (MMEL) is developed by the

EASA, with participation by the aviation industry, to improve aircraft utilization and thereby provide

more convenient and economic air transportation for the public. The EASA approved MMEL includes

those items of equipment related to airworthiness and operating regulations and other items of

equipment which the Administrator finds may be inoperative and yet maintain an acceptable level of

safety by appropriate conditions and limitations; it does not contain obviously required items of

equipment such as wings, flaps, and rudders. The MMEL is the basis for development of individual

operator MELs which take into consideration the operator‘s particular aircraft equipment configuration

and operational conditions. Operator MELs, for administrative control, may include items not contained

in the MMEL; however, relief for administrative control item must be approved by the Administrator. An

operator’s MEL may differ in format from the MMEL, but cannot be less restrictive than the MMEL. The

individual operator‘s MEL, when approved and authorized, permits operation of the aircraft with

inoperative equipment .

Equipment not required by the operation being conducted and equipment in excess of FAR requirements

are included in the MEL with appropriate conditions and limitations. The MEL must not deviate from the

Aircraft Flight Manual Limitations, Emergency Procedures or with Airworthiness Directives. It is important

to remember that all equipment related to the airworthiness and the operating regulations of the aircraft

not listed on the MMEL must be operative.

Suitable conditions and limitations in the form of placards, maintenance procedures, crew operating

procedures and other restrictions as necessary are specified in the MEL to ensure that an acceptable

level of safety is maintained.

The MEL is intended to permit operation with inoperative items of equipment for a period of time until

repairs can be accomplished. It is important that repairs be accomplished at the earliest opportunity. In

order to maintain an acceptable level of safety and reliability the MMEL establishes limitations on the

duration of and conditions for operation with inoperative equipment. The MEL provides for release of the

aircraft for flight with inoperative equipment. When an item of equipment is discovered to be

inoperative, it is report by making an entry in the Aircraft Maintenance Record/Logbook as prescribed by

FAR. The item is then either repaired or may be deferred per the MEL or other approved means

acceptable to the Administrator prior to further operation. MEL conditions and limitations, do not relieve

the operator from determining that the aircraft is in condition for safe operation with items of

(17)

ATR 72-600 MEL

When these requirements are met, an Airworthiness Release, Aircraft Maintenance Record/Logbook

entry, or other approved documentation is issued as prescribed by FAR. Such documentation is required

prior to operation with any item of equipment inoperative.

Operators are responsible for exercising the necessary operational control to ensure that an acceptable

level of safety is maintained. When operating with multiple inoperative items, the interrelationships

between those items and the effect on aircraft operation and crew workload will be considered.

Operators are to establish a controlled and sound repair program including the parts, personnel, facilities,

procedures, and schedules to ensure timely repair.

WHEN USING THE MEL, COMPLIANCE WITH THE STATED INTENT OF THE PREAMBLE, DEFINITIONS, AND

THE CONDITIONS AND LIMITATIONS SPECIFIED IN THE MEL IS REQUIRED.

(18)

ATR 72-600 MEL

DATE: SEP 15,2012 REVISION:00 PAGE:2-21-1





ATR72-600

MINIMUM EQUIPMENT LIST

MEL 21

Rev. 00 2-21-1

2012 SEP 15

ATA CHAPTER 1

ITEM

10-1 Flow selector C 1 0 * Provided one mode (NORM or HIGH) is operative and used

Note: some smoke procedures request to select air flow HIGH. Nevertheless associated procedures efficiency has been demonstrated with air flow NORM

22-1 Recirculation fan C 2 0 * 23-1 Overboard valve C C 1 1 1 0

* (o) Automatic mode may be inoperative provided manual mode is checked operative prior to each departure and flight is conducted in order to maintain ∆ P ≤ 1 PSI

- OR -

May be inoperative provided it is deactivated, and * (m) flight level is limited to FL170

23-2 Underfloor valve C 1 0 * (o) May be inoperative in closed position provided exhaust mode is selected OVBD, and flight level is limited to FL170 23-3 Extract fan C C 1 1 0 1

* (o) May be inoperative provided exhaust mode is selected OVBD, and flight level is limited to FL170

- OR - * High speed may be inoperative

30-1 Pressurization system C 1 0 (o) (m) The pressurization system (automatic and/or manual modes) may be inoperative for a non pressurized flight.

31-1 Automatic pressurization control C 1 0 * (o) May be inoperative, for a pressurized flight, provided: (a) Manual pressurization is operative, and

(b) ALT, RATE and DIFF indications are operative 31-2 DESCENT RATE selector C 1 0 *

31-3 Electropneumatic outflow valve C 1 0 * (m) May be inoperative, provided it is secured in closed position, and flight is conducted with manual pressurization: refer to item 31-1

31-4 CABIN PRESS indications on SD cabin

(1) CAB ALT indication (2) CAB RATE indication (3) ∆P indication C C C 1 1 1 0 0 0

* (o) May be inoperative, provided ∆P indication is operative * (o) May be inoperative

(19)

ATR 72-600 MEL



ATR72-600

MINIMUM EQUIPMENT LIST

MEL 21

Rev. 00 2-21-2

2012 SEP 15 ATA 21 – AIR CONDITIONING (Continued)

ATA CHAPTER 1

ITEM

31-5 Ditch function C 1 0 * May be inoperative.

35-1 DUMP function C 1 0 * (o) May be inoperative provided manual pressurization

is operative

50-1 Pack C 2 1 * (o) One may be inoperative provided:

Flight level is limited to FL 170

51-1 Pack valve C 2 1 * (o) (m) One may be inoperative provided:

(a) It is secured closed, and (b) Associated pack is not used:

refer to item 50-1

51-2 Pack FAULT alert C 2 1 * (o) One may be inoperative provided associated pack

is not used:

51-3 Turbo fan C 2 0 * May be inoperative provided:

(a) Affected pack is not used on ground, and (b) Cruise level is chosen to allow a 150 kt

(20)

ATR 72-600 MEL



ATR72-600

MINIMUM EQUIPMENT LIST

MEL 21

Rev. 00 2-21-3

2012 SEP 15

ATA 21 – AIR CONDITIONING (Continued)

ATA CHAPTER 1

ITEM

4 - NUMBER REQUIRED FOR DISPATCH 5 - REMARKS OR CONDITIONS 61-1 Pack AUTO temperature control C C 2 2 1 1

* (o) One may be inoperative, provided associated pack MAN temperature control is operative

- OR -

* One may be inoperative, provided associated pack is not used: refer item 50-1 61-2 Pack MAN temperature control C C 2 2 1 1

* One may be inoperative, provided associated pack AUTO temperature control is operative

- OR -

* One may be inoperative, provided associated pack is not used:

refer item 50-1

61-3 OVHT alert C 2 1 * (o) One may be inoperative provided associated DUCT indication is operative

63-1 COMPT TEMP INDICATION (1) Flight deck indication (2) Cabin indications C C 1 2 0 0 * May be inoperative.

* One or both may be inoperative.

63-2 DUCT indication C C 2 2 0 0

* May be inoperative provided AUTO temperature control is operative for the associated zones

- OR -

* Provided COMPT indication and MAN temperature control are operative for the associated zones

(21)

ATR 72-600 MEL

DATE:SEP 15,2012 REVISION:00 PAGE: 2-21-1A

Operation Procedures

21

2-21-1A 2 0 1 2 S E P 1 5

23-1 – Overboard valve

OPERATIONAL PROCEDURES

On ground before departure

VISUAL CHECK OF VALVE NORMAL OPERATION:

OVBD VALVE ... FULL CLOSE OVBD VALVE ... FULL OPEN

On ground, engine 1 not running

OVBD VALVE ... FULL OPEN

In flight or on ground engine 1 running

OVBD VALVE ... FULL CLOSE

If EXHAUST MODE illuminates amber and ∆P ≤ 1PSI

OVBD VALVE ... FULL OPEN

CAUTION: Do not select OVBD VALVE OPEN if ∆P > 1 PSI.

∆P ≤ 1PSI will be obtained by flying under FL115 and adjusting Z CAB in MAN PRESS mode in order to keep this ∆P without reaching EXCESS CAB ALT alarm

Note: Avoid leaving avionics vent selected ON for a long period of time with high OAT

23-2 – Underfloor valve / 23-3 – Extract fan

OPERATIONAL PROCEDURES Select exhaust mode OVBD.

Avoid leaving avionics selected ON for a long period of time with high OAT.

30-1 – Pressurization system

OPERATIONAL PROCEDURES Unpressurized flight:

Limitations

Maximum operating altitude: 10, 000 ft

Normal procedures

OVBD VALVE ... FULL OPEN CAB PRESS MODE SEL ...MAN MAN RATE KNOB ... MAX INCREASE BLEED VALVE ... ON Control aircraft vertical speed to take into account passenger comfort.

(22)

ATR 72-600 MEL

Operation Procedures

21

2-21-2A 2 0 1 2 S E P 1 5 ATA 21 – AIR CONDITIONING (Continued)

31–1 – Automatic pressurization control

Set cabin altitude manually according to table below (ΔP = 6 PSI)

31-4 – CABIN PRESS indicator

(1) Check

Δ

P according to table below:

FL 140 170 200 250

TARGET (PSI) 3.5 4.6 5.7 6.35

(2) and (3) Check cabin altitude according to table below (ΔP = 6 PSI):

35-1 – DUMP function

In case rapid depressurization of the aircraft is needed:

MAN RATE KNOB ... MAN CAB PRESS MODE SEL ... MAN MAN RATE KNOB ... MAX INCREASE

Note: Residual

Δ

P may be cancelled using the cockpit communication door

FL 140 170 200 250

TARGET CAB ALT (ft) 0 2000 4000 6750

FL 140 170 200 250

(23)

ATR 72-600 MEL

Operation Procedures

21

2-21-3A 2 0 1 2 S E P 1 5 ATA 21 – AIR CONDITIONING (Continued)

50-1 Pack / 51-1 Pack valve / 51-2 Pack FAULT alert

As an in-flight failure could imply total loss of pressurization, fuel consumption at FL100 must be taken into account to compute the trip fuel.

61-1 – Pack AUTO temperature control

Adjust manually the pack discharge temperature to obtain the same duct indication as the other pack. If pack is not used, an in-flight failure could imply total loss of pressurization, so fuel consumption at FL100 must be taken into account to compute the trip fuel.

61-3 – OVHT alert

(24)

ATR 72 - 600

DATE:SEP 15,2012 REVISION:0.0 PAGE:2-22-1

ATR72-600

MINIMUM EQUIPEMENT LIST

MEL 22

Rev.00 2-22-1

2012 SEP 15

ATA 22 – AUTOMATIC FLIGHT CONTROL SYSTEM (AFCS)

ATA CHAPTER 1

ITEM

16-1 Pitch wheel C 1 0 * May be inoperative provided one TCS is operative 16-2 Touch control steering (TCS) C 2 0 * (o) One or both may be inoperative.

16-3 Coupling function pushbutton C 1 0 * (o) May be inoperative provided the Pilot Flying is on the selected side.

16-4 Autopilot quick disconnect (Quick Release Control) C

B 2 2

1 0

* (m) One may be inoperative provided Pilot Flying side instrument is operative.

- OR -

* One or both may be inoperative provided autopilot is considered inoperative and not used.

Refer to MEL 22 -18-1 18-1 Autopilot function

B A 1 1 0 0

* (o) May be inoperative

Note: Any mode which is operative may be used, refer to appropriate operative mode.

- OR -

* May be inoperative for one calendar day

Note: Flight crewmembers are limited to 2 flight sectors which the total flight time is within 2 flight hours per scheduled flight day

.

18-2 Flight Director function B 1 0 * May be inoperative Refer to MEL22-18-3 18-3 Yaw damper function B

A 1

1 0

0

* May be inoperative provided the RCU is operative. Note: The Autopilot is inoperative,

Refer to MEL22-18-1 - OR -

* (o) May be inoperative provided the operations are limited to not more than two flights.

Note: The Autopilot is inoperative, Refer to MEL22-18-1

Flight guidance control panel

50-1 VS pushbutton (1) (2) C B 1 1 0 0

(o) May be inoperative -OR-

May be inoperative provided FD is considered inoperative. Refer to MEL22-18-2 50-2 ALT pushbutton (1) (2) (3) C C B 1 1 1 0 0 0

* (o) May be inoperative, provided ALT SEL is operative and used.

-OR-

(o) May be inoperative, provided VS mode with a 0 ft/min selection target is used for ALT HOLD.

-OR-

May be inoperative provided FD is considered inoperative. Refer to MEL22-18-2

50-3 ALT SEL Knob B 1 0 * (o) May be inoperative provided ALT pushbutton is operative 50-5 STBY pushbutton C 1 0 * (o) May be inoperative

(25)

ATR 72 - 600

DATE:SEP 15,2012 REVISION:0.0 PAGE:2-22-2

ATR72-600

MINIMUM EQUIPEMENT LIST

MEL 22

Rev.00 2-22-2

2012 SEP 15

ATA 22 – AUTOMATIC FLIGHT CONTROL SYSTEM (AFCS)

ATA CHAPTER 1

ITEM

4 - NUMBER REQUIRED FOR DISPATCH 5 - REMARKS OR CONDITIONS Flight guidance control panel

(cont’d)

50-6 HDG SEL pushbutton (1) (2) C B 1 1 0 0

* (o) May be inoperative -OR-

* May be inoperative provided FD is considered inoperative. Refer to MEL22-18-2

50-7 HDG Knob C 1 0 * May be inoperative

50-8 APP pushbutton C 1 0 * (o) May be inoperative

50-9 NAV pushbutton C 1 0 * May be inoperative provided LNAV or VOR mode is not used. 50-10 BC pushbutton C 1 0 * (o) May be inoperative

50-11 FD pushbutton (1) (2) C B 2 2 0 0

* (o) One or both may be inoperative -OR-

* One or both may be inoperative provided FD function is considered inoperative.

Refer to MEL22-18-2

Index control panel

60-1 SPD TGT Knob C 2 1 * (o) One may be inoperative provided alternate procedures are established and used.

60-2 AUTO/MAN pushbutton (1) (2) C C 2 2 1 0

* (o) One may be inoperative. -OR-

* One or more may be inoperative provided AUTO speed is not used.

(26)

ATR 72-600 MEL

Operation Procedures

22

2-22-1A 2 0 1 2 S E P 1 5

ATA 22 – AUTOMATIC FLIGHT CONTROL SYSTEM

16-2 – Touch control steering (TCS)

Autopilot is disengaged prior to any manual control movement.

16-3 – Coupling function pushbutton

In flight autopilot remains coupled to the side selected before pushbutton failure. For a new dispatch it will be automatically coupled to the LH side after being energized.

18-1 – Autopilot function

CAT 2 operations are not possible. 18-3 – Yaw damper function

(27)

ATR 72-600 MEL

Operation Procedures

22

3-22-2A 2 0 1 2 S E P 1 5

ATA 22 – AUTOMATIC FLIGHT CONTROL SYSTEM

50-1 – VS pushbutton OPERATIONAL PROCEDURES

IAS or basic mode is used for altitude change. AP is disengaged for altitudes change. 50-2 – ALT pushbutton

(1) IAS or VS or basic mode may be used for altitude changes in ALT SEL mode (2) The Altitude can be held using VS mode with 0 ft/min selected target. 50-3 – ALT SEL knob

IAS or VS or basic mode may be used for altitude change with ALT pushbutton selection at requested altitude. 50-5 – STBY pushbutton

Flight crew have to deselect the current selected FD mode. 50-6 – HDG SEL pushbutton

HDG HOLD mode may be used as required. HDG changes must be done manually or with TCS function. 50-8 – APP pushbutton

- Manual precision approaches without FD are possible. - CAT 2 operations are not possible.

- Non precision approaches with AP (RNAV, or LOC or VOR) still available. 50-10 – BC pushbutton

Alternate procedure(s) are established and used by the operator. 50-11 – FD pushbutton

Alternate procedure(s) are established and used by the operator; FD bars can't be removed on affected side. But AP is fully operational with FD bars displayed on both sides.

60-1 – SPD TGT Knob OPERATIONAL PROCEDURES

Manual SPD may be modified by SPD TGT Knob of the non affected side.

Task sharing may be affected. No special procedure if speed AUTO mode is used during all the flight. 60-2 – AUTO/MAN pushbutton

To be defined by the operator: the operator have to establish and use alternate normal, following failure and emergency procedures and/or operating restrictions, taking into account the following:

- Auto or manual SPD mode may be modified by AUTO/MAN pushbutton of the non affected side. - Task sharing may be affected.

(28)

ATR 72 – 600

DATE:SEP 15, 2012 REVISION:0.0 PAGE:2-23-1

ATR72-600

MINIMUM EQUIPMENT LIST

MEL 23 Rev. 00 2-23-1 2012 SEP 15 ATA 23 – COMMUNICATIONS ATA CHAPTER 1 ITEM

12-1 VHF system 2 2 Two are required

31-1 Passenger Address system

A 1 0 * (o) May be inoperative provided:

(a) The interphone shall be operative, and (b) Alternate normal, following failure and

emergency procedures and/or operating restrictions are established and used, and (c) Operations are limited to three calendar daysor

(29)

ATR 72 – 600

ATR72-600

MINIMUM EQUIPMENT LIST

MEL 23

Rev. 00 2-23-2

2012 SEP 15

ATA 23 – COMMUNICATIONS (Continued)

ATA CHAPTER 1

ITEM

4 - NUMBER REQUIRED FOR DISPATCH 5 - REMARKS OR CONDITIONS 44-1 Interphone system

(1) Ground Call Horn (2) Flight deck to Flight deck (3) Flight deck to Cabin /

Cabin to Flight deck

(4) Cabin to Cabin

(5) Flight crew to Ground / Ground to Flight crew

(6) Alerting system

(Visual and Aural)

(7) Handsets (Cabin) C - B C C C C C C 1 1 1 1 1 1 1 2 2 0 1 0 0 0 0 0 1 1

(o) May be inoperative.

* Shall be operative all the time. * (o) May be inoperative, provided:

(a) Passenger Address is operative, and (b) Alternate normal, following failure and

emergency procedures are established and used, and

(c) Flight deck door automatic locking system is verified to operate normally

* (o) May be inoperative, provided:

emergency procedures are established and used * (o) May be inoperative, provided alternate normal,

following failure and emergency procedures are established and used

* Visual signal may be inoperative on the flight deck - OR -

* Both visual and aural signals may be inoperative in the cabin provided Passenger Address is operative from the flight deck

* Handsets at forward stationmay be inoperative - OR -

* (o) One handset may be inoperative provided alternate procedures are established and used to

compensate for the loss of PA and interphone function at the affected station

44-2 Cabin chime system: flight deck to cabin, seat belt and no device signs

C 1 0 (o) May be inoperative provided:

(30)

ATR 72 – 600

ATR72-600

MINIMUM EQUIPMENT LIST

MEL 23

Rev. 00 2-23-3

2012 SEP 15

ATA 23 – COMMUNICATIONS (Continued)

ATA CHAPTER 1

ITEM

50-1 Audio control panel C 3 2 * Provided CAPT and F/O panels are operative except VOICE ONLY key which may be inoperative

50-2 Headset C 2 1 One may be inoperative, provided for each crew

member on flight deck duty, associated boom set (headset function) is operative

50-3 Hand microphone C 2 0 One or more may be inoperative, provided for each crew member on flight deck duty, associated boom set is operative

50-4 Boom set C 3 2 One may be inoperative, provided for each crew member on flight deck duty, associated hand mike and headset are operative

50-5 Cockpit loudspeaker C 2 1 * 51-1 Push-To-Talk (PTT) Switch

on Wheel C 2 0 One or both may be inoperative, provided: (a) INT/RAD switches on ACP are operative, and (b) RAD PTT SW on Nose Wheel Steering

Control Handwheel is operative, and (c) There is no permanent/constant radio

transmission

52-1 Radio Management System C 2 1 One may be inoperative provided: (a) IESI is operative, and (b) VHF 1 is operative, and (c) VOR 1 is operative, and (d) ILS 1 is operative.

70-1 Cockpit video surveillance

system C 1 0 * (o) May be inoperative, provided: (a) alternate procedures are established and used, and,

(b)Interphone system is checked to operate normally

71-1 Cockpit voice recorder A 1 0 * May be inoperative, provided:

(a) Operations are limited to eight further

consecutive flights or 72 hours whichever occurs first, with the cockpit voice recorder

unserviceable, and

(b) Any flight data recorder required to be carried is operative

NOTE:

1. For departure from Japan with CVR inoperative, Station Duty Officer shall contact JCAB to get permission prior to departure.

(31)

ATR 72-600 MEL

DATE:SEP15,2012 REVISION:00 PAGE: 2-23-1A

OPERATIONS PROCEDURES

23

2-23-1A 2012 SEP 15

ATA 23 – COMMUNICATIONS

31-1 – Passenger Address system

Alternate procedure for passenger briefing:

1) The whole of flight the cabin attendant shall make a direct voice communication regarding the necessary safety information with all passengers in each cabin zone. The powered megaphone may be used for making these announcements.

2) When the announcement is required from flight crew, the information shall be informed to attendant via interphone directly then the cabin crew conducts the procedure 1).

3) The flight crew shall be notified when those requirement announcements have been completed.

Emergency procedure:

In an emergency the flight crew shall notify the cabin crew via interphone who shall establish voice contact with each passenger. The powered megaphone may be used for making announcements.

44-1 – Interphone system

OPERATIONAL PROCEDURES Ground Call Horn

Crew may use the external lights to catch the ground crew attention.

Flight deck to Cabin / Cabin to Flight deck /

Cabin-to-flight deck function inoperative: Use cabin-to- flight deck alerting system and/or come into the cockpit to communicate with flight crew.

Flight deck -to-cabin function inoperative:

For the normal condition: use flight deck -to-cabin alerting system and/or the PA system to call cabin attendant “Cabin attendant come into the cockpit”.

For the emergency condition: use the emergency call and/or use the PA system to call cabin attendant “Cabin attendant come into the cockpit immediately” to communicate with cabin crew.

Alerting System

Both visual and aural signals:

Flight crew shall use PA system to call “Cabin attendant use INTERPHONE”.

Cabin to Cabin / Handsets (Cabin)

Cabin attendant assigned to inoperative handset position may use other stations handset or powered

megaphone when PA or Interphone communications are required Flight crew to Ground / Ground to Flight crew

During ground handling operations, use Standard Marshaling Signals listed in FOM.

44-2 – Cabin chime system

(32)

ATR 72-600 MEL

DATE:SEP15,2012 REVISION:00 PAGE: 2-23-2A

OPERATIONS PROCEDURES

23

3-23-2A 2012 SEP 15

ATA 23 – COMMUNICATIONS

70-1 – Cockpit Video Surveillance System

1. When there are at least two flight crew stay in the cockpit.

Anyone who wants to enter the cockpit shall inform position, name and reason first through aircraft interphone system.

The cabin crew will check identity first. After the confirm procedure, cabin crew shall assist them entering the cockpit and notice cockpit crew

Personnel who are expecting to enter the cockpit shall push the “CALL” bottom on the Door call panel, there will be “bi-bi” voice appears in the cockpit lasting at least 2 sec. Captain or the designator shall monitor the outside forward cargo condition through spy hole on the cockpit door and identity of the personnel outside is confirmed then the PIC may release the cockpit electronic lock.

Before leaving the cockpit, personnel shall survey the outside forward cargo condition through the spy hole and confirm that there is no one outside the cockpit door and the forward cargo area. After the confirming procedure, the personnel shall open the door quickly and close the cockpit door immediately.

2. When the flight crew leaves the seat due to the physical needs and there is only one cockpit crew on the seat.

Before leaving the cockpit, cockpit crew shall use aircraft interphone system to ask one SNY crew, one PNC crew or cabin crew (i.e. monitor personnel) to follow the procedure 1 to enter cockpit and monitor the cockpit door until cockpit crew is back to the cockpit.

(33)

ATR 72-600 MEL

DATE :SEP 15,2012 REVISION:00 PAGE:2-24-1



ATR72-600

MINIMUM EQUIPMENT LIST

MEL 24

Rev. 00 2-24-1

2012 SEP 15

ATA 24 – ELECTRICAL POWER

ATA CHAPTER 1

ITEM

4 - NUMBER REQUIRED FOR DISPATCH 5 - REMARKS OR CONDITIONS AC

21-1 Inverter A 2 1 * Inverter #2 only may be inoperative, provided:

(a) For day VMC flight only, and

(b) AP use is prohibited below 1000 ft AGL, and (c) Operations are limited to not more than two

calendar days

(d) TLU manual mode is operative

21-2 INV FAULT alert C 2 0 * (o) May be inoperative provided affected inverter is

checked operative prior to each departure

21-3 AC Bus Tie Contactor B 1 0 * May be inoperative provided DC generation Bus Tie

Contactor is considered inoperative,

21-4 BUS OFF alert C 2 0 *

ACW

22-1 ACW generator channel

(generator + related GCU) B 2 1 * (o) (m) One may be inoperative provided: (a) HYD AUX pump is operative, and

(b) Two engines taxi is performed, and (c) Aircraft is not operated on narrow runways

(width < 30 m (98 ft)), and

(d) Aircraft is not operated into known or forecast icing conditions, and

(e) AFM penalties are applied, and

(f) Ground operations above 8500 ft (when authorized), including taxi, do not exceed 10 minutes

22-2 ACW GEN FAULT alert C 2 1 * One may be inoperative provided ACW BTC

operates normally 22-3 ACW generation Bus Tie

Contactor B 1 0 * (o) May be inoperative in the ISOL position, provided: (a) Both ACW generator channels are operative,

and

(b) HYD X FEED is operative and is selected ON before take off, then OFF during cruise and re- selected ON before landing

(34)

ATR 72-600 MEL

DATE :SEP 15,2012 REVISION:00 PAGE:2-24-2

ATR72-600

MINIMUM EQUIPMENT LIST

MEL 24

Rev. 00 2-24-2

2012 SEP 15

ATA 24 – ELECTRICAL POWER (Continued)

ATA CHAPTER 1

ITEM

4 - NUMBER REQUIRED FOR DISPATCH 5 - REMARKS OR CONDITIONS DC

30-1 DC generator channel

(generator + related GCU) A 2 1 * (o) (m) May be inoperative provided: (a) TRU is checked operative prior to each

departure, and

(b) Two engines taxi is performed, and

(c) Aircraft does not line up until 6 minutes elapsed after operative generator comes on line, and (e) Operations are limited to not more than two

calendar days 30-2 Transformer Rectifier Unit

(TRU) B 1 0 * (o) May be inoperative.

32-1 DC GEN FAULT alert C 2 1 * Provided DC Bus Tie Contactor is operative

32-2 DC generation Bus Tie

Contactor (BTC) B 1 0 * (o) May be inoperative in the ISOL position, provided: (a) Both DC generator channels are operative, and

(b) DC BUS OFF lights are operative, and (c) Both inverters are operative, and

(d) HYD X FEED is operative and is selected ON before take off, then OFF during cruise and re- selected ON before landing

32-3 SVCE & UTLY BUS control

system C 1 0 * May be inoperative in the OFF position

32-4 DC BUS OFF alert C 2 0 *

Miscellaneous 41-1 AC external power connection system C 1 0 * 46-1 DC external power connection system C 1 0 * 69-1 DC AMP indicator

(35)

ATR 72-600 MEL

Operation Procedures

2-24-1A24

2 0 1 2 S E P 1 5

ATA 24 – ELECTRICAL POWER

21-2 – INV FAULT alert

After engines start select BTC ISOL. Check no amber light or flag on instruments come on. 22-1 – ACW generator channel (generator + related GCU)

If accelerate stop has to be performed, EMER BRAKING has to be used.

Refer to AFM Supplement N°01 7_02.01: Dispatch with one ACW generator channel inoperative. 22-3 – ACW generation Bus Tie Contactor

Open hydraulic X FEED before take off Close it after flaps retraction

Open it in approach Close it after landing

Note: Two-engine taxi is recommended.

30-1 – DC generator channel (generator + related GCU)

Check of remaining generator feeder integrity :

6 minutes are necessary to establish the temperature difference between the feeders if one line is broken. So aircraft should not line up until 6 minutes elapsed after operative generator comes on line. Operational test of TRU:

Note: During the test, the ACW electrical network must be available (The AC GPU connected or ACW generators running)

Checking are performed only on Main Electrical Panel (left hand panel) - Switch OFF the pushbutton DC EXTERNAL POWER (if selected ON) - Switch OFF the pushbuttons DC GEN 1 & 2 (if selected ON).

On Main Electrical Panel; check that the following caution lights are switched ON: - BATTERY ARROW S,

- Both BUS OFF, - INVERTER 2 FAULT, - Both DC BUS OFF,

- SHED LEGEND OF DC SVCE/UTLY BUS Check that the following systems are supplied:

- VHF 1,

- FUEL QTY INDICATOR, - FLAPS POSITION INDICATOR

On Main Electrical Panel; press the TRU push-button; then check that: - The TRU push-button is switched ON,

- The TRU ARROW caution light is switched ON,

- The BATTERIES ARROWS caution lights are not illuminated, - The UNDV legend of OVRD/UNDV push-button is not illuminated.

On Main Electrical Panel, check that the BATTERY AMMETER shows zero load either if BAT selector switch is placed in EMER or MAIN position.

Check that the following systems are still supplied: - VHF 1,

- FUEL QTY INDICATOR, - FLAPS POSITION INDICATOR.

On Main Electrical Panel, switch off the TRU push-button; then check that: - The TRU push-button is not illuminated,

- The TRU ARROW caution light is not illuminated, - The BATTERY ARROWS caution lights are switched ON

(36)

ATR 72-600 MEL

Operation Procedures

3-24-2A24

2 0 1 2 S E P 1 5

ATA 24 – ELECTRICAL POWER (Continued)

30-2 – Transformer Rectifier Unit (TRU)

In case of DUAL DC GEN LOSS the following procedure has to be applied:

DC GEN 1 AND 2...OFF THEN ON If no generator recovered

LAND ASAP, flight under IMC must be limited to 30 minutes

BAT SW ... OVRD Note: If after a restart, a DC GEN becomes operative, set BAT SW to ON.

CAPT EHSI ... OFF MAN RATE KNOB ... 9 O'CLOCK CAB PRESS MODE SEL ... MAN ATC (VHF 1 or HF or HF 2) ... NOTIFY MIN CAB LT ... OFF Note: NAV lights switch set to ON is necessary to provide IEP illumination.

STICK PUSHER / SHAKER... OFF STICK PUSHER / SHAKER FAULT procedure ...APPLY SIDE WINDOWS ANTI-ICING ... OFF AVIONICS VENT EXHAUST MODE ... OVBD ADC SW ... SET TO ADC 1 ATC SW ... SET TO ATC 1 TLU... MAN MODE LO SPD

When TLU LO SPD illuminates

TLU ... AUTO

CAUTION: Avoid large rudder input if IAS above 180 kt

MAIN BATTERY CHARGE (on LH maintenance panel) ...CHECK BUS EQUIPMENT LISTS ...CHECK

If STBY UNDV light illuminates

STBY BUS... For approach, OVRD only when necessary Before descent

PAX INSTRUCTIONS ...USE PASSENGER ADDRESS At touch down

IDLE GATE LEVER ... PULL

32-2 – DC generation Bus Tie Contactor

Note: Two-engine taxi is recommended.

CAUTION: While aircraft is on ground, if LH DC generator fails, then automatic pressurization digital controller supplied by DC BUS 1 is lost. Therefore, both outflow valves will close and aircraft will be pressurized. In this case, use manual pressurization to depressurize the aircraft.

(37)

ATR 72 - 600

DATE: SEP 15, 2012 REVISION:0.0 PAGE:2-25-1





ATR72-600

MINIMUM EQUIPMENT LIST

MEL 25 Rev. 00 2-25-1 2012 SEP 15 ATA 25 – EQUIPMENT ATA CHAPTER 1 ITEM

Note: A seat with an inoperative or missing seat belt or harness is considered inoperative. 11-1 Flight Crew Seat

(1) Horizontal adjustment

B 2 2 * Vertical and recline adjustments may be inoperative provided associated seat is secured or locked in a position acceptable to the flight crew member

Note: If an inoperative armrest will hinder an emergency evacuation or any other flight duties, it should be removed.

Must be operative for each flight crew member 11-2 Flight deck Observer Seat D 1 0 * May be inoperative provided the seat is correctly

stowed 12-1 Flight Deck Sun Visors C

C 2

2 0

0

* (m) May be inoperative provided affected sun visor is removed

May be inoperative provided affected sun visor does not obstruct either pilot’s field of view for take-off or landing.

21-1 Required Cabin Attendant

Seat B 2 1 * (o) (m) One seat or seat assembly may be inoperative, provided: (a) Inoperative seat or seat assembly is not

occupied, and

(b) Cabin attendant displaced by inoperative seat occupies the adjacent cabin attendant seat or the passenger seat most suitable to perform assigned duties, and

(c) Passenger Address is operative and used to communicate with displaced cabin attendant, and (d) One cabin attendant occupies a seat with a direct

access to the communication system, and (e) Folding type seat is stowed and secured in the

retracted position, and

(f) Where a passenger seat is assigned to the displaced cabin attendant it is placarded “FOR CABIN ATTENDANT USE ONLY”, and (g) Alternate normal, following failure and

emergency procedures are established / approved and used for displaced cabin attendant

Note: This requirement does not preclude use of passenger seats by cabin attendants carried in excess of the required cabin attendant.

(38)

ATR 72 - 600

















ATR72-600

MINIMUM EQUIPMENT LIST

31-1 Passenger Seats D 70 - * (m) One or more may be inoperative, provided the inoperative seat:

(a) Does not block an emergency exit, and (b) Does not restrict any passenger from access to

the main aircraft aisle, and

(c) Is blocked and placarded “DO NOT OCCUPY” Note: A seat with an inoperative or missing seat belt is

considered inoperative.

Note: Any damage to passenger seats and components must not be detrimental to passenger safety.

Note: The seatback(s) where are located at the aisle cannot be upright position are considered the (b) restriction and the effective area seat(s) shall be BLOCKED.

31-2 Baggage Bar D 35 0 * (o) May be inoperative provided:

a) Baggage is not stowed under seat with inoperative restraining bar,

b) Associated seat is placarded, “DO NOT STOW BAGGAGE UNDER THIS SEAT”, and

c) Procedures are established to alert Cabin Crew of inoperative restraining bar.

32-1 Passenger Seats-Tray table

in unstowed position

32-2 PAX in-arm table

D D 66 4 0 0

* (m) May be inoperative or removed provided: a) The affected tray table does not block an

emergency exit,

b) The affected tray table does not restrict any passenger from access to the main aircraft aisle, and

c) The affected seat (s) are blocked and placarded

“DO NOT OCCUPY

Note: The table(s) where are located at the aisle cannot be in stowed position are considered the (b) restriction and the window seat(s) shall be BLOCKED.

(39)

ATR 72 - 600

















ATR72-600

MINIMUM EQUIPMENT LIST

33-1 Lavatory (Toilet) C 1 0 * (o) (m) May be inoperative provided

a) waste is drained and system inspected for leakage,

b) procedures are establish to deactivate system components, and

c) Lavatory is used only by crewmembers, and d) lavatory door is locked closed and placarded,

“DO NOT OCCUPY

e) each flight shall not be excessed 70 mins flight time.

NOTE: These provisos are not intended to prohibit lavatory inspections by crewmembers.

34-1Exterior Lavatory Door Ashtrays

A 1 0 May be missing.

Repairs are made within 10 calendar days

35-1 Lavatory Attendant Call C 1 0 * (o) (m) May be inoperative

36-1 Lavatory Waste

Receptacle Access Door

C 1 0 * (o) (m) May be inoperative provided:

a) Associated waste container is empty,

b) The lavatory is considered inoperative. Ref MEL 25-33-1

40-1 Flashlights (Torches) C 4 0 * (o) May be inoperative provided each required crew member assigned to affected position has an operative flashlight (torch).

44-1

Passenger Service Unit

(PSU) Except Passenger

Oxygen Mask

C 35 0 * (o) (m) The affected seat(s) may be occupied provided: a) The Crew Cabin Interphone system, Cabin

Chime system and Passenger Address system are operative, and

b) Procedures are established and used to alert flight attendants and notify affected passengers when seat belts should be fastened and devices prohibited to use.

45-1 Portable Protective

Breathing Equipment D 4 3 * (m) Any in excess of that required may be inoperative or missing provided the inoperative PBE is placarded inoperative, removed from the installed location, and placed out of sight so it cannot be mistaken for a functional unit.

The distribution of the operative PBE shall be located with the portable fire extinguisher properly.

(40)

ATR 72 - 600

ATR72-600

MINIMUM EQUIPMENT LIST

4 - NUMBER REQUIRED FOR DISPATCH 5 - REMARKS OR CONDITIONS 60-1 ELT - Emergency Locator

Transmitter

A 2 1 May be inoperative provided: a) system is deactivated, and

b) second required ELT is operative, and c) repairs are made within 6 further flights

or 25 flying hours, whichever occurs first.

62-1 Megaphones 1 1 Must be operative

63-1 Emergency Medical Equipment -First Aid Kits

Contents C C 2 - 1 -

One first aid kit may be incomplete or inoperative provided:

FAK is resealed in a manner that will identify it as a unit that cannot be mistaken for a fully serviceable unit.

NOTE: Refer to Instruction inside the First Aid Kit for required equipment and medicine

Any contents not required by regulations may be incomplete or missing.

NOTE: Refer to Instruction inside the First Aid Kit for

required equipment and medicine.

66-2 Universal Precaution Kit (UPK)

A 1 0 May be incomplete or inoperative provided:

a) UPK is resealed in a manner that will identify it as a unit that can not be mistaken for a fully serviceable unit, and

b) Repairs or replacements are made within three flight cycles.

Note: 1.Flight departs from TSA – Not Authorized. 2.Refer to Instruction inside the UPK for required

equipment and medicine 68-1 PAX Oxy Manual release

(41)

ATR 72-600 MEL

Operation Procedures

2-25-1A25

2 0 1 2 S E P 1 5 ATA 25 – EQUIPEMENT/FURNISHINGS

21-1 – Required Cabin Attendant Seat / 21-2 – Non-Required Cabin Attendant Seat

Alternate procedure:

The flight attendant assigned to the affected seat must occupy a passenger seat as close to as or closer than the nearest seated passenger to the associated exit.

For the forward attendant seat inoperative, the 1C shall be blocked for cabin crew occupied. For the afterward attendant seat inoperative, the 20C shall be blocked for cabin crew occupied. 31-2 Baggage Bar

1) Advise cabin crew to ensure baggage is not stowed under seat with inoperative or missing Restraining Bars.

2) Advise cabin crew to inform passengers occupying seat with affected bar and passenger behind the affected bar not to stow baggage under the seat.

33-1 – Lavatory Toilet /35-1 Lavatory Attendant Call

Cabin Crew should check the lavatory periodically

35-1- Lavatory Attendant Call OPERATIONAL PROCEDURES

provided the cabin crew shall monitor the lavatory periodically while there is passenger occupying. 40-1 –Torches (Flashlights)

Crew should check that equivalent torches are checked readily available before departure.

44-1 – Passenger Service Unit (PSU)

1. Verify that Passenger Address system operates normally as follows:

2. Notification to passengers to fasten seat belts and not to use the electronic devices is given via the PA system.

(42)

ATR 72-600 MEL

DATE:SEP 15,2012 REVISION:00 PAGE:2-26-1



ATR72-600

MINIMUM EQUIPMENT LIST

MEL 26

Rev .00 2-26-1

2012 SEP 15

ATA 26 – FIRE PROTECTION

ATA CHAPTER 1

ITEM

12-1 Fire detection loop C 4 3 * One may be inoperative provided the affected loop is selected OFF

12-2 FUEL SO light (integrated in

CL) C 2 0 *

12-3 ENG 2 NAC OVHT C 1 0 * May be inoperative provided hotel mode operation is limited to a maximum tailwind component of 10 kt.

15-1 Cargo smoke alert

Passenger configuration C 2 0 *

May be inoperative provided no combustible material is carried in the associated compartment

17-1 Lavatory smoke

detection system C 1 0 * (o) May be inoperative provided: (a) Lavatory waste receptacle is empty, and (b) Lavatory door is closed locked and placarded

“INOPERATIVE DO NOT ENTER”

Note: Lavatory may be used and/or inspected only by crew members.

18-1 AFT Cargo Curtain C 1 0 * May be inoperative provided no combustible material is carried in the associated compartment 19-1 AFT Smoke detection fans C

C 2

2 1

0

One may be inoperative provided the remaining fan is checked operative before each departure

- OR - May be inoperative provided:

(a) Lavatory waste receptacle is empty, and (b) Lavatory door is closed locked and placarded

“INOPERATIVE DO NOT ENTER”

(c) No combustible materialis carried in the AFT cargo compartment

Note: Lavatory may be used and/or inspected only by crew members.

20-1 Lavatory Fire Extinguisher System

C 1 0 * (o) (m) For the lavatory fire extinguishing system may be inoperative provided the lavatory smoke detection system is operative.

OR

* (o) (m) For the lavatory fire extinguishing system may be inoperative provided

a) lavatory is not used by passengers for any purpose,

b) lavatory waste receptacle is empty,

c) lavatory door is locked closed and placarded “INOPERATIVE-DO NOT ENTER” ; and d) lavatory is only used by crew members

(43)

ATR 72-600 MEL

DATE:SEP 15,2012 REVISION:00 PAGE:2-26-2

ATR72-600

MINIMUM EQUIPMENT LIST

MEL 26

Rev .00 2-26-2

2012 SEP 15

ATA CHAPTER 1

ITEM

21-1 AGENT DISCH light

(engine) A 4 2 * (m) One or two may be inoperative provided: (a) Affected light(s) are not on the same engine fire

panel, and

(b) Respective extinguisher bottle pressure is checked on the direct reading gauge prior to first flight of each day, and

(c) Operations are limited to not more than two calendar days

30-1 Hand Fire Extinguisher D 4 3 * (m) Any in excess of that required may be inoperative

or missing provided:

(a) Each inoperative fire extinguisher is placarded inoperative, removed from the installed location, and placed out of sight so it cannot be mistaken for a functional unit, and

(b) Required distribution is maintained At least 1 located in the pilot compartment. At least 2 located in the passenger compartment.

(44)

ATR 72-600 MEL

Operation Procedures

2-26-1A26

2 0 1 2 S E P 1 5

17-1 –Toilet smoke detection system OPERATIONAL PROCEDURES

Periodically inspect lavatory at intervals not exceeding 30 minutes 20-1 –Toilet Fire Extinguisher System
