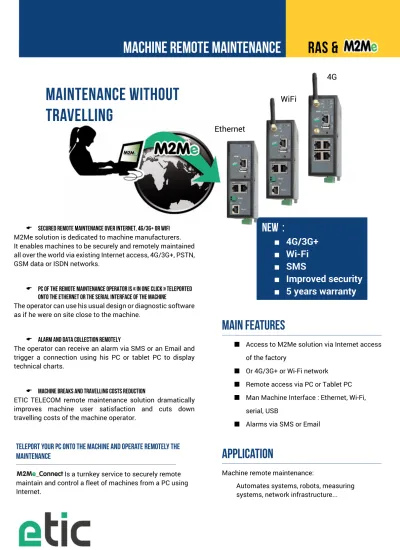

MACHINE REMOTE MAINTENANCE
RAS &
www.etictelecom.com
MAINTENANCE WITHOUT
TRAVELLING
SECURED REMOTE maintenance over internet, 4G/3G+ or WIFI M2Me solution is dedicated to machine manufacturers. It enables machines to be securely and remotely maintained all over the world via existing Internet access, 4G/3G+, PSTN, GSM data or ISDN networks.
NEW :
■ 4G/3G+
■ Wi-Fi
■ SMS
■ Improved security
■ 5 years warranty
PC of the remote maintenance operator is « in one click » teleportedonto the Ethernet or the serial interface of the machine
The operator can use his usual design or diagnostic software as if he were on site close to the machine.
Machine BREAKS and travelling costs reduction
ETIC TELECOM remote maintenance solution dramatically improves machine user satisfaction and cuts down travelling costs of the machine operator.
Alarm and data collection remotely
The operator can receive an alarm via SMS or an Email and trigger a connection using his PC or tablet PC to display technical charts.
Ethernet
WiFi
4G
Teleport your pc onto the machine and operate remotely the
maintenance
_______________________________________________________________________________________________
Is a turnkey service to securely remote maintain and control a fleet of machines from a PC using Internet.
APPLICATION
_______________________________________________________________________________________________
Machine remote maintenance:
Automates systems, robots, measuring systems, network infrastructure...
Main features
_______________________________________________________________________________________________
Access to M2Me solution via Internet access of the factory
Or 4G/3G+ or Wi-Fi network
Remote access via PC or Tablet PC Man Machine Interface : Ethernet, Wi-Fi,
serial, USB
RAS &
Cloud SERVICE M2Me_Connect
SimplE AND SECURED
Alarm and remote control of html screens via a pc or a tablet pc
___________________________________________________________________________________________________________Offer enable also the machine operator To be alerted via Email or SMS,
To use remotely a tablet pc to display screens of the Man Machine Interface.
: Service: secured, simple and validated
___________________________________________________________________________________________________________Secure
Remote users are authentified via a certificate. Remote access to equipment is made through a login password and the knowledge of a private key of the equipment located in the factory.
It is impossible to penetrate remotely the network of the factory (VPN tunnel).
Simple
_Secure software is a directory containing the data required to connect up to any machine: IP address, domain name, PSTN or GSM data number…
Wether you are using the Internet, the PSTN or GSM, one click is enough to teleport and connect the PC onto the machine.
Validated
offer is compatible with major industrial equipment of the market (automation systems, touch screen, digital control, cameras,…) such as SCHNEIDER, SIEMENS, ROCKWELL, MITSUBISHI, ABB, MOELLER, FANUC, B&R, SEW...
RAS range of boxes
Internet, 4G, PSTN
RAS &
Connection via the factory internet access
_______________________________________If the factory inside which the machine is installed can deliver an internet access (Ethernet or Wi-Fi), RAS installation becomes plug and play with M2Me installation Wizard.
No dedicated line with related costs is then requested. RAS has just to be plugged to the Ethernet or Wi-Fi network.
4G/3G+ connection combined with Ethernet wan for extreme
flexibility
___________________________________________________________________________________________________________
Worldwide high speed data with 4G
RAS-EC offers wireless connection to the Internet.
It is equipped with a wireless module offering a worldwide compatibility.
Flexibility
RAS-EC can also be connected to the Internet using the factory network.
Fleet of machine remote management
___________________________________________________________________________________________________________
RAS-E, RAS-EW or RAS-EC can also be used to settle a VPN connection to a VPN server (available in ETIC portfolio) for remote SCADA enabling remote management from a PC or a tablet PC.
Machine interface: Ethernet, Wi-Fi, RS232/ RS485, RS422, USB
___________________________________________________________________________________________________________The machine can be connected to the RAS via the Ethernet/IP interface or using RS232, RS485 or USB link. RAS is also a Wi-Fi access point useful for machines with wireless interface or for local maintenance from a PC (Webcam…).
PSTN, ISDN or GSM data connection
___________________________________________________________________________________________________________
Some specific RAS can also settle a TCP/IP connection without using M2Me Connect. M2Me secure remains available to have the user friendly and secured remote maintenance of the machine.
RAS &
Accessories
ANT305
ANT310
ANT320
Type Panel Mount Roof (3dB gain)
Magnet
Network 2G – 3G – 4G
RF connector SMA male
Cable length - 5m 3m
Dimension H = 82mm Ø = 48mm
Coaxial Cable extension (5m) : CO-LL6-SF-SM-500
ANT217
ANT316 / ANT311
ANT219
Type Panel Mount Roof (3dB gain for -311)
Magnet
Network 2,4 and 5 GHz
2,4 GHz
RF connector RP SMA male
Cable length - 3m/5m 1m
Dimension H = 90mm H = 82mm Ø = 48mm
-
Coaxial Cable extension (5m) : CO-LL6-RSF-RSM-500
Antennas and coaxial cable for cellular network: RAS-EC or RAS-ECW
RAS- E-100 E-400 E-220 EW-400 EW-220 EC-400 EC-220 ECW-400 ECW-220 M156e I1128e G12e
Network
Remote WAN access Factory Internet (RJ45)
Additional Remote WAN access CELLULAR PSTN ISDN GSM
Wi-Fi Wi-Fi
M2Me_Connect
Ethernet, serial, Wi-Fi Interface
Ethernet 10/100 MDIX LAN+WAN 1+1 4+1 2+1 4+1 2+1 4+1 2+1 4+1 2+1
Ethernet 10 Mb/s 1 1 1
RS232 link 1 1 1 1
RS485 link 1 1 1 1
RS232 & RS485 link
USB link (PLC connection) 1 1 1 1 1 1 1 1
Serial RAW TCP & Telnet gateway Serial Modbus Master & Slave gateway Wi-Fi client 2.4 and 5.5 GHz (abgn) Wi-Fi access point 2.4 and 5.5 GHz (abgn)
Security
Access Control with login & Password Security call back
User profile 25 25 25 25 25 25 25 25 25 25 25 25
Firewall & filtering of user
Configuration and diagnostic
HTML – HTTPS configuration Dated records of the connections
Alarms
Digital input for Email alarming (with
Pack_Alert) 1 1 1 1 1 1 1 1 1 1 1 1
Digital input for SMS or Email alarming
Technical Characteristics
RAS &
Fabriqué en France par ETIC TELECOM
Characteristics of the machine access box ras
Dimensions • RAS-E or RAS-EC or RAS-ECW : 135 x 47 x 115 mm (h, l, p) • RAS-M or RAS-I or RAS-G12: 130 x 38 x 110 mm (h, l, p) Power • 12 or 24 VDC (9 VDC min et 40 VDC max)
Consumption • RAS-E or RAS-M or RAS-I : 200 mA / 24 VDC
• RAS-EC or RAS-ECW or RAS-G12e : 300 mA / 24 VDC Critical material • In line with directive 2002/95/CE (RoHS)
Security • EN 60950 & UL1950
Temperature • -20°C /+ 60°C - Humidity 5 à 95 % Ethernet «Factory Network» • DHCP client or Fixed IP
4G/3G+ Network • 4G LTE Europe/Asia (US & China on demand)
• 3G HSPA «World Wide» 850/900/1900/2100 MHz
• GPRS-EDGE 850/900/1700 AWS/1800/1900 MHz
• Data Rate max 4G LTE: UL 50 Mb/s et DL 100 Mb/s) • Data Rate max HSPA: UL 5,7 Mb/s et DL 21 Mb/s • Data Rate max GPRS-EDGE: UL 237 kb/s et DL 237 kb/s • Antenna connector SMA Male type
• Minimum level for reception CSQ >= 12 or SNR >= -90 dBm (2 flashes) Wi-Fi Network • 2,4 GHz and 5,5 GHz
• 802.11 a/b/g/h & super AG
• SMA Reverse Connector female (or jack) PSTN Network • PSTN modem V90 in line with CE and UL
• Operational World Wide ISDN Network • Interface S0 ETSI (Euro-ISDN)
• 64 Kb/s
GSM data • Circuit Switched Data (CSD) • Data Rate : 9600 b/s
Secured M2Me connection • VPN client OpenVPN UDP or TCP • Authentication with X509 certificate
• Identification via login & password of the remote user RS232-RS485 • 9600 up to 115200 b/s 10 or 11 bits
• Gateway Raw TCP client & server or UDP • Telnet
• ModBus master or Slave
• Unitelway for automation (master)
SOFTWARE Characteristics M2Me_Secure
Operating System • Windows 8, Seven 32 bits and 64 bits VISTA, XP Secured M2Me Connection • VPN client OpenVPN UDP or TCP
• Port Number: 80, 443, 1194, 5000, 50000 à 51000 Authentication • X509 Certificate followed by Login and password
Encryption • AES - 3DES Proxy Authentication • HTTP & SOCKS
Functions • Direct secured connection over Internet to an OpenVPN server • Connection via M2Me_Connect service
• Connection via PSTN or ISDN • Remote Machine Site directory • Back up directory
