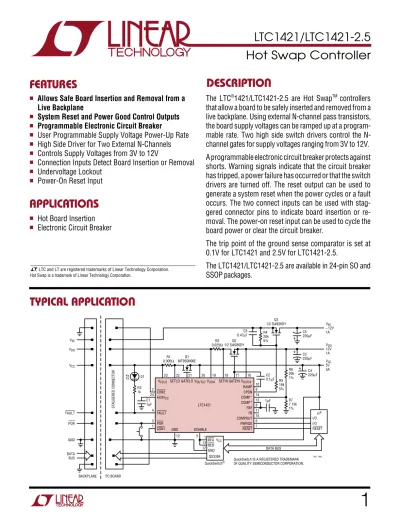

Hot Swap Controller
FEATURES
■ Allows Safe Board Insertion and Removal from a
Live Backplane
■ System Reset and Power Good Control Outputs ■ Programmable Electronic Circuit Breaker
■ User Programmable Supply Voltage Power-Up Rate
■ High Side Driver for Two External N-Channels
■ Controls Supply Voltages from 3V to 12V
■ Connection Inputs Detect Board Insertion or Removal
■ Undervoltage Lockout
■ Power-On Reset Input
DESCRIPTIO
N
U
■ Hot Board Insertion
■ Electronic Circuit Breaker
APPLICATIO
N
U
S
The LTC®
1421/LTC1421-2.5 are Hot SwapTM
controllers that allow a board to be safely inserted and removed from a live backplane. Using external N-channel pass transistors, the board supply voltages can be ramped up at a program-mable rate. Two high side switch drivers control the N-channel gates for supply voltages ranging from 3V to 12V. A programmable electronic circuit breaker protects against shorts. Warning signals indicate that the circuit breaker has tripped, a power failure has occurred or that the switch drivers are turned off. The reset output can be used to generate a system reset when the power cycles or a fault occurs. The two connect inputs can be used with stag-gered connector pins to indicate board insertion or re-moval. The power-on reset input can be used to cycle the board power or clear the circuit breaker.
The trip point of the ground sense comparator is set at 0.1V for LTC1421 and 2.5V for LTC1421-2.5.
The LTC1421/LTC1421-2.5 are available in 24-pin SO and SSOP packages.
TYPICAL APPLICATIO
N
U
10 9 14 13 8 11 15 6 7 RAMP CPON COMP– COMP+ REF FB COMPOUT PWRGD RESET 2 24 4 3 1 CON2 AUXVCC FAULT POR CON1VCCLO SETLO GATELO VOUTLO
LTC1421
GND DISABLE
VCCHI SETHI GATEHI VOUTHI
16 C2 0.1µF C1 1µF R5 16k 5% Q1 MTB50N06E R1 0.005Ω 17 18 19 20 21 22 5 12 23 R3 1k STAGGERED CONNECTOR D1 R6 20k 1% C3 220µF R4 20k 5% R7 7.15k 1% Q2 1/2 Si4936DY Q3 1/2 Si4936DY C3 0.47µF R2 0.025Ω + C5 220µF VEE – 12V 1A VDD 12V 1A VCC 5V 5A + C4 220µF + I/O I/O RESET BEA BEB GND 1 13 12 µP QS3384
QuickSwitch® QuickSwitch IS A REGISTERED TRADEMARKOF QUALITY SEMICONDUCTOR CORPORATION.
1421 TA01 DATA BUS PC BOARD BACKPLANE DATA BUS GND POR FAULT VCC VDD VEE VCC 1µF
, LTC and LT are registered trademarks of Linear Technology Corporation. Hot Swap is a trademark of Linear Technology Corporation.
2
ABSOLUTE
M
AXI
W
M
U
W
M
RATINGS
W
U
PACKAGE/ORDER I FOR ATIO
U
W
U
Consult factory for Industrial and Military grade parts.
(Note 1)
Supply Voltage (VCCLO,VCCHI, AUXVCC) ... 13.2V Input Voltage (Analog Pins) ... – 0.3V to (VCCHI + 0.3V) Input Voltage (Digital Pins) ... – 0.3V to 13.2V Output Voltage (Digital Pins) .. – 0.3V to (VCCLO + 0.3V) Output Voltage (CPON) ... – 13.2V to (VCCLO + 0.3V) Output Voltage (VOUTLO, VOUTHI) ... – 0.3V to 13.2V Output Voltage (GATELO, GATEHI) ... – 0.3V to 20V Operating Temperature Range ... 0°C to 70°C Storage Temperature Range ... – 65°C to 150°C Lead Temperature (Soldering, 10 sec)... 300°C
ORDER PART NUMBER TJMAX = 125°C, θJA = 100°C/W (G) TJMAX = 125°C, θJA = 85°C/W (SW) 1 2 3 4 5 6 7 8 9 10 11 12 TOP VIEW SW PACKAGE 24-LEAD PLASTIC SO G PACKAGE 24-LEAD PLASTIC SSOP
24 23 22 21 20 19 18 17 16 15 14 13 CON1 CON2 POR FAULT DISABLE PWRGD RESET REF CPON RAMP FB GND AUXVCC VCCLO SETLO GATELO VOUTLO VCCHI SETHI GATEHI VOUTHI COMPOUT COMP– COMP+
ELECTRICAL CHARACTERISTICS
VCCHI = 12V, VCCLO = 5V, TA = 25°C unless otherwise noted (Note 2).SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
DC Characteristics
ICCLO VCCLO Supply Current CON1 = CON2 = GND, POR = VCCLO ● 1.5 3 mA
ICCHI VCCHI Supply Current CON1 = CON2 = GND, POR = VCCLO ● 0.6 1 mA
VLKO Undervoltage Lockout VCCLO and VCCHI 2.28 2.45 2.60 V
VLKH Undervoltage Lockout Hysteresis VCCLO and VCCHI 100 mV
VREF Reference Output Voltage No Load ● 1.220 1.232 1.244 V
∆VLNR Reference Line Regulation 3V ≤ VCCLO ≤ 12V, No Load ● 4 8 mV
∆VLDR Reference Load Regulation IO = 0mA to – 5mA, Sourcing Only ● 1 3 mV
IRSC Reference Short-Circuit Current VREF = 0V – 45 mA
VCOF Comparator Offset Voltage 0V ≤ VCM ≤ (VCCLO − 1.3V) ● ±10 mV
VCPSR Comparator Power Supply Rejection 0V ≤ VCM ≤ (VCCLO − 1.3V), 3V ≤ VCCLO ≤ 12V ● 1 mV/V
VCHST Comparator Hysteresis 0V ≤ VCM ≤ (VCCLO − 1.3V) 7 mV
VRST Reset Voltage Threshold (VOUTLO) FB = VOUTLO ● 2.80 2.90 3.00 V
FB = Floating ● 4.50 4.65 4.75 V
FB = GND ● 5.75 5.88 6.01 V
VRHST Reset Threshold Hysteresis (VOUTLO) FB = VOUTLO 7 mV
FB = Floating 12 mV
FB = GND 15 mV
RFB FB Pin Input Resistance 0V ≤ VFB ≤ VCCLO 95 kΩ
VCB Circuit Breaker Trip Voltage VCB = (VCCLO – VSETLO) or VCB = (VCCHI – VSETHI) ● 40 50 60 mV
VTRIP Output Voltage for Re-Power-Up LTC1421 (Note 3) 0.1 V
LTC1421-2.5 (Note 4) 2.5 V
LTC1421CG LTC1421CSW LTC1421-2.5CG LTC1421-2.5CSW
3
ELECTRICAL CHARACTERISTICS
VCCHI = 12V, VCCLO = 5V, TA = 25°C unless otherwise noted (Note 2).Note 3: After power-on reset, the VOUTLO and VOUTHI have to drop below the
VTRIP point before the charge pump is restarted.
Note 4: After power-on reset, the VOUTLO has to drop below the VTRIP point
before the charge pump is restarted.
SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IRAMP RAMP Pin Output Current Charge Pump On, VRAMP = 0.4V ● 11 17 23 µA
ICP Charge Pump Output Current Charge Pump On, GATEHI = 0V – 600 µA
GATELO = 0V – 300 µA
∆VGATEHI GATEHI N-Channel Gate Drive VGATEHI − VOUTHI 6 16 V
∆VGATELO GATELO N-Channel Gate Drive VGATELO − VOUTLO 10 16 V
VAUXVCC Auxiliary VCC Output Voltage VCCLO = 5V, Unloaded 4.5 V
VIL Input Low Voltage CON1, CON2, POR ● 0.8 V
VIH Input High Voltage CON1, CON2, POR ● 2 V
IIN Input Current CON1, CON2, POR = GND ● – 30 – 60 – 90 µA
VOL Output Low Voltage RESET, COMPOUT, PWRGD, DISABLE, FAULT, ● 0.4 V
IO = 3mA
CPON, IO = 3mA ● 1.45 V
VOH Output High Voltage DISABLE, IO = – 3mA ● 4 V
CPON, IO = – 1mA ● 3.4 V
IPU Logic Output Pull-Up Current RESET, PWRGD, FAULT = GND – 15 µA
AC CHARACTERISTICS
t1 CON1 or CON2↓ to CPON↑ Figure 1, CL = 15pF ● 15 20 30 ms
t2 PWRGD↑ to RESET↑ Figure 1, RL = 10k to VCCLO, CL = 15pF 160 200 240 ms
● 140 200 280 ms
t3 PWRGD↑ to DISABLE↓ Figure 1, CL = 15pF 160 200 240 ms
● 140 200 280 ms
t4 POR↓ to CPON↓ Figure 1, CL = 15pF ● 15 20 30 ms
t5 PWRGD↓ to RESET↓ Figure 1, RL = 10k to VCCLO, CL = 15pF 32 µs
t6 POR↑ to CPON↑ Figure 1, CL = 15pF 50 ns
t7 CON1 or CON2↑ to CPON↓ Figure 1, CL = 15pF 50 ns
t9 Short-Circuit Detectto FAULT↓ Figure 1, RL = 10k to VCCLO, CL = 15pF 20 µs
VCCLO – SETLO = 0mV to 100mV
t10 Short-Circuit Detectto CPON↓ Figure 2, CL = 15pF 20 µs
VCCLO – SETLO = 0mV to 100mV
t11 POR↑ to FAULT↑ Figure 2, RL = 10k to VCCLO, CL = 15pF 20 ns
tCHL Comparator High to Low COMP– = 1.232V, 10mV Overdrive ● 0.25 0.5 µs
RL = 10k to VCCLO, CL = 15pF
tCLH Comparator Low to High COMP– = 1.232V, 10mV Overdrive ● 1 1.5 µs
RL = 10k to VCCLO, CL = 15pF
The ● denotes specifications which apply over the full operating temperature range.
Note 1: Absolute Maximum Ratings are those values beyond which the life of a device may be impaired.
Note 2: All currents into device pins are positive; all currents out of device pins are negative. All voltages are reference to ground unless otherwise specified.
4
TYPICAL PERFOR
M
A
W
N
CE CHARACTERISTICS
U
TEMPERATURE (°C) – 50 1.232 1.234 1.238 25 75 1421 G01 1.230 1.228 – 25 0 50 100 125 1.226 1.224 1.236 REFERENCE VOLTAGE (V) VCCLO = 5V VCCHI = 12V Reference Voltage vs Temperature
SOURCE CURRENT (mA) 0 REFERENCE VOLTAGE (V) 1.235 1.240 1.245 8 1421 G03 1.230 1.225 1.220 2 4 6 10 VCCLO = 5V VCCHI = 12V Reference Voltage vs Source Current Gate Voltage vs Temperature
TEMPERATURE (°C) – 50 21 22 24 25 75 1421 G02 20 19 – 25 0 50 100 125 18 17 23 GATE VOLTAGE (V) VCCLO = 5V VCCHI = 12V GATEHI GATELO
GATELO Voltage vs VCCLO Voltage
VCCLO VOLTAGE (V) 0 20 22 26 6 10 1421 G04 18 16 2 4 8 12 14 14 12 24 GATELO VOLTAGE (V) VCCHI = 12V
GATEHI Voltage vs VCCHI Voltage
VCCHI VOLTAGE (V) 0 20 22 26 6 10 1421 G05 18 16 2 4 8 12 14 14 12 24 GATEHI VOLTAGE (V) VCCLO = 5V
ICCLO Supply Current vs Temperature TEMPERATURE (°C) – 50 1400 25 75 1421 G06 1300 – 25 0 50 100 125 1200 1500 ICCLO SUPPLY CURRENT ( µ A) VCCLO = 5V VCCHI = 12V VOL vs ISINK
CPON Voltage vs Sink Current (Charge Pump Off)
ICCHI Supply Current vs Temperature TEMPERATURE (°C) – 50 540 25 75 1421 G07 530 – 25 0 50 100 125 520 550 545 535 525 555 ICCHI SUPPLY CURRENT ( µ A) VCCLO = 5V VCCHI = 12V
SINK CURRENT (mA) 0 0 VOLTAGE (mV) 100 200 300 400 500 FAULT 600 2 4 6 8 1421 G08 10 VCCLO = 5V VCCHI = 12V COMPOUT PWRGD RESET
SINK CURRENT (mA) 0 0 CPON VOLTAGE (V) 0.5 1.0 1.5 2.0 2.5 0.5 1.0 1.5 2.0 1421 G09 2.5 3.0 VCCLO = 5V VCCHI = 12V
5
TYPICAL PERFOR
M
A
W
N
CE CHARACTERISTICS
U
CPON Voltage vs Source Current (Charge Pump On)
SOURCE CURRENT (mA) 0 0 CPON VOLTAGE (V) 1 2 3 4 5 – 0.5 – 1.0 – 1.5 – 2.0 1421 G10 – 2.5 – 3.0 VCCLO = 5V VCCHI = 12V
ICCLO Supply Current vs VCCLO Voltage VCCLO VOLTAGE (V) 0 4 5 7 6 10 1421 G11 3 2 2 4 8 12 14 1 0 6 ICCLO
SUPPLY CURRENT (mA)
VCCHI = 12V
PI
N
U
FU
N
CTIO
U
N
S
U
CON1 (Pin 1): TTL Level Input with a Pull-Up to VCCLO. Together with CON2, it is used to indicate board connec-tion. The pin must be tied to ground on the host side of the connector. When using staggered connector pins, CON1 and CON2 must be the shortest and must be placed at opposite corners of the connector. Board insertion is assumed after CON1 and CON2 are both held low for 20ms after power-up.
CON2 (Pin 2): TTL Level Input with a Pull-Up to VCCLO. Together with CON1 it is used to indicate board connec-tion.
POR (Pin 3): TTL Level Input with a Pull-Up to VCCLO. When the pin is pulled low for at least 20ms, a hard reset is generated. Both VOUTLO and VOUTHI will turn off at a controlled rate. A power-up sequence will not start until the POR pin is pulled high. If POR is pulled high before
VOUTLO and VOUTHI are fully discharged, a power-up
sequence will not begin until the voltage at VOUTLO and
VOUTHI are below VTRIP. The electronic circuit breaker will
be reset by pulling POR low.
FAULT (Pin 4): Open Drain Output to GND with a Weak
Pull-Up to VCCLO. The pin is pulled low when an
overcur-rent fault is detected at VOUTLO or VOUTHI.
DISABLE (Pin 5): CMOS Output. The signal is used to
disable the board’s data bus during insertion or removal.
PWRGD (Pin 6): Open Drain Output to GND with a Weak
Pull-Up to VCCLO. The pin is pulled low immediately after
VOUTLO falls below its reset threshold voltage. The pin is
pulled high immediately after VOUTLO rises above its reset threshold voltage.
RESET (Pin 7): Open Drain Output to GND with a Weak
Pull-Up to VCCLO. The pin is pulled low when a reset
condition is detected. A reset will be generated when any of the following conditions are met: Either CON1 or CON2 is high, POR is pulled low, VCCLO or VCCHI are below their respective undervoltage lockout thresholds, PWRGD goes
low or an overcurrent fault is detected at VOUTLO or
VOUTHI. RESET will go high 200ms after PWRGD goes
high. On power failure, RESET will go low 32µs after
PWRGD goes low.
REF (Pin 8): The Reference Voltage Output. VOUT = 1.232V
±1%. The reference can source up to 5mA of current. A
1µF bypass capacitor is recommended.
CPON (Pin 9): CMOS Output That Can Be Pulled Below
Ground. CPON is pulled high when the internal charge pumps for GATELO and GATEHI are turned on. CPON is pulled low when the charge pumps are turned off. The pin can be used to control an external MOSFET for a – 5V to – 12V supply.
6
PI
N
U
FU
N
CTIO
U
N
S
U
RAMP (Pin 10): Analog Power-Up Ramp Control Pin. By
connecting an external capacitor between the RAMP and GATEHI, a positive linear voltage ramp on GATEHI and GATELO is generated on power-up with a slope equal to
20µA/CRAMP.
FB (Pin 11): Analog Feedback Input. FB is used to set the
reset threshold voltage on VCCLO. For a 5V supply leave FB floating. For a 3.3V supply, short FB to VCCLO.
GND (Pin 12): Ground
COMP + (Pin 13): Noninverting Comparator Input. COMP– (Pin 14): Inverting Comparator Input. COMPOUT (Pin 15): Open Drain Comparator Output.
VOUTHI (Pin 16): High Supply Voltage Output. This must be
the higher of the two supply voltage outputs.
GATEHI (Pin 17): The High Side Gate Drive for the High
Supply N-Channel. An internal charge pump guarantees at least 6V of gate drive. The slope of the voltage rise at GATEHI is set by the external capacitor connected between GATEHI and RAMP. When the circuit breaker trips, GATEHI is immediately pulled to GND.
SETHI (Pin 18): The Circuit Breaker Set Pin for the High
Supply. With a sense resistor placed in the supply path between VCCHI and SETHI, the circuit breaker will trip when the voltage across the resistor exceeds 50mV for more than 20µs. To disable the circuit breaker, VCCHI and SETHI should be shorted together.
VCCHI (Pin 19): The Positive Supply Input. This must be the
higher of the two input supply voltages. An undervoltage lockout circuit disables the chip until the voltage at VCCHI is greater than 2.45V.
VOUTLO (Pin 20): Low Supply Voltage Output. This must be
the lower of the two supply voltage outputs.
GATELO (Pin 21): The High Side Gate Drive for the Low
Supply N-Channel Pass Transistor. An internal charge pump guarantees at least 10V of gate drive. The slope of the voltage rise at GATELO is set by the external capacitor connected between GATEHI and RAMP. When the circuit breaker trips GATELO is immediately pulled to GND.
SETLO (Pin 22): The Circuit Breaker Set Pin for the Low
Supply. With a sense resistor placed in the supply path
between VCCLO and SETLO, the circuit breaker will trip
when the voltage across the resistor exceeds 50mV for more than 20µs. To disable the circuit breaker, VCCLO and SETLO should be shorted together.
VCCLO (Pin 23): The Positive Supply Input. VCCLO must be
equal to or lower voltage than VCCHI. An undervoltage
lockout circuit disables the chip until the voltage at VCCLO is greater than 2.45V.
AUXVCC (Pin 24): The supply input for the GATELO and
GATEHI discharge circuitry. Connect a 1µF capacitor to
ground. AUXVCC is powered from VCCLO via an internal
7
BLOCK DIAGRA
M
W
Figure 1. Nominal Operation Switching Waveforms Figure 2. Fault Detection Switching
CPON CON1 t1 CON2 RESET DISABLE POR 1421 F01 PWRGD t2 t3 t4 t6 t5 t7 CPON VCCLO – SETLO t9 FAULT RESET POR 1421 F02 PWRGD t2 t5 t11 t6 t10
SWITCHI G TI E WAVEFOR S
U
W
W
– + + – + + – VTRIP + – + – 50mV 50mV CPON AUXVCC VCCHI SETLO CP1 CP2VCCLO SETHI GATELO RAMP GATEHI VOUTHI VOUTLO 19 22 23 18 21 10 17 16 20 VCC FAULT CON1 CON2 POR DISABLE 9 24 4 1 2 3 5 20µA VCC CP3 CP4 CP5 73.5k N1 N2 AUXVCC FB REF 11 8 PWRGD 6 RESET 7 COMPOUT 15 COMP– 14 COMP+ 13 1421 BD 71.5k 26.7k 20µA 20µA 1.232V REFERENCE CHARGE PUMP UNDERVOLTAGE LOCKOUT RESET TIMING VCC VCC VCC – + GND DIGITAL CONTROL 12
8
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
Hot Circuit Insertion
When circuit boards are inserted into a live backplane, the supply bypass capacitors on the board can draw huge transient currents from the backplane power bus as they charge up. The transient currents can cause permanent damage to the connector pins and cause glitches on the system supply, causing other boards in the system to reset. At the same time, the system data bus can be disrupted when the board’s data pins make or break connection.
The LTC1421 is designed to turn a board’s supply voltages on and off in a controlled manner, allowing the board to be safely inserted or removed from a live backplane. The chip also provides a disable signal for the board’s data bus buffer during insertion or removal and provides all the necessary supply supervisory functions for the board.
Power Supply Ramping
The power supplies on a board are controlled by placing external N-channel pass transistors in the power path (Figure 3). R1 and R2 provide current fault detection. By ramping the gate of the pass transistor up at a controlled rate, the transient surge current (I = C • dV/dt) drawn from the main backplane supply can be limited to a safe value when the board makes connection.
Figure 3: Supply Control Circuitry
23 1 10 5V 12V 2 R1 Q1 22 21 20 19 18 17 16 + R2 Q2 C3 + C4
VCCLO SETLO GATELO VOUTLO
LTC1421
1421 F03
VCCHI SETHI GATEHI VOUTHI
RAMP CON1 CON2 CRAMP VOUTHI VOUTLO
When power is first applied to the chip, the gates of both N-channels, GATELO and GATEHI are pulled low. After the connection sense pins, CON1 and CON2 are both held low
for at least 20ms, a 20µA reference current is connected
from the RAMP pin to GND. The voltage at GATEHI begins to rise with a slope equal to 20µA/CRAMP (Figure 4), where
CRAMP is an external capacitor connected between the
Figure 4. Supplies Turning On
12V 5V 1421 F4a t1 t2 VOUTHI VOUTLO
SLOPE = 20µA/CRAMP
–12V –12V ~1ms 0V –12V 5V CPON 9 B R5 16k 5% B VEE 0V ~1ms 1421 F05 R4 20k 5% C2 0.047µF C5 220µF VEE –12V 1A Q3 1/2 MMDF3N0HD –12V FROM CONNECTOR + CPON LTC1421
Figure 5. Negative Supply Control
RAMP and GATEHI pins. The voltage at the GATELO pin is clamped one Schottky diode drop below GATEHI.
The ramp time for each supply is equal to: t = (VCC)
(CRAMP)/20µA. During power down the gates are actively
pulled down by two internal NFETs.
A negative supply voltage can be controlled using the CPON pin as shown in Figure 5.
When the board makes connection, the transistor Q3 is turned off because it’s gate is pulled low to –12V by R4. CPON is also pulled to –12V. When the charge pump is turned on, CPON is pulled to VCCLO and the gate of Q3 will ramp up with a time constant determined by R4, R5 and C2. When the charge pump is turned off, CPON goes into a high impedance state, the gate of Q3 is discharged to VEE with a time constant determined by R4 and C2, and Q3 turns off.
9
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
PWRGD and RESET
The LTC1421 uses a 1.232V bandgap reference, internal resistive divider and a precision voltage comparator to monitor VOUTLO (Figure 6).
The reset threshold voltage for VOUTLO is determined by
the FB pin connection as summarized in Table 1.
When VOUTLO drops below its reset threshold, the
com-parator output goes high, and PWRGD is immediately
pulled low (time point 2). After a 32µs delay, RESET is
pulled low. The RESET delay allows the PWRGD signal to be used as an early warning that a reset is about to occur. If the PWRGD signal is used as a interrupt input to a microprocessor, a short power-down routine can be run before the reset occurs.
If VOUTLO rises above the reset threshold for less than
200ms, the PWRGD output will trip, but the RESET output is not affected (time point 3). If VOUTLO drops below the reset threshold for less than 32µs, the PWRGD output will trip, but again the RESET output will not be affected (time point 5).
Voltage Comparator
The uncommitted voltage comparator (COMP2) can be
used to monitor output voltages other than VOUTLO. Figure
8a shows how the comparator can be used to monitor a 12V supply (VOUTHI), while the 5V supply (VOUTLO) gener-ates a reset when it dips below 4.65V. When the 12V supply drops below 10.8V, COMPOUT will pull low. The FB pin is left floating.
Figure 8b shows how the comparator can be used to
monitor the 5V supply (VOUTHI) while the 3.3V supply
(VOUTLO) generates a reset when it dips below 2.9V. When
the 5V supply drops below 4.65V, COMPOUT will pull low. The FB pin is tied to VOUTLO.
Figure 6. Supply Monitor Block Diagram – + VCCLO VCCLO VOUTLO FB 1421 F06 1.232V 20µA 20µA 26.7k PWRGD RESET COMP1 RESET TIMING REF 73.5k 71.5k VOUTLO PWRGD RESET 64µs V2 V1 V2 V1 V2 V2 V1 1 2 3 4 5 200ms < 200ms 200ms 1421 F07 < 64µs Table 1
FEEDBACK PIN VOUTLO RESET VOLTAGE
Floating 4.65V
VOUTLO 2.90V
GND 5.88V
When the VOUTLO voltage rises above its reset threshold
voltage, the comparator output goes low, and PWRGD is
immediately pulled high to VCCLO by a weak pull-up
current source or external resistor (Figure 7, time points 1 and 4). After a 200ms delay, RESET is pulled high. The
weak pull-up current source to VCCLO on PWRGD and
RESET have a series diode so the pins can be pulled above
VCCLO by an external pull-up resistor without forcing
current back into VCCLO.
Figure 7. Power Monitor Waveforms Figure 8a. Monitor 12V, Reset 5V at 4.65V 1421 F08a 10k 5% 107k 1% 13.7k 1% 5V 12V – + – + VCCLO VCCLO 1.232V LTC1421 20µA 20µA 8 14 13 15 11 16 20 26.7k COMP1 COMP2 RESET TIMING 73.5k 107k 1% 6 7 71.5k
10
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
A 5k resistor is tied from the FB pin to VOUTLO, setting the internal threshold to about 2.9V. The new reset threshold voltage is set by the external resistive divider connected to
COMP2. When VOUTLO drops below the new threshold,
COMPOUT pulls FB to ground, changing the internal threshold at COMP1 to 5.88V and generating a reset. Finally, the comparator may be used to monitor a negative supply as shown in Figure 8e. The external resistor divider Figure 8c shows how the comparator can be used to
generate a reset when the 12V supply (VOUTHI) drops
below 10.8V. The 5V supply (VOUTLO) also generates a
reset when it dips below 4.65V. When the 12V supply drops below 10.8V, COMPOUT will pull the FB pin low setting the internal threshold voltage for comparator 1 to
5.88V. Since VOUTLO is less than 5.88V, PWRGD
immedi-ately goes low and a reset is generated 200ms later. Figure 8d shows how the comparator can be used to override the internal reset voltage for a 5V supply on
VOUTLO. – + – + VCCLO VCCLO 1421 F08c 1.232V LTC1421 20µA 20µA 8 14 13 15 11 16 20 26.7k COMP1 COMP2 RESET TIMING 73.5k 107k 1% 13.7k 1% 6 7 71.5k 5V 12V
Figure 8c. Reset 12V at 10.8V, Reset 5V at 4.65V Figure 8e. Monitor – 12V at – 10.8V, Reset 5V at 4.65V – + – + VCCLO VCCLO 1421 F08e 1.232V LTC1421 20µA 20µA 8 14 13 15 11 16 20 26.7k COMP1 COMP2 RESET TIMING 73.5k 107k 1% 10k 5% 13.7k 1% 6 7 71.5k 5V 12V – 12V Figure 8d. Reset 5V at 4.5V – + – + VCCLO VCCLO 1421 F08d 1.232V LTC1421 20µA 20µA 8 14 13 15 11 16 20 26.7k COMP1 COMP2 RESET TIMING 73.5k 102k 1% 5k 5% 38.3k 1% 6 7 71.5k 5V 12V – + – + VCCLO VCCLO 1421 F08b 1.232V LTC1421 20µA 20µA 8 14 13 15 11 16 20 26.7k COMP1 COMP2 RESET TIMING 73.5k 10k 5% 107k 1% 38.3k 1% 6 7 71.5k 3.3V 5V
11
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
is connected between REF (Pin 8) and the negative supply and the trip point of Comparator 2 set to GND.
Soft Reset Generation
A soft reset that doesn’t cycle the supply voltage can be generated externally using Pin 11 (FB) as shown in Figure 9. For a 5V supply the FB pin is left floating to set the internal supply monitor trip voltage to 4.65V. However, if the FB pin is pulled to ground for more than 64µs via a push button or open-collector logic gate, the internal trip point will go to 5.88V and the RESET pin will pull low. RESET will remain low for 200ms after the FB pin is released. The RESET signal will also be pulled low when the voltage at
the VOUTLO pin dips below 4.65V for more than 32µs.
When using a 3.3V supply, a 1k resistor must be con-nected from the FB pin to VCCLO to set the internal trip point to 2.90V.
sense resistor is greater than 50mV for more than 20µs.
When the circuit breaker trips, both N-channel MOSFETs are quickly turned off, FAULT and PWRGD go low and
RESET is pulled low 32µs later. FAULT can be connected
to a LED or a logic signal back to the host to indicate a faulty board. The chip will remain in the tripped state until a
power-on reset is generated, or the power on VCCHI and
VCCLO is cycled. If the circuit breaker feature is not used,
short VCCLO to SETLO and VCCHI to SETHI.
If more than 20µs of response time is needed to reject
supply noise, an external resistor and capacitor can be added to the sense circuit as shown in Figure 10.
Figure 9. Generating a Soft Reset
Undervoltage Lockout
On power-up, an undervoltage lockout circuit prevents the GATELO and GATEHI charge pumps from turning on until
VCCLO and VCCHI have both exceeded 2.45V.
Electronic Circuit Breaker
The LTC1421 features an electronic circuit breaker func-tion that protects against short circuits or excessive cur-rents on the supplies. By placing a sense resistor between the supply input and set pin of either supply, the circuit breaker will be tripped whenever the voltage across the
LTC1421 3.3V 5V 1/6 LS7404 OPEN COLLECTOR GND 64µs 200ms FB 11 7 12 1421 F09 R1 1k R1 USED FOR 3.3V SUPPLY ONLY RESET RESET FB RESET LOGIC 23 RSENSE CF Q1 22 RF 21 20
VCCLO SETLO GATELO VOUTLO
LTC1421
1421 F10
Figure 10. Short-Circuit Protection Circuit
Figure 11. AUXVCC Circuitry
GATE DRIVE CIRCUITRY 10k 1µF AUXVCC 1421 F11 VCCLO 24 LTC1421 23 GATELO GATEHI 21 17 Auxiliary VCC
When a short circuit occurs on the board, it is possible to draw enough current to cause the backplane supply voltage to collapse. If the input supply voltage collapses to a low enough voltage and the LTC1421 gate drive circuitry is unable to shut off the N-channel pass transistors, the system might freeze up in a permanent short condition. To prevent this from occurring, the gate discharge
cir-cuitry inside the LTC1421 is powered from AUXVCC,
which is in turn powered from VCCLO through an internal
12
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
When VCCLO collapses, there is enough energy stored on
the 1µF capacitor connected to AUXVCC to keep the gate
discharge circuitry alive long enough to fully turn off the external N-channels.
Power N-Channel Selection
The RDS(ON) of the external pass transistor must be low
enough so that the voltage drop across it is about 200mV or less at full current. If the RDS(ON) is too high, the voltage drop across the transistor might cause the output voltage to trip the reset circuit. Table 2 lists the transistors that are recommended for use with the LTC1421.
Table 2. N-Channel Selection Guide
CURRENT PART
LEVEL (A) NUMBER MANUFACTURER DESCRIPTION
0 to 1 MMDF2N02E Motorola Dual N-Channel SO-8
RDS(ON) = 0.1Ω
1 to 2 MMDF3NO2HD Motorola Dual N-Channel SO-8
RDS(ON) = 0.09Ω
2 to 5 MTB30N06 Motorola Single 30A
N-Channel DD Pak
RDS(ON) = 0.05Ω
5 to 10 MTB50N06E Motorola Single
N-Channel DD Pak RDS(ON) = 0.025Ω 10 to 20 MTB75N05HD Motorola Single N-Channel DD Pak RDS(ON) = 0.0095Ω Data Bus
When a board is inserted or removed from the host, care must be given to prevent the system data bus from being corrupted when the data pins make or break contact. One problem is that the fully discharged input or output capaci-tance of the logic gates on the board will draw an inrush current when the data bus pins first make contact. The inrush current can temporarily corrupt the data bus, but usually will not cause long term damage. The problem can be minimized by insuring the input or output data bus capacitance is kept as small as possible.
The second, and more serious problem involves the diodes to VCC at the input and output of most logic families (Figure 12). VCC OUT BACKPLANE BOARD D1 D2 1421 F12 DATA BUS CONNECTOR
Figure 12. Typical Logic Gate Loading the Data Bus
Figure 13: Buffering the Data Bus + 21 20 C4 2200µF 22 23 5 12 24 3 14 4 17 7 18 8 21 11 22 12 2 15 5 16 6 SYSTEM DATA BUS BOARD DATA BUS 19 9 20 10 23 1 13 QS3384 VCC GND 1421 F13 VCC 5V CONNECTOR LTC1421 R1 0.005Ω Q1 MTB50N06E GND DISABLE
With the board initially unpowered, the VCC input to the
logic gate is at ground potential. When the data bus pins make contact, the bus line is clamped to ground through
the input diode D1 to VCC. Large amounts of current can
flow through the diode and cause the logic gate to latch up and destroy itself when the power is finally applied. This
13
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
signal is pulled high, turning off the switches. After the board supply voltage ramps up and RESET goes high, DISABLE will pull low enabling the switches.
Board Insertion Timing
When the board is inserted, GND pin makes contact first,
followed by VCCHI and VCCLO (Figure 14, time point 1).
DISABLE is immediately pulled high, so the data bus switch is disabled. At the same time CON1 and CON2 make contact and are shorted to ground on the host side (time point 3). Since most boards need to be rocked back and forth to get them in place, there is a period of time when only one side of the connector is making contact. CON1 and CON2 should be located at opposite ends of the connector.
Figure 14. Board Insertion Timing can usually be prevented by using logic that does not
include the clamping diodes such as the QSI 74FCTT family from Quality Semiconductor, or by using a data bus switch such as the 10-bit QS3384 QuickSwitch also from Quality Semiconductor (Tel: 408-450-8000). The QuickSwitch bus switch contains an N-channel placed in series with the data bus. The switch is turned off when the board is inserted and then enabled after the power is stable. The switch inputs and outputs do not have a parasitic diode back to VCC and have very low capacitance. The LTC1421 is designed to work directly with the QuickSwitch bus switch as shown in Figure 13.
The DISABLE signal is connected to the enable pins of the QS3384, and each switch is placed in series with a data bus signal. When the board is inserted, the DISABLE
VCCLO 1 2 3 4 5 6 VCCHI DISABLE CON1 CON2 CPON GATEHI PWRGD VTH1 1421 F14 VOUTHI VOUTLO GATELO RESET FAULT POR 200ms 20ms
14
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
When CON1 and CON2 are both forced to ground for more than 20ms, the LTC1421 assumes that the board is fully connected to the host and power-up can begin. When
VCCLO and VCCHI exceed the 2.45V undervoltage lockout
threshold, the 20µA current reference is connected from
RAMP to GND, the charge pumps are turned on and CPON is forced high (time point 4). VOUTHI and VOUTLO begin to
ramp up. When VOUTLO exceeds the reset threshold
volt-age, PWRGD will immediately be forced high (time point 5). After a 200ms delay, RESET will be pulled high and DISABLE will be pulled low, enabling the data bus (time point 6).
Ground Sense Comparator
When POR is pulled low for more than 20ms, GATELO and
GATEHI are pulled to ground and VOUTLO and VOUTHI will
be discharged. If POR is pulled back high while VOUTLO
and VOUTHI are still ramping down, the discharge will
continue. When they drop below the VTRIP point, a
power-up sequence will begin automatically. The trip point poten-tial for LTC1421 is set at 0.1V and 2.5V for LTC1421-2.5.
In applications, where either VOUTLO or VOUTHI might be
forced above 100mV before power-up, the LTC1421-2.5 should be used. This could occur when leakage through the body diode of the logic chips keeps VOUTLO high or in the case where logic lines are precharged.
In other applications, where outputs need to drop to near ground potential before ramping up again to ensure proper initial state for the logic chips, the LTC1421 should be used.
Power-On Reset Timing
The POR input is used to completely cycle the power supplies on the board or to reset the electronic circuit breaker feature. The POR pin can be connected to a grounded push button, toggle switch or a logic signal from the host. When POR is pulled low for more than 20ms, a power-on reset sequence begins (Figure 15,
Figure 15. Power-On Reset Timing
VCCHI 1 2 3 4 5 6 7 VCCLO DISABLE FAULT POR CON1 CON2 VOUTLO VOUTHI CPON VTH2 1421 F15 VTH1 20ms 200ms 32µs GATEHI GATELO RESET PWRGD
15
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
time point 2). Pulses less than 20ms on POR are ignored. CPON goes low. Both GATEHI and GATELO will be
actively pulled down to GND. When VOUTLO drops below
its reset threshold voltage, PWRGD will immediately pull
low (time point 3) followed by RESET and DISABLE 32µs
later (time point 4). Both supplies will be discharged to ground and stay there until POR is pulled high.
The circuit breaker can be reset by pulling POR low. After POR is low for more than 20ms, the chip will immediately try to power up the supplies.
Circuit Breaker Timing
The waveforms for the circuit when a short occurs on either supply during board insertion are shown in
Figure 16. Time points 1 to 4 are the same as the board insertion example, but at time point 5, a short circuit is detected on one of the supplies. The charge pumps are immediately turned off, the outputs VOUTHI and VOUTLO are actively pulled to GND and the CPON and FAULT pins are pulled low. At time point 6, the circuit breaker is reset by pulling POR low. After POR has been low for 20ms (time
point 7), CPON and FAULT are pulled high, the 20µA
reference current is connected to RAMP and the charge
pumps are enabled. VOUTHI and VOUTLO ramp up at a
controlled rate. When VOUTLO has exceeded its reset
threshold, the PWRGD signal is pulled high (time point 8). After a 200ms delay, RESET is pulled high and DISABLE goes low.
Figure 16. Circuit Breaker Timing
VCCLO 1 2 3 4 5 6 VCCHI DISABLE CON1 7 8 9 CON2 CPON PWRGD VTH1 1421 F16 VOUTHI GATEHI GATELO VOUTLO RESET FAULT POR 20ms 20ms 200ms
16
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
VCCLO 1 2 3 4 VCCHI DISABLE CON1 CON2 CPON PWRGD VTH2 1421 F17 VOUTHI GATEHI GATELO VOUTLO RESET FAULT POR 32µs
Figure 17. Board Removal Timing
Board Removal Timing
When the board is removed from the host, the sequence happens in reverse (Figure 17). Since CON1 and CON2 are the shortest pins, they break connection first and are internally pulled high (time point 1). The charge pumps are
turned off, CPON is pulled low. VOUTLO and VOUTHI are
actively pulled down. When VOUTLO falls below its reset
threshold (time point 2) PWRGD is pulled low. To allow
time for power fail information to be stored in nonvolatile memory, the falling edge of RESET (time point 3) is
delayed by 32µs from the falling edged of PWRGD.
Finally, the input supply pins VCCHI and VCCLO break
contact (time point 4). If staggered pins are not used, the board may be powered down prior to removal by switch-ing the POR pin to ground with a toggle switch.
17
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
5V Only Applications
The LTC1421 may be used in 5V only applications as shown in Figure 18. A soft reset can be generated from the backplane via an open-collector inverter driving the FB (Pin 11) or by a push button to ground. A hard power reset is generated from the backplane via an open-collector inverter driving the POR (Pin 3). A hard reset cycles the power on the board or resets the electronic circuit breaker. The comparator is used to monitor the board supply voltage and
will pull the POWERGOOD signal low as long as the supply remains above 4.65V. Note that a soft reset will not affect the POWERGOOD signal. The FAULT signal is also moni-tored to determine that the circuit breaker has tripped.
– 48V and 24V Applications
The LTC1421 may be used in – 48V applications as shown in Figure 19. The LTC1421 provides the hot insertion protection, while the 5V supply is generated by a power
Figure 19. – 48V to 5V Hot Swappable Supply
10 7 14 13 8 2 24 15 1 LTC1421 16 Q1 MTB50N06E C1 1µF C2 1µF R2 28k 1% 5V 17 18 19 20 21 22 5 9 6 3 S1 11 12 23 + 1421 F18 5V 5V 5V POWERGOOD FAULT SOFT RESET HARD RESET R1 0.005Ω 1W R3 10.2k 1% RESET LOGIC C2 2200µF 10k 10k 1/6 LS7004 PC BOARD BACKPLANE
Figure 18. 5V Only Application with Soft Reset
10 9 13 14 8 11 15 6 7 2 24 4 3 1 16 R4 300Ω 1/8W R3 56k 1/2W Q2 MPSA06 Q1 IRFR9110 C1 1µF – 48V 17 18 19 20 21 22 5 12 23 STAGGERED CONNECTOR + C2 2.2µF 25V R1 5k 1W D1 5V + C3 2.2µF 25V + 2 1 5 6 3 C4 100µF 16V 5V 2A + C4 100µF 100V + 1421 F19 PC BOARD BACKPLANE – 48V S1 – 48V – 48V R5 10k 1/2W R6 400Ω 1/8W R2 15k 1/8W ASTRODYNE ASD 10-48S5 CONTROL +IN +OUT –IN – OUT LTC1421
18
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
Figure 23 shows how to use the LTC1421 with a 5V supply and an LTC1430CS8 synchronous step-down switching regulator to generate 3.3V output at up to 10A for micro-processors. Resistors R4, R8 and R9 set the turn-on voltage at 4.8V and the turn-off at 4.25V. Pushbutton switch S1 provides users a way to reset the output while S2 is used to soft-reset the microprocessor only. Figure 24 shows how to use the LTC1421 with a 5V supply and a – 48V supply that is used to generate a ±12V supply using a supply module. Resistors R3 and R4 are used to monitor the input voltage to the supply module. The module is prevented from turning on via the optoisolator until the input voltage reaches – 36V. Zener diode D2 prevents the CPON pin of the LTC1421 from being dam-aged by excessive voltage.
Figure 25 shows how to use the LTC1421 to do overvolt-age protection. Resistors R3 and R4 set the trip point at 7V. When the input supply voltage rises above 7V, Q2 is turned on and Q1 turned off while Q3 helps to discharge the output voltage.
Figure 26 shows how to use the LTC1421 to control both the power-up and power-down sequence of the outputs. The 5V output would be powered up first followed by the 3V output. At power-down sequence, the 3V output would go down first followed by the 5V supply.
Figure 27 shows how to use the LTC1421 to switch 3.3V, 5V, 12V and –12V supplies for PCI application. The ramp-up rate for 3.3V, 5V and 12V is determined by the ramp capacitor C2 while the –12V supply is controlled by R7 and C3. The internal comparator is being used to do the overcurrent protection for Q4 with the trip point set by resistors R6 and R8. The –12V supply does not have overcurrent protection. R10 is used to set the power good signal trip point at 10V. When the 12V output rises above 10V, the PCI controller gets a power good signal followed by RESET after 200ms.
module. The ground pin for the LTC1421 is connected to – 48V; Zener diode D1 and resistor R1 provide the positive supply for the chip. Bypass capacitor C4 is protected against inrush current by P-channel Q1. When the board is inserted into the backplane, transistor Q1 is turned off by resistor R2. When the connection sense pins, CON1 and CON2 have been connected to – 48V for more than 20ms, CPON pulls high turning on Q2 and the gate of Q1 starts to pull low with a time constant determined by R2, R3 and C3. At the same time, the voltage at the input to the power module starts to ramp up. When the voltage across the inputs to the power module reaches the comparator trip level set by R5 and R6, in this case – 32V, the comparator output pulls high and turns on the 5V supply. A cheaper solution is shown in Figure 20 using the LT®
1170HV switcher. Again P-channel transistor Q1 pro-tects the bypass capacitors against inrush current and resistors R5 and R6 set the comparator trip voltage. The
LT1170HV is turned on via the VC pin. Resistors R11, R14
and transistor Q4 provide a monitoring path for the RESET signal which is level shifted up to 5V through an optoiso-lator.
The P-channel power FET is being replaced by an N-channel FET in Figure 21 for the – 48V application. Again, Zener Diode D1 and resistor R1 provide the positive supply for the chip. Capacitor C1 is to insure Q1 stays off when the board is being hot inserted into the backplane. The resistor divider R1 and R2, along with the internal comparator, perform the undervoltage lock out function. Q1 would only be turned on when the input supply voltage is lower than – 42V. The power module would then be turned on by the optoisolator, 4N25, when the module’s input voltage reaches 47V.
Figure 22 shows how to use the LTC1421 with a 24V supply and a LT1074CT step-down switcher. Resistors R5 and R6 set the turn-on threshold to 22V. All of the supervisory signals can be used without level shifting.
19
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
10 9 13 14 8 11 15 6 7 2 24 4 3 1 LTC1421 16 R4 300Ω 1/8W R3 56k 1/2W Q2 MPSA06 Q1 IRFR9110 C1 1µ F – 48V 17 18 19 20 21 22 5 S1 12 23 STAGGERED CONNECTOR + C2 2.2 µ F 25V R1 5k 1W D1 5V + C3 2.2 µ F 25V C5 4.7 µ F 50V C9 0.33 µ F 50V + + C4 4.7 µ F 50V 3 5 1 4 + C6 100 µ F 100V L1 100 µ H D4 MBR3100 Q3 2N5401 Q4 2N5401 D3 MBR3100 D2 7.5V + 1421 F20 PC BOARD BACKPLANE – 48V – 48V – 48V R5 10k 1/2W R6 400 Ω 1/8W R9 1k 1/8W R8 1k 1/8W R2 15k 1/8W LT1170HVCT VCC VC SW GND FB R10 4.32k 1/8W R11 4.32k 1/8W R13 1.24k 1/8W R14 4.64k 1/8W R12 10k 1/8W VCC 5V 3A RESET C7 1000 µ F 25V + + C8 1000 µ F 25V Figure 20. –
20
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
Figure 21. – 48V to 5V Hot Swappable Supply
Figure 22. 24V to 5V Hot Swappable Supply Using the LT1074CT
10 9 13 14 8 11 15 6 7 2 24 4 3 1 LTC1421 16 R4 300Ω 1/8W R3 56k 1/8W Q2 MPSA06 Q1 IRFR9110 C1 1µF 17 18 19 20 21 22 5 12 23 STAGGERED CONNECTOR + C2 2.2µF 25V R1 5k 1/4W D1 5V S1 + C3 2.2µF 25V + C4 200µF 50V D4 MBR745 L1 50µH 2 5 1 3 4 + + C5 500µF 25V 5V 5A C6 0.01µF + 1421 F22 PC BOARD BACKPLANE 24V POR FAULT R5 10k 1/2W R9 2.7k R6 620Ω 1/8W R2 15k 1/8W R7 2.8k 1% R8 2.21k 1% LT1074CT GND VIN VSW VC FB LTC1421 17 8 14 13 15 18 11 1 24 12 3 2 19 22 23 STAGGERED CONNECTOR 4N25 5V 10A 1421 F21 VICOR VI-J30-CY GATE IN 5k D1 4.3V 0.1µF 0.1µF 10k 300Ω 100Ω 1N4148 4.5k PC BOARD BACKPLANE – 48V – 48V 0.1µF 100µF 100µF + + – –
21
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
10 11 6 7 8 14 13 15 9 LTC1421 16 17 18 19 20 21 22 23 1 24 4 5 3 2 12 STAGGERED CONNECTOR S1 3 5 8 64 1 72 + C1 1µ F 16V C3 220 µ F 16V ×4 C4 0.1 µ F 16V C5 10µ F 16V D1 1N4148 Q2 MTD20N03HL Q3 MTD20N03HL Q4 MTD20N03HL S2
S1: HARD POWER/CIRCUIT BREAKER RESET S2: SOFT RESET LTC1430 POWER-UP THRESHOLD: 4.8V ON 4.25V OFF
1421 F23 PC BOARD BACKPLANE 5V R1 0.005 Ω 5%,1W C2 0.1 µ F 16V LTC1430CS8 VCC PV CC1 COMP FB SHDN G1 GND G2 R5 510 Ω 5% R8 100k 1% R2 0.01 Ω 5%,1W Q1 MTD20N03HL C8 220pF CERAMIC C7 4700pF CERAMIC C6 0.1 µ F 16V C10 1µ F 16V R9 26.7k 1% R10 10k 5% R6 22Ω 5% R7 7.5k 5% R4 10k 1% + + C9 338 µ F 10V × 6 + 2.7 µ H 15A RESET 3.3V 10A IMAX = 15A GND µ P VCC
22
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
10 9 13 14 8 11 15 6 2 24 4 3 1 R1 0.005Ω 1W Q1 MTB50N06E S1 LTC1421 FAULT IRF530 16 C1 1µF 17 18 19 20 21 22 5 7 12 23 STAGGERED CONNECTOR 2 1 5 6 3 C7 100µF 16V 5V 8A 12V 0.42A –12V 0.42A + 1421 F24 ASTRODYNE ASD10-48D12 CONTROL +IN +OUT –IN – OUT C2 1µF C5 220µF 100V R3 340Ω 1/8W R4 10k 1/8W R5 4.3k 1/8W R6 15k 1/8W C3 0.47µF R7 1k 1/8W C4 2200µF 16V + C6 100µF 16V + + PC BOARD BACKPLANE 5V – 48V Q3 2N5401
Figure 24. 5V and – 48V to ±12V Hot Swappable Supply
10 7 8 14 13 15 1 24 3 2 12 LTC1421 16 Q3 VN2222 C2 0.1µF C1 1µF 17 18 19 20 21 22 23 STAGGERED CONNECTOR + 2200µF 16V + 100Ω 1k 12Ω R1 0.005Ω 1/2W Q1 MTB50N06E Q2 VN2222 S1 1421 F25 PC BOARD BACKPLANE 5V R4 10k R3 47.5k 5V 8A RESET GND µP VCC
23
APPLICATIO
N
S I
U
N
FOR
U
M
ATIO
W
N
U
G Package
24-Lead Plastic SSOP (0.209)
(LTC DWG # 05-08-1640)
Dimensions in inches (millimeters) unless otherwise noted.
PACKAGE DESCRIPTIO
N
U
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no represen-tation that the interconnection of its circuits as described herein will not infringe on existing patent rights.
S24 (WIDE) 0996 NOTE 1 0.598 – 0.614* (15.190 – 15.600) 22 21 20 19 18 17 16 15 1 2 3 4 5 6 7 8 0.394 – 0.419 (10.007 – 10.643) 9 10 13 14 11 12 23 24 0.037 – 0.045 (0.940 – 1.143) 0.004 – 0.012 (0.102 – 0.305) 0.093 – 0.104 (2.362 – 2.642) 0.050 (1.270) TYP 0.014 – 0.019 (0.356 – 0.482) TYP 0° – 8° TYP NOTE 1 0.009 – 0.013 (0.229 – 0.330) 0.016 – 0.050 (0.406 – 1.270) 0.291 – 0.299** (7.391 – 7.595) × 45° 0.010 – 0.029 (0.254 – 0.737) NOTE:
1. PIN 1 IDENT, NOTCH ON TOP AND CAVITIES ON THE BOTTOM OF PACKAGES ARE THE MANUFACTURING OPTIONS. THE PART MAY BE SUPPLIED WITH OR WITHOUT ANY OF THE OPTIONS
DIMENSION DOES NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.006" (0.152mm) PER SIDE DIMENSION DOES NOT INCLUDE INTERLEAD FLASH. INTERLEAD FLASH SHALL NOT EXCEED 0.010" (0.254mm) PER SIDE * ** G24 SSOP 0595 0.068 – 0.078 (1.73 – 1.99) 0.002 – 0.008 (0.05 – 0.21) 0.0256 (0.65) BSC 0.010 – 0.015 (0.25 – 0.38) 0.301 – 0.311 (7.65 – 7.90) 1 2 3 4 5 6 7 8 9 10 11 12 0.318 – 0.328* (8.07 – 8.33) 21 22 201918 17 16 15 14 13 23 24 0.005 – 0.009 (0.13 – 0.22) 0° – 8° 0.022 – 0.037 (0.55 – 0.95) 0.205 – 0.212** (5.20 – 5.38)
DIMENSIONS DO NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.006" (0.152mm) PER SIDE DIMENSIONS DO NOT INCLUDE INTERLEAD FLASH. INTERLEAD FLASH SHALL NOT EXCEED 0.010" (0.254mm) PER SIDE *
**
SW Package
24-Lead Plastic Small Outline (Wide 0.300)
(LTC DWG # 05-08-1620)
Figure 26. Power-Up and Power-Down Sequence Controller
10 11 6 7 8 14 13 15 9 1 24 4 5 3 2 12 LTC1421 16 C2 0.1µF 24V C1 1µF 16V 0.047µF 17 18 19 20 21 22 23 STAGGERED CONNECTOR + C4 2200µF 16V + C5 0.1µF 24V + 1k R1 0.005Ω 1W R3 1M 5%,1/8W Q1 MTB50N06E Q2 MTB50N06E S1 1421 F26 PC BOARD BACKPLANE 5V 3V R6 200k 5% 1/16W R5 330k 5% 1/16W 3V 8A 5V 8A R2 0.005Ω 1W C4 2200µF 16V + RESET GND µP VCC R4 1k 5% 1/16W
24
LINEAR TECHNOLOGY CORPORATION 1996 142125fa LT/TP 1098 2K REV A • PRINTED IN USALinear Technology Corporation
1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear-tech.com
TYPICAL APPLICATIO
N
U
10 11 6 7 8 14 13 15 9 1 24 4 5 3 2 12 LTC1421 Q3 1/2 IRF7101 Q2 1/2 IRF7101 PCI CONNECTOR Q1 IRF7413 16 17 R11 10Ω C2 0.22µF 24V R4 30Ω 18 19 20 21 22 23 Q4 IRF7413 12V3.3A CIRCUIT BREAKER
3.3V
11.5A CIRCUIT BREAKER 5V
10A CIRCUIT BREAKER R10 100k R13 5.1k R5 20k R12 10Ω C1 1µF 16V R1 0.005Ω 5% 1/2W R14 5.1k R2 0.015Ω 5% 1W R8 5.62k 1% 1/16W R3 0.005Ω 5% 1W + POWER GOOD RST # SELECT BITS BUS ENABLE FAULT 12V 500mA 3.3V 7.5A 5V 5A ON/OFF DATA BUS –12V 100mA PCI POWER CONTROLLER QuickSwitch R7 130k R9 10Ω Q5 TP0610T C3 1µF 24V R6 100Ω 1% 1/16W – 12V NO CIRCUIT BREAKER GND 1421 F27
ALL RESISTORS 5%, 1/16W EXCEPT WHERE NOTED
RST # LOGIC
PCI PERIPHERAL MOTHERBOARD OR BACKPLANE
Figure 27. PCI Power Controller
PART NUMBER DESCRIPTION COMMENTS
LTC1155 Dual High Side Switch Driver Short-Circuit Protection and Micropower Standby Operation
LTC1477/LTC1478 Single and Dual Protected High Side Switches Inrush Current Limited, Built-In 2A Short-Circuit Protection
