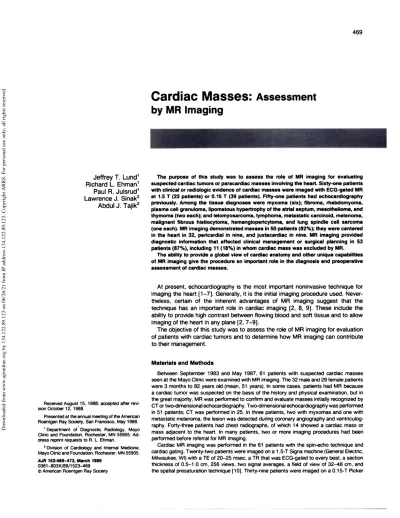

Cardiac Masses: Assessment

Cardiac

Masses:

Assessment

by MR

Imaging

Received August 15, 1988; accepted after

revi-sion October 12, 1988.

Presented at the annual meeting of the American

Roentgen Ray Society, San Francisco, May 1988.

Department of Diagnostic Radiology, Mayo

Clinic and Foundation, Rochester, MN 55905.

Ad-dress reprint requests to A. L. Ehman.

2Divis of Cardiology and Internal Medicine,

Mayo Clinic and Foundation, Rochester, MN 55905.

AJR 152:469-473, March 1989

0361 -803x/89/1 523-469

© American Roentgen Ray Society

The purpose of this study was to assess the role of MR imaging for evaluating suspected cardiac tumors or paracardiac masses involving the heart. Sixty-one patients with clinical or radiologic evidence of cardiac masses were imaged with ECG-gated MR at 1.5 T (22 patients) or 0.15 T (39 patients). Fifty-one patients had echocardiography previously. Among the tissue diagnoses were myxoma (six); fibroma, rhabdomyoma, plasma cell granuloma, lipomatous hypertrophy of the atrial septum, mesothelioma, and thymoma (two each); and leiomyosarcoma, lymphoma, metastatic carcinold, melanoma, malignant fibrous histiocytoma, hemangiopericytoma, and lung spindle cell sarcoma (one each). MR imaging demonstrated masses in 50 patients (82%); they were centered

in the heart in 32, pencardial in nine, and juxtacardiac in nine. MR imaging provided

diagnostic information that affected clinical management or surgical planning in 53 patients (87%), including 11 (18%) in whom cardiac mass was excluded by MR.

The ability to provide a global view of cardiac anatomy and other unique capabilities

of MR imaging give the procedure an important role in the diagnosis and preoperative

assessment of cardiac masses.

At present, echocardiography is the most important noninvasive technique for imaging the heart [1 -7]. Generally, it is the initial imaging procedure used.

Never-theless, certain of the inherent advantages of MR imaging suggest that the technique has an important role in cardiac imaging [2, 8, 9]. These include the ability to provide high contrast between flowing blood and soft tissue and to allow imaging of the heart in any plane [2, 7-9].

The objective of this study was to assess the role of MR imaging for evaluation

of patients with cardiac tumors and to determine how MR imaging can contribute

to their management.

Materials and Methods

Between September 1983 and May 1987, 61 patients with suspected cardiac masses

seen at the Mayo Clinic were examined with MR imaging. The 32 male and 29 female patients

were 3 months to 82 years old (mean, 51 years). Insome cases, patients had MR because

a cardiac tumor was suspected on the basis of the history and physical examination, but in

the great majority, MR was performed to confirm and evaluate masses initially recognized by CT or two-dimensionalechocardiography. Two-dimensionalechocardiography was performed

in 51 patients; CT was performed in 25. In three patients, two with myxomas and one with

metastatic melanoma, the lesion was detected during coronary angiography and

ventnculog-raphy. Forty-three patients had chest radiographs, of which 14 showed a cardiac mass or

mass adjacent to the heart. In many patients, two or more imaging procedures had been

performed before referralforMA imaging.

Cardiac MR imaging was performed in the 61 patients with the spin-echo technique and

cardiac gating. Twenty-two patients were imaged on a 1 .5-T Signa machine (General Electric,

Milwaukee, WI) with a TE of 20-25 msec, a TA that was ECG-gated to every beat, a section

thickness of 0.5-1.0 cm, 256 views, two signal averages, a field of view of 32-48 cm, and

the spatial presaturation technique [10]. Thirty-nine patients were imaged on a0.1 5-T Picker

Fig. 1.-Cardiac mass. MR image (TE = 35

msec) showslarge mass involving left ventricular

wall, which contains Innumerable tortuous vessels (arrow). This appearance was considered diag-nostic of arterlovenous malformation.

Fig. 2.-Unresectable pericardlal meso- Fig. 3.-Juxtacardiac mass. MR image (TE =

thelloma. MR image (TE =35 msec) shows per- 25 ms.c) shows mass is pericardlal fat. Note

Icardlal mesothelloma with extensive involve- that fat isseparated from heart by thin,

hypoln-ment of right atrial and ventricular walls (white tense line representing pericardium (arrow). arrow) and hepatic metastases (black arrows).

470 LUND ET AL. AJR:152, March 1989

machine (Picker, Cleveland, OH) with a TE of 30-40 msec, a TA that

was ECG-gated to every beat, a section thickness of 0.5-1 .0 cm,

1 28 views, four signal averages, and a 40-cm field of view. The

examinations were tailored to the particular clinical question in each

case on the basis of the prior clinical, laboratory, and imaging results.

Transaxial sections were obtained in all examinations, followed by

sagittal (16 examinations), coronal (1 3 examinations), or both (32

examinations) planes as indicated.

The initial interpretation of the MR studies was performed by one of three radiologists with full knowledge of the patients’ clinical and

prior imaging findings. The examinations were reevaluated by two

radiologists. Available at this second evaluation was information

compiled about each patient’s clinical presentation, initial diagnostic

workup, surgical procedure, clinical outcome, and follow-up when

possible. To assess the impact of the MA examination on patient

management, we reviewed the notes in the patient’s record to

determine the diagnosis before and after the MA examination.

Spe-cific information sought was as follows: (1) Did the MA examination

alter management by confirming or excluding a mass? (2) Did MA

imaging substantially contribute to the decision-making process by

further defining anatomy and tumor extent? (3) Did MA influence the

decision to operate on the patient and/or the surgical approach? (4)

Did MA obviate further clinical workup?

Results

Eleven (18%) of the 61 patients had normal MR examina-tions. In 10 of the ii, a mass suspected by echocardiography was excluded by MR. A suspected cardiac mass in one of these patients was shown to be a prominent fusion of the thebesian and eustachian valves. In the eleventh patient, a mass or absent pericardium had been suggested on

echo-cardiography, but MR showed a normal pericardium and

excluded a mass. One-year follow-up echocardiographic ex-aminations in two patients and MR examination in one of these were both negative. The other nine patients have not had follow-up studies.

MR studies were positive in 50 (82%) of the 61 patients.

Thirty-two had myocardial or intraluminal masses (Fig. 1); nine

masses were pericardial (Fig. 2), with or without myocardial involvement. Nine masses were adjacent to the heart without involvement of either the pericardium or myocardium (Fig. 3).

Tissue diagnoses included benign and malignant lesions, both primary and metastatic, and thrombus, both bland and tumorous. Lipomatous hypertrophy of the atrial septum in two patients was clearly shown on MR. Three patients had mural thrombi and two had tumor thrombus due to hyperne-phroma extension. The tumorous thrombi were easily identi-fled but the mural thrombi were difficult to differentiate from intraluminal flow artifacts. Of the remaining 25 cardiac masses, 10 were malignant and 1 5 benign. Eight of the malignant cardiac masses were metastatic, including mela-noma, carcinoid, and malignant fibrous histiocytoma. The two primary malignant cardiac masses were leiomyosarcoma and non-Hodgkin lymphoma. The 1 5 benign cardiac masses in-cluded six myxomas (Fig. 4). One of the benign primary cardiac masses was a fibroma (Fig. 5). Two patients with tuberous sclerosis had cardiac rhabdomyomata. The nine lesions in the pericardial group included two benign lesions (both were radiation-induced pericardial thickening) and seven malignant lesions including pericardial mesothelioma and met-astatic lymphoma, osteogenic sarcoma, and hemangiopericy-toma. Masses adjacent to the heart and pericardium included one malignant mass, a lung spindle cell sarcoma, and eight benign lesions, including two thymomas and pericardial fat.

Pericardial involvement by tumor was correctly identified or excluded in all 10 patients in whom surgical confirmation was available. Tumor involvement of the pericardium in four pa-tients by melanoma, fibrosarcoma, hepatocellular carcinoma, and lymphoma was correctly determined by MR. Echocar-diography did not detect pericardial involvement in any of the three patients examined, and CT correctly evaluated the pericardium only in two of three patients examined. All

Fig. 4.-A and B, Typical atrlal myxoma (TE = 25msec). Sagittal (A) and coronal (B) views show Fig. 5.-Benign cardiac mass. MR Image (TE =

bibbed atrlal myxoma (arrows) centered ininteratrlal septum and extending Into both atria. 24 msec) of primary cardiac flbroma involving left

ventricular free wall (arrow).

Fig. 6.-MR demonstration of no pericardial

In-volvement by this lung mass altered the surgical

approach.

A, CTimage shows 4-cm mass adjacent to left

ventricle (arrow). There isa suggestion of perlcar-dial Involvement by mass, but artifact makes

ac-curate assessment difficult.

B, Axial MR Image (TE = 25 msec) at level similar to CT scan clearly showsnormal, thin,

low-intensity perlcardial line (arrow).

niques correctly evaluated pericardial involvement by scar tissue caused by radiation therapy, but only MR showed no pericardial involvement in four other patients. The pericardium in one patient with partial absence of the pericardium due to prior surgical resection of adherent plasma cell granuloma was correctly evaluated by MR but was not imaged by either

echocardiography or CT.

Information provided by MR imaging contributed to a

deci-sion against surgery in 26 patients. Eleven of these patients

had negative examinations and eight had a benign process, such as occurred in the two patients with lipomatous hyper-trophy of the atrial septum. The role of MR imaging was easiest to document in the seven patients who were shown to have unresectable tumors. MR clearly showed unresecta-bility due to the extent of myocardial involvement in a patient with pericardial mesothelioma metastatic to the liver (Fig. 2).

MR provided guidance for planning surgery in 25 patients. In two patients, a thoracotomy rather than a median ster-notomy was performed on the basis of information obtained from the MR examination. One of these patients was found

to have a left lung mass on a chest film. Echocardiography suggested that the mass was cystic. CT examination sug-gested pericardial involvement (Fig. 6A). On MR, the mass had internal inhomogeneity, which is characteristic of soft tissue but not of fat or fluid. There was no transpericardial involvement (Fig. 6B). On the basis of these findings, a

thoracotomy rather than a median sternotomy was

per-formed. Surgery revealed a primary lung spindle cell sarcoma with no pericardial involvement.

Discussion

In ECG-gated MR imaging, the TR interval cannot be cho-sen freely but is determined by the RR interval of the patient’s ECG. The typical TR and TE values on spin-echo ECG-gated MR imaging fall into the category of partial-saturation spin-echo sequences. Such sequences tend not to differentiate

between various nonfatty soft tissues. Nevertheless, the

com-bination of intensity characteristics, morphologic information, and clinical data allowed a correct diagnosis to be made in several cases. Qualitative tissue characterization was

Fig. 7.-A and B, Hepatocellular carcinoma. Sagittal (A) and coronal (B) MR images (TE = 35 Fig. 8.-Focal pericardial invasion by

fibrosar-msec) show absence of low-intensity pencardial line along diaphragmatic border (arrows) indicative coma. MR image (TE = 35 msec) shows focal

oftranspericardial involvement. absence of low-intensity pericardial line lateral to

right atrium (arrow) due to invasion by fibrosar-coma at this site.

A B

472 LUND ET AL. AJR:152, March 1989

Fig. 9.-Recurrent osteogenic sarcoma.

A, Recurrent osteogenic sarcoma (asterisk) of

sternum. CT shows ossified tumor well but does

not clearly show perlcardial involvement

B,MR image(TE = 25msec), while not depicting

calcification in recurrent osteogenic sarcoma as

well as CT does, clearly shows focal absence of low-intensity pericardial line (arrow) indicative of tumor invasion.

ble with fatty lesions and those containing large vascular structures. Relative tissue-intensity characteristics have been shown to allow a degree of specificity in the MR diagnosis of some cardiac lesions, such as lipomatous hypertrophy of the atnal septum [4, 1 1], fibroma [1 2], thrombus [12-15], myxoma [12, 16], and pericardial cyst or fat pad [12, 17, 18]. As others have noted, the primary contribution of MR imaging in these cases was not its ability to obtain a tissue diagnosis, but rather its ability to delineate the anatomic extent and to aid in treatment planning [12, 13, 19].

Several authors have pointed to a role for MR imaging in evaluating possible cardiac masses suggested by echocar-diography [20]. In our series, cardiac masses were excluded in 11 cases within this clinical setting. Demonstration of prominent fusion of the thebesian and eustachian valves in one patient and exclusion of a cardiac mass in the other 10 patients were sufficient evidence to end further workup. Ten of the 11 patients were initially examined by echocardiogra-phy. Eight of these patients were strikingly similar in that

echocardiography had suggested the presence of a mass in the region of the left atrial appendage, an area that has been shown to be difficult to evaluate adequately with

echocar-diography [21]. Our experience subsequent to this study has

indicated that the area of the superior portion of the atrial septum is a similar problematic region that is well assessed by MR imaging. Transesophageal echocardiography can spe-cifically address the limitations of transthoracic echocardiog-raphy in these regions as well [22].

MR findings influenced surgical planning and patient man-agement by excluding or confirming the presence of a cardiac mass. Surgical planning was aided by the ability of MR to clearly show the location and extent of tumor and the pres-ence of transpencardial involvement.

The normal pericardium usually is depicted on MR images as a thin band of low intensity [7, 8, 14, 17, 23]. Pericardial fluid normally is not present in sufficient quantity to allow this appearance to be attributed to a flow phenomenon. It has been stated that this hypointense line is due to the relatively

low spin density of the fibrous component of the pericardium [8, 23].

The low spin-echo intensity of the pericardium is explained partly by the presence of a phase discontinuity artifact [13,

24-26]. The shearing action between the visceral and parietal

pericardium results in a large local velocity gradient causing

a reduction in signal intensity from the volume elements spanning the pericardium. Focal absence of the low-intensity

pericardial line implies that no shearing motion is present

across the pericardium at that point. Such lack of shearing

motion can be caused by transpericardial tumor invasion or

inflammatory adhesions. This sign assisted reliable MR im-aging diagnosis of pericardial involvement in some cases of

hepatocellular carcinoma (Fig. 7), mediaStinal fibrosarcoma

(Fig. 8), and recurrent osteogenic sarcoma of the sternum (Fig. 9), which were confirmed at surgery.

It appears that, while echocardiography will continue to be the primary imaging technique for detecting Cardiac masses, MR imaging can play a significant complementary role. The most compelling indication for MR imaging is preoperative assessment of patients with known cardiac masses. In our series, it helped to determine whether to operate and aided

surgical planning.

REFERENCES

1. Fyke FE, Seward JB, Edwards WD, et al Primary cardiac tumors:

experi-ence with 30consecutive patients since theintroduction oftwo dimensional

echocardiography. JAm Coil Cardiol 1985;5:1465-1473

2. Council on Scientific Affairs. Report of the Magnetic Resonance Imaging Panel. Magnetic resonance imaging of the cardiovascular system.JAMA 1988;259:253-259

3. Go AT, O’Donnell JK, Lfriderwood DA, et al. Comparison of gated cardiac

MRI and 2D echocardiography of intracardiac neoplasms. AJR 1985;145:21-25

4. Applegate PM, Tajik AJ, Ehman AL, Julsrud PA, Miller FA. Two dimensional

echocardiographic and MRI observations in massive lipomatous

hypertro-phy of the atnaJseptum. Am J Cardiol 1987;59:489-491

5. Gross BH, Glazer GM, Francis IA. CT of intracardiac and intrapericardial masses. AIR 1983;140:903-907

6. Chaloupka JC, Fishman EK, Siegelman SS. Use of CT in the evaluation of primary cardiac tumors. Cardiovasc Intervent Radiol 1986;9:132-135 7. Higgins CB, Byrd BF, McNamara MT, et al. Magnetic resonance imaging

of the heart: a review of the experience in 172 subjects. Radiology

1985;155:671-679

8. Higgins CB. Overview of MA of the heart-1986. AiR 1986;146:907-918

9. Boxer AA, LaCorte MA, Singh 5, et al. Diagnosis of cardiac tumors in

infants by magnetic resonance imaging. Am J Cardiol 1985;56:831-832

10. Felmlee JP, Ehman AL Spatial presaturation: a method for suppressing

flow artifacts and improving depiction of vascular anatomy in MA imaging. RadiOlOgy 1987;164:559-564

1 1. Levine RA, weyman AE, Dinsmore RE, et al. Noninvasive tissue

charac-terization: diagnosis of lipomatous hypertrophy of the atrial septum by

nuclear magnetic resonance imaging. J Am Coil Cardiol 1986;7:688-692

12. Amparo EG, Higgins CB, Farmer D, Gamsu G, McNamara M. Gated MAI

of cardiac and paracardiac masses: initial experience. AIR 1984;

143:1151 -1156

13. zeftler E, Kalser w, Schuierer G, et al. Magnetic resonance imaging of

aneurysms and thrombi. Cardiovasc lntervent Radio! 1986;8:321 -328

14. Choyke PL Kressel HY, Aeichek N, et al. Nongated cardiac magnetic

resonance imaging: preliminary experience at 0.12 T. AIR 1984;143:

1143-1150

15. Herficens AJ, Higgins CB, Hricak H, et al. Nuclear magnetic resonance

knaging of the cardiovascular system: normal and pathologic findings.

Radiology 1983;147:749-759

16. Conces DJ, Vix VA. Klatte EC. Gated MA imaging ofleftatrial myxomas. Radiology 1985;156:445-447

17. Stark DD, Higgins CB, Lanzer P, et al. Magnetic resonance imaging of the

pericardium: normal and pathologic findings. Radiology 1984;150:

469-474

18. Sechtem U, Tscholakoff D,Higgins CB. MAI of the abnormal pericardium. AIR 1986;147:245-252

19. Conti VA, Saydjari A, Amparo EG. Paraganglioma of the heart. the value

of magnetic resonance imaging in the preoperative evaluation. Chest 1986;90:604-606

20. WinkIer M, Higgins CB. Suspected intracardiac masses: evaluation with

MA imaging. Radiology 1987;165:117-122

21. Come PC, Riley MF, Markis JE, Malagold M. Umitations of

echocardi-ographic techniques in evaluation of ieft atrial masses. Am J Cardiol

1981;48:947-953

22. Seward JB,Khandheria BK, Oh JK, et al.Transesophageal

echocardiog-raphy: technique, anatomic correlations, implementation, and clinical ap-plications. Mayo Clin Proc 1988;63:649-680

23. Sechtem U, Tscholakoff D, Higgins CB. MAI of the normal pericardium.

AIR 1986;147:239-244

24. Moran PR, Moran AA, Karstaedt N.Verification and evaluation of internal

flow and motion. Radiology 1985;154:433-441

25. Henkelman AM, Bronskill MJ. Artifacts in magnetic resonance imaging. Rev Magn Reson Med 1987;2:77-88

26. van Dijk P. Direct NMA imaging of heart wall and blood flow velocity. J

Comput Assist Tomogr 1984;8:429-436

This article has been cited by:

1. Irene Juanes Domínguez, María Garrido Uriarte, Olatz Zaldua Irastorza, Marta Torres Fernández, Ángel María Alonso Gómez.

2020. Masa interauricular. Revista de ecocardiografía práctica y otras técnicas de imagen cardíaca 3:1, 31-34. [Crossref]

2. Herbert Frank, Teresa Sykora, Francisco Alpendurada. Cardiac and Paracardiac Masses 440-453.e3. [Crossref]

3. Vikas K. Rathi, Anna T. Czajka, Diane V. Thompson, Mark Doyle, Tarun Tewatia, June Yamrozik, Ronald B. Williams, Robert W. W. Biederman. 2018. Can cardiovascular MRI be used to more definitively characterize cardiac masses initially identified using

echocardiography?. Echocardiography 35:5, 735-742. [Crossref]

4. Mariuxi A. Viteri Malone, Gustavo Ruiz Ares, Guillermo De Velasco, Raphael Brandão, Xun Lin, Craig Norton, Ronit Simantov, Javid Moslehi, Katherine M. Krajewski, Toni K. Choueiri, Rana R. McKay. 2018. The Clinical Presentation, Survival Outcomes, and Management of Patients With Renal Cell Carcinoma and Cardiac Metastasis Without Inferior Vena Cava Involvement: Results From a Pooled Clinical Trial Database and Systematic Review of Reported Cases. Clinical Genitourinary Cancer 16:2, e327-e333. [Crossref]

5. Lidia Capotosto, Giulia Elena, Francesco Massoni, Simone De Sio, Aldo Carnevale, Serafino Ricci, Antonio Vitarelli. 2016. Cardiac

Tumors. American Journal of Forensic Medicine & Pathology 37:4, 306-316. [Crossref]

6. Mahmoud Abu Abeeleh, Mohammad Al-Haj Qasem, Amjad Bani Hani, Azmi Alhadidi, Eman Al-Antari, Yaqeen Qudah. 2016. Spontaneous left atrial intramural hematoma associated with large hemorrhagic pericardial effusion. Journal of Cardiology Cases

14:4, 130-132. [Crossref]

7. Jabi E. Shriki, Patrick M. Colletti, Suresh Maximin. Assessment of Cardiac and Thoracic Masses 275-293. [Crossref]

8. Dipankar Gupta, Arun Chandran. 2015. Cardiac Magnetic Resonance Imaging and Computed Tomography in Newborns With

Congenital Heart Disease. NeoReviews 16:6, e362-e377. [Crossref]

9. Lei Yu, Tianxiang Gu, Enyi Shi, Zongyi Xiu, Qin Fang, Chun Wang, Xiaobing Wang, Yanbin Cheng. 2014. Primary malignant

cardiac tumors. Journal of Cancer Research and Clinical Oncology 140:6, 1047-1055. [Crossref]

10. Jan Calissendorff, Anders Sundin, Henrik Falhammar. 2013. 68Ga-DOTA-TOC-PET/CT detects heart metastases from ileal

neuroendocrine tumors. Endocrine . [Crossref]

11. Dario Pasalic, Livia T. Hegerova, Wilson I. Gonsalves, Steven Robinson. 2013. An insidious cardiac sarcoma presenting with

progressive neurologic dysfunction. Rare Tumors 5:4, 56. [Crossref]

12. Ravindranath K. Shankarappa, Nagaraja Moorthy, Prabhavathi Bhat, Manjunath C. Nanjappa. 2013. Left ventricular hydatid cyst:

an uncommon cause of chest pain in young adults. Cardiology in the Young 23:3, 460-462. [Crossref]

13. Peter Alter, Jens H. Figiel, Thomas P. Rupp, Georg F. Bachmann, Bernhard Maisch, Marga B. Rominger. 2013. MR, CT, and

PET imaging in pericardial disease. Heart Failure Reviews 18:3, 289-306. [Crossref]

14. Thomas M. Yohannan, Steven P. Goldberg, J. Kevin Stamps, Craig A. Mathis, Courtney L. Anthony Jr., Olga E. Lasater, Christopher J. Knott-Craig. 2012. Cardiac Myxolipoma in a Child: Diagnosis and Surgical Management. Congenital Heart Disease

7:6, E113-E116. [Crossref]

15. K. U. Bauner, S. Sourbron, M. Picciolo, C. Schmitz, D. Theisen, T. A. Sandner, M. F. Reiser, A. M. Huber. 2012. MR first pass perfusion of benign and malignant cardiac tumours—significant differences and diagnostic accuracy. European Radiology 22:1,

73-82. [Crossref]

16. Alexis Jacquier. Technical Aspects 3-6. [Crossref]

17. J. Bogaert, S. Dymarkowski. Cardiac Masses 411-464. [Crossref]

18. O. Vignaux, S. Benabadji, E. Bruguière. Pathologies du péricarde 231-240. [Crossref]

19. Augusto Orlandi, Amedeo Ferlosio, Mario Roselli, Luigi Chiariello, Luigi G. Spagnoli. 2010. Cardiac Sarcomas: An Update.

Journal of Thoracic Oncology 5:9, 1483-1489. [Crossref]

20. Ashwin Prakash. Cardiac Tumors 345-353. [Crossref]

21. F. Prunier, W. Abi Khalil, J. Laporte, J.-L. de Brux, A. Furber. 2010. Tumeurs cardiopéricardiques. EMC - Cardiologie 5:1,

1-14. [Crossref]

22. Michael B. Gotway, Brett M. Elicker. Radiographic Techniques 393-444. [Crossref]

23. Luigi Lovato, Vincenzo Russo, Katia Buttazzi, Rossella Fattori. I tumori del cuore 141-155. [Crossref]

24. Marco Francone, Francesca Antonella Calabrese, Ilaria Iacucci, Matteo Mangia. Malattie del pericardio 165-175. [Crossref]

25. Jabi E. Shriki, Patrick M. Colletti, William D. Boswell. Assessment of Cardiac and Thoracic Masses 169-185. [Crossref]

Resonance 11:1. . [Crossref]

27. Yogesh K. Mariappan, Kevin J. Glaser, Armando Manduca, Richard L. Ehman. 2009. Cyclic motion encoding for enhanced MR

visualization of slip interfaces. Journal of Magnetic Resonance Imaging 30:4, 855-863. [Crossref]

28. Jamie Penk, Peter Koenig, Constantine Mavroudis. 2009. Rare Pediatric Cardiac Tumor Presentation. Pediatric Cardiology 30:7,

1016-1018. [Crossref]

29. D. Crochet, G. Helft, S. Chassaing, D. Revel, A. Furber. 2009. Indications cliniques appropriées de l’IRM en pathologie

cardio-vasculaire. Journal de Radiologie 90:9, 1144-1160. [Crossref]

30. A. Furber, G. Helft, S. Chassaing, D. Revel, D. Crochet. 2009. Indications cliniques appropriées de l’IRM en pathologie

cardio-vasculaire. Archives of Cardiovascular Diseases Supplements 1:1, 34-50. [Crossref]

31. Fabio Rigamonti, P. Beris, A. Sanchez-Pareja, P. Meyer, G. Ashrafpoor, S. Zaza, J. Passweg, Y. Chalandon. 2009. Atypical

presentation of acute myeloid leukemia: cardiac myeloid sarcoma. International Journal of Hematology 89:5, 693-698. [Crossref]

32. Hassan Paraiso, Marla Prasad. 2009. Papular rash in the hand: A case report of atrial myxoma. European Journal of Internal

Medicine 20:3, e76-e77. [Crossref]

33. Amgad N. Makaryus, Lawrence M. Boxt. Cardiac Magnetic Resonance Imaging 69-105. [Crossref]

34. Eric Stéphant, Soskin Ana, Douek Philippe. 2008. Inter-ventricular septal cardiac fibroma in an adult: MR and MDCT features

with pathologic correlation. European Journal of Radiology Extra 67:3, e103-e106. [Crossref]

35. Konstantinos A Ekmektzoglou, Georgios F Samelis, Theodoros Xanthos. 2008. Heart and tumors: location, metastasis, clinical

manifestations, diagnostic approaches and therapeutic considerations. Journal of Cardiovascular Medicine 9:8, 769-777. [Crossref]

36. Lijo Simpson, Shaji K. Kumar, Scott H. Okuno, Hartzell V. Schaff, Luis F. Porrata, Jan C. Buckner, Timothy J. Moynihan.

2008. Malignant primary cardiac tumors. Cancer 112:11, 2440-2446. [Crossref]

37. Alan S. Brody. Thoracic Manifestations of Systemic Diseases 289-312. [Crossref]

38. Patrick M. Colletti, Jabi E. Shriki, William D. Boswell. Assessment of Cardiacand Thoracic Masses 1-12. [Crossref]

39. Małgorzata Peregud-Pogorzelska, Jarosław Kaźmierczak, Andrzej Wojtarowicz. 2007. Intracavitary Mass as the Initial

Manifestation of Primary Pericardial Mesothelioma. Angiology 58:2, 255-258. [Crossref]

40. Raymond F. Stainback, Yasmin S. Hamirani, Denton A. Cooley, L. Maximilian Buja. Tumors of the Heart 2267-2294. [Crossref]

41. David Fieno, Rola Saouaf, Louise Thomson, Aiden Abidov, John Friedman, Daniel Berman. 2006. Cardiovascular Magnetic

Resonance of Primary Tumors of the Heart: A Review. Journal of Cardiovascular Magnetic Resonance 8:6, 839-853. [Crossref]

42. J. Paul Finn, Kambiz Nael, Vibhas Deshpande, Osman Ratib, Gerhard Laub. 2006. Cardiac MR Imaging: State of the Technology.

Radiology 241:2, 338-354. [Crossref]

43. Vikas K. Rathi. Cardiac and Paracardiac Masses 299-326. [Crossref]

44. Sumit Mittle, Amgad N. Makaryus, Loukas Boutis, Alan Hartman, David Rosman, Smadar Kort. 2005. Right-sided Myxomas.

Journal of the American Society of Echocardiography 18:6, 695. [Crossref]

45. Guillermo Romero-Farina, Jaume Candell-Riera, Álvaro Beltrán-Ror, Juan B. González-Moreno, Daniel Bigalli, Alicia Stratta. 2004. Primary Cardiac Angiosarcoma: Diagnostic Utility of Computed Tomography and Cardiac Magnetic Resonance. Revista

Española de Cardiología (English Edition) 57:12, 1234-1237. [Crossref]

46. K. Reynen, U. Köckeritz, R.H. Strasser. 2004. Metastases to the heart. Annals of Oncology 15:3, 375-381. [Crossref]

47. Christina Bove, Christopher Kramer. CMR of cardiac masses and thrombi 253-266. [Crossref]

48. Guillermo Romero-Farina, Jaume Candell-Riera, Álvaro Beltrán-Ror, Juan B. González-Moreno, Daniel Bigalli, Alicia Stratta. 2004. Angiosarcomas cardíacos primarios: utilidad de la tomografía computarizada y la resonancia mágnética cardíaca en su

diagnóstico. Revista Española de Cardiología 57:12, 1234-1237. [Crossref]

49. Christoph M. Heyer, Thomas Kagel, Stefan P. Lemburg, Torsten T. Bauer, Volkmar Nicolas. 2003. Lipomatous Hypertrophy

of the Interatrial Septum. Chest 124:6, 2068-2073. [Crossref]

50. Jens Bremerich, Sabine Pater, Peter T Buser. 2003. Magnetic resonance imaging of acquired heart disease: evaluation of structure.

Seminars in Roentgenology 38:4, 314-319. [Crossref]

51. Jun Shiraishi, Masashi Tagawa, Takashi Yamada, Takahisa Sawada, Tetsuya Tatsumi, Akihiro Azuma, Yasuyuki Shimada, Hitoshi Yaku, Nobuo Kitamura, Masao Nakagawa. 2003. Papillary Fibroelastoma of the Aortic Valve: Evaluation with Transesophageal

Echocardiography and Magnetic Resonance Imaging. Japanese Heart Journal 44:5, 799-803. [Crossref]

52. Utpal H Pandya, Patricia A Pellikka, Maurice Enriquez-Sarano, William D Edwards, Hartzell V Schaff, Heidi M Connolly. 2002. Metastatic carcinoid tumor to the heart: echocardiographic-pathologic study of 11 patients. Journal of the American College of

Cardiology 40:7, 1328-1332. [Crossref]

53. Maria G. Kiaffas, Andrew J. Powell, Tal Geva. 2002. Magnetic resonance imaging evaluation of cardiac tumor characteristics in

infants and children. The American Journal of Cardiology 89:10, 1229-1233. [Crossref]

54. Jesús Álvarez, Álvaro Rubio, Manuel de Mora, Gabriel Fernández Madero, Ricardo Vivancos, Félix Malpartida. 2002. Hematoma intramural auricular izquierdo diagnosticado por resonancia magnética nuclear. Revista Española de Cardiología 55:8, 872-874. [Crossref]

55. Christoph A. Nienaber. Diseases of the Thoracic Aorta: Percutaneous Approach 1549-1561. [Crossref]

56. S. Neubauer. Bedeutung von Magnetresonanzverfahren in der Kardiologie 77-88. [Crossref]

57. Paulo R. Schvartzman, Richard D. White. 2000. Imaging of Cardiac and Paracardiac Masses. Journal of Thoracic Imaging 15:4,

265-273. [Crossref]

58. Mary L. Grebenc, Melissa L. Rosado de Christenson, Allen P. Burke, Curtis E. Green, Jeffrey R. Galvin. 2000. Primary Cardiac

and Pericardial Neoplasms: Radiologic-Pathologic Correlation. RadioGraphics 20:4, 1073-1103. [Crossref]

59. David W Quinn, Ford Qureshi, Ian M Mitchell. 2000. Pericardial mesothelioma: the diagnostic dilemma of misleading imaging.

The Annals of Thoracic Surgery 69:6, 1926-1927. [Crossref]

60. Hartzell V. Schaff, Charles J. Mullany. 2000. Surgery For Cardiac Myxomas. Seminars in Thoracic and Cardiovascular Surgery

12:2, 77-88. [Crossref]

61. Rodolfo Bonamini, Erennio Rosettani, Lucia Mangiardi, Francesco Pinneri, Stefano Cirillo. 2000. A Large False Aneurysm of

the Right Ventricle Within a Giant Epicardial Lipoma. Chest 117:2, 601-603. [Crossref]

62. J. Bogaert. Cardiac Masses 169-204. [Crossref]

63. P. Croisille, D. Revel. Pericardial Diseases 59-66. [Crossref]

64. J. M. Debois. Primary Tumors of the Heart 184-213. [Crossref]

65. Herbert Frank, Sebastian Globits. Magnetic Resonance Imaging in Cardiovascular Disease 208-235. [Crossref]

66. Harald Kaemmerer, Tareq Ibrahim, Markus Schwaiger, John Hess. 1999. Magnetresonanztomographie und Spiralcomputertomographie in der Diagnostik und Nachsorge von Erwachsenen mit angeborenen Herz-und Gefäßanomalien.

Herz 24:4, 263-275. [Crossref]

67. M. Lombardi, A. L’Abbarte. Heart 223-231. [Crossref]

68. F. Carreras-Costa. Cardiac and paracardiac masses 80-95. [Crossref]

69. Koenraad J. Mortele, Patricia J. Merge, Willie F. Williams. 1998. Lipomatous hypertrophy of the atrial septum: Diagnosis with

fat suppressed MR imaging. Journal of Magnetic Resonance Imaging 8:5, 1172-1174. [Crossref]

70. Mark A. King, Thomas G. Vrachliotis, Colleen J. Bergin. 1998. A left atrial pseudomass: Potential pitfall at thoracic MR imaging.

Journal of Magnetic Resonance Imaging 8:4, 991-993. [Crossref]

71. R. Jahns, W. Kenn, M. Stolte, G. Inselmann. 1998. A primary osteosarcoma of the heart as a cause of recurrent peripheral arterial

emboli. Annals of Oncology 9:7, 775-778. [Crossref]

72. Christoph A. Nienaber, Yskert von Kodolitsch. 1998. DISEASES OF THE AORTA. Cardiology Clinics 16:2, 295-314. [Crossref]

73. Edward T. Martin, Anthon R. Fuisz, Gerald M. Pohost. 1998. IMAGING CARDIAC STRUCTURE AND PUMP

FUNCTION. Cardiology Clinics 16:2, 135-160. [Crossref]

74. Feng-Lin Lo, Yi-Hong Chou, Chui-Mei Tiu, Gong-Yau Lan, Jeng-Hsung Hwang, Ming-Sheng Chern, Michael Mu-Huo Teng. 1998. Primary cardiac leiomyosarcoma: imaging with 2-D echocardiography, electron beam CT and 1.5-Tesla MR. European

Journal of Radiology 27:1, 72-76. [Crossref]

75. Darrell N Smith, Kitt Shaffer, Edward F Patz. 1998. Imaging features of nonmyxomatous primary neoplasms of the heart and

pericardium. Clinical Imaging 22:1, 15-22. [Crossref]

76. E. Malaurie, C. Petitjean, J. Traversat, C. Chapelon-Abric, A. Vacheron, L. Arrivé. Tumors of the heart and great vessels 179-184. [Crossref]

77. Liston A. Orr, Roderic I. Pettigrew, Andre L. Churchwell, Henry S. Jennings, Michael R. Petracek, John P. Vansant. 1997.

Gadolinium utilization in the MR evaluation of cardiac paraganglioma. Clinical Imaging 21:6, 404-406. [Crossref]

78. Sheila C. Berlin. 1997. MAGNETIC RESONANCE IMAGING OF THE CARDIOVASCULAR SYSTEM AND AIRWAY.

Pediatric Clinics of North America 44:3, 659-679. [Crossref]

1996. Mediastinal lipoma mimicking dextrocardia and cardiac enlargement: Diagnosis by magnetic resonance imaging. American

Heart Journal 132:4, 894-897. [Crossref]

80. E. Mousseaux, A. Hernigou, M. Azencot, M. Sapoval, M. Auguste, J. C. Gaux. 1996. Evaluation by electron beam computed

tomography of intracardiac masses suspected by transoesophageal echocardiography. Heart 76:3, 256-263. [Crossref]

81. Grigoris K. Kotoulas, George L. Magoufis, Athanasios D. Gouliamos, Alexandra K. Athanassopoulou, Arcadios C. Roussakis, Dimitra P. Koulocheri, Angelos Kalovidouris, Labros Vlahos. 1996. Evaluation of hydatid disease of the heart with magnetic

resonance imaging. Cardiovascular and Interventional Radiology 19:3, 187-189. [Crossref]

82. Charles S. White. 1996. MR EVALUATION OF THE PERICARDIUM AND CARDIAC MALIGNANCIES. Magnetic

Resonance Imaging Clinics of North America 4:2, 237-251. [Crossref]

83. J. Buck, F. H. W. Heuck. Herztumoren (Tumoren von Myokard und Perikard) 359-383. [Crossref]

84. Klaus Reynen. 1995. Cardiac Myxomas. New England Journal of Medicine 333:24, 1610-1617. [Crossref]

85. Jan Bogaert, Filip De Man, Frank Rademakers, Kathleen Weemaes, Johny A. Verschakelen, Hilaire De Geest, Albert L. Baert. 1995. Right atrial tumor arising on an atrial septal aneurysm assessment by MR imaging. Clinical Imaging 19:3, 172-175. [Crossref]

86. Moshe Stein, Avivit Neuman, Janet Dale, Keren Drumea, Ofer Ben-Itzhak, Rachel Bar-Shalom, Dorit Goldscher, Nissim Haim. 1995. Cardiac tamponade as the initial manifestation of primary pericardial mesothelioma. Medical and Pediatric Oncology 24:3,

208-212. [Crossref]

87. Thomas J. Vogl. Herz 227-257. [Crossref]

88. Steven M. Bernstein, Gwen Harris, Ellen Kahn, Roger A. Hyman. 1993. Dyspnea and chest pain in a 14-year-old boy. Clinical

Imaging 17:3, 235-239. [Crossref]

89. Robert R. Edelman, Steven Warach. 1993. Magnetic Resonance Imaging. New England Journal of Medicine 328:11, 785-791. [Crossref]

90. Tatsurou Kaminaga, Naoaki Yamada, Satoshi Imakita, Makoto Takamiya, Tsunehiko Nishimura. 1993. Magnetic resonance

imaging of pericardial malignant mesothelioma. Magnetic Resonance Imaging 11:7, 1057-1061. [Crossref]

91. William T. Pochis, Kooroush Saeian, Kiran B. Sagar. 1992. Usefulness of transesophageal echocardiography in diagnosing lipomatous hypertrophy of the atrial septum with comparison to transthoracic echocardiography. The American Journal of

Cardiology 70:3, 396-398. [Crossref]

92. Richard C. Semelka, J. Patrick Shoenut, Murray E. Wilson, Andrew E. Pellech, J. Norman Patton. 1992. Cardiac masses: Signal intensity features on spin-echo, gradient-echo, gadolinium-enhanced spin-echo, and TurboFLASH images. Journal of Magnetic

Resonance Imaging 2:4, 415-420. [Crossref]

93. Junpei Ikezoe, Noriyuki Takeuchi, Koshi Harada, Takahiro Kozuka. 1992. Inclined coronal scans in thoracic MR imaging.

European Journal of Radiology 14:3, 240-244. [Crossref]

94. Stany A. D'Silva, Anirudh Kohli, Bharat V. Dalvi, Puroshottam A. Kale. 1992. MRI in right ventricular endomyocardial fibrosis.

American Heart Journal 123:5, 1390-1392. [Crossref]

95. K. M. Mohandas, R. F. Chinoy, N. H. Merchant, R. G. Lotliker, P. B. Desai. 1992. Malignant small cell tumour (Askin-Rosai)

of the pericardium. Postgraduate Medical Journal 68:796, 140-142. [Crossref]

96. TSUI-LIEH HSU, MING-CHON HSIUNG, SHOA-LIN LIN, CHEN-HUAN CHEN, CHIN C. CHEN, SHIH-PU WANG, MAU-SONG CHANG, BENJAMIN N. CHIANG. 1992. The Value of Transesophageal Echocardiography in the Diagnosis of

Cardiac Metastasis. Echocardiography 9:1, 1-7. [Crossref]

97. Roderic I. Pettigrew. Magnetic resonance imaging in cardiology: Attractive for clinical cardiologists? 369-395. [Crossref]

98. Warren J. Manning, Dennis J. Atkinson, William Grossman, Sven Paulin, Robert R. Edelman. 1991. First-pass nuclear magnetic resonance imaging studies using gadolinium-DTPA in patients with coronary artery disease. Journal of the American College of

Cardiology 18:4, 959-965. [Crossref]

99. ISHIK C. TUNA, PAUL R. JULSRUD, ROGER L. CLICK, HENRY D. TAZELAAR, DENNIS R. BRESNAHAN, GORDON K. DANIELSON. 1991. Tissue Characterization of an Unusual Right Atrial Mass by Magnetic Resonance Imaging.

Mayo Clinic Proceedings 66:5, 498-501. [Crossref]

100. L. Samuel Wann. 1991. Magnetic Resonance of the Heart and Cardiovascular System: An Echocardiographer's Perspective. Journal

of the American Society of Echocardiography 4:1, 84-92. [Crossref]

101. E. William Hancock. 1990. Neoplastic Pericardial Disease. Cardiology Clinics 8:4, 673-682. [Crossref]

102. Glenn I. Hananouchi, Walter B. Goff. 1990. Cardiac lipoma: Six-year follow-up with MRI characteristics, and a review of the

literature. Magnetic Resonance Imaging 8:6, 825-828. [Crossref]

103. RICHARD L. EHMAN, PAUL R. JULSRUD. 1989. Magnetic Resonance Imaging of the Heart: Current Status. Mayo Clinic

Proceedings 64:9, 1134-1146. [Crossref]

104. Jan Bogaert, Andrew M. Taylor, Steven Dymarkowski. Pericardial Disease 285-303. [Crossref]

105. Jan Bogaert, Steven Dymarkowski. Cardiac Masses 305-351. [Crossref]

106. Francesc Carreras. Cardiac and Paracardiac Masses 92-108. [Crossref]

107. Massimo Lombardi, Virna Zampa. Contrast agents in cardiovascular magnetic resonance 75-87. [Crossref]
