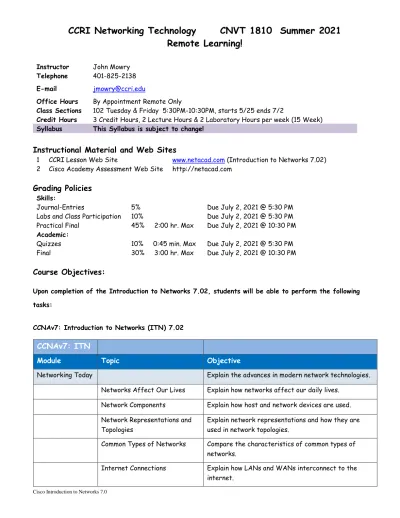

CCRI Networking Technology CNVT 1810 Summer 2021 Remote Learning!

(1)

CCRI Networking Technology CNVT 1810 Summer 2021

Remote Learning!

Instructor John Mowry Telephone 401-825-2138

Office Hours By Appointment Remote Only

Class Sections 102 Tuesday & Friday 5:30PM-10:30PM, starts 5/25 ends 7/2

Credit Hours 3 Credit Hours, 2 Lecture Hours & 2 Laboratory Hours per week (15 Week) Syllabus This Syllabus is subject to change!

Instructional Material and Web Sites

1 CCRI Lesson Web Site www.netacad.com (Introduction to Networks 7.02) 2 Cisco Academy Assessment Web Site http://netacad.com

Grading Policies

Skills:

Journal-Entries 5% Due July 2, 2021 @ 5:30 PM

Labs and Class Participation 10% Due July 2, 2021 @ 5:30 PM Practical Final 45% 2:00 hr. Max Due July 2, 2021 @ 10:30 PM Academic:

Quizzes 10% 0:45 min. Max Due July 2, 2021 @ 5:30 PM Final 30% 3:00 hr. Max Due July 2, 2021 @ 10:30 PM

Course Objectives:

Upon completion of the Introduction to Networks 7.02, students will be able to perform the following tasks:

CCNAv7: Introduction to Networks (ITN) 7.02

CCNAv7: ITN

Module

Topic

Objective

Networking Today Explain the advances in modern network technologies.

Networks Affect Our Lives Explain how networks affect our daily lives. Network Components Explain how host and network devices are used. Network Representations and

Topologies

Explain network representations and how they are used in network topologies.

Common Types of Networks Compare the characteristics of common types of networks.

Internet Connections Explain how LANs and WANs interconnect to the internet.

(2)

Reliable Networks Describe the four basic requirements of a reliable network.

Network Trends Explain how trends such as BYOD, online collaboration, video, and cloud computing are changing the way we interact.

Network Security Identify some basic security threats and solutions for all networks.

The IT Professional Explain employment opportunities in the networking field.

Module

Topic

Objective

Basic Switch and End Device Configuration

Implement initial settings including passwords, IP addressing, and default gateway parameters on a network switch and end devices.

Cisco IOS Access Explain how to access a Cisco IOS device for configuration purposes.

IOS Navigation Explain how to navigate Cisco IOS to configure network devices.

The Command Structure Describe the command structure of Cisco IOS software.

Basic Device Configuration Configure a Cisco IOS device using CLI.

Save Configurations Use IOS commands to save the running configuration. Ports and Addresses Explain how devices communicate across network

media.

Configure IP Addressing Configure a host device with an IP address. Verify Connectivity Verify connectivity between two end devices.

Module Topic Objective

Protocols and Models

Explain how network protocols enable devices to access local and remote network resources. The Rules Describe the types of rules that are necessary to

successfully communicate.

Protocols Explain why protocols are necessary in network communication.

Protocol Suites Explain the purpose of adhering to a protocol suite. Standards Organizations Explain the role of standards organizations in

(3)

Reference Models Explain how the TCP/IP model and the OSI model are used to facilitate standardization in the

communication process.

Data Encapsulation Explain how data encapsulation allows data to be transported across the network.

Data Access Explain how local hosts access local resources on a network.

Physical Layer Explain how physical layer protocols, services, and

network media support communications across data networks.

Purpose of the Physical Layer Describe the purpose and functions of the physical layer in the network.

Physical Layer Characteristics Describe characteristics of the physical layer. Copper Cabling Identify the basic characteristics of copper cabling. UTP Cabling Explain how UTP cable is used in Ethernet networks. Fiber-Optic Cabling Describe fiber-optic cabling and its main advantages

over other media.

Wireless Media Connect devices using wired and wireless media.

Number Systems Calculate numbers between decimal, binary, and

hexadecimal systems.

Binary Number System Calculate numbers between decimal and binary systems.

Hexadecimal Number System Calculate numbers between decimal and hexadecimal systems.

Data Link Layer Explain how media access control in the data link layer

supports communication across networks.

Purpose of the Data Link Layer Describe the purpose and function of the data link layer in preparing communication for transmission on specific media.

Topologies Compare the characteristics of media access control methods on WAN and LAN topologies.

(4)

Data Link Frame Describe the characteristics and functions of the data link frame.

Ethernet Switching

Explain how Ethernet operates in a switched network. Ethernet Frame Explain how the Ethernet sublayers are related to the

frame fields.

Ethernet MAC Address Describe the Ethernet MAC address.

The MAC Address Table Explain how a switch builds its MAC address table and forwards frames.

Switch Speeds and Forwarding Methods

Describe switch forwarding methods and port settings available on Layer 2 switch ports.

Network Layer Explain how routers use network layer protocols and

services to enable end-to-end connectivity.

Network Layer Characteristics Explain how the network layer uses IP protocols for reliable communications.

IPv4 Packet Explain the role of the major header fields in the IPv4 packet.

IPv6 Packet Explain the role of the major header fields in the IPv6 packet.

How a Host Routes Explain how network devices use routing tables to direct packets to a destination network.

Router Routing Tables Explain the function of fields in the routing table of a router.

Address Resolution

Explain how ARP and ND enable communication on a network.

MAC and IP Compare the roles of the MAC address and the IP address.

ARP Describe the purpose of ARP.

Neighbor Discovery Describe the operation of IPv6 neighbor discovery.

(5)

Basic Router Configuration

Implement initial settings on a router and end devices. Configure Initial Router

Settings

Configure initial settings on a Cisco IOS router. Configure Interfaces Configure two active interfaces on a Cisco IOS router. Configure the Default Gateway Configure devices to use the default gateway.

IPv4 Addressing Calculate an IPv4 subnetting scheme to efficiently

segment a network.

IPv4 Address Structure Describe the structure of an IPv4 address including the network portion, the host portion, and the subnet mask.

IPv4 Unicast, Broadcast, and Multicast

Compare the characteristics and uses of the unicast, broadcast and multicast IPv4 addresses.

Types of IPv4 Addresses Explain public, private, and reserved IPv4 addresses. Network Segmentation Explain how subnetting segments a network to enable

better communication.

Subnet an IPv4 Network Calculate IPv4 subnets for a /24 prefix. Subnet a /16 and /8 Prefix Calculate IPv4 subnets for a /16 and /8 prefix.

Subnet to Meet Requirements Given a set of requirements for subnetting, implement an IPv4 addressing scheme.

Variable Length Subnet Masking Explain how to create a flexible addressing scheme using variable length subnet masking (VLSM). Structured Design Implement a VLSM addressing scheme.

IPv6 Addressing Implement an IPv6 addressing scheme.

IPv4 Issues Explain the need for IPv6 addressing.

IPv6 Addressing Explain how IPv6 addresses are represented. IPv6 Address Types Compare types of IPv6 network addresses. GUA and LLA Static

Configuration

Explain how to configure static global unicast and linklocal IPv6 network addresses.

Dynamic Addressing for IPv6 GUAs

Explain how to configure global unicast addresses dynamically.

(6)

Dynamic Addressing for IPv6 LLAs

Configure link-local addresses dynamically. IPv6 Multicast Addresses Identify IPv6 addresses.

Subnet an IPv6 Network Implement a subnetted IPv6 addressing scheme.

ICMP Use various tools to test network connectivity.

ICMP Messages Explain how ICMP is used to test network connectivity. Ping and Traceroute Testing Use ping and traceroute utilities to test network

connectivity.

Transport Layer Compare the operations of transport layer protocols in

supporting end-to-end communication.

Transportation of Data Explain the purpose of the transport layer in managing the transportation of data in end-to-end

communication.

TCP Overview Explain characteristics of the TCP. UDP Overview Explain characteristics of the UDP.

Port Numbers Explain how TCP and UDP use port numbers.

TCP Communication Process Explain how TCP session establishment and termination processes facilitate reliable communication.

Reliability and Flow Control Explain how TCP protocol data units are transmitted and acknowledged to guarantee delivery.

UDP Communication Describe the UDP client processes to establish communication with a server.

Application Layer Explain the operation of application layer protocols in providing support to end-user applications.

Application, Presentation, and Session

Explain how the functions of the application layer, session layer, and presentation layer work together to provide network services to end user applications. Peer-to-Peer Explain how end user applications operate in a

peer-to-peer network.

Web and Email Protocols Explain how web and email protocols operate. IP Addressing Services Explain how DNS and DHCP operate.

(7)

File Sharing Services Explain how file transfer protocols operate.

Network Security Fundamentals

Configure switches and routers with device hardening features to enhance security.

Security Threats and Vulnerabilities

Explain why basic security measures are necessary on network devices.

Network Attacks Identify security vulnerabilities. Network Attack Mitigation Identify general mitigation techniques.

Device Security Configure network devices with device hardening features to mitigate security threats.

Build a Small Network

Implement a network design for a small network to include a router, a switch, and end devices.

Devices in a Small Network Identify the devices used in a small network. Small Network Applications and

Protocols

Identify the protocols and applications used in a small network.

Scale to Larger Networks Explain how a small network serves as the basis of larger networks.

Verify Connectivity Use the output of the ping and tracert commands to verify connectivity and establish relative network performance.

Host and IOS Commands Use host and IOS commands to acquire information about the devices in a network.

Troubleshooting Methodologies Describe common network troubleshooting methodologies.

Troubleshooting Scenarios Troubleshoot issues with devices in the network.

The goals of Introduction to Networks 7.02

The course introduces the architectures, models, protocols, and networking elements that connect users, devices, applications and data through the internet and across modern computer networks - including IP addressing and Ethernet fundamentals. By the end of the course, students can build simple local area networks (LANs) that integrate IP addressing schemes, foundational network security, and perform basic configurations for routers and switches.

(8)

Time Management

1. Course will meet for two (5) Lecture Hours and, two (5) laboratory hours per week of instruction. 2. Course will meet for sixty (60) hours of combined instruction and laboratory exercises.

3. Students are expected to spend an equal amount of time (60 hours) in reading the curriculum, and studying related material in addition to the required lecture/laboratory.

Practical Exam

1. The practical exam will encompass a majority of concepts and procedures developed during the laboratory experiments and required readings.

2. The practical exam will be totally “hands-on” including routing and switching equipment as well as IP Addressing and programs specifically related to the remote configuration of networking devices.

Examinations

1. All exams, excluding the practical exam, will be a combination of multiple choice, fill-in the blank, matching as well as simulations.

Notebook

The notebook must be submitted before the Final Exam and Skills Exam. It must be submitted electronically in the Netacad website as either a word or PDF file. It may be pictures added into a PDF format.

Submittal of all Assignments

The final class meeting marks the end of all submittals of Assignments, Labs, Skills Exam, Final Exam, Notebook and any other assigned work.

Chapter Exams / Quizzes

The Chapter Exams / Quizzes will be timed to a maximum of 0:45 minutes. Exams will become active 0:30 minutes prior to the start of class. Class will start, no later than 0:45 minutes after scheduled start time. All Exams / Quizzes will be taken on the Netacad website.

Other Policies

1. The student expected to complete the On-Line lessons outside of class time.

2. Late assignments, including labs, will not be accepted after a one-week grace period, and will be entered as a zero (0) in the gradebook.

(9)

3. All assignments must be completed using a word processor.

4. Students are responsible to see the instructor about any work missed due to absence. 5. Students who miss a quiz must take the quiz within two classes of the original quiz date. 6. Students are expected to participate as a member of teams

7. Students must pass both the Skills based portion in addition to the Academic portion of the curriculum to pass the course.

8. Student’s final grade can only raise one letter grade above the on-line final exam score based on other class assignments.

9. Students are allowed a maximum of three (3) re-takes of chapter quizzes per the semester. 10. All re-takes must be completed prior to the final exam, without exception.

11. Department policy is that if you miss the equivalent of two (2) weeks of classes your final grade will drop by one (1) letter grade.

Exam Breakdown:

Module

Chapter/Section/Topic Titles

% Coverage

0.1.0 Explain the advances in modern network technologies.

13%

0.2.0 Implement initial settings including passwords, IP addressing,

and default gateway parameters on a network switch and end

devices.

46%

0.3.0 Explain how network protocols enable devices to access local

and remote network resources.

41%

Module Group Exam Basic Network Connectivity and Communications

100%

0.4.0 Explain how physical layer protocols, services, and network

media support communications across data networks.

23%

0.5.0 Calculate numbers between decimal, binary, and hexadecimal

systems.

0%

0.6.0 Explain how media access control in the data link layer supports

communications across networks.

33%

0.7.0 Explain how Ethernet operates in a switched network.

44%

Module Group Exam Ethernet Concepts

100%

0.8.0 Explain how routers use network layer protocols and services

to enable end-to-end connectivity.

34%

0.9.0 Explain how ARP and ND enable communication on a network.

_25%

0.10.0 Implement initial settings on a router and end devices.

41%

Module Group

(10)

0.11.0 Calculate an IPv4 subnetting scheme to efficiently segment a

network.

38%

0.12.0 Implement an IPv6 addressing scheme.

43%

0.13.0 Use various tools to test network connectivity.

_18%

Module Group

Exam

IP Addressing

100%

0.14.0 Compare the operation of transport layer protocols in

supporting end-to-end communication.

51%

0.15.0 Explain the operation of the application layer in providing

support to end-user applications.

49%

Module Group

Exam

Network Application Communications

100%

0.16.0 Configure switches and routers with device hardening features

to enhance security.

44%

0.17.0 Troubleshoot connectivity in a small network.

56%

Module Group

Exam

Building and Securing a Small Network

100%

Final Exam Breakdown:

Type

Module

Chapter/Section/Topic Titles

%

Coverage

TLO

0.1.0 Explain the advances in modern network technologies.

3%

TLO

0.2.0 Implement initial settings including passwords, IP addressing,

and default gateway parameters on a network switch and end

devices.

6%

TLO

0.3.0 Explain how network protocols enable devices to access local

and remote network resources.

6%

TLO

0.4.0 Explain how physical layer protocols, services, and network

media support communications across data networks.

7%

TLO

0.5.0 Calculate numbers between decimal, binary, and hexadecimal

systems.

0%

TLO

0.6.0 Explain how media access control in the data link layer supports

communications across networks.

8%

TLO

0.7.0 Explain how Ethernet operates in a switched network.

9%

TLO

0.8.0 Explain how routers use network layer protocols and services

to enable end-to-end connectivity.

9%

TLO

0.9.0 Explain how ARP and ND enable communication on a network.

5%

TLO

0.10.0 Implement initial settings on a router and end devices.

6%

TLO

0.11.0 Calculate an IPv4 subnetting scheme to efficiently segment a

network.

8%

(11)

TLO

0.13.0 Use various tools to test network connectivity.

5%

TLO

0.14.0 Compare the operation of transport layer protocols in

supporting end-to-end communication.

5%

TLO

0.15.0 Explain the operation of the application layer in providing

support to end-user applications.

5%

TLO

0.16.0 Configure switches and routers with device hardening features

to enhance security.

6%

(12)

Introduction to Networks (ITN) 7.02

Class Lesson Module

Group Exam Subjects Labs/Projects

May 25 1 & 2 Module 1: Networking Today Module 2: Basic Switch and End Device Configuration

Video 1.1.2 The Cisco Networking Academy Learning Experience

Video 1.5.5 Download and Install Packet Tracer

Video 1.5.6 Getting Started in Cisco Packet Tracer

Lab 1.5.7 Network Representation

Video 1.7.5 Cisco WebEx for Huddles

Video 2.2.3 IOS CLI Primary Command Modes

Video 2.2.5 Navigate Between IOS Modes

Video 2.3.4 Context Sensitive Help and Command Syntax Check

Video 2.3.6 Hot Keys and Shortcuts Lab 2.3.7 Navigate the IOS

Video 2.4.6 Secure Administrative Access to a Switch

Video 2.5.3 Alter the Running Configuration Lab 2.5.5 Configure Initial Switch Settings May 28 3 Module 3: Protocols and Models Video 3.1.1 Devices in a Bubble

Lab 3.5.5 Investigate the TCP/IP and OSI Models in Action

June 1 4 1 (1-3) Module 4: Physical Layer Lab 4.6.5 Connect a Wired and Wireless LAN

Lab 4.7.1 Connect the Physical Layer June 4 5 & 6 Module 5: Number Systems

Module 6: Data Link Layer

Video 5.1.2 Converting Between Binary and Decimal Numbering Systems

Video 5.2.2 Converting Between

Hexadecimal and Decimal Numbering Systems June 8 7 Module 7: Ethernet Switching Video 7.3.4 MAC Address Tables on

Connected Switches

Video 7.3.5 Sending the Frame to the Default Gateway

June 11 8 2 (4-7) Module 8: Network Layer Video 8.2.3 Sample IPv4 Headers in Wireshark

Video 8.3.5 Sample IPv6 Headers in Wireshark

Video 8.5.5 IPv4 Routing Router Tables June 15 9 & 10 Module 9: Address Resolution

Module 10: Basic Router Configuration

Lab 9.1.3 Identify MAC and IP Addresses

Video 9.2.3 ARP Operation – ARP Request

Video 9.2.4 ARP Operation – ARP Reply

Video 9.2.5 ARP Role in Remote Communications

Lab 9.2.9 Examine the ARP Table

Video 9.3.1 IPv6 Neighbor Discovery Lab 9.3.4 IPv6 Neighbor Discovery

Lab 10.1.4 Configure Initial Router Settings Lab 10.3.4 Connect a Router to a LAN

(13)

Lab 10.3.5 Troubleshoot Default Gateway Issues

Video 10.4.1 A Network Device Differences: Part 1

Video 10.4.1 B Network Device Differences: Part 2

Lab 10.4.3 Basic Device Configuration June 18 11 3 (8-10) Module 11: IPv4 Addressing Video 11.1.5 Network, Host and Broadcast

Addresses

Activity 11.2.4 Unicast, Broadcast, or

Multicast

Activity 11.3.3 Pass or Block IPv4

Addresses

Activity 11.3.7 Public or Private IPv4 Address

Video 11.3.5 The Subnet Mask

Video 11.5.4 Subnet with the Magic Number Lab 11.5.5 Subnet an IPv4 Network

Video 11.6.4 Subnet Across Multiple Octets Lab 11.7.5 Subnetting Scenario

Video 11.8.1 VLSM Basics

Video 11.8.2 VLSM Example Lab 11.9.3 VLSM Design and Implementation Practice

Lab 11.10.1 Design and Implement a VLSM Addressing Scheme

June 22 12 & 13 Module 12: IPv6 Addressing Module 13: ICMP

Lab 12.6.6 Configure IPv6 Addressing Lab 12.9.1 Implement a Subnetted IPv6 Addressing Scheme

Lab 13.2.6 Verify IPv4 and IPv6 Addressing Lab 13.2.7 Use Ping and Traceroute to Test Network Connectivity

Lab 13.3.1 Use ICMP to Test and Correct Network Connectivity

June 25 14 & 15 4 (11-13) Module 14: Transport Layer Module 15: Application Layer

Video 14.5.5 TCP 3- Handshake

Video 14.6.2 TCP Reliability- Sequence Numbers and Acknowledgments

Video 14.6.4 TCP Reliability – Reliability and Flow control

Lab 14.8.1 TCP and UDP Communications June 29 16 & 17 5 (14 & 15) Module 16: Network Security

Fundamentals

Module 17: Build a Small Network /

Lab 16.4.6 Configure Secure Passwords and SSH

Lab 16.5.1 Secure Network Devices

Video 17.5.8 The show version Command Lab 17.5.9 Interpret show Command Output Lab 17.7.7 Troubleshoot Connectivity Issues Lab 17.8.2 Skills Integration Challenge Lab 17.8.3 Troubleshooting Challenge Before

July 2

6 (16 & 17) This Test will be available from June 29, 2021 @ 10:30 pm until July 2, 2021 @ 4:30 PM
