NetworkSec Solutions

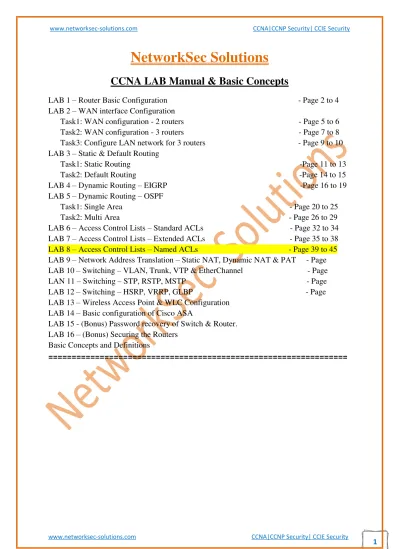

CCNA LAB Manual & Basic Concepts
LAB 1 – Router Basic Configuration - Page 2 to 4 LAB 2 – WAN interface Configuration
Task1: WAN configuration - 2 routers - Page 5 to 6 Task2: WAN configuration - 3 routers - Page 7 to 8 Task3: Configure LAN network for 3 routers - Page 9 to 10 LAB 3 – Static & Default Routing
Task1: Static Routing -Page 11 to 13 Task2: Default Routing -Page 14 to 15 LAB 4 – Dynamic Routing – EIGRP -Page 16 to 19 LAB 5 – Dynamic Routing – OSPF
Task1: Single Area - Page 20 to 25 Task2: Multi Area - Page 26 to 29 LAB 6 – Access Control Lists – Standard ACLs - Page 32 to 34 LAB 7 – Access Control Lists – Extended ACLs - Page 35 to 38 LAB 8 – Access Control Lists – Named ACLs - Page 39 to 45 LAB 9 – Network Address Translation – Static NAT, Dynamic NAT & PAT - Page LAB 10 – Switching – VLAN, Trunk, VTP & EtherChannel - Page LAN 11 – Switching – STP, RSTP, MSTP - Page LAB 12 – Switching – HSRP, VRRP, GLBP - Page LAB 13 – Wireless Access Point & WLC Configuration
LAB 14 – Basic configuration of Cisco ASA
LAB 15 - (Bonus) Password recovery of Switch & Router. LAB 16 – (Bonus) Securing the Routers
Basic Concepts and Definitions
LAB 8
– Access Control List (ACL) – Named
Task1: Standard Named ACL
Task2: Extended Named ACL
Exercise Task1: Standard Named ACL
Block the access from 192.168.1.0/24 to 192.168.3.0/24.
Implement ACL on BR3 Interface Gi0/0/0. (Standard ACLs implement near to
the destination network).
Exercise Task: Extended Named ACL
Block the access from 192.168.2.0/24 to 192.168.1.0/24.
Allow the access from 192.168.2.0/24 to 192.168.3.0/24.
Implement ACL on BR2 Interface Gi0/0/0. (Extended ACLs implement near to
the Source network).
Pre-configuration: Routing should be configured on all the routers to
establish communication between PC1, PC2, PC3.
Gi0/0/0 BR1 SW1 PC1 Gi0/0/0 BR2 SW2 PC2 S0/1/0 S0/1/1 10.0.0.1/24 10.0.0.2/24 Gi0/0/0 BR3 SW3 PC3 S0/1/1 11.0.0.2/24 S0/1/0 11.0.0.1/24 192.168.1.100/24 192.168.2.100/24 192.168.3.100/24 IP Address:192.168.1.1 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.100 IP Address:192.168.2.1 Subnet Mask: 255.255.255.0 Gateway: 192.168.2.100 IP Address:192.168.3.1 Subnet Mask: 255.255.255.0 Gateway: 192.168.3.100
Exercise Task1: Standard Named ACL
Block the access from 192.168.1.0/24 to 192.168.3.0/24.
Implement ACL on BR3 Interface Gi0/0/0. (Standard ACLs implement near to
the destination network).
Remove the LAB Access-list configuration by using below commands (if you
have ACL configuration already on the router from LAB6).
Step1: Remove ACL on BR3
BR3(config)# no access-list 10
Step2: Remove the configuration on the Interface
BR3(config)#interface gigabitEthernet 0/0/0
BR3(config-if) # no ip access-group 10 out
BR3(config-if) #end
BR3#
Step1: Configure named ACL on BR3
BR3(config)#ip access-list standard STANDARD_ACL
BR3(config-std-nacl)#deny 192.168.1.0 0.0.0.255
BR3(config-std-nacl)#permit any
BR3(config-std-nacl)#end
BR3#
Step2: Implement on the Interface
BR3(config)#interface gigabitEthernet 0/0/0
BR3(config-if)#ip access-group STANDARD_ACL out
BR3(config-if)#end
BR3#
After configuring ACL on BR3, PC1 is not able to ping PC3.
SHOW COMMANDS
BR3#show access-listsExercise Task2: Extended Named ACL
Block the access from 192.168.2.0/24 to 192.168.1.0/24.
Allow the access from 192.168.2.0/24 to 192.168.3.0/24.
Implement ACL on BR2 Interface Gi0/0/0. (Extended ACLs implement near to
the Source network).
Remove the LAB Access-list configuration by using below commands (if you
have ACL configuration already on the router from LAB6).
Step1: Remove ACL on BR2
BR3(config)# no access-list 100
Step2: Remove the configuration on the Interface
BR3(config)#interface gigabitEthernet 0/0/0
BR3(config-if) # no ip access-group 100 in
BR3(config-if) #end
Step1: Configure named ACL on BR2
BR2(config)#ip access-list extended EXTENDED_ACL
BR2(config-ext-nacl)#deny ip 192.168.2.0 0.0.0.255 192.168.1.0 0.0.0.255
BR2(config-ext-nacl)#permit ip any any
BR2(config-ext-nacl)#end
BR2#
Step1: Implement on Interface
BR2(config)#interface gigabitEthernet 0/0/0
BR2(config-if)#ip access-group EXTENDED_ACL in
BR2(config-if)#end
BR2#
SHOW COMMANDS
BR2#show access-listsExtended IP access list EXTENDED_ACL
10 deny ip 192.168.2.0 0.0.0.255 192.168.1.0 0.0.0.255 20 permit ip any any
