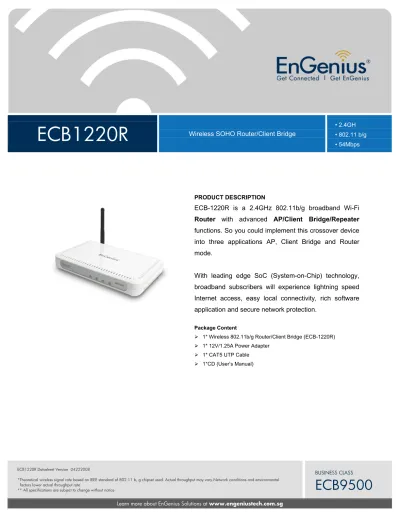

ECB1220R. Wireless SOHO Router/Client Bridge

(1)

ECB1220R

Wireless SOHO Router/Client Bridge

• 2.4GH

• 802.11 b/g

• 54Mbps

PRODUCT DESCRIPTION

ECB-1220R is a 2.4GHz 802.11b/g broadband Wi-Fi

Router with advanced AP/Client Bridge/Repeater

functions. So you could implement this crossover device

into three applications AP, Client Bridge and Router

mode.

With leading edge SoC (System-on-Chip) technology,

broadband subscribers will experience lightning speed

Internet access, easy local connectivity, rich software

application and secure network protection.

Package Content

 1* Wireless 802.11b/g Router/Client Bridge (ECB-1220R)  1* 12V/1.25A Power Adapter

 1* CAT5 UTP Cable  1*CD (User’s Manual)

BUSINESS CLASS

ECB9500

ECB1220R Datasheet Version 04222008

(2)

> Mechanical

Learn more about EnGenius Solutions at www.engeniustech.com.sg

Datasheet

ECB1220R

LAN Ports (1-4)

WAN Port

DC Connector

Reset button

Antenna

Connector

Connection/Activity LED

Power LED

WLAN LED WAN LED

BUSINESS CLASS

ECB9500

*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g chipset used. Actual throughput may vary.Network conditions and environmental factors lower actual throughput rate.

(3)

Features Benefits

Client Bridge/Client Router mode

NAT Router Multiple computer Internet Access, also act as natural firewall

PPPoE function support (CR mode) Easy to access internet via ISP service authentication

AP/Router mode

MAC address filtering Ensures secure network connection

User isolation support Protect the private network between client users.

Hide SSID Avoids unallowable users sharing bandwidth, increases efficiency of the network

WDS (Wireless Distributed System) Make wireless AP and Bridge mode simultaneously as a wireless repeater

UPnP(Universal Plug and Play) Friendly to special application e.g. MSN or Skype

Port forwarding Set up application server (FTP, Web, Email, …) on LAN

Access control WLAN-to-WAN access control (allow/disallow), prevent users from access unwanted _content

Firewall Prevent malicious access from Internet

DoS (Denial of Service) protection Prevent from well-known DoS attack

Built-in 4-port Switch automatically detects cable type Easy local connectivity

Port forwarding Set up application server (FTP, Web, Email, …) on LAN

IAPP Provide stable communication for roaming client

QoS (WMM) Enhance user performance and density

Generic features

IEEE 802.11b/g Compliant Fully Interoperable with IEEE 802.11b/IEEE802.11g compliant devices with legacy _protection

High Speed Data Rate Up to 54Mbps Capable of handling heavy data payloads such as MPEG video streaming

Remain personal setting during firmware upgrade Remain latest setting after firmware upgrade

Web-based configuration Simple and intuitive network management

Firmware upgrade via the Web-based configuration screen Allow easy upgrade/restore/dump system configuration via web interface

System log Logging critical event according to network manager’s criteria

SNMP Remote Configuration Management Help administrators to remotely configure or manage the Access Point easily.

Point-to-point, Point-to-multipoint Wireless Connectivity Let users transfer data between two buildings or multiple buildings

DHCP Client/ Server Simplifies network administration

Universal Repeater The easiest way to extend your wireless network's coverage

Keep personal setting Keep the latest setting when firmware upgrade

Datasheet

ECB1220R

BUSINESS CLASS

ECB1220R

(4)

TECHNICAL SPECIFICATION

> Hardware Specification

Physical Interface

 WAN: One 10/100 Fast Ethernet RJ-45  LAN: Four 10/100 Fast Ethernet RJ-45  Reset Button  Power Jack  RF Connector (SMA) LEDs Status  Power/ Status  WAN x1 (10/100Mbps)  LAN x4 (10/100Mbps)  WLAN (Wireless Connection)

Power Requirements  Power Supply: 90 to 240 VDC ± 10％, 50/60 Hz (depends on different countries)  Device: 12V/1.25A

Regulation Certifications  FCC Part 15/UL, ETSI 300/328/CE

> RF Specification

Frequency Band 2.400～2.484 GHz

Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA)

Modulation Technology  OFDM: BPSK, QPSK, 16-QAM, 64-QAM  DBPSK, DQPSK, CCK

Operating Channels 11 for North America, 14 for Japan, 13 for Europe

Receive Sensitivity (Typical) 6Mbps@ -85dBm 54Mbps@ -68dBm

Available transmit power

 IEEE802.11g 17 dBm@6~54 Mbps  IEEE802.11b 20 dBm@1 ~ 11Mbps

Antenna Dipole external antenna (SMA)

Peak Gain = 2 dBi

Datasheet

ECB1220R

BUSINESS CLASS

ECB1220R

(5)

SOFTWARE FEATURES

> Settings

Topology Infrastructure/Ad-Hoc

Operation Mode Access Point/Client Bridge/Client Router/Repeater/WDS/Ad-hoc

LAN  DHCP Server  DHCP Client  Static IP WAN  PPTP  PPPoE  Static IP  Dynamic IP  DHCP Client  DHCP Mapping  DNS Relay Router  NAT/ NAPT  DDNS

 Static Routing- RIPv2  UPnP

 WAN Ping access  Web server access  IP address mapping

Firewall

 Port Forwarding  Web Site Filtering

 DMZ (Demilitarized Zone) Host

VPN VPN pass-through (PPTP, L2TP, IPSEC)

Wireless

 Wireless Mode – 11b / 11g / Disable  Channel Selection (Setting varies by Country)  Transmission Rate

 11 b/g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps  Transmit power control

Security

 WEP Encryption-64/128 bit

 WPA Personal (WPA-PSK using TKIP or AES)  WPA Enterprise (WPA-EAP using TKIP)  802.1x Authenticator

 Hide SSID in beacons  Port Filtering  IP Filtering  MAC Filtering  L2 isolation

 Wireless STA (Client) connected list  DoS protection QoS  WMM

Datasheet

ECB1220R

BUSINESS CLASS

ECB1220R

(6)

> Management

Configuration Web-based configuration (HTTP)

Firmware Upgrade  Upgrade firmware via web-browser  Keep latest setting when f/w update Administrator Setting  Administrator password change

Reset Setting  Reboot

 Reset to Factory Default System monitoring Status, Statistics and Event Log

SNMP V1, V2c

MIB MIB I, MIB II (RFC1213) and Private MIB

Backup & Restore Settings through Web

> Environment & Physical

Temperature Range  Operating: 0°C to 50°C (32°F to 122°F)  Storage: -20°C to 70°C (-4°F to 158°F) Humidity (non-condensing) 5%～95% typical
