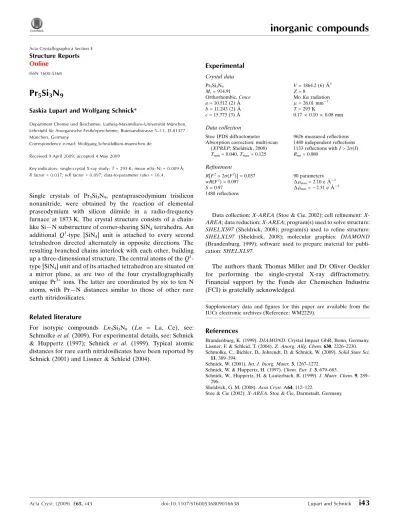

Pr5Si3N9

Pr

Si

N

Saskia Lupart and Wolfgang Schnick*

Department Chemie und Biochemie, Ludwig-Maximilians-Universita¨t Mu¨nchen, Lehrstuhl fu¨r Anorganische Festko¨rperchemie, Butenandtstrasse 5–13, D-81377 Mu¨nchen, Germany

Correspondence e-mail: [email protected]

Received 9 April 2009; accepted 4 May 2009

Key indicators: single-crystal X-ray study;T= 293 K; mean(Si–N) = 0.009 A˚; Rfactor = 0.037;wRfactor = 0.097; data-to-parameter ratio = 16.4.

Single crystals of Pr5Si3N9, pentapraseodymium trisilicon nonanitride, were obtained by the reaction of elemental praseodymium with silicon diimide in a radio-frequency furnace at 1873 K. The crystal structure consists of a chain-like Si—N substructure of corner-sharing SiN4tetrahedra. An additional Q1-type [SiN4] unit is attached to every second tetrahedron directed alternately in opposite directions. The resulting branched chains interlock with each other, building up a three-dimensional structure. The central atoms of theQ1 -type [SiN4] unit and of its attached tetrahedron are situated on a mirror plane, as are two of the four crystallographically unique Pr3+ions. The latter are coordinated by six to ten N atoms, with Pr—N distances similar to those of other rare earth nitridosilicates.

Related literature

For isotypic compounds Ln5Si3N9 (Ln = La, Ce), see: Schmolkeet al.(2009). For experimental details, see: Schnick & Huppertz (1997); Schnick et al. (1999). Typical atomic distances for rare earth nitridosilicates have been reported by Schnick (2001) and Lissner & Schleid (2004).

Experimental

Crystal data

Pr5Si3N9

Mr= 914.91

Orthorhombic,Cmce a= 10.512 (2) A˚

b= 11.243 (2) A˚

c= 15.773 (3) A˚

V= 1864.2 (6) A˚3

Z= 8

MoKradiation = 26.01 mm 1

T= 293 K

0.170.100.08 mm

Data collection

Stoe IPDS diffractometer Absorption correction: multi-scan

(XPREP; Sheldrick, 2008)

Tmin= 0.040,Tmax= 0.125

9626 measured reflections 1480 independent reflections 1133 reflections withI> 2(I)

Rint= 0.080

Refinement

R[F2_{> 2(F}2_{)] = 0.037}

wR(F2_{) = 0.097}

S= 0.97 1480 reflections

90 parameters

max= 2.10 e A˚ 3 min= 2.31 e A˚ 3

Data collection:X-AREA(Stoe & Cie, 2002); cell refinement: X-AREA; data reduction:X-AREA; program(s) used to solve structure:

SHELXS97(Sheldrick, 2008); program(s) used to refine structure:

SHELXL97 (Sheldrick, 2008); molecular graphics: DIAMOND

(Brandenburg, 1999); software used to prepare material for publi-cation:SHELXL97.

The authors thank Thomas Miller and Dr Oliver Oeckler for performing the single-crystal X-ray diffractometry. Financial support by the Fonds der Chemischen Industrie (FCI) is gratefully acknowledged.

Supplementary data and figures for this paper are available from the IUCr electronic archives (Reference: WM2229).

References

Brandenburg, K. (1999).DIAMOND. Crystal Impact GbR, Bonn, Germany. Lissner, F. & Schleid, T. (2004).Z. Anorg. Allg. Chem.630, 2226–2230. Schmolke, C., Bichler, D., Johrendt, D. & Schnick, W. (2009).Solid State Sci.

11, 389–394.

Schnick, W. (2001).Int. J. Inorg. Mater.3, 1267–1272. Schnick, W. & Huppertz, H. (1997).Chem. Eur. J.3, 679–683.

Schnick, W., Huppertz, H. & Lauterbach, R. (1999).J. Mater. Chem.9, 289– 296.

Sheldrick, G. M. (2008).Acta Cryst.A64, 112–122.

Stoe & Cie (2002).X-AREA. Stoe & Cie, Darmstadt, Germany. Acta Crystallographica Section E

Structure Reports

Online

supporting information

Acta Cryst. (2009). E65, i43 [doi:10.1107/S1600536809016638]

Pr

Si

N

Saskia Lupart and Wolfgang Schnick

S1. Comment

The title compound is a branched chain-like nitridosilicate isotypic to Ln5Si3N9 (Ln = La, Ce) described by Schmolke et

al. (2009). Except for Ln5Si3N9 (Ln = La, Ce, Pr), no other chain-like nitridosilicates have been observed so far. The

single chains in Pr5Si3N9 run along [100] and are built up of corner sharing [SiN4] tetrahedra, whereas every second

tetrahedron is additionally connected to a Q1_{-type tetrahedron. These direct alternately in opposing directions (Fig. 1).}

Thereby the Si2 and Si3 atoms are located on a mirrow plane which is co-planar to [100]. Due to the constitution of the

terminal tetrahedra the chains interlock zipper-like with each other (Fig. 2). The Pr3+ _{ions (yellow) are located between}

the chains. The coordination numbers of the Pr3+ _{ions range between six (for Pr4) and ten (for Pr 3) with Pr—N distances}

varying from 2.310 (11) to 3.053 (2) Å. The geometric parameters of Pr5Si3N9 are in the usual ranges and correspond with

those of the isotypic compounds Ln5Si3N9 (Ln = La, Ce) and other nitridosilicates (Schnick, 2001; Lissner & Schleid,

2004).

S2. Experimental

Pr5Si3N9 was synthesized by the reaction of Pr (swarf, 99.9%, Chempur, Karlsruhe) and silicon diimide (Schnick &

Huppertz, 1997) which were thoroughly mixed in a glove box (Unilab, MBraun). The mixture was heated in a tungsten

crucible in a radio-frequency furnace (Schnick et al., 1999) under purified N2 up to 1873 K within 1 h. This temperature

was retained for 5 h, and the crucible thereafter cooled down to 1073 K in 35 h before quenching to room temperature

within 1 h. Pr5Si3N9 could be obtained as air-sensitive dark-yellow crystals with PrN as by-product.

S3. Refinement

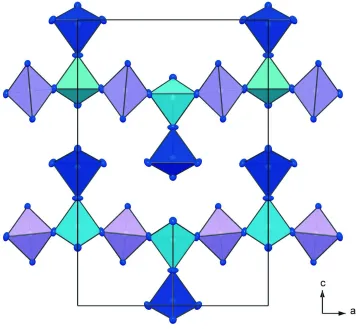

Figure 1

Presentation of the Si—N substructure, with anisotropic displacement parameters drawn at the 50% probability level.

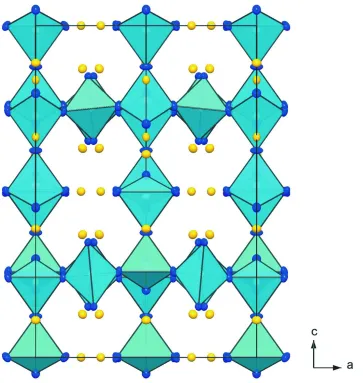

Figure 2

View along [010] illustrating the resulting three-dimensional structure. Pr3+ _{ions are depicted yellow, with anisotropic}

displacement parameters drawn at the 50% probability level.

Pentapraseodymiumtrisiliconnonanitride

Crystal data

Pr5Si3N9 Mr = 914.91

Orthorhombic, Cmce

Hall symbol: -C 2 bc 2

a = 10.512 (2) Å

b = 11.243 (2) Å

c = 15.773 (3) Å

V = 1864.2 (6) Å3 Z = 8

F(000) = 3200

Dx = 6.520 Mg m−3

Mo Kα radiation, λ = 0.71073 Å Cell parameters from 5699 reflections

θ = 2.6–30.5°

µ = 26.01 mm−1 T = 293 K Block, yellow

Data collection

Stoe IPDS diffractometer

Radiation source: fine-focus sealed tube Graphite monochromator

ω scans

Absorption correction: multi-scan (XPREP; Sheldrick, 2008)

Tmin = 0.040, Tmax = 0.125

9626 measured reflections 1480 independent reflections 1133 reflections with I > 2σ(I)

Rint = 0.080

θmax = 30.5°, θmin = 2.6° h = −12→14

k = −15→15

l = −22→22

Refinement

Refinement on F2

Least-squares matrix: full

R[F2 _{> 2σ(F}2_{)] = 0.037} wR(F2_{) = 0.097} S = 0.97 1480 reflections 90 parameters 0 restraints

Primary atom site location: structure-invariant direct methods

Secondary atom site location: difference Fourier map

w = 1/[σ2_(F

o2) + (0.0626P)2]

where P = (Fo2 + 2Fc2)/3

(Δ/σ)max < 0.001

Δρmax = 2.10 e Å−3

Δρmin = −2.31 e Å−3

Extinction correction: SHELXL97 (Sheldrick, 2008), Fc*_{=kFc[1+0.001xFc}2_λ3_/sin(2θ)]-1/4

Extinction coefficient: 0.00090 (6)

Special details

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 _{against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F}2_,

conventional R-factors R are based on F, with F set to zero for negative F2_{. The threshold expression of F}2 _{> σ(F}2_{) is used}

only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2

are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2₎

x y z Uiso*/Ueq

Pr1 0.0000 0.01304 (6) 0.33611 (4) 0.01605 (18) Pr2 −0.21211 (5) −0.25683 (4) 0.37015 (3) 0.01847 (17) Pr3 0.0000 −0.00567 (6) 0.11240 (4) 0.01844 (19)

Pr4 0.20546 (7) 0.0000 0.5000 0.01756 (19)

Si1 0.0000 −0.2598 (3) 0.5166 (2) 0.0148 (6)

Si2 0.0000 0.2724 (3) 0.2739 (2) 0.0148 (6)

Si3 −0.2500 −0.0361 (3) 0.2500 0.0146 (6)

N1 0.0000 0.1552 (10) 0.2035 (7) 0.020 (2)

N2 0.0000 0.2233 (10) 0.3761 (6) 0.024 (2)

N3 0.1254 (8) −0.1348 (7) 0.2416 (5) 0.0201 (14) N4 0.2371 (7) 0.0349 (7) 0.3472 (5) 0.0176 (13) N5 −0.1321 (8) −0.3528 (8) 0.5006 (5) 0.0226 (15)

Atomic displacement parameters (Å2₎

U11 _U22 _U33 _U12 _U13 _U23

Pr1 0.0137 (3) 0.0145 (3) 0.0199 (3) 0.000 0.000 −0.0005 (2) Pr2 0.0190 (3) 0.0167 (3) 0.0197 (3) −0.00032 (16) −0.00156 (15) 0.00234 (15) Pr3 0.0220 (4) 0.0160 (3) 0.0173 (3) 0.000 0.000 −0.0013 (2) Pr4 0.0173 (4) 0.0177 (3) 0.0177 (3) 0.000 0.000 0.0001 (2) Si1 0.0176 (16) 0.0136 (13) 0.0133 (12) 0.000 0.000 0.0007 (10) Si2 0.0120 (15) 0.0141 (14) 0.0184 (14) 0.000 0.000 −0.0014 (10) Si3 0.0113 (14) 0.0164 (14) 0.0160 (14) 0.000 0.0011 (10) 0.000 N1 0.020 (6) 0.019 (4) 0.022 (5) 0.000 0.000 −0.005 (4) N2 0.041 (7) 0.018 (5) 0.012 (4) 0.000 0.000 −0.002 (3) N3 0.013 (3) 0.020 (3) 0.027 (4) −0.001 (3) 0.004 (3) −0.003 (3) N4 0.013 (3) 0.024 (3) 0.016 (3) −0.005 (3) 0.001 (2) −0.001 (3) N5 0.019 (4) 0.024 (4) 0.024 (3) −0.004 (3) −0.007 (3) 0.005 (3) N6 0.018 (6) 0.024 (5) 0.024 (5) 0.000 0.000 0.001 (4)

Geometric parameters (Å, º)
