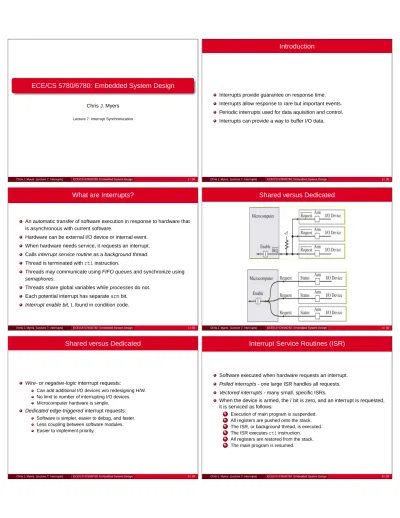

ECE/CS 5780/6780: Embedded System Design

Chris J. Myers

Lecture 7: Interrupt Synchronization

Chris J. Myers (Lecture 7: Interrupts) ECE/CS 5780/6780: Embedded System Design 1 / 38

Introduction

Interrupts provide guarantee on response time. Interrupts allow response to rare but important events. Periodic interrupts used for data aquisition and control. Interrupts can provide a way to buffer I/O data.

What are Interrupts?

An automatic transfer of software execution in response to hardware that is asynchronous with current software.

Hardware can be external I/O device or internal event. When hardware needs service, it requests an interrupt. Calls interrupt service routine as a background thread. Thread is terminated withrtiinstruction.

Threads may communicate using FIFO queues and synchronize using semaphores.

Threads share global variables while processes do not. Each potential interrupt has separatearmbit.

Interrupt enable bit, I, found in condition code.

Shared versus Dedicated

Wire- or negative-logic interrrupt requests:

Can add additional I/O devices w/o redesigning H/W. No limit to number of interrupting I/O devices. Microcomputer hardware is simple.

Dedicated edge-triggered interrupt requests: Software is simpler, easier to debug, and faster. Less coupling between software modules. Easier to implement priority.

Interrupt Service Routines (ISR)

Software executed when hardware requests an interrupt. Polled interrupts - one large ISR handles all requests.

Vectored interrupts - many small, specific ISRs.

When the device is armed, the I bit is zero, and an interrupt is requested, it is serviced as follows:

1 _{Execution of main program is suspended.} 2 _{All registers are pushed onto the stack.} 3 _{The ISR, or background thread, is executed.} 4 _{The ISR executes}rtiinstruction.

5 _{All registers are restored from the stack.} 6 _{The main program is resumed.}

(2)

Interrupt Execution

When to Use Interrupts

Gadfly Interrupts DMA

Predictable Variable arrival times Low latency

Simple I/O Complex I/O High bandwidth

Fixed load Variable load Single thread Multithread Nothing else to do Infrequent alarms

Program errors Overflow, illegal op Illegal memory access Machine/memory errors Power failure

Real-time clocks Data acquisition/control

Interthread Communication

Interrupt threads have logically separate registers/stack, so communication must occur through global memory.

Input Device Interrupts

Output Device Interrupts

Other Interrupt Issues

Periodic interrupts are neither input or output. Essential for data acquisition and control systems.

ISR should only occur when needed, come in clean, perform function, and return right away.

Gadfly loops and iterations should be avoided in ISRs. Percent of time in ISRs should be minimized.

Interface latency is time between new input available and when software reads the input data.

device latency is response time of external I/O device.

(3)

Reentrant Programming

A program segment is reentrant if it can be concurrently executed by two (or more) threads.

Reentrant software must place local variables on stack.

A nonreentrant subroutine has a section of code called a vulnerable window or critical section, and error occurs if:

One thread calls the nonreentrant subroutine,

That thread is executing in the “vulnerable” window when interrupted by a second thread, and

Second thread calls same sub or shared variable.

Need to implement mutual exclusion, often done by disabling interrupts.

Nonrentrant Subroutine in Assembly

Second rmb 2 Temporary global variable

* Input parameters: Reg X,Y contain 2 16 bit numbers * Output parameter: Reg X is returned with the average Ave sty Second Save the second number in memory

xgdx Reg D contains first number

addd Second Reg D=First+Second

lsrd (First+Second)/2

adcb #0 round up?

adca #0 xgdx rts

Bad Sequence of Events

Nonrentrant Subroutine in C

int Result; /* Temporary global variable */ int Ave(int x,y){

Result = y; /* Save second number */

Result = (Result + x) >> 1; /* (1st+2nd)/2 */ return(Result);}

Atomic Operations

Atomic operation is one that once started is guaranteed to finish.

In most computers, machine instructions are atomic. The following is atomic:

inc counter where counter is global variable The following is nonatomic:

ldaa counter where counter is global variable inca

staa counter

Read-Modify-Write Example

1 _{Software reads global variable, producing a copy of the data.} 2 _{Software modifies the copy.}

3 _{Software writes modification back into global variable.}

unsigned int Money; /* bank balance (global) */ /* add 100 dollars */

void more(void){ Money += 100;}

Money rmb 2 bank balance implemented as a global * add 100 dollars to the account

more ldd Money where Money is a global variable addd #100

std Money Money=Money+100 rts

(4)

Write Followed by Read Example

1 _{Software writes to a global variable.}

2 _{Software reads from global variable expecting original data.}

int temp; /* global temporary */ /* calculate x+2*d */

int mac(int x, int d){

temp = x+2*d; /* write to a global variable */ return (temp);} /* read from global */

temp rmb 2 global temporary result

* calculate RegX=RegX+2*RegD

mac stx temp Save X so that it can be added

lsld RegD=2*RegD

addd temp RegD=RegX+2*RegD

xgdx RegX=RegX+2*RegD

rts

Nonatomic Multistep Write

1 _{Software write part of new value to a global variable.} 2 _{Software write rest of new value to a global variable.}

int info[2]; /* 32-bit global */ void set(int x, int y){

info[0]=x; info[1]=y;}

Info rmb 4 32-bit data implemented as a global * set the variable using RegX and RegY

set stx Info Info is a 32 bit global variable sty Info+2

rts

Make a Subroutine Reentrant Using a Stack Variable

* Input parameters: Reg X,Y contain 2 16 bit numbers * Output parameter: Reg X is returned with the average

Ave pshy Save the second number on the stack

tsy Reg Y points the Second number

xgdx Reg D contains first number

addd 0,Y Reg D=First+Second

lsrd (First+Second)/2

adcb #0 round up?

adca #0 xgdx puly rts

A Nonreentrant Subroutine

Status rmb 1 0 means empty, -1 otherwise Message rmb 1 data to be communicated * Input param: Reg B contains an 8 bit message

* Output param: Reg CC (C bit) is 1 for OK, 0 for busy Send tst Status check if mailbox is empty

bmi Busy full, can’t store, so return C=0 stab Message store

dec Status signify now contains a message

sec stored OK, so return with C=1

Busy rts

Make a Subroutine Reentrant by Disabling Interrupts

Status rmb 1 0 means empty, -1 otherwise

Message rmb 1 data to be communicated

* Input param: Reg B contains an 8 bit message

* Output param: Reg CC (C bit) is 1 for OK, 0 for busy error

Send clc Initialize carry=0

tpa save current interrupt state

psha

sei disable interrupts when vulnerable

tst Status check if mailbox is empty

bmi Busy full, so return with C=0

staa Message store

dec Status signify it is now contains a message

pula

oraa #1 OK, so return with C=1

psha

Busy pula restore interrupt status

tap

Disabling Interrupts in C

int Empty; /* -1 means empty, 0 means it contains something */ int Message; /* data to be communicated */

int SEND(int data){ int OK; char SaveSP;

asm tpa

asm staa SaveSP

asm sei /* make atomic, entering critical */

OK=0; /* Assume it is not OK */

if(Empty){ Message=data;

Empty=0; /* signify it is now contains a message*/ OK=-1;} /* Successfull */

asm ldaa SaveSP

(5)

A Binary Semaphore

* Global parameter: Semi4 is the mem loc to test and set * If the location is zero, it will set it (make it -1) * and return Reg CC (Z bit) is 1 for OK

* If location is nonzero, return Reg CC (Z bit) = 0

Semi4 fcb 0 Semaphore is initially free

Tas tst Semi4 check if already set

bne Out busy, operation failed, return Z=0 dec Semi4 signify it is now busy

bita #0 operation successful, return Z=1

Out rts

Reentrant or Not?

Must be able to recognize potential sources of bugs due to nonreentrant code in high-level languagues.

Is the following atomic? time++;

Yes, if the compiler generates: inc time

No, if the compiler generates: ldd time

addd #1 std time
