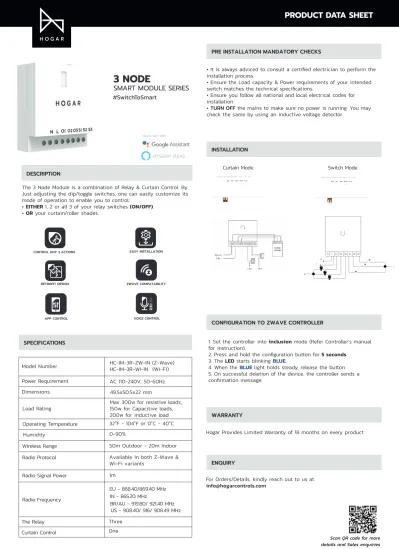

3 NODE SMART MODULE SERIES

(1)

Scan QR code for more details and Sales enquiries www.hogarcontrols.com Contact Us - +91 844 844 0789

PRE INSTALLATION MANDATORY CHECKS

DESCRIPTION

CONFIGURATION TO ZWAVE CONTROLLER

WARRANTY

ENQUIRY

Hogar Provides Limited Warranty of 18 months on every product

For Orders/Details, kindly reach out to us at [email protected]

INSTALLATION

The 3 Node Module is a combination of Relay & Curtain Control. By Just adjusting the dip/toggle switches, one can easily customize its mode of operation to enable you to control:

• EITHER 1, 2 or all 3 of your relay switches (ON/OFF).

• OR your curtain/roller shades.

1. Set the controller into inclusion mode (Refer Controller's manual for instruction).

2. Press and hold the conﬁguration button for 5 seconds.

3. The LED starts blinking BLUE.

4. When the BLUE light holds steady, release the button.

5. On successful deletion of the device, the controller sends a conﬁrmation message.

• It is always adviced to consult a certiﬁed electrician to perform the installation process.

• Ensure the Load capacity & Power requirements of your intended switch matches the technical speciﬁcations.

• Ensure you follow all national and local electrical codes for installation.

• TURN OFF the mains to make sure no power is running. You may check the same by using an inductive voltage detector.

3 NODE

SMART MODULE SERIES

#SwitchToSmart

SPECIFICATIONS

HC-IM-3R-ZW-IN (Z-Wave) HC-IM-3R-WI-IN (Wi-Fi)

49.5x50.5x22 mm

32°F - 104°F or 0°C - 40°C 0-90%

Wireless Range 50m Outdoor - 20m Indoor Radio Protocol Available in both Z-Wave &

Wi-Fi variants

Radio Signal Power 1m

Radio Frequency

The Relay Three

Curtain Control One

Model Number

Power Requirement AC 110-240V, 50-60Hz.

Dimensions

Load Rating Max 300w for resistive loads, 150w for Capacitive loads, 200w for inductive load Operating Temperature

Humidity

EASY INSTALLATION

VOICE CONTROL RETROFIT DESIGN

APP CONTROL

ZWAVE COMPATABILITY CONTROL ANY 3 ACTIONS

Switch Mode Curtain Mode

Works Well With:

EU - 868.40/869.40 MHz IN - 865.20 MHz

BR/AU - 919.80/ 921.40 MHz US - 908.40/ 916/ 908.49 MHz

(2)

• DESCRIPTION

SPECIFICATIONS

INSTALLATION INSTRUCTIONS AND SAFETY PROCEDURE

APP INFORMATION BUILT IN RFID ACCESS

FINGER PRINT ACCESS

KEYPAD ACCESS ACCESS THROUGH

HOGAR PRO APP

NORMAL KEY ACCESS LOW POWER WARNING

PREINSTALLATION CHECKS

• Before the installation the lock must be selected correctly according to the door opening direction

• While installing the door must be in half open state until the commissioning is completed

• When installing the back panel, please see from the screw hole and make the connection wire not block the connection column hole to avoid damaging the connection wire when installing the screw

• If the connection wire block the connection column hole, please replace the connection wire or expand the door internal hole to make enough space for placing the connection wire

• After the installation is completed, when ﬁngerprint, card, password(1234567890) and #, APP, key unlock; test whether the front handle and back handle unlock/lock normally or not

WARRANTY

ENQUIRY

The Atrio -Digital Door Lock helps you in having keyless convenience to unlock the door. It gives you access through ﬁngerprint, smart card, password, app & mechanical key.

Hogar digital door lock will keep you safe through its smart intelligent access control.

Refer to detailed installation manual available in website &

in the packing

Hogar Provides Limited Warranty of 18 months on every product.

Particulars Parameters

Fingerprint sensor DPI

Identify Time Unlock way System capacity Supply Voltage Low voltage warning Standby current

Semiconductor 500

0.3 S

Fingerprint, card, password, key & app

100 6v

4.6 V

<=50 uA 35mm - >80mm Thickness

Temperature 22-55°C

1. Front Panel 2. Connection Column 3. Square Steel 4. Lock Body 5. Connection Wire 6. Back Panel 7. Battery Cover

8. Connection Column Screws 9. Back Handle

10. Connection Column Screws 11. Latch-Bolt

12. Dead Bolt 13. Lock Body Screws 14. Connection Column 15. Key Hole

16. Emergency Power Port 17. Front Handle 18. ‘SET’ Button 19. Spring

20. Pick Proof Alarm button

ATRIO

SMART SECURITY SERIES

#SmartSimpleSecure

Works Well With:

(3)

DESCRIPTION

Operating Humidity Communication Motion Detection Operating Temperature

20% - 85% non-condensing

Supports Motion Detection 10 - 50 °C

Scan QR code for more details and Sales enquiries NIGHT-VISION SUPPORTED SUPPORTS VIDEO PLAYBACK

LOCK/UNLOCK THE DOOR CLOUD STORAGE SUPPORT

HIGH-RESOLUTION VIDEO CLEAR AND BIGGER PICTURE

www.hogarcontrols.com Contact Us - +91 844 844 0789 Bella-Video Door Bell is a state-of-the art security device that provides two-way communication and delivers High deﬁnition video to any device. It acts as a gatekeeper and track of visitors. The Bella also helps you communicate with visitors locally or remotely. The sturdy and well-built VDB can endure any weather conditions. It records the video even if the internet goes down and helps the homeowner to keep an eye on everything near the front door.

PREINSTALLATION & CHECKS:

APP SET UP & CONFIGURATION

SPECIFICATIONS

Two-Way Audio One-Way Video Push Notiﬁcation Event List Playback Night Vision

View Angle

Audio Input/output

Video Resolution Video FPS

Yes Yes

Yes / iOS and Android Yes / Snapshot and Video App / iOS and Android

H:110/V:90

Speaker & Microphone

1080P/720P/VGA Up To 25FPS

WARRANTY & ENQUIRY

Full duplex

Transmission Frequency 2.4 GHz

Image Sensor 1/4"Color CMOS Sensor

Image Sensor H.264

Supported(4 IR LED, Night visibility up to 3 meters)

Data Storage

Wireless Connectivity

Memory Card up to 128GB

Wi-Fi 802.11b/g/n Inbuilt battery 5000 mAH Li battery

IP Ratings IP65

Display Resolution 2 Megapixels

Lens f:2.8 mm, F:2.0 (IR Lens)

Power Consumption 2mW in sleep mode & 1w when wake up

• Ensure that you have a reliable cable internet connection for the Bella to work at its best. Portable Internet connec- tions based on Hot spots or a Wi-Fi Dongle will not provide the best and consistent results.

• Your experience with Bella will vary based on the quality of your router.

• Download and Install the “Hogar SE” app on your device

• Video door bell have two installation methods

1) Power the Bella using a 12V adapter for continuos power supply.

2) Using 5v power supply, In this once the battery gets fully charged we can place the door bell and later again we need to charge when it discharge.

• Press the power button on the rear to turn ON the device.

• Open the Hogar SE application and register for an account if you are a new user.

• Login into the Hogar SE application and select Room from the dashboard and then + icon on the right top of the screen.

• Select security-->Video doorbell-->Select the option and continue to the next step

• Enter the Wiﬁ Credentials of the Wi-Fi network to connect and select next.

• Point the SE camera to the application screen to scan the displayed QR Code.

• Bella makes a prompt sound indicating a successful conﬁguration.

• Rename the device and add it to the room.

BELLA

SMART SECURITY SERIES

#SmartSimpleSecure

Works Well With:

(4)

INSTALLATION

DESCRIPTION

Scan QR code for more details on warranty and sales enquiries ADDING DOOR/WINDOW SENSOR TO YOUR HOME

WARRANTY

ENQUIRY

PRE INSTALLATION MANDATORY CHECKS

VOICE CONTROL DOOR/WINDOW OPENING/

CLOSING TRIGGER

LINKAGE TO OTHER SMART DEVICES

SPECIFICATIONS

Model No.

www.hogarcontrols.com Contact Us - +91 844 844 0789

The Door/Window Sensor detects & emits wireless signals on the opening & closing of your doors/windows. This can be used as an alert on your Hogar SE App and to trigger & automate multiple other smart devices connected to your Hogar SE Gateway & App.

The Door/Window Sensor uses the principle of magnetic control and triggers a Wireless signal as soon as the magnet is seperated from its main body by a certain distance (about 20mm)

• Ensure that the main body and the Magnetic Part of your Door/Win- dow Sensor are placed ON THE SAME LEVEL and NOT seperated by a distance of more than 10mm as shown below:

DOOR/WINDOW

SMART SENSOR SERIES

#SmartSense

Battery Type Static Current Main Body Size Magnet Body Size Operating Temperature Humidity

Wireless Protocol

Transmit Frequency 2.4000 - 2.4835 GHz ZigBee 3.0

0 - 95%

-10 °C - +55 °C

• REMOVE the protective ﬁlm of 3M glue and afﬁx the Door/Window Sensor onto the spot you have chosen.

• It is ALWAYS advisable to place The Magnetic Part on the Movable Part of your door/window frame and the Main Body on the Non-movable part of your Door/Window frame.

APP CONTROL

ZIGBEE COMPATABILITY EASY INSTALLATION

33.3 x 10.2 x 12.5 mm 54 x 22.2 x 12.5 mm

<= 5 μA CR1632 HSE-DW-001

• You will soon see the BLUE LED ﬂash that indicates that the Door/Window Sensor has entered into Enrolling Mode.

• Click “Conﬁrm Indicator Rapidly Blink” on your Hogar SE App.

Works Well With:

• Open the Hogar SE App and go to “Rooms”.

• Click on “+” Button and select “Door/Window Sensor”. Follow the prompts on your App for subsequent steps.

• Press and Hold the button for 5 seconds to POWER ON the Door/Window Sensor as shown below:

(5)

INSTALLATION

DESCRIPTION

Scan QR code for more details on warranty and sales enquiries ADDING GAS SENSOR TO YOUR HOME

WARRANTY

ENQUIRY SPECIFICATIONS

Model No.

The Gas Sensor enables you to detect any inadvertent gas leakage in your home and trigger alarms in time to help you take the necessary precautions.

GAS SMART SENSOR SERIES

#SmartSense

Battery Type Power Requirement Alarm Current Dimensions

Humidity Wireless Protocol

Alarm Sound > 70 DB (front 1m) ZigBee 3.0

0 - 95%

66 x 66 x 29 mm

• Gas Sensor can be installed on your ceiling either by screwing it on or by using a 3M tape. Screw Installation is ALWAYS preferred.

VOICE CONTROL GAS LEAKAGE ALERT

LINKAGE TO OTHER

SMART DEVICES APP CONTROL

Operating Temperature -10° C - +55 °C

Alarm Method Sound & light alarm, wireless networking alarm

Detection Gas Type Natural Gas (CH₄)

<= 150 μAT 12V DC Adapter CR2450 HSE-GAS-001

• Your Gas Sensor is now successfully added to your Hogar SE App.

Works Well With:

LED SIGNAL SOUND WHAT IT MEANS

RED LED ON RED GREEN & YELLOW LED ﬂashing alternately

Buzzer Sound Gas Leakage Alarm

No Sound Gas Sensor Warming Up

GREEN LED ON YELLOW LED ON

No Sound

Buzzer Sound False Alarm Normal Working mode

SCREW MOUNTING 3M GLUE

• Click on “+” Button and select “Gas Sensor”. Follow the prompts on your App for subsequent operations.

• To turn on the Power Source, open the front cover of your Gas Sensor by turning it COUNTERCLOCKWISE & plug in the adapter DC plug.

• To POWER ON the Gas Sensor, Press and Hold the button for 5 seconds.

• You will soon see the GREEN LED ﬂash that indicates that the Gas Sensor is now in the Enroling Mode.

• Click on “Conﬁrm Indicator Rapidly Blink” on your Hogar SE App.

(6)

DESCRIPTION

Scan QR code for more details on warranty and sales enquiries CONFIGURING SENSORS TO “STAY” & “AWAY” MODE

WARRANTY

ENQUIRY

SOS ARM & DISARM YOUR SECURITY

SENSORS AT A CLICK

DIRECT REMOTE ACCESS UPTO 100m

SPECIFICATIONS

KeyFob is a compact, battery-powered, Zigbee compatible device that allows you to ARM & DISARM the smart security & alarm systems in your home at just a click of a button.

After a quick setup, the KeyFob is compact, easy to carry and sends signals to your security systems up to 100m away from your house without any Internet.

KEYFOB

SMART REMOTE SERIES

#SmartAlarmControl

• Open the Hogar SE App and go to “Rooms” & then ”All Devices”.

Click on “+” Button and select “KeyFob”. Follow the prompts on your App for subsequent steps.

• Use a Pin & hold the “Reset Button” for 5 seconds.

• The LED starts blinking GREEN indicating the KeyFob has entered into “Network Pairing Mode”

• On successful pairing, the LED blinks RED for 3 seconds and you receive a message on your Hogar SE App.

• If the pairing is not successful, the LED turns OFF from GREEN.

Attempt again to trigger Network Pairing Mode by using the pin.

• Open the Hogar SE App and go to Settings.

• Click on ”Alarm Modes” and then select:

• STAY => Select the sensors that need to be Armed when you are IN your house.

• AWAY => Select the sensors that need to be Armed when you are AWAY from your house.

NOTE: Once conﬁgured, you can ARM & DISARM the selected sensors in STAY, AWAY & DISARM modes both through the KeyFob as well as a click from the Security Section of your Hogar SE App.

ADDING KEYFOB TO YOUR SMART HOME

APP CONTROL

ZIGBEE COMPATABILITY EASY TO CARRY

KEYFOB OPERATION

Away Mode A click activates the selected sensors that you want to ARM when you are AWAY from home

FUNCTIONALITY

Stay Mode A click activates the selected sensors that you want to ARM when you are AWAY IN your house

Disarm Mode A click DISARMS all the activated sensors IN your home

Panic Mode A click sends message in the format

“[YOUR HOUSE NAME] HOGAR ASK FOR HELP” to your registered email id.

Model No.

Battery Type

Operating Current

Operating Temperature

Housing material

Wireless Protocol Transmission Distance

ABS Plastic

ZigBee 3.0 -10 °C - +55 °C

<= 7μA CR2025 HSE-KFB-001

Power Supply DC 3V

Dimension 57 x 31 x 11 mm

Radio Frequency 2.4 GHz

<=100 m (in open area)

Humidity <=80% (non-condensing)

Works Well With:

(7)

DESCRIPTION

WARRANTY & ENQUIRY PREINSTALLATION & CHECKS:

INSTALLATION

• Avoid pressing hard on the device body, reset button, and connecting ports.

• Make sure you are connected with internet before installation.

• Kindly take care of the distance between the devices as range and performance depend on it.

Registering your Cerebro Mighty:

• Install the Hogar SE application from respective stores.

• Select signup and agree to the privacy policy.

• Register with your email ID and enter the veriﬁcation code received in the mail.

• Set the password for your account and sign in with your credentials.

Set Up:

Sign in using the account created → Select “Create Location”

→Enter “Location Name” and your home address (It will automatically take your current location using the device (mobile/tablet) GPS location → Create rooms if you want to add more rooms apart from the default room options.

App Conﬁguration:

• Cerebro Mighty needs to be plugged in with 230V power source. To reset Cerebro Mighty before adding, press and hold the reset button for 5 seconds, the LED blinks continu- ously indicating a successful reset process (refer manual).

Navigate to “Rooms” → Select “+” on the top right corner → Select “Hub” and then “Gateway”. → Make sure the device is reset and LED is in blinking state. → In the App conﬁrm with the LED indication checkbox and select “Next”.

• The App will scan for the gateway, add the device to the account, rename it, and add it to the desired room. Cerebro

APP INFORMATION

Cerebro Mighty supports Hogar SE App and works seamlessly by integrating with all other Smart Home Devices. Please refer to the manual for setting up Rooms, Floors, Devices and Auto- mate/Schedule them to control your smart home.

Hogar provides a limited warranty of 18 months on every product

Cerebro Mighty is the processing unit for all Zigbee connected devices used for home automation. It can connect with 60+ Zigbee devices and control them through the Hogar SE App.

CEREBRO MIGHTY

SMART HOME HUB

SPECIFICATIONS

Operating Voltage AC 110 -230 V 50-60 Hz Internet Connectivity WIFI 802.11

Wireless Protocol Zigbee No. of Devices for

Connectivity 60+

Range 30 M indoor, 50 M outdoor

CPU ARM Cortex M3 MCU

RAM 2 MB SDRAM

ROM 4 MB ﬂash

Operating Temperature -10° to 40° C Relative Humidity 8% - 80% RH

Dimension 56x52x30 mm

Encryption Level WAP/WAP2 supported APP CONTROL

SECURE SHELL MULTI PROTOCOL

PLUG AND PLAY

SEAMLESS CONNECTIVITY

(8)

INSTALLATION DESCRIPTION

ADDING VIBRATION SENSOR TO YOUR HOME

WARRANTY

ENQUIRY

VOICE CONTROL VIBRATION TRIGGER

LINKAGE TO OTHER SMART DEVICES

SPECIFICATIONS

Model No.

The Door/Window Sensor detects & emits wireless signals on the opening & closing of your doors/windows. This can be used as an alert on your Hogar SE App and to trigger & automate multiple other smart devices connected to your Hogar SE Gateway & App.

The Door/Window Sensor uses the principle of magnetic control and triggers a Wireless signal as soon as the magnet is seperated from its main body by a certain distance (about 20mm)

VIBRATION

SMART SENSOR SERIES

#SmartSense

Battery Type Static Current Main Body Size Operating Temperature Humidity

Wireless Protocol

Transmit Frequency 2.4000 - 2.4835 GHz ZigBee 3.0

0 - 95% RH -10 °C to 55 °C

• Tear off the centrifugal paper from 3M adhesive and ﬁx the Vibration Sensor in the desired position with the 3M adhesive.

• Ensure the surface on which the Vibration Sensor is installed is

smooth, especially if it is glass mounted, so that it does not fall. Scan QR code for more

details and Sales enquiries APP CONTROL

58 x 36 x 15 mm

<= 10 μA CR2032

HSE-VS-001 • Click on “Conﬁrm Indicator Rapidly Blink” on your Hogar SE App.

• Your Vibration Sensor is now successfully added to your Hogar SE App

Works Well With:

• Click on “+” Button and select “Vibration Sensor”. Follow the prompts on your App for subsequent operations.

• To POWER ON the Vibration Sensor, press and hold the Reset Button for 5 seconds.

• You will soon see the GREEN LED ﬂash that indicates that the Vibration Sensor has entered into “Enrolling Mode”.
