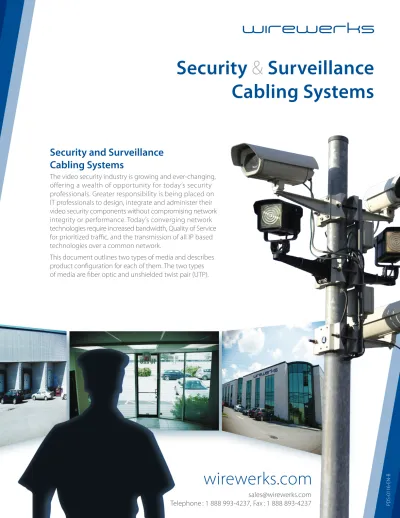

The video security industry is growing and ever-changing, offering a wealth of opportunity for today’s security professionals. Greater responsibility is being placed on IT professionals to design, integrate and administer their video security components without compromising network integrity or performance. Today’s converging network technologies require increased bandwidth, Quality of Service for prioritized traffic, and the transmission of all IP based technologies over a common network.
This document outlines two types of media and describes product configuration for each of them. The two types of media are fiber optic and unshielded twist pair (UTP).
Fiber Optic based system
Outdoor Surveillance System
Monitored Outdoor Area Related Products Fiber optic patch cords and pigtails Adapters & adapter strips
Splice trays
Outdoor fiber enclosures Outdoor fiber optic cables
Telecommunications Room Related Products Fiber optic patch cords & pigtails Media converters and SFP transceivers Fiber optic patch panels
Splice trays
Adapters and adapter strips Multifiber cable assemblies CAT5e, CAT6 patch panels CAT5e, CAT6 Keystone jacks CAT5e, CAT6 horizontal cables CAT5e, CAT6 patch cords Control Room Related Products
Faceplates
CAT5e, CAT6 Keystone jacks
Security & Surveillance
Indoor Surveillance System
Indoor Monitored Area Related Products Fiber optic patch cords
Field installable connectors
Telecommunications Room Related Products Fiber optic patch cords & pigtails Media converters and SFP transceivers Fiber optic patch panels
Splice trays
Adapters and adapter strips Multifiber cable assemblies CAT5e, CAT6 patch panels CAT5e, CAT6 Keystone jacks CAT5e, CAT6 horizontal cables CAT5e, CAT6 patch cords Control Room Related Products
Faceplates
CAT5e, CAT6 Keystone jacks CAT5e, CAT6 patch cords
Fiber optic is the media offering the greatest bandwidth performance. As the trend in security systems is migrating to Internet Protocol networks, fiber optic is becoming an ideal media to integrate multiple systems. It can securely and clearly carries high-quality analog and digital transmissions over distances up to 2 km for multimode fiber and up to 120 km for single mode fiber.
Furthermore, fiber optic media has the particularity to be immune to electromagnetic interference, radio frequency interference, power surge, and makes it impossible to tap the signals it transmits.
Fiber Optic
1 1
1
9
9
9
9 8
8 7
7 6
6 6
5
5 5
4
4 3
3 2
2
11
11 11
12
12 13 14
10
10
Security & Surveillance
Fiber Optic based system
Surveillance Camera
Patch PanelUTP
Fiber Optic Patch Panel Ethernet Switch
Server
Workstation
camera
camera camera
camera
Field Distribution Point
Server
Workstation Patch PanelUTP
Fiber Optic Patch Panel
Transceiver/
Media Converter Transceiver/
Media Converter
Ethernet Switch
Telecommunications Room Control Room
Monitored Area Telecommunications Room Control Room
Monitored Area
Indoor
Surveillance System
Outdoor
Surveillance System
Copper based system
Outdoor Surveillance System
Monitored Outdoor Area Related Products Outdoor CAT5e, CAT6 patch cords Outdoor CAT5e, CAT6 cables
Telecommunications Room Related Products CAT5e, CAT6 patch panels
CAT5e, CAT6 Keystone jacks CAT5e, CAT6 horizontal cables CAT5e, CAT6 patch cords Control Room Related Products
Faceplates
CAT5e, CAT6 Keystone jacks CAT5e, CAT6 patch cords
Security & Surveillance
This transmission method allows for the installation of an IP-based video surveillance system connecting the cameras directly to the Local Area Network (LAN). Unshielded twisted pair (UTP) cabling transports digital video across the IP network and therefore allowing integration to any PC, or server in the network.
Indoor Monitored Area Related Products CAT5e, CAT6 patch cords
CAT5e, CAT6 horizontal cables
Telecommunications Room Related Products CAT5e, CAT6 patch panels
CAT5e, CAT6 Keystone jacks CAT5e, CAT6 horizontal cables CAT5e, CAT6 patch cords Control Room Related Products
Faceplates
CAT5e, CAT6 Keystone jacks CAT5e, CAT6 patch cords
Indoor Surveillance System Copper (UTP)
9 9
9 9
8 8
11
11 11
11 11
12 12
15 10 16
10 10
Copper based system
Security & Surveillance
Server
Workstation
Surveillance Camera UTP
Patch Panel Ethernet Switch
Telecommunications Room Control Room
Patch PanelUTP Ethernet Switch
Server
Workstation camera
camera camera
Monitored Area Telecommunications Room Control Room
Monitored Area
Indoor
Surveillance System
Outdoor
Surveillance System
Typical Bill of Material for Surveillance Camera Systems
Fiber Optic and Copper Patch Cords
(UTP Cat5e and Cat6) Multi Fiber Cable Assemblies
Field Installable Connectors Indoor/Outdoor Cables Fiber Optic, UTP Cat5e and Cat6
Keywerks Faceplates
Adaptors and Adaptor Strips Splice Trays
SFP Transceivers UTP Patch Panels and Modules
Security & Surveillance
Media Converters Chassis for Media Converters
3 3
3 1
9 8
7
6 5
2 11 15
12 14 16
10
Outdoor Fiber Enclosures 13
Fiber Optic product Copper product
