Two-way selection. Branching and Looping

(1)

Module 2 Branching and Looping

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₁

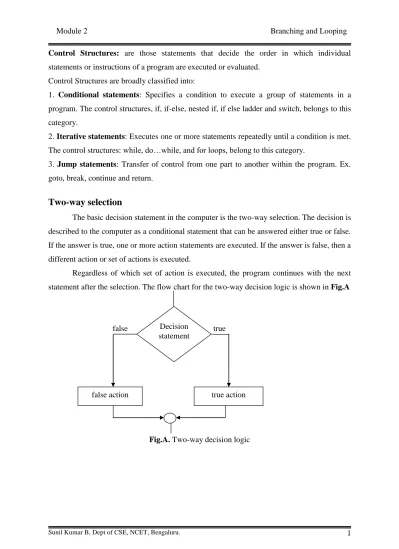

Control Structures: are those statements that decide the order in which individual statements or instructions of a program are executed or evaluated.

Control Structures are broadly classified into:

1. Conditional statements: Specifies a condition to execute a group of statements in a program. The control structures, if, if-else, nested if, if else ladder and switch, belongs to this category.

2. Iterative statements: Executes one or more statements repeatedly until a condition is met. The control structures: while, do…while, and for loops, belong to this category.

3. Jump statements: Transfer of control from one part to another within the program. Ex. goto, break, continue and return.

Two-way selection

The basic decision statement in the computer is the two-way selection. The decision is described to the computer as a conditional statement that can be answered either true or false. If the answer is true, one or more action statements are executed. If the answer is false, then a different action or set of actions is executed.

Regardless of which set of action is executed, the program continues with the next statement after the selection. The flow chart for the two-way decision logic is shown in Fig.A

false true

Fig.A. Two-way decision logic Decision

statement

(2)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₂

if statements

The if statements executes a simple or compound statements, depending on whether or not an expression is true of false. The syntax to use if statements is:

if(conditional expression) statements; //simple statement if(conditional expression) { //compound statements statement 1; statement 1; statement 1; }

In the preceding syntaxes, a simple or compound statement (block of statements) is executed when the condition expression given in the if statement it turn out to be true. Otherwise, the program control passes to next statement. If the condition expression is false then the C compiler does not do anything.

Note that the condition expression given in parenthesis, must be evaluated as true(non-zero value) or false(zero values). In addition, a compound statement must be provided by opening and closing braces.

Examples:

if(7) // a non zero value returns true if(0) //zero value returns false if(i==0) //True if i=0 other wise False

if(i=0) //false because value of the expression is zero.

*Note:- For programming examples, please refer text books.

if-else statement

The if-else statement executes a simple or compound statement when the conditional expression provided in the if statement is true. It executes another simple or compound statement, followed by the else statement, when the conditional expression is false.

Syntax:

if(conditional expression) simple or compound statement 1 else

simple or compound statement 2

(3)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₃

Nested if statements (Multi-way selection)

For the else, the statements may be any statement, including, another else. When an if-else is included within an if-if-else, it is known as a nested if statement. The control of a program moves into the inner if statements when the outer if statement is evaluated to be true. Syntax: if(expression 1) { if(expression 2) { Statement 1 } else { Statement2 } else { Statement 3 }

(a) code (b)Logic Flow

Syntax:

if(conditional expression1) {

//Statement 1 to be executed in case the conditional expression1 is true if(conditional expression2)

{

// Statement 2 to be executed in case the conditional expression2 is true }

}

if-else ladder(Multi-way selection)

When more than one if-else statements are used in a sequence, it is called as if-else ladder. The syntax is:

if(conditional expression1) simple or compound statement else if(conditional expression2) simple or compound statement else if(conditional expression3)

Expr1

Expr2

Statement1 Statement3

(4)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₄

simple or compound statement ………….

else if(conditional expression n) simple or compound statement

Switch statements (Multi-way selection)

A switch statement is a conditional statement that tests a value against different values. If the value is matched, the corresponding group of statements is executed.

A switch statement begins with the switch keyword that followed by a value expression in the parenthesis( ). It is a combination of multiple case labels that must be separated by the break statement. Every case label contains a constant value that is matched against the value, which is specified in the switch expression. If the value is matched, the statements of that case label are executed.

In addition, we can specify the default label, which is executed when the value specified in the switch expression, does not match with the given case labels.

The syntax is: switch(expression) { case value 1: { statements break; } case value 2: { statements break; } sase value 3: { statements break; } …… default: { default statements break; } }

(5)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₅

Conditional operator (?:) or Ternary operator:

is used to check a condition and select a value depending on the value of the condition. The selected value will be assigned to a variable which has the following form:- variable = (condition)? value1 : value2;

Ex:- big = (a > b)? a : b;

Repetition

Concept of a loop

The concept of a loop is shown in the flow chart in Fig.1. In this flow chart, the action is repeated over and over again. It never stops.

Since the loop in fig. never stops, the actions will be repeated forever. We want the loop to end when the work is done. To make sure it ends, we must have a condition that controls the loop. In other words, we must desing the loop so that before or after each iteration, it checks to see if it is done. If it is not done, it repeats one more time; if it is done, it exits the loop. This test is known as a loop control expression.

Fig.1. The concept of loop.

Pretest and Post-Test loops

Programming languages allow us to check the loop control expressions either before or after each iteration of the loop. In other words, we can have either a pre- or a post-test terminating condition.

 In a pretest loop, the condition is checked before we start and at the beginning of each iteration after the first. If the test condition is true, we execute the code; if the test condition is false, we terminate the loop.

Examples: for loop, while loop.

An action or a series of actions

(6)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₆

 In a post-test loop, we always execute the code at least once. At the completion of the loop code, the loop control expression is tested. If the expression is true, the loop repeats; if the expressions is false, the loop terminates. The flowcharts in Fig.2. shows these two loop types.

Example: do…while False True True False

a. Pretest Loop b. Post-test loop

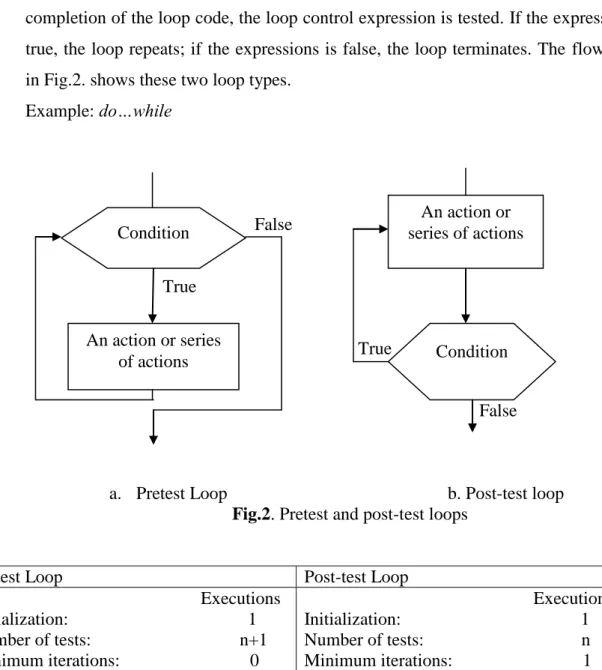

Fig.2. Pretest and post-test loops

Pretest Loop Post-test Loop

Executions Initialization: 1 Number of tests: n+1 Minimum iterations: 0 Executions Initialization: 1 Number of tests: n Minimum iterations: 1 n is the number of iterations.

Table 1. Loop comparision

Loops in C

C has three loop statements: the while, the for, and the do…while. The first two are pretest loops, and the do…while is a post-test loop. We can use all of them for event-controlled and counter-event-controlled loops. Fig.6. shows these loop constructs.

Condition An action or series of actions An action or series of actions Condition

(7)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₇

Pretest loop Pretest loop post-test loop

Fig.6. C loop constructs

1.The while loop

The while statement is the pretest loop. It uses an expression to control the loop. Since it is a pretest loop, it tests the expressions before every iterations of the loop. The basic syntax of the while statement is shown in the fig.7.

(a)Flowchart (b)Sample Code

Fig.7. The while statement

Note that the sample code in Fig.7 shows that the loop body is a single statement; that is, the body of the loop must be one, and only one, statement. If we want to include multiple statements in the body, we must put them in a compound statement(block). This concept is shown in the Fig.8. below.

Loop statements

while for do…while

expression s

statement

While (expression)

(8)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₈

False

.

Exit

(a)Flowchart (b) C language

Fig.8. Compound while statement

2.The for loop

The for statement is a pretest loop that uses three expressions. The first expression contains any initialization statements, the second contains the limit-test expression, and the third contains the updating expression. Fig.9 shows the flow chart and an expanded interpretation, for a sample for statement.

1. Expression 1 is executed when the for starts.

2. Expression 2 is the limit test expression. As shown in the expanded flowchart, it is executed before every iteration. Since the for is a pretest loop, the body is not executed if the limit condition is false at the start of the loop.

3. Expression 3 is the update expressions. This means that you cannot use statements, such as return, in the for statement itself.

4. Like the while statements, the for statements does not need a semicolon. expression Action Action Action While(expression) { }/*end while*/ Action Action Action

(9)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₉

False

Effd f df f

False

True True

(a)Flowchart (b) Expanded Flowchart

Fig.9. for statement

(a)Simple for statement (b)Compound for statement

Nested for

loops

Any statement, even another for loop, can be included in the body of a for statement. In other words, a for loop inside for loop is called nested for.

For(expr1;expr2;expr3) //Outer for loop

{

for(expr1;expr2;expr3) //Inner for loop

{

statements;

} //end of inner for } //end of outer for

expr3 expr1 expr2 statement expr1 expr2 statement expr3 for(expr1;expr2;expr3) for(expr1;expr2;expr3) { } Action Action

(10)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₁₀

2.1 Variations in for loop

1.In for loop, the expression “i<=n can be replaced by the expression “i<n+1”.

For example, consider

for(i=1; i<=5 ; i++) {

Printf(“%d”, i); //Output: 1 2 3 4 5 }

//can also be written as

for(i=0 ; i<6 ; i++) {

Printf(“%”,i); //Output:1 2 3 4 5 }

2. The initialization expression can be moved just before the loop and updation expression can be shifted to end of body loop. For ex.

for(i=1; i<=5 ; i++) i=1 {

Printf(“%d”, i); is same as for( ; i<=5 ; ) } {

Printf(“%d”, i); i++;

}

3. For loop should not end with semicolon.

For(i=1; i<=5 ; i++) {

Printf(“%d”, i) ; }

Observe that semicolon in the body of the loop is treated as NULL statement. So, for all the values of i=1,2,3,4,5 the NULL statement is executed which does nothing. Finally, i will be 6 and control comes out of for loop.

4. The initialization expression expr1, limit test expression expr2 and update expression expr3 are optional in the for loop. For ex.

for( ; ;) {

printf(“\n”);

}

(11)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₁₁

3. The do…while statement

The do…while statement is a post-test loop. Like the while and for loops, it also uses an expression to control the loop, but it tests this expression after the execution of the body. The format of the do….while statement is shown in Fig.10.

true

false

true

false

(a)Flowchart (b)Sample Code

Comparison of Loop Control Structures

for loop while loop do…while loop

1.A for loop is used to execute and repeat a statement block depending on a condition at the beginning of the loop.

Example

for(i=1; i<=10; i++) {

A while loop is used to execute and repeat a statement block depending on a condition which is evaluated at the beginning of the loop.

Example i=1;

A do…while loop is used to execute and repeat a

statement block depending on a condition which is evaluated at the end of the loop. Example i=1; statement expression do } while ( expression ); statement do { } while (expression ); Action Action Action expression Action Action Action

(12)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₁₂

s=s+i; p=p*i; } while(i<=10) { s=s+i; p=p*i; i++; } do { s=s+i; p=p*i; i++; } while(i<=10); 2. A variable value is

initialized at the beginning of the loop and is used in the condition.

A variable value is

initialized at the beginning or before the loop and is used in the condition.

A variable value is

initialized before the loop or assigned inside the loop and is used in the condition.

3. A statement to change the value of the condition or to increment the value of the variable is given at the beginning of the loop.

A statement to change the value of the condition or to increment the value of the variable is given at the inside of the loop.

4.The statement block will not be executed when the value of the condition is

false.

The statement block will not be executed when the value of the condition is

false.

The statement block will not be executed when the value of the condition is

false, but the block is executed at least once irrespective of the value of the condition.

5.A for loop is commonly used by many programmers.

A while loop is also widely used by many programmers.

A do…while loop is used in some cases where the condition need to be checked at the end of the loop.

Jump statements

Jump statements are the statements that transfer control from one part of the program to another . The jump statements supported by C are follows:

break statements continue statements goto statements return statements

break statement/ Jump statements related to looping

The break statement is used to break any type of loop as well as switch statement. Breaking a loop means terminating the loop. It has the following form:

break;

Example:

Printf(“Press B to break, any other key to continue”); for(i=1 ; i<=80 ; i++)

(13)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₁₃

{

ch = getche(); if (ch == „B‟) break;

--- control is transferred to the end of block ---

}

continue statement/ Jump statements related to looping

The continue statement is used to transfer the control to the beginning of a statement block in a loop. In other words, a break statement breaks the entire loop, but a continue statement breaks the current iteration. That is, the continue statement breaks the current execution of a loop condition and then continue the loop with next condition.

If has the following form:

continue; Example:

for(i=1 ; i<=80 ; i++) {

ch = getche();

if (ch == „C‟ || ch == „c‟) control is transferred to the beginning of { the block.

printf(“C for continue is pressed”); continue;

}

--- }

goto statement

The goto statement is an unconditional transfer of control statement. It is used to transfer the control from one part of the program to another. The place to which the control is transferred is identified by a statement label. It has the following form:

goto label;

where label is the statement label which is available anywhere in the program. Example: ---; goto display; ---; ---; display; ---;

(14)

Sunil Kumar B, Dept of CSE, NCET, Bengaluru. ₁₄

exit( ) Function

The exit( ) function is used to transfer the control to the end of a program (i.e to terminate the program execution). It uses one argument in ( ) and the value is zero for normal termination or non-zero for abnormal termination. For example.

if (n<0) {

printf(“Factorial in not available for negative numbers”); exit(0);

}

Note that the program execution is terminated when the value of the variable n is negative. The compiler directive #include<stdlib> is used when this function is used in a program.

return:

It is used to return the control to the calling function with/without a value. For example, if a function is not returning any value, use the return keyword

return;

If a function is returning a value, then

return value;

Question Bank

1.

What is a two way selection statement? Explain with an example.

2. With a suitable example program, demonstrate the working of if-else statement 3. What are multi-way selection/decision making statements? Explain them 4. What is nested if? Explain with a suitable program.

5. What is if-else ladder? Explain with a suitable program.

6. What is a switch? With syntax explain with an example program. 7. What is a loop? How loops are classified in C?

8. Explain the working of for, while and do_while loops with syntax and suitable example programs.

9. What is the difference between while and do_while? 10. Differentiate between for, while and do_while?

11. What are pre-test loops and post-test loops? Explain with examples.

12. What are jump statements? Explain the different types of jump statements available in C. 13. Explain the following jump statements. i.goto ii.break iii.continue.

14. Where and why break and continue statements are used in C? 15. What are Ternary operators? Explain them.
