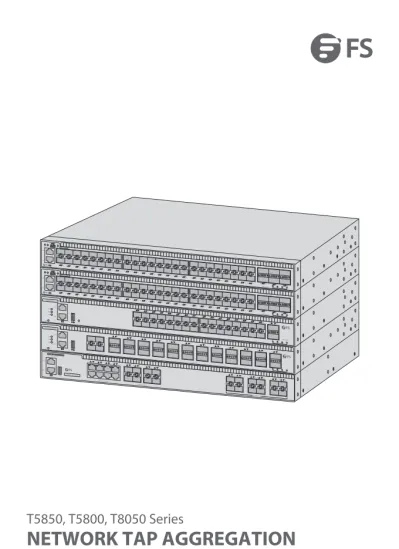

V1.0
NETWORK TAP AGGREGATION
Quick Start Guide
T5850, T5800, T8050 Series
ETH CON T5850-48S6Q ID SYS RST 123456789101112 1314 15 161718 1920 2122 2324 25 26 2728 2930 31 323334 3536 3738 39 404142 4344 45 46 4748 40G Breakout 40G 495051525354 1234 ETH CON T5850-48S2Q4C ID SYS RST 123456789101112 1314 15 161718 1920 2122 2324 25 26 2728 2930 31 323334 3536 3738 39 404142 4344 45 46 4748 40G Breakout 40G/100G 495051525354 1234 ID CON ETH 40G Breakout 1234 T5850-32S2Q RST PWR FAN SYS 1234567891011121314 15161718 1920 2122 2324 25 26 2728 2930 31 32 33 34 ID CON ETH 1 3 2 4 40G Breakout1234 T8050-20Q4C PWR FAN SYS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1516 17 18 19 20 2122 23 24 40G/100G CON ETH USB 10G BASE-X T5800-8TF12S 1 2 3 4 1 23 4 5 6 7 8 11 12 9 10 13 14 15 16 17 18 19 20 10/100/1000 BASE-T 100/1000 BASE-X SYSFAN PWR1 PWR2 STCKINDIntroduction
Thank you for choosing T5850, T5800 and T8050 Series Network TAP Aggregation. This guide is designed to familiarize you with the layout of the Network TAP Aggregation and describes how to deploy it in your network.
ETH CON T5850-48S6Q ID SYS RST 12345 6789101112 13 14 15161718 1920 21 22 2324 2526 27 28 2930 31323334 35 36 3738 39404142 43 44 4546 4748 40G Breakout 40G 495051525354 1234 ETH CON T5850-48S2Q4C ID SYS RST 12345 6789101112 13 14 15161718 1920 21 22 2324 2526 27 28 2930 31323334 35 36 3738 39404142 43 44 4546 4748 40G Breakout 40G/100G 495051525354 1234 ID CON ETH 40G Breakout 1234 T5850-32S2Q RST PWR FAN SYS 12345 67891011121314 15161718 1920 21 22 2324 2526 27 28 2930 3132 33 34 ID CON ETH 1 3 2 4 40G Breakout1234 T8050-20Q4C PWR FAN SYS 1 2 3 4 5 6 7 8 9 10 1112 13 14 15 16 17 18 19 20 21 22 23 24 40G/100G CON ETH USB 10G BASE-X T5800-8TF12S 1 2 3 45 6 7 8 1 23 4 9 1011 12 1314 15 16 1718 19 20 10/100/1000 BASE-T 100/1000 BASE-X SYSFAN PWR1 PWR2 STCK IND 5 67 8 T5850-32S2Q T5850-48S6Q T5850-48S2Q4C T8050-20Q4C T5800-8TF12S
Accessories
Power Cord x2 Console Cable x1 Cat5e Cable x1
Grounding Cable x1 Rack Mount Bracket x2 M4 Screw x8 Rubber Pad x4
Hardware Overview
Front Panel Ports
T5850-48S6Q
ETH CON T5850-48S6Q ID SYS RST 1 23 45 67 89 1011 12 13 14 15 1617 18 19 20 21 22 23 24 25 26 27 28 29 30 31 3233 34 35 36 37 38 39 4041 42 43 44 45 46 47 48 40G Breakout 40G 49 50 51 52 53 54 1 2 3 4 CON ETH USB SFP+ QSFP+Ports
Description
USB CON ETH SFP+A USB 2.0 management port
An RJ45 console port for serial management An Ethernet management port
Hot swappable SFP+ ports for 1G/10G connection
Front Panel Button
T5850-48S6Q
Front Panel LEDs
T5850-48S6Q
ETH CON T5850-48S6Q ID SYS RST 1 23 45 67 89 1011 12 13 14 15 1617 18 19 20 21 22 23 24 25 26 27 28 29 30 31 3233 34 35 36 37 38 39 4041 42 43 44 45 46 47 48 40G Breakout 40G 49 50 51 52 53 54 1 2 3 4Button
Description
RSTRestart: Press and release the RST button quickly.
Restore to Factory Default Settings: Press and hold the RST button for more than five seconds.
RST ETH CON T5850-48S6Q ID SYS RST 1 23 45 67 89 1011 12 13 14 15 1617 18 19 20 21 22 23 24 25 26 27 28 29 30 31 3233 34 35 36 37 38 39 4041 42 43 44 45 46 47 48 40G Breakout 40G 49 50 51 52 53 54 1 2 3 4 ID ETH SYS SFP+ QSFP+ SYS
Help locate the TAP aggregation. Green
Green
Amber Off
ID
On: System is working abnormally.
Blinking Quickly (2Hz): System is powered on but CPU is not running. Blinking Slowly (0.5Hz): System is working normally.
On: System occurs alarm or error.
Blinking Quickly (2Hz): System is in u-boot initiation. Blinking Slowly (0.5Hz): System is in system initiation. No power or system is not working or working abnormally.
Site Environment
T5850-48S6Q
Back Panels
Four Fans Dual Power
Grounding Point
PS2 PS1 GND
Do not operate it in an area that exceeds an ambient temperature of 45°C. The installation site should be well ventilated.
LEDs Status
Description
ETH SFP+/ QSFP+ Green Blinking Green Off Green Blinking Green Off
A device is connected to the port, but no activity.
A device is connected to the corresponding port, but no activity. Data is being transmitted or received.
No device is connected to the port. Data is being transmitted or received.
No device is connected to the corresponding port.
Be sure that the TAP aggregation is level and stable to avoid any hazardous conditions. Do not install the equipment in a dusty environment.
The installation site must be free from leaking or dripping water, heavy dew, and humidity. ETH CON T5850-48S6Q ID SYS RST 1 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35
Installing (Based on model T5850-48S6Q)
Desk Mounting
1. Attach four rubber pads to the bottom. 2. Place the chassis on a desk.
1. Secure the mounting brackets to the two sides of the TAP aggregation with eight M4 screws.
ETH CONID SYS RSTT5850-48S6Q 123456789101112 1314 15161718 1920 2122 2324 2526 2728 2930 31323334 3536 3738 39404142 4344 4546 4748 40G Breakout 40G 4950511522533544
Rack Mounting
38 39 4041 42 43 44 45 46 47 48 40G Breakout 40G 49 50 511522 533 5442. Attach the TAP aggregation to the rack using four M6 screws and cage nuts.
Grounding the TAP Aggregation
38 39 4041 42 43 44 45 46 47 48 40G Breakout 40G 49 50 511522 533 544 PS2 PS1 GND1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the TAP aggregation is mounted.
2. Secure the grounding lug to the grounding point on the TAP aggregation back panel with the washers and screws.
CAUTION:The earth connection must not be removed unless all supply connections have been disconnected.
Connecting to the Power
PS2
PS1
GND
1. Plug the AC power cord into the power port on the back of the TAP aggregation. 2. Connect the other end of the power cord to an AC power source.
First install the SFP+ transceivers and then connect fiber optic cables to the transceivers, or directly connect DAC cables to the SFP+ ports.
WARNING:Do not install power cords while the power is on.
WARNING:Laser beams will cause eye damage. Do not look into bores of optical modules or optical fibers without eye protection.
Connecting to the SFP+ Ports
ETH CON T5850-48S6Q ID SYS RST 1 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
First install the QSFP+ transceivers and then connect fiber optic cables to the transceivers, or directly connect DAC cables to the QSFP+ ports.
Connecting to the QSFP+ Ports
33 34 35 36 37 38 39 4041 42 43 44 45 46 47 48 40G Breakout 40G 49 50 511522 533 544
1. Connect the DB9 female connector of the mini USB to RS-232 cable to RS-232 serial port on the computer.
2. Insert the mini USB connector into the USB port on the front of the TAP aggregation.
Connecting to the USB Port
ETH
CON T5850-48S6Q ID SYS RST
1. Connect the DB9 female connector of the console cable to RS-232 serial port on the computer. 2. Insert the RJ45 connector into the RJ45 console port on the front of the TAP aggregation.
Connecting to the Console Port
ETH
CON T5850-48S6Q ID SYS RST
1 2 3 4 5 6 7 89
1. Connect one end of a standard RJ45 Ethernet cable to a computer.
2. Connect the other end of the cable to the ETH port on the front of the TAP aggregation.
Connecting to the ETH Port
ETH CON T5850-48S6Q ID SYS RST 1 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 20 21
Configuring the TAP Aggregation Using the Console Port
Step 1: Connect a computer to the TAP aggregation's console port using the supplied console cable. Step 2: Start the terminal simulation software such as HyperTerminal on the computer.
Step 3: Configure the terminal simulation with the following parameters:
L o g i n
Username
Enter username
Password
English
中文
Enter password
Login
Configuring the TAP Aggregation
Configuring the TAP Aggregation Using the Web-based Interface
Step 1: Connect your computer to any Ethernet port of the TAP aggregation using the network cable. Step 2: Set up the IP configuration on your computer. The IP address of your computer should be set in the same subnet addresses of the TAP aggregation. The IP address is 192.168.1.x ("x" is any number from 2 to 254).
Step 3: Open a web browser window. Enter the default IP address of the TAP aggregation http://192. 168.1.1 in the address bar and press enter.
Step 4: When the login page appears choose the language that you prefer and enter the username and password.
The default username is admin. The default password is admin. Step 5: Click Login to display the web-based configuration page.
Troubleshooting
CAUTION:After using boot_flash_nopass command, system will clear up the startup-config files; before starting this operation, the startup-config files will be stored in flash:/startup-config.conf.old file.
Loading Failure Processing
1. Check the physical port connections.2. Check the loading process information displayed on the super terminal.
3. Make sure physical connections are correct and there are no input errors in the loading process.
User Password Lost
If system password is lost or forgotten, the following method can be used to reset password: 1. Enter uBoot operation mode.
2. Input boot_flash_nopass command to start system in uBoot mode.
Model: T5850-48S6Q, T5850-48S2Q4C, T5850-32S2Q, T8050-20Q4C
115200 bits per second 8 data bits
1 stop bit no flow control
Model: T5800-8TF12S
9600 bits per second 8 data bits 1 stop bit no flow control
Step 4: Enter the username and password. The default username is admin. The default password is
admin.
You are now ready to configure the TAP aggregation. Refer to the TAP Aggregation CLI Reference
Online Resources
Download Help Center Contact Us https://www.fs.com/download.html https://www.fs.com/service/help_center.html https://www.fs.com/contact_us.htmlProduct Warranty
FS ensures our customers that any damage or faulty items due to our workmanship, we will offer a free return within 30 Days from the day you receive your goods. This excludes any custom made items or tailored solutions.
Warranty: FS Network TAP Aggregation enjoys 5 years limited warranty against defect in materials or workmanship. For more details about warranty, please check at
https://www.fs.com/policies/warranty.html
Return: If you want to return item(s), information on how to return can be found at
https://www.fs.com/policies/day_return_policy.html
5
1. Check th power cable connections at the TAP aggregation and the power source. 2. Make sure that all cables are used correctly and comply with the Ethernet specifications.
Power LED Working Abnormally
1. Make sure the power supply is normal and the console cable is properly connected. 2. Check if the console cable is the right type.
3. Check if the control cable driver is properly installed on the computer. 4. Ensure the parameters of the HyperTerminal are correct.
HyperTerminal Displaying Abnormally
