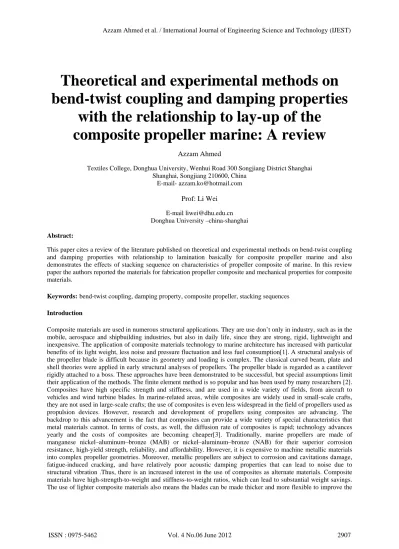

Theoretical and experimental methods on
bend-twist coupling and damping properties
with the relationship to lay-up of the
composite propeller marine: A review
Azzam Ahmed
Textiles College, Donghua University, Wenhui Road 300 Songjiang District Shanghai Shanghai, Songjiang 210600, China
E-mail- [email protected]
Prof: Li Wei
E-mail [email protected] Donghua University –china-shanghai
Abstract:
This paper cites a review of the literature published on theoretical and experimental methods on bend-twist coupling and damping properties with relationship to lamination basically for composite propeller marine and also demonstrates the effects of stacking sequence on characteristics of propeller composite of marine. In this review paper the authors reported the materials for fabrication propeller composite and mechanical properties for composite materials.
Keywords:bend-twist coupling, damping property, composite propeller, stacking sequences
Introduction
hydrodynamic performance by increasing the cavitation inception speeds. Moreover, composites can offer the potential benefits of reduced corrosion and cavitation damage, improved fatigue performance, lower noise, improved material damping properties, and reduced lifetime maintenance cost[4].
Literature Review – Structural Design of Composite Propellers
impossible to improve the propeller simply by arrange the ply angles and the optimum propeller satisfies the two requirements of optimization, reducing the range over which the torque varies and improving the cooperation between the propeller and the engine[27]. Flow around marine propeller in open water is analyzed using incompressible RANS computations with k- turbulence model. The numerical results are in agreement with experimental data and the general characteristics of the propeller flow seem to be quite well predicted[28]
Mechanical properties of composite propeller
A study on mechanical properties of carbon fiber reinforced plastics by three-point bending testing and transverse static response that by changes of stacking composition methods of CFRP composite materials. It was found as interface number increases, the maximum load was increased and specimens stacked in quasi-isotropic plies had large operations in its maximum load rather than cross plies. Therefore, it was found that it is correct to stack in quasi-isotropic plies when composing stacking of CFRP composite materials[29]. Pitch-based short carbon fibers were treated by both a gaseous oxidation and a cryogenic treatment approach. It was found by scanning electron microscopy that the fiber surface roughness was increased by various oxidative conditions, whereas the fiber diameter was reduced by the cryogenic treatment. In both cases, appropriate treatments could effectively improve the mechanical properties in their epoxy composites due to the enhanced fiber–matrix interfacial bonding[30]. Thermo-mechanical tensile cyclic loading (up to 10 cycles) was applied to T700/epoxy unidirectional laminates at room temperature and the Results showed that tensile stiffness significantly increased as temperature decreased, while the thermo-mechanical cycling had little influence on it. Tensile strength, however, decreased as temperature decreased down to CT, while the decreasing rate of strength was reduced after CT cycling[31].Hydrothermal effects on the tensile strength of carbon/epoxy laminates with molded edges It is concluded that the mechanical properties of advanced composites depend on the environmental conditions and the fabrication techniques used to produce the laminates. Therefore, it is necessary to account for these factors when experimentally determining the design allowable[32].The effect of voids on the tensile properties of 45 , 0,90 , 45 and 45 , 0 ,
45 0,90 composites. The influence of voids on the tensile strength and modulus of both stacking sequence is compared in terms of the size and the shape of the voids. The effect of voids on the initiation and propagation of tensile failure of both stacking sequence composite was investigated. The results show that the size and aspect ratio of the voids increase with increasing void content[33].
Theoretical and experimental methods on bend-twist coupling for composite propeller
Propeller characteristics of a candidate propeller (propeller 4102) were calculated for five different ply stacking sequences and were compared with the same propeller made from rigid material. It was shown that the ply stacking sequence does have a significant effect on the propeller characteristics and These results demonstrate the improvements in propeller performance that are possible using the bend–twist coupling of composite laminates. Additionally, this study shows that the numerical approach developed by the authors is well suited for analyzing the performance characteristics of composite propellers[34].Self-twisting composite marine propellers, when subject to hydrodynamic loading, will not only automatically bend but also twist due to passive bend–twist (BT) coupling characteristics of anisotropic composites. The results show that the self- twisting propeller produced the same performance as the rigid propeller at the design flow condition, and it produced better performance than the rigid propeller at off-design flow conditions, including behind a spatially varying wake[35]. The effects of vibration coupling between bending and twisting in symmetric laminates, and between extension and bending in antisymmetric laminates on damping were studied. A modal strain energy method was applied in a finite-element formulation to solve for the natural frequencies, mode shapes and energy dissipation of the laminates. The results of the first three modes, which includes two flexural modes and one torsional mode, are presented. The coupling effects on damping in flexural modes were found to be more significant than those in torsional modes, and such effects appear to be dependent upon the fiber angle and the vibration mode of interest. The coupling effects appear to increase damping in flexural modes, and were found to be maximized at a fiber angle around 300 The
seam, where two clamshells which have symmetric lay-up meet, is very critical. The retention strengths of the joints depend on the laminate composition and the stacking sequence. And the results show from the experiments is that the joint strength of a laminate which composes of 0°-plies and angle-plies and has the angle-plies at the outer layers is stronger than that of a laminate with the same plies composition but having 0°-plies at the outer layers[38]. Development of a design methodology for a composite, bend-twist coupled, tidal turbine blade has been undertaken. Numerical modeling was used to predict the response of the main structural member for the adaptive blade. The analysis indicates a non-linear blade twist response. The results show it has been found that the distribution of twist along the length of the beam does not vary linearly and it appears that the effect of altering the ply angle of the outer roving creates two optima, at which the induced twist present in the beam is maximum, for a bend that is significantly less than maximum. The relationship between tip load and induced twist is shown to be linear[39]. A strong correlation was identified between the divergence ship speed and the change in the tip pitch angle of the blades in brief communication static divergence of self-twisting composite rotors. The methodology used is equally applicable to other structures, such as tidal and wind turbines[40]. The effect of bend-twist coupling on the shear buckling behavior of laminated composite plates is examined by using a finite strip procedure. The degree of bend-twist coupling in the laminated composite plates is varied by changing the level of anisotropy in the plies and by altering the lay-up configuration of the plies in the laminated stack. The results show that, for a given degree of anisotropy in the plies of a laminate and for a given laminate thickness, the stacking sequence of the plies significantly alters the degree of bend-twist coupling, The shear buckling performance of composite plates having the same dimensions and being made from the same material are therefore shown to be quite different, for square plates or plates with a moderate aspect ratio the influence of bend-twist coupling on buckled mode shape is shown to be noticeable through increased distortion, for the larger aspect ratio plates it is shown that the presence of bend-twist coupling can cause a complete change in the mode shape from a symmetric to an antisymmetric nature or vice versa and amplitude modulation is shown to be clearly evident in the shear buckling mode shapes of long plates[41]. In composite laminated plates various mechanical properties may be attained by changing the lay-up arrangement. The bent–twist coupling is one of the significant properties which dominate the mechanical performance of a laminated plate structure in large out-of plane deformations. The effects of bend–twist coupling on the post-buckling behavior of composite laminated plates have been studied by implementing a finite strip approach based on the concept of a rigorous post-buckling solution for composite plates and plate structures, namely the semi-energy approach. All the plates are assumed to be symmetrically balanced laminates having uniform in plane stiffness properties. As far as the out-of-plane stiffness properties are concerned, all the properties, except for the bend–twist coupling terms which are assumed to change from one laminate to another, are the same among different laminates. The comparison between the results revealed markedly different behaviors among different laminates due to the bend–twist coupling effects. An overall review of presented results has led to the conclusion that if the post-buckling strength of a composite laminated plate is to be estimated based on the stress values, it is absolutely essential to include the effects of bend–twist coupling terms in the appropriate analysis[42].
Theoretical and experimental methods on damping property for composite propeller
were also important parameters influencing the loss factor of the laminates and damping effects depended not only on the viscoelastic properties of the interleaved polymer material but also on the arrangements of the reinforcing carbon fiber in the laminates which controlled the stiffness of the intralaminar zone and the strain of the interleaf films[45]. A review about damping deal with first step, composite damping mechanisms and methodology applicable to damping analysis is described and presents damping studies involving macromechanical, micromechanical and viscoelastic (relaxation and creep) approaches; models for interphase damping, damping and damage in composites[46]. Many researches focus on predicting the damping with viscoelastic layers[47-50]. The effect of temperature on natural frequency and damping is investigated in two different composite materials, Kevlar 29 fiber woven and polyethylene cloth, used especially to design ballistic armor. A damping monitoring method is used experimentally to measure the frequency response curve and it is also modeled numerically using a finite element program. The results show that polymer matrix composites have temperature dependent mechanical properties. This relationship is functional and they have different effects against temperature[51]. The damping property of materials can be defined as the ratio of dissipated energy over the total strain energy during the loading– unloading process, called the specific damping capacity (SDC). To characterize the damping properties of materials, a test plan is designed to extract the SDC of a single layer composite from hysteresis data. Finally the results are compared with experimental results for symmetric laminated specimen. This evaluation shows a very good agreement between theoretical and experimental results in the range of low frequency loading from 0.2 to 4 Hz. The complex compliance matrix changes the governing equation in to a complex form which contains both stiffness and
damping properties[49]. The effect of fiber orientation angle and stacking sequences on damping, resonance
the experimental results by dynamic mechanical thermal analysis (DMTA).The results show a good agreement between analytical and experimental results[48].By used the finite element based modal strain energy method for predicting the modal loss factor of laminated composite beams with integral viscoelastic layers. Both the frequency dependence of viscoelastic damping materials and the contribution of energy dissipation due to fiber-reinforced composites are taken into account. The effects of damping of fiber-reinforced composite materials, ply angle of compliant layers, and location of viscoelastic layers on the loss factor and frequency of damped composite beams have also been studied. The results show loss factors and frequencies predicted through the present approach compare well with previous studies. The present analytical method to predict the damping of the damped composite system also has the potential capacity to deal with practical structures with a more complex geometry and boundary conditions[50].The aims of effect of fiber array on damping behaviors of fiber composites to investigate the fiber array effect on modal damping behaviors of fiber composites. Three different fiber arrays, i.e., square edge packing (SEP), square diagonal packing (SDP), and hexagonal packing (HP), were considered to represent the microstructures of the unidirectional composites. Results indicated that the structures constructed from the composites with SDP fibers exhibit better damping behaviors than the other two cases[66]. Advanced fiber reinforced plastic (FRP) composites are increasingly being used in weight sensitive structural applications due to their high stiffness /weight ratio. Here, we highlight another property of these materials which is equally desirable in such applications, namely their potential for vibration damping, and show the factors affecting the damping in FRP composites. The results show that the damping properties of FRP composites can be readily predicted and the basic mechanisms governing the modal damping in laminated beams and plates were highlighted, and these were shown to follow accurately the variation in such parameters as fiber orientation, stacking sequence and the nature of deformation[67].A three-dimensional material damping estimation methodology is proposed for planar isotropic material symmetry by using a constitutive viscoelastic vibration model. The proposed material model is verified, via finite-element techniques, on three laminate structures. Comparisons made between the results from the detailed (layer-wise) model of the laminate and the effective three-dimensional model show that the estimated homogenized model is reasonably accurate, in terms of predicted vibration responses. Finally, estimations of planar isotropic material damping are done for two practically interesting experimental structures, a carbon fiber–epoxy laminate structure and an aluminum laminate including a constrained viscoelastic layer damping treatment. The dynamic three-dimensional effective homogeneous material models, for these two cases, are found to be close to measurements in a frequency interval corresponding to the first 17 modes[68].In prediction of material coupling effect on structural damping of composite beams and blades investigates the effect of material coupling on static and modal characteristics of composite structures. Incorporation of stiffness and damping coupling terms into a beam formulation yields and the results show There is reasonably good correlation between experimental data and numerical results obtained by the present finite element for the case of the small model blade equivalent section stiffness and damping properties[69]. The effects of fiber orientation angle and stacking sequence on the damping characteristics are investigated. The results show that the dynamic performance of the composite structure can be improved by completing the damping design[70]. Nonlinear damping and forced vibration analysis of laminated composite beams studied the damping and forced vibrations of three-layered, symmetric laminated composite beams and nonlinear forced vibration analysis of laminated composite beams was investigated. Higher order zig-zag theories were used for the displacement field. Based on the harmonic balance method and Galerkin procedure, a scalar complex nonlinear amplitude frequency relationship was established and a closed form analytical solution for this problem was determined[71].
Conclusion
significant properties which dominate the mechanical performance of a laminated plate structure in large out-of plane deformations. The effects of bend–twist coupling on the post-buckling behavior of composite laminated plates have been studied by implementing a finite strip approach based on the concept of a rigorous post-buckling solution for composite plates and plate structures, namely the semi-energy approach. The damping property of materials can be defined as the ratio of dissipated energy over the total strain energy during the loading–unloading process, called
the specific damping capacity (SDC). The effect of fiber orientation angle and stacking sequences on damping,
resonance frequency, and dynamic stiffness was discussed with a focus on the effect of moisture absorption by dried specimens were immersed in distilled water for a certain period to absorb water for 8, 16, and 24 d, respectively, and the moisture content absorbed in the specimen was measured and results show The damping increased with the increase of moisture content; however, the dynamic stiffness reduced with the reduction of resonance frequency. Finally we can say any change on stacking sequence will change the properties of laminate composite including the bend-twist coupling property and damping property depend on kind of the stacking sequence that used.
References
[1] J.F.Tsai, H.J.L.a., Analysis of Underwater Free Vibrations of a Composite Propeller Blade. Journal of REINFORCED PLASTICS AND
COMPOSITES, 2008. Vol. 27, No. 5: p. 447-458.
[2] H.J.Lin , W.M.L.a.Y.M.K., effect of stacking sequence om nonlinear hydroelastic behavior composite propeller Journal of Mechanics,
2010. Vol. 26, No. 3: p. 293-298.
[3] Toshio Yamatogi, H.M., Kiyoshi Uzawa,Kazuro Kageya, Study on Cavitation Erosion of Composite Materials for Marine Propeller. 2010.
[4] Young, Y.L., Fluid–structure interaction analysis of flexible composite marine propellers. Journal of Fluids and Structures, 2008. 24(6): p.
799-818.
[5] Motley, M.R., Z. Liu, and Y.L. Young, Utilizing fluid–structure interactions to improve energy efficiency of composite marine propellers in
spatially varying wake. Composite Structures, 2009. 90(3): p. 304-313.
[6] Young, Y.L., J.W. Baker, and M.R. Motley, Reliability-based design and optimization of adaptive marine structures. Composite Structures,
2010. 92(2): p. 244-253.
[7] Lin, H.J., Strength Evaluation of a Composite Marine Propeller Blade. Journal of Reinforced Plastics and Composites, 2005. 24(17): p.
1791-1807.
[8] Blasques, J.P., C. Berggreen, and P. Andersen, Hydro-elastic analysis and optimization of a composite marine propeller. Marine Structures,
2010. 23(1): p. 22-38.
[9] A.P. Mouritz, Z.M., Post-fire mechanical properties of marine polymer composites. Elsevier Science Ltd, 2000. 47: p. 643-653.
[10] He, X.D., Y. Hong, and R.G. Wang, Hydroelastic optimisation of a composite marine propeller in a non-uniform wake. Ocean Engineering,
2012. 39: p. 14-23.
[11] Motley, M.R. and Y.L. Young, Performance-based design and analysis of flexible composite propulsors. Journal of Fluids and Structures,
2011. 27(8): p. 1310-1325.
[12] H. H. Li, K.R.D., M. H. Davy and S. I. Green, A Marine Propeller Aerodynamic Test Facility. Blackwell Publishing Ltd, 2007. 43: p.
125-131.
[13] Cao, L. and J. Liu, An integrated surface modeling and machining approach for a marine propeller. The International Journal of Advanced
Manufacturing Technology, 2006. 35(11-12): p. 1053-1064.
[14] Dr. S. Selvaraju, S.I., applications of composites in marine industry. Journal of Engineering Research and Studies, 2011. 2: p. 89-91.
[15] Lin, C.-C. and Y.-J. Lee, Stacking sequence optimization of laminated composite structures using genetic algorithm with local improvement.
Composite Structures, 2004. 63(3-4): p. 339-345.
[16] Felli, M., G. Guj, and R. Camussi, Effect of the number of blades on propeller wake evolution. Experiments in Fluids, 2007. 44(3): p.
409-418.
[17] Taek S. Jang, T.K., and Hajime Yamaguchi, A new functional optimization method applied to the pitch distribution of a marine propeller.
journal of marine and technology, 2001. 6(23-30).
[18] Kim, Y.-C., et al., Design of propeller geometry using streamline-adapted blade sections. Journal of Marine Science and Technology, 2008.
14(2): p. 161-170.
[19] Yoon, H.-Y. and J. Zhang, Prediction of fatigue life distribution of marine propeller materials. Journal of Mechanical Science and
Technology, 2009. 23(5): p. 1323-1330.
[20] Chen, J.-H. and Y.-S. Shih, Basic design of a series propeller with vibration consideration by genetic algorithm. Journal of Marine Science
and Technology, 2007. 12(3): p. 119-129.
[21] Takekoshi, Y., et al., Study on the design of propeller blade sections using the optimization algorithm. Journal of Marine Science and
Technology, 2005. 10(2): p. 70-81.
[22] Breteau, T., et al., Design for manufacturing with tool paths adapted to marine propeller. International Journal on Interactive Design and Manufacturing (IJIDeM), 2011. 5(4): p. 271-275.
[23] José Pedro Blasques , C.B., Poul Andersen hydro-elastic tailoring and optimization of a composite marine propeller. 2008.
[24] Reddy, S.S.R.A.D.P.R., Performance evaluation of composite marine propeller using L8 orthogonal array. International Journal of
Engineering Science and Technology, 2011. 3: p. 7998-8003.
[25] Spyros A. Kinnas, H.L., and Yin L. Young, Modeling of Unsteady Sheet Cavitation on Marine Propeller Blades. International Journal of
Rotating Machinery, 2003. 9: p. 263–277.
[26] Lin, C.-C., Y.-J. Lee, and C.-S. Hung, Optimization and experiment of composite marine propellers. Composite Structures, 2009. 89(2): p.
206-215.
[27] Lee, Y.-J. and C.-C. Lin, Optimized Design of Composite Propeller. Mechanics of Advanced Materials and Structures, 2004. 11(1): p.
[28] Amoraritei, M., Prediction of Marine Propeller Performances using RANS. Numerical Analysis and Applied Mathematics, International Conference, 2008: p. 771-774.
[29] Lee, S.-C., et al., A study on mechanical properties of carbon fiber reinforced plastics by three-point bending testing and transverse static response. Journal of Materials Processing Technology, 2008. 201(1-3): p. 761-764.
[30] Zhang, H., Z. Zhang, and C. Breidt, Comparison of short carbon fibre surface treatments on epoxy composites. Composites Science and
Technology, 2004. 64(13-14): p. 2021-2029.
[31] Kim, M.-G., et al., Tensile response of graphite/epoxy composites at low temperatures. Composite Structures, 2007. 79(1): p. 84-89.
[32] Geraldo Maurício Cândidoa, M.C.R. and S.F.M.d. Almeida, Hydrothermal effects on the tensile strength of carbon/epoxy laminates with
molded edges. Materials Research, 2000. 3: p. 11-17.
[33] Hongyan Zhu, B.W., Dihong Li1, Dongxing Zhang and Yuyong Chen, Influence of Voids on the Tensile Performance of Carbon/epoxy
Fabric Laminates. Elsevier Science Ltd, 2011. 27: p. 69-73.
[34] ABDUL M. KHAN, D.O.A.a.V.D. and J.M. VOGEL, Effects of Bend–Twist Coupling on Composite Propeller Performance. Mechanics of
Composite Materials and Structures, 2000. 7: p. 383–401.
[35] Liu, Z. and Y.L. Young, Utilization of bend–twist coupling for performance enhancement of composite marine propellers. Journal of Fluids
and Structures, 2009. 25(6): p. 1102-1116.
[36] S. J. HWANG, R.F.G., Influence of bending-twisting and extension-bending coupling on damping of laminated composites. JOURNAL OF
MATERIALS SCIENCE, 1993. 28: p. 1-8.
[37] S.W.Boyd;, R.F.N.-L.a.S.R.T., Performance Prediction of a Free Stream Tidal Turbine with Composite Bend-Twist Coupled Blades.
International Conference on Ocean Energy (ICOE 2008),, 2008: p. 1-9.
[38] Cheng Huat Ong , J.W., and Stephen W. Tsai, MANUFACTURE A BEND-TWIST COUPLED BEAM. p. 1-8.
[39] R.F. Nicholls-Lee, S.W.B., S.R. Turnock, DEVELOPMENT OF HIGH PERFORMANCE COMPOSITE BEND-TWIST COUPLED
BLADES FOR A HORIZONTAL AXIS TIDAL TURBINE.
[40] Liu, Z. and Y.L. Young, Static divergence of self-twisting composite rotors. Journal of Fluids and Structures, 2010. 26(5): p. 841-847. [41] Loughlan*, J., The shear buckling behaviour of thin composite plates with particular reference to the e!ects of bend-twist coupling. Elsevier
Science Ltd, 2001. 43: p. 771-792.
[42] Ovesy, H.R. and H. Assaee, The effects of bend–twist coupling on the post-buckling characteristics of composite laminated plates using
semi-energy finite strip approach. Thin-Walled Structures, 2007. 45(2): p. 209-220.
[43] Billups, E.K. and M.N. Cavalli, 2D damping predictions of fiber composite plates: Layup effects. Composites Science and Technology,
2008. 68(3-4): p. 727-733.
[44] Jang, J.H.Y.a.B.Z., Damping in Partially Delaminated Composites. KSME International Journal, 1997. 1t, No. 5,: p. 537-546.
[45] Kishi, H., et al., Damping properties of thermoplastic-elastomer interleaved carbon fiber-reinforced epoxy composites. Composites Science
and Technology, 2004. 64(16): p. 2517-2523.
[46] R. Chandra , S.P.S., K. Gupta, Damping studies in fiber-reinforced composites - a review. Composite Structures, 1999. 46: p. 41-51.
[47] Mohan D. Rao, R.E.a.S.N., Dynamic analysis and damping of composite structures embedded with viscoelastic layers. Elsevier Science Ltd,
1997. 28B: p. 547-554.
[48] Pan, L. and B. Zhang, A new method for the determination of damping in cocured composite laminates with embedded viscoelastic layer.
Journal of Sound and Vibration, 2009. 319(3-5): p. 822-831.
[49] Shokrieh, M.M. and A. Najafi, Damping Characterization and Viscoelastic Behavior of Laminated Polymer Matrix Composites Using a
Modified Classical Lamination Theory. Experimental Mechanics, 2007. 47(6): p. 831-839.
[50] Zhang, S.H. and H.L. Chen, A study on the damping characteristics of laminated composites with integral viscoelastic layers. Composite
Structures, 2006. 74(1): p. 63-69.
[51] Colakoglu, M., Effect of Temperature on Frequency and Damping Properties of Polymer Matrix Composites. Advanced Composite
Materials, 2008. 17(2): p. 111-124.
[52] Zai, B.A., et al., Effect of moisture absorption on damping and dynamic stiffness of carbon fiber/epoxy composites. Journal of Mechanical
Science and Technology, 2010. 23(11): p. 2998-3004.
[53] Zak, W.O.a.A., Vibration of a laminated beam with a delamination including contact effects. IOS Press, 2004. 11: p. 157–171.
[54] Woodhouse, J.P.T.a.J., The vibration damping of laminated plates. Elsevier Science Ltd, 1997. 28A: p. 1007-1012.
[55] Asmatulu, R., Improving the Damping Properties of Composites Using Ferroelectric Inclusions. Journal of Intelligent Material Systems and
Structures, 2005. 16(5): p. 463-468.
[56] P.Q.Zhang , J.H.R., W.Z.Li, Influence of some factors on the damping property of fiber-reinforced epoxy composites at low temperature.
Elsevier Science Ltd, 2001. 41: p. 245-251.
[57] Navarrete, M. and M. Villagrán-Muniz, Loss factor determination of composite laminates by the photoacoustic technique. Review of
Scientific Instruments, 2003. 74(1): p. 479.
[58] Diveyev, B., loss factor prediction for laminated plates. Achievements in Materials and Manufacturing Engineering 2007. 25: p. 41-44.
[59] Ahmed Maher *, F.R., Mohamed Ferra, Modeling of vibration damping in composite structures. Elsevier Science Ltd, 1999. 46: p. 163-170.
[60] Hong, Y., X.D. He, and R.G. Wang, Vibration and damping analysis of a composite blade. Materials & Design, 2012. 34: p. 98-105.
[61] Berthelot, J.-M., et al., Damping analysis of composite materials and structures. Composite Structures, 2008. 85(3): p. 189-204.
[62] Matter, M., et al., Numerical-experimental identification of the elastic and damping properties in composite plates. Composite Structures, 2009. 90(2): p. 180-187.
[63] Berthelot, J.-M. and Y. Sefrani, Longitudinal and transverse damping of unidirectional fibre composites. Composite Structures, 2007. 79(3):
p. 423-431.
[64] McCutcheon, D.M., et al., Damping composite materials by machine augmentation. Journal of Sound and Vibration, 2006. 294(4-5): p.
828-840.
[65] Chortis, D.I., D.S. Varelis, and D.A. Saravanos, Prediction of material coupling effect on structural damping of composite beams and blades.
Composite Structures, 2011.
[66] Tsai, J.-L. and Y.-K. Chi, Effect of fiber array on damping behaviors of fiber composites. Composites Part B: Engineering, 2008. 39(7-8): p.
1196-1204.
[67] Adams, R.D. and M.R. Maheri, Damping in advanced polymer–matrix composites. Journal of Alloys and Compounds, 2003. 355(1-2): p.
[68] Dalenbring, M., Experimental material damping estimation for planar isotropic laminate structures. Elsevier Science Ltd, 2002. 39: p. 5053–5079.
[69] Chortis, D.I., D.S. Varelis, and D.A. Saravanos, Prediction of material coupling effect on structural damping of composite beams and blades.
Composite Structures, 2012. 94(5): p. 1646-1655.
[70] Hong, Y., X.D. He, and R.G. Wang, Vibration and damping analysis of a composite blade. Materials & Design, 2012. 34(0): p. 98-105.
[71] Youzera, H., et al., Nonlinear damping and forced vibration analysis of laminated composite beams. Composites Part B: Engineering, 2012.
