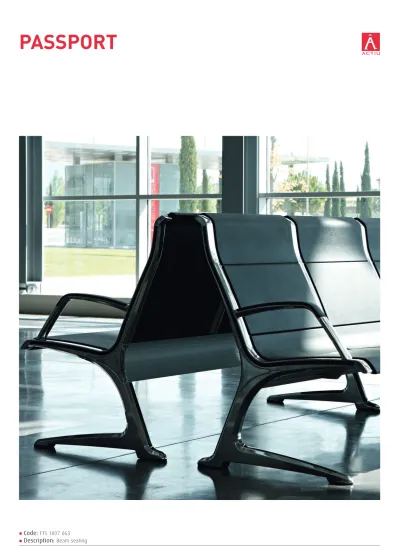

PASSPORT. Code: FTS Description: Beam seating

(1)

PASSPORT

Code: FTS 1007 063 Description: Beam seating

(2)

(3)

PASSPORT

PASSPORT FTS 1010 063 4 2 8 8 1 2 3 4 5 1 1 1 2 9 3 4 5 7 6 8 6 7 8 9

Technical Profile

POLYRETHANE (PU)

DESCRIPTION

Integral Polyurethane (PU) seat and back moulded over steel plate 2 mm thickness. Optional head rest 18 cm height

Optional moulded aluminium arms in silver or polished finish. Black polypropylene (PP) arm trims. Extruded aluminium central beam. Reinforced with internal frame

Moulded aluminium trim fixed by pressure and screwed. Available in silver and polished finishes. Black ABS ending trim

Foot integrated in the side frame, moulded aluminium. Available in silver and polished finishes. Polypropilene (PP) levellers. Support for floor fixing or lining up in back to back benches.

Seat for disable people(optional)

Graphite White

SIZES

DIMENSIONS

Total height: from 165 to 329 cm. Maximum lenght 6 m (10 seats)

Width: 94 cm Total width width including headrest: 94 + 18 (headrest) =112 cm

Seat width 48,5 cm

Seat depth: 42 cm

BACK AND SEAT(finsihes)

FRAME

(finsihes)

(see finishes and fabric card) _{Optional finishes available for large projects only} Optional finishes available for large projects only

Black Blue Orange Red Pistache Silver Polished White Black Grey

(Passport Avant benches have an extra support leg for benches with more than 6 seats) Extra support

Black polypropylene (PP) cap

78 48,5 42 94 78 48 ,5 165 220 78 274 78 329 78 7’’ 1/16 7’’ 1/16

(4)

PASSPORT

ACTI U PR ODUCE Y UTILIZA TA_BL ER_OS C LA SE E1 ST AND ARD - NO RM A E UR OP EA EN 13986

E1

UNE-EN ISO 9001:2008

EN ISO 14006:2011 UNE-EN ISO 14001:2004

PEFC/04-31-0782

Technical Profile

ECODESIGN

PRODUCTION

DISPOSAL

USE

TRANSPORT

CERTIFICATES AND REFERENCES

MATERIALS

Easy to clean and maintenance

Energy use is optimized during the production process. Minimum environmental impact. Last generation technological system in coating processes. Painting that have not been used is recovered to use it again. Zero COVs emissions and other contaminant gas. Close water circuit to clean the metals. Heat recovery. Automatic manufacture systems. Cut process is planned.

Long lasting use. Spare parts and replacements available. Easy to clean and maintenance.

Optimum packaging to reduce space in transport and save energy.

The different programmes get points in different environmental categories to get the LEED certificate (sustainability, material and resources, water, energy and atmosphere, inner environment quality, innovation and design).

PASSPORT has been designed to be manufactured with recycled materials 90,79%, danger substances such as chrome, mercury or cadmium are not used in big quantity. Recycables Aluminium and Steel 100%. Organic volatile Components. Packages manufactured with recycled carton. Ink thinner free.

90,79%

recyclied materials

90,82%

recyclable materials

90,82% recycable. Easy and quick to split PASSPORT

components. Packages are reuse by our supplier to avoid waste generation. Carton used in packages is recyclable.

100%

recycable Aluminium

100%

recycable Steel

Recycled package and thinner free

100%

recycable carton

PEFC Certificate ISO 9001 Certificate E1 by EN 13986 Certificate

The mark of responsible forestry

ECODESIGN Certificate ISO 14001 Certificate

Leadership in Energy & Environmental Design ACTIU TECHNOLOGICAL PARK project certified as LEED®_GOLD by U.S. Green Building Council 2011

(5)

PASSPORT

PASSPORT FTS 1010 063 2 1 9 8 8 1 1 2 3 4 5 7 6 8 1 2 3 4 5 6 7 8 9

Technical Profile

STEEL

SIZES

(Passport Avant benches have an extra support leg for benches with more than 6 seats)

Steel 2 mm thickness seat and back. Seat includes vinyl upholstered foam (Optional) in steel benches only

Moulded aluminium trim fixed by pressure and screwed. Available in silver and polished finishes.

Foot integrated in the side frame, moulded aluminium. Available in silver and polished finishes. Black polypropylene (PP) cap

Polypropilene (PP) levellers. Support for floor fixing or lining up in back to back benches.

Seat for disable people(optional)

Black ABS ending trim

FRAME

(finsihes)

(see finishes and fabric card) Optional finishes available for large projects only Optional finishes available for large projects only

Total height: from 165 to 329 cm. Maximum lenght 6 m (10 seats) Total width: 94 cm

Seat width 48,5 cm

Seat depth: 42 cm

Silver Black Red White Orange Pistache Blue Grey Silver Polished White Black Grey

Extra support

DIMENSIONS

DESCRIPTION

78 48,5 42 94 78 48 ,5 165 220 78 274 78 329 78

(6)

PASSPORT

E1

UNE-EN ISO 9001:2008

EN ISO 14006:2011 UNE-EN ISO 14001:2004

PEFC/04-31-0782

Technical Profile

PRODUCTION

DISPOSAL

USE

TRANSPORT

MATERIALS

100%

recycable Aluminium

100%

recycable Steel

100%

recycable carton

ECODESIGN

CERTIFICATES AND REFERENCES

PASSPORT has been designed to be manufactured with recycled materials 90,79%, danger substances such as chrome, mercury or cadmium are not used in big quantity. Recycables Aluminium and Steel 100%. Organic volatile Components. Packages manufactured with recycled carton. Ink thinner free.

90,79%

recyclied

materials

90,82%

(7)

PASSPORT

PASSPORT FTS 1010 063 2 8 8 9 1 1 2 3 4 5 8 6 7 1 2 3 4 5 6 7 8 9

Technical Profile

PLYWOOD

natural beech natural oak

DESCRIPTION

(see finishes and fabric card)

Plywood 13 mm thickness seat and back

Moulded aluminium trim fixed by pressure and screwed. Available in silver and polished finishes. Black ABS ending trim

DIMENSIONS

FRAME

(finsihes)

Optional finishes available for large projects only

Grey

Silver Polished White Black

Foot integrated in the side frame, moulded aluminium. Available in silver and polished finishes. Black polypropylene (PP) cap

Polypropilene (PP) levellers. Support for floor fixing or lining up in back to back benches. Seat for disable people (optional)

SIZES

(Passport Avant benches have an extra support leg for benches with more than 6 seats)

Extra support

Total height: from 165 to 329 cm. Maximum lenght 6 m (10 seats) Total width: 94 cm Seat width 48,5 cm Seat depth: 42 cm 78 48,5 42 94 78 48 ,5 165 220 78 274 78 329 78

(8)

PASSPORT

E1

UNE-EN ISO 9001:2008

EN ISO 14006:2011 UNE-EN ISO 14001:2004

PEFC/04-31-0782

Technical Profile

PRODUCTION

DISPOSAL

USE

TRANSPORT

MATERIALS

100%

recycable carton

ECODESIGN

CERTIFICATES AND REFERENCES

PASSPORT has been designed to be manufactured with recycled materials 90,79%, danger substances such as chrome, mercury or cadmium are not used in big quantity. Recycables Aluminium, Steel and Woods 100%. Organic volatile Components. Packages manufactured with recycled carton. Ink thinner free.

100%

recycable Aluminium

100%

recycable Steel

100%

recycable Woods

90,79%

recyclied

materials

90,82%

(9)

PASSPORT

PASSPORT FTS 1010 063

Technical Profile

COMPLEMENT

Auxiliary table 22 x 46 cm steel 5mm thickness plate, silver finish

Seat suitable for disable people 6 cm higher, moulded aluminium manufactured. Available in silver or polished frame. Different finishes for the seats.

Optional moulded aluminium arms in silver or polished finish. Black polypropylene (PP) arm trims.

Fix and line up system for face to face or back to back benches. 5 mm steel plate. Silver or polished finish. Please check nº 8 in the different bench finishes.

Middle auxiliary table 44 x 46 cm, steel 5mm thickness plate, silver finish

Headrest 18 cm heght (only available in PU benches). Total height including the headrest: 12 cm

Extruded aluminium central beam. Reinforced with internal frame.

Foot integrated in the side frame, moulded aluminium. Available in silver and polished finishes. Black polypropylene levelers.

(10)

PASSPORT

REMARKABLE VALUES

Technical Profile

ERGONOMICS

PASSPORT available for all type of users. Perfect for any need and keep user’s posture in a natural way without any manual adjustment.

ECOLOGY

ENERGY SAVING

The new technological production system included, reduce the energy resources used to manufacture each component. Materials are very well used to avoid wastes.

RECYCLED AND RECYCABLE MATERIALS

ACTIU environmental policy opts to use recycled materials in those components where functionality and lasting is not a condition. Materials used in PASSPORT such as Aluminium, Steel or Wood are totally recyclable.

1 - Antibacterial finish.

2 - Anti-skid caps, ready to be fixed to the floor

3 - Material used has optimum cleaness and lasting (PU high density) 4 - Painting process:

Actiu painting plant has minimum environmental impact against the traditional industry processes.

Treatment is done by polarized coating and compacted with temperature. We get homogeneous and regular application with 98% of painting and the remaining 2% is used to produce other paints. Paints used are COVs free(Volatile Organic Components) which are very dangerous for the environment. All water used in the process is re-used, so we get zero dump. The process is free in heavy metal, phosphate, organic components and DQD (Biochemical demand of Oxygen). The program gives us an exact control of thickness, so it provides us with standard thickness (90 micron).

5 - Beam seating desks have been offered in compact Laminate to get great resistance and lasting.

6 - ACTIU has PEFC certificate to guarantee that Wood used comes from sustainable wood exploitations. (only for plywood beam seatings)
