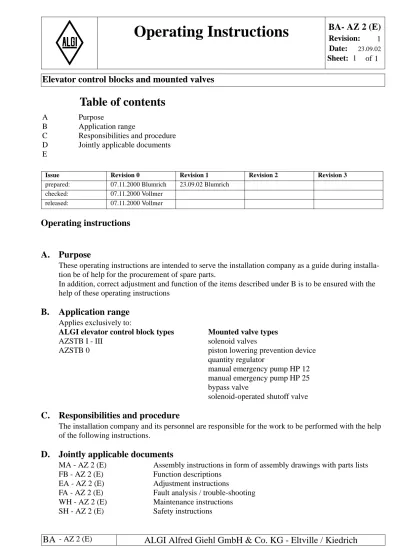

ALGI BA-AZ 2 (E) - Elevator control blocks and mounted valves

(1)

Sheet: 1 of 1

Elevator control blocks and mounted valves

Issue Revision 0 Revision 1 Revision 2 Revision 3

prepared: 07.11.2000 Blumrich 23.09.02 Blumrich checked: 07.11.2000 Vollmer

released: 07.11.2000 Vollmer

Operating instructions

A. Purpose

These operating instructions are intended to serve the installation company as a guide during installa-tion be of help for the procurement of spare parts.

In addition, correct adjustment and function of the items described under B is to be ensured with the help of these operating instructions

B. Application range

Applies exclusively to:

ALGI elevator control block types Mounted valve types

AZSTB I - III solenoid valves

AZSTB 0 piston lowering prevention device

quantity regulator

manual emergency pump HP 12 manual emergency pump HP 25 bypass valve

solenoid-operated shutoff valve

C. Responsibilities and procedure

The installation company and its personnel are responsible for the work to be performed with the help of the following instructions.

D. Jointly

applicable

documents

MA - AZ 2 (E) Assembly instructions in form of assembly drawings with parts lists FB - AZ 2 (E) Function descriptions

EA - AZ 2 (E) Adjustment instructions

FA - AZ 2 (E) Fault analysis / trouble-shooting WH - AZ 2 (E) Maintenance instructions SH - AZ 2 (E) Safety instructions

(2)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 1 von 28

Assembly Instructions

1 23.09.02

MA - AZ 2 (E)

1.) Application

The following assembly instructions serve the purpose of replacing seals and spare parts on existing elevator systems.

2.) Structure

The drawings are structured so that a clear distinction is made between components and individual parts.

The assembly drawings of the components are included after the overall drawing of the valve. Various components such as the start-up and lowering valve pistons are not mentioned because they must be assembled using special tools and can therefore only be obtained as a complete component ex factory.

For all tasks performed on valves ready for operation, the items included in the chapter Safety instructions must be observed

3.) Fundamentals

- All assembly tasks must be carried out with the system shut down and depressurised. - It is important to make that only original ALGI spare parts or seals are used.

- The assembly tasks must only be carried out using suitable tools. - Dust and dirt must be kept away from the opened valve in any case. - Following the assembly tasks, the valve must be bled of air as follows:

- Open the ball-type shutoff slowly.

- Undo the self-sealing lock nut of the adjustment screw S on the top side of the valve.

- Use a properly fitting hexagon socket screw key to move the adjust-ment screw in the thread play until no more air escapes.

- Tighten down the lock nut again.

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 3 von 28

Assembly Instructions

1 23.09.02

MA - AZ 2 (E)

NAME: DRAWING NO.: REV.: EDP NO.:

Elevator control block AZSTB I-III

Assembly drawing

14494.0000 1

Part Name Nominalsize Qty. EDP NO. Drawing no. Material Comment

1 cover plate complete 1 component

2 solenoid valve S2 / S3 2 component 3 solenoid valve S1 / S4 1 component

4 evacuating unit 1 component

5 quantity regulator

1 component

6 piston lowering pre-vention device

1 component

7 start-up valve piston, pre-assembled

1 component

8 lowering valve piston, pre-assembled 1 component 9 non-return valve, pre-assembled 1 101742 component 10 safety valve, pre-assembled 1 component 11 housing 1 AlMgPbF 12 pressure spring 8 x 4 x 18 1 101791 7474 013 FSt 13 ball ø8 1 104607 DIN 5401 St

14 safety valve tappet ø7 x 25 1 105197 7474 011 9 SMnPb 28K 15 nameplate 82 x 80 1 123143 11106.0004 aluminium

plate 16 countersunk head

screw

M6 x 20 1 122197 11106.0021 C 45 re-finished 17 valve insert for

start-up valve

1 St

18 countersunk screw M6 x 20 1 121189 DIN 7991 19 valve insert for

lowering valve 1 20 filter inser 1 21 nozzle D6 M6 1 22 nozzle D1 M6 1 23 nozzle D5 M6 1 Sheet 1 of 2

(5)

NAME: DRAWING NO.: REV.: EDP NO.: Elevator control block

AZSTB I-III Assembly drawing

14494.0000 1

Part Name Nominalsize Qty. EDP NO. Drawing no. Material Comment

24 sealing washer 52 x 45 x 1 6 105347 7707.0003 C-4409 Klinger 25 valve seat washer ø24,7 x 3,25 1 106712 8163 016 Delrin

26 pressure spring 1 FSt

27 filter washer ø10,8 x 1,5 4 104285 7707.0015 St

28 washer B 6,4 16 104162 DIN 125 St

29 cheese-head screw M6 x 60 8 100611 DIN 912 8.8 galvanised 30 cheese-head screw M6 x 85 8 100621 DIN 912 8.8 galvanised

31 washer B 4 DIN 125

32 cheese-head screw 4 DIN 912

33 O-ring 9 x 1,2 1 100253 Perbunan

34 square ring 4 Perbunan

35 O-ring 47,22 x 3,53 1 100774 Perbunan

36 flange 1 St

37 hexagon screw M10 x 30 4 100281 DIN 931 8.8 galvanised

(6)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 5 von 28

Assembly Instructions

1 23.09.02

(7)

AZSTB 0

Assembly drawing

14520.0000 0

Part Name Nominalsize Qty. EDP NO. Drawing no. Material Comment

1 valve housing 85 x 85 x 105 1 107445 9156 001 AlCuMgPb

2 screw plug R 1/2 1 107447 9156 002 5.8 refinished

3 lowering piston ø18 x 23 1 107448 9156 003 AlCuMgPb 4 valve insert ø10 x 18 1 100876 9156 004 9 SMnPb 28K 5 start-up piston ø18 x 39 1 100880 9156 005 AlCuMgPb

6 screw plug R 1/4 1 107459 9156 006 5.8 refinished

7 valve seat washer ø12xø6x2,5 1 107460 9156 007 Delrin

8 plug ø18 x 11 1 107461 9156 008 AlCuMgPbF

9 screw plug R 1/2 1 107462 9156 009 5.8 galvanised

10 filter insert ø13 x 45 1 102606 9156 010 St 11 pressure spring 12 x 9 x 40 1 101800 9156 011 FSt-C 12 pressure spring 9 x 6,6 x42 1 101789 9156 012 FSt-C 13 valve insert ø19 x 17,3 1 107485 9156 013 9 SMnPb 28K 14 valve seat ø8 x 16,5 1 107486 9156 014 9 SMnPb 28K 15 sieve insert ø10,8 x 1,5 1 105346 9156 015 St 16 O-ring 14,5 x 1,8 1 100788 Perbunan 17 washer ø18xø10,5x1,6 1 107496 DIN 433 St

18 valve internal parts 12L/14S 1 108820 ERMETO

19 setscrew M6 x 53 2 106714 8163.0020 C 45 K

20 nut M6 2 102193 self-sealing

21 tension pin ø2 x 5 1 105380 DIN 7346 FSt

22 ball ø3 1 104606 DIN 5401 St Class III

23 O-ring 14 x 2 2 100787 Perbunan

(8)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 7 von 28

Assembly Instructions

1 23.09.02

MA - AZ 2 (E)

Elevator control block AZSTB 0

Assembly drawing

14520.0000 0

24 nozzle M6 x 5 x 0,2 2 105249 13762.0000 brass 25 threaded pin M6 x 40 1 107497 DIN 913 St

26 pressure switch 1 104286

27 spring washer 4 1 105229 DIN 128 FSt

28 cheese-head screw M4 x 12 1 100582 DIN 7984 8.8

29 safety valve tappet ø7 x 25 1 105197 7474 011 9 SMn 28 k

31 pressure spring 8 x 4 x 18 1 101791 7474 013 FSt 32 pressure relief valve,

pre-assembled

R 3/8 1 109748 11109.0600

33 screw plug R 1/8 2 104440 DIN 910 5.8 galvanised

34 tommy screw ø9 x 56 1 109784 7474 025 St galvanised

35 O-ring 6,1 x 1,7 1 100794 Perbunan

36 cheese-head screw M5 x 8 1 100549 DIN 912 8.8 galvanised

37 washer B5,3 1 104452 DIN 125 St galvanised

38 pressure gauge test connection

R 3/8 x 51 1 108100 7493 galvanised

39 pressure gauge, complete

R 1/4 x 127,5 1 123895 11106.0800 St galvanised

40 screw plug R 1/2 1 102481 DIN 908 5.6 galvanised

41 pressure spring 2,4 x 1,8 x 4,5 1 101773 7707.0004 FSt

42 tappet 2,6 x 13,5 1 106333 7707.0005 9 SMn 29 k

43 O-ring 3,5 x 1,2 1 100797 Perbinan

44 O-ring 16 x 1,5 1 100262 Perbunan

46 pin ø1 x 11,5 1 104175 7707.0009 St hardened

(9)

AZSTB 0

Assembly drawing

14520.0000 0

47 pressure spring 4 x 3,2 x 38 1 101772 9156 070 FSt

48 O-ring 19 x 1,5 1 100257 Perbunan

49 d.c. solenoid 30 x 30 x 80 1 10602.0000 long

version

50 sealing ring R 1/2 2 102288 DIN 7603 Cu

51 cheese-head screw M6 x 8 1 100583 DIN 912 8.8 galvanised 52 sealing ring 6,5 x 9,5 x 1 1 102265 DIN 7603 Cu

(10)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 9 von 28

Assembly Instructions

1 23.09.02

(11)

NAME: DRAWING NO.: REV.: EDP NO.: Solenoid valve

S1/S4

Assembly drawing

14333.0000 0

Part Name Nominalsize Qty. EDP NO. Drawing

no.

Material Comment 1 d.c. solenoid 30 x 30 x 80 1 10659.0000

2 valve housing 44,8 x 45 x 52 1 106134 8679.0002 AlCuMgPb F38

(AV,S1) 3 sealing washer 52 x 45 x1 1 105347 7707. 003 C-4409 Klinger

4 pressure spring Da=4,5;d=0,5 1 104176 AN 005/004 FSt Di=3,5;Lu=20; ig=10

6 O-ring 12 x 1,5 1 100260 Perbunan 7 valve insert ø15 x 14,7 1 106139 7570 008 9 SMnPb 28K 8 pin ø1 x 11,5 1 104175 7707 009 D95-2 hardened 9 O-ring 19 x 1,5 1 100257 Perbunan 10 valve insert ø15 x 7,1 1 106180 7570 015 9 SMnPb 28K 11 filter washer ø10,8 x 1,5 1 104285 7707 015 St Sheet 1 of 1

(12)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 11 von 28

Assembly Instructions

1 23.09.02

(13)

NAME: DRAWING NO.: REV.: EDP NO.: Solenoid valve S2

with evacuating unit Assembly drawing

14337.0000 0

1 d.c. solenoid 30 x 30 x 80 1 10626.0000 long version

2 valve housing 44,8 x 45 x 52 1 106159 7707.0002 9 SMn 29 k for lowering valves 3 sealing washer 52 x 45 x1 1 105347 7707. 003 C-4409 Klinger 4 pressure spring Da=2,4;d=0,3 1 101773 7707.0004 FSt-C Lu=4,5; i=4;

ig=6 5 tappet ø2,6 x 13,5 1 106333 7707.0005 9 SMn 29 k

7 O-ring 16 x 1,5 1 100262 Perbunan 8 valve insert ø19 x 18,5 1 106378 7707.0008 9 SMnPb 28K for lowering valves 9 pin ø1 x 11,5 1 104175 7707.0009 D95-2 hardened 10 O-ring 19 x 1,5 1 100257 Perbunan 12 filter washer ø10,8 x 1,5 1 104285 7707.0015 St 13 throttle screw M6 x 42 1 106077 7707.0012 9 SMnPb 28K 14 nut M6 1 102193 self-sealing

16 sealing ring 6,5 x 9,5 x 1 1 102265 Cu

17 nozzle M6 1 3562 Ms 58

18 round sealing ring ø20 x 2,5 1 100451 DIN 3770 Perbunan 75 Shore

19 hexagon nut M4 5 101165 DIN 934 8 hexagon nut

20 spring EVA Da=6,5;d=0,5 1 123712 13033.0000 Fst C DIN17223 Lu=15; i=6; ig=8 21 adapter 35x35x33,6 1 111707 10652.0000 AlCuMgPb F37 evacuating unit 22 round sealing ring ø24 x 2,5 1 100532 DIN 3770 Perbunan 75 Shore

23 d.c solenoid long version 1 as EVA

24 threaded rod M4 x 140 4 111539 DIN 975 St 37 galvanised Sheet 1 of 1

(14)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 13 von 28

Assembly Instructions

1 23.09.02

(15)

NAME: DRAWING NO.: REV.: EDP NO.: Solenoid valve S3

Assembly drawing

14335.0000 0

1 d.c. solenoid 30 x 30 x 80 1 10626.0000 long version

2 valve housing 44,8 x 45 x 52 1 106159 7707.0002 9 SMn 29 k for lowering valves 3 sealing washer 52 x 45 x1 1 105347 7707. 003 C-4409 Klinger 4 pressure spring Da=2,4;d=0,3 1 101773 7707.0004 FSt-C Lu=4,5; i=4;

ig=6 5 tappet ø2,6 x 13,5 1 106333 7707.0005 9 SMn 29 k

7 O-ring 16 x 1,5 1 100262 Perbunan 8 valve insert ø19 x 18,5 1 106378 7707.0008 9 SMnPb 28K for lowering valves 9 pin ø1 x 11,5 1 104175 7707.0009 D95-2 hardened 10 O-ring 19 x 1,5 1 100257 Perbunan 11 nut M6 1 102193 self-sealing 12 throttle screw M6 x 42 1 106077 7707.0012 9 SMnPb 28K 13 sealing ring 6,5 x 9,5 x 1 1 102265 Cu

14 cheese-head screw M6 x 18 1 104365 DIN 912 8.8 galvanised 15 filter washer ø10,8 x 1,5 1 104285 7707.0015 St

(16)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 15 von 28

Assembly Instructions

1 23.09.02

(17)

NAME: DRAWING NO.: REV.: EDP NO.: Piston lowering prevention

device

Assembly drawing

14356.0000 0

1 housing 52 x 45 x 25 1 123843 13065.0001 AlCuMgPb F38

2 non-return valve with O-ring

R 1/4 1 131206 Fa. Hörbiger

3 USIT ring ø16 x 2 1 102310 ST,NBR-

Kautschuk

4 screw plug R 1/4 1 117453 DIN 908 galvanised

5 seal 45 x 52 1 105347 7707.0003 Klingerit

(18)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 17 von 28

Assembly Instructions

1 23.09.02

(19)

NAME: DRAWING NO.: REV.: EDP NO.: Quantity regulator

Assembly drawing

14499.0000 0

1 housing 45 x 52 x 45 1 123378 12879.0002 9 SMnPb 28 k

brüniert 2 sealing ring 10 x 14 x 1 1 101076 DIN 7603 Cu

3 screw plug R 1/8 1 123711 12879.0001 9 SMnPb 28 k

galvanised

4 USIT ring ø14xø18,7x1,5 1 102313 Simrit CFW

5 pressure balance piston

ø8 x 24 1 104007 7714.002 9 SMnPb 28 k

6 pressure spring Da=4,5;d=0,5 1 104176 AN 005/004 FSt Di=3,5;Lu=20; ig=10

7 screw plug DIN 910 R 1/4

1 112412 7714.0006 5.8 galvanised

8 nozzle M6x5/

ø0,3 or ø0,4

1 107641 3562 Ms

9 sealing ring A 6x10x1 1 102266 DIN 7603 Cu

10 hexagon socket screw M6 x 8 1 100853 DIN 912 8.8 galvanised

11 nut self-sealing M6 1 122033 8 Böllhof

12 throttle screw M6 x 42 1 106077 7707.0012 9 SMnPb 28 k

(20)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 19 von 28

Assembly Instructions

1 23.09.02

MA - AZ 2 (E)

(21)

NAME: DRAWING NO.: REV.: EDP NO.: Manual emergency pump

HP 22

Assembly drawing

14539.0000 0 106932

1 pump housing ø110 x 115 1 109926 9890.0001 GS 52 m. Wz.

2 valve piece R 1/2 x 15 1 106928 9890.0002 St 37 HP 22

4 cylinder groove pin A3 x 14 1 106930 DIN 1473 St

5 suction muff ø21 x 2,5 x 1 9890.004x St acc. to tank

type

6 cone pin ø17 x 35 1 106931 9890.0006 St 37

7 pressure spring 3 x 15 x 50 1 101774 DIN 2089 FSt - C 8 housing ø26 x ø18 x 80 1 112457 9890.0008 St 52

9 pressure washer ø18 x 9 1 106933 9890.009 St HP 22

10 sealing ring A21 x 62 x 1,5 2 102287 DIN 7603 11 screw plug ø26 x 23 R 1/2 1 107447 9156.0002 9 SMnPb 28k galvanised 12 hexagon nut, self-sealing M6 1 102193 St Böllhoff 13 setscrew ø7 M6 x 53 1 106714 8163.0020 9 SMnPb 28k AZSTB 1 HP 22 14 lever bracket 100 x 26 1 105918 12920.0024 plastic

15 cotter pin 3 x 15 3 105927 DIN 94 St

16 washer A 10,5 3 104165 DIN 125 St galvanised

17 bolt B 10 x 35 3 103721 DIN 1444 St

18 lever extension 35 x 15 x 700 1 105920 9890.0018 St 35 pipe acc. to DIN 2395 19 screw-in screw-type

connection

14 PSR 1 104345 St ERMETO

20 O-ring ø20 x 2,5 1 100451 DIN 3771 Perbunan

21 piston ø25 x 125 1 105917 9890.0021 AlCuMgPb F38 HP 22 22 lever arm 30 x 10 x 230 1 105919 9890.0022 St 37 HP 22 23 screw plug ø26 x 26 R 1/2 1 105915 8093.0015 9 SMnPb 28k HP 22 and HP25 Sheet 1 of 2

(22)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 21 von 28

Assembly Instructions

1 23.09.02

MA - AZ 2 (E)

Manual emergency pump HP 22

Assembly drawing

14539.0000 0 106932

24 bleeder screw M6 x 55 1 105916 8093.0017 9 SMnPb 28k HP 22 and HP25 25 pressure spring Da=5; d=0,3 1 101785 7474 069 Fst Lu=14; i=6

Sheet 2 of 2

(23)

(24)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 23 von 28

Assembly Instructions

1 23.09.02

Manual emergency pump HP 25

Assembly drawing

14535.0000 0

1 housing 148 x 115 x 40 1 105830 8390 012 GK-AlSi6 Cu

2 piston ø25 x 125 1 105917 12920.0023 AlCuMgPb

28F 3 lever bracket 100 x 30 x 26 1 105918 12920.0024 PA 11 GV

4 lever arm 30 x 10 x 230 1 105919 12920.0025 St 37 galvanised 5 pressure relief valve R 3/8 1 109748 11109.0600 component 6 pressure spring 8 x 6 x 18 1 101791 7474 013 FSt

7 pressure spring 8 x 7 x 22 1 101788 7495 010 FSt

8 screw plug R 1/4 1 105889 8390 011 9 SMnPb 28k refinished 9 screw plug R 1/2 1 105915 8093 015 9 SMnPb 28k galvanised 10 pressure spring 5,6 x 5 x 14 1 101785 7474 069 FSt

11 bleeder screw M10 x 55 1 105916 8093 017 9 SMnPb 28k

12 bolt 10 x 35 x 30 3 103721 DIN 1436 St 50 galvanised

13 washer A10,5 3 103720 DIN 125 St galvanised

14 pressure spring R 1/4 1 105885 7495 027 9 SMnPb 28k galvanised

15 pressure spring R 1/8 1 104440 DIN 910 5.8 galvanised

17 USIT ring 18,7 x 1,5 1 102313

19 O-ring 25 x 2,5 1 100452 Perbunan

20 ring 25 x 2,25 1 103410 PTFE

21 wiper ring 25 x 33 x 7 1 103736 rubber

22 cotter pin 3 x 15 3 105927 DIN 94 St

23 bleeder hose ø5 x 300 1 104435 PVC

Sheet 1 of 2 MA - AZ 2 (E)

(25)

NAME: DRAWING NO.: REV.: EDP NO.: Manual emergency pump

HP 25

Assembly drawing

14535.0000 0

24 hexagon screw M10 x 70 4 102854 DIN 931 8.8 galvanised

26 lever extension 35 x 15 x 700 1 105920 9890.0018 St 35 galvanised

(26)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 25 von 28

Assembly Instructions

1 23.09.02

(27)

NAME: DRAWING NO.: REV.: EDP NO.: Bypass valve

for RBV test Assembly drawing

14572.0000 0

1 housing 140 x 100 x 72 1 109083 9646 001 AlCuMgPb F

2 cover 72 cx 51 x 12 1 108516 8299 003 AlCuMgPb F shutoff valve 3 valve seat washer ø30,7 1 105203 7474 016 plastic AZSTB II 4 bushing 24 x 7 x 11 1 107634 9646 004 9 SMnPb 28k 5 valve insert, lowering valve ø40 x 39 1 107590 AZSTB II 6 setscrew M6 x 53 1 106714 8163.0020 9 SMnPb 28k AZSTB I 7 return-flow pipe R 3/4 1 109526 13888.0000 St 35 DIN 2391

8 pressure spring 24,5x21,5x41 1 101811 8750 040 FSt - C AZSTB I 9 emergency discharge

valve

M14 x 1,5 1 102878 Fa. Blain

10 square ring 48 x 43 x 2,5 1 105312 Perbunan AZSTB II

11 copper ring 26 x 32 x 2 1 102293 DIN 7603 Cu R 3/4

12 copper ring 6,5 x 9,5 x 1 1 102265 DIN 7603 Cu

13 screw plug R 3/4 1 107637 DIN 910 St galvanised

14 washer B 6,4 5 104162 DIN 125 St galvanised

17 cheese-head screw M6 x 6 1 100604 DIN 912 8.8 galvanised 18 nozzle M6 x 5 x 0,7 1 108034 13762.0000 CuZn39 Pb3

19 threaded pin M6 x 5 6 104390 DIN 913 St

20 cap collar 28 x 8 1 105278 NBR Fa. Lindner

(28)

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 27 von 28

Assembly Instructions

1 23.09.02

(29)

NAME: DRAWING NO.: REV.: EDP NO.: Solenoid-operated shutoff

valve

Assembly drawing

14614.0000 0 119075

1 housing 118 x 118 x 80 1 108862 8341 001 Leg. 226

2 cover 70 x 55 x 15 1 108516 8299 003 Al

4 square ring 48 x 43 x 2,5 1 105312 Perbunan AZSTB II

5 pressure spring 25 x 29 x 48 1 101812 8163 014 FSt AZSTB I 6 valve piston ø43 x 43 1 108855 8299 007 20 MnCr 5

7 setscrew M8 x 59,5 1 105212 11110.0105 9 SMnPb 28k

9 washer B 6,4 5 104162 DIN 125 St galvanised

10 solenoid valve 1 7707

11 seal 45 x 52 x1 1 105347 7707.0003 Klingerit

(30)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

Date:

Sheet: 1 of 2

Function Description

0

FB - AZ 2 (E) 23.04.99

FB - AZ 2 (E)

1.) Description of a lifting drive (AZSTB 0 - III)

Acceleration

The pump motor starts up with the help of a star/delta connection or a soft starting device. During the running up of the soft starting device or the star connection, the oil conveyed by the pump flow almost completely depressurised back into the tank.

The depressurised oil circulation is realised by means of a pre-setting of the start-up valve piston made using the adjustment screw A.

When switching over to the delta connection, the solenoid valves V1 (S1) and V4 (S4) are excited simul-taneously and, as a result, the start-up piston closes slowly. The closing speed and therefore the accelera-tion of the elevator can be changed by replacing the nozzle D1. Ideally, the elevator system should be adjusted so that, with cold oil and empty elevator cage, it starts to drive away approx. 0.5 seconds follo-wing the excitation of the solenoid valves.

For the version with direct switching-on of the motor (valve designation 3MR), solenoid valve V1 (S1) is missing. Here the valve V4 (S4) is excited simultaneously with the pump motor. The acceleration is then carried out as described above.

Nominal speed

Following the acceleration phase, the start-up valve piston has closed completely and the elevator drives at full speed.

The high lifting speed is solely dependent on the motor-pump combination.

Deceleration

At the deceleration point before the selected storey, the solenoid valve V4 (S4) is de-energised and the deceleration phase is initiated.

The control oil, which previously closed the start-up valve piston, flows via the adjustable throttle D7 back into the tank. The start-up valve piston opens damped and lets a specific quantity of the oil con-veyed by the pump flow back gradually into the tank. Due to the decreasing oil flow, the non-return valve closes until a needle operated by this non-return valve allows control oil to flow to the start-up valve piston again so that this piston cannot open any further. A residual quantity of working oil flows to the cylinder which then moves at creep lifting speed. This speed can be adjusted at the screw SH. In this phase, the quantity regulator ensures almost load-independent and temperature-independent dece-leration.

Stopping

After reaching the storey, the pump motor and the solenoid valve V1 (S1) are switched off immediately or the solenoid valve is de-energised already approx. 2 cm before the stopping location and the pump motor remains switched on via time relay for approx. 1 second which results in a softer stopping opera-tion (soft stop) using the nozzle D6.

When the storey has been reached, the pump motor is switched off, the non-return valve closes comple-tely and the oil column settles down on it.

Table of contents

1.) Description of a lifting drive (AZSTB 0 - III) 2.) Description of a lowering drive (AZSTB 0 - III) 3.) Function of the mounted valves

(31)

2.) Description of a lowering drive (AZSTB 0 - III)

Acceleration

The solenoid valves V2 (S2) and V3 (S3) are excited simultaneously so that the working oil is then con-veyed back via the lowering valve stop piston via the adjustable throttle D3 into the tank.

The lowering valve piston including the lowering valve stop piston opens as a result and the working oil underneath the lifting piston also flows back to the tank and the elevator accelerates up to full speed.

Nominal speed

When the lowering valve pistons have opened all the way to the stop of the adjustment screw HS, the full lowering speed is reached.

The adjustment screw HS is used to limit the maximum lowering speed.

In this phase, the control slide gate installed upon customer request ensures equivalent lowering speed at various temperatures and pressures.

Deceleration

At the deceleration point before the stopping location, the solenoid valve V3 (S3) is de-energised and the deceleration phase is initiated.

Control oil then flows via the adjustable throttle D4 back to the lowering valve which closes damped up to an adjustable residual cross-section. This residual cross-section determines the magnitude of the pre-cision lowering speed and is adjusted at the spindle FS.

Stopping

After reaching the storey, the solenoid valve V2 (S2) is immediately de-energised or is switched already approx. 2 cm before the stopping location so that the elevator drives softly into the storey with the help of the nozzle 5 (soft stop).

3.) Function of the mounted valves

Safety valves

When the pressure in the control block exceeds the pre-set value, the safety valve opens so that the con-trol oil can flow back from the start-up valve piston into the tank. Accordingly, the start-up piston can then open and the oil conveyed by the pump can flow back to the tank.

Emergency discharge

In order to able to lower the elevator in case of malfunctions, manual operation of the solenoid valve V2 (S2) is possible.

Piston lowering prevention (KAV)

The piston lowering prevention device is used for 1:2 systems and is pre-set to a value of approx. 5 bar ex factory.

This means that the control oil flows through the piston lowering prevention device during each regular lowering drive. If the elevator cage is held in position for maintenance purposes and the pressure drops below the pre-set 5 bar, the piston lowering prevention device will prevent unintentional lowering of the piston and slack cable creation by shutting off the control oil in front of the solenoid valve.

(32)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

_Date:

_{Sheet: 1 of 6}

Adjustment Instructions

EA - AZ 2 (E)

03.11.00 Si = safety valve A = start-up valve SH = creep lifting speed FS = precision lowering speed HS = main lowering speed N = emergency discharge

D1 = acceleration upward D3 = acceleration downward D4 = deceleration downward D5 = sof tstop downward D6 = soft stop upward D7 = deceleration upward

1. Adjusting the excess pressure 2. Adjustments in lifting drive 3. Adjustments in lowering drive

4. Adjusting the pressure limitation switch 4.1 Version in accordance with TRA

4.2 Version in accordance with EN 81-2

5. Testing the piston lowering prevention device 6. Adjustment of the bypass valve

7. Adjustment of the manual pumps

Basic requirements:

- hydraulic unit filled with clean oil (max. oil level)

- shaft copying mechanism properly installed according to dimension - pump motor checked for correct direction of rotation

- electric connections and lines checked and solenoid plugs correctly inserted

1.) Adjusting the excess pressure on the safety valve Si

-

Use the pump to drive against the slowly closing ball valve and take a pressure reading.

-

The correct setting is calculated as follows:

-

The P stat. max. value is included on the nameplate and on the maintenance documents.

-

For the adjustment of the safety valve, the following applies:

Turn inward (+) until the excess pressure to be

adju-sted can be seen on the pressure gauge.

2.) Adjustments in lifting drive

a.) D1 acceleration

Permanently adjusted ex factory, can only be changed by replacing the nozzle. The

fol-lowing applies:

larger nozzle = greater acceleration

smaller nozzle = less acceleration

b.)A start-up lifting adjustment

Spindle A influences the period of time between giving the command and starting up.

With an empty elevator cage and cold oil, the spindle must be adjusted so that the

ele-vator starts up after approx. 0.5 seconds following excitation of the solenoids S4 and

S1. The following applies:

Turn inward = short time

Turn outward = longer time

This spindle must never be screwed in too far so that the elevator starts up abruptly

fol-lowing excitation of the solenoids.

c.)SH creep lifting speed

This screw is used to adjust the driving speed into the stopping location and therefore

also the stopping jolt. The following applies:

Turn inward = lower creep lifting speed

Turn outward = higher creep lifting speed

(34)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

_Date:

_{Sheet: 3 of 6}

Adjustment Instructions

EA - AZ 2 (E)

03.11.00

d.) D7 deceleration upward

The deceleration of the nominal speed to creep lifting speed can be changed using the screw D7 on the solenoid valve S4. The following applies:

Turning inward results in soft transition, longer deceleration distance Turning outward results in abrupt transition, shorter deceleration distance e.) D6 soft stop

Only operative with pump run-on, after the solenoid S1 is de-energised in the stopping location. Per-manently adjusted ex factory, can only be changed by replacing the nozzle. The following applies:

Smaller nozzle = softer stop Larger nozzle = more abrupt stop

3.) Adjustments in lowering drive

a.)HS main lowering speed

The screw S is used to adjust the main lowering speed. The following applies:

Turn outward = higher main lowering speed Turn inward = lower main lowering speed b.) FS precision lowering speed

The screw FS is used to adjust the precision lowering speed. The following applies:

Turn outward = higher precision lowering speed Turn inward = lower precision lowering speed c.) D3 acceleration downward

The throttle screw D3 on the solenoid valve S2 is used to adjust the acceleration from 0 to the nominal speed downward. The following applies:

Turn inward = softer start-up

Turn outward = more abrupt start-up d.) D4 deceleration downward

The throttle screw D4 on the solenoid valve S3 is used to adjust the deceleration from nominal speed to precision lowering speed. The following applies:

Turn inward = softer transition, longer deceleration distance

Turn outward = more abrupt transition, shorter deceleration distance e.) D5 soft stop

Permanently adjusted ex factory, can only be changed by replacing the nozzle. The following applies:

Smaller nozzle = softer stop Larger nozzle = more abrupt stop

(35)

4.) Adjusting the pressure limitation switch

4.1) Version in accordance with TRA

4.2) Version in accordance with EN 81-2

a.) Normal operation

During normal operation, the green LED chain indicates the current valve pressure and, by means of a blinking LED, the switching point with an accuracy of 10 bar in each instance. The yellow LED indicates the switching state, as a break or make contact according to use.

b.) Programming

To adjust the switching point, press down the pushbutton SET S ENTER for approx. 5 seconds until is indicated in a resolution of 1 bar. As soon as the indication is running, the value can also be chan-ged using the inching mode. The illuminated LED then indicates the scale value and the blinking LED 1/10 of the scale value. Example 57 bar:

The changed value is stored by pressing the key SET R ENTER S. The new value becomes effective and the device jumps back to normal operation..

The return switching point is automatically set 1 bar lower and therefore does not need to be pro-grammed. The new setting is locked by pressing both pushbuttons simultaneously for approx. 10 seconds. Following the locking operation, the display goes out for a short time.

The pressure switch is an overload safety device. It is operated by the pressure from the cylinder. The adjusted pressure must be higher than the static pressure at full load but lower than the adjusted pressure at the pressure limitation valve. The following adjustment applies

The adjustment functions as follows:

Turn inward = increase shutoff pressure Turn outward = decrease shutoff pressure

The pressure limitation switch is pre-set by the factory.

For explanation of the electric connections, refer to catalogue sheet

Operator panel of the electronic pressure switch:

- -pushbuttons for adjustment -LED chain for pressure indication -LED yellow for indication of the switching state

This pre-set pressure switch detects whether an overload of 10% of the nominal load, but at least 75 kg, in accordance with EN 81-2 has been achieved and reports this via a switching signal. A driving-away of the elevator cage in case of overload is to be prevented and therefore the use of a device in the safety circuit is not possible. For explanations of the technical data and the con-nections, refer to catalogue sheet.

Pstat.max x 1,3

adjustment screw

SUHVVXUHVFDOHLQ EDU

(36)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

_Date:

_{Sheet: 5 of 6}

Adjustment Instructions

EA - AZ 2 (E)

03.11.00

5.)Testing the piston lowering prevention device (KAV)

The piston lowering prevention device ensures unintentional lowering of the piston rod in

case of jamming of the elevator cage or in case of activation of the catching device

(sole-noid valve V2 (S2) electrically or manually during operation) and checks the control

block minimum pressure at which the lowering valve is closed whenever this value is

exceeded.

The piston lowering prevention device is generally adjusted to a fixed setting of 3 bar; an

alteration of the response pressure is not possible

Procedure: - Drive elevator cage approx. 2 m upward.

- Support elevator cage or put into catching device. - Undo the piston rod from the elevator cage.

- Press emergency discharge button - piston rod must not descend alone.

6.) Adjustment of the bypass valve

The bypass valve is installed between the valve block or manual pump and the

con-nection flange. It is used test the pipe rupture valve during a TÜV (German technical

control board) inspection. To operate the bypass valve, the test wheel must rotated

counterclockwise. If the pipe rupture valve does not respond, an increase in the flow

rate is required. The adjustment is made as follows

- Undo the lock nuts.

- Unscrew the throttle screw 1-2 revolutions. - Test setting.

- Screw in throttle screw and lock in place

KAV 0 HPHUJHQF\ GLVFKDUJH WKURWWOHVFUHZ WHVWZKHHO

(37)

7.) Adjustment of the manual pumps

The manual pump is installed for hydraulic systems with a catching device and suspension 1:2. For the valve blocks AZSTB / AZRV 1 and AZSTB / AZRV 2, the manual pump of the type HP 25 is used. It is flange-mounted between the ball valve and valve block.

The pump can be installed in two different positions. The manual pump can be rotated by 180 degrees in each instance by undoing the 4 flange screws.

For the valve block AZSTB 0 and III, the manual pump of the type 22 is used. It is permanently installed on the cover.

The manual pump is generally used for lifting out of the catching device.

To protect the hydraulic system, the manual pump is equipped with a pressure limitation valve. For the adju-stment of the pressure limitation valve, the following applies

:

adjustment = P stat. max x 2,3 Adjustment:

Undo lock nut. Use the adjustment screw to set the calculated pressure. Clockwise rotation will increase the pressure, and counterclockwise rotation will decrease the pressure, which is indicated on the pressure gauge.

Manual pump HP22 for installa-tion on the hydraulic unit cover Manual pump HP25 for installation

between valve and ball valve

DGMXVWPHQWVFUHZ EOHHGHUVFUHZ

(38)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

_Date:

_{Sheet: 1 of 2}

Fault Analysis

0

FA - AZ 2 (E) 07.11.00

FA - AZ 2 (E)

The items used are included on the sheet Assembly Instructions Con-trol Block and the adjustment instructions used on the sheet Adjust-ment Instructions Control Block.

1.) Possible malfunctions in lifting drive

Internal leakage so that the elevator picks up again frequently Elimination of malfunction:

a) Check whether the sealing washer (Item 25) of the lowering valve piston has been damaged by dirt par-ticles. If there are any pressure marks, the sealing washer must be replaced.

b) Check whether the precision lowering valve V2 (S2) is leaky. The best way is by replacing the valve or by checking it with the solenoid valve test board.

c) Check whether the seal of the lowering valve piston (Item 8) or the lowering valve stop piston is dama-ged. If this is the case, the entire piston must be replaced.

d) In case of damage, replace the sealing ring of the non-return valve piston. When being put into service, the elevator has no creep lifting drive.

Elimination of malfunction:

a) Check whether the solenoid valves V1 (S1) and V4 (S4) have been correctly connected. During the entire lifting drive, V1 (S1) must be energised and V4 (S4) de-energised at the start of deceleration. b) Throttle D7 is screwed in too far. Unscrew throttle approx. 1/8 revolution.

Following a longer period at standstill with cold oil, the elevator no longer has creep lifting capacity. (machine room is not heated)

a) Unscrew throttle D7 approx. 1/8 revolution and move the curves for switching off the solenoid valve V4 (S4) in order to extend the creep travel distance.

Elevator does not engage in lifting drive; no pressure is built up. Elimination of malfunction:

a) Clean filter of solenoid valves V1 (S1) and V4 (S4). b) Solenoid valves V1 (S1) and V4 (S4) may be defective. c) Clean nozzle D1 underneath valve V1 (S1).

d) Setscrew A has been unscrewed too far. e) Safety valve tappet (Item 17) is jammed. When under load, the elevator stops in lifting drive Elimination of malfunction:

a) Check maximum pressure; setting may be too low.

b) For the block type AZSTB IA 4MR, the solenoid valves may have been incorrectly connected or the valve V1 (S1) may be defective.

c) Creep lifting speed is set too low, the elevator stops before reaching the stopping location or does not pick up again.

2.) Possible malfunctions in lowering drive

Elevator does not go into lowering drive and also cannot be lowered using the emergency discharge valve V2 (S2).

Elimination of malfunction: a) Open throttle D3 slightly.

When being put into service, the elevator has no creep lowering drive. Elimination of malfunction:

a) Check whether the solenoid valves V1 (S1) and V3 (S3) have been correctly connected. During the entire lowering drive, V2 (S2) must be energised. V3 (S3) is de-energised at the start of precision lowering speed.

b) Unscrew throttle D4 approx. 1/8 revolution.

Following a longer period at standstill with cold oil, the elevator no longer has precision lowering speed. The oil is much colder than during the last operation or the machine room is not heated and therefore exposed to extreme temperature variations.

a) Unscrew throttle D4 approx. 1/8 revolution and move the curves for switching off the solenoid valve V3 (S3) in order to extend the switching-off distance.

(40)

ALGI Alfred Giehl GmbH & Co. KG - Eltville / Kiedrich

Elevator control blocks and mounted valves

Revision:

_Date:

_{Sheet: 1 of 1}

Safety Instructions

0

SH - AZ 2 (E) 07.11.00

SH - AZ 2 (E)

1.) Purpose

These safety instructions serve the purpose of preventing risks for persons working on ALGI elevator valves as well as maintaining the reliability of these systems

2.) General safety instructions

- Tasks on hydraulic systems should only be carried out by trained expert personnel. - As a general rule, only the tool specifically suitable for each task should be used.

- During the execution of maintenance and repair tasks, the elevator system must be protected from being used.

- Due to the pressure load on the components, only original spare parts are allowed to be used.

3.)

Safety instructions for the ALGI elevator control block and control valve programme

- Prior to performing any tasks, the elevator must be protected from being used.

- For all tasks during which parts are unscrewed, the system must be switched off at the main switch, the ball-type shutoff valve closed and the pressure discharged at the emergency discharge valve.

- For all tasks, the assembly instructions specifically prepared for this product must be taken into account.

- Safety devices such as the emergency discharge valve and evacuating unit must not be blocked or the corresponding information signs be dirty or removed.

- The adjustment of the safety valve is accepted in the course of the TÜV inspection and is not allowed to be adjusted higher than the value indicated on the nameplate later on.

- The same applies to the adjustment of the pressure limitation switch and the safety valve on the manual pump.

- With respect to sealing elements, only original ALGI spare parts should be used in order to guarantee dimensional accuracy and therefore perfect function of the seals.

- Prior to opening the ball-type shutoff valve, all fastening screws must be re-tightened.

- Following the assembly tasks, the ball-type shutoff valve must only be opened slowly in order to pre-vent pressure peaks.

(41)

1.) Purpose

The maintenance of the elevator control blocks and their mounted valves serves the purpose of keeping the elevator system in a perfect and safe state of operation at all times

2.) Measures

- Cleaning: The valve must be cleaned externally of dust and dirt so that even smaller leaks

can be detected. The applies especially to the connecting points with the mounted valves, ball-type shutoff valve and hydraulic line.

The use of aggressive cleaning agents must be renounced in order to exclude any form of damage to the seals. Loose parts on the hydraulic unit cover must be removed

- Inspection: Verification of the valve for external leaks, damage or deformations. Self-sealing nuts on adjustment spindles must be re-tightened as required or defective sealing elements renewed with original spare parts. Damaged parts (setscrews, lock nuts, etc.) must be renewed. During the trial drives, attention must be paid to untypical noise development. Verification of the valve for internal leaks by closing the ball valve and checking the pressure gauge. If an extreme drop in pressure is detected, the internal seals must be renewed by referring to the assembly instructions - Trail operation: During the trial operation, the systems must be protected from being used. The

driving characteristics of the elevator cage must be checked as well as the achie-vement of high speeds in both directions and the corresponding functions of the mounted valves.
