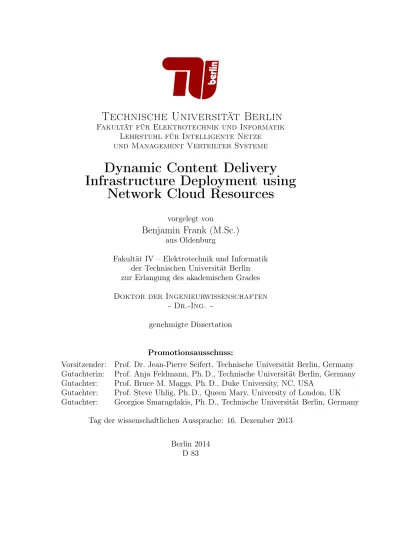

Technische Universität Berlin

Fakultät für Elektrotechnik und Informatik

Lehrstuhl für Intelligente Netze und Management Verteilter Systeme

Dynamic Content Delivery

Infrastructure Deployment using

Network Cloud Resources

vorgelegt von

Benjamin Frank (M.Sc.)

aus Oldenburg

Fakultät IV – Elektrotechnik und Informatik der Technischen Universität Berlin zur Erlangung des akademischen Grades Doktor der Ingenieurwissenschaften

Dr.Ing. -genehmigte Dissertation

Promotionsausschuss:

Vorsitzender: Prof. Dr. Jean-Pierre Seifert, Technische Universität Berlin, Germany Gutachterin: Prof. Anja Feldmann, Ph. D., Technische Universität Berlin, Germany Gutachter: Prof. Bruce M. Maggs, Ph. D., Duke University, NC, USA

Gutachter: Prof. Steve Uhlig, Ph. D., Queen Mary, University of London, UK Gutachter: Georgios Smaragdakis, Ph. D., Technische Universität Berlin, Germany

Tag der wissenschaftlichen Aussprache: 16. Dezember 2013 Berlin 2014

(2)

(3)

Eidesstattliche Erklärung

Ich versichere an Eides statt, dass ich diese Dissertation selbständig verfasst und nur die angegebenen Quellen und Hilfsmittel verwendet habe.

(4)

(5)

Abstract

Millions of people value the Internet for the content and the applications it makes available. To cope with the increasing end-user demand for popular and often high volume content, e.g., high-definition video or online social networks, massively dis-tributed Content Delivery Infrastructures (CDIs) have been deployed.

However, a highly competitive market requires CDIs to constantly investigate new ways to reduce operational costs and improve delivery performance. Today, CDIs mainly suffer from limited agility in server deployment and are largely unaware of network conditions and precise end-user locations, information that improves the efficiency and performance of content delivery. While newly emerging architectures try to address these challenges, none so far considered collaboration, although ISPs have the information readily at hand.

In this thesis, we assess the impact of collaboration on content delivery. We first evaluate the design and operating space of todays content delivery landscape and quantify possible benefits of collaboration by analyzing operational traces from an European Tier-1 ISP. We find that collaboration when assigning end-users to servers highly localizes CDI traffic and improves end-user performance. Moreover, we find significant path diversity which enables new mechanisms for traffic management. We propose two key enablers, namely in-network server allocation and informed user-server assignment, to facilitate CDI-ISP collaboration and present our system design, called NetPaaS (Network Platform as a Service), that realizes them. In-network server allocation offers agile server allocation close to the ISPs end-users leveraging virtualization technology and cloud style resources in the network. In-formed user-server assignment enables ISPs to take network bottlenecks and precise end-user locations into account and to recommend the best possible candidate server for individual end-users to CDIs. Therefore, NetPaaS provides an additional degree of freedom to scale-up or shrink the CDI footprint on demand.

To quantify the potential of collaboration with NetPaaS, we perform a first-of-its-kind evaluation based on operational traces from the largest commercial CDI and an European Tier-1 ISP. Our findings reveal that dynamic server allocation based on accurate end-user locations and network conditions enables the CDI to better cope with increasing and highly volatile demand for content and improves the end-users performance. Moreover, recommendations from NetPaaS result in better utilization of existing server infrastructure and enables the ISP to better manage traffic flows inside its network.

We conclude, that NetPaaS improves the performance and efficiency of content de-livery architectures while potentially reducing the required capital investment and operational costs. Moreover, NetPaaS enables the ISP to achieve traffic engineering goals and therefore offers a true win-win situation to both CDIs and ISPs.

(6)

Millionen von Menschen schätzen die Inhalte und Anwendungen, die das Internet zur Verfügung stellt. Um der steigenden Nachfrage an populären Inhalten wie z.B. High-Definition Video oder Online Social Networks nachzukommen, wurden weit verteilte Content Delivery Infrastructures (CDIs) aufgebaut.

Damit CDIs im harten Wettbewerbs bestehen können, suchen sie ständig neue Mög-lichkeiten um laufende Kosten zu senken und Ihre Leistungsfähigkeit zu steigern. Jedoch machen den CDIs eine geringe Agilität bei der Allokation von Servern zu schaffen. Informationen zur Steigerung von Effizienz und Leistungsfähigkeit wie z.B. aktuelle Netzwerkbedingungen und präzise User-Positionen sind den CDIs unbe-kannt. Obwohl Internet Service Provider (ISPs) diese Informationen besitzen, lassen auch neuere CDI-Architekturen eine mögliche Kollaboration außer Acht.

Diese Dissertation untersucht den Einfluss von Kollaboration auf Content Delivery. Zunächst wird das heutige Design- und Betriebsfeld untersucht. Eine Analyse der operativen Daten eines Europäischen Tier-1 ISPs erörtert mögliche Verbesserungen. Erste Ergebnisse zeigen, dass Kollaboration bei der Zuordnung von Usern zu CDI Servern den Netzwerkverkehr lokal begrenzt und die Geschwindigkeit erhöht. Vor-handene Netzwerkpfade eröffnen neue Möglichkeiten der Verkehrssteuerung.

Um die Kollaboration zwischen CDIs und ISPs zu ermöglichen, beschreibt diese Ar-beit die beiden Key Enabler In-Network Server Allocation und Informed User-Server Assignment. Sie stellt außerdem ein Systemdesign vor, das diese realisiert: NetPaaS (Network Platform as a Service). In-Network Server Allocation nutzt im ISP verteilte Resourcen und aktuelle Virtualisierungstechnologien um eine agile Serverallokation zu ermöglichen. Informed User-Server Assignment erlaubt es ISPs, mögliche Netz-werkengpässe und präzise User-Positionen einzukalkulieren und so CDIs den besten Server für individuelle Nutzer zu empfehlen. Damit bietet NetPaaS einen zusätzlichen Freiheitsgrad zur dynamischen Skalierung von Serverinfrastrukturen.

Um das Kollaborationspotential von NetPaaS aufzuzeigen, wird erstmals eine Studie mit operativen Daten des größten kommerziellen CDI und einem Europäischen Tier-1 ISP durchgeführt. Die Ergebniss zeigen, dass eine auf präzisen User-Positionen und aktuellen Netzwerkbedingungen basierende dynamische Serverallokation es dem CDI ermöglicht, besser mit der stark schwankenden Nachfrage nach Inhalten zurecht zu kommen und die Geschwindigkeit der Nutzer zu verbessern. Darüber hinaus führt die Nutzung von NetPaaS zu einer besseren Auslastung vorhandener Serverinfrastruk-turen und ermöglicht ein verbessertes Verkehrsmanagement im Netz des ISP. Diese Ergebnisse lassen den Schluss zu, dass NetPaaS die Leistungsfähigkeit und Effizienz von CDIs stark verbessert und unter Umständen laufende Kosten und In-vestitionen reduziert. NetPaaS verbessert weiterhin das Verkehrsmanagement des ISP und bietet somit eine echte “win-win” Situation für CDIs und ISPs.

(7)

Publications

Pre-published Papers

Parts of this thesis are based on the following peer-reviewed papers that have already been published. All my collaborators are among my co-authors.

Book Chapters

Frank, B., Poese, I., Smaragdakis, G., Feldmann, A., Maggs, B. M., Uh-lig, S., Aggarwal, V., and Schneider, F. Collaboration Opportunities for Content Delivery and Network Infrastructures. ACM SIGCOMM ebook on Recent Advances in Networking (2013)

International Conferences

Poese, I., Frank, B., Ager, B., Smaragdakis, G., and Feldmann, A. Improv-ing Content Delivery usImprov-ing Provider-Aided Distance Information. In ACM Internet Measurement Conference (2010)

Frank, B., Poese, I., Smaragdakis, G., Uhlig, S., and Feldmann, A. Content-aware Traffic Engineering. In ACM SIGMETRICS (2012)

Peer-reviewed Journals

Poese, I., Frank, B., Ager, B., Smaragdakis, G., Uhlig, S., and Feld-mann, A. Improving Content Delivery with PaDIS. IEEE Internet Computing 16, 3 (2012)

Poese, I., Frank, B., Smaragdakis, G., Uhlig, S., Feldmann, A., and Maggs, B. M. Enabling Content-aware Traffic Engineering. ACM SIGCOMM Computer Communication Review 42, 5 (2012)

Frank, B., Poese, I., Lin, Y., Smaragdakis, G., Feldmann, A., Maggs, B. M., Rake, J., Uhlig, S., and Weber, R. Pushing CDN-ISP Collaboration to the Limit. ACM SIGCOMM Computer Communication Review 43, 3 (2013)

(8)

Poese, I., Frank, B., Knight, S., Semmler, N., and Smaragdakis, G.PaDIS Emulator: An Emulator to Evaluate CDN-ISP Collaboration. In ACM SIGCOMM Demo Session (2012)

Technical Reports

Frank, B., Poese, I., Smaragdakis, G., Uhlig, S., and Feldmann, A. Content-aware Traffic Engineering. CoRR arXiv abs/1202.1464 (2012)

(9)

1 Introduction

"Content is King" [33]: Predicted by Bill Gates in an essay from 1996, this quote has become the latest buzz in the Internet economy [7, 43, 49, 98, 137, 151]. User demand for popular and often high volume applications such as high-definition video, music, cloud-gaming, online social networks, and online-gaming is phenomenal; unbroken since years [71, 98, 151] and still expected to grow [43]. For example, the demand for online entertainment and web browsing is contributing 70% of the peak downstream traffic in the United States [151].

Recent studies [71, 98, 137] find that today’s Internet traffic is dominated by con-tent delivered by a variety of Concon-tent Delivery Infrastructures (CDIs). Major CDIs include highly popular Video Service Providers (VSPs), such as YouTube [38], Net-flix [2], One-Click Hosters (OCHs), such as RapidShare [21] or Dropbox [60], as well as Content Delivery Networks (CDNs), such as Akamai [57,128], Limelight [106], and other hyper-giants, such as Google [26], Yahoo! or Microsoft [117]. Other popular and traffic heavy services using CDIs include music downloads and streaming (e.g., Pandora, iTunes, Spotify), cloud gaming (e.g., OnLive, PlayStation Netwok, Xbox One), Online Social Networks (OSNs, e.g., Facebook, Twitter or Google+), as well as online gaming (e.g., World of Warcraft, Farmville, Xbox Live).

Gerber and Doverspike [71] report that a hand full of Content Delivery Infrastructures (CDIs) are responsible for more than half of the traffic in North America. Poese et al. report similar observations for traffic of an European Tier-1 carrier. Labovitz [49] reports that 50% of North American traffic originates from just 35 sites/services with only a handful CDIs serving the traffic. In a previous study Labovitz et al. [98] infer that more than 10% of the total Internet inter-domain traffic originates from

(14)

Google, and Akamai claims to deliver more than 20% of the total Web traffic in the Internet [128]. Netflix, a company offering high definition video on-demand streaming, is responsible for a significant fraction of the traffic in North American ISPs during peak hour [151].

1.1 Challenges in Content Delivery

Even decades after the first commercial Content Delivery Infrastructures have been launched, the challenges content delivery still faces today are manifold. The question where to deploy additional server resources – and how much – is by no means easy to answer [66, 95]. The end-user demand for content is highly volatile, both spatial and temporal, and precisely locating end-users network positions turns out to be a tedious and error prone task [137, 141]. Novel and agile deployment strategies are required to further improve the CDIs performance and capacity as current approaches take up to multiple months and requires high capital investment. In the following, we discuss the challenges content delivery faces today in more detail.

Infrastructure Deployment

To cope with the continuously growing end-user demand for content, CDIs use and continue to deploy massively distributed server infrastructures that replicate and distribute popular content in many different locations on the Internet [7, 102]. This implies that the deployment of server infrastructure is a challenge for CDIs. However, different players in the content delivery business have developed different strategies to handle the challenges in server deployment. As described by Tom Leigthon [102], these approaches include (1) centralized hosting, (2) datacenter based CDIs, (3) highly distributed cache-based CDIs, and (4) Peer-to-Peer (P2P) networks.

The first approach may be sufficient for small services targeted at local audiences and can be extended by geographical disperse mirrors. This improves the end-users performance as a server is closer to some of the users, improves scalability due to more servers being able to serve more end-users, and enhances reliability through redundancy. But the complexity of managing capacities, content replication as well as the financial investment for infrastructure deployment, hard to predict and highly volatile traffic levels in combination with the inability to absorb sudden demand surges, often referred to as flashcrowds, have paved the way for approaches 2 and 3. Both offer increased scalability and reliability by offloading the delivery of content from the original server onto a larger network of caches which are shared by numerous services and operated by a third party, the CDI.

Data center based CDIs leverage economy of scale over centralized hosting by oper-ating a number of big data centers with thousands of server connected to hundreds of networks. While offering improved performance the gains are limited as the distance

(15)

1.1 Challenges in Content Delivery

to end-users is still large according to any metric: the biggest 30 networks combined host roughly 50% of the end-users and the numbers decline very fast resulting in a long tail distribution of end-user over all the Internets networks to where a dedi-cated connection is economically infeasible for the CDI. As a result the traffic needs to cross many “middle mile” networks to reach a significant number of end-users even if the CDI connects to all large Tier-1 backbone networks. Another drawback of this architecture is the large network load that these datacenters impose on transit networks.

Other CDIs try to avoid these issues by deploying highly distributed cache servers in many different networks, mainly big eyeball ISPs (that host many end-users) and highly connected Tier-1 networks (which can also act as backups for smaller networks that do not host a CDI cache). While this deployment strategy solves the server to end-user distance problem the deployment itself is more complex and thus most likely more costly and time consuming. Because each network becomes a contractual partner, the CDI has, depending on the geographical location the network operates in, to take for example state regulations (e.g., telecommunication acts) or national standard bodies (e.g., for power standards) into account.

Last but not least, P2P networks rely on a huge number of end users to store, replicate, and distribute content. As a result P2P networks capacity scales with each user participating. It has been shown to scale well even in case of extreme flash crowds [161].

To name a few examples: one of the largest players in the content delivery business, Akamai, utilizes a highly distributed server infrastructure and operates more than 127, 000 servers in 81 countries distributed across more than 1, 150 networks [12, 128]. Google reportedly operates tens of data centers and front-end server clusters worldwide [76, 96, 168]. Microsoft has deployed its content delivery infrastructure in 24 locations around the world [117]. Amazon maintains at least 5 large data centers and caches in at least 21 locations around the world [19]. Limelight also utilizes a data center based deployment and operates thousands of servers in more than 22 delivery centers and connects directly to 600 networks worldwide [106].

End-User to Server Assignment

A key component of any CDI is the assignment of end-users to servers (or peers in the case of P2P). The ability to assign end-users to servers on small timescale, e.g., in the order of minutes or even tens of seconds, is crucial for CDIs to react to sudden demand surges (flash crowds) and demands shifting from one network to another (regional shift). The assignment strategy of CDIs is also highly relevant with regards to economical aspects of content delivery. The CDI has to resolve the following trade-off: which server delivers the best performance for the end-user while

(16)

offering the highest economical return for the CDI1

. This decision includes various important parameters, such as server load, precise network location of end-users, and network conditions (e.g., network bottlenecks or peering cost), some of which require extensive but error prone measurements [3,128,166] by either the CDI or the end-users.

Today three main mechanism are used for the assignment of end-users to servers: (1) DNS based redirection, (2) HTTP redirection and (3) IP Anycast. The first solution leverages the fact that before an end-user establishes a connection it resolves a host-name using the Domain Name System (DNS). By transferring the administrative authority of a domain, or more often a subdomain, the CDI is responsible to resolve the hostname. It then is in the position to choose which of the available servers should answer the end-users request. The second solution uses redirection directives included in the HTTP protocol [32]. The main benefit of this solution is the addi-tional information contained in the HTTP request, e.g., the requested object and the end-users IP address, but incurs at least one additional round trip time (RTT) and TCP handshake when a redirection is necessary, as the end-user has to establish a new TCP connection to the new server. The third solution delegates the issue of server selection to the routing layer of the end-users network. This solution has nearly no control over the server selection anymore. We will discuss the details of the drawbacks and benefits of end-user to server assignment methods in Chapter 2.4.3.

Content Delivery Alliances

Although some CDI deployments already have a large global footprint, even the biggest players are still improving it and need deployment strategies for content de-livery. Recently Akamai formed content delivery strategic alliances with major ISPs, including AT&T [11], Orange [14], Swisscom [15], and KT [13] to reduce network-related costs and improve network efficiency by outsourcing the hardware deploy-ment and maintenance to said network operators. Google offers eyeball networks, that experience high peak traffic from Google’s network, the opportunity to host one or more Google Global Caches (GGCs) [26, 75]. Those application specific caches will serve popular Google content including the traffic heavy YouTube video service. Thus, they offer traffic reductions and reduced network utilization to the network operator and improve the performance of the end-users. Netflix, while heavily re-lying on multiple CDIs, including Limelight and Level3, to deliver its high traffic volumes [2], recently announced to deploy its own content delivery infrastructure, called Open Connect [122], offering network operators that host the free of charge appliance potentially huge traffic reductions while improving the end-user quality of experience. Interestingly enough, Labovitz [49] found that while those servers are located in many networks none of them is a Tier-1 provider.

1

In the case of P2P the economical return encompasses anything that increases the systems total capacity, e.g., faster download times and higher throughput

(17)

1.1 Challenges in Content Delivery

The combined efforts of CDIs and network operators clearly marks a paradigm shift in how content delivery infrastructure is deployed and opens up new possibilities for innovative approaches that foster collaboration between CDIs and network operators to take advantage of the business opportunities. After decades of ever increasing deployment for scalability, performance and cost issues, CDIs start noticing the limits in expanding their network footprint. Hereby, we stress that these are often not technical limits, but more business constraints and/or management overhead. In this context the formation of alliances seems to be the natural evolution of the content delivery business.

Deployment Agility

Unfortunately, the deployment of servers that can satisfy the growing demand while providing good performance to end-users is a complex and tedious task. Finding the right locations to place additional servers without knowledge about the network and its traffic dynamics takes a significant amount of time and is prone to errors and inaccuracies. The necessary business arrangements also require time and effort, as every party wants to get the best possible deal to reduce cost and/or increase revenues. But even when the bargaining is done more time is required to commission the hardware, ship it to the agreed location, physically hook up the servers and connect it to the network. Depending on eventual Service Level Agreements (SLAs) the network operator might need additional time to configure the necessary network devices, e.g., routers, firewall, or intrusion detection systems. Last but not least the CDI’s operations team has to install and configure the required software and once the server is fully functional and ready for operation the assignment strategy can include the newly deployed machine.

While some of the steps can be done in parallel to speed up the process, the initial search for a suited location and the resulting negotiations take most of the time that can span multiple months limiting the CDIs agility in server deployment [128]. Yet, the deployment is not the only aspect where more flexibility is needed. Once a server is deployed, the physical location of the hardware stays and the negotiated contracts are in place for a longer periods of time, e.g., tens of months to multiple years. This is because for the network operator frequent changes to the network configuration, e.g., physically removing and shipping hardware, updating security policies or possible routing changes, are highly inconvenient and disrupt normal operations. Also the involved re-negotiations impose a high burden on the involved business units of both the network operator and the CDI.

Most Content Delivery Infrastructures can handle additions and removal of servers easily, yet shipping around the hardware and reconfiguration of the software means that the additional resources are not available during that time resulting in paid but unusable capacities. Thus, altogether the situation for both, the CDIs and the net-work operators, are mediocre at best. While the movement of physical hardware and

(18)

the resulting network changes should be kept to a minimum to ensure proper net-work operations it also limits the CDIs ability to react to increasing traffic demands and changes in traffic demand patterns in a timely fashion. This in turn increases the load on the network infrastructure making management and operations more complicated.

Optimizing both the network and the content delivery at the same time under mul-tiple, some times even conflicting, constraints while guaranteeing the end-users ex-pected quality of experience is a non-trivial, multi-dimensional optimization problem. Moreover, the market for content delivery as well as network providers is very com-petitive, leading both parties to investigate new ways to reduce capital investment and operating costs [40, 143].

1.2 Architectures, Trends and Opportunities

To address the challenges in content delivery, a variety of system designs have been proposed over the last decade. These solutions try to expand the CDI footprint by leveraging available resources of end-users or dynamically offloading the content de-livery to other content dede-livery infrastructures e.g., in case of capacity bottlenecks or end-users in a network where the CDI has no close by servers. Figure 1.1 gives an overview of the various solutions and shows the level of involvement of each stake-holder in content delivery, namely the Content Producers (CP), Content Delivery Infrastructures (CDI), network operators (ISP), and the end-users. In this classifi-cation scheme the different roles are as follows:

CPs or Content Producers subsumes any type of business or private entity that has a primary interest (mainly financial) in end-users consuming its content. The content can either be created by the CP or licensed from others. Prominent examples of CPs are, e.g., news and infotainment sites, such as MSNBC or BBC, company websites like Volkswagen or Samsung, and software companies that digitally distribute their software and patches, such as Adobe or Microsoft. CPs that offer mainly third party licensed content include Online Social Networks (OSNs) like Facebook, Video on Demand (VoD) services like YouTube and Netflix. Recall, Netflix and Google. CDIs or Content Delivery Infrastructures operate a dedicated infrastructure to dis-tribute content of CPs to end-users. To offer reasonable performance CDIs need not only to operate enough infrastructure but also establish enough connectivity to the various networks that make up the Internet, be it by distributing servers into many networks or by connecting to them.

ISPs or network operators offer network and Internet access including but not limited to end-users and thus transport the content through their network. Well known ISPs are AT&T, Telefonica, or Deutsche Telekom.

(19)

1.2 Architectures, Trends and Opportunities

CDI

ISP

CP

User

Microdatacenters

Figure 1.1: Content Delivery Spectrum

Note that in this classification an entity is not limited to a single role. For instance Google takes the dual role of Content Producer and Content Delivery Infrastructure with its YouTube service and in some places of the United States even has a third role by providing Internet access to end-users (e.g., Google Fiber in Kansas City).

The Network Oracle

The classical approaches for content delivery are commercial CDIs, ISP operated CDIs, and Peer-to-Peer Systems. Commercial CDIs are independent business entities that operate large distributed server infrastructures to deliver content to end-users. They usually do not operate their own network infrastructure but instead rely on ISPs for network connectivity. ISP operated CDIs on the contrary do operate their own network but their server footprint is limited to the network footprint of the ISP. Peer-to-Peer systems are distributed architectures where the resources of the system are provided and operated by the end-users. In Figure 1.1 they are placed very close to their respective operators as the involvement of the other parties is marginal at best. For example, the ISP can throttle the P2P traffic of its customers to reduce the network utilization but this is more an indirect interaction with the content delivery itself. The same holds for peering or transit agreements with CDIs. Not the distribution itself is influenced but the traffic amount or delivery speed at which the distribution happens.

(20)

Earlier attempts to improve content delivery have been proposed in the area of P2P systems, which successfully utilize the aggregate capacity of end-users that are interested in downloading the same content [46]. Due to the popularity, openness, and availability of protocol specifications and client software, the research community was able to understand the drawback of such systems. The random connection to other peers (which increases the resilience of the system) in many popular P2P systems has put a high strain not only on the networks hosting the peers but also the connecting transit networks. As a result P4P [177] has been proposed as an ISP-P2P collaboration mechanism to better localize traffic. Augmented with network information, the peer selection can be improved and is able to avoid connection to peers in far away networks.

To utilize the systemic benefits of P2P systems and to scale up the infrastructure and at the same time reduce the capital investment in hardware, bandwidth and energy commercial CDIs [3] as well as ISPs [100] operate hybrid content delivery Infrastructures where end-users download content from the CDI servers as well as other end-users, mimicking the success of pure P2P systems. To avoid many of the complicated and time consuming contractual issues when deploying servers, com-mercial CDIs recently have started to offer their content delivery software to ISPs as licensed CDI. The administrative burdens to deploy, operate, and maintain servers inside their own network is much smaller for them and in some cases the licensed software is able to coordinate with the CDI operated servers forming a CDI Federa-tion. The industries requirement for such an mode of operations has led to the CDNI working group [124] in the IETF which develops standards for necessary mechanisms and protocols. To allow Content Producers to take advantage of the many different CDIs and combining their individual strengths into a sort of virtual content delivery infrastructure Meta CDIs [59, 108] add an additional layer of abstraction to the pro-cess of content delivery. The Meta CDI selects for each end-user individually which of multiple available CDIs is used to deliver the desired content. This decision is based on multiple factors such as the network location of the user and the measured CDI performance among others and allows the Content Producer to influence the delivery process and at the same time improves the performance for the end-users.

So far all of the presented infrastructures and solutions were general purpose archi-tectures. But some applications can benefit even more from an application specific optimization (examples are rate limiting for video streaming or server selection based on consistent hashing for very large files). This has led larger CPs to deploy applica-tion specific CDIs inside ISPs and highly connected data centers. Examples include Netflix Open Connect for video streaming [122] or Google Global Cache primarily for YouTube [26].

(21)

1.2 Architectures, Trends and Opportunities

The New Cloud

In the broadest sense todays Internet is an entanglement of “dump plumbing” to forward packets along paths and “highly integrated services” to provide additional in-network features such as caching, carrier-grade NAT, load balancing, or security features like intrusion detection or virus filtering. The launch of a new network service often requires another variety of proprietary hardware applicances and includes the increasingly difficult task to find the necessary space and power to accommodate these boxes. These difficulties and the need for a more service centric network has spurred another recent trend: marry cloud resources (processing and storage) with networking resources to meet the high performance requirements of bandwidth and storage critical applications such as high definition video streaming or delay sensitive applications like cloud gaming [153].

Improvements in virtualization technology and recent developments in network equip-ment architectures like Software Defined Networking (SDN) allows ISPs to migrate from proprietary hardware solutions to software based ones running on generic ap-pliances deployed deep inside their network. While their initial intent often was to support only their own ISP specific services, such as ISP-operated CDNs, IPTV, carrier-grade NAT, deep packet inspection, etc., network operators now leverage these new capabilities to offer fully virtualized network and server resources in prox-imity to their end-users to third parties [54]. Major network operators around the globe, including AT&T, British Telekom, NTT, Deutsche Telekom and Telefonica, have recently joined their efforts to define the requirements for such a solution. Their draft, called Network Functions Virtualisation (NFV) [123], is currently in progress of standardization in the European Telecommunications Standards Insti-tute (ETSI) [62]. The goal is to drastically reduce the complexity and number of different types of networking equipment by consolidating to an industry standard high volume server for fixed as well as mobile networks. A much anticipated side effect of such a solution is the avoidance of vendor lock-ins. These general purpose appliances, also called microdatacenters, are already deployed by large ISPs, includ-ing AT&T, Deutsche Telekom, and Telefonica, co-located with their major network aggregation locations (PoPs).

Other networking technologies, including SDN, aim to simplify network operations by decoupling the control plane from the data plane. SDN offers a logically centralized, programmable control of network traffic by introducing an abstraction layer of lower level functionality (e.g., forwarding data packets). Albeit reducing the dependency on vendor specific hardware, SDN nonetheless requires the network operators to replace their current networking equipment. The SDN approach is orthogonal and highly complementary to the introduction and deployment of NFV: either technology can be deployed independently from the other. In combination with cloud style computing, such as microdatacenters, SDN blurs the lines between networks and computing even further. The biggest advantage integrated network and cloud providers can offer is

(22)

the ability to offer high quality cloud services as they control all resources on the path from the server to the end-user.

At the same time when the cloud started to move into the network, the research com-munity started to leverage cloud resources to outsource most if not all of the network infrastructure (except the forwarding plane of course) and its control plane [17, 72, 157, 162]. By doing so network operators leverage the highly specialized knowledge in domain specific operations of the service provider to improve their own operations while reducing investment in up-to date technology and hardware and at the same time also reduce operational costs. Liu et al. argue in [107] for network providers to deploy ingress filtering to offer filtering of spoofed IP traffic to other networks as a service, not only to improve the efficiency of filtering spoofed IP traffic but also to create new revenue streams for the network operators at the same time. Sherry et al. show in [159] that it is not only possible to outsource nearly any network mid-dlebox, such as firewalls, proxies, or even WAN optimizers, without impact on their performance but also to reduce their management complexity, cost, and capacity limits. Improving the situation even further, Olteanu et al. show that efficient mi-gration of stateful middleboxes in cloud environments is feasible [129]. Kotronis et al. go even further and propose a system to completely outsource the routing control of a network to a third party service provider [94]. This enables the routing ser-vice provider to leverage a “bird’s eye view” on network clusters for making efficient routing decisions, detect and troubleshoot policy conflicts, and routing problems for improved efficiency and reduces operational cost. The ability to outsource network infrastructure enables ISPs to leverage economy of scale by deploying microdatacen-ters deep inside their network and utilize it for their own needs as well as capitalize on offering cloud resource close to the end-users to service providers, e.g., content delivery infrastructures.

So far our discussion about improving content delivery has touched the technical possibilities but neglected the incentives improving economics and market share. Both are key drivers towards collaboration which has been be observed in both the content delivery and the network operation business. On the one hand, large and already well established Content Delivery Infrastructures have a strong customer base among Content Providers and are responsible for delivering the content for their customers to the end-users around the world. Network operators on the other hand have a strong end-user base in their service region and are starting to offer cloud resources close to their end-users in aggregation locations (PoPs) of their network.

1.3 Problem Statement

Today’s content delivery landscape faces the problem of server allocation – where to place additional server resources – and user assignment – which end-user is assigned to which server. This is because CDIs are largely unaware of network conditions

(23)

1.4 Contributions

and end-user locations inside the ISPs network. However, this information has the potential to highly improve the efficiency and performance of allocating additional resources and assigning end-users to servers [66, 69, 137]. While some of this infor-mation can be inferred by measurements [128, 137] – a tedious and error prone task – a network operator has the information readily at hand! Therefore, we argue that collaboration between CDIs and ISPs is the next step in the natural evolution of deploying and operating content delivery infrastructures in the Internet.

1.4 Contributions

Despite the opportunities and benefits for collaboration, the mechanisms and systems to enable joint CDI deployment and operation inside the network are subject of this thesis. Therefore, we highlight the technical means leading to a win-win situation for all involved parties in content delivery. The contributions of this thesis are as follows:

Content Delivery Landscape

First, the large spectrum of available content delivery architectures motivate us to in-vestigate the current design and operating space of todays content delivery landscape and highlight the challenges content distribution faces. We find that the content de-livery landscape is in a constant flux to further improve its dede-livery performance, increase its network footprint, and at the same time tries to reduce the capital in-vestment and operational costs for its content delivery infrastructure. To quantify the potential benefits of a collaborative operation of content delivery infrastructures, we conduct a large scale measurement study of the largest commercial CDIs opera-tions in an European Tier-1 ISP. We find that ample opportunities exist to leverage the ISPs knowledge about the current network state to enable better leverage the CDIs current infrastructure footprint.

The New Cloud

Second, we identify two key enablers for collaboration in content delivery, namely informed user-server assignment and in-network server allocation. Until now, both problems have been tackled in a one-sided fashion by the CDIs. While informed user-server assignment improves the operation of already deployed content delivery infrastructures by taking network conditions, such as link utilization or number of backbone hops, into account, in-network server allocation offers an additional degree of freedom for the deployment of additional resources. It allows the CDI to freshly instantiate, migrate or shut down additional resources deep inside the ISPs network close to the end-users on short time scales, e.g., tens of minutes. Together the two

(24)

enablers allow a joint optimization of network operations for mutual benefits and enables the deployment of new and highly demanding services and applications. This motivates us to propose a novel system design incorporating the two key enablers to improve content delivery through collaboration between CDIs and ISPs.

NetPaaS

Third, we implement and evaluate a prototype system, called NetPaaS (Network Platform as a Service), realizing our design for collaborative server deployment and operation inside the ISP’s network. We perform a first-of-its-kind evaluation based on traces from the largest commercial CDI and a large European Tier-1 ISP using NetPaaS. We report on the benefits for CDIs, ISPs, and end-users. Our results show that CDI-ISP collaboration leads to a win-win situation with regards to the deployment and operation of servers within the network, and significantly improves end-user performance. Our evaluation shows, that in the studied setting NetPaaS is able to reduce the overall network traffic by up to 7% and lower the utilization of the most congested link in the network by up to 60% when used solely for informed user-server assignment. When NetPaaS also offers in-network user-server allocation the delay for end-users is reduced significantly and up to 48% of all requests can be answered by a server located in the same PoP as the end-user with only 50 additional servers.

1.5 Outline

The rest of the thesis is structured as follows: Chapter 2 gives the necessary back-ground information about protocols and technologies used in todays Internet content delivery. Chapter 3 consists of a survey of the current content delivery landscape, highlighting current and upcoming trends in its architectures and points out current challenges for the involved parties in content delivery. In Chapter 4 we conduct a measurement study of the largest CDIs in an European Tier-1 provider highlight-ing the opportunities for collaboration to improve content delivery. We identify and formalize two key enablers, namely informed user-server assignment and in-network server allocation, for collaboration between CDIs and network operators in Chap-ter 5. In ChapChap-ter 6 we propose a novel system architecture, called NetPaaS, leverag-ing the two key enablers to improve content delivery in the Internet. We also discuss the scalability and privacy related issues of the system and how said system can be integrated into todays operation of Content Delivery Infrastructures. Chapter 7 evaluates NetPaaS using operational data from the biggest commercial CDI and an European Tier-1 network provider. We show that joint server deployment between CDIs and ISPs can improve content delivery significantly in the studied setting.

(25)

2 Background

In this chapter we review the basic building blocks required to understand todays landscape of content delivery infrastructures. We start by introducing the Inter-net Service Provider (ISP) as the managing entities of the InterInter-net and continue our excursion with the introduction of the two most important protocols in content delivery today, namely the Domain Name System (DNS) protocol and the Hyper-Text Transfer Protocol (HTTP). We then explain how content delivery works using a short example and describe the general architecture and all relevant components of a Content Delivery Infrastructure (CDI) and. Next, we provide a short overview of Vir-tualization techniques, as they offer unprecedented flexibility in resource allocation and management and are an essential component of recent large scale infrastructure deployments, such as cloud computing. Last but not least, introduce and shortly discuss the Peer-to-Peer (P2P) paradigm for content delivery.

2.1 The Internet & You: Internet Service Providers

The Internet is a world wide network of networks with the infrastructure of those networks provided by Internet Service Providers (ISPs). Generally speaking, an ISP is a business or organization that operates a dedicated network infrastructure and offers Internet access to its customers. The interconnection of multiple individual networks run by ISPs forms what we commonly call the Internet. The general layout is shown in Figure 2.1: End-users and customer networks (e.g., corporate networks) obtain connectivity from ISPs which in turn are interconnected, either directly or

(26)

Global Transit/ National Backbones

"Hyper Giants"

Large Content, Consumer Hosting, CDi

ISP1 ISP2 Global Internet Core Regional Tier-2 Providers Customer IP Networks IXP IXP

Figure 2.1: Layout of the Internet Structure [98]

through national transit or global backbone providers1

. In addition, the Internet in the last decade has experienced the ascent of a new type of network, the so called Hypergiants. Hypergiants are large networks that mainly host content that end-users are interested in, such as Google and Netflix. They usually generate huge amounts of traffic and thus thrive to directly interconnect with ISPs.

The layout shown in Figure 2.1 also highlights the clear distinction between the individual networks run by ISPs and the Internet: the administrative control over the individual network infrastructures remains solely with the ISPs. This also implies that no single entity can coerce control over the Internet as each ISP controls only its own network and the direct connections to other networks.

The customers of ISP can be, e.g., end-users, hosting facilities, or even other net-works. End-users can be connected via a wide range of access technologies, such as dial-up-modems, digital subscriber line (DSL), fiber to the home (FTTH) or wireless technologies such as 3G, WiMax, or satellite links. If the ISP offers access to end-users via one or more of such technologies, it is also called an “access ISP”. If other networks use the ISP to reach another network, the ISP is called a “transit ISP”, as the traffic crosses the ISPs network but neither originates nor terminates in the ISPs network. When the ISP offers other networks connectivity to Internet, that is it allows them to send traffic to the Internet via its own network, the ISP is called an “upstream ISP”. Note that an ISP can have multiple roles at the same time, e.g., a large access ISP can also offer transit for other networks.

To be able to interconnect with other networks an ISP needs to operate an au-tonomous system (AS). An AS is an administrating entity, generally under the con-trol of one administrative domain, for one or more publicly routable IP prefixes and

1

Transit and backbone operators are basically large network operators with a national or global footprint that offer connectivity to ISPs just like they offer connectivity to their customers.

(27)

2.2 Domain Name System

requires an officially assigned and unique autonomous system number (ASN). Both the ASNs and publicly routable IP prefixes are governed by the Internet Assigned Numbers Authority (IANA) which delegates the assignment to the Regional Inter-net Registires (RIR). Each AS is usually managed by an Interior Gateway Protocol (IGP), e.g., OSPF [120] or ISIS [131]. Since an AS is run centrally by one instance, there is no need for information aggregation and/or hiding.

To interconnect different ASes the Border Gateway Protocol (BGP [147]) is the de-facto standard used and provides the required IP prefix reachability information to make routing decisions in the Internet. To keep the distribution of routing in-formation scalable throughout the Internet, the entire internal management of the individual AS is abstracted and aggregated. Each AS announces which IP prefixes can be reached via its network and other networks use this information to make routing decision, that is which network path they use to send traffic along towards its destination. For example in the case of an upstream ISP, the ISP announces all IP prefixes it knows to its customers, while the customers would only announce their own public IP prefixes to the ISP. When an AS needs to communicate with another AS that it does not have a direct connection to, the communication has to transit one or more different ASes. Thus, along with with the pure reachability information, the ASN is also transmitted. This allows for loop detection as well as an estimate of how many AS hops away a destination is.

The greatest challenge for an ISP is the efficient operation of its infrastructure. To this end, ISPs usually apply a process called Traffic Engineering (TE). TE is, simply speaking, the process of adjusting the internal routing weights and BGP announcements such that the traffic flows through the network in the most effective way. This is usually done to avoid link congestion and reduce delays by using short paths, but also to reduce the capital expenses by reducing the utilization of expensive peering links.

2.2 Domain Name System

Before 1983, a simple plain text file (hosts.txt) was used to translate hostnames into IP addresses. Back then, it was manually distributed to all hosts connected to the Internet. With a growing number of hosts scalability and management issues became more and more rampant. To alleviate them, the Domain Name System (DNS) [118] was introduced in 1983 and has been a key part of the Internet ever since.

DNS is a distributed database with a hierarchical structure and divides the complete Internet namespace into domains. As "Naming follows organizational boundaries, not physical networks" [118,167] the administration of domains is organized in zones. This information is distributed using authoritative name servers. The top most level of the DNS hierarchy starts with the root zone using 13 globally distributed and replicated root name servers. To mark the boundary between hierarchy levels in

(28)

.

org

...

cisco

com

edu

duke

cs

arts

iee

acm

dl

www

www.acm.org

(a) Partial DNS name space with zones (circled). (b) Hostname lookup.

domain names the “.” character is used. The root zone has an empty domain label and therefore is represented by a dot. Responsibility for specific parts of a zone can be delegated to other authoritative name servers which can in turn delegate responsibilty further. For example, the root zone delegates responsibility for, e.g., the .org domain to the Public Interest Registry which in turn delegates responsibility for acm.org to the Association for Computing Machinery (ACM). The information regarding a particular domain of a zone is stored in Resource Records (RRs) which specify the class and type of the record as well as the data describing it. To improve scalability and performance, DNS heavily relies on caching. The time for which a specific RR can be cached is determined by its Time To Live (TTL) and is part of the zone configuration. In the end, each domain is responsible for maintaining its own zone information and operates its own authoritative name server. An alternative view of the domain name space is a tree with nodes containing domain labels separated by dots. Figure 2.2a illustrates this view of the partial domain name hierarchy including the administrative organization into zones.

To resolve a domain name, the end-hosts stub resolver usually queries a local name server called caching resolver. If the information is not available in the resolvers cache, it queries the authoritative name server of the domain. In case the resolver does not know how to contact the server, it queries a root name server instead. The root name server refers the resolver to the authoritative name server responsible for the domain directly below the root. This referrals continue until the resolver steps down the domain name space tree from the root to the desired zone and is able to resolve the domain. In our example, the caching resolver is called an iterative resolver, as it iteratively queries the authoritative name servers until it can resolve the hostname, while the end-hosts stub resolver is called a recursive resolver, as it leaves the hostname resolution completely up to the caching resolver. Figure 2.2b illustrates recursive (steps 1 & 8) and iterative (steps 2 -7 ) hostname resolution.

(29)

2.3 HyperText Transport Protocol

Today, DNS plays a major role in content delivery [19, 37, 117, 128], especially for assigning end-users to CDI servers. Low TTLs enable CDIs to quickly react to demand surges and allows fine grained load balancing. Crafting DNS replies based on the querying caching resolvers geo-location results in short delays and traffic localization. However, such practices have attracted criticism [6, 172] largely due to reduced cacheability and increased network load because of low TTLs. Furthermore, the basic assumption that end-users are generally close to the used caching resolver does not always hold true [6].

2.3 HyperText Transport Protocol

The Hypertext Transfer Protocol (HTTP) [63] has become todays de-facto standard to transport content in the Internet [43, 71, 98, 137, 151]. Introduced in 1989 by Tim Berners-Lee at CERN (Conseil Européen pour la Recherche Nucléaire) and published in 1991 as version HTTP/0.9 by the World Wide Web Consortium (W3C) [31] and standardized by the Internet Engineering Task Force (IETF) in several Requests for Comments (RFCs) [32, 63, 89, 126] defining HTTP as an “application-level protocol for distributed, collaborative, hypermedia information systems”. The version that is today in common use is HTTP/1.1. The upcoming standard HTTP/2.0 is currently under development in the HTTPbis working group [125].

HTTP is a simple plain-text request-response protocol on top of TCP/IP2

and follows a client-server architecture. It allows end-users to request, modify, add or delete resources identified by Uniform Resource Identifiers (URIs) – or Unified Resource Locators (URLs), but today both are used as synonyms [116]. A valid URI consists of three parts: the protocol schema (e.g., http:// for HTTP), the domain name (such as www.example.com, but a literal IP address is also possible) and the full path to the resource (for example /path/to/resource. The resulting URI from our example would be: http://www.example.com/path/to/resource. The type of the resource often corresponds to a file but can also be dynamically assembled content or the output of an executable on the Web server.

Every HTTP message consists of an introductory line, optional header lines specify-ing additional information and a potentially empty message body carryspecify-ing the actual data. The introductory line of a HTTP request, see Listing 2.1 (left), consists of a method and the URI it should act upon. Similarly, the introductory line of a reply, see Listing 2.1 (right), contains a standardized three-digit status code and a textual representation specifying if the request was successful or not. Although primarily designed for the use in the Web, HTTP supports more operations than fetching a Web page. For a full list of available methods and status codes in HTTP/1.1 and their description, see Table A.1 and Table A.2 in the appendix. Both request and

2

(30)

GET / HTTP/1.1 HTTP/1.1 200 OK

Host: www.example.com Accept-Ranges: bytes

User-Agent: Mozilla/5.0 [...] Content-Type: text/html; charset=UTF-8 Accept: text/html [...] Date: Mon, 29 Jul 2013 15:46:02 GMT Accept-Language: en-US,en;q=0.5 ETag: "780602-4f6-4db31b2978ec0"

Accept-Encoding: gzip, deflate Last-Modified: Thu, 25 Apr 2013 16:13:23 GMT

Connection: keep-alive Server: ECS (iad/1984)

X-Cache: HIT

Content-Length: 1270 <!doctype html> <html>

[...]

Listing 2.1: HTTP request (left) and response (right) for www.example.com

reply messages may be followed by one or more header lines, see lines 2–9 in List-ing 2.1, specifyList-ing additional information, e.g., the character set the client accepts or for how long a client may cache the response. Some headers are only valid in requests, others only in replies and some are valid in either direction. For a list of standardized HTTP headers, see e.g., [63, 127].

To improve performance and efficiency HTTP has built-in support for caching of content. The Expires header tells a client for how long a response can be considered valid and thus loaded from the local cache. Yet, not all answers come with an expires header, what makes caching non trivial. Therefore, HTTP supports a conditional GET where the server transmits the object only if it has changed since it was trans-ferred to the client. For this the client can use, e.g., the Last-Modified (see line 6 of the HTTP reply in Listing 2.1) or If-Modified-Since headers in the request.

Another important mechanism supported by HTTP is redirection. The 3xx status codes allows an Web server to redirect individual users to other servers, e.g., if the Web server is under high load or another Web server is closer to the client. However, the drawback of redirection is the additional delay due to having to open another TCP connection to the new Web server.

Although HTTP in itself is a stateless protocol – that is the server does not need to keep state between successive requests from the same client – technologies such as session parameters or HTTP cookies enable Web sites to keep state. In both cases the state is stored on the client side and is transferred to the Web server with each request. Session parameters are simply key value pairs that can be attached to the URI. Cookies are small pieces of data stored on the end-users computer by websites. Such state information is usually required by dynamic content, such as personalized Web pages, or for authentication purposes.

(31)

2.4 Content Delivery Infrastructures

The most recent version HTTP/1.1 includes some changes to improve the overall per-formance of the protocol. While HTTP/1.0 did close the underlying TCP connection after it received the requested resource, HTTP/1.1 supports persistent connections, sometimes also called HTTP keep-alive or HTTP connection reuse. It allows a client to receive multiple resources over a single TCP connection by sending a new request after the response to the previous request. This avoids additional delay cause by the necessary TCP 3-way handshake and bandwidth limitations due to the slow start phase of newly created TCP connections. The HTTP connection in Listing 2.1 uses this feature, see line 7. In addition to that, HTTP/1.1 supports pipelining, that is, multiple resources can be requested by the client without waiting for the respec-tive responses from the Web server which greatly reduces the time to load multiple resources especially on high delay connections, such as satellite links.

HTTP/2.0 is expected to substantially improve end-user perceived latency through asynchronous connection multiplexing, header compression, and request-response pipelining. Therefore, it does not require multiple TCP connections to leverage par-allelism and thus improves the use of TCP, especially regarding TCP’s congestion control mechanisms. HTTP/2.0 retains the semantics of HTTP/1.1 and therefore leverage existing standardization on HTTP methods, status codes, URIs, and where appropriate, header fields. For more information, see [125].

2.4 Content Delivery Infrastructures

Over the past decades the demand for content has seen phenomenal growth and is still expected to grow [43]. In addition, many already and newly deployed services gain additional benefits from improved performance, e.g., reduced latency, in content delivery [91]. The need for increased capacity and improved performance has led to the emergence of Content Delivery Infrastructures (CDIs): large dedicated infras-tructures to deliver content to end-users around the world. Traditionally, content is placed first on the Web servers of the Content Producer (CP), the original Web servers. Content delivery infrastructures are specifically designed to reduce the load on the origin servers and at to improve the performance of end-users.

In general, there are three main components in a CDI architecture: a server deploy-ment, a content replication strategy and a mechanism for directing users to servers. But not all CDIs are built upon the same philosophy, design, and technology. The server deployment strategy is one of the most crucial factors in any CDI archi-tecture and has a high influence on the possible performance gains. Therefore, we dedicate a full chapter to the CDI deployment strategies: Chapter 3 gives a detailed overview of the current content delivery landscape and we discuss the challenges content delivery faces today in Chapter 3.1. The classical deployment strategies for content delivery infrastructures are described in Chapter 3.2 and in Chapter 3.3 we introduce emerging trends in content delivery, such as Hybrid and Meta CDIs.

(32)

In the remainder of this section we want to introduce the different possible solu-tions for the three main components of a CDI and discuss their various benefits and drawbacks. To introduce the general concept of content distribution, Chapter 2.4.1 provides an illustrative example of how content delivery using CDI resources works in general. Chapter 2.4.2 introduces the two main concepts for content replication: push based and pull based content replication. In Chapter 2.4.3, we will introduce the different mechanisms to assign end-users to CDI server and discuss their benefits and drawbacks. Remember that the detailed discussion on the different deployment strategies is left for the next chapter.

2.4.1 Content Delivery 101

The goal of this section is to introduce the general concept of content delivery in the Internet. Figure 2.3 shows an example of how content delivery infrastructures are embedded into the Internet architecture and how the resulting traffic flows to the end-users look like. Recall, the Internet is a global system of interconnected Au-tonomous Systems (ASes), each operated by an Internet Service Provider (ISP), see Chapter 2.1. The example shows three ASes, numbered 1–3, with each AS operating a couple of backbone routers. For inter-connectivity, AS1 has established a peering link with AS2 and AS3 while AS2 and AS3 have established two peering links. A Content Producer (CP), example.com, utilizes a centralized hosting infrastructure in AS2 to deliver the HTML Web page depicted in Figure 2.4. The Web page also contains two images, img1.png and img2.png, that are distributed by two different CDIs, cdi-a.com and cdi-b.com.

The server location differs from CDI to CDI and depend on contractual agreements between the CDI and the individual ISPs. In some cases the servers are deployed in the data centers of the ISP or deep within the network, e.g., co-located in the network aggregation points (PoPs), and therefore belong to the same AS. End-users of those ISPs are typically served by the CDI servers inside the ISPs network. The first CDI, cdi-a.com utilizes such an approach and has deployed its servers deep inside the network of AS1, location α, and AS3, location β. In other cases CDIs utilize multiple well connected datacenters with direct peerings to ISPs. The second CDI, cdi-b.com, utilizes this approach and has servers deployed in two datacenters to deliver content to the end-users. Datacenter I has a direct peering with AS1 while datacenter II is multihomed3

with connectivity to AS1 and AS3. With other ISPs there may be no relationship with the CDI at all and the traffic to the end-users of those ISPs is routed via another AS, the so called transit AS.

Let us consider the steps that are necessary to download the Web page shown in Figure 2.4. This page consists of the main HTML page index.html located at http: //www.example.com/index.html and two embedded image objects, img1.png and

3

Multihoming describes the fact that the datacenter is connected to more than one network pro-viding Internet access.

(33)

Legend

end-user server (origin) server (CDI)

Figure 2.3: Example of CDI deployments and traffic flows (Web traffic demands).

img2.png located at http://cdi-a.com/img1.png and http://cdi-b.com/img2. png respectively. The Content Producer responsible for example.com has decided to use the services of two CDIs to deliver the embedded images, while the main HTML page (index.html ) is served from the CPs own centralized hosting infrastructure in AS2. The first image (img1.png) is hosted by cdi-a.com and the second image (img2.png) by cdi-b.com. The resulting traffic flows are shown in Figure 2.3. If a specific client from client set A in AS1 requests the Web page at http:// www.example.com/index.htmlit first resolves the hostname www.example.com using the Domain Name System (DNS) which returns the IP address of a server from the centralized hosting infrastructure of the CP in AS2. The client then utilizes the HTTP protocol to connect to the Web server and requests the HTML page index.html. After receiving the Web page the client needs to get the two embedded image objects to be able to render the full Web page. It will again resolve the hostnames using DNS and the CDIs in question will return the IP address of the “nearest” server based on the clients location. In the case of our client from set A, cdi-a.com will utilize a server from location α in AS1 to deliver img1.png, while cdi-b.com uses datacenter I to serve the second image object img2.png. In contrast, if a specific client from client set B requests the Web page, the two image objects hosted on the CDI infrastructure are delivered from different servers, namely a server in location β for cdi-a.com and another server in datacenter II for cdi-b.com respectively. The main HTML page index.html on the other hand is still delivered from the centralized hosting infrastructure of the CP in AS2. The resulting traffic

(34)

URL:

http://www.example.com/index.html

URL: cdi-a.com/img1.png URL: cdi-b.com/img2.png

Figure 2.4: Example Web page with some CDN content.

flows are depicted in Figure 2.4, which also shows the advantage of utilizing CDIs to deliver content, namely the shorter distance between the end-user and the server delivering the content and to some extend the avoidance of inter-AS peering links.

2.4.2 Content Replication

Content replication in the context of content delivery infrastructures describes the process of duplication and distribution of content from the origin Web server to the CDI servers which store the content locally for fast access. This enables the CDI server to satisfy requests for content directly from the local storage, the so called cache, without the need to fetch it from the origin Web server first. An important aspect of content replication is the coherence of the content in the local cache and the origin Web server. The content replication mechanism in place must ensure that the content stored in and served from the local cache is the same as if served from the origin web server. Highly related to the content replication mechanism is the caching algorithm which is used to determine which objects are stored, updated or evicted. There is an entire field of research dedicated to this area and thus out of scope for this thesis. For more information see, e.g., [1, 28, 52, 136, 173].

A very simple form of content replication implies having a local copy of all objects from the origin Web server. But the tremendous amount of content with frequent additions and updates in combination with the huge number of servers that con-stitute todays content delivery infrastructures make this approach technically and economically infeasible. So far mainly two different content replication strategies are employed in content delivery today:

In pull based content replication a request for content that is not available in the local cache will trigger a recursive request at the CDI server. When a requested object is not locally available the server will first try to fetch it from neighboring servers

(35)

in the same cluster or region. If the object is not available at neighboring servers, the origin server responsible for the object is contacted to retrieve the object. The received object is first stored in the local cache and then delivered to the end-user. To keep the content up to date, objects are usually assigned a time-to-live (TTL) value, which describes for how long this copy can be considered valid. If the TTL of an object is no longer valid it can be re-fetched or evicted from the cache. The pull based content replication strategy allows the CDI to assign any user to any cache as it ensures that the content, if not locally available, will be fetched from the origin server and then served to the end-user. This increases the scalability of the content delivery infrastructure [169] and is used by many CDIs today [128]. Yet, a slight drawback exists, the first request for each object will result in a cache miss and the resulting recursive request will induce an increased delay for the end-user that issues the original request. Also the limited local storage might result in objects being evicted from the cache and thus again create cache misses and increased delays. Push based replication describes the approach where content is duplicated and actively distributed or “pushed” to some or all CDI servers. This strategy tries to avoid the inital cache miss that is inherent in the pull based content replication approach and allows the CDI to pre-populate the servers before the demand for con-tent is expected to begin. This scenario is especially interesting for large scale events that can be planned in advance, e.g., airing a new episode of a popular TV series. Moreover, it alleviates the need for a caching algorithm as the required local stor-age is known in advance. In contast to the pull based content replication approach, the push based approach does not allow the CDI to assign end-users to arbitrary servers but requires the decision to consider the locally stored objects on each server of the content delivery infrastructure. Considering the huge number of servers of todays content delivery infrastrucures and the tremendous amount of storage (and thus objects) modern servers have, this is by no means an easy task. As a result, the complexity of this approach and thus the whole content delivery system is increased manyfold. Moreover, every mistake, even when caused by e.g., faulty or mis-behaving middleboxes, in the server assignment will result in object or (even wose) page load errors deminishing the end-users quality of experience significantly. However, com-bined with pull based content replication, this approach is actively used, especially by CDIs delivering large objects, e.g., high definition video or software.

2.4.3 End-User to Server Assignment

To complete the picture one question remains. How does the CDN choose the “near-est” server to deliver the content from? Today’s CDN landscape relies mainly on three techniques to assign end-users to servers.

1. IP-Anycast

2. DNS based redirection 3. HTTP redirection
