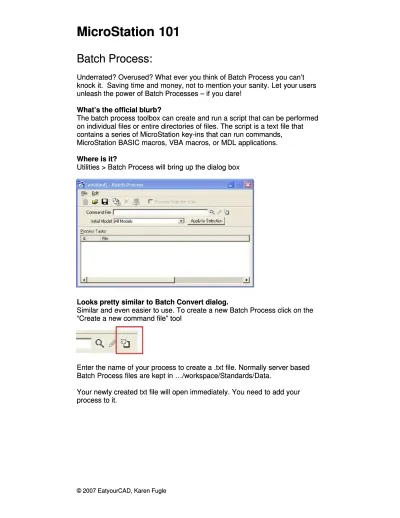

MicroStation 101
MicroStation 101
Batch Process:
Batch Process:
Underrated? Overused? What ever you think of Batch Process you can’t
Underrated? Overused? What ever you think of Batch Process you can’t
knock it.
knock it. Saving time and money,
Saving time and money, not to mention
not to mention your sanity. Let your
your sanity. Let your users
users
unleash the power of Batch Processes – if you dare!
unleash the power of Batch Processes – if you dare!
What’s the official blurb?
What’s the official blurb?
The batch process toolbox can create and run a script that can be performed
The batch process toolbox can create and run a script that can be performed
on individual files or entire directories of files. The script is a text file that
on individual files or entire directories of files. The script is a text file that
contains a series of MicroStation key-ins that can run commands,
contains a series of MicroStation key-ins that can run commands,
MicroStation BASIC macros, VBA macros, or MDL applications.
MicroStation BASIC macros, VBA macros, or MDL applications.
Where is it?
Where is it?
Utilities > Batch Process will bring up the dialog box
Utilities > Batch Process will bring up the dialog box
Looks pretty similar to Batch Convert dialog.
Looks pretty similar to Batch Convert dialog.
Similar and even easier to use. To create a new Batch Process click on the
Similar and even easier to use. To create a new Batch Process click on the
“Create a new command file” tool
“Create a new command file” tool
Enter the name of your process to create a .txt file. Normally server based
Enter the name of your process to create a .txt file. Normally server based
Batch Process files are kept in …/workspace/Standards/Data.
Batch Process files are kept in …/workspace/Standards/Data.
Your newly created txt file will open immediately. You need to add your
Your newly created txt file will open immediately. You need to add your
process to it.
Um…what am I processing?
Oh, come on now, look around! There must be dozens of dull repetitious work
that you could process.
Examples please?
The things I do for you. Some examples show multiple commands together in
one keyin. The ; does the same as putting the keyins on a separate line. It is
easier to see commands when you have all on a different line though. Note
that you don’t need to use the [ ] brackets.
Turning a level off in view 3 of multiple files (Note: “of” not “off”) Of=levelname;selview 3
Turning off all levels in view 3 Of=all;selview 3
Turning a level off in a view 3 Of=levelname;selview 3
Turning off a level in a reference file.
el [] [ erence name] Turning off a level in a reference file.
el [] [ erence name] Turning on level in view 3
On=levelname;selview 3 Turning a level off
Level Set Display [On|Off|Toggle] [file:filename] [levelname] Selecting a level
Level Element Select levelname
Changing the colour/weight/style Bylevel
Level Set Bylevel Color [Color index number][file:filename][levelname] Level Set Bylevel Style [Style number][file:filename][levelname]
Level Set Bylevel Weight [W eight number][file:filename][levelname] e.g.
Level Set Bylevel Color 2 file:floorplan.dgn A-F3-G-circ; update 1 (update 1 refreshes the view to show changes)
Changing a colour/weight/style Override
Level Set Override Color [On|Off|Toggle] [Color index number] [file:filename] [levelname] Level Set Override Style [On|Off|Toggle] [Style number] [file:filename] [levelname]
Level Set Overrride Weight [On|Off|Toggle] [W eight number] [file:filename] [levelname] Changing active weight/color/style
Select a model
Model active [modelname]
Change attributes in another model e.g.
Level Set Bylevel Color 2 [file:floorplan.dgn] [model:floor version b] A-F3-G-circ;update 1
Place smartline Xy=0,0
Dx=1,0
Xy puts a point at 0,0
Dx puts a point relative to the first point you place. Setting a view attribute e.g. the grid off and fill on Set grid off
Selview 1 Set fill on Selview 1 Filedesign
Selview 1 applies the settings in view 1.
Filedesign saves the settings. If you do not include a Filedesign, the view attributes wil l revert the next time you open the DGN.
Open a view View on 1
Changing the selection or the highlight colour Set highlite green
Set xor green
Xor is the selection set colour (for some strange reason). Setting the LTscale
\ltscale=100
Attaching one reference to multiple files
rf=[full path with back slashed file path],[model name],[logical name],,* The first comma after logical name is description – I have put none The second comma is view name - * for coincident, # for coincident world If you use live nesting:
rf=[full path with back slashed file path],[model name],[logical name],,*,1,on 1 = nest depth
On = attach the raster references as well. ...and that’s all you can do.
Move elements in a 3D file vi=top selview 1 Powerselector all move extended xy=0,0 dx=5326,1808 powerselector deselect view previous
selview 1
fit view extended 1 filedesign
The elements will be moved by the distance specified by “dx=”.
Fit all in view 1, then save a preview of it (good for old files that need to be previewed via a thumbnail). Set your personal config to MS_OPENV7= 1 - this converts v7 to v8, then use;
fitall selview 1 sv=preview selview 1 filedesign
Where can I find all these keyins?
In the MicroStation V8 XM Edition Help file’s Contents tab you will find the
keyin index at the bottom of the list.
But I like you so much I’ve put a few more with explanations down for you.
Have fun!
filedesign
filedesign is Save Settings (hence why the shortcut is Ctrl+F. I'm f ull of trivia, huh?). powerselector all
Selects everything (even elements that are not displayed) co=bylevel
Changes everything's colour to B yLevel powerselector deselect
Deselects everything level set overrides 0 all
Sets all overrides to white. Doesn't turn them on/off though. level set override color on all
Turns all colour overrides on.
LEVEL ELEMENT MOVE dest:A-G22-G-Floor Floor Moves all elements from "Floor" to "A-G22-G-Floor"
LEVEL PURGE dest:A-G22-G-Floor Floor
Deletes "Floor" and moves the elements to "A-G22-G-Floor" level delete unused
Deletes (purges) all unused levels
reference levels off s-z011-t-leeds bordera4l
Turns off the level "s-z011-t-leeds" in the reference "bordera4l" (using the logical name t o avoid ambiguity where two versions of the same file are attached).
selview all filedesign
Selects all views. Saves Settings. Useful for turning levels on/off.
ref lev off 50-54 border;selview all;ref lev on 52 border;selview all;filedesign; remember the ; does the same as putting the keyins on a separate line.
Word of advice though – it is easier to read the script when you have all commands on a different line.
ref lev off 50-54 border selview all
ref lev on 52 border selview all
filedesign
Turns off the level numbers 50 to 54 in the reference file with the logical name “border”, then turns level number 52 back on.
compress design
Compresses the file. But this depends on what compress options you have set. If you have none set, it will just get rid of deleted elements.
expand set MS_COMPRESS_OPTIONS = +LEVELS
Sets the compress options to always make sure Levels is on before compressing. Does the same as "level delete unused".
expand set MS_COMPRESS_OPTIONS = +LEVELS expand set MS_COMPRESS_OPTIONS = -textstyles
These settings must be done on separate lines, as the config MS_COMPRESS_OPTIONS uses semicolons to list its multiple options and therefore is misinterpreted in this context But an easier way is using
Compress options on all
Turns all your compress options on. Hey, we give more help than the help file! compress library
Compresses a dgnlib. ct=
filedesign
As a keyin ct= works by detaching the colourtable and uses the default (but doesn’t attach it). But here it doesn't work! The space after ct= is not recognised. You need to use:
colortable default filedesign
or to attach your own table
ct=D:/Workspace/Standards/data/colortables/my-col.tbl $ level library export $(basename(_dgnfile))
set plotter D:\Workspace\Standards\PlotDrv\pdf plot entity sheet
plot paper name A1
$ plot execute $(basename(_dgnfile)).pdf
Automatically creates a PDF called the same as the file without prompting to save.
