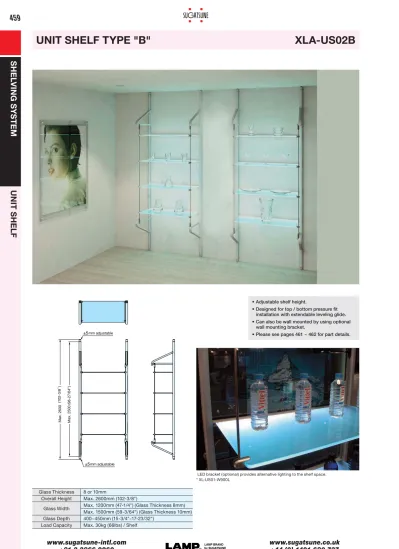

UNIT SHELF TYPE "B"

XLA-US02B

LED bracket (optional) provides alternative lighting to the shelf space. * XL-US01-W900L

Glass Thickness 8 or 10mm

Overall Height Max. 2600mm (102-3/8")

Glass Width Max. 1200mm (47-1/4") (Glass Thickness 8mm) Max. 1500mm (59-3/64") (Glass Thickness 10mm) Glass Depth 400~450mm (15-3/4"~17-23/32")

Load Capacity Max. 30kg (66lbs) / Shelf

Adjustable shelf height. •

Designed for top / bottom pressure fi t •

installation with extendable leveling glide. Can also be wall mounted by using optional •

wall mounting bracket.

Please see pages 461 ~ 462 for part details. •

UNI

T

SHEL

(2)

SHEL

VI

N

G

S

Y

S

T

EM

Glass Shelf Dimensions

XLA-US02-S006 XLA-US02-S007

Back Panel Installation

Vertical Frame Installation

* Please refer to P.468 for Alternate Vertical Frame Installation * Prevents glass slipping out from clamp

Safety Pin for glass clamp (Optional)

Back Panel Clamp Installation

*Insert clamp fasteners before mounting leveling legs.

UNI

T

SHEL

F

(3)

SHEL

VI

N

G

S

Y

S

T

EM

Detailed View

No. Item No. Part Name Dimensions Description

➀

XLA-US02-S006 Vertical Frame (1 Slot Type)

➁

XL-US02-S011 Type B Wire Kit

±5

Material

●

Aluminum, Zinc Alloy

Finish / Color ● Anodized, Grey Length ● Max. Height: 2600mm (102-3/8") (Floor to Ceiling) *2 leveling legs included per frame *Double slotted frame available. Please see XL-US02-S007on page 465 for details.

Material

●

Aluminum, Steel, 430 Stainless Steel

Finish / Color

●

Matte Chrome

*For Main Frame 2100mm~2500mm

“Type B” Part Details

UNI

T

SHEL

(4)

SHEL

VI

N

G

S

Y

S

T

EM

➂

XL-US01-F20 Type B Shelf Support (For Wire Shaft)

➃

XL-US01-B20

Type B Shelf Support (For Main Frame,

2pcs / shelf)

➄

XL-US01-W900L-B (Blue)

Shelf Support with LED (For Main Frame,

1pc / shelf) XL-US01-W900L-W (White) Material ● Zinc Alloy Finish / Color ● Matte Chrome

*2 Supports necessary for 1 Shelf Material ● Zinc Alloy Finish / Color ● Matte Chrome

*2 Supports necessary for 1 Shelf Material ● Aluminum Finish / Color ● Matte Chrome Width ●

For glass width 900mm

LED Color

●

Blue, White

Power Adapter not included * Recommended Adapter

Output: DC24V 1A, Plug: 2.5 x 5.5mm (+), 2 Shelves per Adapter

Sandblasting on top, bottom, front and •

sides of glass shelf with use of LED will provide the “glow” look. Glass edge attached to LED bracket should be polished.

Ultra clear glass recommended •

Edge cover AF-25-P01 covers and keeps •

wires inside frame slot Glass Preparation (when using LED)

Power Adapter (not included) can be connected to 2 shelf supports with LED

Shelf Support with LED (wiring)

When using LED

Type “B” Optional Part Overview

Please see page P.469~470 for details

UNI

T

SHEL

F

Part Name Wall Mounting Plate Wall Mounting Bracket Wall Mounting

Bracket Back Panel Clamp Back Panel Clamp

Back Panel Clamp

Fastener Edge Cover Item No. XL-US02-S010 XL-US02-S008 XL-US02-S009 4860ZN1, 4860ZN5 4866ZN1, 4866ZN5 XL-US02-S013 AF-25-P01-25

(5)

SHEL

VI

N

G

S

Y

S

T

EM

±5

* For glass shelf clamp with LED, glass thickness is 10mm only

Glass Thickness 8 or 10mm

Overall Height Max. 2600mm (102-3/8")

Glass Width Max. 1200mm (47-1/4") (Glass Thickness 8mm) Max. 1500mm (59-3/64") (Glass Thickness 10mm) Glass Depth 200~450mm (7-7/8"~17-23/32")

Load Capacity Max. 35kg (77lbs) / Shelf

Glass Shelf Installation

* Insert clamp fasteners before mounting leveling legs.

UNIT SHELF TYPE "C"

XLA-US02C

UNI

T

SHEL

(6)

SHEL

VI

N

G

S

Y

S

T

EM

LED bracket (optional) provides alternative lighting to the shelf space. * XL-US01-S200L

Glass shelf clamp can be installed directly on wall. (Access from back side needed for installing)

Please see P.468 for frame installation above.

UNI

T

SHEL

F

Glass Shelf Dimensions

(7)

SHEL

VI

N

G

S

Y

S

T

EM

➀

XLA-US02-S007 Vertical Frame (2 Slot Type)

➁

XL-US01-S200 Shelf Clamp (For Glass Shelf)

➂

XL-US01-S200L-B (Blue)

Shelf Clamp (With LED, For Glass

Shelf) XL-US01-S200L-C (Cyan) ±5 ±5 Material ●

Finish / Color ● Anodized, Grey Length ● Max. Height: 2600mm (102-3/8") (Floor to Ceiling)

*2 leveling legs included per frame

*Single slotted frame available Please see XL-US02-S006 on page 461 for details

Material

●

Zinc Alloy, Elastomer

Finish / Color

●

Matte Chrome, Black

Glass Thickness

●

8mm, 10mm

*2 Clamps necessary for 1 Shelf

*Glass Shelf not included

Material

●

Zinc Alloy, Elastomer

Finish / Color

●

Matte Chrome, Black

LED Color

●

Blue, Cyan

Applicable Glass Thickness

●

10mm only

* Glass Shelf not included * Power Adapter not included * Recommended Adapter

Output: DC9V 0.8A, Plug: 2.1 x 5.5mm (+), 1 Shelf per Adapter

Detailed View

Type “C” Part Details

UNI

T

SHEL

(8)

SHEL

VI

N

G

S

Y

S

T

EM

Sandblasting on top, •

bottom, front and back edge of glass when using LED type clamp, will provide the "glow"look. Glass edge attached to clamp should be polished Ultra clear glass • recommended Recommended glass • size: Max. W800mm x D450mm Glass Processing

Shelf Support with LED (wiring)

Power Adapter (not included) can be connected to 2 shelf supports with LED

AF-25-P01 covers and keeps wires inside frame slot

When using LED

Type “C” Optional Part Overview

Please see P.469~470 for details

Part Name Shelf Support (For Wood Shelf)

Shelf Edge (For Wood Shelf)

Shelf Support for Glass (Angle Adjustable)

Shelf Edge

(For Glass Shelf) Edge Cover Item No. XL-US02-S002 XL-US02-S014 XL-US02-S003 XL-US02-S015 AF-25-P01-25

Part Name Center Panel Clamp Center Panel Clamp Center Panel Clamp Fastener

Wall Mounting Bracket

Wall Mounting Bracket Item No. 9344VA2 4856ZN1, 4856ZN5 XL-US02-S012 XL-US02-S008 XL-US02-S009

Please see P.467~P.468 for application example.

UNI

T

SHEL

F

(9)

SHEL

VI

N

G

S

Y

S

T

EM

Center Panel Clamp 9344

17.5 17.5 40

10

40

Center Panel Clamp 4856

27.5 27.5

40 40

10

Installation with Center Panel Clamp

* Insert clamp fasteners before installing leveling legs Wire kit and halogen lamp are not provided

* Prevents glass from slipping out from clamp.

Safety Pin (Optional)

Application Example

UNI

T

SHEL

(10)

SHEL

VI

N

G

S

Y

S

T

EM

Wall Mounting Bracket Installation (1) (XL-US02-S008)

Wall Mounting Bracket Installation (2) (XL-US02-S009)

Install plates on both the ceiling and fl oor, and install •

vertical frame over the plates Adjust height of legs for tight fi t •

Vertical Frame Installation

(For top/bottom pressure fi t)

UNI

T

SHEL

F

(11)

SHEL

VI

N

G

S

Y

S

T

EM

➀

XL-US02-S010 Wall Mounting Plate (For Type B)

➁

XL-US02-S008 Wall Mounting Bracket

➂

XL-US02-S009 Wall Mounting Bracket

➃

XL-US02-S002 Shelf Support (For Wood Shelf)

➄

XL-US02-S003

Shelf Support for Glass (Angle Adjustable)

➅

XL-US02-S014 Shelf Edge (For Wood Shelf)

➆

XL-US02-S015 Shelf Edge (For Glass Shelf)

Material ● Aluminum Finish / Color ● Anodized

*To be used with Main Frame (1 Slot Type)

*For Type B

Material

●

304 Stainless Steel, Steel

Finish / Color ● Grey Material ● Aluminum Finish / Color ● Anodized Material ● 304 Stainless Steel Finish / Color ● Plain

*Shelf not included *For Type C Material ● Aluminum Finish / Color ● Anodized

*Prevents items falling off from shelves

*For wood shelf

*To be mounted on side edge *For Type C

Material

●

Finish / Color

●

Anodized, Matte Chrome *Prevent items from falling off *For glass shelf

*To be mounted on front or back edge *For Type C Material ● 304 Stainless Steel Finish / Color ● Polished, Plain Glass Thickness ● 10mm

*Angle adjustable each 30 degrees *Glass not included

*For Type C

*Pre-drilled holes (countersunk) required on glass

*Please order special wrench Z058 for installation

Optional Part Details

(Type B / C)

UNI

T

SHEL

(12)

SHEL

VI

N

G

S

Y

S

T

EM

Material ● 316 Stainless Steel Finish / Color ● Satin Panel Thickness ● 10mm

*Holds panel between Main Frames

Material ● Zinc Alloy Finish / Color ● Matte Chrome (ZN1) Chrome (ZN5) Panel Thickness ● 10mm

Material ● 304 Stainless Steel Finish / Color ● Plain

*Nut / Bolt to fasten Center Panel Clamp and Main Frame

Material ● Zinc Alloy Finish / Color ● Matte Chrome (ZN1) Chrome (ZN5) Panel Thickness ● 8~12mm

*Holds panel between Main Frames (2 Slot Type) Material ● 304 Stainless Steel Finish / Color ● Plain

*Nut / Bolt to fasten Back Panel Clamp and Main Frame

Material ● Synthetic Rubber Finish / Color ● Light Grey Length ● 2500mm (98-27/64")

UNI

T

SHEL

F

➇

9344VA2 Center Panel Clamp

➈

4856ZN1, 4856ZN5 Center Panel Clamp

➉

XL-US02-S012 Center Panel Clamp Fastener

4860ZN1, 4860ZN5 Back Panel Clamp

4866ZN1, 4866ZN5 Back Panel Clamp

XL-US02-S013 Back Panel Clamp Fastener
