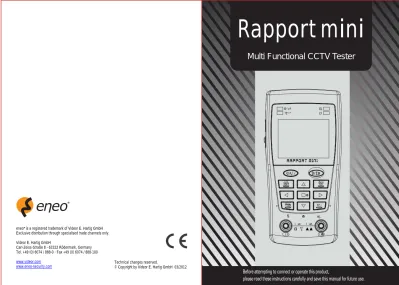

Rapport mini. Multi Functional CCTV Tester

(1)

FAR OPEN TELE OSD NEAR CLOSE WIDE COM V/ 300V 300V~ MAX V ~ ~♬ MODE SET CHG FULL Tx Rx

Rapport mini

Multi Functional CCTV Tester

Technical changes reserved.

Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH

Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100

www.videor.com www.eneo-security.com

(2)

BEFORE USING RAPPORT mini

SAFETY INFOMATION

PRODUCT INTRODUCTION

PRODUCT SPECIFICATION

Dimension

LED Indicator

FUNCTIONAL SPECIFICATION

Mode setup

Video Tester

Color Bar Generator Mode

Digital Multimeter

Measuring AC & DC Voltage

Measuring Resistance

Continuity Testing

PTZ Controller

SPD(SPEED)

GPST(GO TO PRESET)

SPST(SET PRESET)

FUNC

DATA

4

5

6

12

14

15

16

17

18

20

22

24

25

26

28

29

30

31 Setup

USER NAME

SLEEP TIME

BEEP

FLASH

SYMBOLS

33

34

35

36

(3)

안전 및 경고 사항

Be sure to read through the "Safety Information" section

before using this Rapport mini.

General

Precautions

Pay attention to the following precautions when using

the Rapport mini.

BEFORE USING RAPPORT mini

This basic instruction manual is for users of the Rapport mini. Starting with an outline of this Rapport mini, the manual explains its operation,how it connects to other devices, how to use the menu buttons,and how it should be operated.

It is highly recommended, even for those who have handled similar devices, as well as for those using it for the first time, to read all the instructions thoroughly, especially the precautions, before using the Rapport mini.

If there are any questions which arise when using the Rapport mini or the unit is damaged, please contact the supplier of your Rapport mini.

Safety Information highlights and explains the precautions which should be taken, for the safety of users, when using the Rapport mini.

When using the Digital MultiMeter function to measure voltage or current,

be sure that the input does not exceed the capabilities of the tester.

Overloading the tester can cause damage or personal injury.

When measuring current of unknown values, always begin with the 10A

mode, then step down to the 400mA input if necessary.

Environmental Limitations

Temperature:

-10 to 40 degrees C

Relative Humidity: 30% -90%

DC input voltage: 12V +/-10%, 1A

Rapport mini Safety Precautions

-Use only specified replacement fuses. -Do not use damaged test leads with the DMM.

-When using the DMM function, set the proper mode before connecting to the circuit under est.

-When measuring resistance, make certain that the circuit is de-energized before connecting the test leads to the circuit.

-Do not measure resistance on powered circuits.

-Do not use the unit in damp, humid or gaseous environments. -Do not touch it with wet hands.

-Be mindful not to shock or shake the unit while in use to avoid damage.

-Avoid areas with strong magnetic or electromotive fields, which can cause incorrect measurements.

-Remove the power plug from the outlet when there is a lighting storm. -Neglecting to do so may cause ﬁre or damage to the product.

-The Main plug is used as a disconnect device and shall stay readily operable at any time.

-Be sure to use only the standard adapter that is specified in the specification sheet. -Using any other adapter could cause fire, electrical shock, or damage to the product. -Securely plug the power cord into the power receptacle. Insecure connection may cause fire.

-If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.

-When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock

(4)

FAR

OPEN TELEOSD

NEAR CLOSE WIDE COM V/ 300V 300V~ MAX V ~ ~♬ MODE SET CHG FULL Tx Rx

• Rapport mini • Accessories

BNC cable Power Adaptor

Test lead body cover

FAR OPEN TELE OSD NEAR CLOSE WIDE COM V/ 300V 300V~ MAX V~ ~♬ MODE SET Tx Rx RAPPORT MINI MANUAL manual

Rapport mini has a built-in Lithium Polymer

Battery.

It can be recharged using a DC12V power

adapter with an output of 1A or above and

reaches its full charge after a period in

excess of 5 hours. After the battery has been

fully charged for the first 2~3 charging

cycles, it can be used for approximately 6

hours (up to a Max.8 hrs in normal

operation).The battery can be recharged by

connecting it to the DC adapter, regardless of

OSD power, when the slider switch has been

turned on.

The discharge operation starts when the

Main Switch is turned on and it then

consumes power from the battery. Therefore,

when the Rapport mini is not being used for

a period of time, make sure the Main Switch

is turned off.

PRODUCT INTRODUCTION

Summary

Standard Items

Check the contents of your Rapport mini package against the standard checklist below : Designed, with portability and serious CCTV engineers in mind, the Rapport mini is an advanced piece of video test equipment consisting of many useful test functions needed to professionally install a CCTV system; test functions include Video Level, Service Monitor, Multimeter, PTZ Test, RS-422 and RS-485 Communication Test, etc.

Test Leads Adaptor BNC to BNC Cable RAPPOR MINI MANU AL

• Rapport mini Package

CHG FULL

(5)

FAR

OPEN TELEOSD

NEAR CLOSE WIDE COM V/ 300V 300V~ MAX V ~ ~♬ MODE SET Tx Rx

⑤

⑥

⑦

① ②

③ ④

MODE SET FAR OPEN TELE OSD NEAR CLOSE WIDE COM V/ 300V 300V~ MAX V ~♬

①

②

① : Common Port, Lead for black color

② : Voltage & Resistance Port, Lead for red color

PRODUCT INTRODUCTION

Product Introduction

CHG LED Charge LED Data Transmitting LED Data Receiving LED LCD

Keypad MODE Button SET Button PTZ mode

Red LED is on when the system is switched on. Green LED is on when the battery is fully charghed. Red LED is on when PTZ data is transmitted. Green LED is on when PTZ data is received. 2.5” Color TFT LCD

Main keypad for Rapport mini operation Mode Select: Video, MultiMeter, PTZ Control. Used to confirm selection in menu screens. (Press for 2 seconds to power on.) Adjusts PTZ Focus Far Operation. IRIS OPEN

Part Name Function ① ② ③ ④ ⑤ ⑥

Part Name Function

Adjusts PTZ Focus Near Operation IRIS Close

Adjusts PTZ Focus Zoom-in Operation Clear OSD of PTZ mode

Adjusts PTZ Focus Zoom-out Operation Moves PTZ Up/Down/Left/Right & Select Menu Control flash ON/ OFF button

PTZ mode PTZ mode

PTZ mode PTZ mode Flash control

Test Lead Connection : Ports for Digital MultiMeter

V/ COM CHG

(6)

①

②

① DC Power Jack : DC Power Input Jack (DC12V, 1A) ② Power Switch : Main Power Supply ON/OFF switch

①

②

① Flash : White LED to lignt up in the dark area ② Internal Battery Cover

① Communication Port : Input & Output of PTZ communications signals (RS 422/ RS485, Rx+, Rx-, Tx+, Tx- ) ② Video Port : Select Video In and Video out in the Video mode • Vin : Display input video signal to NTSC or PAL format.

• Vout : Transmit Standard Color-bar to external motor with NTSC or PAL format.

①

②

CAUTION

PRODUCT INTRODUCTION

Do not shine the light to the human eyes and animals’. It can lead to blindness.

(7)

Electrical Characteristic Video Mode Input Voltage Battery Built-in charger Display Display Resolution Working Temp. Dimension DC 12V ± 10%, 1A 7.4V (3.7x2)Li-Poly, 2000mAh Charging Time : 6 hour Operation Time : 8 hour

5 hour (Light HIGH ON), Continuous working 2.5" TFT-LCD (Digital), RGB666 320 x 240 -10℃~40℃ L159.3 x W79.1 x T32.2 (mm)

Electrical Specifications

Functional Specifications

Video IN / OUT LCD Adjustment Color bar generation Signal Mode Communication PTZ Protocol Baud rate Rx Data Analyzer DC Voltage Range AC Voltage Range Continuity Resistance Range ON / OFF 1CH, BNC ( IN/OUT selectable), 1.0 Vpp Brightness, contrast

Standard Color bar(NTSC/PAL) NTSC/PAL (Auto adapt) RS422, RS485 Multi (24 protocols) 2400bps~38400bps Hex Value Analysis 400mV/4V/40V/300V 4V/ 40V/300V Built-in Buzzer sound

400Ω/4KΩ/40KΩ /400KΩ/4MΩ/40MΩ -Viewing angle : about 60°

-Normal Operation : 5 hours continuous working -Flash intensity :LOW/ MID/ High

PTZ Controller

Digital Multi-Meter

Flash Control

Mode Range Minimum

Measuring Accuracy DC Voltage 400mV 100uV 4V 1mV 40V 10mV 300V 100mV AC Voltage 4V 1mV 40V 10mV 300V 100mV Resistance 400Ω 0.1Ω 4㏀ 1Ω 40㏀ 10Ω 400㏀ 100Ω 4㏀ 1㏀ 40㏀ 10㏀

Continuity Beeper is activated when the resistance is below 80Ω

±(2.5% +4dgts) ±(2.5% +4dgts) ±(2.5% +4dgts) ±(2.0% +4dgts) ±(2.0% +2dgts) ±(2.0% +4dgts) ±(3.0% +5dgts) (40㎐ ~ 500㎐)

Multi-meter Specifications

Note:

Maximum voltage drop approx. 2V on the measuring current.

(8)

Dimension

159.3 66.5 63.8 FAR OPEN TELE OSD NEAR CLOSE WIDE COM V/ 300V 300V~ MAX V ~ ~♬ MODE SET Tx Rx 79.1 32.2 * L159.3 x W79.1 x T32.2 (mm) Tx Rx OFF OFF ON OFF OFF ON OFF Flicker(1 Hz)

Item RED LED GREEN LED

PRODUCT SPECIFICATION

LED Indicator

On charging : RED LED ON Fully charged: GREEN LED ON Shift power switch off to Power on

The LED turns Red or Green depend on the recharging status.

Discharged Charging Fully charged Low battery

Battery is consumable item with 6 months warranty after purchase. Use the manufacture provided adaptor only (DC12V/1A). When Red LED flicker, reload battery or recharge battery. ୔

CHG FULL

After Operating with Power on - On charging: RED LED ON - Fully charged: GREEN LED ON

* When it charge during operating, the screen show(Page19, ③) like ▶ (▶: DC Adaptor connect and Charge, ◀: Operated by Battery)

(9)

MODE MODE MODE

제품소개

FAR OPEN TELE OSD NEAR CLOSE WIDE MODE SET MODE SET Tx Rx MODE SET Tx Rx RAPPORT-MINI Ver : 0.03 [ Mode change ]

• Video Tester (Color CCTV Field Monitor )

• Color Bar Generator (Standard Video Signal generator) • Digital Multi-meter

• PTZ Controller • Receive Data Analyzer • Setup

• Flash ON / OFF

FAR

OPEN TELEOSD

NEAR CLOSE WIDE MODE SET VIDEO NTSC BRI 3 CON 7 METER

VIDEO COLOR PTZ DATA SETUP 0101

Functional use

Power ON/OFF

The power switch is located on the side of the handset.

Turn the power switch on, and press to start Rapport mini.

To turn off the system, press & hold for more than 2 sec. Then,

POWER OFF is displayed on the main screen with a beep. Release the

button. Turn the power switch OFF to prevent battery drain during storage.

The switch must remain ON to recharge the batteries.

A rechargeable battery should be plugged in over 5 hours to fully charge.

The charged battery can operate for about 8 hours.

When the battery indicator shows below , recharge it for use. (Full

charge: )

FUNCTIONAL SPECIFICATION

After the power is applied the above on-screen message is displayed. Approximately 2 seconds later the screen switches to the last OSD before power was turned off. The Rapport mini stores the last accessed OSD.

The initial OSD message displays the Rapport mini's firmware information. Versions of the product change whenever new firmware is uploaded.

Mode setup

Main Functions

The MODE SELECT menu is displayed when the key is depressed and moves to the next menu whenever the key is pressed

The OSD menu changes whenever the key is pressed, and sequences through in the following order :

VIDEO -> ColorBar -> Meter -> PTZ controller -> Receive Data -> SETUP ->VIDEO SET SET CHG FULL CHG FULL

(10)

[ Video Tester mode ] VIDEO IN VIDEO NTSC BRI 3 CON 7

①

④

⑥

⑦

②

③

⑤

VIDEO NTSC [ Video Mode ]

① VIDEO : Indicates Current Mode.

② NTSC : Indicates NTSC or PAL System. (LOSS: No video) ③ Indicates remained battery.

④ Indicates screen brightness, and brightness increases by +1 when the FAR key is pressed, and decreases by -1 when the NEAR key is pressed. ⑤ Indicates screen contrast, and contrast increases by +1 when the TELE key is pressed, and decreases by -1 when the WIDE key is pressed.

⑥ Indicates Mode, and changable by MODE button. ⑦ Indicates SET & Indicates OSD clear button

[ OSD clear]

METER

VIDEO COLOR PTZ DATA SETUP 0101 VIDEO NTSC BRI 3 CON 7 MODE CLR

제품소개

FUNCTIONAL SPECIFICATION

Video Tester

Connect the output terminal of video output system to the video BNC port of Rapport mini.

( : DC Adaptor connected : Operated by Battery)

※

If there is no video signal at the VIDEO IN port of the Rapport mini “LOSS” will be displayed.

(11)

Color Bar Generator Mode

VIDEO NTSC BRI 3 CON 7 COLOR BAR NTSC BRI 3 CON 7 METER

VIDEO COLOR PTZ DATA SETUP 0101 MODE FORMAT

①

④

⑥

⑦

②

③

⑤

[ Color Bar Test mode ]

COLOR BAR NTSC

BRI 3 CON 7

MODE FORMAT

COLOR BAR PAL

BRI 3 CON 7 MODE FORMAT [ NTSC ] [ PAL ] VIDEO OUT VIDEO

제품소개

FUNCTIONAL SPECIFICATION

④ Indicates screen brightness, and brightness increases by +1 when the FAR key is pressed, and decreases by -1 when the NEAR key is pressed. ⑤ Indicates screen contrast, and contrast increases by +1 when the TELE key is pressed, and decreases by -1 when the WIDE key is pressed.

⑥ Indicates Mode, and changable by MODE button. ⑦ Indicates video format change (NTSC <-> PAL)

( : DC Adaptor connected : Operated by Battery) To enter the PATTERN GENERATION MODE press the SET key while in the Color bar mode. By default the Video will be displayed in the top portion of the screen.

Outputs color bars allow technicians to configure monitors and troubleshot cameras by sending a known good video signal down a questionable coax run. Supports both PAL & NTSC video signal formats.

C A U T I O N

Video teminal is selected by internal firmware. Do not go into the Color bar mode when the camera video is connected.

(12)

METER

VIDEO COLOR PTZ DATA SETUP 0101 METER DC AC Ω VOLT

ACV 0.042V

METER AC Ω DC VOLT

DCV+ 00.1mV

MODE STORE

[ Select Multi Meter Mode ] [ Multi Meter Mode ]

METER DC AC Ω VOLT

DCV+ 12.01V

DCV+ 12.02V MODE STORE

①

④

⑥

⑦

⑧

②

③

⑤

⑨

Button for Multimeter mode

FAR

OPEN TELEOSD

NEAR CLOSE WIDE MODE SET ① ② ③ V ~ ~♬ ① Voltage mode ② OHM(resistance) mode

③ AC/DC, resistance/ continuity

제품소개

FUNCTIONAL SPECIFICATION

Digital Multimeter

Voltage, resistance and continuity can be tested.

To prevent electric shocks, injury, or damage to the Rapport mini, disconnect the power supply to the circuit under test, and discharge all high-voltage capacitors before testing resistance and continuity.

When using the meter function of the Rapport mini, make sure the unit is

switched on and set to the appropriate test mode before connecting the test lead set to the circuit under test.

W A R N I N G

Press the button to go into the multi meter mode.

Setup Keys

METER

※ Sleep time is not operated in Multimeter mode. (Sleep function -> see 34 page)

① METER : Indicates current mode. ② Indicates remained battery.

③ Indicates type of test set up :Resistance test, Continuity test, DC & AC Voltage. ④ Indicates test mode : DCV > DC Voltage, ACV > AC Voltage, OHM> Resistance

BUZZ> Continuity

Indicates test value displayed : Resistance (Ω, kΩ, MΩ), voltage( V, mV), continuity(BUZZ) ⑤

⑦ Indicates measured value on hold :

The measure value is stored and displayed here when the SET key is pressed . ⑨ Indicates Store button by using SET button.

⑧ Indicates mode display : Digital multimeter mode is displayed. ⑥ Indicates measured graph value :

The Measured Input value is displayed in the form of a graph. The graph is changed automatically and is equal to the measured value. OVER is displayed when the measured value is higher than the setup value.

(13)

METER AC Ω DC VOLT

DCV+ 12.01V

DCV+ 12.02V MODE STORE METER DC AC Ω VOLT

ACV 6.00V

MODE STORE METER AC DC VOLT

OHM 9.86M

OHM 9.86M MODE STORE COM V/ 300V 300V~ MAX V ~ ~♬ COM V/ 300V 300V~ MAX V ~ ~♬ COM V/ 300V 300V~ MAX V ~ ~♬ Ω COM V/ 300V 300V~ MAX V ~ ~♬ COM V/ 300V 300V~ MAX V ~ ~♬ METER AC DC VOLT

BUZZ 53.0

MODE STORE Ω

제품소개

FUNCTIONAL SPECIFICATION

Measuring AC & DC Voltage

Voltage is the difference in electrical potential between two points. The polarity of an AC voltage varies with time, while DC polarity is constant. The meter displays AC voltage as RMS values (Root Mean Square readings). The RMS value is the equivalent DC voltage measured in a time varying sinusoidal signal.

(AC Voltage Test) (DC Voltage Test)

Measuring Resistance

The unit of resistance is the Ω. The meter sends a low current into the circuit so that the resistance can be measured. This current runs along all paths between the two probes and enables the total resistance to be calculated.

Continuity Testing

Continuity means the presence of a complete path for current to flow. The continuity test features a beep that sounds when a circuit is complete. The beep allows users to quickly test continuity without having to watch the display. The beeper is activated when the resistance between the red and black probes is less than 80Ω.

(14)

PTZ control Button VIDEO IN Tx-Tx+ VIDEO Tx- Tx+ Rx- Rx+

[ Select PTZ Control mode] [ PTZ Control mode ]

PTZ ADDR Setting PROTOCOL Setting

BAUDRATE Setting PARITY Setting

PTZ NTSC PTZ NTSC ① ④ ⑥ ⑦ ② ③ ⑤ PTZ NTSC PTZ NTSC PTZ NTSC METER

VIDEO COLOR PTZ DATA SETUP

0101 PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE SPD 15 GPST 001 SPST 001 FUNC 01 MENU PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE SPD 15 GPST 001 SPST 001 FUNC 01 MENU MODE SETUP PTZ NTSC PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE SPD 15 GPST 001 SPST 001 FUNC 01 MENU MODE SETUP PTZ NTSC SPD 15 GPST 001 SPST 001 FUNC 01 MENU MODE OK PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE SPD 15 GPST 001 SPST 001 FUNC 01 MENU MODE OK PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE SPD 15 GPST 001 SPST 001 FUNC 01 MENU MODE OK PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE SPD 15 GPST 001 SPST 001 FUNC 01 MENU MODE OK PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE FAR

OPEN TELEOSD

NEAR

CLOSE WIDE

MODE SET

FUNCTIONAL SPECIFICATION

④ Indicates PTZ Setting

-> PTZ ADDR : PTZ address setting ( 000~255) -> PROTOCOL: PTZ protocol setting (24 Protocols) -> BAUDRATE : Communication speed setting (2.4Kbps, 4.8Kbps, 9.6Kbps, 19.2Kbps, 38.4Kbps) -> PARITY: Parity bit setting (EVEN,ODD, NONE)

PTZ Controller

Connecting Camera and Monitor

PTZ Operation Test: Up, Down, Left, Right, Zoom and Manual focus control are possible. The tester can also be set to various protocols and transmission speeds (baud rates).

(15)

Each menu setting / value setting

ⓐ Go into the PTZ mode & Exit button

ⓑ Change PTZ setting value

OPEN TELEOSD

NEAR CLOSE WIDE MODE SET ⓐ ⓑ ⓑ ⓒ ⓒ PTZ NTSC PTZ NTSC MODE GO MODE GO SPD 15 GPST 001 SPST 001 FUNC 01 MENU PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE SPD 15 GPST 001 SPST 001 FUNC 01 MENU PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE PTZ NTSC MODE GO SPD 15 GPST 001 SPST 001 FUNC 01 MENU PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE PTZ NTSC SPD 15 GPST 001 SPST 001 FUNC 01 MENU PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE MODE GO

FUNCTIONAL SPECIFICATION

- PTZ Control Setup Screen

Press and hold the SET button for 2seconds until PTZ protocol menu activates. PT control (Up, Down, Left, Right), is performed using the arrow keys.

How to Control a PTZ Camera

SPD (SPEED) : Move the cursor to the SPD

icon, using the procedures described above. A total of 16 increments in speed (0 to 15) are available

for selection using the keys.

PTZ functions - Up, Down, Left, Right movements are carried out using the SET Button. Focus and Zoom adjustments are made using the FAR/NEAR (Focus) and TELE/WIDE (Zoom) buttons.

GPST (GO TO PRESET) : Moves the camera

view to a designated preset location; Presets are numbered 000 to 255. The cursor moves to the GPST position when the key is pressed. Select the previously stored PRESET number using the & keys (move by+1, -1 step). Once selection is complete, press the key once more and the camera will move to the PRESET location.

SPST (SET PRESET) : Sets and stores

PRESET information in the range from 000 to 255. First, move the camera to the required view and press the key, and use the & keys to place the cursor at the location of the chosen preset. Then set up the address where the preset is to be stored by using the & keys, and press the key once more. The location information is now stored as a preset address.

FUNC (Function): User can set different functions that automatically load the presets of the camera system. The FUNC setup uses the SPST and MENU information buttons for the user to program various presets. The different number of presets can range from 00 all the way to 63. The functions (presets) can be programmed by the (+1), (-1) buttons and steps by using the & keys.

(16)

PTZ OSD clear PTZ NTSC PTZ NTSC TELE OSD TELE OSD FAR OPEN TELE OSD NEAR CLOSE WIDE MODE SET FAR OPEN TELE OSD NEAR CLOSE WIDE MODE SET PTZ NTSC PTZ NTSC SPD 15 GPST 001 SPST 001 FUNC 01 MENU MODE GO PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE MODE SETUP MAIN MENU DOME CAMERA MOTION DISPLAY CLEAR DATA EXIT SPD 15 GPST 001 SPST 001 FUNC 01 MENU

MODE SHIFT SETUP

PTZ ADDR :001 PROTOCOL : (01)PELCO-D BAUDRATE: 2 . 4Kbps PARITY : NONE

MODE SHIFT SETUP

DATA RCV NTSC

METER

0101 VIDEO Tx- Tx+ Rx- Rx+ VIDEO IN RX-RX+ TX-TX+

FUNCTIONAL SPECIFICATION

MENU : Activates the PTZ camera’s internal menu. PTZ cameras have an on-screen menu

system that allows Rapport mini to program various functions of the camera including day/night mode, focus settings, and tours. When a tour is programmed into the camera it can be activated with Rapport mini using the TOUR function in the menu.

MODE :Change the menu.

SETUP :Setup the PTZ Camera menu.

OSD Clear : When you press button in the PTZ mode, the PTZ OSD clear button is

activated and press the button, the PTZ OSD is cleard.

DATA :

When you want to know the input signal of an exterior controller, you can see the input data(HEX value) by connecting the communications cable to the RX terminal of the Rapport mini. The control commands from the keyboard of an external control are displayed on the screen. Most important is that the communications speed be matched.

(17)

MODE

[ Clear received data ]

DATA RCV MODE CLEAR F F 0 0 0 0 F F 0 1 0 0 0 0 F F 0 1 0 0 0 2 3 B 3 B 7 9 F F 0 1 0 0 0 2 3 B 3 B 7 9 F F 0 1 0 0 0 0 0 0 0 0 0 1 F F 0 1 0 0 0 0 0 0 0 0 0 1 F F 0 1 0 0 0 0 0 0 0 0 0 1

①

③

④

⑤

②

DATA RCV MODE CLEAR F F 0 0 0 0 F F 0 1 0 0 0 0 F F 0 1 0 0 0 2 3 B 3 B 7 9 F F 0 1 0 0 0 2 3 B 3 B 7 9 F F 0 1 0 0 0 0 0 0 0 0 0 1 F F 0 1 0 0 0 0 0 0 0 0 0 1 F F 0 1 0 0 0 0 0 0 0 0 0 1 DATA RCV MODE CLEAR SET

[ Select SETUP mode ] [ SETUP mode ]

SETUP

METER

0101

USER NAME : RAPPORT - MINI SLEEP TIME : 30Min BEEP : ON

FLASH LVL : HIGH

SETUP

USER NAME : RAPPORT - MINI

SLEEP TIME : 30Min BEEP : ON FLASH LVL : HIGH

MODE

SETUP

SLEEP TIME : 30Min

BEEP : ON FLASH LVL : HIGH MODE

①

②

③

④

FUNCTIONAL SPECIFICATION

① DATA RCV : Indicates Current Mode. ② Indicates remained battery. ③ Indicates received data. ④ Indicates change mode.

⑤ Indicates data clear on the screen. (Press SET button to operate it)

① SETUP : Indicates Current Mode. ② Indicates remained battery. ③ Indicates setup items. ④ Indicates change mode.

Select a menu item by pressing the & keys. Each setup value can be changed by pressing the & keys Mode Select : To access this menu depress the key and select the SETUP icon.

(18)

SETUP

SLEEP TIME : 30Min BEEP : ON FLASH LVL : HIGH MODE SETUP BACK USER NAME RAPPORT - MINI 0 1 2 3 4 5 6 7 8 9 ( ) A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ! @ # $ % & + - + < >

FLASH ON/OFF & Level Change

Flash Level - OFF - LOW - MID - HIGH FLASH OFF

Press 2 seconds FLASH ON Press 2 seconds

SETUP

SLEEP TIME : 30Min

BEEP : ON FLASH LVL : HIGH

MODE

SETUP

USER NAME : RAPPORT - MINI SLEEP TIME : 30Min

BEEP : ON

FLASH LVL : HIGH

MODE

SETUP

MODE

USER NAME : RAPPORT - MINI SLEEP TIME : 30Min BEEP : ON

FLASH LVL : HIGH

FUNCTIONAL SPECIFICATION

Selecting the USER NAME initiates an editing menu and shows the associated key strokes.

BUZZER: Select a menu item by pressing the & keys. Each setup value can be changed by pressing the & keys (ON/OFF)

SLEEP TIME: Select sleep time by using the & buttons and change sleep options by using the & buttons. The options are OFF, 1, 5, 10, 30, 60 minutes.

Select a menu item by pressing the & keys. Each setup value can be changed by pressing the & keys

Select a menu item by pressing the & keys. Flash level can be changed by pressing the & keys

To turn on or turn off, use the button for 2 seconds.

※ Sleep time makes the power go OFF automatically, unless the button is pressed.

(19)

MEMO

Number 1 2 3 4 5 6 7 8 9 10 11 12 13 Direct current Alternating current

3

Symbol Description

Both direct and alternating current Three-phase alternating current Earth (ground) TERMINAL PROTECTIVE CONDUCTOR TERMINAL Frame or chassis TERMINAL Equipotentiality

On(Supply) Off(Supply)

Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION Caution, rick of electronic shock Caution, hot surface IRE 60417 - 5031 Reference IRE 60417 - 5032 IRE 60417 - 5033 IRE 60417 - 5017 IRE 60417 - 5019 IRE 60417 - 5020 IRE 60417 - 5021 IRE 60417 - 5007 IRE 60417 - 5008 IRE 60417 - 5172 IRE 60417 - 5041

**The equipment shall not be used for measurements of categories II, III and IV.

**If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

SYMBOLS

(20)
