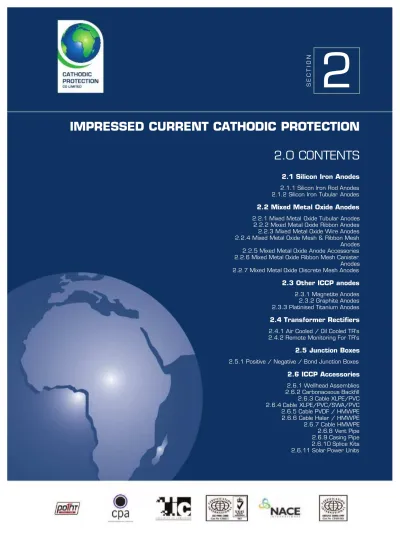

IMPRESSED CURRENT CATHODIC PROTECTION

2.0 CONTENTS

2.1 Silicon Iron Anodes 2.1 Silicon Iron Anodes

2.1.1 Silicon Iron Rod Anodes

2.1.2 Silicon Iron Tubular Anodes

2.1.2 Silicon Iron Tubular Anodes 2.2 Mixed Metal Oxide Anodes 2.2 Mixed Metal Oxide Anodes

2.2.1 Mixed Metal

2.2.1 Mixed Metal Oxide Tubular AnodesOxide Tubular Anodes

2.2.2 Mixed Metal Oxide Ribbon Anodes

2.2.3 Mixed Metal Oxide Wire Anodes

2.2.4 Mixed Metal Oxide Mesh & Ribbon Mesh

Anodes

2.2.5 Mixed Metal Oxide Anode Accessories

2.2.6 Mixed Metal Oxide Ribbon Mesh Canister

Anodes

2.2.7 Mixed Metal Oxide Discrete Mesh Anodes

2.2.7 Mixed Metal Oxide Discrete Mesh Anodes 2.3 Other ICCP anodes 2.3 Other ICCP anodes

2.3.1 Magnetite Anodes

2.3.2 Graphite Anodes

2.3.3 Platinised Titanium Anodes

2.3.3 Platinised Titanium Anodes 2.4 Transformer Rectifiers 2.4 Transformer Rectifiers

2.4.1 Air Cooled / Oil Cooled TR's

2.4.2 Remote Monitoring For TR's

2.4.2 Remote Monitoring For TR's 2.5 Junction Boxes 2.5 Junction Boxes

2.5.1 Positive / Negative / Bond Junction Boxes

2.5.1 Positive / Negative / Bond Junction Boxes 2.6 ICCP Accessories 2.6 ICCP Accessories 2.6.1 Wellhead Assemblies 2.6.1 Wellhead Assemblies 2.6.2 Carbonaceous Backfill 2.6.2 Carbonaceous Backfill 2.6.3 Cable XLPE/PVC 2.6.3 Cable XLPE/PVC 2.6.4 Cable

2.6.4 Cable XLPE/PVC/SWXLPE/PVC/SWA/PVCA/PVC

2.6.5 Cable PVDF / HMWPE

2.6.6 Cable Halar / HMWPE

2.6.7 Cable HMWPE 2.6.7 Cable HMWPE 2.6.8 Vent Pipe 2.6.8 Vent Pipe 2.6.9 Casing Pipe 2.6.9 Casing Pipe

(2)

REVISION 1

APPLICATION

Marine Structures, Seawater Intakes, Deepwell Groundbeds, Horizontal Groundbeds, Distributed Anodes,

Marine Structures, Seawater Intakes, Deepwell Groundbeds, Horizontal Groundbeds, Distributed Anodes, Tank Tank

Internals & Tank Bottoms. Suitable For Use In Soils, Mud, Carbonaceous & Petroleum Coke Backfill; Fresh, Brackish

and Sea Water.

CHEMICAL COMPOSITION

CONSUMPTION RATES

CABLE CONNECTION

SILICON IRON ANODE DATA

Silicon Silicon Manganese Manganese Carbon Carbon Chromium Chromium Iron Iron Normal Normal 14.50% 14.50% 0.75% 0.75% 0.85% 0.85% – – Remainder Remainder Chrome Chrome 14.50% 14.50% 0.75% 0.75% 0.95% 0.95% 4.50% 4.50% Remainder Remainder Normal Alloy Normal Alloy Chrome Alloy Chrome Alloy 0.5 kg/Amp/year 0.5 kg/Amp/year 0.2 kg/Amp/year 0.2 kg/Amp/year Typical Rates Typical Rates

With Heatshrink Sleeve

With Heatshrink Cap

(3)

REVISION 1

APPLICATION

Marine Structures, Seawater Intakes, Deepwell Groundbeds, Horizontal Groundbeds, Distributed Anodes, Tank Tank

Internals & Tank Bottoms. Suitable For Use In Soils, Mud, Carbonaceous & Petroleum Coke Backfill; Fresh, Brackish

and Sea Water.

CHEMICAL COMPOSITION

CONSUMPTION RATES

CABLE CONNECTION

SILICON IRON ANODE DATA

Silicon Silicon Manganese Manganese Carbon Carbon Chromium Chromium Iron Iron Normal Normal 14.50% 14.50% 0.75% 0.75% 0.85% 0.85% – – Remainder Remainder Chrome Chrome 14.50% 14.50% 0.75% 0.75% 0.95% 0.95% 4.50% 4.50% Remainder Remainder Normal Alloy Normal Alloy Chrome Alloy Chrome Alloy 0.5 kg/Amp/year 0.5 kg/Amp/year 0.2 kg/Amp/year 0.2 kg/Amp/year Typical Rates Typical Rates

With Heatshrink Sleeve

With Heatshrink Cap

(4)

Type Type 36/2.0 36/2.0 36/2.5 36/2.5 36/3.0 36/3.0 48/2.0 48/2.0 48/2.5 48/2.5 48/3.0 48/3.0 60/2.0 60/2.0 60/2.5 60/2.5 60/3.0 60/3.0 60/4.5 60/4.5

REVISION 1

CABLE TYPES

Available cable types include : XLPE/PVC, HMWPE, PVDF(Kynar), XLPE/PVC/SWA/PVC, EPR/CSPE

STANDARD ANODE TYPES AND WEIGHTS

CANISTERED ANODES

A A (in) (in) 36 36 36 36 36 36 48 48 48 48 48 48 60 60 60 60 60 60 60 60 B B (in) (in) 2.0 2.0 2.5 2.5 3.0 3.0 2.0 2.0 2.5 2.5 3.0 3.0 2.0 2.0 2.5 2.5 3.0 3.0 4.5 4.5 C C (in) (in) 3.0 3.0 3.5 3.5 4.0 4.0 3.0 3.0 3.5 3.5 4.0 4.0 3.0 3.0 3.5 3.5 4.0 4.0 4.5 4.5 (m (m22₎₎ 0.16 0.16 0.20 0.20 0.23 0.23 0.20 0.20 0.25 0.25 0.30 0.30 0.25 0.25 0.32 0.32 0.38 0.38 0.55 0.55 (ft (ft 22₎₎ 1.70 1.70 2.1 2.1 2.50 2.50 2.20 2.20 2.70 2.70 3.30 3.30 2.70 2.70 3.40 3.40 4.0 4.0 5.90 5.90 (kg) (kg) 14.50 14.50 22.30 22.30 31.40 31.40 19.10 19.10 28.60 28.60 40.90 40.90 22.70 22.70 35.90 35.90 50.00 50.00 99.10 99.10 (lbs) (lbs) 32 32 49 49 69 69 42 42 63 63 90 90 50 50 79 79 110 110 218 218 S Suurrffaacce e AArreeaa AApppprroox x WWt t Standard Sizes Standard Sizes 150mmDia x 1500mm L 150mmDia x 1500mm L 200mmDia x 2000mm L 200mmDia x 2000mm L 250mmDia x 2000mm L 250mmDia x 2000mm L Standard Gauges Standard Gauges 1.0mm 20bg 1.0mm 20bg 1.2mm 18bg 1.2mm 18bg 1.5mm 18bg 1.5mm 18bg

(5)

REVISION 1

APPLICATION

Marine Structures, Seawater Intakes, Deepwell Groundbeds, Horizontal Groundbeds, Distributed Anodes, Tank InternalsTank Internals

& Tank Bottoms (not recommended for large diameter tanks). Suitable For Use In Soils, Mud, Carbonaceous & Pet Coke

Backfill; Fresh, Brackish and Sea Water

CHEMICAL COMPOSITION

TECHNICAL DATA

SILICON IRON TUBULAR ANODE DATA

Silicon Iron

Silicon Iron ASTM A518 – ASTM A518 – 86 Grade 86 Grade 33

Silicon Silicon Manganese Manganese Carbon Carbon Chromium Chromium Copper Copper Molybdenum Molybdenum Iron Iron 14.20 – 14.75% 14.20 – 14.75% 1.50% Max 1.50% Max 0.75 – 1.15% 0.75 – 1.15% 3.25 – 5.00% 3.25 – 5.00% 0.50% Max 0.50% Max 0.20%Max 0.20%Max Remainder Remainder

Tensile Strength (1/2”Dia bar)

Compressive Strength Compressive Strength Brinell Hardness Brinell Hardness Density Density Melting Point Melting Point 15,000 psi 15,000 psi 100,000 psi 100,000 psi 520 bhn 520 bhn 7.0 gr/ml 7.0 gr/ml 2,300 ˚F 2,300 ˚F

(6)

REVISION 1

STANDARD ANODE TYPES, WEIGHTS, DIMENSIONS AND OUTPUTS

Average Wt

Type

Type ApproxApprox

Area Area Outside Outside Dia Dia Inside Inside Dia Dia Length Length 31 31 46 46 63 63 85 85 110 110 MS-1 MS-1 MS-2 MS-2 MS-3 MS-3 MS-4 MS-4 MS-5 MS-5 14.1 14.1 20.9 20.9 28.6 28.6 39.2 39.2 49.9 49.9 2.4 2.4 4.0 4.0 4.9 4.9 6.9 6.9 8.7 8.7 0.2 0.2 0.4 0.4 0.5 0.5 0.6 0.6 0.8 0.8 71 71 58 58 71 71 96 96 124 124 2.8 2.8 2.3 2.3 2.8 2.8 3.8 3.8 4.9 4.9 45.7 45.7 35.6 35.6 45.7 45.7 74.4 74.4 99.0 99.0 1.8 1.8 1.4 1.4 1.8 1.8 2.9 2.9 3.9 3.9 1067 1067 2134 2134 2134 2134 2134 2134 2134 2134 42 42 84 84 84 84 84 84 84 84 1.5-2.0 1.5-2.0 3.0-4.0 3.0-4.0 3.5-5.0 3.5-5.0 6.0-7.0 6.0-7.0 6.0-8.5 6.0-8.5 l lbbss kkggss fft t 22 _m_m22 _m_m_m_m _i_i_n_n _m_m_m_m _i_i_n_n _m_m_m_m _i_i_n_n Nominal Nominal Discharge Discharge Amps Amps

(7)

Substrate Titanium ASTM B338 Grade 1 or 2 Coating IrO₂/Ta₂O₅

CoatingMethod Multipassthermaldecompositionofpreciousmetalsaltstechnique Diameter 25.4mm

Wall Thickness 0.90mm

ConsumptionRate 0.5-4.0mg/A/yrdependinguponCPapplicationconditions Utilisation Factor Dimensionally Stable

Working Environment Suitable for Cl₂&O₂orcombinationofboth OperatingCharacteristics Coatingloadingcanbeadjustedforspecificlifetime/currentdensityrequirement

REVISION 1

APPLICATION

MarineStructures,SeawaterIntakes,DeepwellGroundbeds,HorizontalGroundbeds,DistributedAnodes,TankInternals &TankBottomsSuitableForUseInSoils,Mud,Carbonaceous&PetCokeBackfill;Fresh,BrackishandSeaWater

TUBULAR MMO ANODE DATA

Environment CarbonaceousBackfill CalcinedPetroleumCoke Freshwater BrackishWater Seawater MaxCurrentDensity (A/m2₎ 50 100 100 100-300 600 Life (Years) 20 20 20 20 20

(8)

REVISION 1

STANDARD ANODE TYPES, DIMENSIONS AND OUTPUTS

Soil(withcarbonbackfill) S-2.5/50 S-2.5/100 FreshWater FW-2.5/50 FW-2.5/100 SeaWater SW-2.5/50 SW-2.5/100 Mud(*) M-2.5/50 M-2.5/100 BrackishWater(**) BW-2.5/50 BW-2.5/100 mm 25 25 25 25 25 25 25 25 25 25 inches 1 1 1 1 1 1 1 1 1 1 mm 500 1000 500 1000 500 1000 500 1000 500 1000 inches 19.7 39.4 19.7 39.4 19.7 39.4 19.7 39.4 19.7 39.4 (Ampsfrom5-70˚C) 4 8 4 8 25 50 2-4 4-8 (Ampsfrom10-70˚C) 4÷12 8÷24 (Ampsfrom0-5˚C) 2 4 2 4 5 10 1.5 3 (Ampsfrom0-10˚C) 2÷6 4÷12 Type OD Length CurrentOutput

(Typical) CurrentOutput (Typical) (*)Currentoutputsinmuddependonsiteconditions(seamudorrivermud,etc) (**)Currentoutputsinbrackishwaterdependonsiteconditions&chlorideconcentrations.

NOTES

•Coatingloadingmaybe adjustedtosuitaparticularcurrentdensityordesign life

•Standardanodesaredesignedfor20yearlife,however,design lifeofupto50yearscanbecateredfor. •TubularMMOanodestringscan besuppliedtoClientsspecificrequirements.

(9)

REVISION 1

APPLICATION

Reinforced Concrete Structures & Tank Bottoms

STANDARD ANODE TYPES, DIMENSIONS AND OUTPUTS

APPLICATION

RIBBON MMO DATA

Substrate Coating Coating Method

Width (Nom) Thickness (Nom) Standard Coil Length Standard Coil Weight Surface Area of Ribbon

Consumption Rate Utilisation Factor Working Environment

Operating Characteristics

Titanium Conductor Bar Substrate

Sand & Concrete

Titanium ASTM B338 Grade 1 IrO₂/Ta₂O₅

Multi pass thermal decomposition of precious metal salts technique 0.25” (6.35mm)

0.025” (0.635mm) 250’ (76.22m) 2.5lbs (1.12kg) 0.014m2_/m

0.5 - 4.0 mg/A/yr depending upon CP application conditions Dimensionally Stable

Suitable for Cl₂ & O₂ or combination of both CURRENT OUTPUT IN FINE SAND

12.8mA/ft (42mA/m) when operating at a current density of 0.278A/ft 2 _(3A/m2_).

50 year design life when operating at a current density of 0.278A/ft 2 _(3A/m2_).

CURRENT OUTPUT IN CONCRETE

0.45mA/ft (1.5mA/m) when operating at a current density of 10.19mA/ft 2 _(110A/m2_).

100 year design life when operating at a current density of 10.19mA/ft 2 _(110A/m2_).

Width: 0.50” (12.7mm); Thickness: 0.035” (0.9mm) Coil length: 250’ (76.22m); Coil Weight: 8.5lbs (3.8kg)

(10)

REVISION 1

APPLICATION

Tank Bottoms, Tank Internals, Pipeline Internals, Canistered Anodes, Continuous Horizontal Groundbeds, Discontinuous Horizontal Groundbeds, Shallow Vertical Groundbeds, Deep Anode Groundbeds.

STANDARD ANODE TYPES, DIMENSIONS AND OUTPUTS

Available in two standard sizes, with two standard current ratings. Other sizes and rating are available upon request. MMO Wire Anode consists of solid titanium wire which meets ASTM B348 Grade 1 or 2 standards, that has been coated with Mixed Metal Oxide.

PIGGYBACK WIRE ANODE SYSTEMS

For use on pipelines, the product comprises Mixed Metal Oxide Wire Anode material “piggybacked” to a cable at predetermined intervals (to aid current distribution and attenuation). The wire and cable is contained within a cotton sock filled with calcined petroleum coke breeze backfill. The Piggyback Sock Anode is placed alongside the pipeline with suitable lengths of cable at each end of the loop allowed for termination into a junction box.

PIGGYBACK WIRE SOCK ANODE SYSTEMS

For use on pipelines, the product comprises Mixed Metal Oxide Wire Anode material “piggybacked” to a cable at predetermined intervals (to aid current distribution and attenuation). The wire and cable is contained within a cotton sock filled with calcined petroleum coke breeze backfill. The Piggyback Sock Anode is placed alongside the pipeline with suitable lengths of cable at each end of the loop allowed for termination into a junction box.

WIRE ANODES ELECTRICAL RESISTANCE

1.5mm diameter : 75,537 microhms/ft / 247,821 microhms/m 3.0mm diameter : 18,884 microhms/ft / 61,954 microhms/m

(11)

REVISION 1

TYPICAL CABLE TO WIRE SPLICED CONNECTION

TYPICAL WIRE SOCK ANODE ARRANGEMENT

(12)

ANODE PERFORMANCE

Current rating @ 110 mA/m2 _{(10 mA/ft}2₎

Expected life (NACE Standard TM02944-94) Catalyst

Maximum anode concrete interface current density FHWA limit

Short-term limit NOMINAL DIMENSIONS

Width Coil length

Actual anode surface per unit length of anode Expanded thickness

Diamond dimensions Shipping weight per coil

SUBSTRATE Composition

Coefficient of thermal expansion Thermal conductivity @ 20˚C Electrical resistivity Modulus of elasticity Tensile strength Yield strength Elongation CURRENT DISTRIBUTOR Width Thickness Coil length Shipping weight per coil ELECTRICAL PROPERTIES

Anode ribbon mesh resistance lengthwise Current distributor resistance lengthwise

REVISION 1

ELGARD™ Anode ribbon mesh is composed of a precious metal oxide catalyst sintered to an expanded Titanium mesh substrate. The Anode Ribbon Mesh is used as a key component in the Cathodic Protection of Reinforced Concrete Structures.

MATERIAL SPECIFICATIONS

2.8 mA/m (0.85 mA/ft) 75 Years

Iridium Based Mixed Metal Oxide 110 mA/m2_{(10 mA/ft}2₎ 220 mA/m2_{(20 mA/ft}2₎ 10 mm (0.4 ") 76 m (250 ft) 0.025 m2_{/m (0.082 ft}2_/ft) 1.30 mm (0.051 ") 2.5 x 4.6 x 0.6 mm (0.10 " x 0.18 " x 0.025 ") 1.4 kg (3.1 lbs)

Titanium, Grade 1 per ASTM B265 8.7 x 10-5_{/˚K (0.0000048/in/in/˚K)}

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

0.000056 Ohm-cm (0.000022 Ohm-in) 105 GPa (14,900,000 PSI) minimum

245 MPa (35,000 PSI) minimum 175 MPa (25,000 PSI) minimum

24% minimum 12.70 mm (0.5 ") 0.90 mm (0.035 ") 76 m (250 ft) 3.9 kg (8.6 lbs) 0.49 Ohm/m (0.15 Ohm/ft) 0.049 Ohm/m (0.015 Ohm/ft)

(13)

ANODE PERFORMANCE

Current rating @ 110 mA/m2_{(10 mA/ft}2₎

Maximum anode concrete interface current density : FHWA limit

Width Coil length

Coefficient of thermal expansion Thermal conductivity @ 20˚C Electrical resistivity Modulus of elasticity Tensile strength Yield strength Elongation CURRENT DISTRIBUTOR Width Thickness Coil length

Shipping weight per coil ELECTRICAL PROPERTIES

Iridium Based Mixed Metal Oxide 110 mA/m2 _{(10 mA/ft}2₎ 220 mA/m2 _{(20 mA/ft}2₎ 13 mm (0.5 ") 76 m (250 ft) 0.032 m2_{/m (0.105 ft}2_/ft) 1.30 mm (0.051 ") 2.5 x 4.6 x 0.6 mm (0.10 " x 0.18 " x 0.025 ") 1.8 kg (4 lbs)

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

REVISION 1

(14)

5.28 mA/m (1.61 mA/ft) 75 Years

Iridium Based Mixed Metal Oxide 110 mA/m2 _{(10 mA/ft}2₎ 220 mA/m2 _{(20 mA/ft}2₎ 19 mm (0.75 ") 76m (250 ft) 0.048 m2_{/m (0.157 ft}2_/ft) 1.30 mm (0.051 ") 2.5 x 4.6 x 0.6 mm (0.10 " x 0.18 " x 0.025 ") 2.7 kg (6 lbs)

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

24% minimum 12.70 mm (0.5 ") 0.90 mm (0.035 ") 76 m (250 ft) 3.9 kg (8.6 lbs) 0.26 Ohm/m (0.08 Ohm/ft) 0.049 Ohm/m (0.015 Ohm/ft) ANODE PERFORMANCE

Width Coil length

REVISION 1

(15)

ANODE PERFORMANCE

Width Coil length

Iridium Based Mixed Metal Oxide 110 mA/m2 _{(10 mA/ft}2₎ 220 mA/m2 _{(20 mA/ft}2₎ 20 mm (0.8 ") 76 m (250 ft) 0.05 m2_{/m (0.082 ft}2_/ft) 1.30 mm (0.051") 2.5 x 4.6 x 0.6 mm (0.10 " x 0.18 " x 0.025 ") 2.9 kg (6.38 lbs)

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

REVISION 1

(16)

ANODE PERFORMANCE

Width Coil length

Iridium Based Mixed Metal Oxide 110 mA/m2 _{(10 mA/ft}2₎ 220 mA/m2 _{(20 mA/ft}2₎ 25 mm (0.8 ") 76 m (250 ft) 0.062 m2_{/m (0.203 ft}2_/ft) 1.30 mm (0.051 ") 2.5 x 4.6 x 0.6 mm (0.10 " x 0.18 " x 0.025 ") 3.6 kg (7.9 lbs)

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

REVISION 1

(17)

ANODE PERFORMANCE

Current rating @ 110 mA/m2 _{(10 mA/ft}2₎

Width of roll Length of roll

Area per roll

Actual anode surface per unit area of concrete Expanded thickness

Coefficient of thermal expansion Thermal conductivity @ 20˚C Electrical resistivity Modulus of elasticity Tensile strength Yield strength Elongation ELECTRICAL PROPERTIES Anode mesh resistance lengthwise Current distributor resistance lengthwise Resistance width wise c/w current distributor

18.8 mA/m2 _{(1.71 mA/ft}2₎

75 Years

Iridium Based Mixed Metal Oxide 110 mA/m2_{(10 mA/ft}2₎ 220 mA/m2_{(20 mA/ft}2₎ 1.22 m (4ft) 76 m (250 ft) 92.9 m2_{(1000 ft}2₎ 0.17 m2_/m2 _{(0.17 ft}2_/ft2₎ 1.415 mm (0.056") 34 x 76 x 0.64 mm (1.33 " x 3.0 " x 0.025 ") 26 kg (56 lbs)

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

24% minimum

0.085 Ohm/m (0.026 Ohm/ft) 0.049 Ohm/m (0.015 Ohm/ft) 0.023 Ohm/m (0.007 Ohm/ft)

REVISION 1

ELGARD™ Anode mesh is composed of a precious metal oxide catalyst sintered to an expanded Titanium mesh

substrate. The Anode Mesh is used as a key component in the Cathodic Protection of Reinforced Concrete Structures.

(18)

ANODE PERFORMANCE

Width of roll Length of roll Area per roll

Coefficient of thermal expansion Thermal conductivity @ 20˚C Electrical resistivity Modulus of elasticity Tensile strength Yield strength Elongation ELECTRICAL PROPERTIES Anode mesh resistance lengthwise Current distributor resistance lengthwise Resistance widthwise c/w current distributor

24.4 mA/m2_{(2.22 mA/ft}2₎

75 Years

Iridium Based Mixed Metal Oxide 110 mA/m2 _{(10 mA/ft}2₎ 220 mA/m2 _{(20 mA/ft}2₎ 1.22 m (4 ft) 76 m (250 ft) 92.9 m2_{(1000 ft}2₎ 0.22 m2_/m2_{(0.22 ft}2_/ft2₎ 1.981 mm (0.078") 34 x 76 x 0.89 mm (1.33 " x 3.0 " x 0.035 ") 33kg (73 lbs)

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

24% minimum

REVISION 1

(19)

ANODE PERFORMANCE

Width of roll Length of roll Area per roll

Coefficient of thermal expansion Thermal conductivity @ 20˚C Electrical resistivity Modulus of elasticity Tensile strength Yield strength Elongation ELECTRICAL PROPERTIES Anode mesh resistance lengthwise Current distributor resistance lengthwise Resistance width wise c/w current distributor

37.8 mA/m2_{(3.44 mA/ft}2₎

75 Years

Iridium Based Mixed Metal Oxide 110 mA/m2 _{(10 mA/ft}2₎ 220 mA/m2 _{(20 mA/ft}2₎ 1.22 m (4 ft) 76 m (250 ft) 92.9 m2_{(1000 ft}2₎ 0.34 m2_/m2_{(0.34 ft}2_/ft2₎ 1.981 mm (0.078 ") 25 x 51 x 0.89 mm (0.923 " x 2.0 " x 0.035 ") 43 kg (95 lbs)

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

24% minimum

REVISION 1

(20)

REVISION 1

APPLICATION

A range of accessories are available to assist with the successful installation of our Mixed Metal Oxide anode systems.

SPOT WELDERS FOR UNDER TANK SYSTEMS

ANODE CENTRALISERS

For connection of Titanium conductor bars to Mixed Metal Oxide Ribbon Anodes (see data sheet 2.2.2.)

For connection to tubular anode systems allowing them to centralise within the casing / borehole. Available in a range of sizes and

materials to suit the application. When ordering please specify metallic or non metallic type and the size of borehole / casing the are being passed through.

(21)

REVISION 1

END WEIGHTS

End weights are secured to bottom of an anode string / chain configuration to ensure cables remain straight during installation. Weights are calculated according to the anode cable and ground bed arrangement.

(22)

REVISION 1

APPLICATION

Horizontal Groundbeds, Shallow Vertical Groundbeds.

STANDARD ANODE TYPES, DIMENSIONS AND OUTPUTS

MESH STRIP ANODES

are manufactured using titanium expanded mesh substrate, which meets ASTM B265 Grade 1 or 2 standards

MESH STRIP ANODES

are 1.25" wide x 48" long and are rated 5 Amps for a 20 year design life in calcined petroleum coke. The MESH STRIP ANODE can be packaged in a spiral wound, galvanized steel canister or a fabric sleeve.

Anode size and rating is calculated as follows,

• Max Operating current density of anode = 100A/m2

• Titanium Surface Area of 1.25” (32mm) Width x 48” (1220mm) Length Strip Mesh Anode = 0.05m2

• Titanium is coated with a proprietary MMO coating with a sufficient loading to last a minimum of 20 years at the specified current density.

• Surface area of anode is 0.05m2_{and at current density of 100mA/m}2 _{gives output 5A for minimum 20 years (or}

equivalent of 100 Amp/years at max current density of 100A/m2₎

CABLE TYPES & CONNECTIONS

Anodes are factory assembled with a fully encapsulated cable connection.

(23)

Standard Gauges 1.0mm 20bg 1.2mm 18bg 1.2mm 18bg 1.5mm 18bg 2.0mm 14bg Standard Sizes 150mmDia x 1500mm L 150mmDia x 2000mm L 200mmDia x 2000mm L 250mmDia x 2000mm L 300mmDia x 2000mm L

REVISION 1

CABLE TYPES & CONNECTIONS

Standard Cable types included HMWPE, XLPE/PVC, PVDF/HMWPE, When ordering please specify cable type, length and size (mm2₎

(24)

Maximum Current Density (CD) @ Anode 216mA/m2_(20mA/ft2₎

Mesh Length, “L”, mm (ft) 100 (.325) 150 (.492) 200 (.658) 250 (.817) 300 (.983) 350 (1.125 Anode Surface Area, m2 _(ft2₎ _{.020 (.215) .030 (.325) .040 (.430) .050 (.545) .061 (.660) .071 (.770)}

Current Rating @ Max CD, mA 4.6 6.8 9.1 11.4 13.7 15.9 Expected Life 50 Years

Anode Coating Iridium Oxide, Mixed Metal Oxide 25.4mm (1 in) 31.75mm (1-1/4 in) Variable – See Table Below

1.30mm (0.051 in)

2.5mm x 4.6mm (0.1 in x 0.18 in) 0.6mm (0.025 in)

15.6W/ m2_{- ˚K (9.0BTU/hr/ft}2_/˚F/ft)

24% minimum 6.35mm (1/4 in) 0.63mm (0.025 in) Anode Diameter

Installation Hole Diameter Lengths

Expanded Mesh Thickness Diamond Dimensions

Strand Thickness Composition

Coefficient of thermal expansion Thermal conductivity @ 20˚C Electrical resistivity Modulus of elasticity Tensile strength Yield strength Elongation Width Thickness

REVISION 1

APPLICATION

The Elgard Discrete Mesh Anode compliments the existing line of Elgard anodes for Cathodic protection of reinforced concrete structures. The anode is composed of a precious metal oxide catalyst on an expanded titanium mesh substrate. The anodes are available in 100mm, 150mm, 200mm, 250mm, 300mm and 350mm lengths and can be combined to meet specific requirements.

MATERIAL SPECIFICATIONS

DIMENSIONS

SUBSTRATE

CURRENT DISTRIBUTOR

(25)

REVISION 1

OUTLINE DRAWING

ANODE WELDMENT ELTECH PART No. 0670EA03-1 0670EA03-2 0670EA03-3 0670EA03-4 0670EA03-5 0670EA03-6 100 150 200 250 300 350 400 450 500 550 600 650 DIM. “L1” DIM. “L2”

(26)

REVISION 1

APPLICATION

Magnetite is a natural mineral with a high corrosion resistance making it an excellent anode material. The anodes are cast cylindrical and hollow. Cables are centre connected to give a uniform dissipation of current from the anode surface. The anode to cable connection is electrically sealed with a dielectric compound and an anode cap.

Suitable for use in Horizontal Groundbeds, Deep Well Groundbeds, Fresh Water Installations, Seawater Installation

(1) depends on environment

MAGNETITE ANODE DATA

CHEMICAL COMPOSITION

Specific gravity Brinell hardness (WB5/187.5/15) Bending strength Density Melting point

Coefficient of linear expansion

4.7–4.8 344 5 4,71 1500 6.4x10-6 kg/dm3 kN/cm2 g/cm3 °C 1/°C (0-100°C) Consumption rate Current density (1) Efficiency 0.02 kg/A year 0.70 mA/dm2 90% FeO Fe3O4 Balance 28 - 32% 60 - 64% 4 - 12%

(27)

REVISION 1

EXPERIENCE

Lifetime comparison - Basis: anode current load 5 A

Surrounding electrolyte: neutral soil and water without chlorine and sulfate content

Applications:

shallow groundbeds, deep groundbeds

CHLORINE CONTAINING SOIL

SEAWATER AND DEEP GROUNDBEDS

STANDARD ANODE TYPES WEIGHTS AND OUTPUTS

TYPE MA-U

Diameter 60 mm Total length 720 mm

Surrounding electrolyte: chlorine and/or sulfate containing soil or stagnant water Applications: shallow groundbeds, deep groundbeds

TYPE MA-CS

Diameter 60 mm Total length 720 mm

(28)

REVISION 1

Surrounding electrolyte: flowing seawater or brackish water Applications: platforms, jetties, harbours

STANDARD ANODE TYPES WEIGHTS AND OUTPUTS

TYPE MA-SEA

Diameter 60 mm Total length 760 mm Effective length 710 mm Total weight 6.0 kg Min. effective mass 4.7 kg Surface area 13.4 dm2

Max. current load 16.0 A

CANISTER FOR MA-U & MA-CS

COKE BACKFILL

Minimum carbon content 90% Maximum moisture content 5%

Surrounding electrolyte: chlorine containing soil or stagnant water

Applications:

deep groundbeds open hole, deep groundbeds closed hole, water tank

TYPE MA-CHAIN

Diameter 60 mm Total length 740 mm Effective length 600 mm Total weight 6.2 kg Min. effective mass 4.7 kg Surface area 11.3 dm2

Max. current load (groundbeds) 6.0 A Max. current load (tanks) 16.0 A

(29)

REVISION 1

APPLICATION

Plain graphite anodes are used in dry soil conditions installed in groundbeds containing compacted carbonaceous backfill. Linseed oil impregnated anodes can be used in moist saline soils, in fresh and brackish water, and for seawater applications. Graphite anodes can be installed as horizontal or deepwell groundbeds to protect buried pipelines or due to their lightweight nature they can be suspended into the electrolyte to protect water tank internal surfaces or marine structures.

Cathodic Protection Co Ltd graphite anodes are manufactured in two standard sizes - 3” dia up to 60” long & 4” dia up to 80” long. There are two types of graphite anodes - plain & linseed oil impregnated. Plain graphite anodes are used for ordinary soil conditions and linseed oil impregnated anodes are usually used for saline soil or seawater environments.

GRAPHITE ANODE DATA

(30)

REVISION 1

TYPICAL CHARACTERISTICS

ANODE TO CABLE CONNECTION

Cable for Graphite Anodes is supplied according to customer requirements. We can offer the following insulation and sheathing types PVC. XLPE/PVC, HMWPE, KYNAR, HALAR, EPR/CSPE.

(31)

REVISION 1

APPLICATION

• Underwater steel structures - Wharves, jetties, sheet pile walls and piers. Usually rod type anodes distributed throughout the structure to be protected to give a good overall protective current distribution. Anodes should be

installed in areas not liable to cause Anode damage i.e. out of the way of berthing vessels, mooring ropes, chains etc. • Exterior protection of ships hulls - anodes in the shape of plates, discs or strips. Housed in chlorine resistant plastic as

the anode operates at high current densities in seawater which produces chlorine.

• Water tank internal protection - usually distributed rod anodes are used for this type of installation by suspending from the tank roof.

• Internal protection of plant - large diameter water pipelines such as cooling water can be protected using rod or wire shaped anodes.

PLATINISED TITANIUM ANODE DATA

Platinised Titanium anodes are manufactured from a commercially pure titanium substrate plated with a very thin coating of platinum. The titanium serves simply as the anode body and the conductor, the active anode element being the

platinum coating.

The usual thickness of the platinum coating is approximately 2.5 microns, however, this coating thickness should be increased to 5.0 microns for harsher environments. The base metal is available in a wide variety of standard shapes -rods, tubes, mesh, etc - which can be fabricated into non-metallic mounts for attachment to the structure to be cathodically protected.

The thickness of the platinum coating and the current density at which the anode is operated determine the useful life of the anode. The maximum voltage at the anode to electrolyte interface should not exceed 8 Volts in electrolytes containing chloride as voltages greater than this value could cause local corrosion on any unplatinised portions of the anode.

(32)

REVISION 1

CURRENT DENSITY AND CONSUMPTION RATES

FEATURES

• Anodes can work at high current densities without decomposition or dissolving. • Favourable strength to weight ratio.

• Anodes can be smaller and more compact than comparable conventional anodes. • Can be manufactured in a wide variety of shapes and sizes.

• Lightweight support tube installation for Pt Ti anode installation.

(33)

REVISION 1

APPLICATION

• Underwater steel structures - Wharves, jetties, sheet pile walls and piers. Usually rod type anodes distributed throughout the structure to be protected to give a good overall protective current distribution. Anodes should be

installed in areas not liable to cause Anode damage i.e. out of the way of berthing vessels, mooring ropes, chains etc. • Exterior protection of ships hulls - anodes in the shape of plates, discs or strips. Housed in chlorine resistant plastic as

the anode operates at high current densities in seawater which produces chlorine.

• Water tank internal protection - usually distributed rod anodes are used for this type of installation by suspending from the tank roof.

• Internal protection of plant - large diameter water pipelines such as cooling water can be protected using rod or wire shaped anodes.

PLATINISED TITANIUM ANODE DATA

Platinised Titanium anodes are manufactured from a commercially pure titanium substrate plated with a very thin coating of platinum. The titanium serves simply as the anode body and the conductor, the active anode element being the

platinum coating.

The usual thickness of the platinum coating is approximately 2.5 microns, however, this coating thickness should be increased to 5.0 microns for harsher environments. The base metal is available in a wide variety of standard shapes -rods, tubes, mesh, etc - which can be fabricated into non-metallic mounts for attachment to the structure to be cathodically protected.

The thickness of the platinum coating and the current density at which the anode is operated determine the useful life of the anode. The maximum voltage at the anode to electrolyte interface should not exceed 8 Volts in electrolytes containing chloride as voltages greater than this value could cause local corrosion on any unplatinised portions of the anode.

(34)

REVISION 1

CURRENT DENSITY AND CONSUMPTION RATES

FEATURES

• Anodes can work at high current densities without decomposition or dissolving. • Favourable strength to weight ratio.

• Anodes can be smaller and more compact than comparable conventional anodes. • Can be manufactured in a wide variety of shapes and sizes.

• Lightweight support tube installation for Pt Ti anode installation.

(35)

REVISION 1

APPLICATION

Onshore, Offshore and Marine applications.

A wide and varied range of high quality transformer rectifiers are designed and manufactured at our Grantham works to meet the market requirement for all land and marine structures necessitating an Impressed Current Cathodic Protection system or a Marine Growth Anti Fouling system.

The products have been developed to satisfy the most arduous environmental conditions, giving safe operational reliability with minimal maintenance at competitive price levels.

Two main types of transformer rectifiers are available ie: Air Cooled and Oil Cooled, the selection of which may be specification derived or personal choice. The final selection invariably being the environmental conditions and relative to output rating, these will determine the physical size and cost of the unit. Our engineers are able to assist you with this selection.

1 Phase and 3 Phase supplies to 660Volts, 50/60Hz are readily catered for within our standard arrangements

Voltages: 6 to 120Volts DC (British Standards state 50Volts DC output max) Currents: 5 to 800Amps (Multiples of transformer rectifiers should be considered for greater than 12kWatt)

Input Power Supply

Output Rating @ Ambient Temperatures -10 to 55˚C

(36)

REVISION 1

Switch Control via control panel facia switches to select transformer tappings, 15 and 63 step control available as standard

Auto transformer (Variac) control indefinitely from 0 to 100%.

Electronic thyristor control from panel facia mounted potentiometer giving indefinite variable adjustment from 3Volts to maximum rating.

All auto systems operate from 3Volts to maximum rating and are fitted with a manual override facility.

Constant current maintains the output current at the preset value irrespective of supply and output circuit changes.

A permanent reference electrode(s) controls the output current to maintain a constant potential at the surface of the protected structure subject to

compensate for changes in electrolyte resistivity, coating efficiency, power supply voltage variation, tidal conditions etc.

A wide range of standard and purpose built arrangements up to IP66 protection levels.

Mild steel, Stainless Steel, Aluminium and Glass Reinforced Polyester are

OUTPUT CONTROL

Manual Switched Auto Transformer Electronic Auto (Electronic) Constant Current Constant Potential Enclosures Material

(37)

REVISION 1

Supply/Output Monitoring Limit and Alarm (high and low) Local/Remote indication facilities 4-20mA re-transmission signals RCCD/MCB and fuse protection Surge suppression

Lightning Arrestors Metering

“Instant Off” timers Synchronous timing

All transformer rectifiers undergo works testing to include the following as a minimum:

• Wiring connection integrity • Circuit continuity and compliance

• Operation at full output current and voltage far a minimum of 12 hours • High voltage insulation resistance test

In addition new designs are subjected to a 12-24 hour heat run test at full load to ensure that the temperature rises are within permitted limits for the materials used in construction.

FACILITY AVAILABLE

(38)

REVISION 1

TYPICAL TRANSFORMER RECTIFIER GENERAL ARRANGEMENT

(Model Shown Oil Cooled 75V / 125A)

(39)

REVISION 1

Bullhorn i-series ICP Information

American Innovations’ Bullhorn® _{i-series ICP is a satellite}

based remote monitoring device that provides scheduled and by exception inbound reporting as well as two-way communication for on-demand reads and

activating/deactivating ancillary equipment. The device can be field upgraded to include a MicroMax ® _{GPS80 current}

interrupter enabling the collection of IR-free cathodic

protection (CP) reads in the most efficient, economical way possible. The ICP uses the OrbComm satellite system and enables equipment monitoring and control in very remote locations. It is ideal for international use.

The ICP monitors many different kinds of equipment in the cathodic protection industry including rectifiers, test points and critical bonds. It is also ideal for monitoring equipment in a number of other industries. The ICP provides automatic notifications of alarm events via email, cell phone or pager. With secure access, data can be viewed on the internet from anywhere in the world, day or night.

The ICP unit is available in 2 and 4 analog channel versions. The 5th analog channel is used internally when a MicroMax is utilized and is not available for other purposes. Both versions have 6 digital inputs and 6 digital outputs. For CP applications, analog inputs are available with filtering and surge protection. The ICP is easy to install since all

configuration of the device takes place via the satellite system, so there is no need for a laptop computer in the field. It accepts customer supplied AC or DC line power or DC solar power. In the event of power loss, an internal

rechargeable battery provides backup power.

• Remote interruption by adding MicroMax GPS80 Interrupter • Easy to install

(40)

REVISION 1

Up to 5 Analog channels Available input ranges: 0-100V

0-10V 0-100mV

• Analog inputs are isolated • Inputs specified at time of order 1 digital input available

Remaining digital inputs:

Available for use with MicroMax GPS Current Interrupter

Available for use with MicroMax GPS current interrupter Configuration via web interface

MicroMax GPS80 Interrupter, AC Present Sensor, Interruption Verification Sensor

AC (Line Power Supplied by Customer) w/ Nominal Voltage of 110VAC. DC (line power supplied by customer) 15-36VDC.

Backup battery has a Nominal Voltage of 12 VDC and 7AH Capacity. Solar Power Option Available for an additional fee.

Aluminum or Fiberglass enclosure available:

Height- 13.5 inches, Width- 11.5 inches, Depth- 7.125 inches Data stored in non-volatile (EEPROM) memory

Temp: -40 degrees C to +85 degrees C; Humidity: 0-95% non-condensing UL/CUL General Classification (pending); FCC Part 15; Enclosure: NEMA 4 compliant for all Bullhorn types

Bullhorn secure website. Standard web browsers. AI Network operations center

Orbcomm satelite Data Inputs Outputs Config. Parameters Supporting Products Power Supply Physical Description Data Integrity Environmental Compliance Software Interface Communications

(41)

REVISION 1

Stainless Steel 316L & 304, Aluminium Explosion Proof Painted Mild Steel Plastic GRP

Galvanised and Painted Cast Iron Custom Finishes Please also specify IP, NEMA or Hazardous area classification required.

APPLICATION

Junction boxes for positive and negative current distribution and control , and for resistance bonding are available to meet exact client specifications.

Suitable for onshore and marine environments in safe and hazardous areas.

When specifying a CPC Junction Box assembly please clarify specific hardware and components required.

ENCLOSURES

Resistors Metering Diodes Shunts Monitoring Labelling Support Frames Transducers Switches

Copper Links Terminals Security / Locking

ACCESSORIES

(42)

REVISION 1

Cable entry can be made by any type of proprietary cable gland, or by conduit and hub assemblies allowing the safe passage of multiple cables into the enclosure.

CABLE ENTRY

TYPICAL JUNCTION BOX

ARRANGEMENT

TYPICAL JUNCTION BOX SUPPORT ARRANGEMENT

TYPICAL INTERNAL LAYOUT OF ANODE

JUNCTION BOX

(43)

REVISION 1

APPLICATION

Suitable for onshore and marine environments in safe and hazardous areas. For the termination and support of anode cables at deep well ground bed locations and for the safe ventilation of gases produced by high chlorine environments.

Cathodic Protection Co Ltd can manufacture a custom range of well head assemblies to suit your exact requirement. We can provide well head structures manufactured from a range of materials including GRP, Steel and Concrete. The well head design will generally incorporate the support and termination of anode cables, sufficient ventilation of gases generated in deep well ground bed locations and security / ingress protection to prevent tampering and

environmental damage.

(44)

REVISION 1

APPLICATION

Impressed current cathodic protection groundbeds and packaged impressed current anodes.

CARBONACEOUS BACKFILL DATA

TYPICAL ANALYSIS

Chemical Composition (%) DBW SP Ash 0.2 12 max Volatiles 0.3 1.5 max

Moisture 0.3 10

Fixed Carbon 99.2 86.5 min (dry basis)

Sulphur 1.0 1.5 max Silicon 168 ppm 1.0 Iron 83 ppm 1.1

(45)

REVISION 1

APPLICATION

Surface wiring & buried if protected by clean sand. Suitable for use as anode cable tails, positive feed cable, negative return cable and test cable.

XLPE/PVC CABLE DATA

Single core XLPE insulated/PVC sheathed 600/1000V BS7889 6181XY

Conductors: Plain annealed copper Insulation: XLPE (Cross linked Polyethylene)

Sheath/Jacket: PVC (Polyvinyl-Chloride) Colours: Black/Black, Red/Red

Voltage: 600/1000v

Operating temperature: Maximum 90°C, minimum bending 0°C Standard: BS7889 & IEC60502

Minimum bending radius : Diameter up to 25mm, 4 x OD; Diameter over 25mm, 6 x OD

STANDARD CABLE SIZES DIMENSIONS AND WEIGHTS

Size (mm2) 6 10 16 25 Maximum Dia Over Conductor (mm) 3.12 4.05 5.10 6.40 RT of Insulation (mm) 0.7 0.7 0.7 0.9 Dia over Core (mm) 4.5 5.5 6.5 8.2 RT of Sheath (mm) 1.4 1.4 1.4 1.4 Nominal Overall Dia (mm) 7.3 8.3 9.3 11.0 Weight (Kg/km) 104 150 214 317

(46)

REVISION 1

APPLICATION

XLPE/PVC/SWA/PVC CABLE DATA

Single Core BS5467 600/1000V Conductors: Plain annealed stranded copper

Insulation: XLPE (Cross linked polyethylene) Core identification: Brown

Bedding: PVC (Polyvinyl-Chloride)

Armour/Protection: SWA (Galvanised steel wire armour) Sheath/Jacket: PVC (Polyvinyl-Chloride)

Colour: Black Voltage: 600/1000v

Operating temperature: Maximum 90°C, minimum bending 0°C Standard: BS5467

Minimum bending radius : 6 x Outside Diameter

STANDARD CABLE SIZES DIMENSIONS AND WEIGHTS

Size mm2 10 16 25 Maximum Dia Over Conductor mm 4.05 5.10 6.40 RT of Insulation mm 0.7 0.7 0.9 Dia of Armour Wire mm 0.9 0.9 0.9 Approx Dia under Armour mm 10.4 10.8 11.4 Nominal Overall Dia mm 13.5 14.2 15.2 Weight Kg/km 495 535 585

(47)

REVISION 1

APPLICATION

Surface wiring & buried if protected by clean sand. Suitable for open hole deep well groundbeds and anode cable tails where H2S and high levels of chloride ion species and where oxygen and/or chlorine gases may be evolved.

PVDF/HMWPE CABLE DATA

Single core PVDF insulated/HMWPE sheathed 600/1000V Conductors: Tinned annealed copper

Insulation: PVDF Fluoropolymer (Radiation cross linked polyvinyldene fluoride) Sheath/Jacket: HMWPE (High Molecular Weight Polyolefin) to ASTM Spec D-1248

Colours: Clear/Black Voltage: 600/1000v

Operating temperature: Maximum 150°C, minimum bending minus -15°C Minimum bending radius : 10m x OD of cable

STANDARD CABLE SIZES DIMENSIONS AND WEIGHTS

Size mm2 6 10 16 25 35 50 Maximum Dia of Conductor mm 3.12 4.05 5.10 6.40 7.50 8.90 RT of Insulation mm 1.0 1.0 1.0 1.2 1.2 1.4 Dia over Core mm 5.12 6.05 7.10 8.80 9.90 11.70 RT of sheath mm 1.65 1.65 1.65 1.65 1.65 1.65 Nominal Overall Dia mm 8.42 9.35 10.40 12.10 13.20 15.00 Weight Kg/km 96 135 197 312 398 541 NOTE: The Polyolefin sheath protects the PVDF insulation from damage during installation. The HMWPE sheath will deteriorate under aggressive environmental conditions leaving the PVDF to withstand the surrounding media.

(48)

REVISION 1

APPLICATION

HALAR/HMWPE cable is designed for anode lead wires in a wide range of environments. Due to its dual insulation construction, it can be installed directly in native soils or submerged in fresh, brackish, or salt waters. The cable is ideal for deep anode bed installations where chlorine and hydrogen gases are generated. The HALAR insulation will not embrittle at temperatures down to (-80F) and will maintain dimensional stability and dielectric strength at temperatures up to 250F. It is highly resistant to notch propagation.

One of the major causes of deep anode failures is the failure of cable insulation. This is especially evident in areas where brackish water is present in the ground. In this environment, anodes generate reactive gases such as chlorine and nacent oxygen. These gases cause rapid deterioration of conventional HMWPE insulation.

Cathodic protection cable insulated with HALAR fluoropolymer, is especially suited for deep anode lead wires. HALAR fluoropolymer is inert to reactive compounds and has an outstanding ability to prevent the passage of gases. Laboratory and field evaluations indicate that HALAR fluoropolymer insulated lead wire can extend the life of deep anode

installations. The cable is composed of stranded copper wire covered by two layers of insulation. The outer insulation layer is made from high molecular weight polyethylene (HMWPE). It exhibits superior dielectric and tensile strength, and provides mechanical protection to the cable.

The material is also resistant to water intrusion and is not affected by most organic or inorganic substances. The inner or primary insulation is composed of HALAR, a fluoropolymer. This insulating material demonstrates exceptional chemical resistance. In the presence of chlorine, hydrochloric acid, sulfuric acid, or other strong oxidizing agents the material remains stable. Further, it will not deteriorate when exposed to petroleum hydrocarbons which are encountered in numerous cathodic protection applications.

The dual extrusion HALAR cable is made specifically for cathodic protection applications. It can withstand considerable abuse during installation.

Conductor : Stranded bare copper conductor conforms to ASTM Specification B-3 and B-8.

Insulation : A homogeneous wall of natural ECTFE fluoropolymer (HALAR) shall be extruded over the conductor. Jacket : Insulation is high molecular weight polyethylene conforming to ASTM-D-1248, Type 1, Class C, Category 5, Grades E5 & J1. Tensile Strengths Jl, J3.

Available with high density polyethylene (Types II, III, IV) Class B and C (all colors). Surface printed. Custom printing available.

HALAR/HMWPE CABLE DATA

(49)

REVISION 1

CABLE DATA

Size #8 #6 #4 #2 No. of Strands 7 7 7 7 Circular Mils 16,510 26,240 41,740 66,360 AWG Diameter Inches .142 .179 .225 .283 HALAR Thickness Inches .020 .020 .020 .020 HMWPE Thickness Inches .065 .065 .065 .065 Nominal Diameter Inches .32 .36 .41 .46 Weight Lbs per 1000 ft 81 116 170 254 DC Ohms per Mft at 20 C .652 .411 .258 .162

Specifications for HALAR/HMWPE Cathodic Protection Cable

This specification describes a special single conductor size 8 AWG-2 AWG, HALAR insulated, High Molecular Weight Polyethylene jacketed cable designed for use as a direct burial feeder in deep anode ground-bed cathodic protection systems. The cable is ideally suited for use in harsh chemical environments involving brackish water, sour gas, chlorine, acids, alkalis, and petroleum based solvents. The cable is suitable for use at voltages up to 600 volts ac or dc.

Applicable Standards (The following standards form a part of this specification to the extent specified herein:) ASTM Specification B 3, latest edition, for Soft or Annealed Copper Wire

ASTM Specification B 8, latest edition, for Concentric-Lay Stranded Copper Conductors

ASTM Specification D 1248, latest edition, for Polyethylene Plastics Molding and Extrusion Materials. ICEA Standard S-61-402/NEMA Standard WC5 for Thermoplastics Insulated Wire and Cable

Conductor

The copper conductor shall be Class B stranded, compressed, annealed, uncoated cooper in accordance with ASTM B 3 and B 8

Insulation : The conductor shall be insulated with an extruded layer of natural HALAR ECTFE fluoropolymer as a primary insulation. The average thickness shall be 20 mils. The minimum thickness at any point shall be not less than 90% of the specified average thickness. The insulation shall be applied tightly to the conductor and shall be free-stripping.

Jacket : A black High Molecular Weight Polyethylene jacket having both insulating and jacketing properties shall be extruded over the primary insulation. The jacket, before extrusion, shall comply with the physical and electrical requirements of ASTM Specification D 1248 for Type1, Class C, Category 5, Grade E-5 and J-1 material.

The average jacket thickness shall be 65 mils. The minimum thickness shall be not less than 80% of the specified average thickness.

Identification : The cable shall be surface ink printed with: "Conductor Size AWG, CU, Manufacturer, HALAR/HMWPE CATHODIC PROTECTION CABLE".

(50)

REVISION 1

APPLICATION

The cable utilized in cathodic protection systems is a critical component of any cathodic protection system. The industry standard cable for direct burial is a stranded copper conductor covered with an insulation of high molecular weight polyethylene (HMWPE). The thick insulation provides both electric isolation and mechanical protection. During installation, this cable can withstand considerable mechanical abuse without compromising the conductor. The HMWPE insulation is

chemically resistant and protects against most organic and inorganic substances.

STANDARDS

Conductor : Stranded copper conductor conforms to ASTM Specification B-8.

Insulation : Insulation is high molecular weight polyethylene conforming to ASTM D-1248, Type 1, Class A, Category 5, Grades E4 & E5. Tensile Strengths Jl, J3. Available with high density polyethylene (Types II, III, IV) Class B & C (all colors). Tests : The completed cable shall be tested in accordance with the requirements of ICEA Pub. No. S-61-402, Part 6.

INSULATION THICKNESS

NOMINAL O.D. NUMBER OF STRANDS

AWG mm2 Inches mm No Inches mm 14 2.5 0.11 2.794 7 0.299 7.59 12 4 0.11 2.794 7 0.31 7.87 10 6 0.11 2.794 7 0.34 8.64 8 10 0.11 2.794 7 0.36 9.14 6 16 0.11 2.794 7 0.41 10.41 4 25 0.11 2.794 7 0.46 11.68 2 35 0.11 2.794 7 0.52 13.21 1 45 0.125 3.175 19 0.59 14.99 1/0 50 0.125 3.175 19 0.63 16

WIRE SIZE NOMINAL OD

HMWPE CABLE DATA

(51)

REVISION 1

APPLICATION

Deep well groundbeds, undertank systems.

1" PVC SCHEDULE 80 PIPE

Schedule 80 is available in grey and is for socket or threaded fittings. It has a wide variety of uses in the chemical field and resistance, also in industrial plants. PVC material is Type 1 according to the American Society for Testing Material D-1784. Pipe is round and smooth on the inside and out, resistant to cracking, and made from premium virgin PVC resin. Sch. 80 socket fitting ASTM D-2467. Pipe- ASTM D-1785.

SOLID PIPE

Standard lengths: 3m Wall thickness: 4.5mm Diameter ID: 24.0mm OD: 33mm

PERFORATED PIPE

Standard lengths: 3m Wall thickness: 4.5mm Diameter ID: 24.0mm OD: 33mm

Perforations: 1mm slots x 32mm long, Slotted on alternate sides @ 40mm spacing Screen: Monofilament Braided

COUPLER/SOCKET

1” Plain socket for glued connection of pipes.

END CAP

(52)

REVISION 1

APPLICATION

These uPVC casings are ideal for the installation of open hole deep well groundbeds in areas where a static water level can be reached. This also allows for the retrieval and replacement of anodes strings at the end of their life.

Casings are supplied with threaded joints for convenient on-site assembly

CASING PIPES DATA

CASING (SOLID)

Casing Material : PVC DIN4925 Notch Impact @ 200C : 4.5 + 0.5kJ/m2 Elasticity Coefficient : 2943 N/mm2 Tensile Strength : 45-55N/mm2

Thread : DIN 4925 Part 2 Table 4, Trapezoidal Without ‘O’ Ring Diameter : 225mm (246mm At Internally Threaded End)

Wall Thickness : 13mm

Pipe Length : Overall Length 5775mm (+35 / -10mm Tolerance) Effective Length 5700mm (+35 / -10mm Tolerance)

SCREEN (SLOTTED)

Material Spec as above

Slot Width : 3mm Width Slots

Open Area : 20% Of Slottable Outside Diameter Of Pipe. Slot Ends : Rounded

Mesh : Woven Polyethylene Filter Mesh To 300 Micron Sieve Analysis Fitted Over Slotted Section Protected By Heavy Duty PE Outer PE Outer Mesh & Secured At Ends By Heat Shrink Tape.

ACCESSORIES

• Wooden casing clamps • Sump Pipes

(53)

REVISION 1

(54)

REVISION 1

APPLICATION

Onshore and Marine

SPLICE KIT DATA

Suitable for plastic or rubber insulated cables 600/1000 V (without armour).

FEATURES

• Strong clear plastic mould body with Snaplock connection for tight seal. • Stepped cable entry cut-off points for all cable diameters.

• Large mould shell enables crimp or split bolt / line tap connectors to be used. • Resin 2-year shelf life.

APPLICATIONS

• Used on Cathodic Protection applications including pipelines, tanks and buried structures.

• Ideal for single core unarmoured Tee or Branch jointing rated up to 1kV, above or below ground. To suit mains cable single core max size up to 95 sq mm. Branch single core up to 35 sq mm.

RESIN SEALING COMPOUND

• Resin sealing compound is suitable for all climate conditions.

• High quality resin sealing compound has a high resistance to moisture absorption, is mixed in a clear pack and stored in an aluminium protective bag.

• The long-term electrical properties of resin sealing compound result in a more reliable connection without any associated maintenance costs.

MAJOR USERS

(55)

REVISION 1

RESIN PACK

FEATURES

• The pack has been specifically designed and fabricated to offer the user a quick, clean and efficient method of mixing and pouring.

• The pack consists of a two part polyurethane resin correctly proportioned into pouches separated by a divider. The user simply breaks the divider, amalgamates the two components and pours.

• Dual system of packaging ensures that the pack is sealed against the atmosphere.

• The outer aluminium packaging provides added protection against the atmosphere to give a shelf life of 2 years. • The inner transparent plastic packaging provides a visible reference for the user when mixing.

• During mixing the user does not come into contact with the resin but gloves are provided for extra safety. • Each pack has its own unique batch number and use by date to provide an easy reference for the user. • Full safety labelling.

• Controlled curing temperature designed to be compatible with PVC, XLPE, EPR, polythene and PILC cables. • Odour free.

• Detailed storage instructions.

• No special labelling required for transportation by road, sea or air.

(56)

REVISION 1

TECHNICAL PROPERTIES

Resin Hardener Mixed Colour Black Brown Black Specific gravity (gm/cubic cm) 1.58 1.23 1.51 Viscosity (poise) 70-100 1-2 50-60

Gelation time 20-30 minutes 200 gram mass @ 21°C Full cure 24 hours @ 23°C / 1 hour @ 80°C

Shelf life 2 years (24 months) when stored between 10-25°C. Packaging must remain intact. Peak exotherm 75.2°C based on 5 ltr placed in a container 200mm diameter conditioned at 21°C.

Measurements taken at 5 minute intervals at the centre of the resin mass. Thermal conductivity 0.46 w/mk

Tensile strength 47 Mpa Shore hardness 80 A Elongation 40%

Dialectric strength (solid) Greater than 5 MV/m

Operating temperature Provided resin is mixed correctly based on a static environment with gradual rise and fall in temperature is -40°C to +110°C.

TYPE

PC5581 PC5581 PC5581 PC5581 PC5581 PC5581 PC5581

USABLE VOLUME OF PACK

200ml 450ml 500ml 1000ml 1200ml 1500ml 2000ml

HEALTH & SAFETY

Each pack contains mixing instructions and carries health and safety warnings in accordance with BS 7888:1998.

MIXING DETAILS

(57)

REVISION 1

(58)

In remote areas, providing AC power for impressed current cathodic protection systems can be a major constraint. Solar electricity is a solution to this problem.

Solar generators provide a reliable and low maintenance source of power that can be used for cathodic protection.

The control equipment is an integral part to the reliability and performance of the Solar generator. We use world leaders in the design, manufacture and supply of

these controls to cover an extensive range of requirements. The CP controller utilises high-speed pulse width modulated switching technology to ensure the highest conversion efficiency fully maximising the power from the SGU.

The controller which is a DC-DC converter is suitable for connection to 12, 24 or 48Volt DC systems with output current options of 25A and 50A. The controller is capable of controlling the power delivered to the load to a maximum of 1V below

the input voltage.

CONTROLLER FEATURES

Control - Operating parameters are set by multi-turn controls with LED and volt free contacts for indication of control mode • Constant Output Voltage Mode

• Constant Output Current Mode

• Constant Reference E lectrode Voltage

• Low Current Alarm LED and Volt-Free Contacts • High Current Alarm LED and Volt-Free Contacts

• Crystal Controlled Interrupt Timer (1-999 seconds ON and 1-999 seconds OFF) • Output Circuit Breaker to protect the unit and allow the user to isolate the output.

METERING & DISPLAY VIA LCD DISPLAY

• Voltage Set Point • Output Voltage • Current Set Point • Output Current

• Reference Electrode Set Point • Reference Electrode Voltage • Low Current Alarm Set Point • High Current Alarm Set Point

TERMINATIONS

• 2 Power Input Terminals (M8 Studs)

• Positive and Negative Output Terminals (M8 Studs)

• 2 Input Terminals to connect the Reference Electrode/Pipeline with an input impedance of 1MΩ
