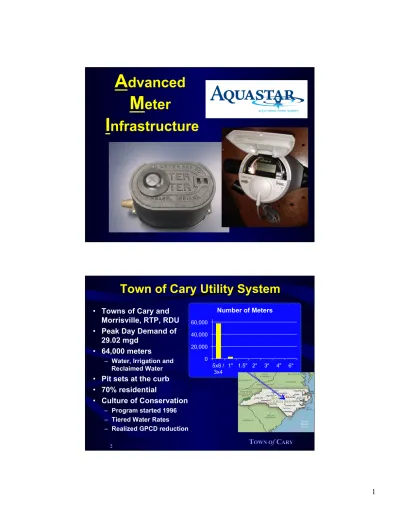

A
dvanced
M
eter
I
nfrastructure
T
OWN O
f C
ARY
2
• Towns of Cary and
Morrisville, RTP, RDU
• Peak Day Demand of
29.02 mgd
• 64,000 meters
– Water, Irrigation and
Reclaimed Water
• Pit sets at the curb
• 70% residential
• Culture of Conservation
– Program started 1996
– Tiered Water Rates
– Realized GPCD reduction
Town of Cary Utility System
0
20,000
40,000
60,000
5x8 /
3x4
1" 1.5" 2" 3" 4" 6"
Number of Meters
T
OWN O
f C
ARY
Change Was Right for Cary
3
T
OWN O
f C
ARY
Cost Benefit Analysis X 3
T
OWN O
f C
ARY
How We Chose Our Direction
• Hired independent experienced
experts
• Prioritized Needs/Preferences
– Data: Read Frequency, Resolution,
Backflow, Reporting
– Physical opportunities and
challenges
– Risk tolerance
– Fancy features and big ideas
5
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________6
Advanced Metering
Infrastructure (Aquastar)
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
7
Council Proposal Agenda
• Meter Reading Today
• Advanced Meter Infrastructure
• Project Planning & Management
• Project Benefits
• Cost Benefit Analysis
• Council Decision
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
8
Meter Reading Today
• Currently manually
reading over 57,000
meters per month in
Cary and Morrisville
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
9
Utility Management in the Future
via Aquastar
Water Meters
Regional Collectors on 8
Existing Towers and Tanks
Town Server
Web Presentment
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________10
Project Planning
• Collaborative team based effort
• Proposed a performance
management approach with
Johnson Controls
• Identified the technology best
suited for this project
• Developed a turnkey plan for
communication, implementation,
operation and maintenance
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
11
Why Performance Management?
• One independent vendor to
coordinate multiple providers
• Price guarantee
• Turn key solution
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
12
Selection Process
• Selected Johnson Controls to
develop and manage project
• Formal bid for meters
– 5/7/09 - Received bids from 6 providers
• RFP for Technology
– 5/20/09 – Received proposals from 4
providers
• RFP for Installation
– 8/4/09 – Received proposals from 5
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
13
Why Johnson Controls?
• Experience with water AMI
• Size – financial strength, vendor
relationships
• Shared values for performance
excellence and customer service
• Flexible to meet Cary’s needs
• Performance during project
development fulfilled high service
commitments
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
14
Project Management Plan
• Performance Guarantee
– Meters
– Technology
– Installation
• Customer Service & Communication
Plan
• System Verification Plan
• 18 Month Schedule of Work
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
15
Advantages of Aquastar
ü Increased Level of Customer
Service
ü Assist With Water Resource
Management
ü Environmental benefits
ü Improved Worker Safety
ü Cost Savings compared to
business as usual
$0
$5,000,000
$10,000,000
$15,000,000
$20,000,000
$25,000,000
$30,000,000
Benefits
(Quantifiable)
Project Cost/Benefit Analysis
(17 year system life)
Net Costs
Net Capital
Costs
Operating
Costs
Project
Revenue
Meter
Maintenance &
Replacement
Water
Conservation
Meter
Reading
Interest
Expense
Net Benefit =
$ 2.4 M
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
17
Utility Rate Impacts
7,000 Gallon Monthly Utility Bill - Rate Impacts from AMI Project
$85.00
$90.00
$95.00
$100.00
$105.00
$110.00
$115.00
FY
2012
2013
FY
2014
FY
2015
FY
2016
FY
2017
FY
2018
FY
2019
FY
2020
FY
2021
FY
2022
FY
2023
FY
2024
FY
2025
FY
2026
FY
2027
FY
Mon
th
ly W
a
te
r a
n
d
S
e
wer Util
ity B
ill
FY 2010 ADOPTED BUDGET without AMI FY 2010 with AMI cost savings estimates & some revenue increases
In FY2022 a customer using 7,000 gallons per month would save:
$3.95 per month
$47.40 per year
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________18
Project Budget
Current Budget: 16.7 million
Project Capital Cost: 17.8 million
Additional funding: 1.1 million
• Recognize Revenue from
• Surplus Material
.3 million
• Return of sales tax .8 million
1.1 million
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________
19
Project Summary
ü Increased Level of Customer
Service
ü Assist With Water Resource
Management
ü Environmental benefits
ü Improved Worker Safety
ü Cost Savings compared to
business as usual
T
OWN O
f C
ARY
_______________________________________________________________________________________________________________________________________________________________20
Questions?
Council Guidance
-
Staff recommends project
T
OWN O
f C
ARY
SO THEN WHAT?
• A quick update
– Financials
– What we bought
– What we saved
– What we got - Data
_______________________________________________________________________________________________________________________________________________________________
21
Money, Money, Money
- Invest $18 Million
+ Benefit
$28
Million
(17 Years)
Bottom Line Net
Benefit: $10 Million
T
OWN O
f C
ARY
Investment: Technology
23
T
OWN O
f C
ARY
Investment: 60,000 Meters
and Installation
24
Investment: Regional Collectors
Antenna:
– 11’ tall
Base Units:
– 5’ High
– 3’ Wide
– 2.5’ deep
25
T
OWN O
f C
ARY
Investment: Communications Plans
– Goals, Objectives & Strategy
– Tactics
– Target Publics
– Spokespersons
– Key Messages & General
Facts
– Activities (Logos, Hotline,
Door hangers, Events, Video,
etc)
– Budget
– Timeline
26
T
OWN O
f C
ARY
Savings – Meter Reading
27
T
OWN O
f C
ARY
Savings - Meter Maintenance
T
OWN O
f C
ARY
Benefits - Worker Safety
29
1 Worker’s
Comp claim for
a trip and fall:
$40K
T
OWN O
f C
ARY
Green: Smaller Fleet, Less Fuel
30
T
OWN O
f C
ARY
Wise water use increases water supply reliability
which could delay or eliminate next WTP
expansion
_______________________________________________________________________________________________________________________________________________________
Expansion from
40 to 56 mgd
Benefit - Water Conservation
With conservation/reuse: just
under 50% chance no expansion
needed for buildout/2060
50% chance expansion
needed about 2032
31
T
OWN O
f C
ARY
Benefit - BIG
Data
Before…
After…
T
OWN O
f C
ARY
33
RNI – Raw Meter Data
Big Data – Can be Complex…
C
IS
Syst
em
-
N
avi
Li
ne
MDM – Processed Read Data
SAS –
Analytical
Tables
C
ust
ome
r
Po
rt
al
Transformational!!! Customer
Service Becomes Proactive*
*
Most not quantified for cost/benefit analysis
T
OWN O
f C
ARY
Aquastar Customer Service*
• High Usage monitored
• Continuous flow monitored
• Highest quality billing
• Customer Call center service
• Same day customer starts and
stops
* Most not quantified for cost/benefit analysis
35
T
OWN O
f C
ARY
What Did We Tell our
Customers?
• Cary communications plans
– Strict rules
– Guidelines
– Timing
– Assistance from PIO
_______________________________________________________________________________________________________________________________________________________________
