AMERICAN SPECIALTIES, INC.

ISSUED: REVISED: MODEL No:

Accessory Specialties AMERICAN DISPENSER

THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE

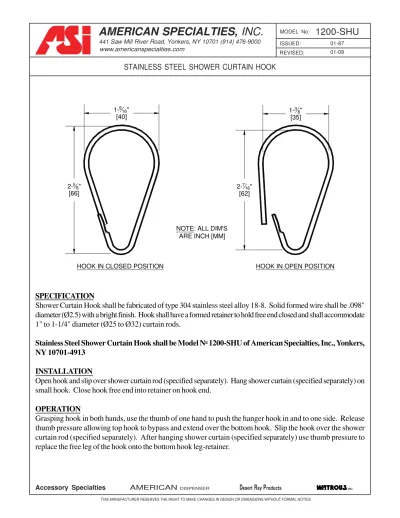

STAINLESS STEEL SHOWER CURTAIN HOOK

1200-SHU

AMERICAN SPECIALTIES, INC.

www.americanspecialties.com

441 Saw Mill River Road, Yonkers, NY 10701 (914) 476-9000 _01-87 01-08

SPECIFICATION

Shower Curtain Hook shall be fabricated of type 304 stainless steel alloy 18-8. Solid formed wire shall be .098"

diameter (Ø2.5) with a bright finish. Hook shall have a formed retainer to hold free end closed and shall accommodate

1" to 1-1/4" diameter (Ø25 to Ø32) curtain rods.

Stainless Steel Shower Curtain Hook shall be Model N

_{1200-SHU of American Specialties, Inc., Yonkers,}

NY 10701-4913

INSTALLATION

Open hook and slip over shower curtain rod (specified separately). Hang shower curtain (specified separately) on

small hook. Close hook free end into retainer on hook end.

OPERATION

Grasping hook in both hands, use the thumb of one hand to push the hanger hook in and to one side. Release

thumb pressure allowing top hook to bypass and extend over the bottom hook. Slip the hook over the shower

curtain rod (specified separately). After hanging shower curtain (specified separately) use thumb pressure to

replace the free leg of the hook onto the bottom hook leg-retainer.

1-916" [40]

2-5 8" [66]

HOOK IN CLOSED POSITION HOOK IN OPEN POSITION

2-7_16" [62]

1-3_8" [35]

NOTE: ALL DIM'S ARE INCH [MM]

TOILET PAPER HOLDER

Accessory Specialties AMERICANDISPENSER

SPECIFICATION

Toilet Paper Roll Holder shall be fabricated of triple chrome plated rust proof Zamak. Roller shall hold and

dispense all standard core roll tissue up to 5" diameter (Ø127). One stainless steel hex socket set screw shall be

provided along perimeter of each roll holder post flange for anchoring to stainless steel adjustable wall bracket.

Roll holder posts shall be theft resistant when tempered hardened stainless steel set screws are installed and

tightened into brackets. Two (2) wall anchors shall be provided. Roller shall be plastic with internal spring for

tension and shall be removable from brackets for easy loading. Unit shall meet appropriate FHA and other federal

specifications.

Toilet Paper Roll Holder shall be Model N

_{0705-Z as fabricated by American Specialties, Inc., 441 Saw}

Mill River Road, Yonkers, NY 10701-4913

INSTALLATION

Each Wall bracket is surface mounted using two (2) #8 pan head screws (provided by others to suit conditions)

through holes provided. Roll holder posts are mounted over top leg of brackets and secured by set screws from

underside. For compliance with ADA Accessibility Guidelines install unit so that tissue roll centerline is between

44" (1118) maximum above finished floor (Max AFF) and 19" (483) minimum AFF.

FRONT VIEW SIDE VIEW

TOP VIEW MOUNTING SCREW SET SCREW WALL ANCHOR FINISHED WALL ASSEMBLY NOTE: ALL DIM'S

INCH [MM] 5-7_8" [149] 1-7_16" [37] 2-1_16" [53] 2-3_4" [70] 3-1_8" [79] 1_4" [6] 5_16" [16] 1 8" [3] 7_8" [22] 1-1_8" [29]

AMERICAN SPECIALTIES, INC.

441 Saw Mill River Road, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com 7 16" [11] 5" [127] NOTE: DIM'S INCH [MM] LOCKING SET SCREW 1-1/16" [27] WALL BRACKET 2-3/16" [56] 2-9/16" [65] 5/8" DIA [Ø16] 1/4" DIA_[Ø6] 4-5/8" [117] 5/8" [16] 1-3/32" [28] 1-1/16" [27] S

SINGLE TOILET PAPER ROLL HOLDER WITH HOOD

MODEL

№:

7314-H

ISSUED: 05/13 REVISED: 02 Oct 2013

SPECIFICATION

Omara Collection Single Toilet Paper Roll Holder with Hood shall be type 304 stainless steel alloy 18-8. All exposed surfaces shall have satin finish. Roll holder bail shall be retained in post with concealed set screw. Hood shall be captive on bail. Post shall be 22 gauge tubing with formed 18 gauge threaded bracket welded inside end. Post shall be bolted to flange with concealed and locked M6 (Ø1/4") screw. Wall flange shall lock to wall bracket with stainless steel M5 hex socket set screw concealed on bottom perimeter of flange. Flange shall be 1/16" (1.5) thick with 3/32" (2.3) thick sides and heavy reinforcement ribs. Wall bracket shall be 18 gauge with em-bossed ribs for added strength and shall have two (2) mounting slots to accommodate M4 pan head screws (provided) and allow slight installation alignment adjustment. Hex L-key (M2.5) is provided to lock set screw to secure unit to wall bracket.

Single Toilet Paper Roll Holder with Hood shall be Model № 7314-H of American Specialties Inc., 441 Saw Mill River

Road, Yonkers, New York 10701-4913 INSTALLATION

Surface mount unit to finished wall with two (2) M4 x 39 (№ 6 x 1-1/2") pan head self-tapping screws (provided) through holes provided in wall bracket into plastic wall anchors (provided) or other suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Clip flange onto wall bracket and tighten setscrew to lock it in place. For compliance with 2010 ADA Accessibility Standards install unit so that top of paper holder is between 19" (483) minimum above finished floor (AFF) to 48" (1219) maximum AFF and centerline of post is between 7" (178) and 9" (229) from front of commode. Recommended general mounting height is 32" (813) AFF.

OPERATION

One roll of toilet paper is placed on the bail type holder for ready availability and feed is unrestricted. Bail holder swings freely in post to allow easy use and roll replacement. Hood protects roll from inadvertent contamination and swings independently of bail to maintain protective contact throughout supply level usage cycle. Toilet paper is replenished on a cycle determined by maintenance needs.

www.americanspecialties.com

TOWEL SHELF WITH HANGER ROD

REVISED: 11 Apr 2016

SPECIFICATION

Towel Shelf with Hanger Rod shall be type 304 stainless steel alloy 18-8 of welded round tubing construction and shall have 19 gauge 3/4" diameter [Ø19] formed frame as front and side rim retained on support posts by concealed screws. Concealed support side posts shall be 21/32" diameter [Ø17] solid rod with polished cast mounting flanges bolted on. Hanger rod shall be 15/32" diameter [Ø12] tube and shall be set into frame side support L-tubes, which shall have welded plugs in ends and be threaded to engage concealed retaining screws through frame tube and support posts. Finish shall be satin on all visible surfaces. A stainless steel setscrew shall be provided on bottom perimeter of flanges to lock unit to mounting plates. Mounting plates provided shall be formed 19 gauge with integral ribs for rigid installation.

Towel Shelf with Hanger Rod shall be Model № 7383 of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

INSTALLATION

Surface mount unit on wall using eight (8) № 6 x 1-3/8" [M4x35] self tapping screws (supplied) through holes provided in mounting plates into anchors (supplied) in suitably prepared walls (by others) or other suitable mounting hardware (by others) to suit wall conditions. Waterproof screw penetrations through tiles in wet area installations. Hang shelf post and flange assemblies on mounting plates and tighten setscrews to lock unit to plates with hex key provided. For compliance with 2010 ADA Accessibility Standards, install unit with top of shelf 48" [1219] maximum above finished floor (MAX AFF) if clear floor reach access is provided or 46" [1168] MAX AFF if side reach access over an obstruction (e.g. tub) with reach depth greater than 10" [254] and less than 25" [635] is only provided or 44" [1118] MAX AFF if forward reach over an obstruction with reach depth greater than 20" [508] and less than 25" [635] is only provided. For general utility, mount unit with top rim of shelf 55" to 65" [1397 to 1651] above floor.

OPERATION

Shelf has open spaces between tubes to reduce weight and facilitate drying. Properly installed shelf will support up to 35.3 lbs (16 kg) total weight of towels and items hung on rod.

AMERICAN SPECIALTIES, INC.

441 Saw Mill River Road, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com 1-15/16" DIA [Ø49] 6-27/32" [174] 7" DIA [Ø178] 7 16" [11] 1-1/16" [27] NOTE: DIM'S INCH [MM] 2-3/16" [56] 2-1/2" [64] 1-3/32" [28] LOCKING

SET SCREW _LOCKING

SET SCREW 1-1/16" [27] WALL BRACKET 3/8" DIA [Ø9.5] 5/8" DIA [Ø16] S SPECIFICATION

Omara Collection Towel Ring shall be type 304 stainless steel alloy 18-8. Ring shall be formed 3/8" diameter (Ø9.5) 20 gauge tubing. Wall flange shall lock to wall bracket with stainless steel M5 hex socket set screw concealed on bottom pe-rimeter of flange. Post shall be 22 gauge tubing with formed 18 gauge threaded bracket welded inside end. Flange shall be 1/16" (1.5) thick with 3/32" (2.3) thick sides and heavy reinforcement ribs. Post shall be bolted to flange with concealed and locked M6 (Ø1/4") screw. All exposed surfaces shall have satin finish. Wall bracket shall be 18 gauge with embossed ribs for added strength and shall have two (2) mounting slots to accommodate M4 pan head screws (provided) and allow slight installation alignment adjustment. Hex L-key (M2.5) is provided to lock set screw to secure unit to wall bracket.

Towel Ring unit shall be Model № 7306 of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York

10701-4913 INSTALLATION

Surface mount unit to finished wall or on door with two (2) M4 x 39 (№ 6 x 1-1/2") pan head self-tapping screws (provided) through holes provided in wall bracket into plastic wall anchors (provided) or other suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Clip flange onto wall bracket and tighten setscrew to lock it in place. For compliance with 2010 ADA Accessibility Standards install unit with top of towel ring 48" (1219) maxi-mum above finished floor (MAX AFF) if clear floor reach access is provided or 46" (1168) MAX AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" (254) and less than 25" (635) is only provided or 44" (1118) MAX AFF if forward reach over an obstruction with reach depth greater than 20" (508) and less than 25" (635) is only provided. For general utility install ring with centerline of mounting plate between 50" and 60" (1270 to 1524) AFF.

OPERATION

Towel ring swings in silencer bushings to allow easy access to hang or retrieve towel. Formed ring is held captive in bush-ings on post by spring tension and will hold bath or hand towels.

TOWEL RING

MODEL

№:

7306

ISSUED: 05/13 REVISED: 12 Sept 2013

www.americanspecialties.com LENGTH PER SCHEDULE 1-1/16" [27] 1-15/16" DIA [Ø49] TYP NOTE: DIM'S INCH [MM] 15/16" [24] TYP S 1-3/32" [28] 5/8" DIA [Ø16] 2-5/8"_[67] 15-32" DIA [Ø12] LOCKING SET SCREW TYP 1-1/16" [27] WALL BRACKET

ROUND TOWEL BAR

REVISED: 12 Sept 2013

SPECIFICATION

Omara Collection Round Towel Bar shall be fabricated of type 304 stainless steel alloy 18-8. Wall flanges shall lock to wall brackets with stainless steel M5 hex socket set screws concealed on bottom perimeter of flanges. Towel Bar shall be 20 gauge tubing with welded closed and finished ground ends. Posts shall be 22 gauge tubing with formed 18 gauge threaded brackets welded inside ends. Flanges shall be 1/16" (1.5) thick with 3/32" (2.3) thick sides and heavy reinforcement ribs. Posts shall be bolted to flanges with concealed and locked M6 (Ø1/4") screws. All exposed surfaces shall have satin finish. Wall brackets shall be 18 gauge with embossed ribs for added strength and shall have two (2) mounting slots to accommodate M4 pan head screws (provided) and allow slight installation alignment adjustment. Hex L-key (M2.5) is provided to lock set screws to secure unit to wall brackets. Length shall be as chosen from schedule and indicated by code suffix.

Round Towel Bar shall be Model № 7307-18 or № 7307-24 of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

INSTALLATION

Surface mount unit to finished wall or on door with four (4) M4 x 39 (№ 6 x 1-1/2") pan head self-tapping screws (provided) through holes provided in wall brackets into plastic wall anchors (provided) or other suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Clip flanges onto wall brackets and tighten setscrews to lock them in place. For compliance with 2010 ADA Accessibility Standards install unit with top of towel rod 48" (1219) maximum above finished floor (MAX AFF) if clear floor reach is provided or 46" (1168) MAX AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" (254) and less than 25" (635) is only provided or 44" (1118) MAX AFF if forward reach over an obstruction (e.g. com-mode) with reach depth greater than 20" (508) and less than 25" (635) is only provided. For general utility install towel rod with centerline of mounting plates at 55" (1397) AFF.

LENGTHS x MODEL №

LENGTH

LENGTHS x MODEL № LENGTH

Satin Finish Only

MODEL №

18" (457) 7307-18

AMERICAN SPECIALTIES, INC.

441 Saw Mill River Road, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com NOTE: DIM'S INCH [MM] 2-3/8" [60] 5/16" DIA [Ø8] TYP 1-1/16" [27] 3 8" [10] 7 16" [11]

90°

Omara Collection Double Robe Hook shall be type 304 stainless steel alloy 18-8. Wall flange shall lock to wall bracket with stainless steel M5 hex socket set screw concealed on bottom perimeter of flange. Post shall be 22 gauge tubing with formed 18 gauge threaded bracket welded inside end. Hook shall be solid pin. Flange shall be 1/16" (1.5) thick with 3/32" (2.3) thick sides and heavy reinforcement ribs. Post shall be bolted to flange with concealed and locked M6 (Ø1/4") screw. All exposed surfaces shall have satin finish. Wall bracket shall be 18 gauge with embossed ribs for added strength and shall have two (2) mounting slots to accommodate M4 pan head screws (provided) and allow slight installation alignment adjust-ment. Hex L-key (M2.5) is provided to lock set screw to secure unit to wall bracket.

Double Robe Hook shall be Model № 7312 of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

INSTALLATION

Surface mount unit to door back or finished wall with two (2) M4 x 39 (№ 6 x 1-1/2") pan head self-tapping screws (provided) through holes provided in wall bracket into plastic wall anchors (provided) or other suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit door or wall conditions. Clip flange onto wall bracket and tighten setscrew to lock it in place. For compliance with 2010 ADA Accessibility Standards install unit with top of hook 48" (1219) maximum above finished floor (MAX AFF) if clear floor reach is provided. For general utility install hook with centerline of mounting plate 68" (1727) AFF.

OPERATION

Hook is suitable for robes or clothing and small carry bags.

DOUBLE ROBE HOOK

MODEL

№:

7312

ISSUED: 05/13 REVISED: 16 Sept 2013

www.americanspecialties.com 1-3/32" [28] 1-1/16" [27] S 3-3/8" [86] 5-3/16" [131] 2-1/8" [54] 2-3/16" [56] 1/4" DIA [Ø6] 2-9/16" [65] 5/8" DIA [Ø16] LOCKING SET SCREW 7 16" [11] 1-15/16" DIA [Ø49] NOTE: DIM'S INCH [MM] 1-1/16" [27] WALL BRACKET

SINGLE TOILET PAPER ROLL HOLDER

REVISED: 10 Sept 2013

SPECIFICATION

Omara Collection Single Toilet Paper Roll Holder shall be type 304 stainless steel alloy 18-8. All exposed surfaces shall have satin finish. Roll holder bail shall be retained in post with concealed set screw. Post shall be 22 gauge tubing with formed 18 gauge threaded bracket welded inside end. Post shall be bolted to flange with concealed and locked M6 (Ø1/4") screw. Wall flange shall lock to wall bracket with stainless steel M5 hex socket set screw concealed on bottom perimeter of flange. Flange shall be 1/16" (1.5) thick with 3/32" (2.3) thick sides and heavy reinforcement ribs. Wall bracket shall be 18 gauge with embossed ribs for added strength and shall have two (2) mounting slots to accommodate M4 pan head screws (provided) and allow slight installation alignment adjustment. Hex L-key (M2.5) is provided to lock set screw to secure unit to wall bracket.

Single Toilet Paper Roll Holder shall be Model № 7314 of American Specialties Inc., 441 Saw Mill River Road,

Yonkers, New York 10701-4913 INSTALLATION

Surface mount unit to finished wall with two (2) M4 x 39 (№ 6 x 1-1/2") pan head self-tapping screws (provided) through holes provided in wall bracket into plastic wall anchors (provided) or other suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Clip flange onto wall bracket and tighten setscrew to lock it in place. For compliance with 2010 ADA Accessibility Standards install unit so that top of paper holder is between 19" (483) minimum above finished floor (AFF) to 48" (1219) maximum AFF and centerline of post is between 7" (178) and 9" (229) from front of commode. Recommended general mounting height is 32" (813) AFF.

OPERATION

One roll of toilet paper is placed on the bail type holder for ready availability and feed is unrestricted. Bail holder swings freely in post to allow easy use and roll replacement. Toilet paper is replenished on a cycle determined by maintenance needs.

AMERICAN SPECIALTIES, INC.

441 Saw Mill River Road, NY 10701 (914) 476.9000 • (914) 476.0688 www.americanspecialties.com

HEAVY-DUTY SHOWER CURTAIN ROD

MODEL

№:

1214

ISSUED: 1-87 REVISED: 05 Nov 2013

SPECIFICATION

Heavy-Duty Shower Curtain Rod with flanges shall be fabricated of type 304 stainless steel alloy 18-8 and shall be protected during shipment with a plastic bag. Tubing shall be 1"diameter (Ø25) x 20 gauge with a satin finish and shall be protected during shipment with a plastic sleeve. Length shall be as specified. Flanges shall have three (3) dimpled 17/64" diameter (Ø6.7) holes to accept either Ø1/4 (M6) or № 10 (M5) oval head screws (provided by others).

Heavy-Duty Shower Curtain Rod with Exposed Mounting Flanges shall be Model No 1214-XXX of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

ORDERING NOTE

Select rod length in inches (e.g. 048, 060, 120) to create Part Spec Order Number (i.e. 1214-060).

INSTALLATION

Install rod in straight section between two (2) mounting flanges with no more than 1/4" (6) total wall clearance. Rods longer than 72" (1829) require ceiling hanger Model № 1224-C18. For use with standard shower curtain model №’s 1200 or 1200-V having 72" (1829) length and standard hooks (Model № 1200-SHU) install unit with rod centerline 74-1/2" (1892) maximum above finished floor (MAX AFF) or 67" (1702) above tub rim to obtain 6" (152) bottom overlap. Seal screw holes in walls under flange to prevent any sprayed water from possibly infiltrating the wall structure.

OPERATION

Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others (by others). Rod will bend and pull from flanges if significant body weight is suspended.
