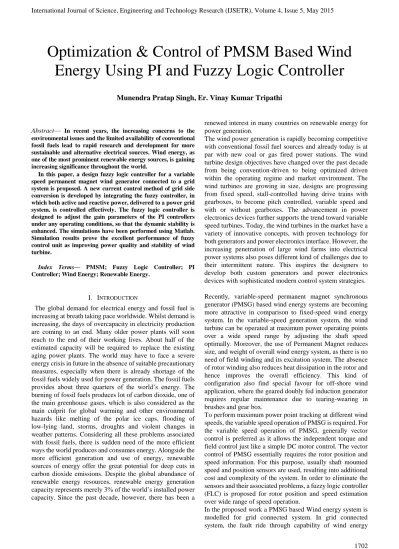

Optimization & Control of PMSM Based Wind Energy Using PI and Fuzzy Logic Controller

(1)



Abstract— In recent years, the increasing concerns to the environmental issues and the limited availability of conventional fossil fuels lead to rapid research and development for more sustainable and alternative electrical sources. Wind energy, as one of the most prominent renewable energy sources, is gaining increasing significance throughout the world.

In this paper, a design fuzzy logic controller for a variable speed permanent magnet wind generator connected to a grid system is proposed. A new current control method of grid side conversion is developed by integrating the fuzzy controller, in which both active and reactive power, delivered to a power grid system, is controlled effectively. The fuzzy logic controller is designed to adjust the gain parameters of the PI controllers under any operating conditions, so that the dynamic stability is enhanced. The simulations have been performed using Matlab. Simulation results prove the excellent performance of fuzzy control unit as improving power quality and stability of wind turbine.

Index Terms— PMSM; Fuzzy Logic Controller; PI Controller; Wind Energy; Renewable Energy.

I. INTRODUCTION

The global demand for electrical energy and fossil fuel is increasing at breath taking pace worldwide. Whilst demand is increasing, the days of overcapacity in electricity production are coming to an end. Many older power plants will soon reach to the end of their working lives. About half of the estimated capacity will be required to replace the existing aging power plants. The world may have to face a severe energy crisis in future in the absence of suitable precautionary measures, especially when there is already shortage of the fossil fuels widely used for power generation. The fossil fuels provides about three quarters of the world’s energy. The burning of fossil fuels produces lot of carbon dioxide, one of the main greenhouse gases, which is also considered as the main culprit for global warming and other environmental hazards like melting of the polar ice caps, flooding of low-lying land, storms, droughts and violent changes in weather patterns. Considering all these problems associated with fossil fuels, there is sudden need of the more efficient ways the world produces and consumes energy. Alongside the more efficient generation and use of energy, renewable sources of energy offer the great potential for deep cuts in carbon dioxide emissions. Despite the global abundance of renewable energy resources, renewable energy generation capacity represents merely 3% of the world’s installed power capacity. Since the past decade, however, there has been a

renewed interest in many countries on renewable energy for power generation.

The wind power generation is rapidly becoming competitive with conventional fossil fuel sources and already today is at par with new coal or gas fired power stations. The wind turbine design objectives have changed over the past decade from being convention-driven to being optimized driven within the operating regime and market environment. The wind turbines are growing in size, designs are progressing from fixed speed, stall-controlled having drive trains with gearboxes, to become pitch controlled, variable speed and with or without gearboxes. The advancement in power electronics devices further supports the trend toward variable speed turbines. Today, the wind turbines in the market have a variety of innovative concepts, with proven technology for both generators and power electronics interface. However, the increasing penetration of large wind farms into electrical power systems also poses different kind of challenges due to their intermittent nature. This inspires the designers to develop both custom generators and power electronics devices with sophisticated modern control system strategies. Recently, variable-speed permanent magnet synchronous generator (PMSG) based wind energy systems are becoming more attractive in comparison to fixed-speed wind energy system. In the variable-speed generation system, the wind turbine can be operated at maximum power operating points over a wide speed range by adjusting the shaft speed optimally. Moreover, the use of Permanent Magnet reduces size, and weight of overall wind energy system, as there is no need of field winding and its excitation system. The absence of rotor winding also reduces heat dissipation in the rotor and hence improves the overall efficiency. This kind of configuration also find special favour for off-shore wind application, where the geared doubly fed induction generator requires regular maintenance due to tearing-wearing in brushes and gear box.

To perform maximum power point tracking at different wind speeds, the variable speed operation of PMSG is required. For the variable speed operation of PMSG, generally vector control is preferred as it allows the independent torque and field control just like a simple DC motor control. The vector control of PMSG essentially requires the rotor position and speed information. For this purpose, usually shaft mounted speed and position sensors are used, resulting into additional cost and complexity of the system. In order to eliminate the sensors and their associated problems, a fuzzy logic controller (FLC) is proposed for rotor position and speed estimation over wide range of speed operation.

In the proposed work a PMSG based Wind energy system is modelled for grid connected system. In grid connected system, the fault ride through capability of wind energy

Optimization & Control of PMSM Based Wind

Energy Using PI and Fuzzy Logic Controller

(2)

system is demonstrated under grid voltage sag/swell conditions.

Another objective is to develop an advance controller for grid side inverter. Since the inverter works under highly fluctuating operating conditions, it is not possible to set the optimal value of gains for the conventional proportional-integral (PI) regulator. This may lead to false operation of inverter.

The main objective is to achieve smooth operation of grid side inverter, where the conventional PI controller may fail due to the rapid change in the dynamics of the overall system. The combined capability of PI-fuzzy controller in handling the uncertainties and learning from the processes is proved to be advantageous while controlling the inverter under fluctuating operating conditions.

II. MODEL OF WIND TURBINE

The static characteristic of the turbine (output as a function of wind speed) can be described by the relationship between the total power and mechanical energy of the wind:

where ρ is the air density (1,225 kg/m3), Rturbine is then rotor

radius (m), vwind is the wind speed (m/s). It is impossible to

extract all the kinetic energy of wind, so it extracts a fraction of the power of wind as shown in (2) as the power coefficient Cp.

Pm is the mechanical power of the wind (Nm/s). The

maximum power coefficient CpM is 0.59. This coefficient is

also known as Betz limit. It can be expressed in terms of reduced velocity λ and angle of light θ: Cp = Cp (λ, θ).

If W is the rotor speed, the reduced speed λ is defined:

Assuming a constant wind speed vwind, the reduced speed λ

varies proportionally to the rotor speed [10]. The maximum value of Cp is generally obtained for values of λ around 8 to 9

(when the tip of the movements of blade is 8 to 9 times faster than the wind). On modern wind turbines, it is possible to adjust the angle of the blades through a control mechanism [11]. If Cp-λ curve is known for a specific wind with a radius

of turbine rotor Rturbine, it is easy to construct the curve of Cp as

a function of rotational speed Ω for a wind speed vwind. The

output torque of the turbine is calculated :

If the speed ratio λ is maintained at its optimal value λopt, the

power coefficient is at its maximum value CpM=Cp(λopt), the

maximum power of the wind turbine will be:

On the other hand, the speed ratio assumed to be maintained at the optimum value, we obtain the optimum speed rotor:

Thus, the wind power turbine characteristics is shown in figure 1.

Figure 1: Wind Turbine Power Characteristics In this paper, a wind turbine is simulated by using a look-up table, where inputs are wind speed and rotor speed and output is the mechanical torque.

III. MODELLING OF PMSM

The mathematical model for the vector control of the PMSM can be derived from its dynamic d-q model which can be obtained from well-known model of the induction machine with the equation of damper winding and field current dynamics removed. The synchronously rotating rotor reference frame is chosen so the stator winding quantities are transformed to the synchronously rotating reference frame that is revolving at rotor speed.

The model of PMSM without damper winding has been developed on rotor reference frame using the following assumptions:

1) Saturation is neglected.

2) The induced EMF is sinusoidal. 3) Core losses are negligible.

4) There are no field current dynamics.

It is also be assumed that rotor flux is constant at a given operating point and concentrated along the d axis while there is zero flux along the q axis, an assumption similarly made in the derivation of indirect vector controlled induction motor drives [15]. The rotor reference frame is chosen because the position of the rotor magnets determine independently of the stator voltages and currents, the instantaneous induced emf and subsequently the stator currents and torque of the machine. When rotor references frame are considered, it means the equivalent q and d axis stator windings are transformed to the reference frames that are revolving at rotor speed. The consequences is that there is zero speed differential between the rotor and stator magnetic fields and

(3)

in the rotor reference frames using flux linkages are taken to derive the model of the PMSM as shown in Fig.2:

Fig.2: PM machine synchronously rotating d-q reference frame.

So an PM machine is described by the following set of general equations:

(9)

The mechanical torque equation is

T

e

= T

L

+ Bω

m

+ J

(10)

Solving for rotor mechanical speed from (10), we get

ω

m

=

( T

e

– T

L

- Bω

m

/ J ) dt

(11)

and rotor electrical speed is

ω

r

= ω

m

(P/2).

(12) 3.1. Park Transformation and Dynamic d-q Modelling: The dynamic d-q modelling is used for the study of motor during transient and steady state. It is done by converting the three phase voltages and currents to dqo variables by using Parks transformation [16]. Converting the phase voltages variables Vabc to Vdqo variables in rotor reference frame the following equations are obtained:

In contrast, Vdqo can be converted to Vabc as:

3.2. Equivalent circuit of PMSM:

For analysis purpose equivalent circuits of the motors are used for study and simulation of motors. From the d-q modelling of the motor using the stator voltage equations the equivalent circuit of the motor can be derived. Assuming rotor d axis flux from the permanent magnets is represented by a constant current source as described in the following equation λf= Ldmif , following figure can be obtained from [15] shown as fig 3 and fig.4.

The equivalent circuits are

1. Dynamic stator q-axis equivalent circuit 2. Dynamic stator d-axis equivalent circuit

(4)

Fig.4: Stator d-axis equivalent circuit.

IV. FUZZY LOGIC CONTROLLER

A fuzzy logic controller may consist of three basic blocks, namely, Fuzzification, Inference system and Defuzification [7]

Fig-5: Fuzzy control arrangement

4.1 Fuzzification: Fuzzification is the procedures to process the input variables with membership functions and determine the degree to which the input variables are belong to each of the appropriate fuzzy sets via membership functions. Membership functions (MF) are used to convert each value of input variables into a membership value between 0 and 1. Membership functions may take any Arbitrary shape or form, such as Gaussian distribution curves, Sigmoid curves, bell shape curves, triangular functions or tables. The selection of membership functions is very important as it means a kind of controller tuning. Once the membership function shape has been chosen, the values they are centered about and the width of the functions have to be set. Overlapping of membership functions is required as it means that more than one rule is fired at any time, which is a key feature of fuzzy systems. Triangular membership function are used as they are easier to implement and quicker to process. In the proposed fuzzy system, seven fuzzy sets have been considered for each input: Large Negative (LN), Medium Negative (MN), Small

fuzzification, the input variables are normalized using base values.

4.2 Fuzzy Inference System The fuzzy inference includes the process of fuzzy logic operation, fizzy rule implication and aggregation. In the fuzzy inference system, the fuzzified input variables are processed with fuzzy operators and the IF-THEN rule implementation. The output fuzzy sets for each rule are then aggregated into a single output fuzzy set. Aggregation is the process by which the fuzzy sets that represent the outputs of each rule are combined into a single fuzzy set. The input of the aggregation process is the list of output fuzzy sets and the output of the aggregation process is one fuzzy set for each output variable.

4.3 Defuzzification The input for the defuzzification process is a fuzzy set (the aggregate output fuzzy set) and the output is a single value. The centroid method is used for defuzzification; it returns the centre of the area under the curve representing the aggregated output fuzzy set.

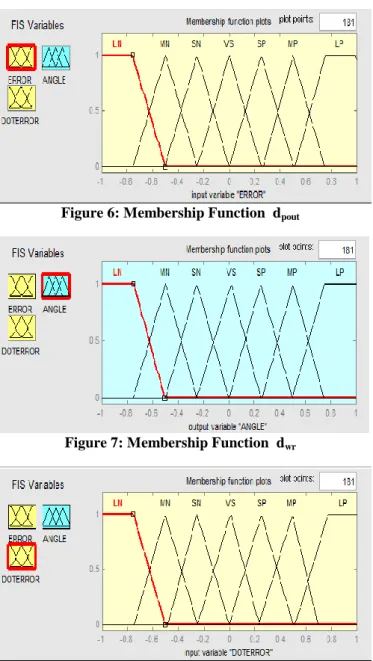

Figure 6: Membership Function dpout

Figure 7: Membership Function dwr

(5)

Fig-9: Rule view of the next fuzzy control system

Fig-10 surface view of the next fuzzy control system V. MODELLING &RESULT

In this proposed model, a 3-phase permanent magnet synchronous machine with sinusoidal back EMF is implemented. The sinusoidal machine is modelled in the dq rotor reference frame. Stator windings are connected in wye to an internal neutral point. The rest system parameter values are tabulated in appendix A.

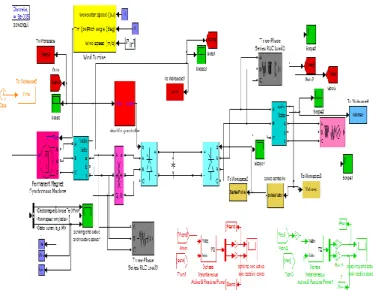

Figure 11: Complete model of wind energy with PI and Fuzzy Controller

In wind turbine block implements a variable pitch wind turbine model. The performance coefficient Cp of the turbine is the mechanical output power of the turbine divided by wind power and a function of wind speed, rotational speed, and pitch angle (beta). Cp reaches its maximum value at zero beta. The base generator speed is the 1.2 p.u. For a synchronous generator, the base speed is the synchronous speed. For a permanent-magnet generator, the base speed is defined as the speed producing nominal voltage at no load.

The blade pitch angle is zero degree and the wind speed is 12m/s. the nominal output mechanical power is 150 x 103 W. In this model a PLL is also implemented. The Phase Locked Loop (PLL) system can be used to synchronize on a set of variable frequency, three-phase sinusoidal signals. If the Automatic Gain Control is enabled, the input (phase error) of the PLL regulator is scaled according to the input signal magnitude.

PMSG Values

Rated Speed 4250 rpm

Stator Resistence 1.6 ohm

Magnetic flux Linkage 0.1852 wb

Stator inductance (Ld, Lq) 0.006365, 0.006365 mH

Rated Torque 3.2 Nm

Torque Constant 0.5556 Nm

Friction Factor 5.369 * 10-005

Appendix : A The output results are

(6)

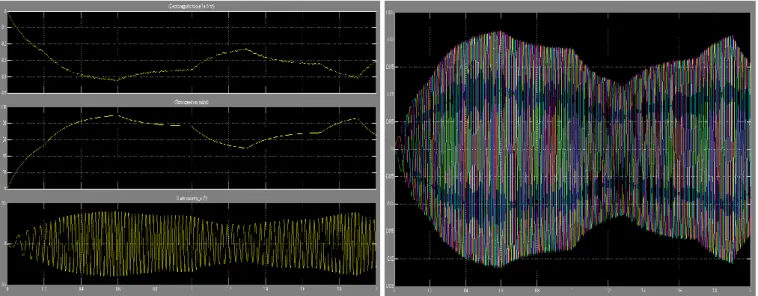

Figure 12: Waveform of Permanent Magnet synchronous machine : (i) Electromagnetic Torque Te, (ii) Rotor Speed rad/sec and (iii) waveform of Stator Current in Ampere.

Figure 13: Waveform of active and reactive power at sending end.

Figure 14: Waveform of active and reactive power at receiving end

Figure 15: Waveform of current at sending end

Figure 16: Waveform of current at receiving end

(7)

Figure 18: waveform of voltage at receiving end. VI. CONCLUSION

In this paper, a new Fuzzy-PI controller for variable speed permanent magnet wind generators connected to a power grid is proposed and investigated in order to enhance its dynamic performances. The controller combines fuzzy logic with a classical PI controller in order to adjust the PI gains online. The stabilizing effect of the proposed PMSG system on the fixed speed wind generators is also investigated. The results show that the proposed Fuzzy-PI controller is very effective in improving the transient stability of overall wind farm systems during temporary and permanent fault conditions. The steady state performance of the proposed system is analyzed using variable wind speed data, and it is demonstrated that the terminal voltage of wind farm under randomly varying wind speed can be controlled constantly.
