EHS Hub Team Member
EHS Hub Team Member
EHS Hub Manager

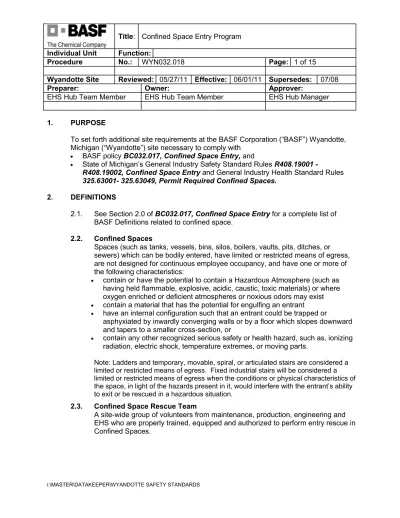

1.
PURPOSE
To set forth additional site requirements at the BASF Corporation (“BASF”) Wyandotte,
Michigan (“Wyandotte”) site necessary to comply with
·
BASF policy BC032.017, Confined Space Entry, and
·
State of Michigan’s General Industry Safety Standard Rules R408.19001
-R408.19002, Confined Space Entry and General Industry Health Standard Rules
325.63001- 325.63049, Permit Required Confined Spaces.
2.
DEFINITIONS
2.1.
See Section 2.0 of BC032.017, Confined Space Entry for a complete list of
BASF Definitions related to confined space.
2.2.
Confined Spaces
Spaces (such as tanks, vessels, bins, silos, boilers, vaults, pits, ditches, or
sewers) which can be bodily entered, have limited or restricted means of egress,
are not designed for continuous employee occupancy, and have one or more of
the following characteristics:
·
contain or have the potential to contain a Hazardous Atmosphere (such as
having held flammable, explosive, acidic, caustic, toxic materials) or where
oxygen enriched or deficient atmospheres or noxious odors may exist
·
contain a material that has the potential for engulfing an entrant
·
have an internal configuration such that an entrant could be trapped or
asphyxiated by inwardly converging walls or by a floor which slopes downward
and tapers to a smaller cross-section, or
·
contain any other recognized serious safety or health hazard, such as, ionizing
radiation, electric shock, temperature extremes, or moving parts.
Note: Ladders and temporary, movable, spiral, or articulated stairs are considered a limited or restricted means of egress. Fixed industrial stairs will be considered a limited or restricted means of egress when the conditions or physical characteristics of the space, in light of the hazards present in it, would interfere with the entrant’s ability to exit or be rescued in a hazardous situation.
2.3.
Confined Space Rescue Team
A site-wide group of volunteers from maintenance, production, engineering and
EHS who are properly trained, equipped and authorized to perform entry rescue in
Confined Spaces.
2.4.
Entry
The action by which a person passes through an opening into a Confined Space
and is considered to have occurred as soon as any part of the entrant's body
breaks the plane of an opening into the space.
2.5.
Entry Supervisor (Permit Issuer)
The operations/owning department person (such as operations supervisor,
process owner or team leader) responsible for
·
determining if acceptable Entry conditions are present at a Confined Space,
·issuing Confined Space Entry Permit,
·
overseeing Entry operations, and
·terminating Entry activities, as required.
2.6.
Limited/Restricted Egress
·
Areas that are difficult to exit quickly, or
·
A space deeper than 4 feet which does not have a permanent stairway or
ladder.
2.7.
Site Safety “Center of Excellence” (COE)
Multi-disciplinary team established to facilitate site safety-related activities.
·
Cost Center oversight of Confined Space Rescue Team.
2.8.
Permit Acceptor
The person in charge of the Entry Team that:
·
attests that their personnel entering the Confined Space are fully trained and the
required equipment has been inspected and is functional.
·
walks down the job and reviews safety requirements with permit issuer and
·
signs the Permit Acceptor part of the Entry Permit.
2.9.
Operations/Owning
The Department that owns or controls the Confined Space and requests that a
Confined Space Entry be performed.
3.
SCOPE
Applies to all Personnel at the Wyandotte site.
4.
PROCEDURE
4.1.
Compliance With Corporate Policy/Procedure
·
Persons entering a Confined Space must comply with the Authorization
requirements specified in Section 4.1.1 of BASF procedure
BC032.017,Confined Space Entry.
·
This procedure is in compliance with BC032.017,Confined Space Entry.
·
Employee participation at the Wyandotte site shall comply with the
requirements specified in Section 4.1.3. of BC032.017,Confined Space
Entry.
4.2.
General Requirements
4.2.1. Operations/Owning Department
The Operations/Owning Department issues the Confined Space Entry
Permit. Prior to issuing the permit the Permit Issuer and Permit Acceptor
shall:
· personally inspect the confined space preparation, · review precautions taken,
· review personal protective equipment to be used,
· review procedures and instructions for all personnel involved in the assignment,
· ensure the permit is located at the work site,
· provide an opportunity for the confined space entrant or authorized representative to observe atmospheric monitoring.
4.2.2. Issuance and Authorization
No person shall enter a Confined Space without the prior issuance and
posting of the entry permit at the Confined Space entrance.
4.2.3. Confined Space Exemptions
Areas determined not to meet the definition of a Confined Space by joint
opinion of the Process Owner, Maintenance Team Leader and EHS.
4.2.4. Confined Space Entry Exceptions
·
Exceptions to required equipment or conditions may be granted
through joint signatures by the Process Owner (or properly trained
staff-level designee) and the Maintenance Team Leader (or
Maintenance Facilitator) on the Entry Permit.
·
Only those equipment and condition exceptions as specified on the
back side of the Entry Permit are allowed.
4.2.5. Immediately Dangerous to Life & Health (“IDLH”) Policy
While it is a policy not to routinely enter atmospheres immediately
dangerous to life and health (IDLH) it is recognized that certain emergency
circumstances (e.g. Confined Space rescue, etc) may require IDLH entry
·
IDLH entry will not be performed where a flammable or explosive
atmosphere exists.
4.3.
Permits
·
Permits shall be issued and cancelled according to the requirements specified
in Section 4.2 of BC032.017,Confined Space Entry.
·
The Wyandotte site has the following additional requirements with the
following title and order:
Step Topic BC032.017 Compliance Additional Site Requirements 1 Content Section 4.2.2.
The Wyandotte site entry permit (see Attachment) contains all components required by 4.2.2 of BC032.017. 2 Special Procedures, Instructions, Exceptions Section 4.2.3.
Equipment or condition exceptions are noted on the Entry Permit and signed off by the Process Owner (or staff-level designee) and Maintenance Team Leader (or Maintenance Facilitator).
3 Duration Section
4.2.4.
· The permit shall not be valid for longer than one shift of personnel performing the Entry activities (maximum 16 hours). · New (different shift) Entry Supervisors must re-validate or
re-issue the entry permit and inform the Permit Acceptor of the supervision change.
4 Authorization Section
4.2.1
The permit must be signed by designated representatives from both the Operations/Owning Department (Permit Issuer) and Maintenance (Permit Acceptor).
5 Entry Permit
Termination
Section 4.2.4.
The permit can be terminated by anyone participating in the Confined Space Entry based upon:
· Completed entry operations or 16 hours has elapsed since permit issuance.
· A condition that arises that is not allowed under this procedure.
· A condition that arises that any participant considers unsafe. · Permit Acceptor or crew changes.
6 Completed
Entry Permit
Section 4.2.5
· Upon completion or discontinuation of the Entry, the
completed Confined Space Entry permit shall be returned to the Operating/Owning department supervision.
· Any problems encountered during an Entry shall be noted on the permit so that appropriate revisions to the site program can be made.
· Completed permits shall be retained at an interval no greater than one year to facilitate the program review stated in Section 4.8
Contractor Employees shall be debriefed concerning the program and any hazards that were created or confronted during Entry at the end of any Entry operation.
4.
PROCEDURE cont’d.
4.3.
Permits cont’d.
Step Topic BC032.017 Compliance Additional Site Requirements Section 4.3. 1. Techniques· If product or other material remains in the vessel after cleaning, careful review of the situation by Operations/Owning and
maintenance personnel is required to identify special provisions (e.g. re-cleaning, increased/ improved monitoring, ventilation or ppe).
· At least two Rescue Team members be notified and on site to respond (per Corporate Std. Section 4.6.2).
· Air testing can only be conducted by Operations/Owning Personnel who have received documented training in
· span gas checking, · calibration,
· testing equipment use, and · data interpretation.
Section 4.3.1 & 4.3.2.
2. Preparation and Isolation.
All adjoining piping and hazardous energy sources shall be de-energized and isolated per Lock, Tag,
and Try procedures contained in BC032.014 and WYN032.010. NOTE: If the Confined Space
contains internal power driven mechanisms, such as agitators, all switch gear and other power sources shall be " locked, tagged and tried". Look for stored inertial energy of rotating equipment, as well as, all hydraulic and pneumatic energy sources.
Section 4.3.3.
3. Contaminated Equipment
· The Confined Space and inter-connecting equipment shall be decontaminated in compliance with the Contaminated
Equipment procedure WYN032.046.
7 Preparation and Isolation Requirements Section 4.3.4. 4. Radioactive Devices
Shutters must be Locked and Tagged Out as specified in the site procedure WYN032.010, Lock,
Tag & Try.
Step 7
(cont’d)
Preparation and Isolation Requirements (cont’d) Section 4.3.5.5. Postings & Barricades
· Cautions signs and barricades must be posted as specified site procedure WYN032.002.
· “Caution – Confined Space Work Underway” will be posted in the immediate work area during entry. · Yellow caution tape may be used to additionally
highlight the area.
· Numerous Confined Spaces exist at the Wyandotte site and vary in size, configuration (layout) and hazard type.
· The types include tanks, tank trucks, reactor vessels, railcars, pits, pipes, ditches, active excavations, etc.
Note:
· The Site does not distinguish between Permit and non-permit Confined Spaces as defined in the OSHA
Standard, Permit-required Confined Spaces (1910.146).
· Entry into a Confined Space always requires a permit.
· Posting of signs is not typically performed for those Confined Spaces that fall into general categories of known or apparent Confined Space status.
· The Business Unit, however, may choose to post any and all Confined Spaces that fit into these general categories.
· Employees are informed of the existence and location of the Unit’s Confined Spaces through appropriate training.
· The Unit is responsible for evaluating the workplace to determine if confined spaces exist and to ensure that personnel are adequately trained to recognize a confined space and the potential hazards associated with such space.
· Confined Spaces that do not fall into general categories of known or apparent Confined Space status that could inadvertently have someone enter the space, are identified through posting.
· Postings will read, " DANGER, CONFINED SPACE, ENTER BY PERMIT ONLY".
· Barriers are used to prevent unauthorized entry into open manholes or excavations.
(Table continued on next page)
4.3.
Permits cont’d.
Step Topic BC032.017 Compliance Additional Site Requirements 7 (cont’d) Preparation and Isolation Requirements (cont’d)· Spaces appearing to be Confined Spaces but determined not to be are exempted from the requirements.
· Confined Spaces which do not contain a hazard or potential hazard capable of causing physical harm or for which adherence to a requirement would increase the hazard (e.g., blowing air in a dusty environment) may be also be exempted from one or more of the Program requirements.
· Exemptions must be documented in writing.
· Exemptions must be reviewed and signed off by the · Process Owner (or Staff-level designee), · Maintenance Team Leader (or designee), and · EHS Safety Coordinator (or designee).
Standing Confined Space exemptions must be identified and a list maintained by Operations/Owning.
Section
4.4.1.
1. Communications
Same as Corporate Standard.
Section
4.4.2.
2. Attendant Locations
Same as Corporate Standard.
Section
4.4.3.
3. Ladder Use
Requirements of WYN032.039, Portable Ladders.
Section
4.4.4.
4. Electrical Equipment Use
Requirements of WYN032.038, Portable Electric
Power Tools.
Section
4.4.5.
5. Ventilation
See blower requirements on Entry Permit.
Section
4.4.6.
6. Welding & Cutting Requirements of
· WYN032.011, Hot Work Permits, and
· WYN032.007, Personal Protective Equipment.
8 Entry
Section
4.4.7.
7. Entry into Tank Cars & Tank Trucks Requirements of
· WYN032.028, Loading and Unloading of Railcars, and
· WYN032.017, Grounding and Bonding of Non-stationary Equipment.
4.
PROCEDURE cont’d.
4.3.
Permits cont’d.
Step Topic BC032.017 Compliance Additional Site Requirements 8 (cont’d) Entry (cont’d) Sections 4.4.8. and 4.5.8.
Atmospheric Conditions· An Entry Permit will not be issued for Confined Spaces containing less than 19.5% or greater than 21% oxygen. · The oxygen analyzer must be in close proximity to the
entrants at all times.
· An Entry Permit will not be issued for Confined Spaces with any detections on the combustible gas meter. · The combustible gas meter must be in close proximity to
the entrants at all times.
· Monitoring for toxic level gases will be conducted if a Confined Space contains or has contained a toxic material which can be detected by direct-read methods. The entry supervisor will consult, as necessary, with EHS to
determine applicable direct read methods.
· In situations where the concentration cannot be maintained below the permissible limit, EHS is contacted to evaluate acceptability of issuing a permit and assist in determining the appropriate ppe and other equipment necessary for safe entry.
· Where a potential hazardous atmosphere is being generated during the course of the entry operations, such as during welding or burning, supplied air respiratory protection is required unless testing has been conducted to verify the absence of a hazardous atmosphere and the space is being ventilated.
· When conducting excavations, the project-specific IH protocol outlined in the Project Excavation Guide (PEG) obtained from the M.E.S.S. Team for soil excavations must be followed.
· Periodic toxic level re-testing or continuous monitoring may be required due to changing conditions or creation of toxic conditions (e.g. welding, etc.).
· All testing will be documented on the Permit with the test date and time, acceptable level (including toxics), test result and the date of the last span gas check or calibration and tester’s initials.
· Entrants must be notified of their right to witness (or have a designated representative witness) any atmospheric testing performed within the Confined Space as required in the 1999 OSHA Standard clarification.
· The entrant can request re-testing of the atmosphere anytime there is a reasonable belief that atmospheric conditions within the Confined Space have significantly changed.
4.
PROCEDURE cont’d.
4.3.
Permits cont’d.
Step Topic BC032.017 Compliance Additional Site RequirementsSection 4.4.8 9. Physical Hazards
§ Heat, humidity, and cold stress hazards during Confined Space Entry shall be controlled to prevent adverse health effects to Authorized Entrants.
10. Required Entry Equipment
· Each entry must have the equipment specified on the Entry Permit unless appropriately excepted with Process Owner (or staff-level designee) and Maintenance Team Leader (or Maintenance Facilitator) signature.
4.4.
Monitoring
·
Monitoring must be consistent with that specified in Sections 4.5.,
BC032.017, Confined Space Entry, and
·
Additional site requirements are as follows:
Topic BC032.017Compliance
Additional Site Requirements
Section 4.5.1. 1. Maintenance and Calibration
· Site procedure WYN032.040, Maintenance of
Combustible Gas and Oxygen Detectors.
Section 4.5.3, 2. Order of Testing - Same as Corporate Standard. Section 4.5.4. 3. Frequency
§ The atmosphere in the Confined Space shall be monitored continuously during the Entry activities for oxygen.
§ The atmosphere in the Confined Space shall be monitored continuously during the Entry activities for flammable gases/vapors when work activities to be performed in a Confined Space are expected to generate flammable gases/vapors or when the confined space has contained flammable gases/vapors. In situations where continuous monitoring is technically infeasible, pre-determined periodic monitoring shall be conducted as
appropriate.
§ Confined Spaces that contain toxic
gases/vapors/mists shall be evaluated to determine the appropriate sampling frequency that will
accurately assess the atmospheric exposure. Air
Testing
Section 4.5.5. 4. Entry Permit Documentation
4.5.
Rescue
·
Rescue Services must be consistent with that specified in Sections 4.6.,
BC032.017, Confined Space Entry, and
·
Additional site requirements are as follows:
Topic BC032.017 Compliance Additional Site Requirements Section 4.6.1. 1. Retrieval System· Full body harnesses with retrieval lines attached to a mechanical device or fixed point are required for all entries unless the design of the space prohibits use or creates greater hazard.
· Exceptions to use of harnesses, lines and/or mechanical or fixed point retrieval systems must be written on the Entry Permit. Rescue
Section 4.6.2.
2. Rescue Services
· Non-entry methods of rescue will be used first.
· Attendants are trained to perform non-entry rescue; however, prior to initiating non-entry rescue, the attendant must notify at least two members of the rescue team.
· In no case will a person attempt non-entry or entry rescue without training according to the requirements of this program.
3. Rescue Team Organization
· The site rescue team may be comprised of maintenance, production and site services personnel.
· Rescue Team activities are overseen by the Site Safety COE. · The Rescue Team Roster is posted on the Intranet.
4. Rescue Team Notification
· Members of the rescue team must be notified that a Confined Space entry is taking place before the entry permit is authorized.
· A minimum of two rescue team members must be on site and available for timely response for all Confined Space entries.
· Any member of the rescue team may be contacted.
· Solicitation of rescue team members for planned off-shift entries must be performed during the day-shift prior to the off-shift entry.
· The contacted rescue team member is responsible for advising the Entry Supervisor (Permit Issuer) if more than two members are needed for that entry.
· Requests for additional rescue team members may be made by Operations/Owning or maintenance performing the entry.
· The Entry Supervisor (Permit Issuer) is responsible for contacting all necessary rescue team members to establish a rescue team for that entry.
5. Rescue Team Communication
· A method of summoning rescue (i.e., radios, pagers, etc.) must be established prior to commencement of entry operations and noted in the "Instructions to Summon Rescue" section of the permit.
· The Confined Space entry attendant will contact the rescue team via the established method in the event that a rescue may be necessary. · Drills to practice summoning rescue and evaluate response time shall
be conducted periodically.
4.
PROCEDURE cont’d.
4.5.
Rescue cont’d.
Topic BC032.017 Compliance Additional Site Requirements Rescue (cont’d)6. Rescue Team Equipment
· Rescue equipment is contained in the Rescue Team trailer. · The equipment is maintained by members of the CS
Rescue Team.
· An equipment list is maintained by the Site Safety COE Confined Space Optimization Team.
· Inventory and inspection of rescue equipment is the responsibility of the Rescue Team.
· Annual inspection is to be conducted on all Rescue Equipment.
4.6.
Training
·
Training for Permit Issuers, Entrants, Atmosphere Testers, and Rescue
Services must be consistent with that specified in Sections 4.7.1 and 4.7.2
BC032.017, Confined Space Entry, and the check list contained in
Attachment 1 specifying the Confined Space Training requirements.
·
Additional site requirement are as follows:
Topic BC032.017Compliance
Additional Site Requirements
Frequency Section 4.7.4. · More frequent requirements are specified in other procedures (such as First Aid/CPR – 24 months, Respiratory Protection and Bloodborne Pathogens – 12 months).
Document ation
Section 4.7.5. · Training documents are maintained by the individual's Business Unit with the exception of those exclusive to the Rescue Team (Rescue Training, Drill Records, etc.).
· Rescue Team-specific training records are maintained by the Site Safety COE Confined Space Optimization Team.
Contractor Training
Section 4.7.6. The Permit Issuer:
· Verify contractors have the necessary confined space training prior to issuing permit.
· Ensure the contractor has received proper orientation in accordance with
WYN032.006, Contractor EHS Qualification, Orientation and Oversight.
· Inform contractor that Confined Spaces exist and entrance is only allowed in compliance with BASF Confined Space entry program.
· Inform the contractor of the hazards associated with the Confined Space. · Advise contractor of BASF policies and procedures for the protection of
employees.
· Debrief the contractor of any hazards confronted or created during entry operations at the conclusion of the entry.
4.
PROCEDURE cont’d.
4.6.
Training cont’d.
Topic BC032.017 Compliance Additional Site Requirements Contractor Training (cont’d) Section 4.7.6. (cont’d)· Provide rescue team service when it is not provided by the contractor.
·
4.7.
Management System Review
An annual review of the Confined Space Program shall be conducted to verify
effectiveness of the Confined Space Entry program and practices.
As a minimum, the following elements of the Confined Space Entry management
system shall be included in the review:
·
Review the site procedure and permit to ensure all currently required elements
are included.
·
A review of all incidents and other nonconformance reports involving Confined
Space Entry activities that have occurred since the last Confined Space Entry
management system annual review. The review should verify root causes
have been properly identified and appropriate corrective actions have been
implemented.
·
Inspection of at least one Confined Space Entry job-in-progress to verify site
practices comply with the site procedure. Verification of the training personnel
involved in this job-in-progress have received.
·
Interviews with a representative number of Permit Issuers, persons performing
Confined Space Entry, and other affected employees, including Contractor and
Contracted Employees where applicable, to verify they understand their
role/responsibility.
·
A review of applicable equipment and instrument maintenance and calibration
records.
The review shall be documented. For an example, see the Confined Space
Management Review Checklist in Appendix 3 of BC032.017, Confined Space
Entry.
5.
RESPONSIBILITIES
5.1.
Confined Space Entrants, Attendants, Permit Issuers, Permit Acceptors and
Rescue Personnel
Have responsibility for
·
understanding and adhering to the requirements contained in this and the
5.1.1. Duties of Entrant
·
By way of signature on the entry permit the entrant attests that they are
properly trained and able to recognize the hazards associated with entry,
and understands the consequences of exposure to the hazards.
·
The entrant must maintain contact with the attendant and notify the
attendant if he/she recognizes a warning sign of exposure to hazards,
detects a prohibited condition, or before initiating an evacuation from the
Confined Space.
·
The entrant is trained and understands how to use equipment such as air
monitors, radios, lighting, rescue devices, blowers, personal protective
equipment, barricades, etc.
·
The entrant is trained and knows that they must exit the Confined Space if:
·the attendant orders an evacuation,
·
an automatic alarm is activated, or
·
the entrant feels they may be in danger.
5.1.2. Duties of Attendant
By way of signature on the entry permit the attendant attests that they are
properly trained so that they:
·
may serve as Confined Space watch while an entry is in progress,
·devote his/her entire attention to that task,
·
know and recognize the hazards associated with Confined Space
entry,
·
understand the consequences of exposure to the hazards,
·know how to recognize the symptoms of exposure in others.
·be in constant communication with the entrants,
·
order an entrant out of the Confined Space if they detect:
·a prohibited condition or unusual behavior;
·
any condition outside of the Confined Space that could endanger
the entrant;
·
report to their supervisor when they cannot effectively perform their
duties.
·
control access to the space, keep an accurate count of entrants,
and allow only trained entrants to enter the Confined Space,
·
keep unauthorized people away from the space,
·
notify emergency rescue personnel via emergency radio channel 6
before taking any other actions then initiate non-entry rescue
·
do not enter a Confined Space for a rescue unless they are relieved
by another trained attendant.
·
Any person entering a Confined Space for rescue must be trained in
Confined Space entry rescue techniques per the requirements
outlined in Section 4.7.
5.2.
Duties of Entry Supervisors (Permit Issuer)
The Permit Issuer
·
verifies entrants and attendants have signed the entry permit attesting to
proper training, equipment and instruction for safe entry.
·
understands and communicates the hazards of the Confined Space,
·
verifies that required atmospheric monitoring has been conducted and is
within acceptable limits.
·
verifies Lock, Tag and Try procedures have been followed and all hazardous
energy sources addressed.
·
verifies that all necessary equipment is in place, and
·
verifies that Rescue Team members are on-site and notified of entry and a
means for summoning the Rescue Team members via radio or other
arrangements are effective before signing the permit.
·
terminates the entry and ensures the attendant understands that
unauthorized individuals cannot enter the Confined Space, and
·
obtains the necessary exception signatures, as necessary.
·
Notifys Rescue Services that the work is complete and permit terminated.
5.3.
Duties of Permit Acceptor
·
The Permit Acceptor attests that the service person entering the Confined
Space meets all training requirements for Confined Space Entry.
·
Reviews details of each entry with the Permit Issuer to ensure compliance with
applicable Corporate and Site Standards.
·
Signs the Entry Permit certifying achievement of requirements for each entry.
·
Signs for equipment or condition exceptions along with the Process Owner (or
trained staff-level designee) in the appropriate section of the Entry Permit.
5.4.
Duties of Contractors
·
The confined space contractor is responsible for maintaining a confined space
entry program that complies with BASF and MIOSHA requirements.
·
The contractor provides the written program to BASF upon prequalification
request and periodically upon request, thereafter.
·
The contractor attests that their confined space employees comply with the
BASF permit-required Confined Space program and have the training necessary
to comply with MIOSHA and BASF requirements.
·
Obtains the necessary permits (Safework, Hotwork, Confined Space) prior to
conducting work.
·
Obtains necessary information from BASF regarding permit space hazards.
·Coordinates entry operations with BASF personnel.
·
Informs BASF of any hazards created or observed in a Confined Space.
5.5.
Site General Manager
Responsible for site-wide implementation of this procedure.
5.6.
MI/Canada EHSHub
Responsibility for the initiation, issuance, administration, auditing and
interpretation of this procedure and reviewing/approving contractor company
qualifications and programs in accordance with WYN032.006, Contractor
Selection, Orientation and Oversight.
5.7.
Unit Manager/Process Owner
·
Primarily responsible for Unit implementation of this procedure.
·
Performs exception signature on the Entry Permit or delegates exception
signature authority to properly trained staff-level designee(s).
6.
RELATED DOCUMENTS
Attachment 1
Confined Space Training Checklist
Attachment 2
Confined Space Entry Permit
BC032.017
Corporate Confined Space Entry Standard
WYN032.002
Barricades – Temporary & Permanent
WYN032.006
Contractor Selection, Orientation and Oversight
WYN032.007
Personal Protective Equipment
WYN032.010
Lock, Tag & Try
WYN032.011
Hot Work Permit
WYN032.014
Respiratory Protection
WYN032.015
Scaffold Erection
WYN032.017
Grounding and Bonding of Non-stationary Equipment
WYN032.022
Chemical Protective Clothing
WYN032.023
Fire Extinguisher Use
WYN032.028
Loading and Unloading Railcars
WYN032.038
Portable Electric Power Tools
WYN032.039
Portable Ladders
WYN032.040
Maintenance of Combustible Gas and Oxygen Indicators
WYN032.042
Tobacco Smoking Policy
B. Not authorized to prepare/enter Confined Space
2. PERSONNEL WHO PREPARE CONFINED SPACES FOR ENTRY
A. Definition of a Confined Space
B. Specific job duties authorized/not authorized to perform
C. Confined Space Entry (WYN032.018) (Prior to, Changes/Deficiencies, Every 3yrs.) D. Safe Work (WYN032.054)
E. Lock, Tag and Try (WYN032.010) (Prior to, Changes/Deficiencies, Every 3yrs.)
F. Personal Protective Equipment (per WYN032.007)(Prior to, Changes/Deficiencies, Periodic)
Other Training, Depending on Specific Duties
A. Equipment Specific Cleaning/Purging Procedures
B. Line Breaking Procedures (WYN032.001) (Prior to, Changes/Deficiencies, Every 3yrs.) C. Barricades (WYN032.002) (Prior to, Changes/Deficiencies)
D. Contaminated Equipment (WYN032.046) (Prior to, Changes/Deficiencies)
E. Respiratory Protection Procedure (WYN032.014) (Prior to, Changes/Deficiencies, Annual)
3. CONFINED SPACE ENTRANTS
A. All requirements for (2).
B. Respiratory Protection Procedures (WYN032.014)
C. Fire Extinguisher (WYN032.023) (Prior to, Changes/Deficiencies, Annual) D. Equipment/Job Specific Hazards of Confined Space Entry E. Prohibited Conditions for Confined Space Entry
F. Communications Procedures with Attendant
Other Training, Depending on Specific Duties
A. Hot Work Permits (WYN032.011) (Prior to, Changes/Deficiencies, Every 3yrs.) B. Scaffold Erection (WYN032.015) (Prior to, Changes/Deficiencies)
C. Chemical Protective Clothing (WYN032.022) (Prior to, Changes/Deficiencies)
4. CONFINED SPACE ATTENDANT
A. All requirements for (3) B. Non-Entry Rescue C. Entry Rescue Procedures
D. Communication/Entrant Tracking Procedures E. Confined Space Entry Termination
5. CONFINED SPACE PERMIT ISSUER and ACCEPTOR
A. All requirements for (4)
B. Oxygen, Flammable, and Toxic Chemical Testing Procedures (Prior to, Changes/Deficiencies) C. Maint./Calib. Combustible Gas & O2Indicators (WYN032.040) (Prior to, Changes/Deficiencies)
D. Hot Work Permits (WYN032.011) (Prior to, Changes/Deficiencies, Every 3yrs.) E. Confined Space Permit Preparation/Verification
6. CONFINED SPACE RESCUE PERSONNEL
A. All requirements for (5A & 5B)
B. Formal Rescue Technique Training (Prior to, Changes/Deficiencies, Annual per Corp. S&H Policy 44) C. First Aid/CPR (Prior to, Every 2yrs.)
E. Blood Borne Pathogens. (Prior to, Annual) F. Annual Rescue Drill
Other Training, Depending on Specific Duties A. HAZWOPER Technician-level (Prior to, Annual)
B. Hot Work Permits (WYN032.011) (Prior to, Changes/Deficiencies, Every 3yrs.)
7. PERSONNEL ALLOWED TO EXCEPT CONFINED SPACE REQUIREMENTS
A. All requirements for (5)
By signing below I attest that I have received the necessary training, instruction and equipment to safely conduct this entry. NAME (PRINT) SIGNATURE
RESCUE/EMERGENCY SERVICES
NAME Contacted? NAME Contacted?
MEANS OF COMMUNICATION: (Entrant to Attendant)
□
VERBAL/VISUAL□
RADIO□
OTHER (specify)INSTRUCTIONS TO SUMMON RESCUE:
TIME
REVALIDATION TESTING
: AM/PM : AM/PM : AM/PM : AM/PM : AM/PM : AM/PM : AM/PM : AM/PM
TESTING RECORD
Acceptable Parameter ConditionsRESULTS
Oxygen 19.5%-21% Flammability0% LEL
Toxics (Specify)Tester
Initials
Comb Gas/02 Monitor Make/#:
Span Gas Test Date:
Tube/Instrument Used for Toxics:
Expiration or Span Gas Test Date:
EQUIPMENT REQUIRED FOR ENTRY (check to confirm available)□
FIRE EXTINGUISHER□
LADDER□
TWO-WAY RADIO FOR ATTENDANT□
SUPPLIED AIR RESPIRATORS□
SAFETY HARNESS & LINE□
LIGHTING□
AIR MOVER (E.G. BLOWER)□
OTHER(List)□
COMB. GAS / O2 MONITOR□
GFCI□
NON ENTRY RESCUE EQUIPMENT□
Entry equipment has been inspected and/or tried and found to be in good working order. Initials: HAZARDS OF CONFINED SPACE:EXCEPTIONS AND/OR SPECIAL INSTRUCTIONS: EXCEPTION SIGNATURES:
____________________________________ _____________________________________ PROCESS OWNER (OR DESIGNEE) MAINTENANCE TEAM LEADER/FACILITATOR
ADDITIONAL PERMITS ISSUED (check all that apply)
***SAFE WORK Permit#
□
HOT WORK□
LOCK, TAG, TRY□
OTHERI have inspected each requirement and attest that this work will be done in compliance with the Safe Work Procedure
(WYN032.054), Confined Space Standard (WYN032.018), Lock, Tag & Try of Hazardous Energy Sources
SIGNATURES: ___________________________ ____________________ _____________________________
New Permit Issuer Issued Date/Time Permit Acceptor
Problems encountered during entry:
ATTENDANT INFORMATION
STATION LOCATION:
_____________________________________________________________________________
DUTIES:
______________________________________________________________________________________
PERMIT TERMINATION
INITIALS: ______ DATE/TIME: _____/______ REASON: ______ ______ ______ ______ ______ ______ ______ EQUIPMENT
The following equipment is required to be present/utilized for confined space entry:
Fire Extinguisher - This item is a requirement for which an exception is NOT permitted. The fire extinguisher must be placed near the confined space entry port.
Safety Harness and Line - This item is required to be worn by each person who enters the confined space. An exception is permitted only when the confined space design prohibits use of the harness and tag line for rescue.
Continuous Flammable Vapor and O2 Monitor - This item is a requirement for which an exception is not permitted. This monitor must be hung inside the confined space in close proximity to the entrants.
Ladder (Secured in place) - This item must be secured in place if it is needed for entry or exit. This item may not be excepted if it is required for exit or entry.
Lighting - This item may be excepted if lighting is not required for visibility and work will be completed prior to sunset. Lighting will have guards to prevent contact with the bulb.
GFCI (Ground Fault Circuit Interrupter) - Electrical devices taken into a confined space (including lighting) must be protected by a 110 VAC GFCI or have self-contained batteries. The GFCI MUST BE TESTED PRIOR TO CONFINED SPACE ENTRY. The Electrical classification of the area may necessitate more stringent standards.
Two-Way Radio for Attendant - This item may only be excepted if an alternate means of communicate is available which does not require the attendant to leave the space.
Air Mover (Blower) - This item is required to be placed and operating to blow fresh air into the confined space. IT IS UNSAFE AND NOT ACCEPTABLE to only exhaust air from the confined space such that fresh air is drawn in; It is acceptable to utilize local exhaust ventilation at a point source of contamination (e.g. welding) while blowing fresh air in.
Non-Entry Rescue Equipment - This item may NOT be excepted.
Supplied Air Respirator (SAR) - If the Confined Space does not achieve necessary air quality parameters (Toxicity <PEL, LEL=0% and Oxygen = 19.5 -21%) or air quality cannot be guaranteed by means of monitoring, or changing conditions (i.e. painting, welding, etc.) may compromise the integrity of air quality, SARs must be used by the Entrants and be available to the Attendant.
If the hazardous material can be monitored meets air quality criteria (toxicity, LEL and Oxygen) and changing conditions are not
expected, SARs may be excepted by designated Operations/Owning personnel trained and authorized for exception signatures. Excavations:
Excavation SARs may be excepted if the requirements below are also met: 1. One side has a slope of 1:1 or shallower.
2. An air mover of sufficient size to cause noticeable air movement at the bottom of the excavation is used. NOTES:
SARs shall be tested outside the confined space for a minimum of 10 seconds prior to entry in order to assess working condition. In addition, all fit test, medical clearance, training, donning/doffing and respirator inspection provisions of the Unit Respirator Program applies.
