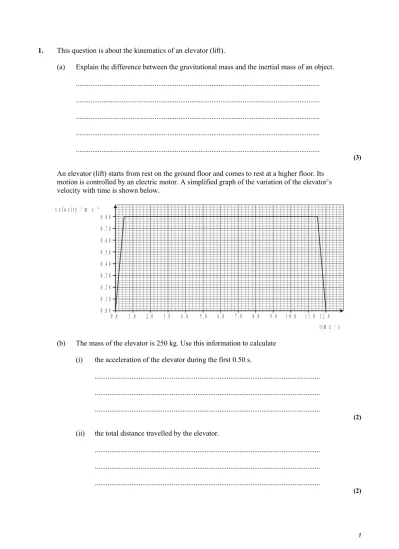

1. This question is about the kinematics of an elevator (lift).
(a) Explain the difference between the gravitational mass and the inertial mass of an object.
... ... ... ... ...
(3)
An elevator (lift) starts from rest on the ground floor and comes to rest at a higher floor. Its motion is controlled by an electric motor. A simplified graph of the variation of the elevator’s velocity with time is shown below.
0 . 8 0 0 . 7 0 0 . 6 0 0 . 5 0 0 . 4 0 0 . 3 0 0 . 2 0 0 . 1 0 0 . 0 0
0 . 0 1 . 0 2 . 0 3 . 0 4 . 0 5 . 0 6 . 0 7 . 0 8 . 0 9 . 0 1 0 . 0 1 1 . 0 1 2 . 0 t i m e / s v e l o c i t y / m s – 1
(b) The mass of the elevator is 250 kg. Use this information to calculate
(i) the acceleration of the elevator during the first 0.50 s.
... ... ...
(2)
(iii) the minimum work required to raise the elevator to the higher floor.
... ... ...
(2)
(iv) the minimum average power required to raise the elevator to the higher floor.
... ... ...
(2)
(v) the efficiency of the electric motor that lifts the elevator, given that the input power
to the motor is 5.0 kW.
... ... ...
(2)
(c) On the graph axes below, sketch a realistic variation of velocity for the elevator. Explain
your reasoning. (The simplified version is shown as a dotted line)
0 . 8 0 0 . 7 0 0 . 6 0 0 . 5 0 0 . 4 0 0 . 3 0 0 . 2 0 0 . 1 0 0 . 0 0
0 . 0 1 . 0 2 . 0 3 . 0 4 . 0 5 . 0 6 . 0 7 . 0 8 . 0 9 . 0 1 0 . 0 1 1 . 0 1 2 . 0 t i m e / s v e l o c i t y / m s – 1
The elevator is supported by a cable. The diagram below is a free-body force diagram for when the elevator is moving upwards during the first 0.50 s.
t e n s i o n
w e i g h t
(d) In the space below, draw free-body force diagrams for the elevator during the following
time intervals.
(i) 0.5 to 11.50 s (ii) 11.50 to 12.00 s
(3)
A person is standing on weighing scales in the elevator. Before the elevator rises, the reading on
the scales is W.
(e) On the axes below, sketch a graph to show how the reading on the scales varies during the
whole 12.00 s upward journey of the elevator. (Note that this is a sketch graph – you do
not need to add any values.)
r e a d i n g o n s c a l e s
(f) The elevator now returns to the ground floor where it comes to rest. Describe and explain the energy changes that take place during the whole up and down journey.
... ... ... ... ... ...
(4) (Total 25 marks)
2. This question is about projectile motion.
A marble is projected horizontally from the edge of a wall 1.8 m high with an initial speed V.
g r o u n d 1 . 8 m
A series of flash photographs are taken of the marble. The photographs are combined into a single photograph as shown below. The images of the marble are superimposed on a grid that
shows the horizontal distance x and vertical distance y travelled by the marble.
The time interval between each image of the marble is 0.10 s.
0
– 0 . 5 0
– 1 . 0
– 1 . 5
– 2 . 0
0 0 . 5 0 1 . 0 1 . 5 2 . 0
x / m
y / m
(a) On the images of the marble at x = 0.50 m and x = 1.0 m, draw arrows to represent the
horizontal velocity VH and vertical velocity VV.
(2)
(b) On the photograph, draw a suitable line to determine the horizontal distance d from the
base of the wall to the point where the marble hits the ground. Explain your reasoning. ... ... ...
(3)
(c) Use data from the photograph to calculate a value of the acceleration of free fall.
3. This question is about linear motion.
A police car Pis stationary by the side of a road. A car S, exceeding the speed limit, passes the
police car P at a constant speed of 18 m s–1. The police car P sets off to catch car S just as car S
passes the police car P. CarPaccelerates at 4.5 m s–2 for a time of 6.0 s and then continues at
constant speed. Car Ptakes a time t seconds to draw level with car S.
(a) (i) State an expression, in terms of t, for the distance car S travels in t seconds.
...
(1)
(ii) Calculate the distance travelled by the police carPduring the first 6.0 seconds of its
motion.
... ...
(1)
(iii) Calculate the speed of the police carPafter it has completed its acceleration.
... ...
(1)
(iv) State an expression, in terms of t, for the distance travelled by the police car P
during the time that it is travelling at constant speed.
...
(1)
(b) Using your answers to (a), determine the total time t taken for the police car Pto draw
level with car S.
... ... ...
4. Linear motion
At a sports event, a skier descends a slope AB. At B there is a dip BC of width 12 m. The slope and dip are shown in the diagram below. The vertical height of the slope is 41 m.
A
B C D
4 1 m
s l o p e
( n o t t o s c a l e )
1 . 8 m
d i p 1 2 m
The graph below shows the variation with time t of the speed v down the slope of the skier.
2 5 . 0
2 0 . 0
1 5 . 0
1 0 . 0
5 . 0
0 . 0
8 . 0 7 . 0 6 . 0 5 . 0 4 . 0 3 . 0 2 . 0 1 . 0 0 . 0
v / m s– 1
t / s
The skier, of mass 72 kg, takes 8.0 s to ski, from rest, down the length AB of the slope.
(a) Use the graph to
(ii) determine the length of the slope.
... ... ... ... ...
(4)
(b) (i) Calculate the change EP in the gravitational potential energy of the skier between
point A and point B.
... ... ...
(2)
(ii) Use your answers to (a) and (b)(i) to determine the average retarding force on the
skier between point A and point B.
... ... ... ...
(3)
(iii) Suggest two causes of the retarding force calculated in (ii).
1. ... 2. ...
(2)
(c) At point B of the slope, the skier leaves the ground. He “flies” across the dip and lands on
the lower side at point D. The lower side C of the dip is 1.8 m below the upper side B. Determine the distance CD of the point D from the edge C of the dip. Air resistance may be assumed to be negligible.
(d) The lower side of the dip is altered so that it is inclined to the horizontal, as shown below.
s l o p e B C D
d i p
1 2 m
1 . 8 m
(i) State the effect of this change on the landing position D.
... ...
(1)
(ii) Suggest the effect of this change on the impact felt by the skier on landing.
... ... ...
